> ( G L W 0 R G H O ( ' @
SAA3595
1. Temperature control buttons (driver side)
2. ª
º air recirculation button
3. ª
AUTOº auto-recirculation button (models
with Advanced Climate Control System)/ªº
Outside air circulation button (models without
Advanced Climate Control System)
4. ª
FRONTº front defroster button 5. Display
6. ª
REARº rear window defroster button (See
ªRear window and outside mirror defroster
switchº (P.2-32) .)
7. Temperature control buttons (passenger side)
8. ªMODEº manual air flow control button
9. ªON´OFFº button for air conditioning system 10. ªAUTOº button
11. ª
º fan speed control buttons
12. ªA/Cº air conditioner ON/OFF button
13. ªREARº control button
14. ªDUALº zone control ON/OFF button
AUTOMATIC AIR CONDITIONERGUID-26808BE2-2D7D-4D4F-81C9-3D2D1185C3FD
Automatic operation (AUTO)GUID-D3349AE0-1D21-4681-9BC9-F5E415C17B3AThe AUTO mode may be used year-round as the
system automatically controls constant tempera-
ture, air flow distribution and fan speed after the
desired temperature is set manually.
To turn the heater and air conditioner on or off,
push the ªON´OFFº button.
Cooling and dehumidified heating:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push the ªAUTOº button.
(The AUTO indicator light will illuminate.)
2. If the A/C indicator light does not illuminate, push the ªA/Cº button.
(The A/C indicator light will illuminate.)
3. Push the temperature control buttons
(ª
º and ªº) (driver's side) to set the
desired temperature.
.When ªDUALº does not appear on the display:
Pushing the ªAUTOº button changes
both the driver's and front passenger's
side temperature.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-49
& R Q G L W L R Q
Page 232 of 491
> ( G L W 0 R G H O ( ' @
4-50Monitor, heater, air conditioner, audio, phone and voice recognition systems

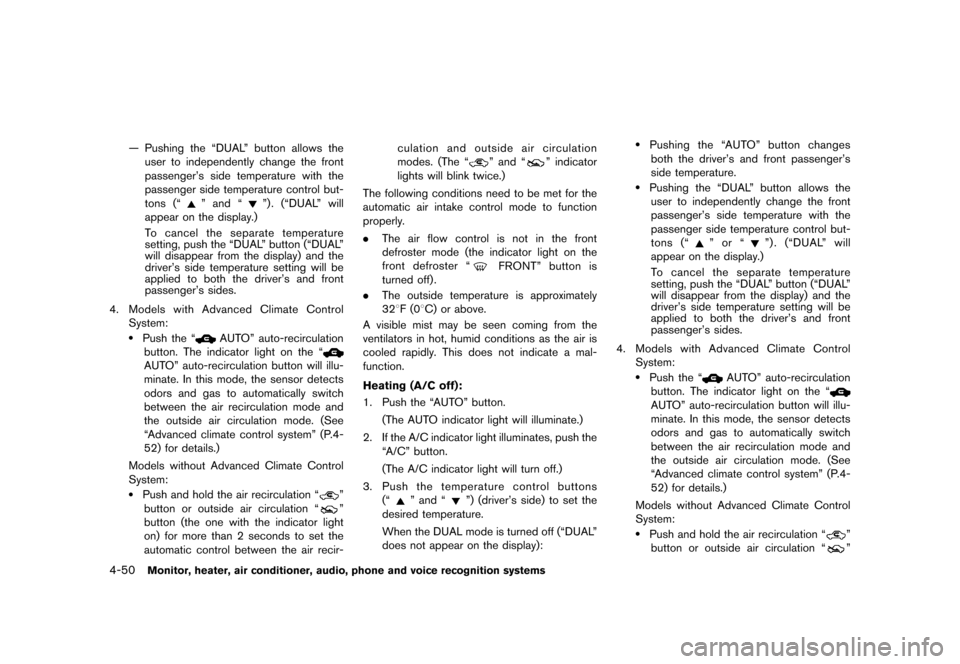

Ð Pushing the ªDUALº button allows theuser to independently change the front
passenger's side temperature with the
passenger side temperature control but-
tons (ª
º and ªº) . (ªDUALº will
appear on the display.)
To cancel the separate temperature
setting, push the ªDUALº button (ªDUALº
will disappear from the display) and the
driver's side temperature setting will be
applied to both the driver's and front
passenger's sides.
4. Models with Advanced Climate Control
System:
.Push the ªAUTOº auto-recirculation
button. The indicator light on the ª
AUTOº auto-recirculation button will illu-
minate. In this mode, the sensor detects
odors and gas to automatically switch
between the air recirculation mode and
the outside air circulation mode. (See
ªAdvanced climate control systemº (P.4-
52) for details.)
Models without Advanced Climate Control
System:
.Push and hold the air recirculation ªº
button or outside air circulation ª
º
button (the one with the indicator light
on) for more than 2 seconds to set the
automatic control between the air recir- culation and outside air circulation
modes. (The ª
º and ªº indicator
lights will blink twice.)
The following conditions need to be met for the
automatic air intake control mode to function
properly.
. The air flow control is not in the front
defroster mode (the indicator light on the
front defroster ª
FRONTº button is
turned off).
. The outside temperature is approximately
328F (08C) or above.
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function.
Heating (A/C off):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push the ªAUTOº button.
(The AUTO indicator light will illuminate.)
2. If the A/C indicator light illuminates, push the ªA/Cº button.
(The A/C indicator light will turn off.)
3. Push the temperature control buttons
(ª
º and ªº) (driver's side) to set the
desired temperature.
When the DUAL mode is turned off (ªDUALº
does not appear on the display):
.Pushing the ªAUTOº button changes both the driver's and front passenger's
side temperature.
.Pushing the ªDUALº button allows the user to independently change the front
passenger's side temperature with the
passenger side temperature control but-
tons (ª
º or ªº) . (ªDUALº will
appear on the display.)
To cancel the separate temperature
setting, push the ªDUALº button (ªDUALº
will disappear from the display) and the
driver's side temperature setting will be
applied to both the driver's and front
passenger's sides.
4. Models with Advanced Climate Control
System:
.Push the ªAUTOº auto-recirculation
button. The indicator light on the ª
AUTOº auto-recirculation button will illu-
minate. In this mode, the sensor detects
odors and gas to automatically switch
between the air recirculation mode and
the outside air circulation mode. (See
ªAdvanced climate control systemº (P.4-
52) for details.)
Models without Advanced Climate Control
System:
.Push and hold the air recirculation ªº
button or outside air circulation ª
º
& R Q G L W L R Q
Page 233 of 491
> ( G L W 0 R G H O ( ' @
button (the one with the indicator light
on) for more than 2 seconds to set the
automatic control between the air recir-
culation and outside air circulation
modes. (The ª
º or ªº indicator
light will blink twice.)
The following conditions need to be met for the
automatic air intake control mode to function
properly.
. The air flow control is not in the front
defroster mode (the indicator light on the
front defroster ª
FRONTº button is
turned off).
. The outside temperature is approximately
328F (08C) or above.
NOTE:
. Do not set the temperature lower than
the outside air temperature. Doing so
may prevent the temperature from
being controlled properly.
. To dehumidify the air, push the ªA/Cº
button before turning on the heater.
Dehumidified defrosting/defogging:

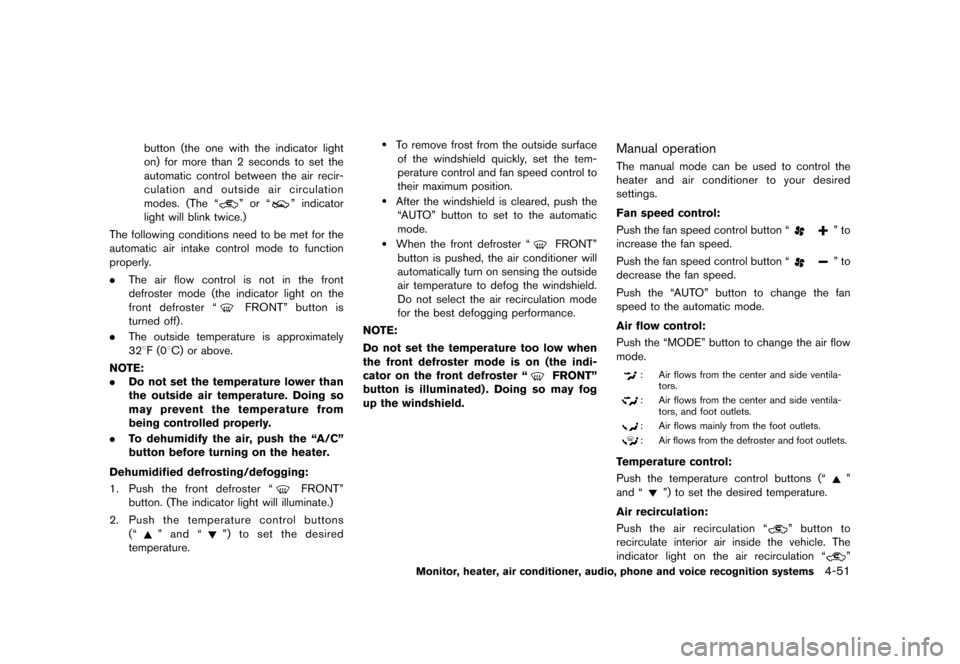

GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push the front defroster ªFRONTº
button. (The indicator light will illuminate.)
2. Push the temperature control buttons
(ª
º and ªº) to set the desired
temperature.
.To remove frost from the outside surface of the windshield quickly, set the tem-
perature control and fan speed control to
their maximum position.
.After the windshield is cleared, push the
ªAUTOº button to set to the automatic
mode.
.When the front defroster ªFRONTº
button is pushed, the air conditioner will
automatically turn on sensing the outside
air temperature to defog the windshield.
Do not select the air recirculation mode
for the best defogging performance.
NOTE:
Do not set the temperature too low when
the front defroster mode is on (the indi-
cator on the front defroster ª
FRONTº
button is illuminated) . Doing so may fog
up the windshield.
Manual operationGUID-5BB422CA-6F6D-4204-8723-4A4B9231097DThe manual mode can be used to control the
heater and air conditioner to your desired
settings.
Fan speed control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the fan speed control button ªº to
increase the fan speed.
Push the fan speed control button ª
º to
decrease the fan speed.
Push the ªAUTOº button to change the fan
speed to the automatic mode.
Air flow control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the ªMODEº button to change the air flow
mode.
: Air flows from the center and side ventila- tors.
: Air flows from the center and side ventila-tors, and foot outlets.
: Air flows mainly from the foot outlets.
: Air flows from the defroster and foot outlets.
Temperature control:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the temperature control buttons (ªº
and ª
º) to set the desired temperature.
Air recirculation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the air recirculation ªº button to
recirculate interior air inside the vehicle. The
indicator light on the air recirculation ª
º
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-51
& R Q G L W L R Q
Page 234 of 491
> ( G L W 0 R G H O ( ' @
4-52Monitor, heater, air conditioner, audio, phone and voice recognition systems
button will illuminate.
The air recirculation mode cannot be activated
when the air conditioner is in the front defrosting
mode.
Outside air circulation:

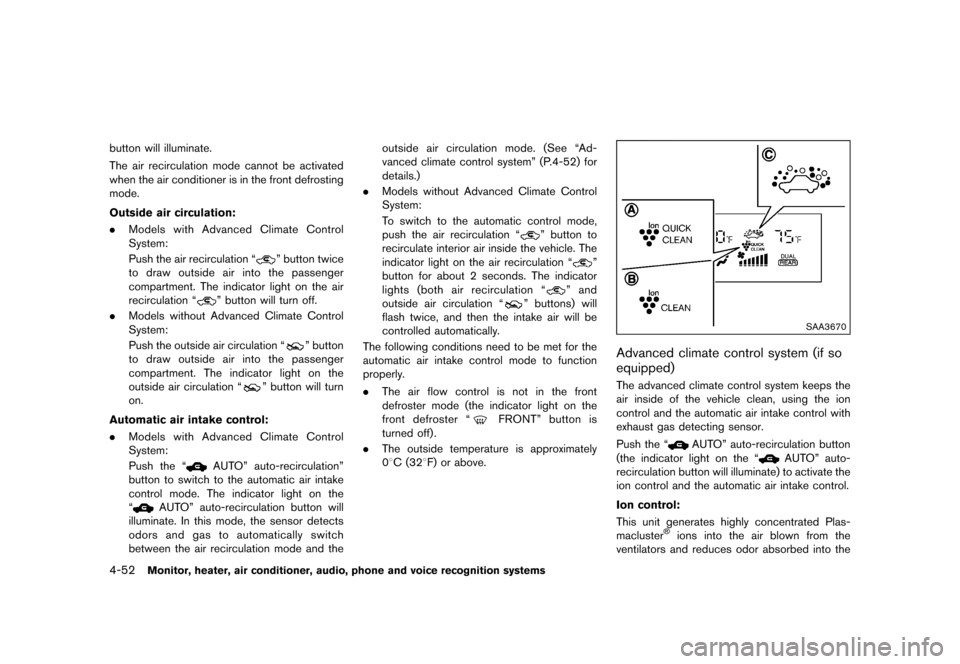

GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.Models with Advanced Climate Control
System:
Push the air recirculation ª
º button twice
to draw outside air into the passenger
compartment. The indicator light on the air
recirculation ª
º button will turn off.
. Models without Advanced Climate Control
System:
Push the outside air circulation ª
º button
to draw outside air into the passenger
compartment. The indicator light on the
outside air circulation ª
º button will turn
on.
Automatic air intake control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Models with Advanced Climate Control
System:
Push the ª
AUTOº auto-recirculationº
button to switch to the automatic air intake
control mode. The indicator light on the
ª
AUTOº auto-recirculation button will
illuminate. In this mode, the sensor detects
odors and gas to automatically switch
between the air recirculation mode and the outside air circulation mode. (See ªAd-
vanced climate control systemº (P.4-52) for
details.)
. Models without Advanced Climate Control
System:
To switch to the automatic control mode,
push the air recirculation ª
º button to
recirculate interior air inside the vehicle. The
indicator light on the air recirculation ª
º
button for about 2 seconds. The indicator
lights (both air recirculation ª
º and
outside air circulation ª
º buttons) will
flash twice, and then the intake air will be
controlled automatically.
The following conditions need to be met for the
automatic air intake control mode to function
properly.
. The air flow control is not in the front
defroster mode (the indicator light on the
front defroster ª
FRONTº button is
turned off).
. The outside temperature is approximately
08C (328F) or above.
SAA3670
Advanced climate control system (if so
equipped)
GUID-992F4241-5305-4CFF-A305-49BC8CE2F232The advanced climate control system keeps the
air inside of the vehicle clean, using the ion
control and the automatic air intake control with
exhaust gas detecting sensor.
Push the ª
AUTOº auto-recirculation button
(the indicator light on the ª
AUTOº auto-
recirculation button will illuminate) to activate the
ion control and the automatic air intake control.
Ion control:

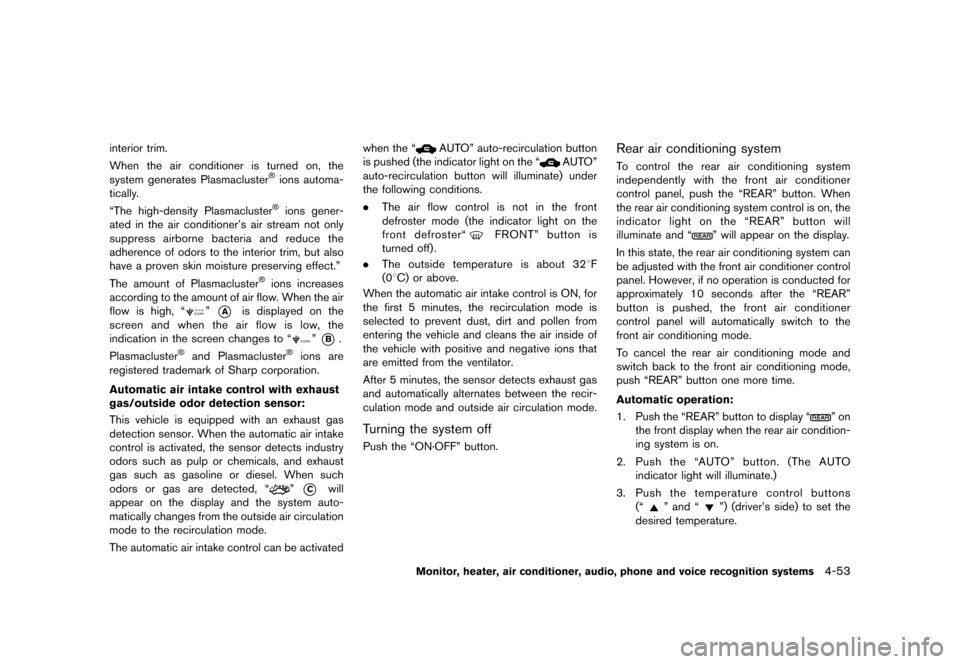

GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This unit generates highly concentrated Plas-
macluster
Page 235 of 491
> ( G L W 0 R G H O ( ' @
interior trim.
When the air conditioner is turned on, the
system generates Plasmacluster
Page 236 of 491
> ( G L W 0 R G H O ( ' @
4-54Monitor, heater, air conditioner, audio, phone and voice recognition systems

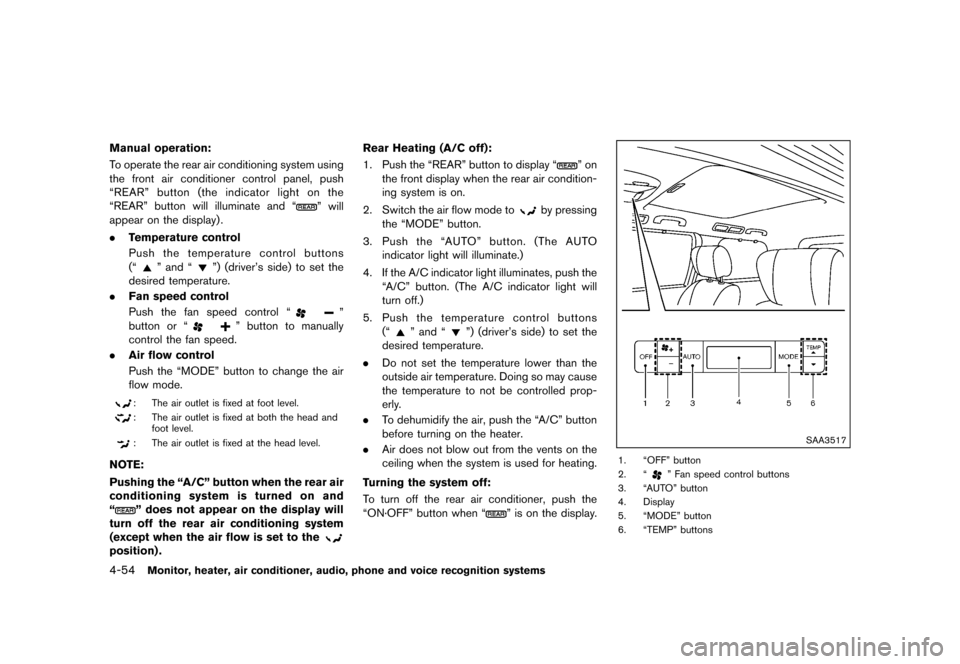

Manual operation:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To operate the rear air conditioning system using
the front air conditioner control panel, push
ªREARº button (the indicator light on the
ªREARº button will illuminate and ª
º will
appear on the display) .
. Temperature control
Push the temperature control buttons
(ª
º and ªº) (driver's side) to set the
desired temperature.
. Fan speed control
Push the fan speed control ª
º
button or ª
º button to manually
control the fan speed.
. Air flow control
Push the ªMODEº button to change the air
flow mode.
: The air outlet is fixed at foot level.
: The air outlet is fixed at both the head and
foot level.
: The air outlet is fixed at the head level.
NOTE:
Pushing the ªA/Cº button when the rear air
conditioning system is turned on and
ª
º does not appear on the display will
turn off the rear air conditioning system
(except when the air flow is set to the
position) . Rear Heating (A/C off):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push the ªREARº button to display ªº on
the front display when the rear air condition-
ing system is on.
2. Switch the air flow mode to
by pressing
the ªMODEº button.
3. Push the ªAUTOº button. (The AUTO
indicator light will illuminate.)
4. If the A/C indicator light illuminates, push the ªA/Cº button. (The A/C indicator light will
turn off.)
5. Push the temperature control buttons
(ª
º and ªº) (driver's side) to set the
desired temperature.
. Do not set the temperature lower than the
outside air temperature. Doing so may cause
the temperature to not be controlled prop-
erly.
. To dehumidify the air, push the ªA/Cº button
before turning on the heater.
. Air does not blow out from the vents on the
ceiling when the system is used for heating.
Turning the system off:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To turn off the rear air conditioner, push the
ªON´OFFº button when ª
º is on the display.
SAA3517
1. ªOFFº button
2. ª
º Fan speed control buttons
3. ªAUTOº button
4. Display
5. ªMODEº button
6. ªTEMPº buttons
& R Q G L W L R Q
Page 237 of 491
> ( G L W 0 R G H O ( ' @
Rear control buttons:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The rear seat passengers can adjust the rear
automatic air conditioning system using the
control switches located on the ceiling above
the rear seats (models with NISSAN mobile
entertainment system) or on the upper left side
of the second row seat (models without
NISSAN mobile entertainment system) .
The rear control buttons do not function when
ª
º is shown on the front display. To activate
the rear control buttons, push the ªREARº
button on the front air conditioner control panel
and cancel the rear air conditioner control mode
(ª
º will disappear from the front display) .
ªOFFº button: Turns off the rear air conditioning
system.
ª
º Fan speed control buttons: Adjust rear
fan speed
ªAUTOº button: Turns on/off the automatic
operation mode when rear air conditioning
system is on
ªMODEº button: Changes the rear air flow
ªTEMPº buttons: Adjust the rear temperature
SERVICING AIR CONDITIONERGUID-49EFA09B-8B66-4996-B958-EB215077419B
WARNING
The air conditioner contains refrigerant
under high pressure. To avoid personal
injury, any air conditioner service
should be done only by an experienced
technician with the proper equipment.
The air conditioner system in your vehicle is
charged with a refrigerant designed with the
environment in mind.
This refrigerant will not harm the earth's
ozone layer. However, it may contribute in a
small part to global warming.
Special charging equipment and lubricant are
required when servicing your vehicle's air con-
ditioner. Using improper refrigerants or lubri-
cants will cause severe damage to the air
conditioner system. (See ªAir conditioning sys-
tem refrigerant and lubricant recommendationsº
(P.9-6) .)
A NISSAN dealer will be able to service your
environmentally friendly air conditioner system.
IN-CABIN MICROFILTERGUID-FBD6ED65-584A-4CB3-A672-1784D5C222E1The climate control system is equipped with an
in-cabin microfilter which collects dirt, pollen,
dust, etc. To make sure the air conditioner heats,
defogs, and ventilates efficiently, replace the
filter in accordance with the maintenance
schedule in the NISSAN Service and Mainte-
nance Guide. To replace the filter, contact a
NISSAN dealer. A natural grape seed polyphe-
nol filter (if so equipped) collects and neutralizes
dirt, pollen, dust, etc.
The filter should be replaced if air flow is
extremely decreased or when windows fog
up easily when operating heater or air
conditioning system.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-55
& R Q G L W L R Q
Page 238 of 491
> ( G L W 0 R G H O ( ' @
4-56Monitor, heater, air conditioner, audio, phone and voice recognition systems
GUID-DEE09BFA-F9F0-4F3A-8CF1-2E40C6A905B2AUDIO OPERATION PRECAUTIONSGUID-F649D092-709A-4389-822E-A64492268E7E
RadioGUID-2F5EB0A0-5740-4071-919D-24C6BEEF766APush the ignition switch to the ACC or ON
position and push the radio band select button
to turn on the radio. If you listen to the radio with
the engine not running, the ignition switch
should be pushed to the ACC position.
Radio reception is affected by station signal
strength, distance from radio transmitter, build-
ings, bridges, mountains and other external
influences. Intermittent changes in reception
quality normally are caused by these external
influences.
Using a cellular phone in or near the
vehicle may influence radio reception
quality.
Radio reception:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Your NISSAN radio system is equipped with
state-of-the-art electronic circuits to enhance
radio reception. These circuits are designed to
extend reception range, and to enhance the
quality of that reception.
However there are some general characteristics
of both FM and AM radio signals that can affect
radio reception quality in a moving vehicle, even
when the finest equipment is used. These
characteristics are completely normal in a given
reception area, and do not indicate any mal-function in your NISSAN radio system.
Reception conditions will constantly change
because of vehicle movement. Buildings, terrain,
signal distance and interference from other
vehicles can work against ideal reception.
Described below are some of the factors that
can affect your radio reception.
Some cellular phones or other devices may
cause interference or a buzzing noise to come
from the audio system speakers. Storing the
device in a different location may reduce or
eliminate the noise.
SAA0306
FM radio reception:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Range: FM range is normally limited to 25 to 30
miles (40 to 48 km) , with monaural (single
channel) FM having slightly more range than
stereo FM. External influences may sometimes
interfere with FM station reception even if the
FM station is within 25 miles (40 km). The
strength of the FM signal is directly related to the
distance between the transmitter and receiver.
FM signals follow a line-of-sight path, exhibiting
many of the same characteristics as light. For
example they will reflect off objects.
Fade and drift: As your vehicle moves away from
a station transmitter, the signals will tend to fade
and/or drift.
AUDIO SYSTEM
& R Q G L W L R Q
Page 239 of 491
> ( G L W 0 R G H O ( ' @
Static and flutter: During signal interference from
buildings, large hills or due to antenna position,
usually in conjunction with increased distance
from the station transmitter, static or flutter can
be heard. This can be reduced by lowering the
treble setting to reduce the treble response.
Multipath reception: Because of the reflective
characteristics of FM signals, direct and re-
flected signals reach the receiver at the same
time. The signals may cancel each other,
resulting in momentary flutter or loss of sound.
AM radio reception:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407AM signals, because of their low frequency, can
bend around objects and skip along the ground.
In addition, the signals can be bounced off the
ionosphere and bent back to earth. Because of
these characteristics. AM signals are also
subject to interference as they travel from
transmitter to receiver.
Fading: Occurs while the vehicle is passing
through freeway underpasses or in areas with
many tall buildings. It can also occur for several
seconds during ionospheric turbulence even in
areas where no obstacles exist.
Static: Caused by thunderstorms, electrical
power lines, electric signs and even traffic lights.Satellite radio reception (if so equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the satellite radio is used for the first time
or the battery has been replaced, the satellite
radio may not work properly. This is not a
malfunction. Wait more than 10 minutes with the
satellite radio ON and the vehicle outside of any
metal or large building for the satellite radio to
receive all of the necessary data.
The satellite radio mode requires an active
SiriusXM Satellite Radio subscription. The sa-
tellite radio is not available in Alaska, Hawaii and
Guam.
The satellite radio performance may be affected
if cargo carried on the roof blocks the satellite
radio signal.
If possible, do not put cargo near the satellite
antenna.
A build up of ice on the satellite radio antenna
can affect satellite radio performance. Remove
the ice to restore satellite radio reception.
SAA0480
Compact Disc (CD) playerGUID-5AF76562-30BA-4FD4-872B-93FD85211876.
Do not force a compact disc into the CD
insert slot. This could damage the CD and/
or CD changer/player.
. Trying to load a CD with the CD door closed
could damage the CD and/or CD changer.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-57
& R Q G L W L R Q
Page 240 of 491
> ( G L W 0 R G H O ( ' @
4-58Monitor, heater, air conditioner, audio, phone and voice recognition systems
.During cold weather or rainy days, the player
may malfunction due to the humidity. If this
occurs, remove the CD and dehumidify or
ventilate the player completely.
. The player may skip while driving on rough
roads.
. The CD player sometimes cannot function
when the passenger compartment tempera-
ture is extremely high. Decrease the tem-
perature before use.
. Only use high quality 4.7 in (12 cm) round
discs that have the ªCOMPACT disc DIGI-
TAL AUDIOº logo on the disc or packaging.
. Do not expose the CD to direct sunlight.
. CDs that are of poor quality, dirty, scratched,
covered with fingerprints, or that have pin
holes may not work properly.
. The following CDs may not work properly:
Ð Copy control compact discs (CCCD)
Ð Recordable compact discs (CD-R)
Ð Rewritable compact discs (CD-RW)
. Do not use the following CDs as they may
cause the CD player to malfunction.
Ð 3.1 in (8 cm) discs
Ð CDs that are not round
Ð CDs with a paper label
Ð CDs that are warped, scratched, or have
abnormal edges .
This audio system can only play prerecorded
CDs. It has no capabilities to record or burn
CDs.
. If the CD cannot be played, one of the
following messages will be displayed.
CHECK DISC:
Ð Confirm that the CD is inserted correctly
(the label side is facing up, etc.) .
Ð Confirm that the CD is not bent or warped and it is free of scratches.
PUSH EJECT:
This is an error due to the temperature inside
the player is too high. Remove the CD by
pushing the EJECT button, and after a short
time reinsert the CD. The CD can be played
when the temperature of the player returns
to normal.
UNPLAYABLE:
The file is unplayable in this audio system
(only MP3 or WMA CD) .
LHA0484
DVD (Digital Versatile Disc) player (if so
equipped)
GUID-4686D449-D8E1-477D-BFC3-4B9923AC2ADE. Do not force a compact disc into the CD/
DVD insert slot. This could damage the CD/
DVD player.
. During cold weather or rainy days, the player
may malfunction due to humidity. If this
occurs, remove the CD/DVD and dehumidify
& R Q G L W L R Q
