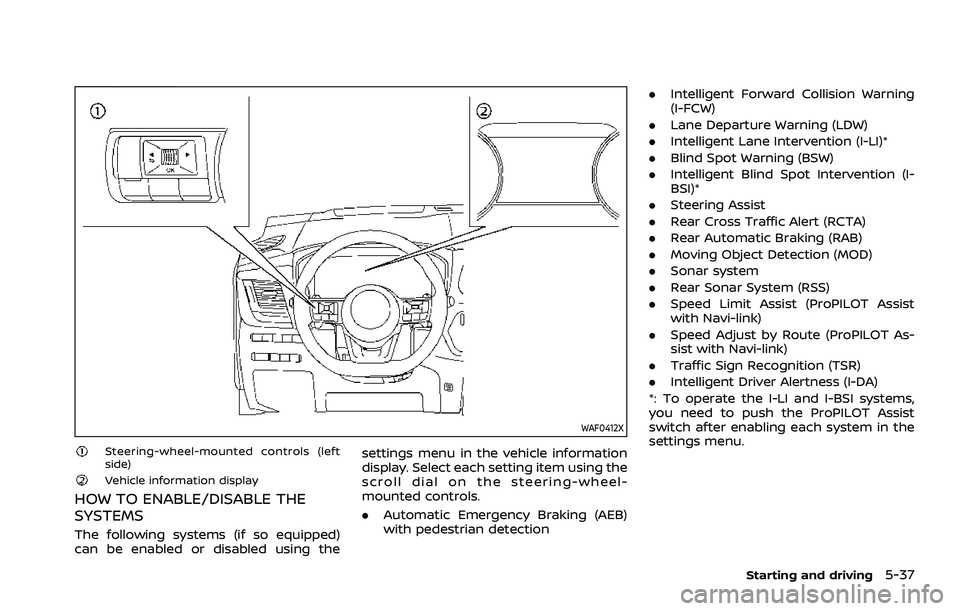

Steering-wheel-mounted controls (left
side)
Vehicle information display
HOW TO ENABLE/DISABLE THE
SYSTEMS
The following systems (if so equipped)
can be enabled or disabled using thesettings menu in the vehicle information
display. Select each setting item using the
scroll dial on the steering-wheel-
mounted controls.
.
Automatic Emergency Braking (AEB)
with pedestrian detection .
Intelligent Forward Collision Warning
(I-FCW)
. Lane Departure Warning (LDW)
. Intelligent Lane Intervention (I-LI)*
. Blind Spot Warning (BSW)
. Intelligent Blind Spot Intervention (I-
BSI)*
. Steering Assist
. Rear Cross Traffic Alert (RCTA)
. Rear Automatic Braking (RAB)
. Moving Object Detection (MOD)
. Sonar system
. Rear Sonar System (RSS)
. Speed Limit Assist (ProPILOT Assist
with Navi-link)
. Speed Adjust by Route (ProPILOT As-
sist with Navi-link)
. Traffic Sign Recognition (TSR)
. Intelligent Driver Alertness (I-DA)
*: To operate the I-LI and I-BSI systems,
you need to push the ProPILOT Assist
switch after enabling each system in the
settings menu.
Starting and driving5-37

5-38Starting and driving
Driver Assistance display

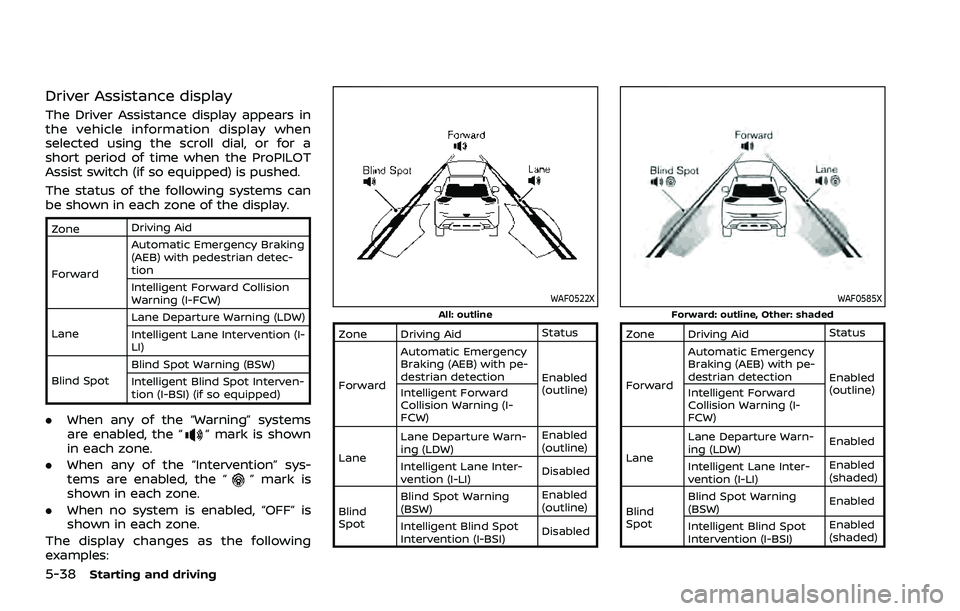

The Driver Assistance display appears in
the vehicle information display when
selected using the scroll dial, or for a
short period of time when the ProPILOT
Assist switch (if so equipped) is pushed.
The status of the following systems can
be shown in each zone of the display.
ZoneDriving Aid
Forward Automatic Emergency Braking
(AEB) with pedestrian detec-
tion
Intelligent Forward Collision
Warning (I-FCW)
Lane Lane Departure Warning (LDW)
Intelligent Lane Intervention (I-
LI)
Blind Spot Blind Spot Warning (BSW)
Intelligent Blind Spot Interven-
tion (I-BSI) (if so equipped)
.
When any of the “Warning” systems
are enabled, the “” mark is shown
in each zone.
. When any of the “Intervention” sys-
tems are enabled, the “
” mark is
shown in each zone.
. When no system is enabled, “OFF” is
shown in each zone.
The display changes as the following
examples:
WAF0522XAll: outline
Zone Driving Aid Status
Forward Automatic Emergency
Braking (AEB) with pe-
destrian detection
Enabled
(outline)
Intelligent Forward
Collision Warning (I-
FCW)
Lane Lane Departure Warn-
ing (LDW)
Enabled
(outline)
Intelligent Lane Inter-
vention (I-LI) Disabled
Blind
Spot Blind Spot Warning
(BSW)
Enabled
(outline)
Intelligent Blind Spot
Intervention (I-BSI) Disabled
WAF0585XForward: outline, Other: shaded
Zone Driving Aid
Status
Forward Automatic Emergency
Braking (AEB) with pe-
destrian detection
Enabled
(outline)
Intelligent Forward
Collision Warning (I-
FCW)
Lane Lane Departure Warn-
ing (LDW)
Enabled
Intelligent Lane Inter-
vention (I-LI) Enabled
(shaded)
Blind
Spot Blind Spot Warning
(BSW)
Enabled
Intelligent Blind Spot
Intervention (I-BSI) Enabled
(shaded)

COMMON TROUBLESHOOTING GUIDE
Some of the Driver Assistance systems use the common parts (camera, radar, etc.) to function. When a pop-up warning message
appears in the vehicle information display, or the warning light flashes/illuminates, check the system condition. For details, see
“System temporarily unavailable” and “System malfunction” sections in this Owner’s Manual for each applicable system.
For camera and radar temporary blockage
Warning message/Warning light Symptom Possible cause System affected
Action to take
“Unavailable High Cabin
Temperature” High camera
temperatureDirect sunlight/High cabin
temperature TSR, LDW, I-LI and I-
BSI and Steering
Assist
When the interior temperature is reduced, the system
resumes automatically. (Push the ProPILOT Assist switch
to turn back on the I-LI and I-BSI systems.)
Flashing AEB with pedes-
trian detection and
I-FCW
“Not Available
Front Camera Obstructed”
or
Flashing Poor camera
visibility
Direct sunlight
Steering Assist and
AEB with pedes-
trian detectionWhen the condition no longer exists, the system resumes
automatically.
Camera
obstruction Windshield glass misted,
frozen or covered with dirt Clean the windshield glass of the camera area. Use the
wipers and the defroster to help clear the windshield glass.
“Forward Driving Aids temporarily disabled
Front Sensor blocked See Owner’s Manual” and
Flashing Front radar
obstruction Inclement weather (rain,
fog, snow, etc.)
ICC, AEB with pe-
destrian detection
and I-FCWWhen the condition no longer exists, the system resumes
automatically. (Push the ProPILOT Assist switch to turn
back on the ICC system.)
Sensor covered with dirt
or obstructed Clean the front radar sensor area on the front of the
vehicle.
Roads with limited road
structures or buildings When the condition no longer exists, the system resumes
automatically. (Push the ProPILOT Assist switch to turn
back on the ICC system.)
Flashing
Front radar
interruption Interference from another
radar source ICC, AEB with pe-
destrian detection
and I-FCWWhen the condition no longer exists, the system resumes
automatically. (Push the ProPILOT Assist switch to turn
back on the ICC system.)
Starting and driving5-39

5-40Starting and driving
Warning message/Warning light Symptom Possible cause System affected
Action to take
“Unavailable Side Radar
Obstruction” Side radar
obstruction
Radar blockage
BSW, I-BSI and
RCTAClean the side rear radar area on the rear of the vehicle.
When the condition no longer exists, the system resumes
automatically. (Push the ProPILOT Assist switch to turn
back on the I-BSI system.)
For system temporarily unavailable
Warning light/Warning
message Possible cause
System to checkAction to take
IlluminatingVDC turned off AEB with pedestrian detection
Turn on the VDC.
“Currently not available” VDC turned off
I-LI, I-BSI and ICCTurn on the VDC.
SNOW mode or OFF-ROAD mode
selected (AWD models) Select a mode other than SNOW and OFF-
ROAD.
For system malfunction
Warning light/Warning
message Symptom
System to check Action to take
“Malfunction” and
Illuminating
System malfunction RCTA, AEB with pedestrian
detection and I-FCW
Stop the vehicle in a safe location. Turn the engine off and restart
the engine. If the warning light/message continues to illuminate,
have the system checked. It is recommended that you visit a NISSAN
dealer for this service.
“Malfunction
See Owner’s Manual” TSR and RAB
“Not Available
System Malfunction” LDW, I-LI, BSW, I-BSI, ICC and
Steering Assist
“Parking Sensor Error See Owner’s Manual” Sonar system and RSS
“Driver Attention Alert Malfunction” I-DA

Camera, radar and sonar locations
The camera, radar and sonar that are
used by each Driver Assistance systems
are located on the front and rear of the
vehicle. For the maintenance of each
component, see “System maintenance”
section in this Owner’s Manual for each
application system.
WAF0644X
Vehicle front
Front camera unit
— Automatic Emergency Braking (AEB)
with pedestrian detection
— Lane Departure Warning (LDW)
— Intelligent Lane Intervention (I-LI)
— Intelligent Blind Spot Intervention (I-
BSI)
— Steering Assist
— High beam assist
— Traffic Sign Recognition (TSR)
Front radar sensor
— Automatic Emergency Braking (AEB)
with pedestrian detection
— Intelligent Forward Collision Warning (I-
FCW)— Intelligent Cruise Control (ICC)
Starting and driving5-41

5-42Starting and driving
WAF0414X
Vehicle rear
Side radar sensor
— Blind Spot Warning (BSW)
— Intelligent Blind Spot Intervention (I-
BSI)
— Rear Cross Traffic Alert (RCTA)
WAF0649X
Sonar
Front and side (if so equipped) sonar
sensors
— Sonar system
Rear and side (if so equipped) sonar
sensors
— Rear Automatic Braking (RAB)
— Sonar system— Rear Sonar System (RSS)

WAC0523X
The Traffic Sign Recognition (TSR) system
provides the driver with information
about the most recently detected speed
limit. The system captures the road sign
information with the multi-sensing front
camera unit
located on the windshield
in front of the inside mirror and displays
the detected signs in the vehicle informa-
tion display. For vehicles equipped with
navigation system, the speed limit dis-
played is based on a combination of
navigation system data and live camera
recognition. TSR information is shown in
the vehicle information display and in the
Head Up Display (HUD) (if so equipped).
(See “Head Up Display (HUD)” (P.2-47).)
WARNING
The TSR system is only intended to
be a support device to provide the
driver with information. It is not a
replacement for the driver’s atten-
tion to traffic conditions or respon-
sibility to drive safely. It cannot
prevent accidents due to careless-
ness. It is the driver’s responsibility
to stay alert and drive safely at all
times.
SYSTEM OPERATION
The TSR system displays the following
types of road sign:
WAF0419X
Starting and driving5-43
TRAFFIC SIGN RECOGNITION (TSR)
(if so equipped)

5-44Starting and driving
WAC0215X

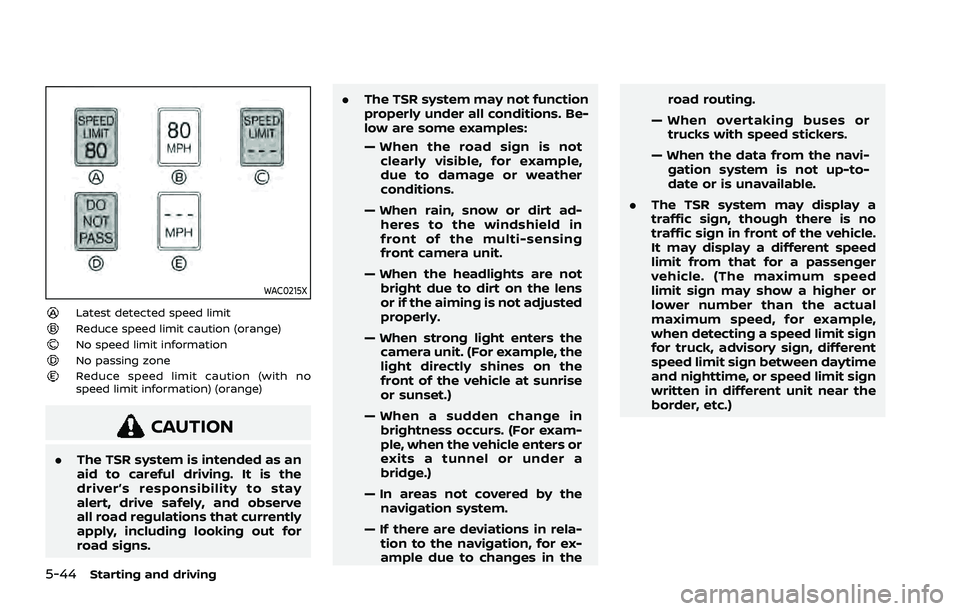

Latest detected speed limitReduce speed limit caution (orange)No speed limit informationNo passing zoneReduce speed limit caution (with no
speed limit information) (orange)
CAUTION
.The TSR system is intended as an
aid to careful driving. It is the
driver’s responsibility to stay
alert, drive safely, and observe
all road regulations that currently
apply, including looking out for
road signs. .
The TSR system may not function
properly under all conditions. Be-
low are some examples:
— When the road sign is not
clearly visible, for example,
due to damage or weather
conditions.
— When rain, snow or dirt ad- heres to the windshield in
front of the multi-sensing
front camera unit.
— When the headlights are not bright due to dirt on the lens
or if the aiming is not adjusted
properly.
— When strong light enters the camera unit. (For example, the
light directly shines on the
front of the vehicle at sunrise
or sunset.)
— When a sudden change in brightness occurs. (For exam-
ple, when the vehicle enters or
exits a tunnel or under a
bridge.)
— In areas not covered by the navigation system.
— If there are deviations in rela- tion to the navigation, for ex-
ample due to changes in the road routing.
— When overtaking buses or trucks with speed stickers.
— When the data from the navi- gation system is not up-to-
date or is unavailable.
. The TSR system may display a
traffic sign, though there is no
traffic sign in front of the vehicle.
It may display a different speed
limit from that for a passenger
vehicle. (The maximum speed
limit sign may show a higher or
lower number than the actual
maximum speed, for example,
when detecting a speed limit sign
for truck, advisory sign, different
speed limit sign between daytime
and nighttime, or speed limit sign
written in different unit near the
border, etc.)

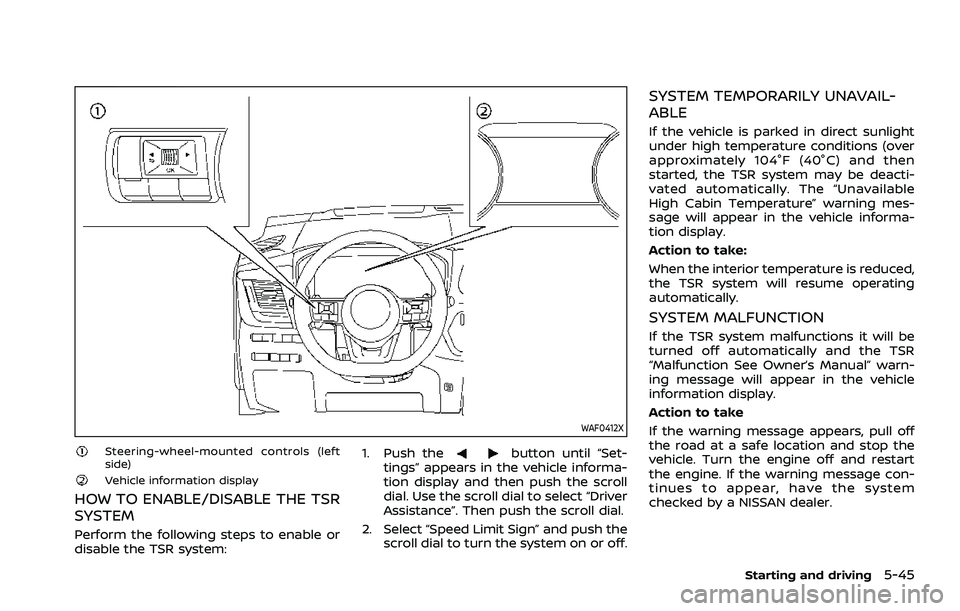

WAF0412X
Steering-wheel-mounted controls (left
side)
Vehicle information display
HOW TO ENABLE/DISABLE THE TSR
SYSTEM
Perform the following steps to enable or
disable the TSR system:1. Push the
button until “Set-
tings” appears in the vehicle informa-
tion display and then push the scroll
dial. Use the scroll dial to select “Driver
Assistance”. Then push the scroll dial.
2. Select “Speed Limit Sign” and push the scroll dial to turn the system on or off.
SYSTEM TEMPORARILY UNAVAIL-
ABLE
If the vehicle is parked in direct sunlight
under high temperature conditions (over
approximately 104°F (40°C) and then
started, the TSR system may be deacti-
vated automatically. The “Unavailable
High Cabin Temperature” warning mes-
sage will appear in the vehicle informa-
tion display.
Action to take:
When the interior temperature is reduced,
the TSR system will resume operating
automatically.
SYSTEM MALFUNCTION
If the TSR system malfunctions it will be
turned off automatically and the TSR
“Malfunction See Owner’s Manual” warn-
ing message will appear in the vehicle
information display.
Action to take
If the warning message appears, pull off
the road at a safe location and stop the
vehicle. Turn the engine off and restart
the engine. If the warning message con-
tinues to appear, have the system
checked by a NISSAN dealer.
Starting and driving5-45

5-46Starting and driving

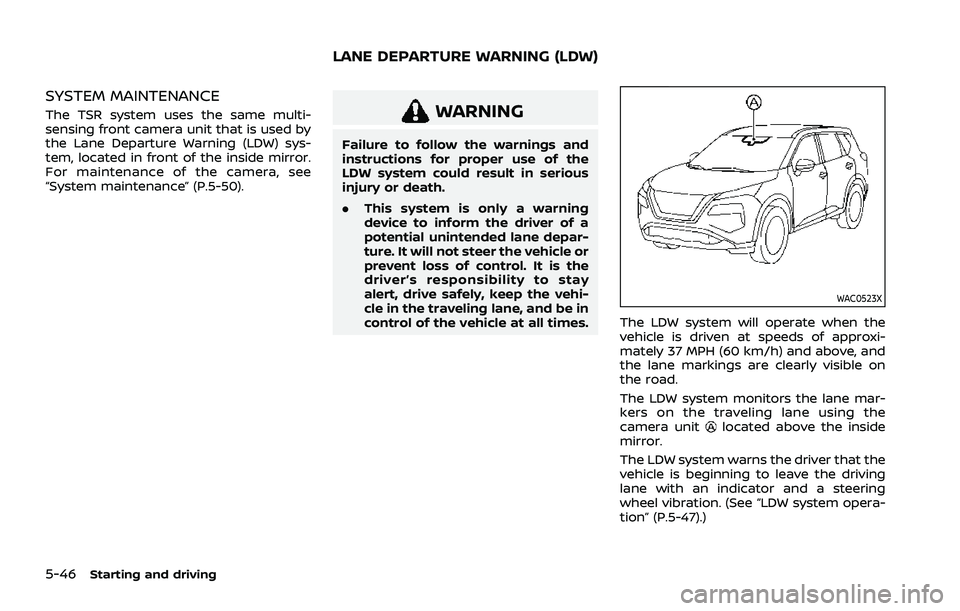

SYSTEM MAINTENANCE
The TSR system uses the same multi-
sensing front camera unit that is used by
the Lane Departure Warning (LDW) sys-
tem, located in front of the inside mirror.
For maintenance of the camera, see
“System maintenance” (P.5-50).WARNING
Failure to follow the warnings and
instructions for proper use of the
LDW system could result in serious
injury or death.
.This system is only a warning
device to inform the driver of a
potential unintended lane depar-
ture. It will not steer the vehicle or
prevent loss of control. It is the
driver’s responsibility to stay
alert, drive safely, keep the vehi-
cle in the traveling lane, and be in
control of the vehicle at all times.
WAC0523X
The LDW system will operate when the
vehicle is driven at speeds of approxi-
mately 37 MPH (60 km/h) and above, and
the lane markings are clearly visible on
the road.
The LDW system monitors the lane mar-
kers on the traveling lane using the
camera unit
located above the inside
mirror.
The LDW system warns the driver that the
vehicle is beginning to leave the driving
lane with an indicator and a steering
wheel vibration. (See “LDW system opera-
tion” (P.5-47).)
LANE DEPARTURE WARNING (LDW)
