FRONT FOG LAMP
LT-133
C
D
E
F
G
H
I
J
L
MA
B
LT

Terminals and Reference Values for IPDM E/RBKS001OW
How to Perform Trouble DiagnosisBKS001OX
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 1 2 6 , "
System Description" .
3. Perform the Preliminary Check. Refer to LT- 1 3 3 , "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Does the front fog lamp operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Preliminary CheckBKS001OY
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES AND FUSIBLE LINK
Check for blown fuses and fusible link.
Refer to LT-129, "Wiring Diagram — F/FOG —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new fuse
or fusible link. Refer to PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
Terminal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
36 W/R Front fog lamp (RH) ONLighting switch front fog lamp ON
position
(when lighting switch is 1ST position)OFF Approx. 0 V
ON Battery voltage
37 L/Y Front fog lamp (LH) ONLighting switch front fog lamp ON
position
(when lighting switch is 1ST position)OFF Approx. 0 V
ON Battery voltage
38 B Ground ON — Approx. 0 V
48 L CAN-H — — —
49 P CAN-L — — —
60 B Ground ON — Approx. 0V
Unit Power source Fuse and fusible link No.
BCMBatteryM
17
Ignition switch ACC or ON position 6
Ignition switch ON or START position 1
IPDM E/R Battery 88

LT-134
FRONT FOG LAMP

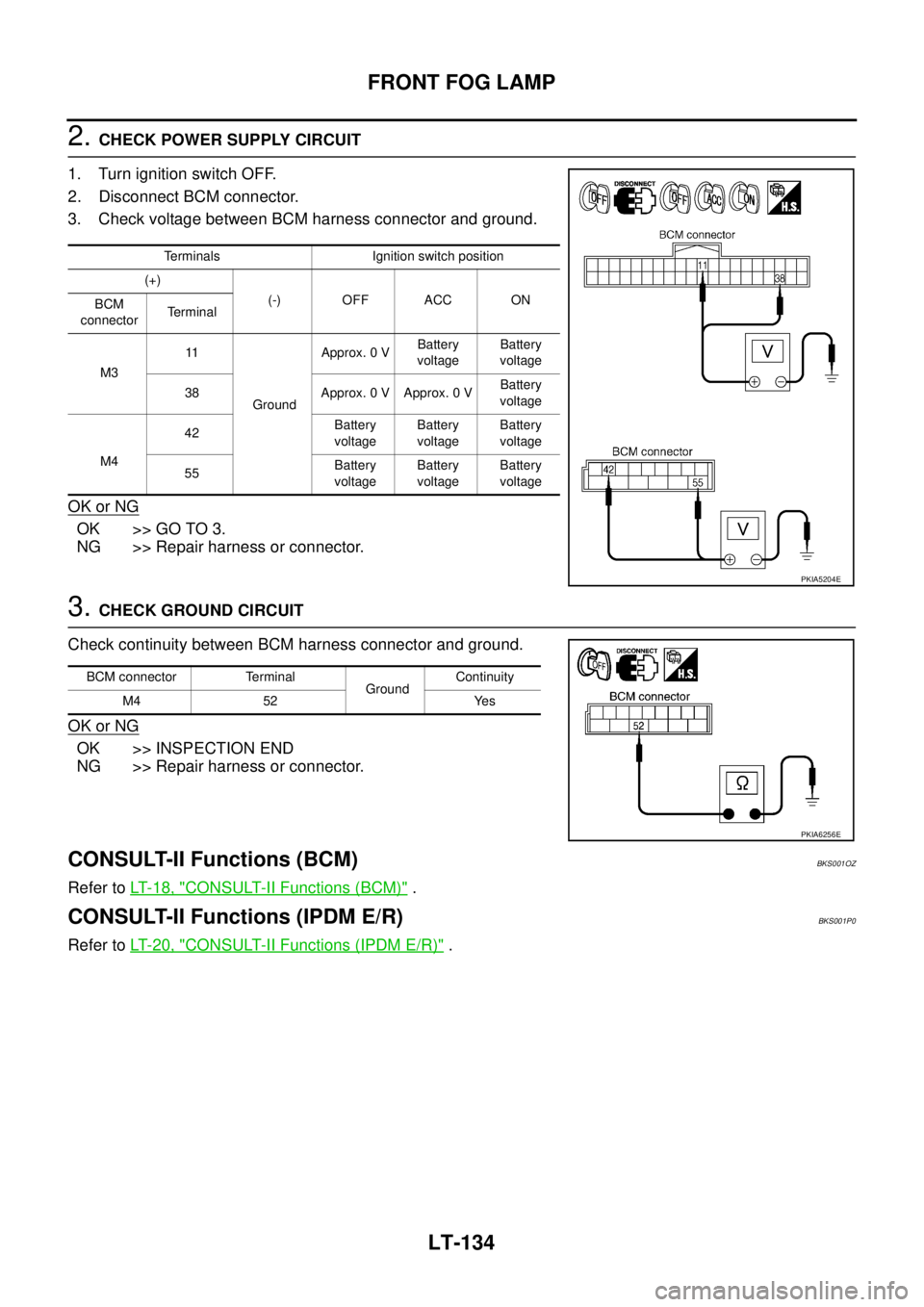

2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check voltage between BCM harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
CONSULT-II Functions (BCM)BKS001OZ
Refer to LT- 1 8 , "CONSULT-II Functions (BCM)" .
CONSULT-II Functions (IPDM E/R)BKS001P0
Refer to LT- 2 0 , "CONSULT-II Functions (IPDM E/R)" .
Terminals Ignition switch position
(+)
(-) OFF ACC ON
BCM
connectorTerminal
M311
GroundApprox. 0 VBattery
voltageBattery
voltage
38 Approx. 0 V Approx. 0 VBattery
voltage
M442Battery
voltageBattery
voltageBattery
voltage
55Battery
voltageBattery
voltageBattery
voltage
PKIA5204E
BCM connector Terminal
GroundContinuity
M4 52 Yes
PKIA6256E

FRONT FOG LAMP
LT-135
C
D
E
F
G
H
I
J
L
MA
B
LT

Front Fog Lamps Do Not Illuminate (Both Sides)BKS001P1

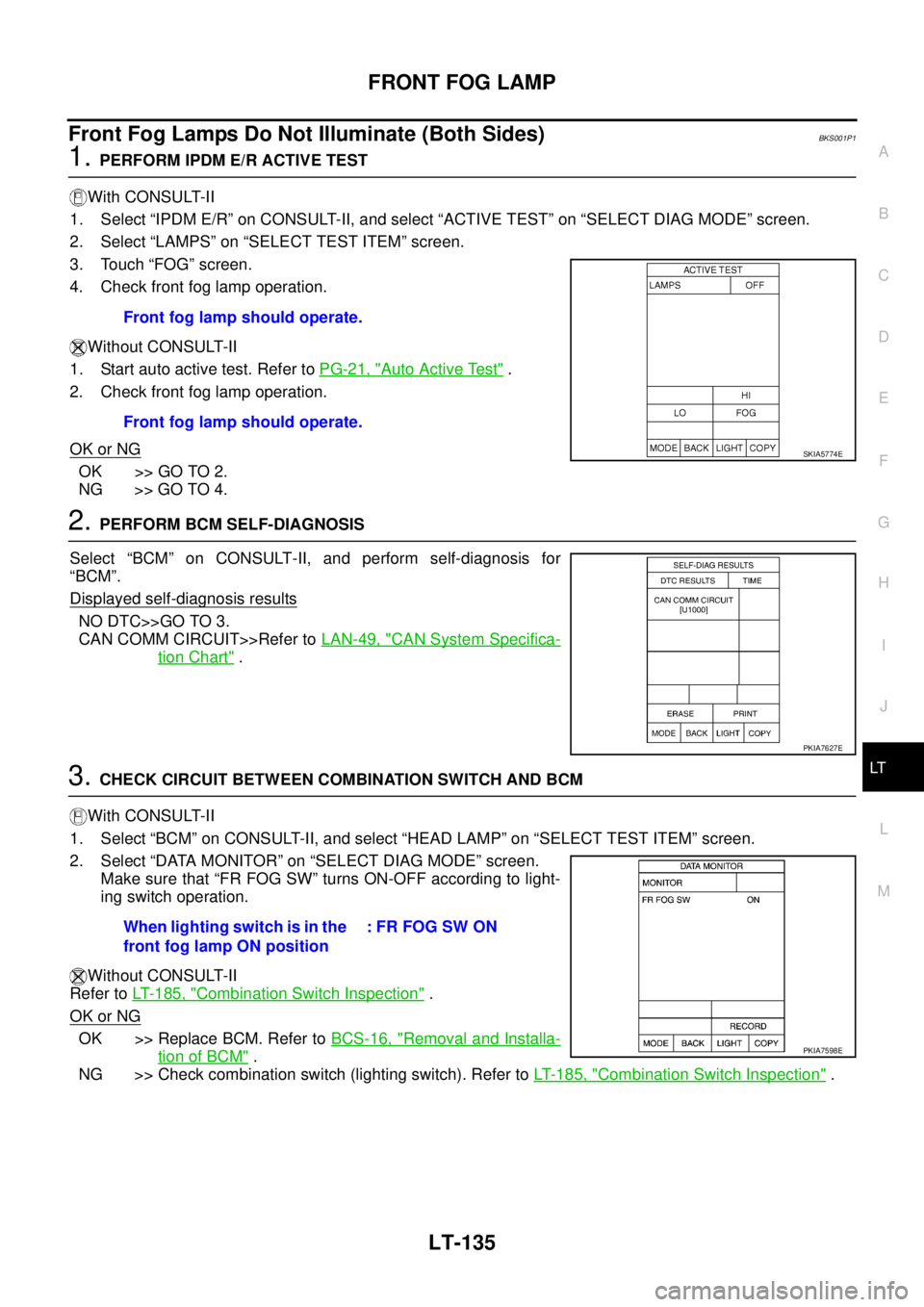

1. PERFORM IPDM E/R ACTIVE TEST
With CONSULT-II
1. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Select “LAMPS” on “SELECT TEST ITEM” screen.
3. Touch “FOG” screen.
4. Check front fog lamp operation.
Without CONSULT-II
1. Start auto active test. Refer to PG-21, "
Auto Active Test" .
2. Check front fog lamp operation.
OK or NG
OK >> GO TO 2.
NG >> GO TO 4.
2. PERFORM BCM SELF-DIAGNOSIS
Select “BCM” on CONSULT-II, and perform self-diagnosis for
“BCM”.
Displayed self
-diagnosis results
NO DTC>>GO TO 3.
CAN COMM CIRCUIT>>Refer to LAN-49, "
CAN System Specifica-
tion Chart" .
3. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-II
1. Select “BCM” on CONSULT-II, and select “HEAD LAMP” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “FR FOG SW” turns ON-OFF according to light-
ing switch operation.
Without CONSULT-II
Refer to LT- 1 8 5 , "
Combination Switch Inspection" .
OK or NG
OK >> Replace BCM. Refer to BCS-16, "Removal and Installa-
tion of BCM" .
NG >> Check combination switch (lighting switch). Refer to LT- 1 8 5 , "
Combination Switch Inspection" . Front fog lamp should operate.
Front fog lamp should operate.
SKIA5774E
PKIA7627E
When lighting switch is in the
front fog lamp ON position: FR FOG SW ON
PKIA7598E

LT-136
FRONT FOG LAMP

4. CHECK CIRCUIT BETWEEN IPDM E/R AND FRONT FOG LAMP
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and front fog lamp (RH and LH) connectors.

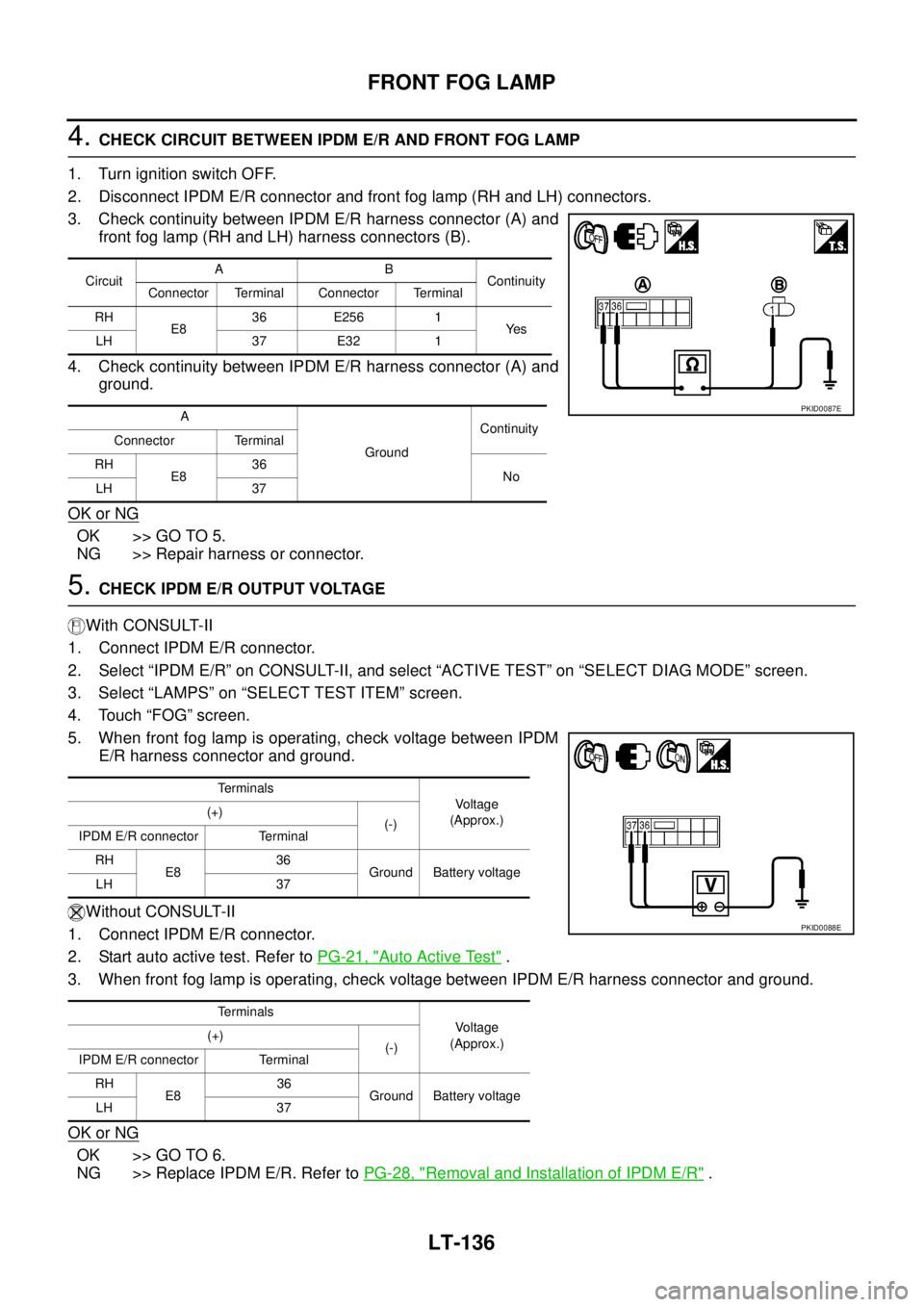

3. Check continuity between IPDM E/R harness connector (A) and
front fog lamp (RH and LH) harness connectors (B).
4. Check continuity between IPDM E/R harness connector (A) and
ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK IPDM E/R OUTPUT VOLTAGE
With CONSULT-II
1. Connect IPDM E/R connector.
2. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
3. Select “LAMPS” on “SELECT TEST ITEM” screen.
4. Touch “FOG” screen.
5. When front fog lamp is operating, check voltage between IPDM
E/R harness connector and ground.
Without CONSULT-II
1. Connect IPDM E/R connector.
2. Start auto active test. Refer to PG-21, "
Auto Active Test" .
3. When front fog lamp is operating, check voltage between IPDM E/R harness connector and ground.
OK or NG
OK >> GO TO 6.
NG >> Replace IPDM E/R. Refer to PG-28, "
Removal and Installation of IPDM E/R" .
CircuitAB
Continuity
Connector Terminal Connector Terminal
RH
E836 E256 1
Ye s
LH 37 E32 1
A
GroundContinuity
Connector Terminal
RH
E836
No
LH 37
PKID0087E
Terminals
Voltage
(Approx.) (+)
(-)
IPDM E/R connector Terminal
RH
E836
Ground Battery voltage
LH 37
Terminals
Voltage
(Approx.) (+)
(-)
IPDM E/R connector Terminal
RH
E836
Ground Battery voltage
LH 37
PKID0088E

FRONT FOG LAMP
LT-137
C
D
E
F
G
H
I
J
L
MA
B
LT

6. CHECK CIRCUIT BETWEEN FRONT FOG LAMP AND GROUND
1. Turn ignition switch OFF.
2. Check continuity between front fog lamp (RH and LH) harness
connectors and ground.
OK or NG
OK >> Check front fog lamp bulb.
NG >> Repair harness or connector.
Front Fog Lamp Does Not Illuminate (One Side)BKS001P2
1. CHECK BULB
Check front fog lamp bulb which does not illuminate.
OK or NG
OK >> GO TO 2.
NG >> Replace front fog lamp bulb.
2. CHECK CIRCUIT BETWEEN IPDM E/R AND FRONT FOG LAMP
1. Disconnect IPDM E/R connector and front fog lamp RH or LH connector.
2. Check continuity between IPDM E/R harness connector (A) and
front fog lamp RH or LH harness connector (B).
3. Check continuity between IPDM E/R harness connector (A) and
ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.

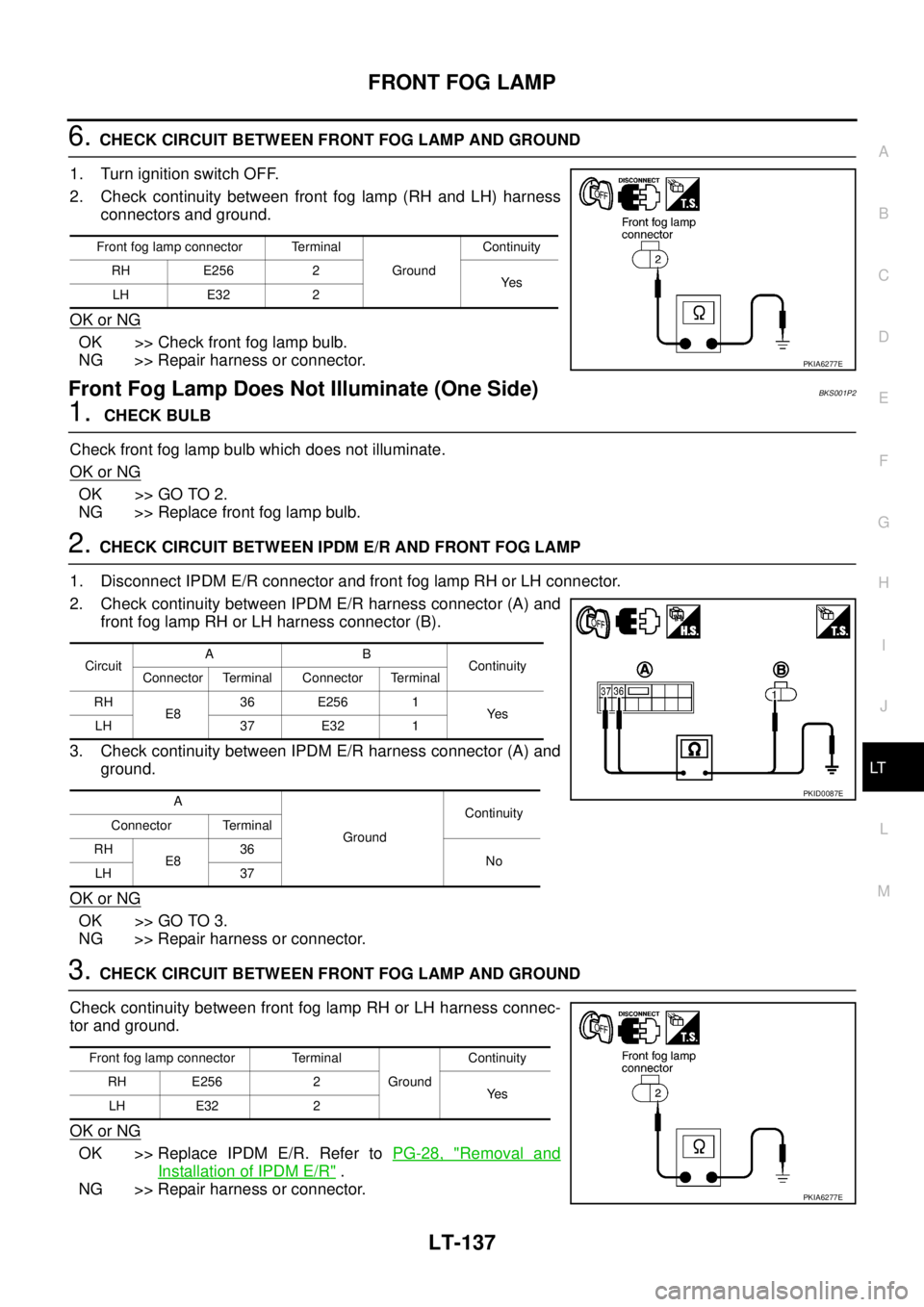

3. CHECK CIRCUIT BETWEEN FRONT FOG LAMP AND GROUND
Check continuity between front fog lamp RH or LH harness connec-
tor and ground.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-28, "Removal and
Installation of IPDM E/R" .
NG >> Repair harness or connector.
Front fog lamp connector Terminal
GroundContinuity
RH E256 2
Ye s
LH E32 2
PKIA6277E
CircuitAB
Continuity
Connector Terminal Connector Terminal
RH
E836 E256 1
Ye s
LH 37 E32 1
A
GroundContinuity
Connector Terminal
RH
E836
No
LH 37
PKID0087E
Front fog lamp connector Terminal
Ground Continuity
RH E256 2
Ye s
LH E32 2
PKIA6277E

LT-138
FRONT FOG LAMP

Front Fog Lamp Indicator Lamp Does Not IlluminateBKS001P3
1. CHECK UNIFIED METER AND A/C AMP.
1. Select “METER A/C AMP” on CONSULT-II, and perform self-
diagnosis for “METER A/C AMP”.
2. Check if malfunction is indicated.
Is malfunction indicated?
YES >> Repair or Replace malfunctioning parts.
NO >> GO TO 2.

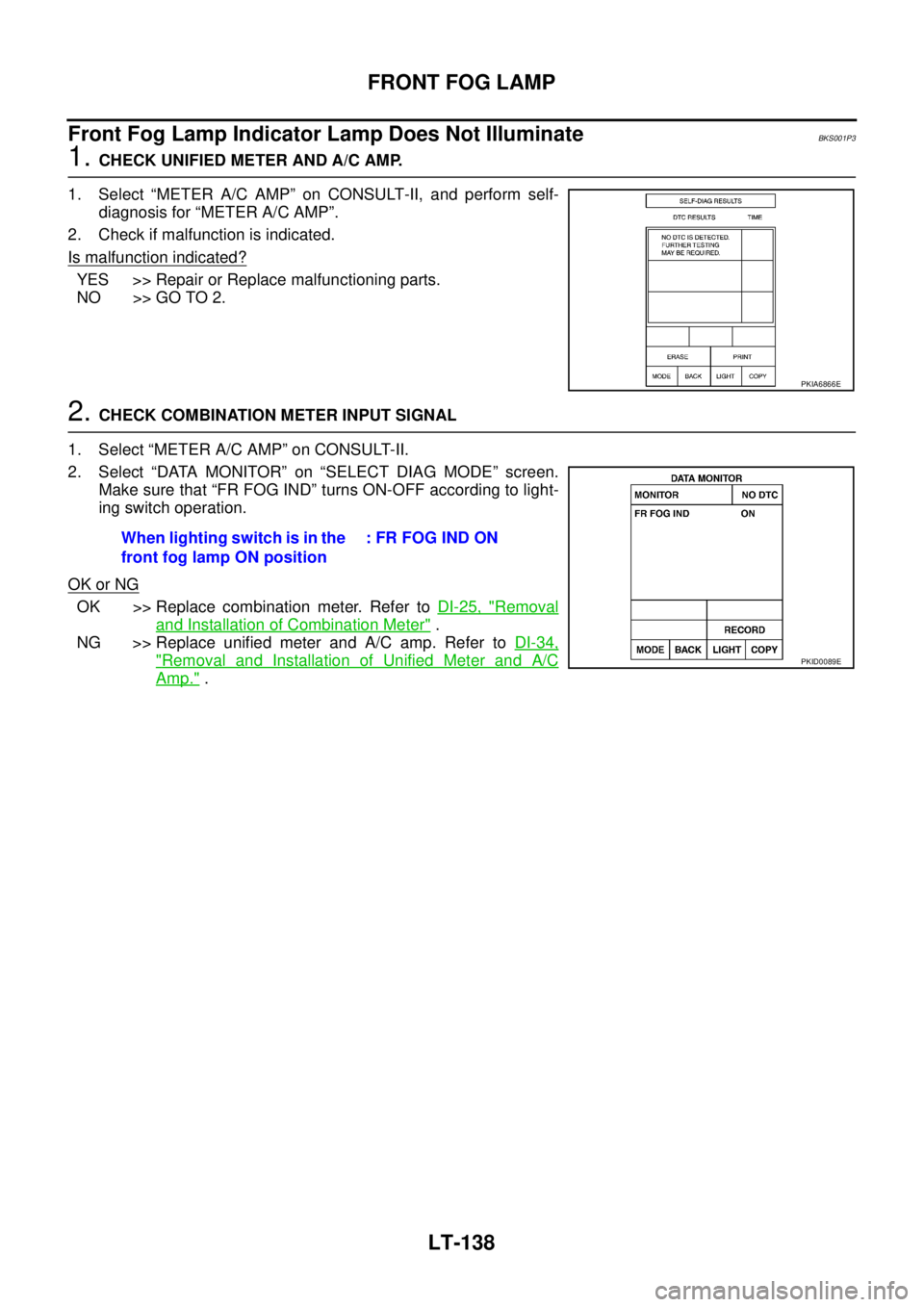

2. CHECK COMBINATION METER INPUT SIGNAL
1. Select “METER A/C AMP” on CONSULT-II.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “FR FOG IND” turns ON-OFF according to light-
ing switch operation.
OK or NG
OK >> Replace combination meter. Refer to DI-25, "Removal
and Installation of Combination Meter" .
NG >> Replace unified meter and A/C amp. Refer to DI-34,
"Removal and Installation of Unified Meter and A/C
Amp." .
PKIA6866E
When lighting switch is in the
front fog lamp ON position: FR FOG IND ON
PKID0089E

FRONT FOG LAMP
LT-139
C
D
E
F
G
H
I
J
L
MA
B
LT

Front Fog Lamps Does Not Go OFF (Both Sides) BKS001P4
1. PERFORM IPDM E/R ACTIVE TEST
With CONSULT-II
1. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Select “LAMPS” on “SELECT TEST ITEM” screen.
Without CONSULT-II
Start auto active test. Refer to PG-21, "
Auto Active Test" .
Does front fog lamp turn OFF?
YES >> GO TO 2.
NO >> Replace IPDM E/R. Refer to PG-28, "
Removal and
Installation of IPDM E/R" .
2. CHECK CIRCUITS BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-II
1. Select “BCM” on CONSULT-II, and select “HEAD LAMP” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure “FR FOG SW” turns ON-OFF according to lighting
switch operation.
Without CONSULT-II
Refer to LT- 1 8 5 , "
Combination Switch Inspection" .
OK or NG
OK >> Replace BCM. Refer to BCS-16, "Removal and Installa-
tion of BCM" .
NG >> Check combination switch (lighting switch). Refer to LT- 1 8 5 , "
Combination Switch Inspection" .
SKIA5774E
When lighting switch is in the
front fog lamp OFF position: FR FOG SW OFF
PKID0279E

LT-140
FRONT FOG LAMP

Aiming AdjustmentBKS001P5

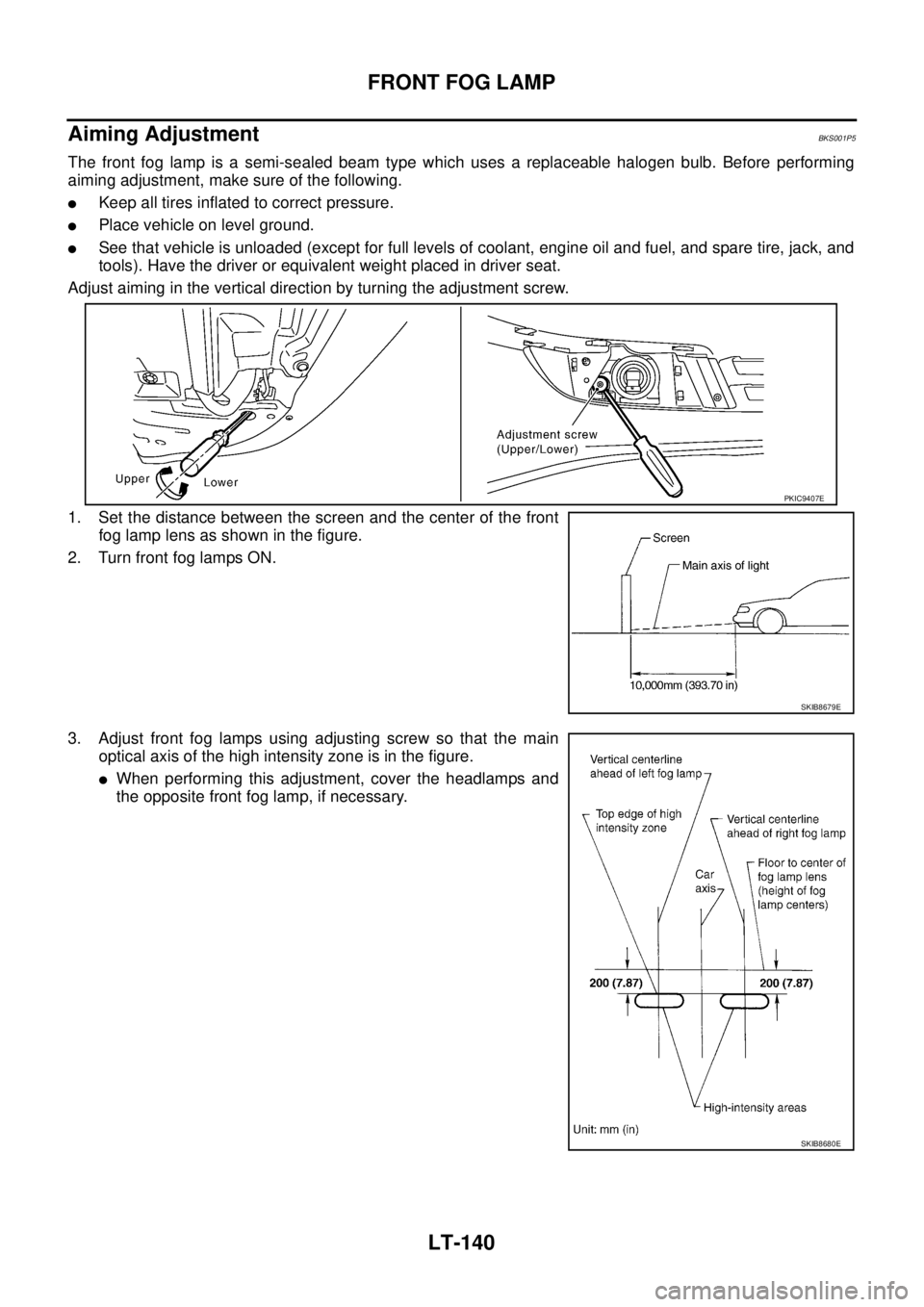

The front fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb. Before performing
aiming adjustment, make sure of the following.

Keep all tires inflated to correct pressure.

Place vehicle on level ground.

See that vehicle is unloaded (except for full levels of coolant, engine oil and fuel, and spare tire, jack, and
tools). Have the driver or equivalent weight placed in driver seat.
Adjust aiming in the vertical direction by turning the adjustment screw.
1. Set the distance between the screen and the center of the front
fog lamp lens as shown in the figure.
2. Turn front fog lamps ON.
3. Adjust front fog lamps using adjusting screw so that the main
optical axis of the high intensity zone is in the figure.

When performing this adjustment, cover the headlamps and
the opposite front fog lamp, if necessary.
PKIC9407E
SKIB8679E
SKIB8680E

FRONT FOG LAMP
LT-141
C
D
E
F
G
H
I
J
L
MA
B
LT

Bulb ReplacementBKS001P6
1. Turn lighting switch OFF.
2. Turn off the fender protector (front) to obtain work space between the fender protector and fender.
3. Disconnect front fog lamp connector.
4. Turn front for lamp bulb counterclockwise and unlock it.
CAUTION:

Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
Never touch bulb by hand while it is lit or right after being turned off. Burning may result.

Never leave bulb out of front fog lamp reflector for a long time because dust, moisture smoke, etc.
May affect the performance of front fog lamp. When replacing bulb, be sure to replace it with new
one.
Removal and InstallationBKS001P7
REMOVAL
1. Turn over the fender protector (front) and undercover to obtain work space between the fender protector
and fender.
2. Disconnect front fog lamp connector.

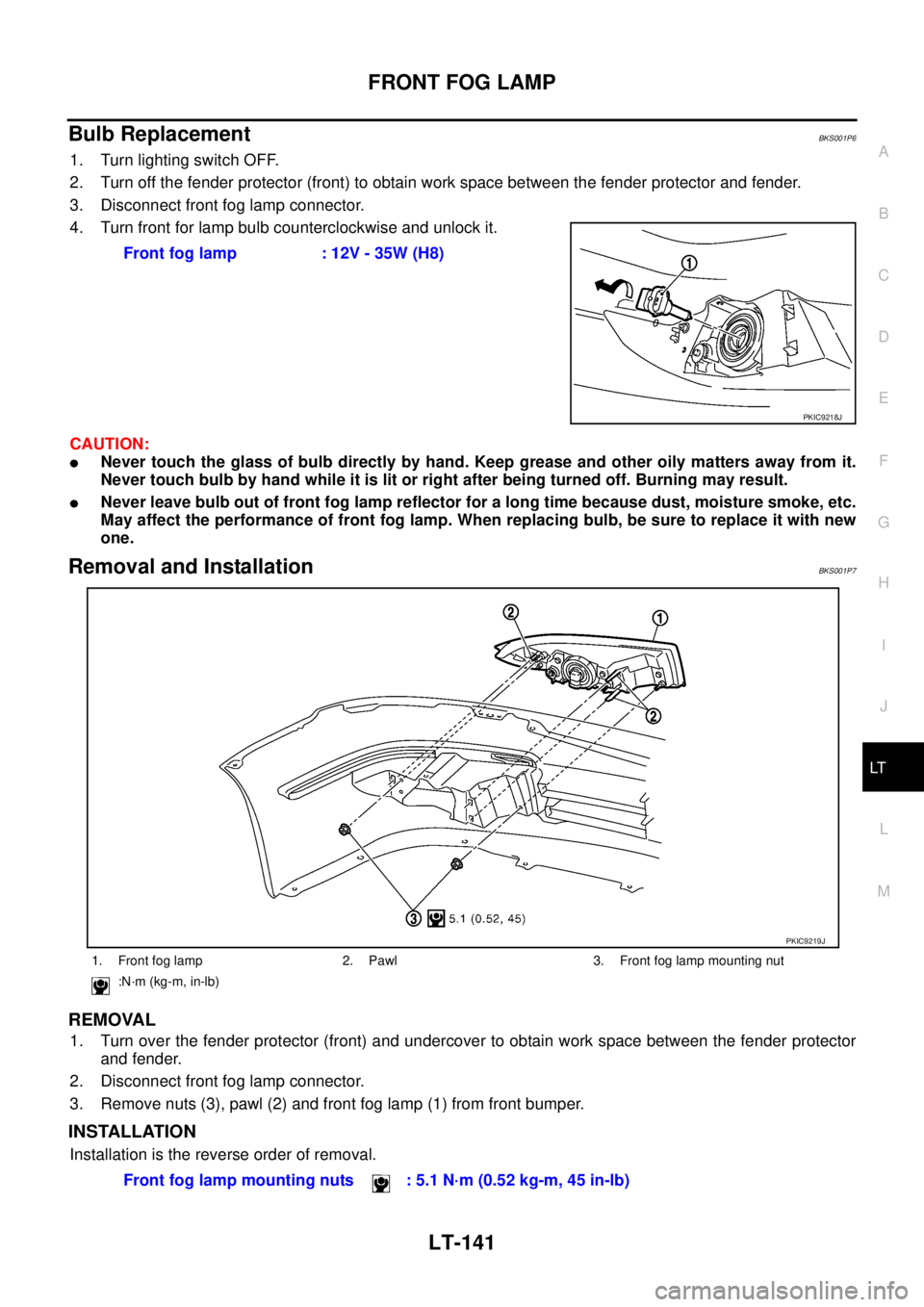

3. Remove nuts (3), pawl (2) and front fog lamp (1) from front bumper.
INSTALLATION
Installation is the reverse order of removal.Front fog lamp : 12V - 35W (H8)
PKIC9218J
1. Front fog lamp 2. Pawl 3. Front fog lamp mounting nut
:N·m (kg-m, in-lb)
PKIC9219J
Front fog lamp mounting nuts : 5.1 N·m (0.52 kg-m, 45 in-lb)

LT-142
REAR FOG LAMP

REAR FOG LAMPPFP:26550

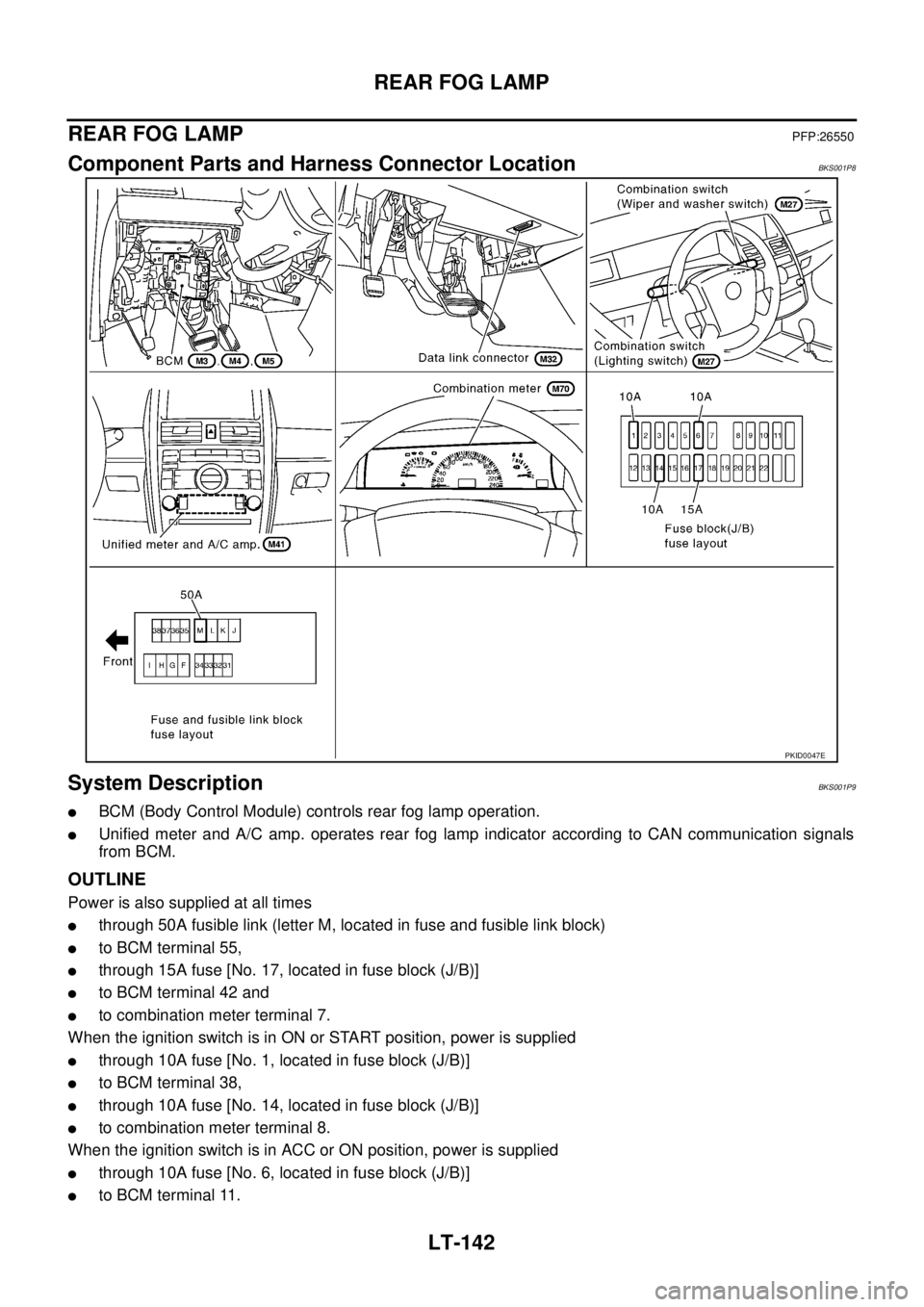

Component Parts and Harness Connector LocationBKS001P8
System DescriptionBKS001P9

BCM (Body Control Module) controls rear fog lamp operation.

Unified meter and A/C amp. operates rear fog lamp indicator according to CAN communication signals
from BCM.
OUTLINE
Power is also supplied at all times

through 50A fusible link (letter M, located in fuse and fusible link block)

to BCM terminal 55,

through 15A fuse [No. 17, located in fuse block (J/B)]

to BCM terminal 42 and

to combination meter terminal 7.
When the ignition switch is in ON or START position, power is supplied

through 10A fuse [No. 1, located in fuse block (J/B)]

to BCM terminal 38,

through 10A fuse [No. 14, located in fuse block (J/B)]

to combination meter terminal 8.
When the ignition switch is in ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM terminal 11.
PKID0047E
