Page 351 of 3502

NISSAN TEANA 2003  Service Manual ASSEMBLY
AT-343
D
E
F
G
H
I
J
K
L
MA
B
AT

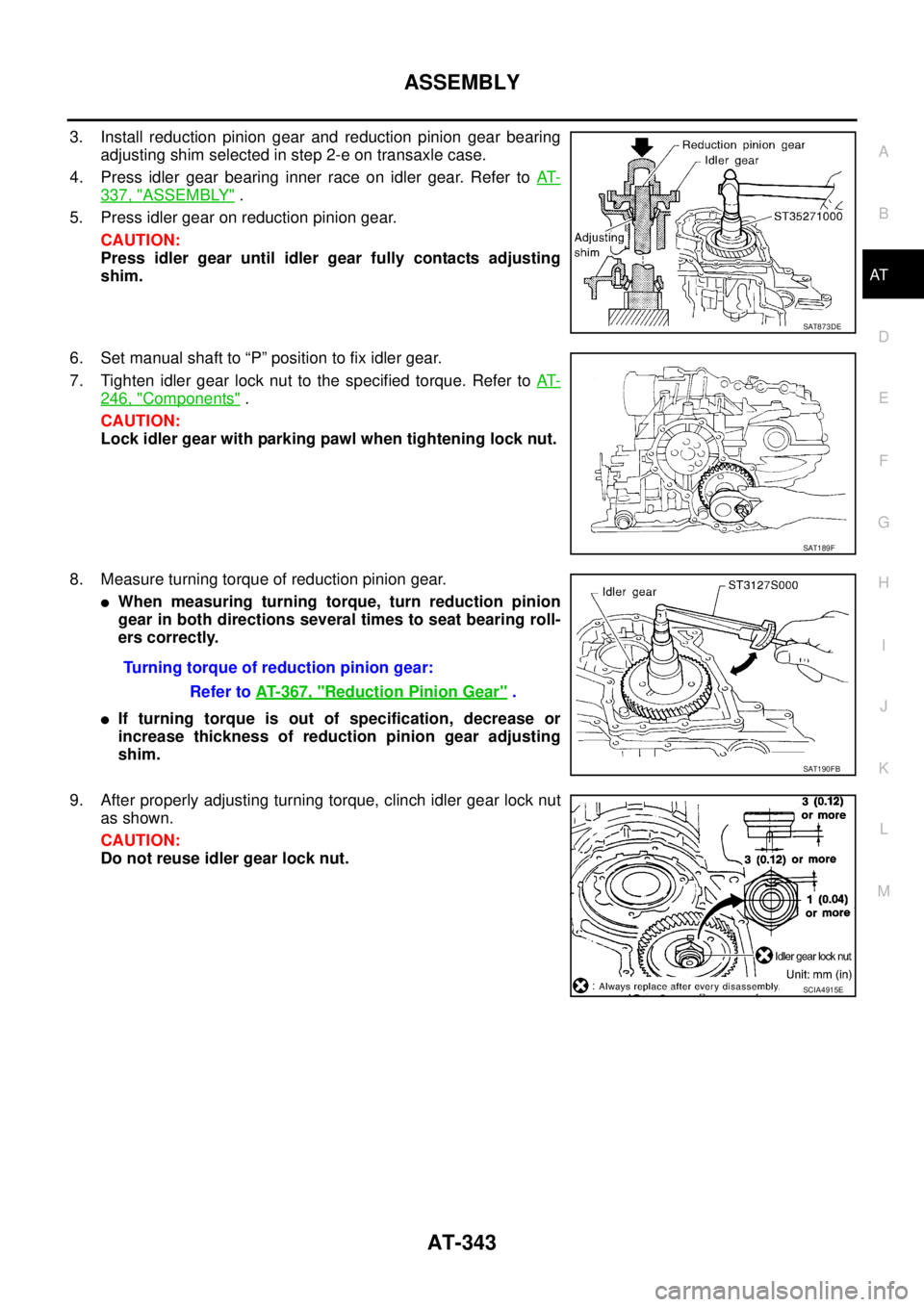

3. Install reduction pinion gear and reduction pinion gear bearing
adjusting shim selected in step 2-e on transaxle case.
4. Press idler gear bearing inner

Page 352 of 3502

NISSAN TEANA 2003  Service Manual AT-344
ASSEMBLY

OUTPUT SHAFT END PLAY
Measure clearance between side cover and the end of the out-
put shaft bearing.
Select proper thickness of output shaft adjusting shim so that
clearance is wi

Page 353 of 3502

NISSAN TEANA 2003  Service Manual ASSEMBLY
AT-345
D
E
F
G
H
I
J
K
L
MA
B
AT

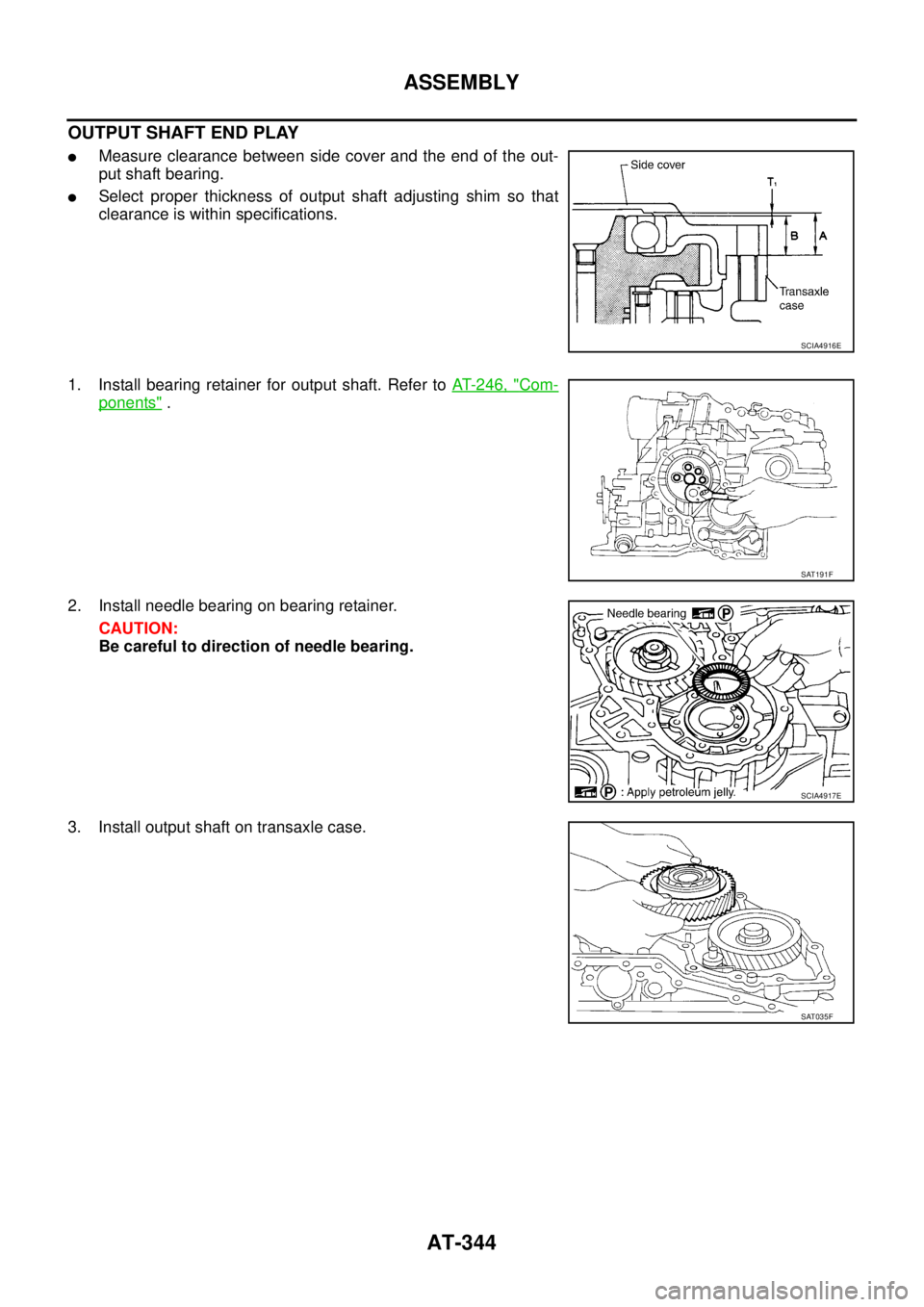

4. Measure dimensions “1 ” and “2 ” at side cover and then cal-
culate dimension “A”.
Measure dimension “ 1” and “ 2” in at least two p

Page 354 of 3502

NISSAN TEANA 2003  Service Manual AT-346
ASSEMBLY

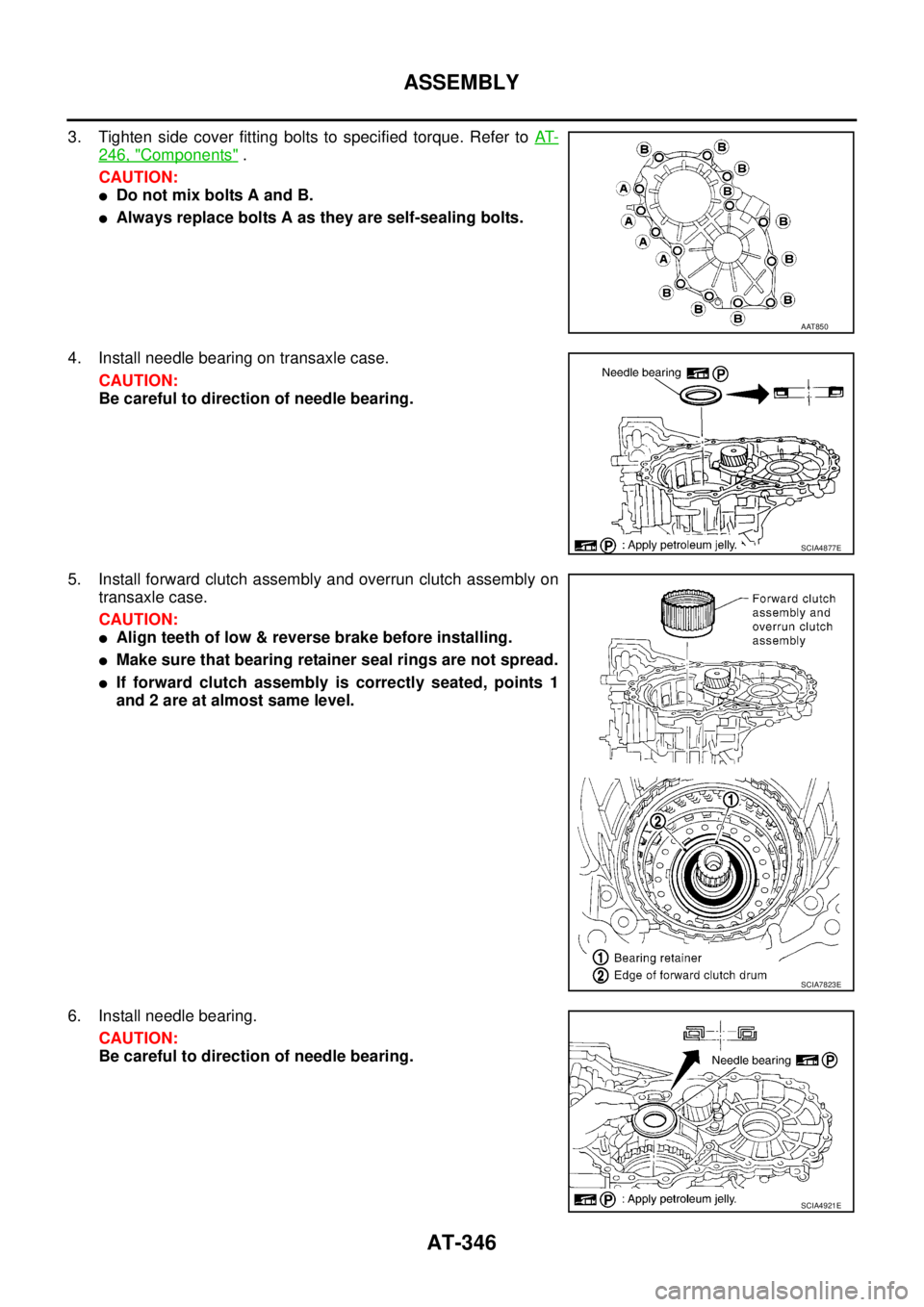

3. Tighten side cover fitting bolts to specified torque. Refer to AT-
246, "Components" .
CAUTION:
Do not mix bolts A and B.
Always replace bolts A as they are self-sealing bolts.

Page 355 of 3502

NISSAN TEANA 2003  Service Manual ASSEMBLY
AT-347
D
E
F
G
H
I
J
K
L
MA
B
AT

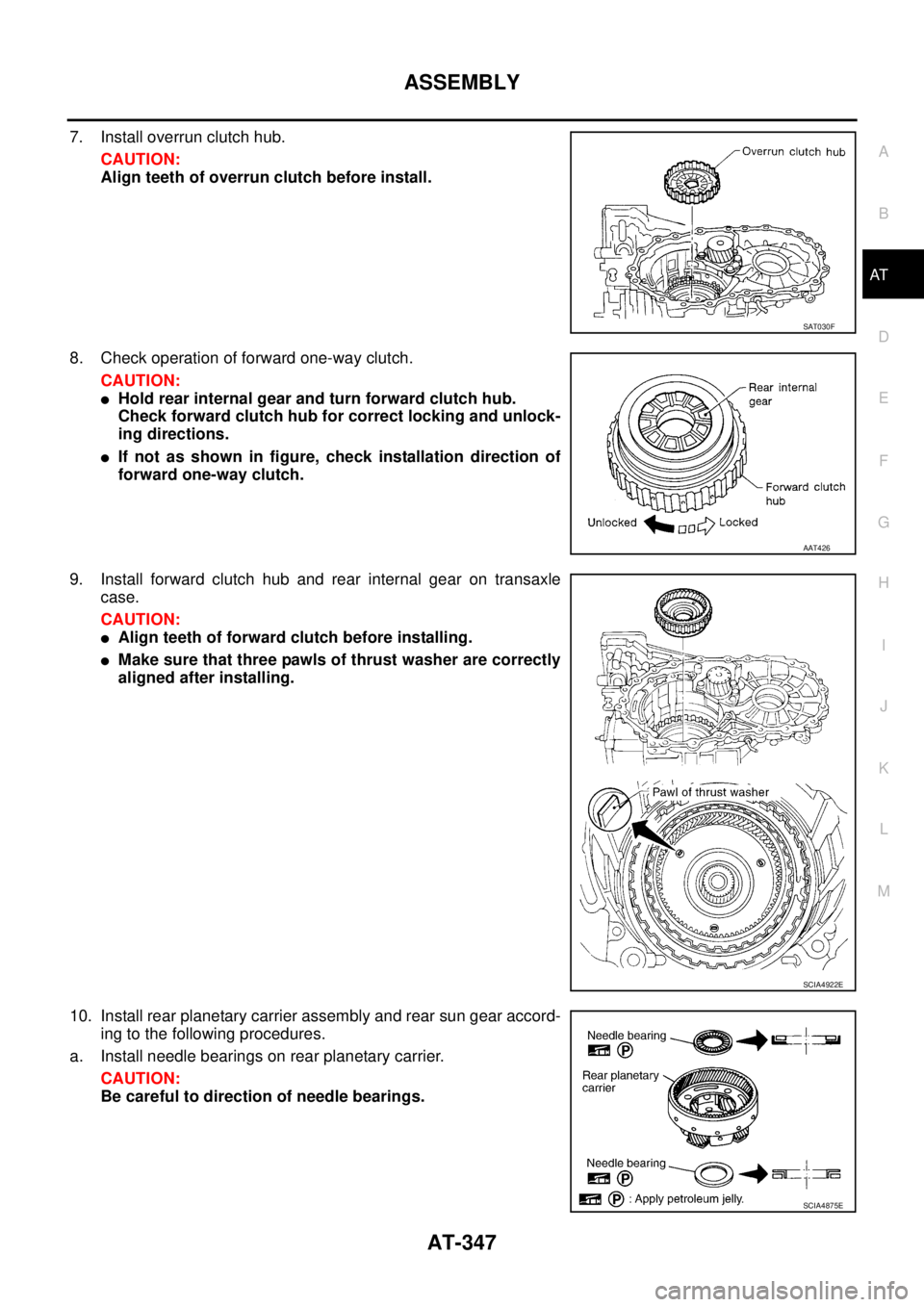

7. Install overrun clutch hub.
CAUTION:
Align teeth of overrun clutch before install.
8. Check operation of forward one-way clutch.
CAUTION:
Hold rear inte

Page 356 of 3502

NISSAN TEANA 2003  Service Manual AT-348
ASSEMBLY

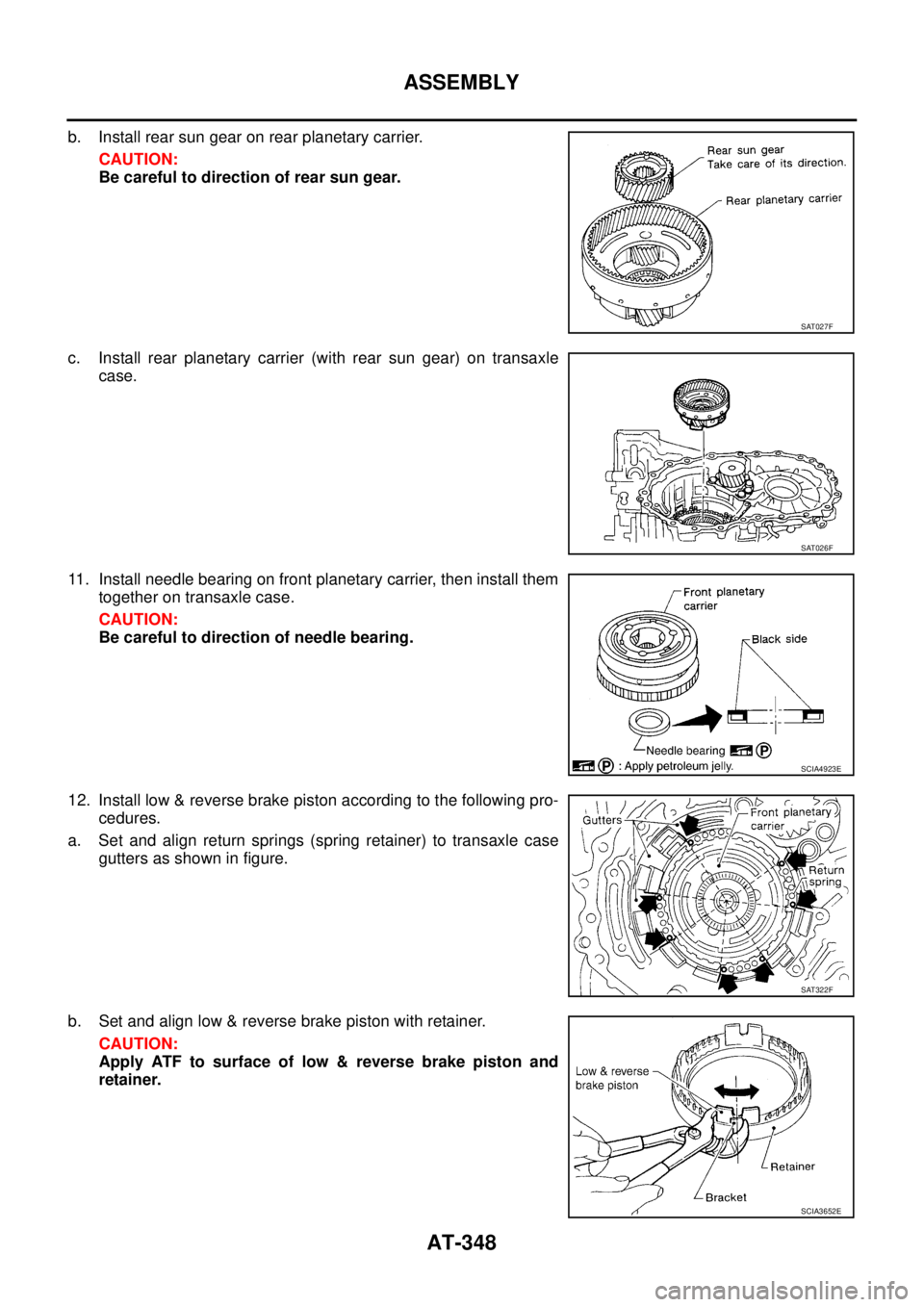

b. Install rear sun gear on rear planetary carrier.
CAUTION:
Be careful to direction of rear sun gear.
c. Install rear planetary carrier (with rear sun gear) on transaxle
case.
11. I

Page 357 of 3502

NISSAN TEANA 2003  Service Manual ASSEMBLY
AT-349
D
E
F
G
H
I
J
K
L
MA
B
AT

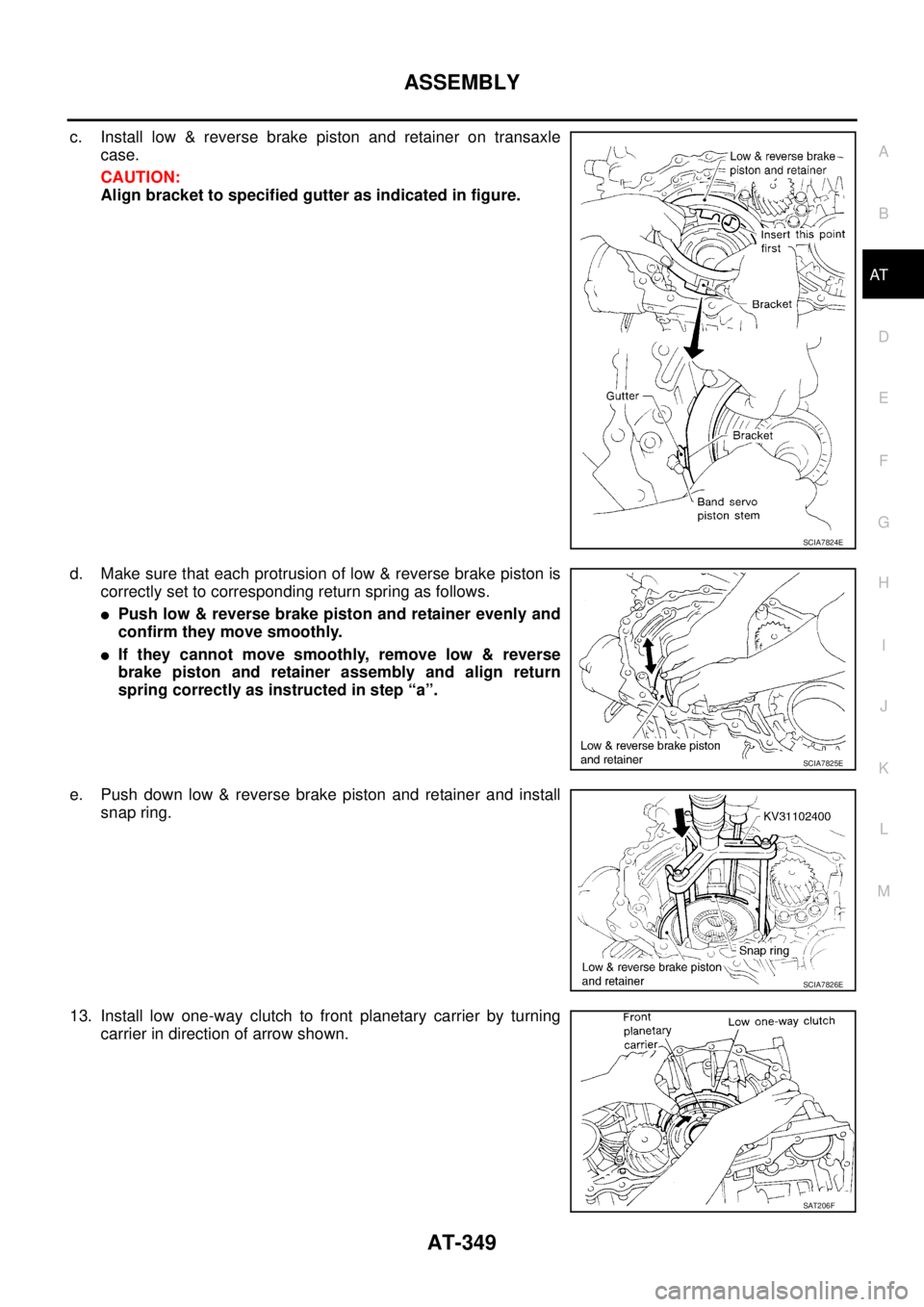

c. Install low & reverse brake piston and retainer on transaxle
case.
CAUTION:
Align bracket to specified gutter as indicated in figure.
d. Make sure that e

Page 358 of 3502

NISSAN TEANA 2003  Service Manual AT-350
ASSEMBLY

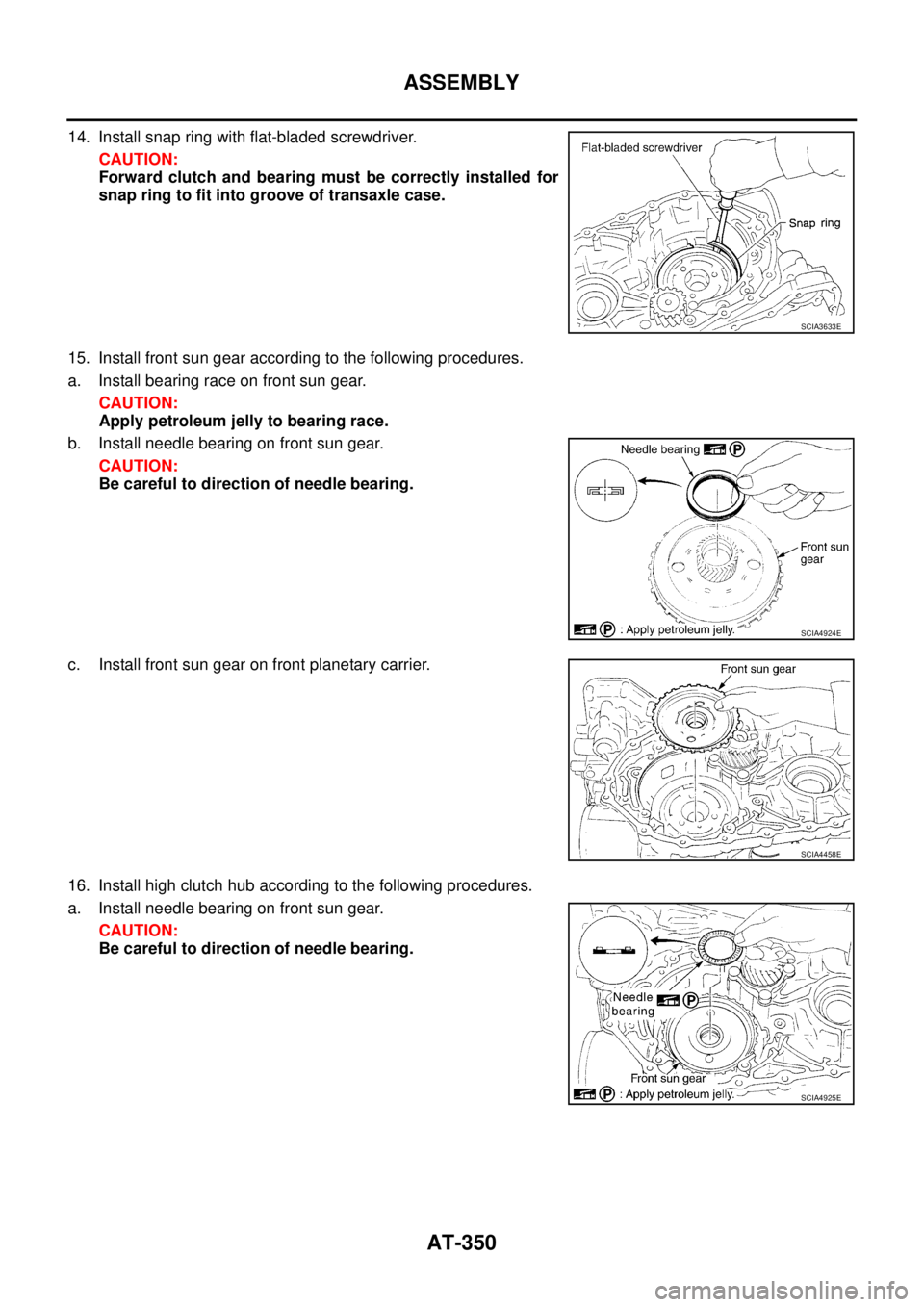

14. Install snap ring with flat-bladed screwdriver.
CAUTION:
Forward clutch and bearing must be correctly installed for
snap ring to fit into groove of transaxle case.
15. Install fr

Page 359 of 3502

NISSAN TEANA 2003  Service Manual ASSEMBLY
AT-351
D
E
F
G
H
I
J
K
L
MA
B
AT

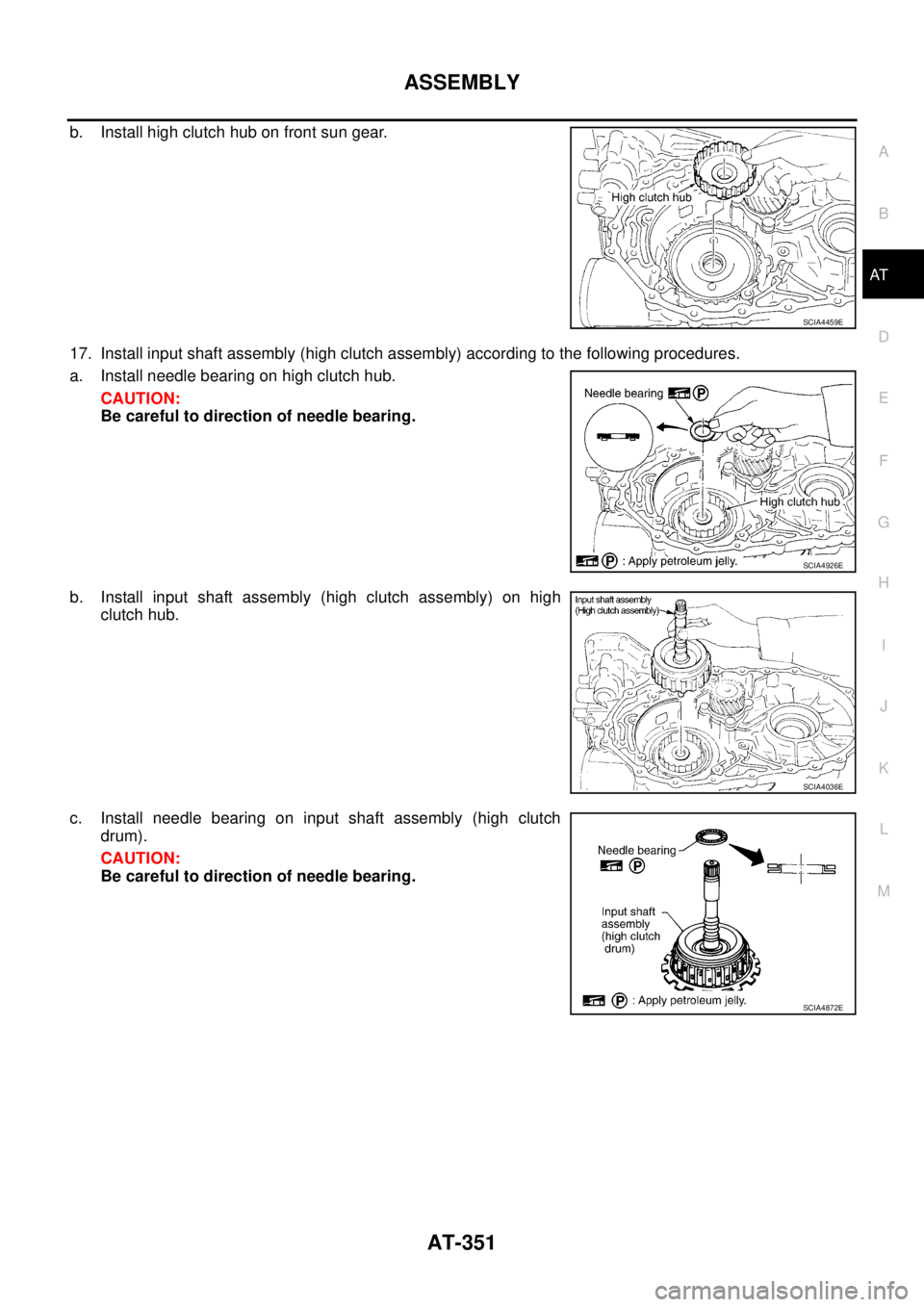

b. Install high clutch hub on front sun gear.
17. Install input shaft assembly (high clutch assembly) according to the following procedures.
a. Install need

Page 360 of 3502

NISSAN TEANA 2003  Service Manual AT-352
ASSEMBLY

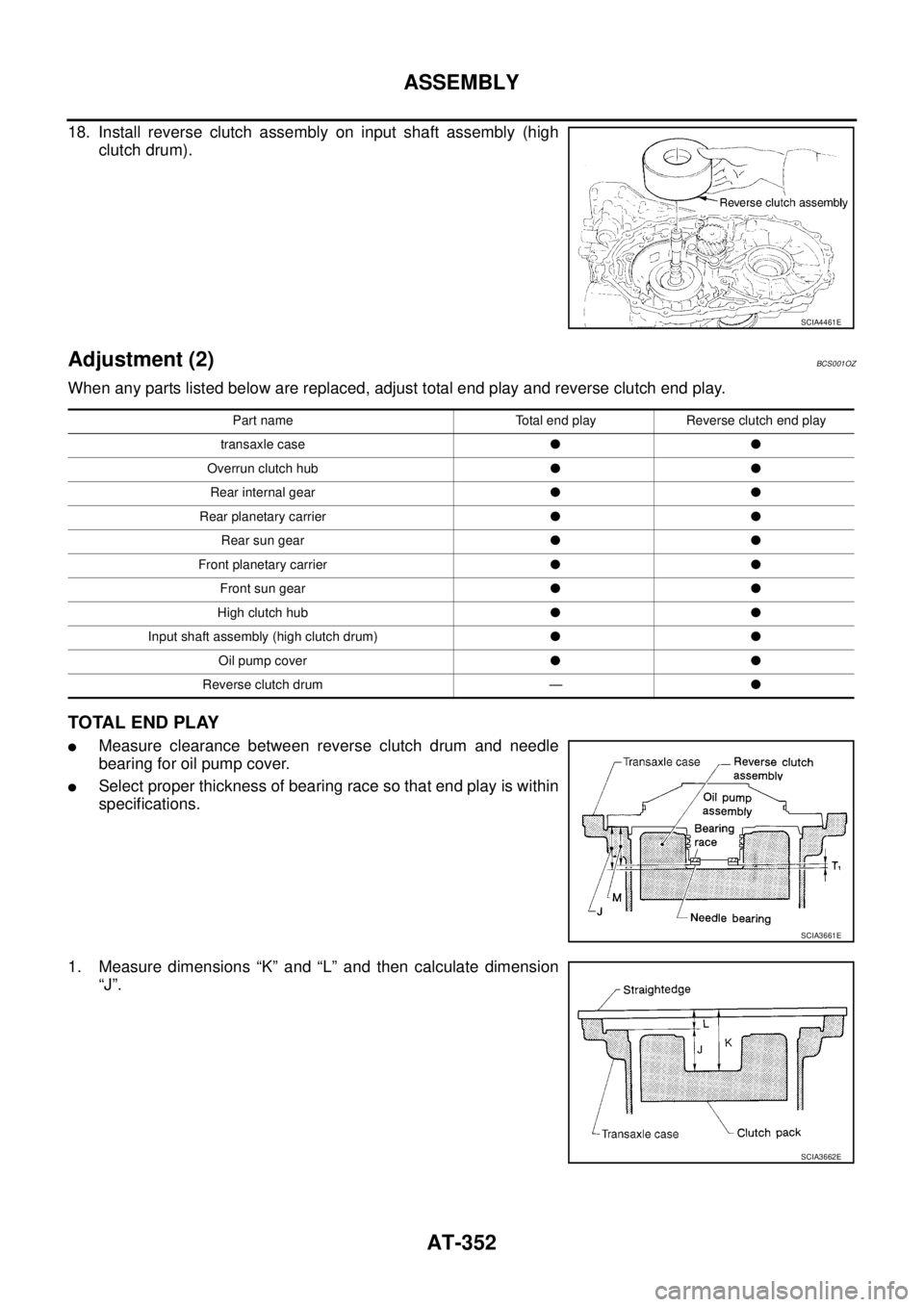

18. Install reverse clutch assembly on input shaft assembly (high
clutch drum).
Adjustment (2)BCS001OZ
When any parts listed below are replaced, adjust total end play and reverse clu
