NISSAN TEANA 2003  Service Manual REPAIR FOR COMPONENT PARTS
AT-333
D
E
F
G
H
I
J
K
L
MA
B
AT

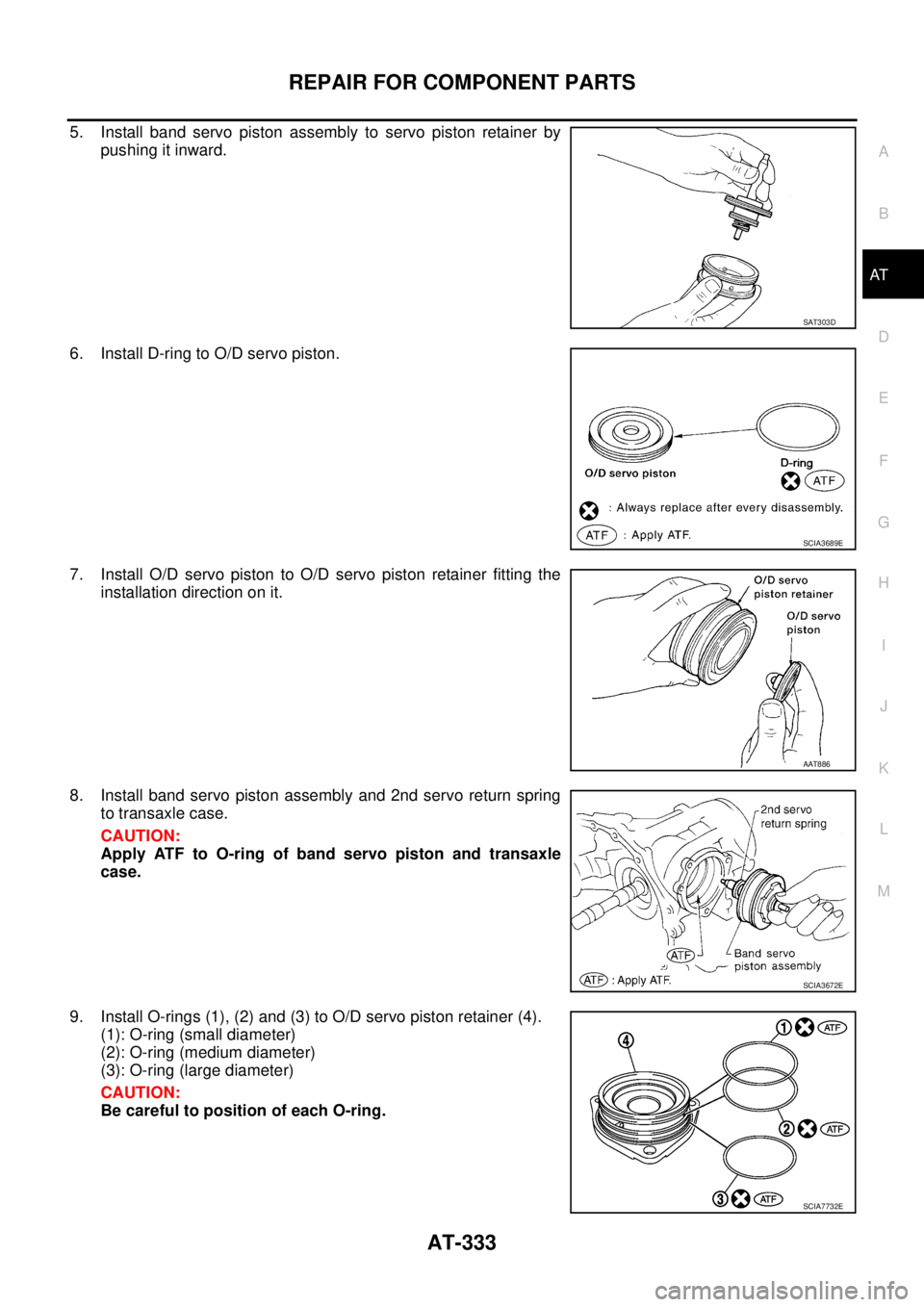

5. Install band servo piston assembly to servo piston retainer by
pushing it inward.
6. Install D-ring to O/D servo piston.
7. Install O/D

Page 342 of 3502

NISSAN TEANA 2003  Service Manual AT-334
REPAIR FOR COMPONENT PARTS

10. Install O/D servo piston retainer to transaxle case. Refer to AT-
329, "COMPONENTS" .
CAUTION:
Do not reuse O/D servo piston retainer fitting bolts.
AAT879

Page 343 of 3502

NISSAN TEANA 2003  Service Manual REPAIR FOR COMPONENT PARTS
AT-335
D
E
F
G
H
I
J
K
L
MA
B
AT

Final DriveBCS001OV

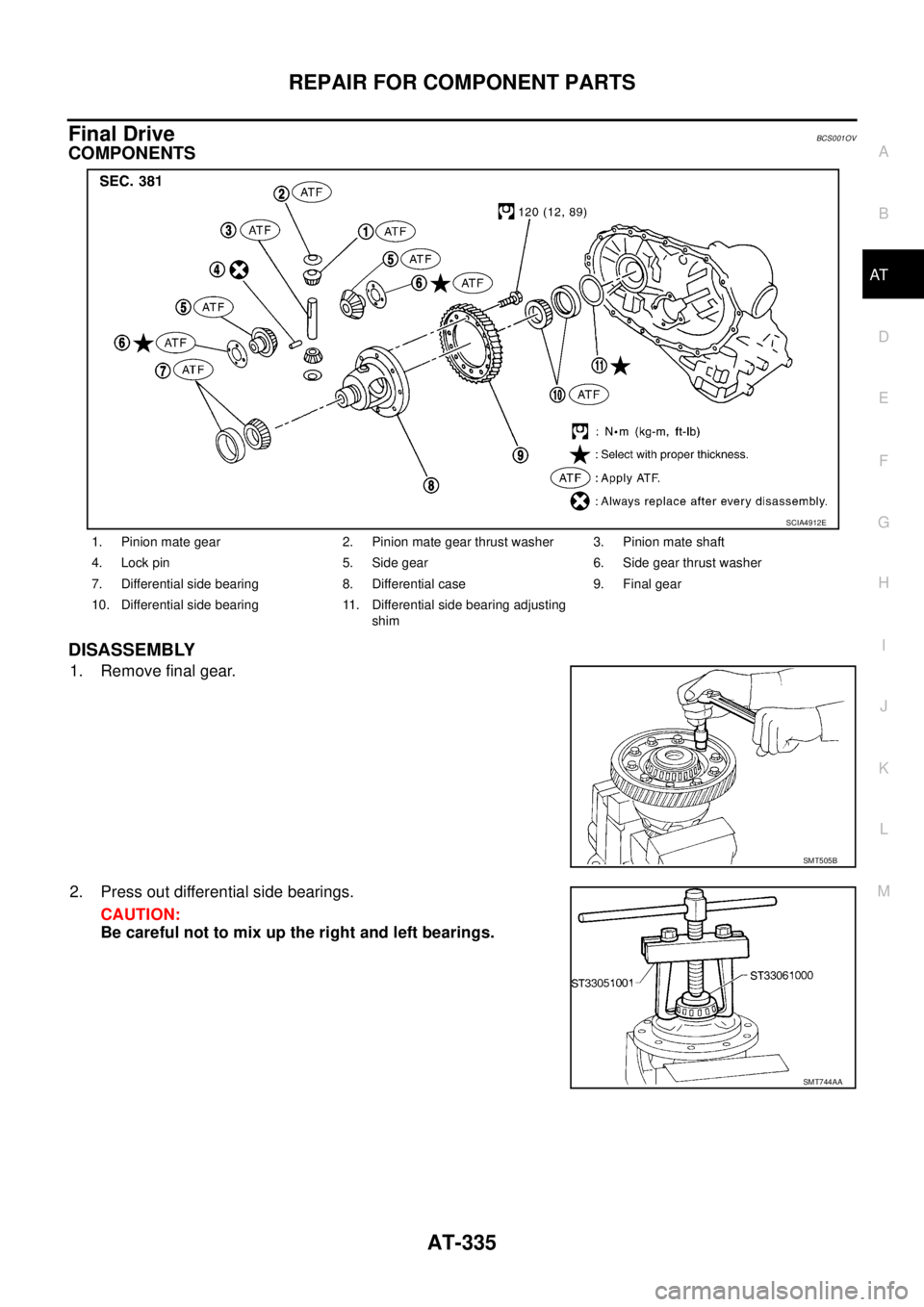

COMPONENTS
DISASSEMBLY
1. Remove final gear.
2. Press out differential side bearings.
CAUTION:
Be careful not to mix u

Page 344 of 3502

NISSAN TEANA 2003  Service Manual AT-336
REPAIR FOR COMPONENT PARTS

3. Remove differential side bearing outer race and differential side
bearing adjusting shim from transaxle case.
4. Drive out lock pin with pin punch.
5. Draw out p

Page 345 of 3502

NISSAN TEANA 2003  Service Manual REPAIR FOR COMPONENT PARTS
AT-337
D
E
F
G
H
I
J
K
L
MA
B
AT

Bearings

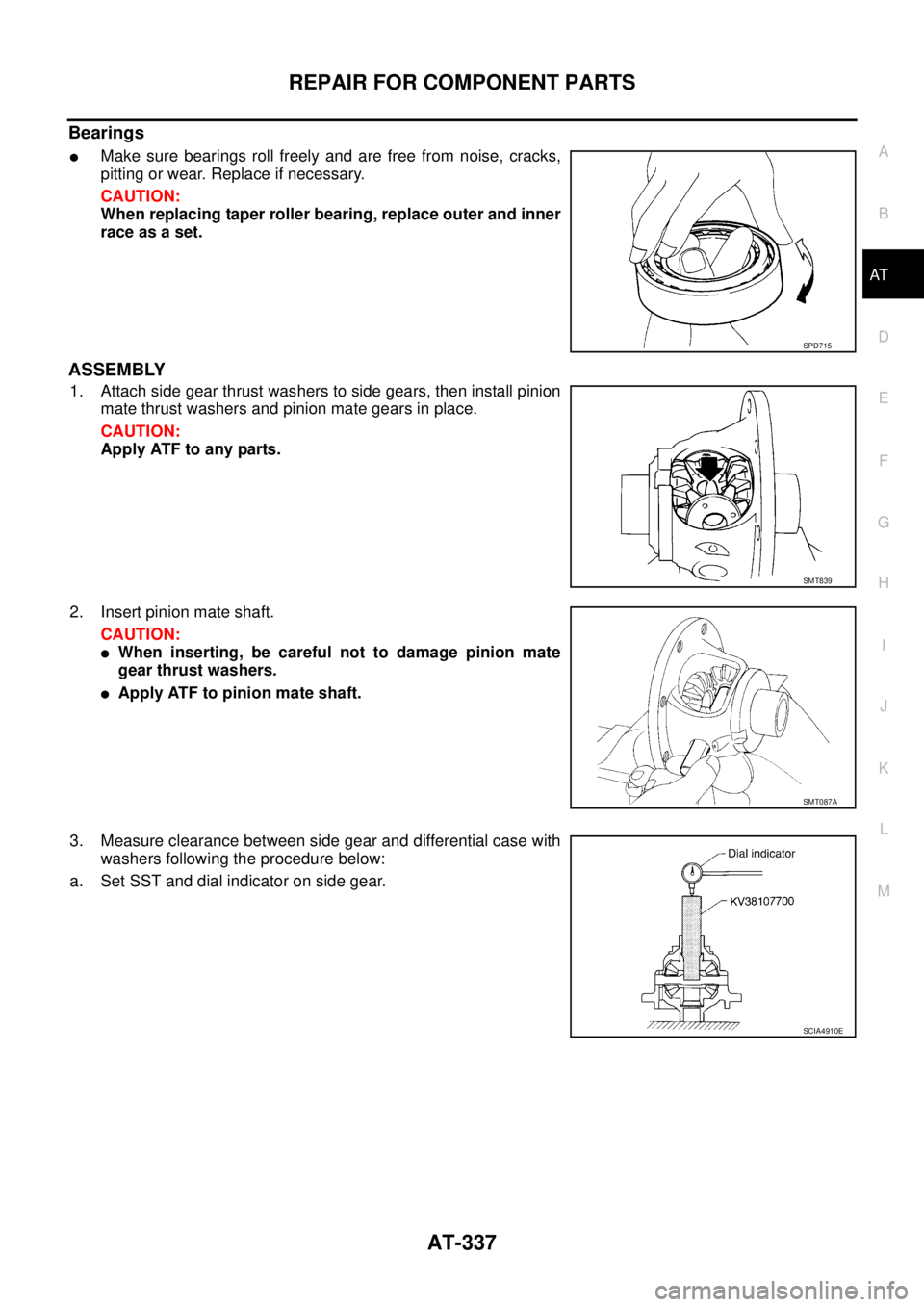

Make sure bearings roll freely and are free from noise, cracks,
pitting or wear. Replace if necessary.
CAUTION:
When replacing t

Page 346 of 3502

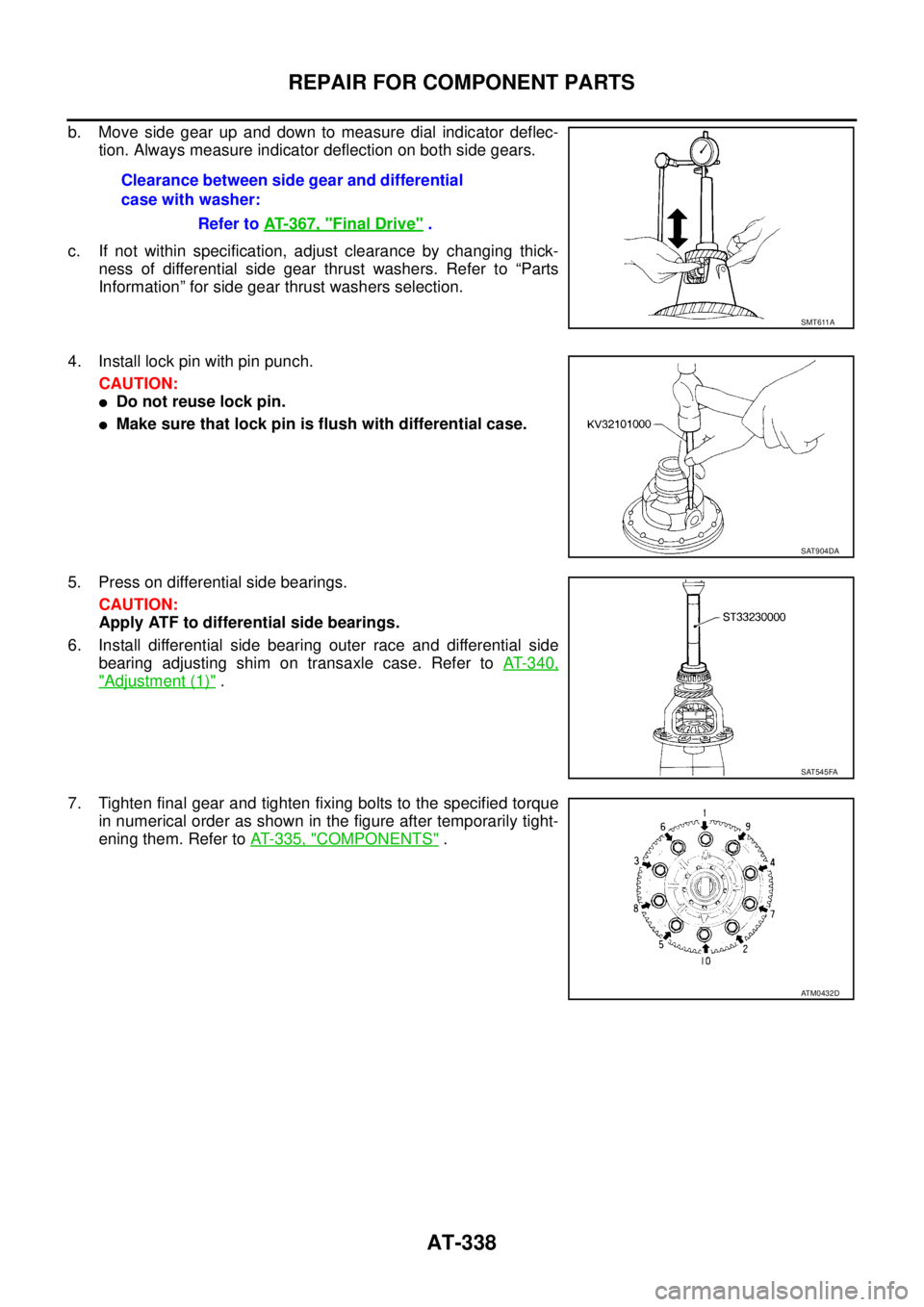

NISSAN TEANA 2003  Service Manual AT-338
REPAIR FOR COMPONENT PARTS

b. Move side gear up and down to measure dial indicator deflec-
tion. Always measure indicator deflection on both side gears.
c. If not within specification, adjust

Page 347 of 3502

NISSAN TEANA 2003  Service Manual ASSEMBLY
AT-339
D
E
F
G
H
I
J
K
L
MA
B
AT

ASSEMBLYPFP:00000
Assembly (1)BCS001OW

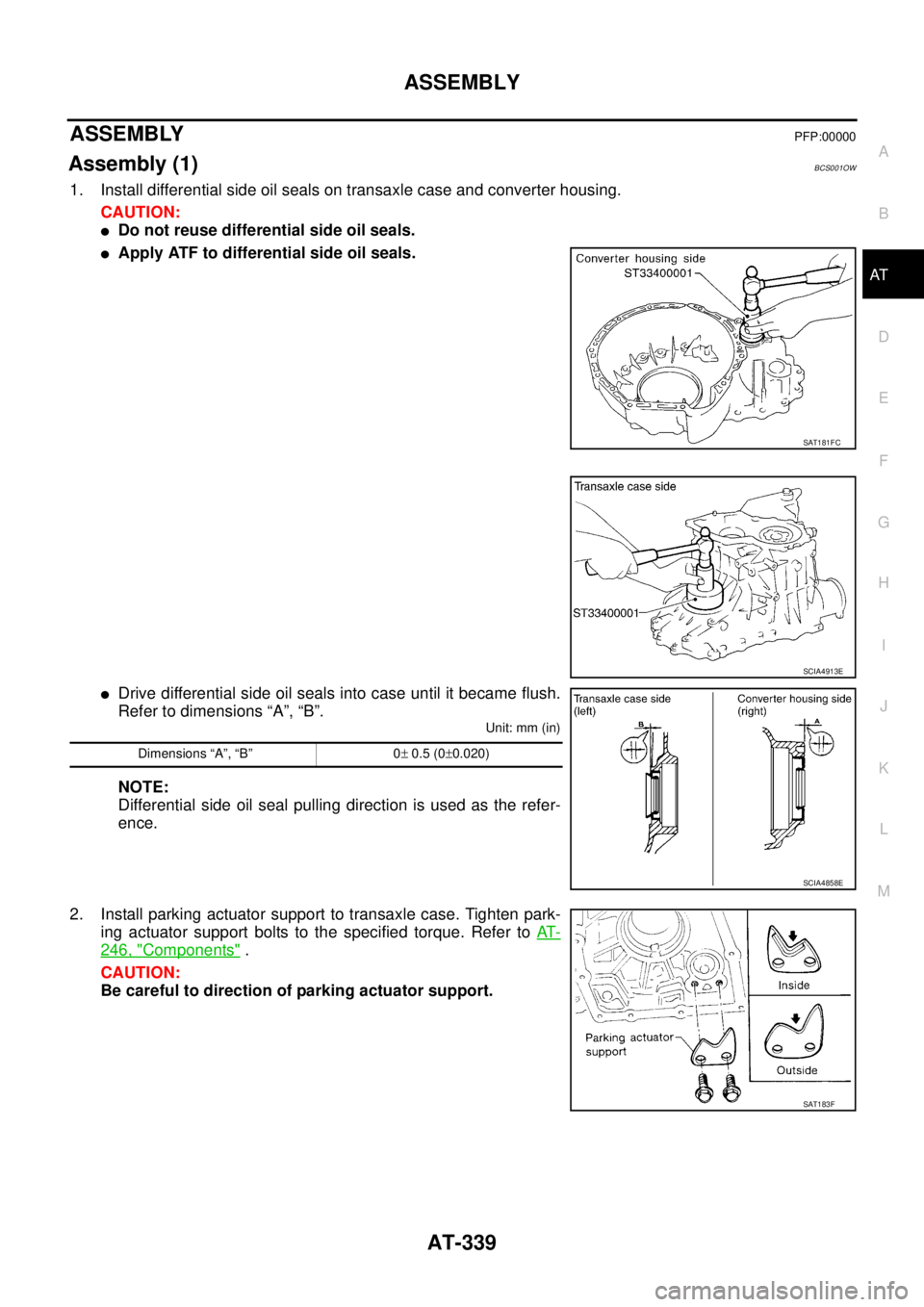

1. Install differential side oil seals on transaxle case and converter housing.
CAUTION:
Do not reuse differential s

Page 348 of 3502

NISSAN TEANA 2003  Service Manual AT-340
ASSEMBLY

3. Install parking pawl on transaxle case and fix it with parking
shaft.
4. Install return spring and parking pawl spacer.
Adjustment (1)BCS001OX
DIFFERENTIAL SIDE BEARING PRELOAD
1.

Page 349 of 3502

NISSAN TEANA 2003  Service Manual ASSEMBLY
AT-341
D
E
F
G
H
I
J
K
L
MA
B
AT

5. Attach dial indicator on differential case at converter housing
side.
6. Insert SST into differential side gear from transaxle case side.
7. Move SST up

Page 350 of 3502

NISSAN TEANA 2003  Service Manual AT-342
ASSEMBLY

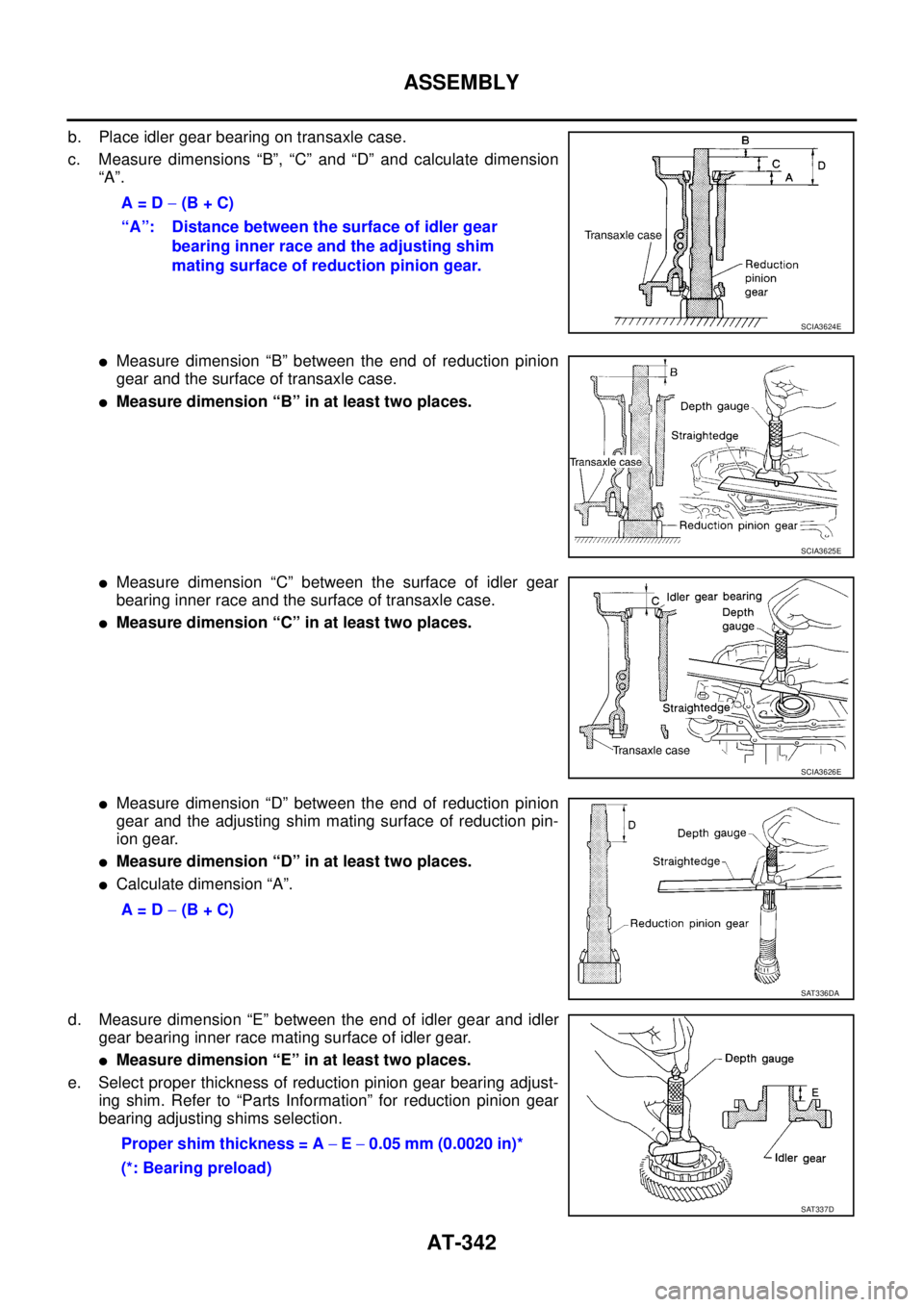

b. Place idler gear bearing on transaxle case.
c. Measure dimensions “B”, “C” and “D” and calculate dimension
“A”.
Measure dimension “B” between the end of redu
