NISSAN TEANA 2003  Service Manual REPAIR FOR COMPONENT PARTS
AT-303
D
E
F
G
H
I
J
K
L
MA
B
AT

INSPECTION
High Clutch Snap Rings and Spring Retainer Assembly

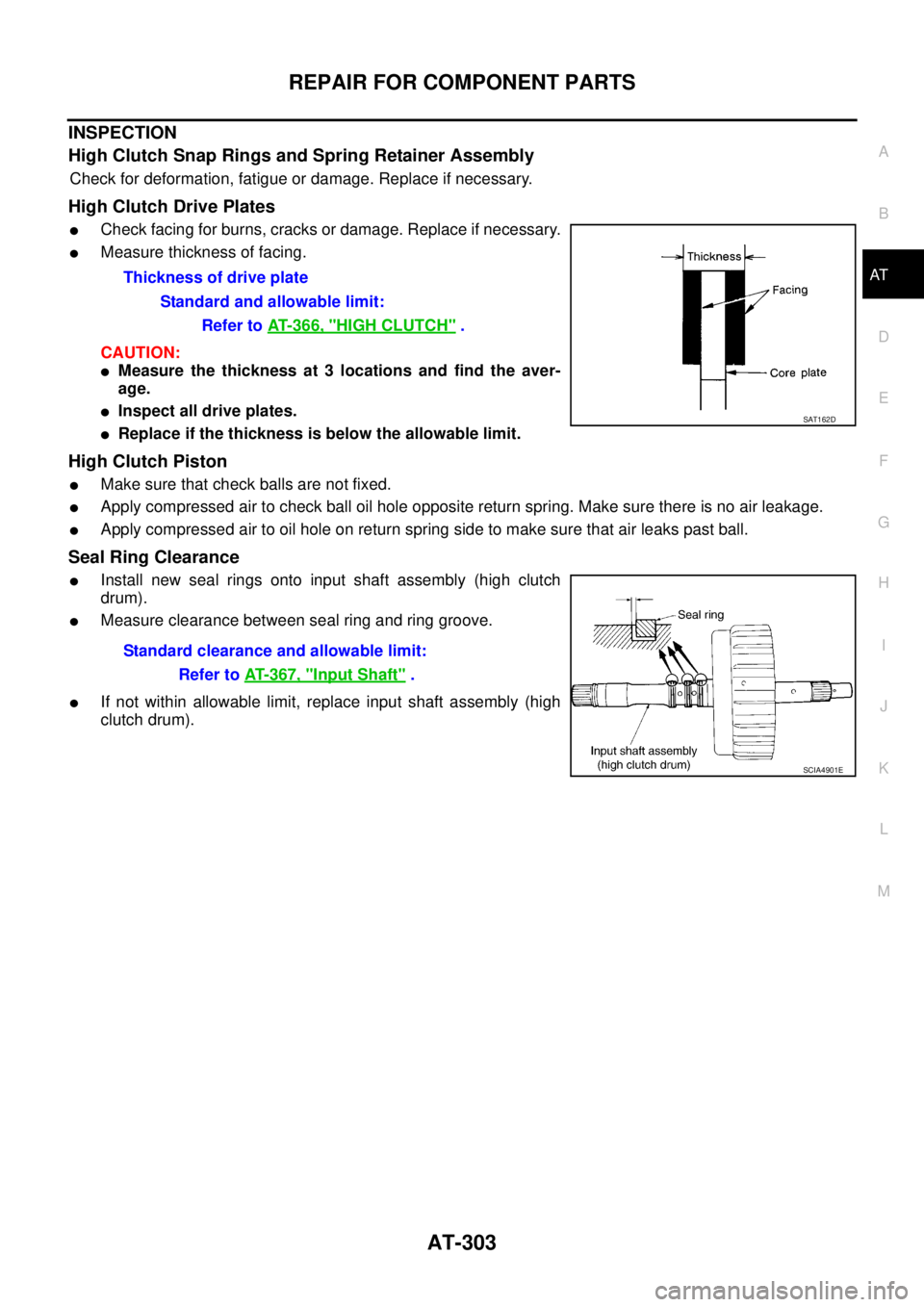

Check for deformation, fatigue or damage. Replace if necessary.
High Clutch

Page 312 of 3502

NISSAN TEANA 2003  Service Manual AT-304
REPAIR FOR COMPONENT PARTS

ASSEMBLY

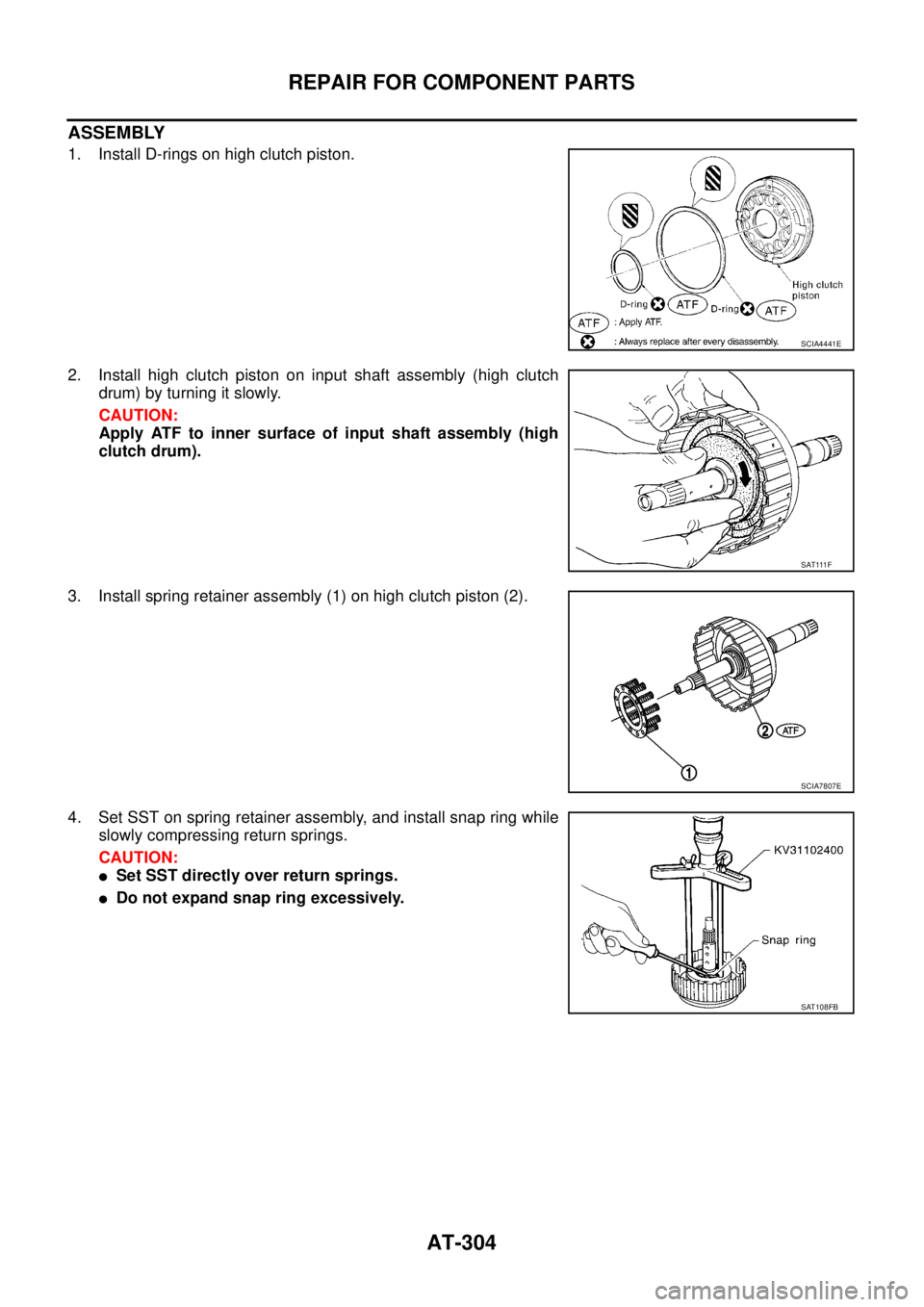

1. Install D-rings on high clutch piston.
2. Install high clutch piston on input shaft assembly (high clutch
drum) by turning it slowly.
CAUTION:
Apply ATF

Page 313 of 3502

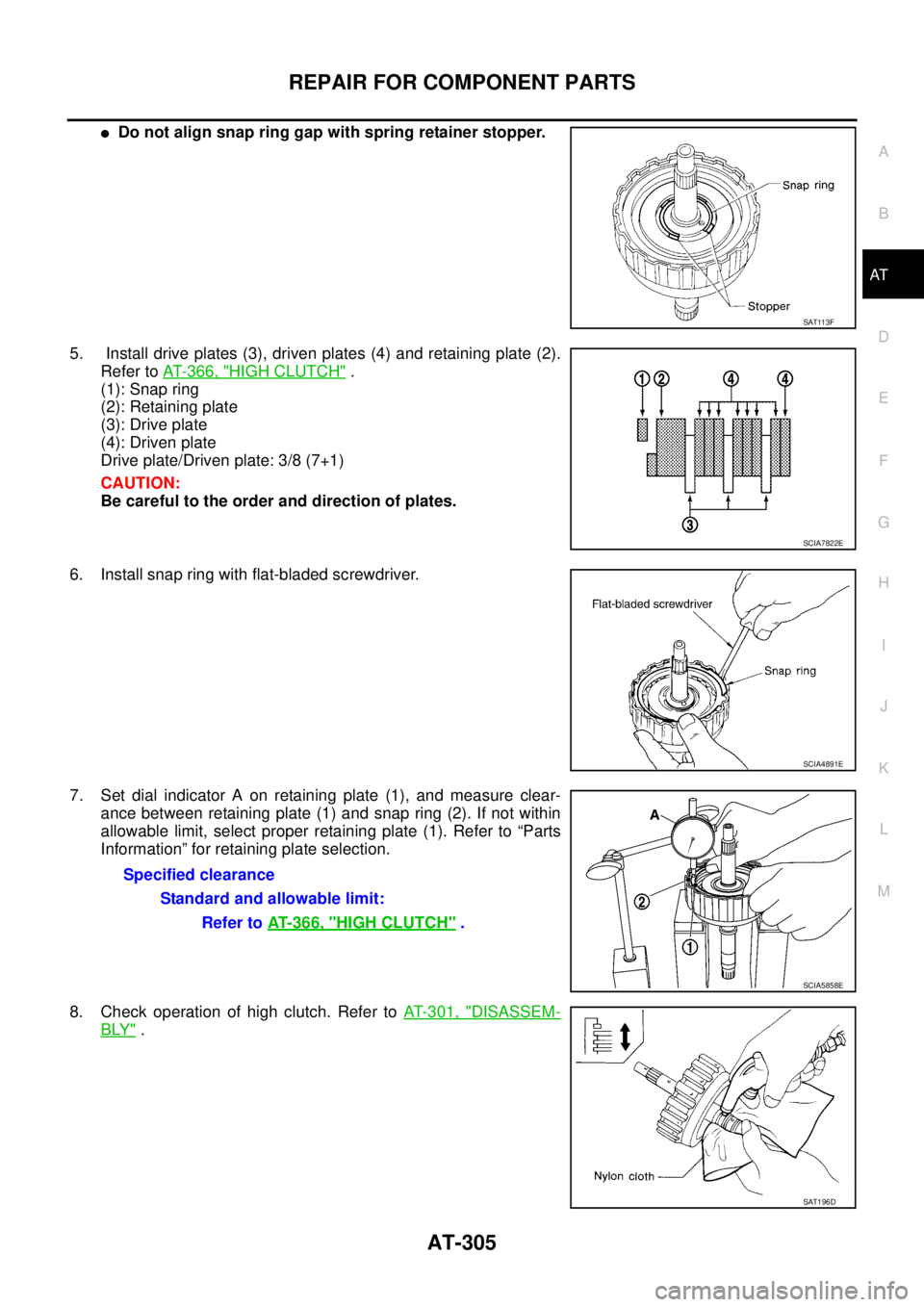

NISSAN TEANA 2003  Service Manual REPAIR FOR COMPONENT PARTS
AT-305
D
E
F
G
H
I
J
K
L
MA
B
AT

Do not align snap ring gap with spring retainer stopper.
5.  Install drive plates (3), driven plates (4) and retaining plate (2).
Refer

Page 314 of 3502

NISSAN TEANA 2003  Service Manual AT-306
REPAIR FOR COMPONENT PARTS

9. Install seal rings to input shaft assembly (high clutch drum).
CAUTION:
Roll paper around seal rings to prevent seal rings from
spreading.
SCIA4890E
SAT198D

Page 315 of 3502

NISSAN TEANA 2003  Service Manual REPAIR FOR COMPONENT PARTS
AT-307
D
E
F
G
H
I
J
K
L
MA
B
AT

Forward and Overrun ClutchesBCS001OQ
COMPONENTS
DISASSEMBLY
1. Check operation of forward clutch and overrun clutch.
a. Install bearing re

Page 316 of 3502

NISSAN TEANA 2003  Service Manual AT-308
REPAIR FOR COMPONENT PARTS

2. Remove snap ring for forward clutch with flat-bladed screw-
driver.
3. Remove drive plates, driven plates, retaining plates and dish
plate for forward clutch.
4.

Page 317 of 3502

NISSAN TEANA 2003  Service Manual REPAIR FOR COMPONENT PARTS
AT-309
D
E
F
G
H
I
J
K
L
MA
B
AT

10. Remove seal lips (1) and D-rings (2) from forward clutch piston
(3) and overrun clutch piston (4).
INSPECTION
Snap Rings and Spring Re

Page 318 of 3502

NISSAN TEANA 2003  Service Manual AT-310
REPAIR FOR COMPONENT PARTS

Overrun Clutch Piston
Make sure that check balls are not fixed.
Apply compressed air to check ball oil hole opposite return
spring. Make sure there is no air leak

Page 319 of 3502

NISSAN TEANA 2003  Service Manual REPAIR FOR COMPONENT PARTS
AT-311
D
E
F
G
H
I
J
K
L
MA
B
AT

4. Install spring retainer assembly (1) on overrun clutch piston (2).
Align the mark on spring retainer with check ball in overrun
clutch

Page 320 of 3502

NISSAN TEANA 2003  Service Manual AT-312
REPAIR FOR COMPONENT PARTS

6. Install drive plates, driven plates, retaining plate and dish plates
for overrun clutch. Refer to AT- 3 6 6 ,  "
OVERRUN CLUTCH" .
CAUTION:
Be careful to the ord
