NISSAN TEANA 2008 Service Manual

EC-80
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
EVAPORATIVE EMISSION SYSTEM
Component Parts Location
INFOID:0000000003857776
1. Intake valve timing control solenoid
valve (bank 1)2. Intake valve timing control solenoid
valve (bank 2)3. Electronic controlled engine mount
control solenoid valve
4. Fuel injector (bank 2) 5. Cooling fan motor-2 6. A/F sensor 1 (bank 2)
7. Ignition coil (with power transistor)
and spark plug (bank 2)8. Camshaft position sensor (PHASE)
(bank 2)9. Crankshaft position sensor (POS)
10. Engine coolant temperature sensor 11. Cooling fan motor-1 12. ECM
13. Refrigerant pressure sensor 14. Battery current sensor 15. IPDM E/R
16. Mass air flow sensor (with intake air
temperature sensor)17. Electric throttle control actuator 18. Power valve actuator 2 (VQ35DE
models)
19. EVAP canister purge volume control
solenoid valve20. Camshaft position sensor (PHASE)
(bank 1)21. Ignition coil (with power transistor)
and spark plug (bank 1)
22. A/F sensor 1 (bank 1) 23. Fuel injector (bank 1) 24. VIAS control solenoid valve 1 and 2
(VQ35DE models)
25. Power valve actuator 1
JMBIA1373ZZ

EVAPORATIVE EMISSION SYSTEM
EC-81
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
1. Mass air flow sensor (with intake air
temperature sensor)2. Electric throttle control actuator
: Vehicle front
1. Ignition coil (with power transistor)
and spark plug (bank 1)2. Fuel injector (bank 1) 3. Fuel injector (bank 2)
4. Ignition coil (with power transistor)
and spark plug (bank 2)5. EVAP canister
: Vehicle front
1. Knock sensor (bank 1) 2. Knock sensor (bank 2) 3. Knock sensor
: Vehicle front
JMBIA1374ZZ
JMBIA1375ZZ
JMBIA1376GB
JMBIA1377ZZ

EC-82
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
EVAPORATIVE EMISSION SYSTEM
1. Crankshaft position sensor (POS) 2. Camshaft position sensor (PHASE)
(bank 2)3. Camshaft position sensor (PHASE)
(bank 1)
: Vehicle front
1. Refrigerant pressure sensor 2. Battery current sensor
: Vehicle front
1. ECM 2. Fuel pump fuse 3. IPDM E/R
: Vehicle front
JMBIA1378ZZ
JMBIA1379ZZ
PBIB1686E

EVAPORATIVE EMISSION SYSTEM
EC-83
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
1. A/F sensor 1 (bank 1) harness con-
nector2. A/F sensor 1 (bank 1) 3. A/F sensor 1 (bank 2) harness con-
nector
4. A/F sensor 1 (bank 2)
: Vehicle front
1. HO2S2 (bank 1) 2. HO2S2 (bank 2) 3. HO2S2 (bank 2) harness connector
4. Tie-rod (RH) 5. Power steering pressure sensor 6. HO2S2 (bank 1) harness connector
: Vehicle front
1. Electronic controlled engine mount
control solenoid valve2. VIAS control solenoid valve 1 3. VIAS control solenoid valve 2
4. EVAP canister purge volume control
solenoid valve
JMBIA1116ZZ
JMBIA1380ZZ
JMBIA1381GB

EC-84
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
EVAPORATIVE EMISSION SYSTEM
1. Electronic controlled engine mount
control solenoid valve2. VIAS control solenoid valve 3. EVAP canister purge volume control
solenoid valve
1. Intake valve timing control solenoid
valve (bank 1)2. Intake valve timing control solenoid
valve (bank 2)3. Data link connector
1. Stop lamp switch 2. ASCD brake switch 3. Accelerator pedal position sensor
1. ASCD steering switch 2. CANCEL switch 3. RESUME/ACCELERATE switch
4. SET/COAST switch 5. MAIN switch
JMBIA1382GB
JMBIA1383ZZ
JMBIA1384ZZ
JMBIA1120ZZ

EVAPORATIVE EMISSION SYSTEM
EC-85
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Component DescriptionINFOID:0000000003856493
1. Fuel level sensor unit and fuel pump
harness connector2. Fuel pressure regulator 3. Fuel level sensor unit and fuel pump
: Vehicle front
JMBIA1385ZZ
Component Reference
A/F sensor 1EC-163, "
Description"
Accelerator pedal position sensorEC-304, "Description"
Camshaft position sensor (PHASE)EC-222, "Description"
Crankshaft position sensor (POS)EC-218, "Description"
Engine coolant temperature sensorEC-157, "Description"
EVAP canister purge volume control solenoid valveEC-231, "Description"
Mass air flow sensorEC-149, "Description"
Throttle position sensorEC-160, "Description"

EC-86
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
INTAKE VALVE TIMING CONTROL
INTAKE VALVE TIMING CONTROL

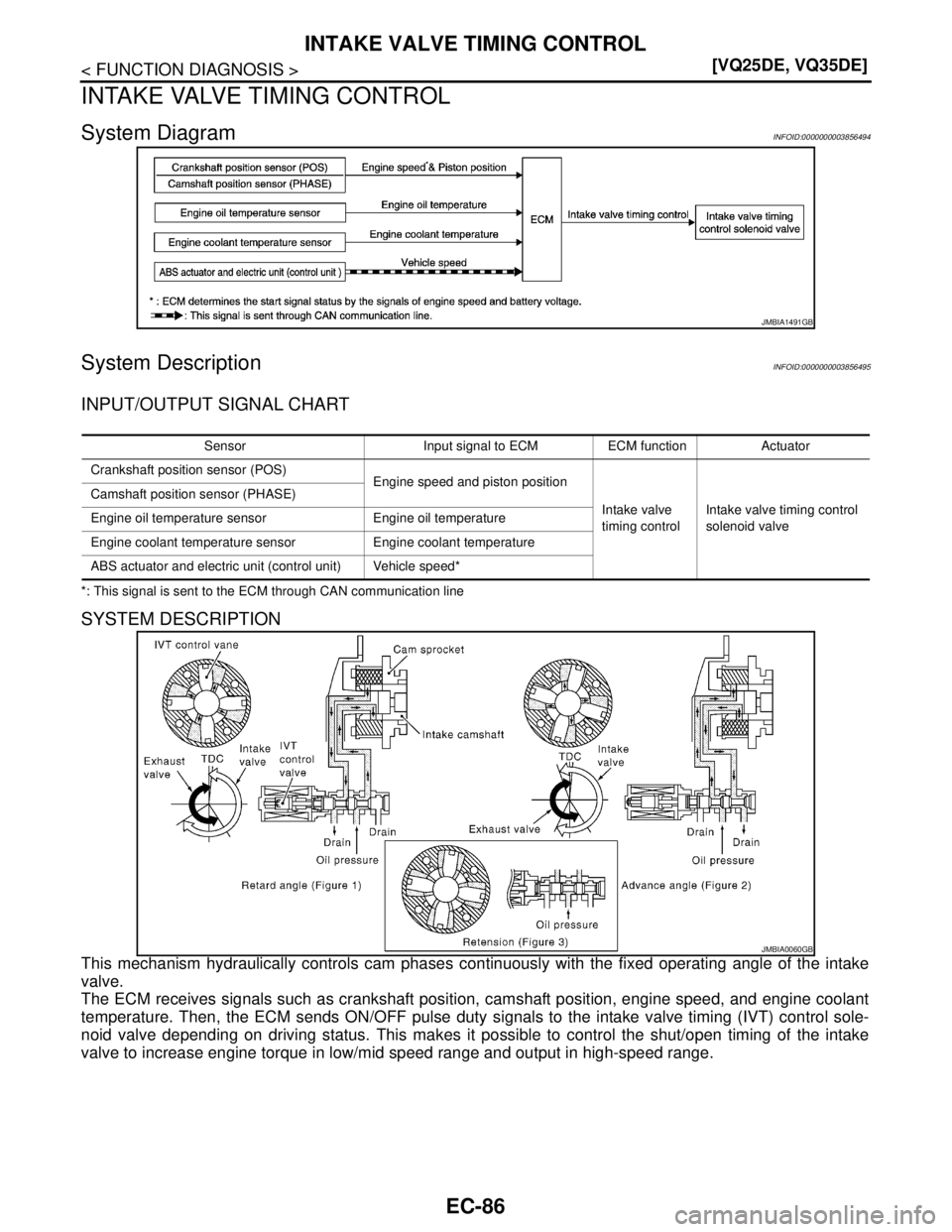

System DiagramINFOID:0000000003856494
System DescriptionINFOID:0000000003856495
INPUT/OUTPUT SIGNAL CHART
*: This signal is sent to the ECM through CAN communication line
SYSTEM DESCRIPTION
This mechanism hydraulically controls cam phases continuously with the fixed operating angle of the intake
valve.
The ECM receives signals such as crankshaft position, camshaft position, engine speed, and engine coolant
temperature. Then, the ECM sends ON/OFF pulse duty signals to the intake valve timing (IVT) control sole-
noid valve depending on driving status. This makes it possible to control the shut/open timing of the intake
valve to increase engine torque in low/mid speed range and output in high-speed range.
JMBIA1491GB
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Engine speed and piston position
Intake valve
timing controlIntake valve timing control
solenoid valve Camshaft position sensor (PHASE)
Engine oil temperature sensor Engine oil temperature
Engine coolant temperature sensor Engine coolant temperature
ABS actuator and electric unit (control unit) Vehicle speed*
JMBIA0060GB

INTAKE VALVE TIMING CONTROL
EC-87
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O

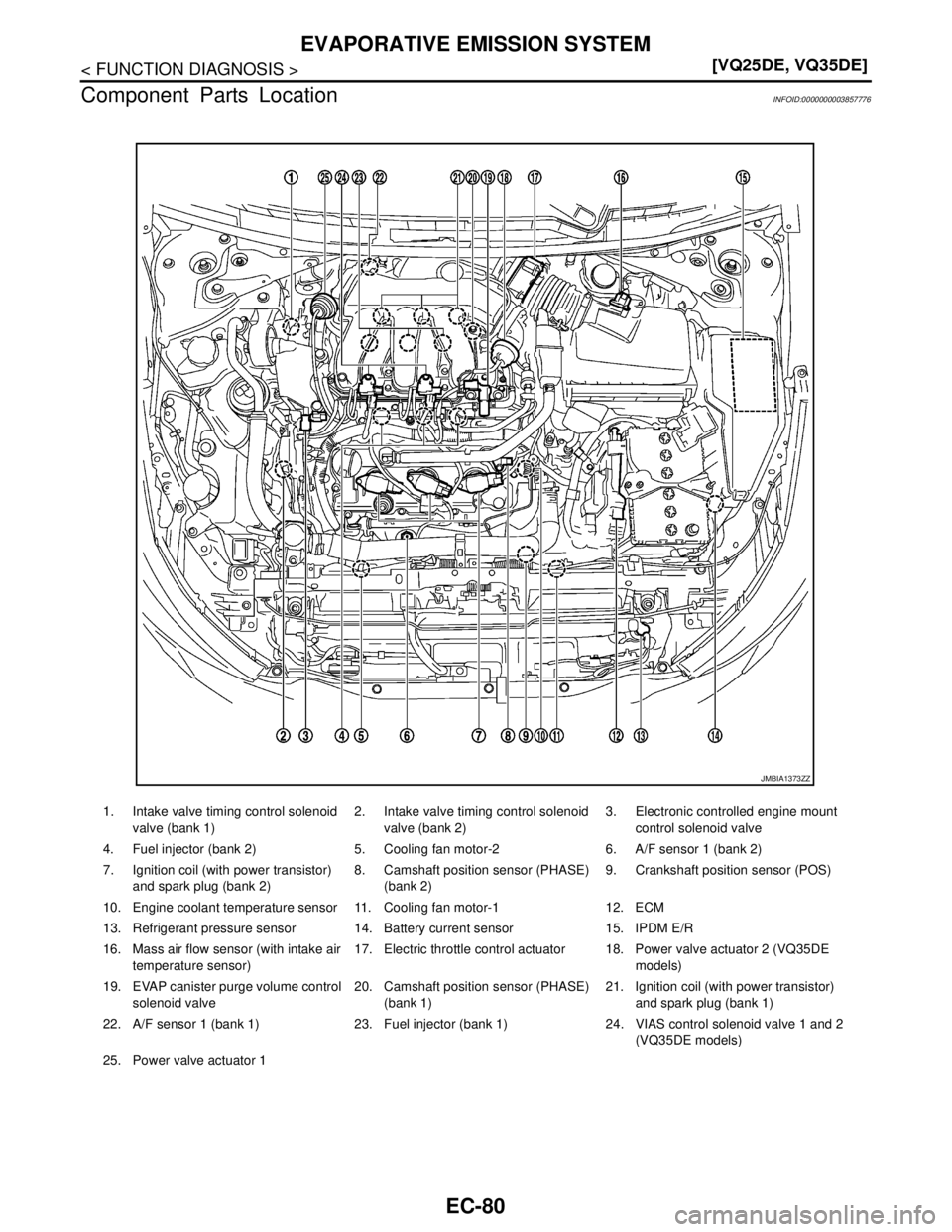

Component Parts LocationINFOID:0000000003857777
1. Intake valve timing control solenoid
valve (bank 1)2. Intake valve timing control solenoid
valve (bank 2)3. Electronic controlled engine mount
control solenoid valve
4. Fuel injector (bank 2) 5. Cooling fan motor-2 6. A/F sensor 1 (bank 2)
7. Ignition coil (with power transistor)
and spark plug (bank 2)8. Camshaft position sensor (PHASE)
(bank 2)9. Crankshaft position sensor (POS)
10. Engine coolant temperature sensor 11. Cooling fan motor-1 12. ECM
13. Refrigerant pressure sensor 14. Battery current sensor 15. IPDM E/R
16. Mass air flow sensor (with intake air
temperature sensor)17. Electric throttle control actuator 18. Power valve actuator 2 (VQ35DE
models)
19. EVAP canister purge volume control
solenoid valve20. Camshaft position sensor (PHASE)
(bank 1)21. Ignition coil (with power transistor)
and spark plug (bank 1)
22. A/F sensor 1 (bank 1) 23. Fuel injector (bank 1) 24. VIAS control solenoid valve 1 and 2
(VQ35DE models)
25. Power valve actuator 1
JMBIA1373ZZ

EC-88
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
INTAKE VALVE TIMING CONTROL

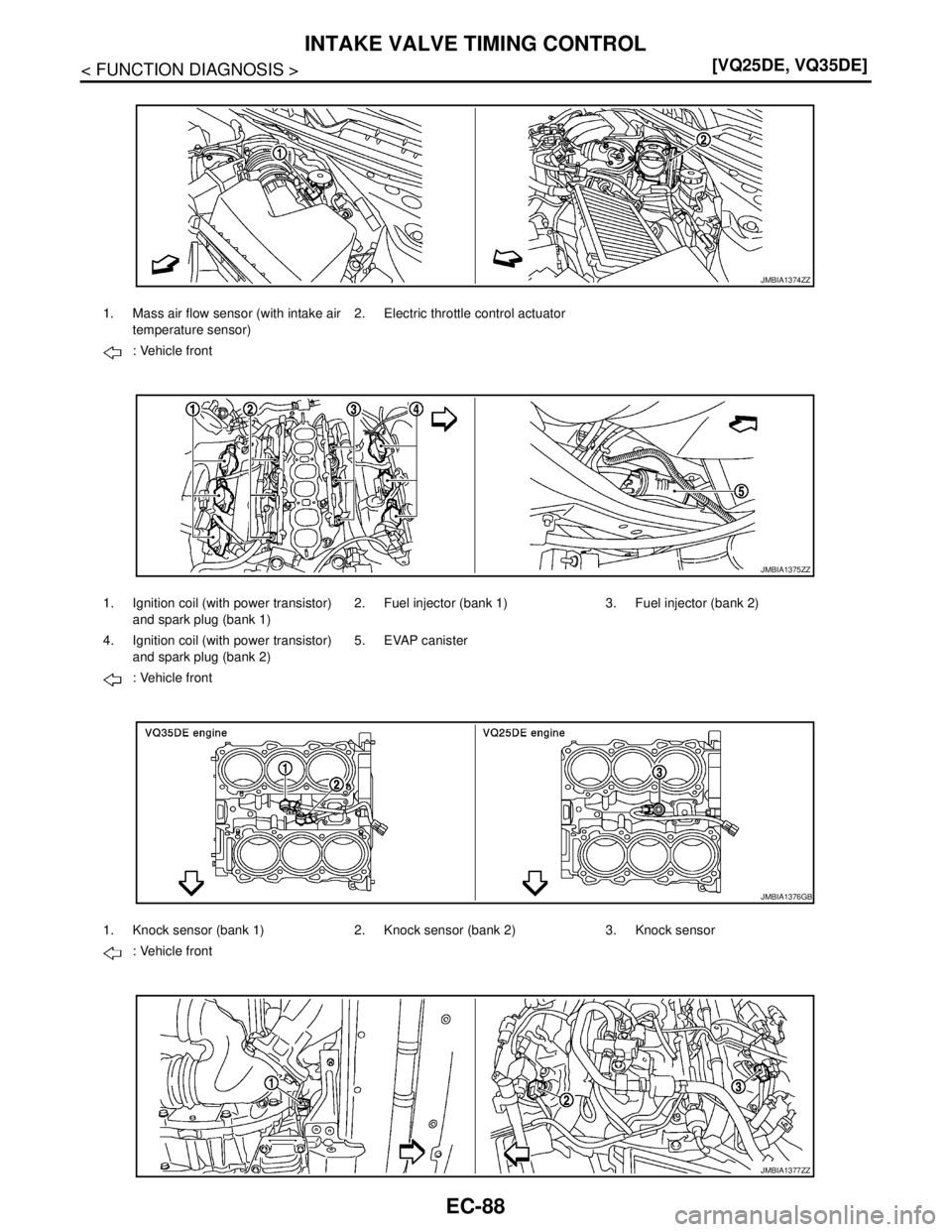

1. Mass air flow sensor (with intake air
temperature sensor)2. Electric throttle control actuator
: Vehicle front
1. Ignition coil (with power transistor)
and spark plug (bank 1)2. Fuel injector (bank 1) 3. Fuel injector (bank 2)
4. Ignition coil (with power transistor)
and spark plug (bank 2)5. EVAP canister
: Vehicle front
1. Knock sensor (bank 1) 2. Knock sensor (bank 2) 3. Knock sensor
: Vehicle front
JMBIA1374ZZ
JMBIA1375ZZ
JMBIA1376GB
JMBIA1377ZZ

INTAKE VALVE TIMING CONTROL
EC-89
< FUNCTION DIAGNOSIS >[VQ25DE, VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O

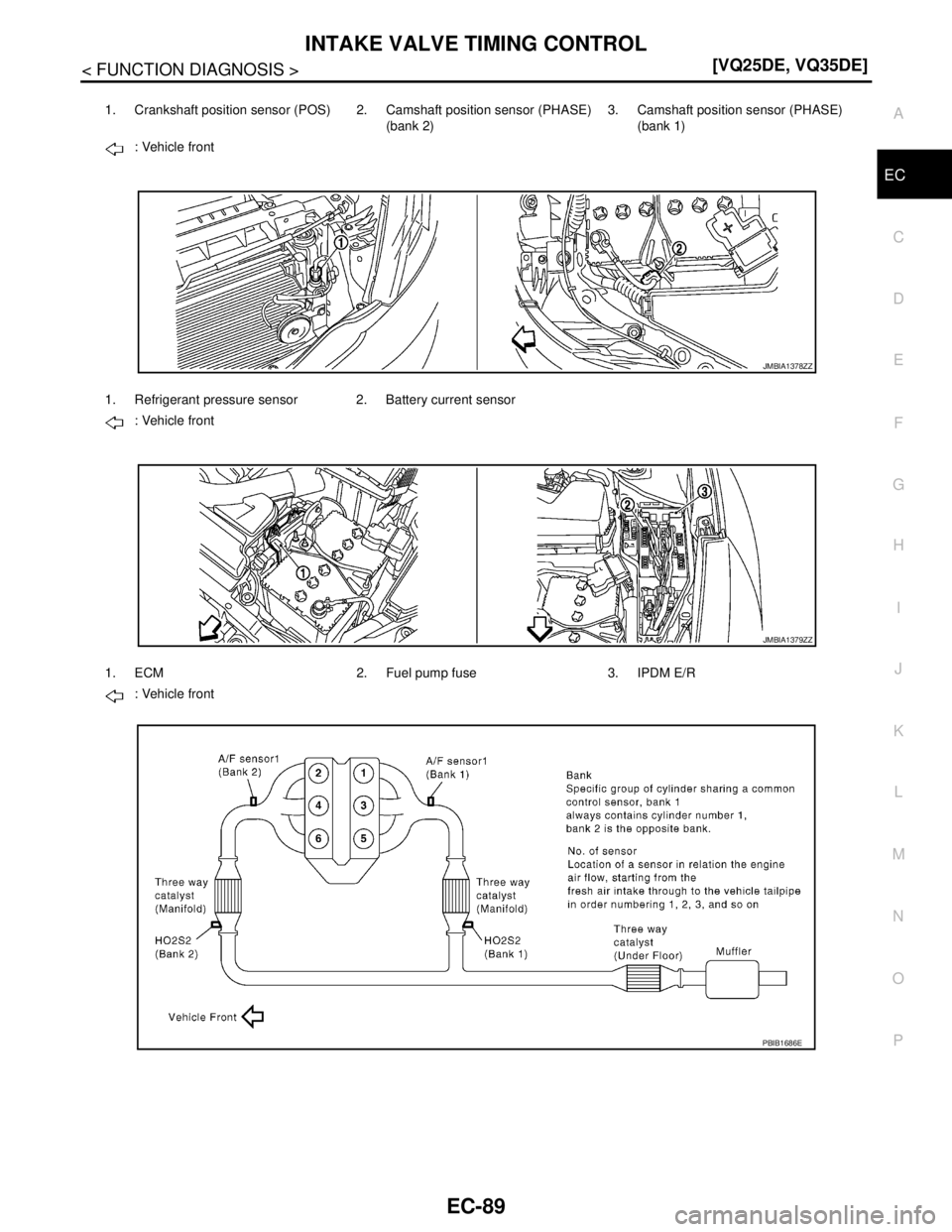

1. Crankshaft position sensor (POS) 2. Camshaft position sensor (PHASE)
(bank 2)3. Camshaft position sensor (PHASE)
(bank 1)
: Vehicle front
1. Refrigerant pressure sensor 2. Battery current sensor
: Vehicle front
1. ECM 2. Fuel pump fuse 3. IPDM E/R
: Vehicle front
JMBIA1378ZZ
JMBIA1379ZZ
PBIB1686E
