NISSAN TEANA 2008 Service Manual

MWI
COMBINATION METER
MWI-57
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P
23
(B)Ground Ground —Ignition
switch
ON—0 V
24
(B/W)GroundFuel level sensor signal
ground—Ignition
switch
ON—0 V
25
(BR)Ground Alternator signal InputIgnition
switch
ONCharge warning lamp ON 2 V
Charge warning lamp OFF 12 V
26
(G/R)Ground Parking brake switch signal InputIgnition
switch
ONWhen parking brake is ap-
plied0 V
When parking brake is re-
leased5 V
27
(V)GroundBrake fluid level switch sig-
nalInputIgnition
switch
ONBrake fluid level is normal 12 V
Brake fluid level is less than
low level0 V
28
(L/O)Ground Security signal InputIgnition
switch
ONSecurity warning lamp OFF 12 V
Security warning lamp ON 0 V
30
(L/B)GroundVehicle speed signal output
(2-pulse)OutputIgnition
switch
ONSpeedometer operated
[When vehicle speed is ap-
prox. 40 km/h (25 MPH)]NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit).
31
(V/W)GroundVehicle speed signal output
(8-pulse)OutputIgnition
switch
ONSpeedometer operated
[When vehicle speed is ap-
prox. 40 km/h (25 MPH)]NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit).
32
(LG/R)Ground Sport mode switch signal InputIgnition
switch
ONSport mode switch pressed. 0 V
Sport mode switch not
pressed.5 V
34
(G/B)Ground Fuel level sensor signal InputIgnition
switch
ON— Te r m i n a l N o .
(Wire color)Description
ConditionVa l u e
(Approx.)
+ – Signal nameInput/
Output
JSNIA0015GB
JSNIA0012GB
JPNIA0740ZZ

MWI-58
< ECU DIAGNOSIS >
COMBINATION METER
35
(W/B)GroundSeat belt buckle switch sig-
nal (driver side)InputIgnition
switch
ONWhen driver seat belt is fas-
tened.12 V
When driver seat belt is un-
fastened.0 V Te r m i n a l N o .
(Wire color)Description
ConditionVa l u e
(Approx.)
+ – Signal nameInput/
Output

MWI
COMBINATION METER
MWI-59
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P

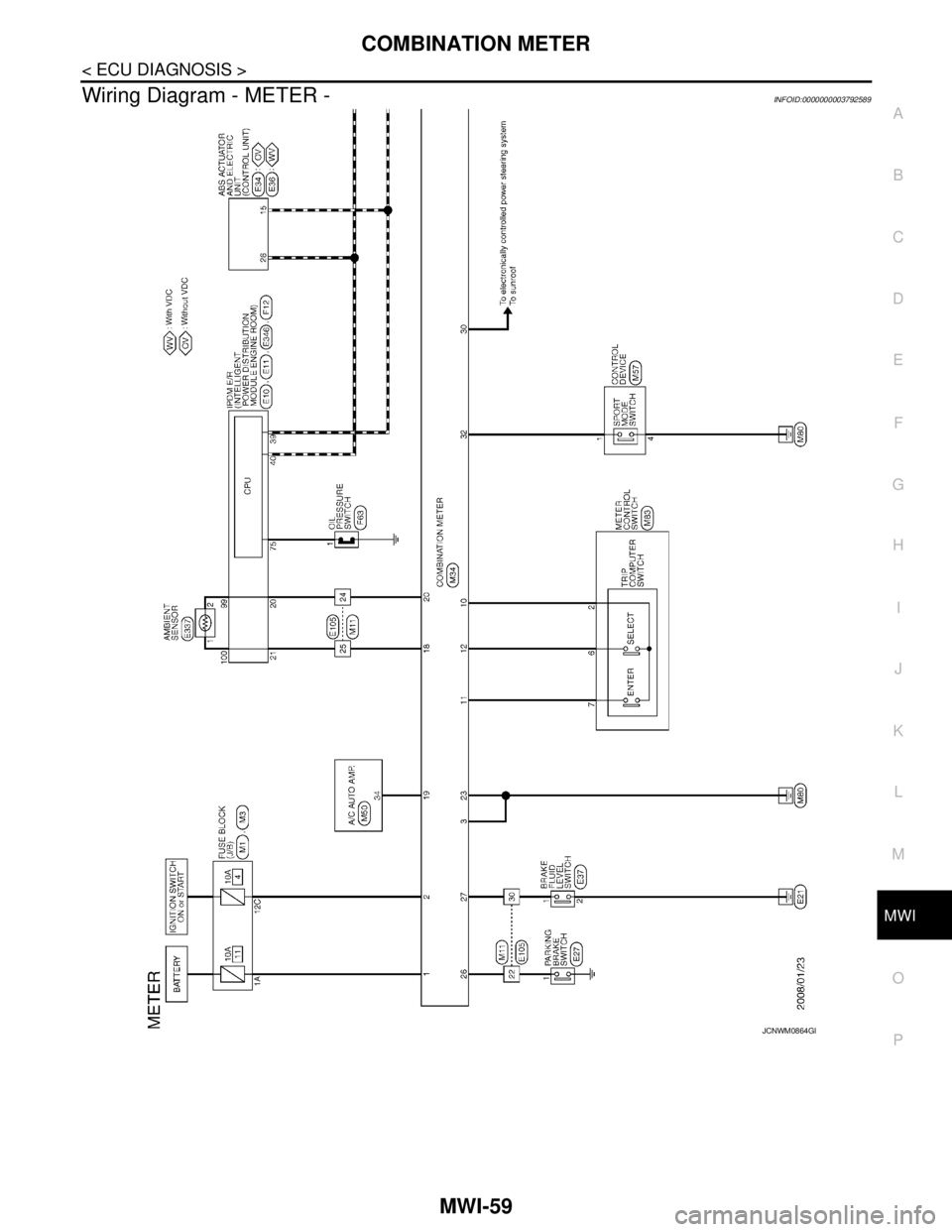

Wiring Diagram - METER -INFOID:0000000003792589
JCNWM0864GB

MWI-60
< ECU DIAGNOSIS >
COMBINATION METER

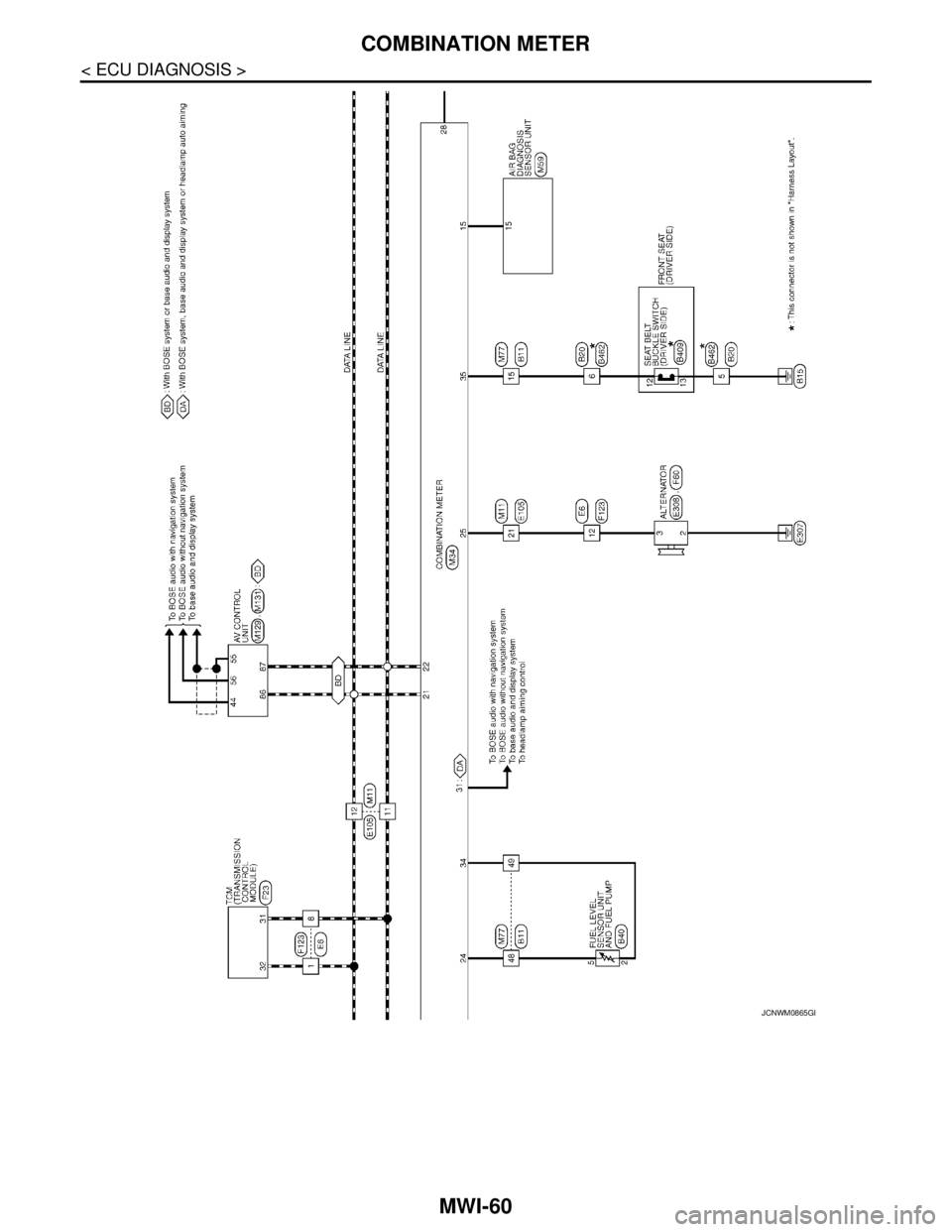

JCNWM0865GB

MWI
COMBINATION METER
MWI-61
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P

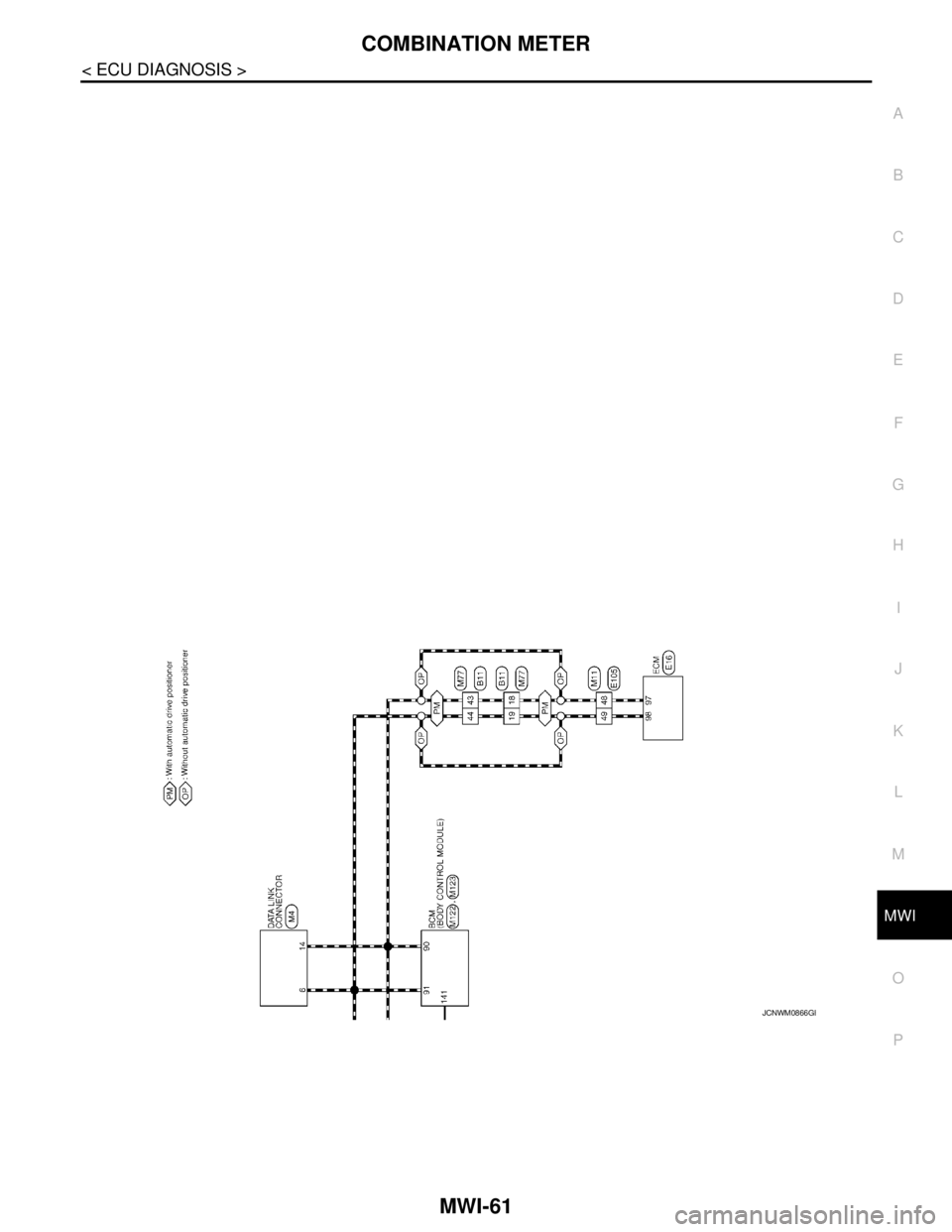

JCNWM0866GB

MWI-62
< ECU DIAGNOSIS >
COMBINATION METER

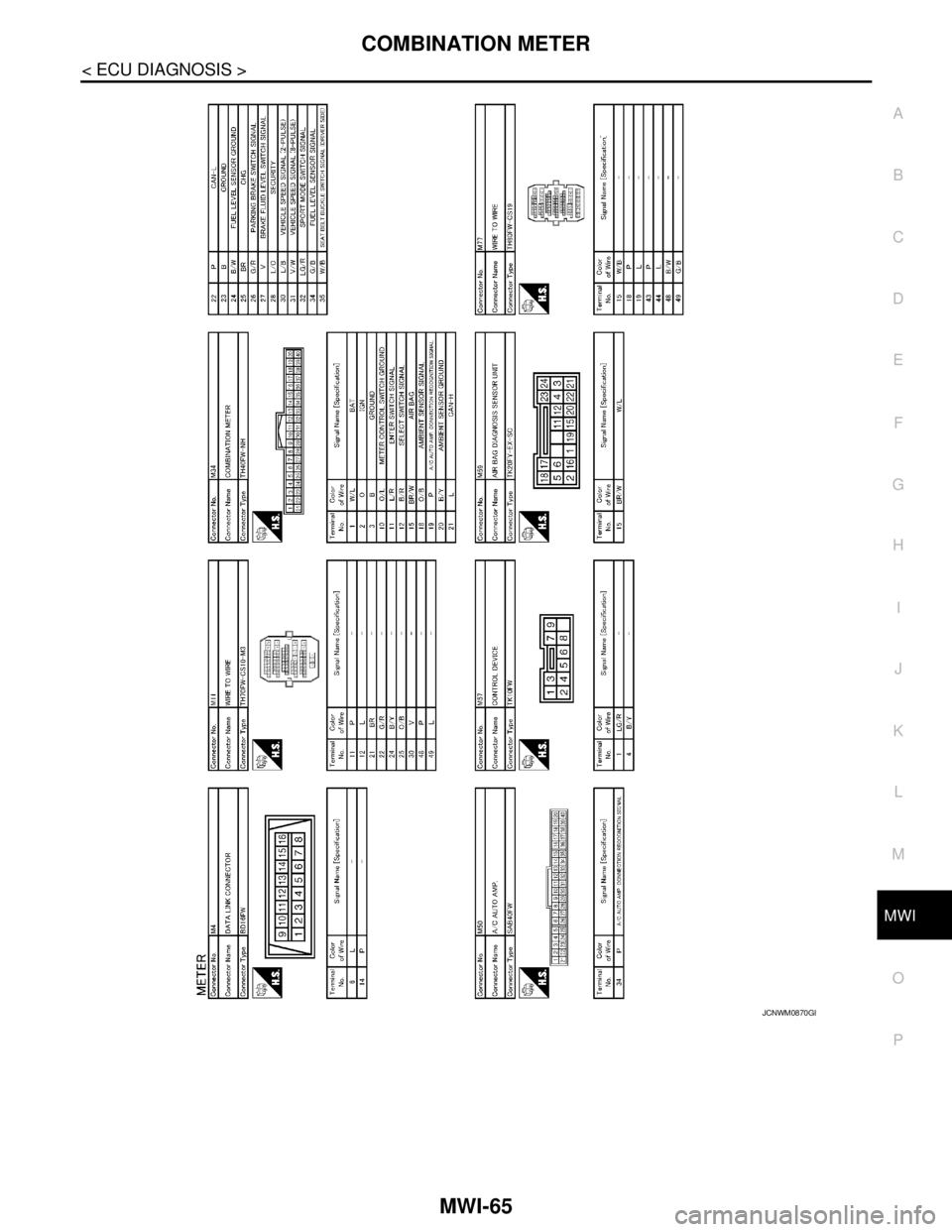

JCNWM0867GB

MWI
COMBINATION METER
MWI-63
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P

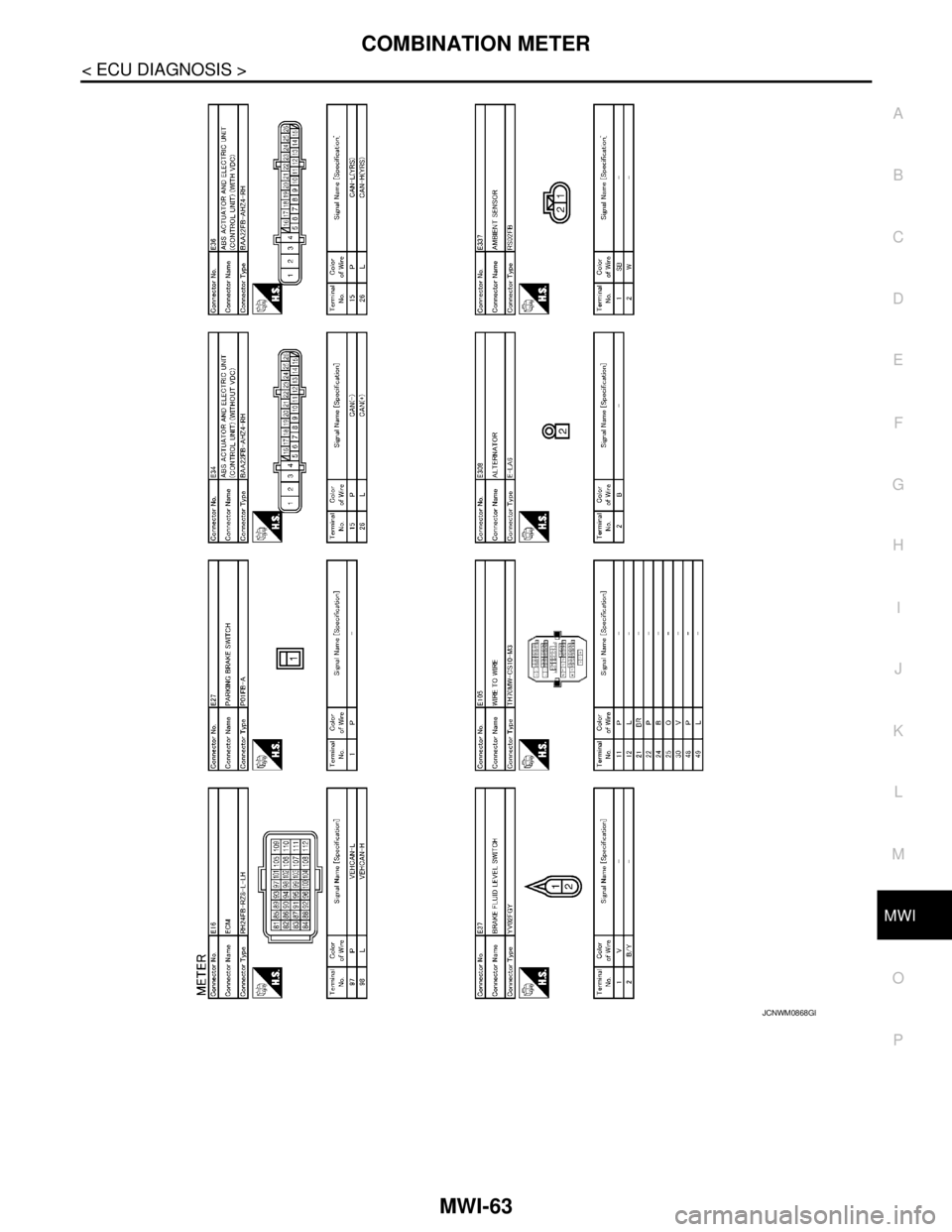

JCNWM0868GB

MWI-64
< ECU DIAGNOSIS >
COMBINATION METER

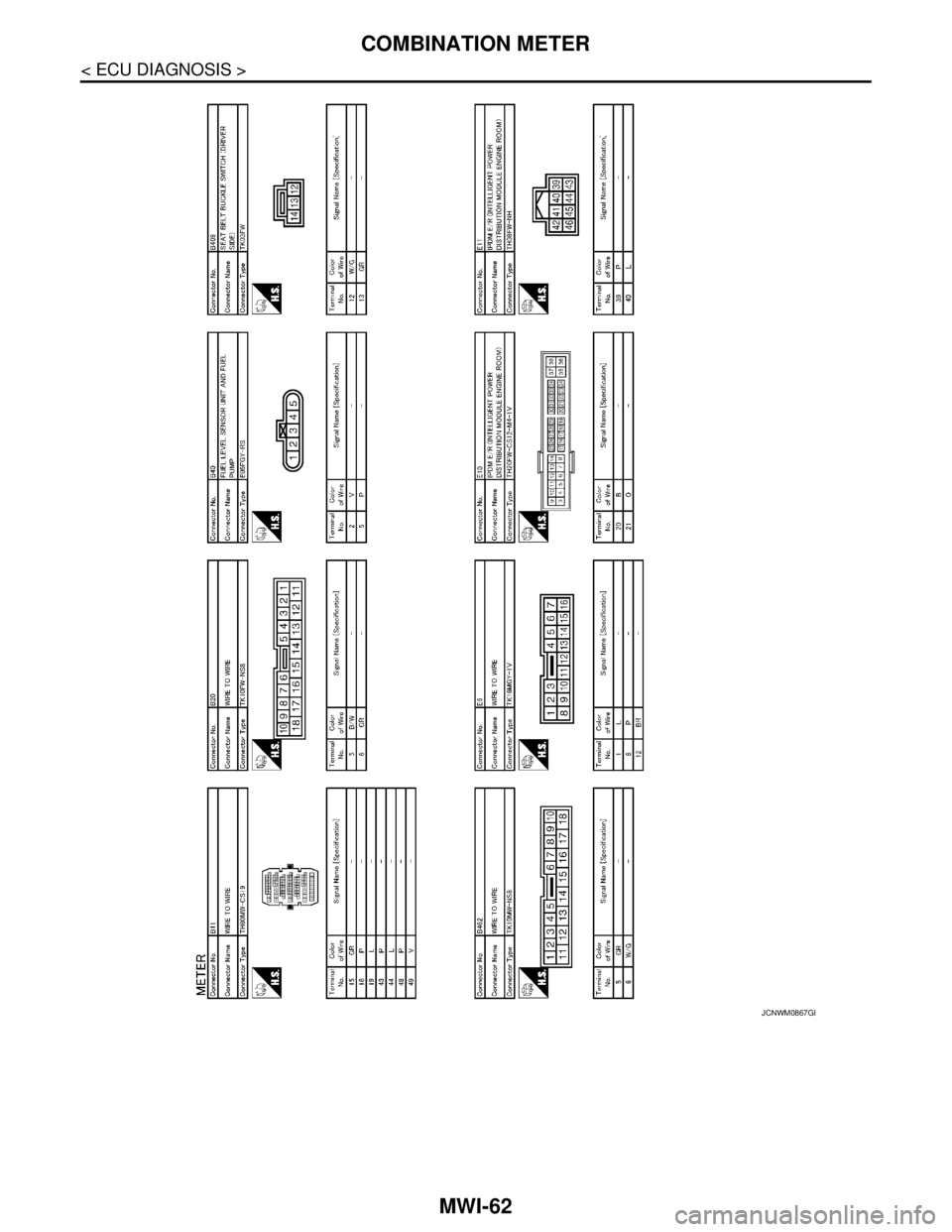

JCNWM0869GB

MWI
COMBINATION METER
MWI-65
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
J
K
L
MB A
O
P

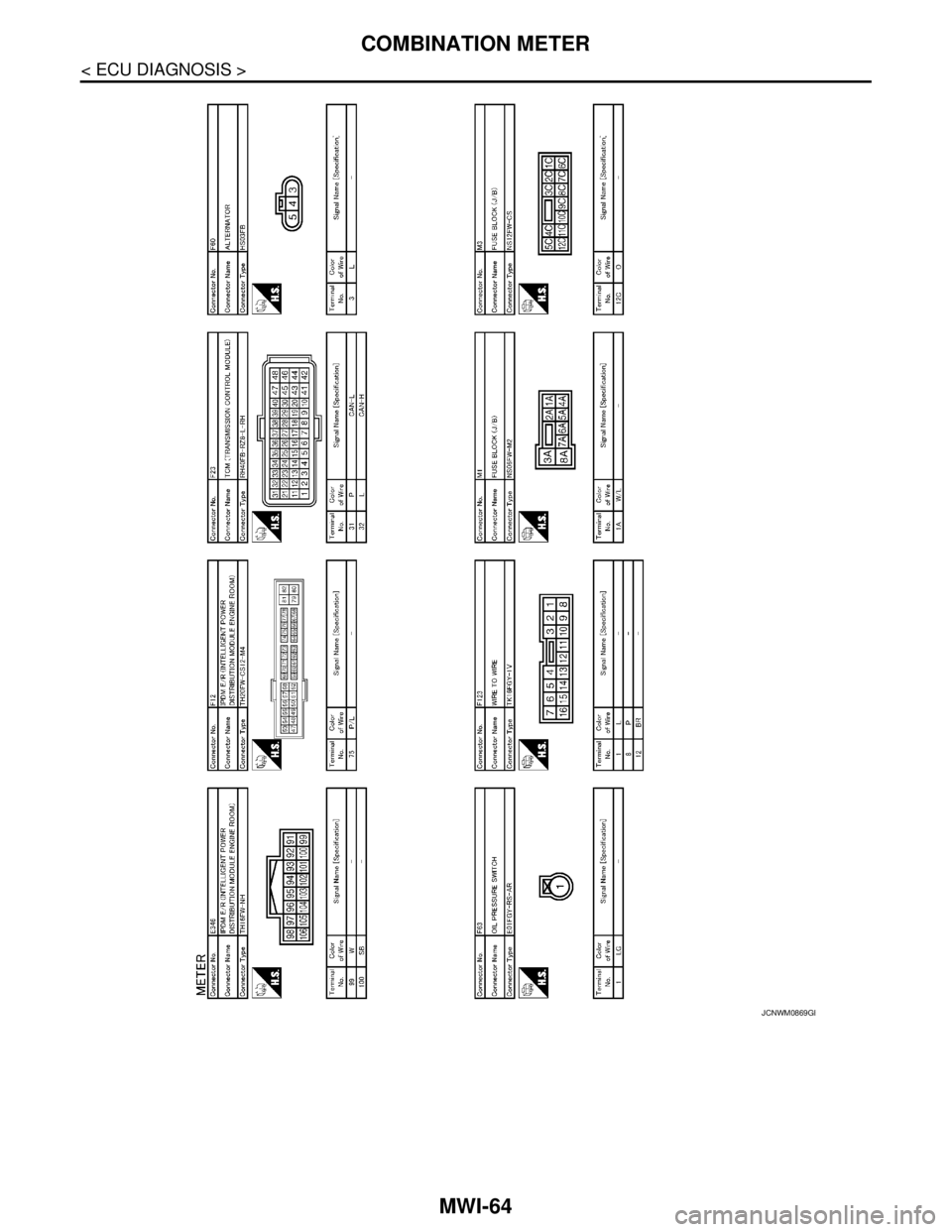

JCNWM0870GB

MWI-66
< ECU DIAGNOSIS >
COMBINATION METER
Fail-Safe
INFOID:0000000003792590
FA I L - S A F E
The combination meter activates the fail-safe control if CAN communication with each unit is malfunctioning.

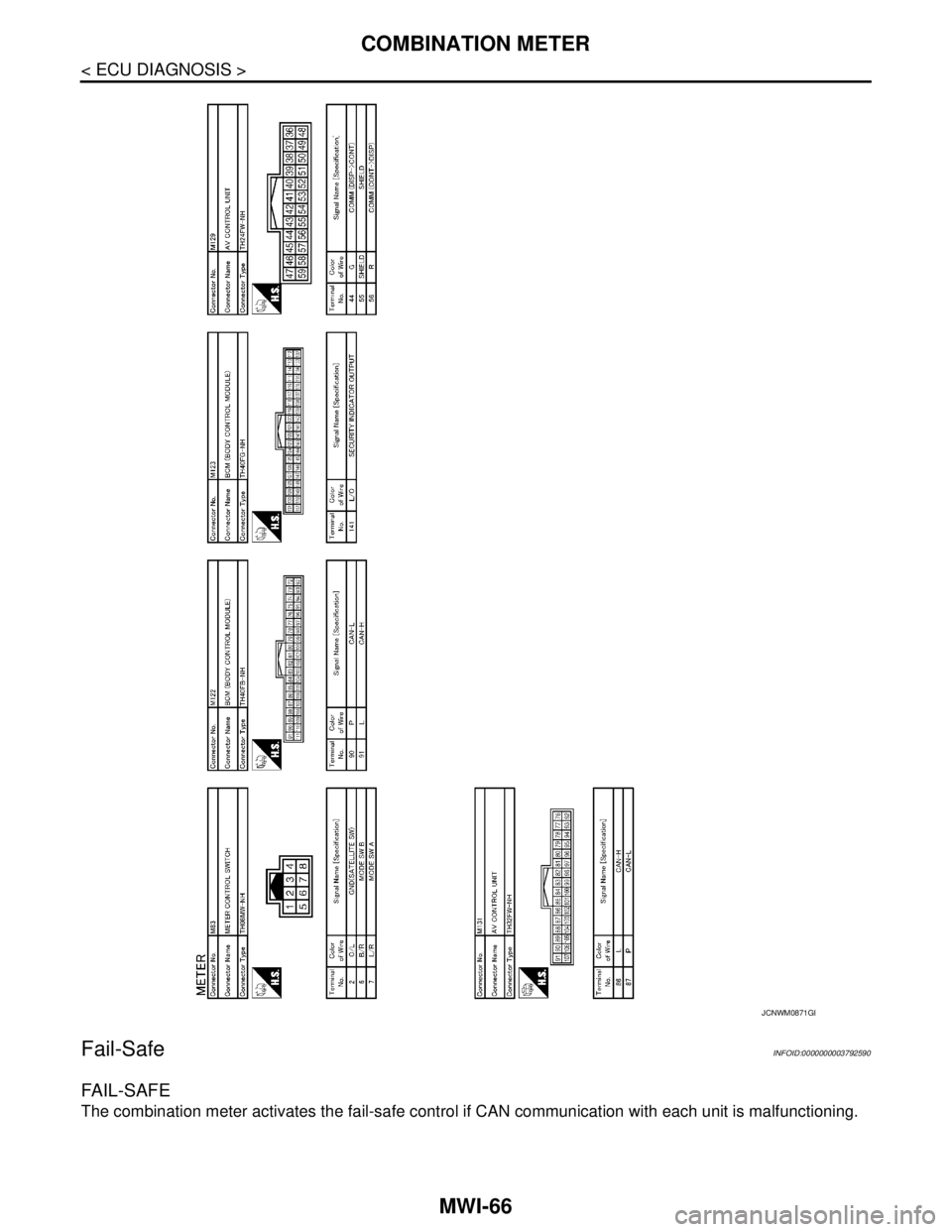

JCNWM0871GB
