NISSAN TEANA 2008 Service Manual

AV
INSPECTION AND ADJUSTMENT
AV-187
< BASIC INSPECTION >[BOSE AUDIO WITHOUT NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
INSPECTION AND ADJUSTMENT
ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL
ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : De-
scription
INFOID:0000000003765633
WITH AROUND VIEW MONITOR
Always correct the center position of the predicted course line after disconnecting the battery negative termi-
nal.
ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Spe-
cial Repair Requirement
INFOID:0000000003765634
1.CORRECTION OF CENTER POSITION OF PREDICTED COURSE LINE
Refer to the following for details.
>> Refer to AV-187, "
PREDICTED COURSE LINE CENTER POSITION ADJUSTMENT : Special
Repair Requirement".
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description
INFOID:0000000003765635
When camera control unit is replaced, the center position of predicted course line shall be corrected.
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement
INFOID:0000000003765636
1.CORRECTION OF CENTER POSITION OF PREDICTED COURSE LINE
Refer to the following for details.
>> Refer to AV-187, "
PREDICTED COURSE LINE CENTER POSITION ADJUSTMENT : Special
Repair Requirement".
PREDICTED COURSE LINE CENTER POSITION ADJUSTMENT
PREDICTED COURSE LINE CENTER POSITION ADJUSTMENT : Description
INFOID:0000000003765637
Adjust the center position of the possible route line of the rear view monitor if it is shifted.
PREDICTED COURSE LINE CENTER POSITION ADJUSTMENT : Special Repair
Requirement
INFOID:0000000003765638
1.STEERING OPERATION
Steer the steering wheel to the leftmost and rightmost ends.
>> GO TO 2.
2.DRIVING
Drive the vehicle straight ahead 100 m (328.1 ft) or more at a speed of 30 km/h (18.6 MPH) or more.
>> END

AV-188
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
MULTI AV SYSTEM
FUNCTION DIAGNOSIS
MULTI AV SYSTEM
System DiagramINFOID:0000000003765641
NOTE:
 The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.
 A radio antenna base integrated with radio antenna amp. is adopted.
 Woofer illustrated in the above figure, integrates two woofers and a woofer amp.
System DescriptionINFOID:0000000003791244
Multi AV system means that the following systems are integrated.
 AV control unit controls by transmitting/receiving data one by one with each unit (slave unit) that configures
them completely as a master unit by connecting between units that configure MULTI AV system with two AV
communication lines (H, L).
JSNIA1296GB
System name System explanation
AUDIO SYSTEMAV- 1 9 3 , "
System Diagram"
REAR VIEW MONITOR SYSTEMAV- 1 9 6 , "System Description"
VEHICLE INFORMATION SYSTEM Status of audio, climate control system, fuel economy, mainte-
nance and navigation is displayed.
 AV control unit displays the fuel consumption status while re-
ceiving data signal through CAN communication from ECM and
combination meter.
 AV control unit is connected to BCM via CAN communication
transmitting/receiving for the vehicle settings function.
DVD ENTERTAINMENT SYSTEM Refer to the following “DVD ENTERTAINMENT SYSTEM”.
AUXILIARY INPUT SYSTEM Refer to “AUXILIARY INPUT SYSTEM” shown below.

AV
MULTI AV SYSTEM
AV-189
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
 Two AV communication lines (H, L) adopt a twisted pair line that is resistant to noise.
 AV control unit is connected by CAN communication, and it receives data signal from ECM, combination
meter. It computes and displays fuel economy information value with the obtained information. Transmitting/
receiving of data signal is performed by BCM. Also, it transmits the required signal of vehicle setting and
receives the response signal.
 AV control unit is connected with display unit and serial communication, and it transmits the required signal
of display and display control and receives the response signal from display unit.
NOTE:
AV control unit can perform CONSULT-III self-operating function and on board self-diagnosis.
 CONSULT-III self diagnosis: Refer to AV- 2 11 , "
CONSULT-III Function (MULTI AV)".
 On board self diagnosis: Refer to AV-200, "
Diagnosis Description".

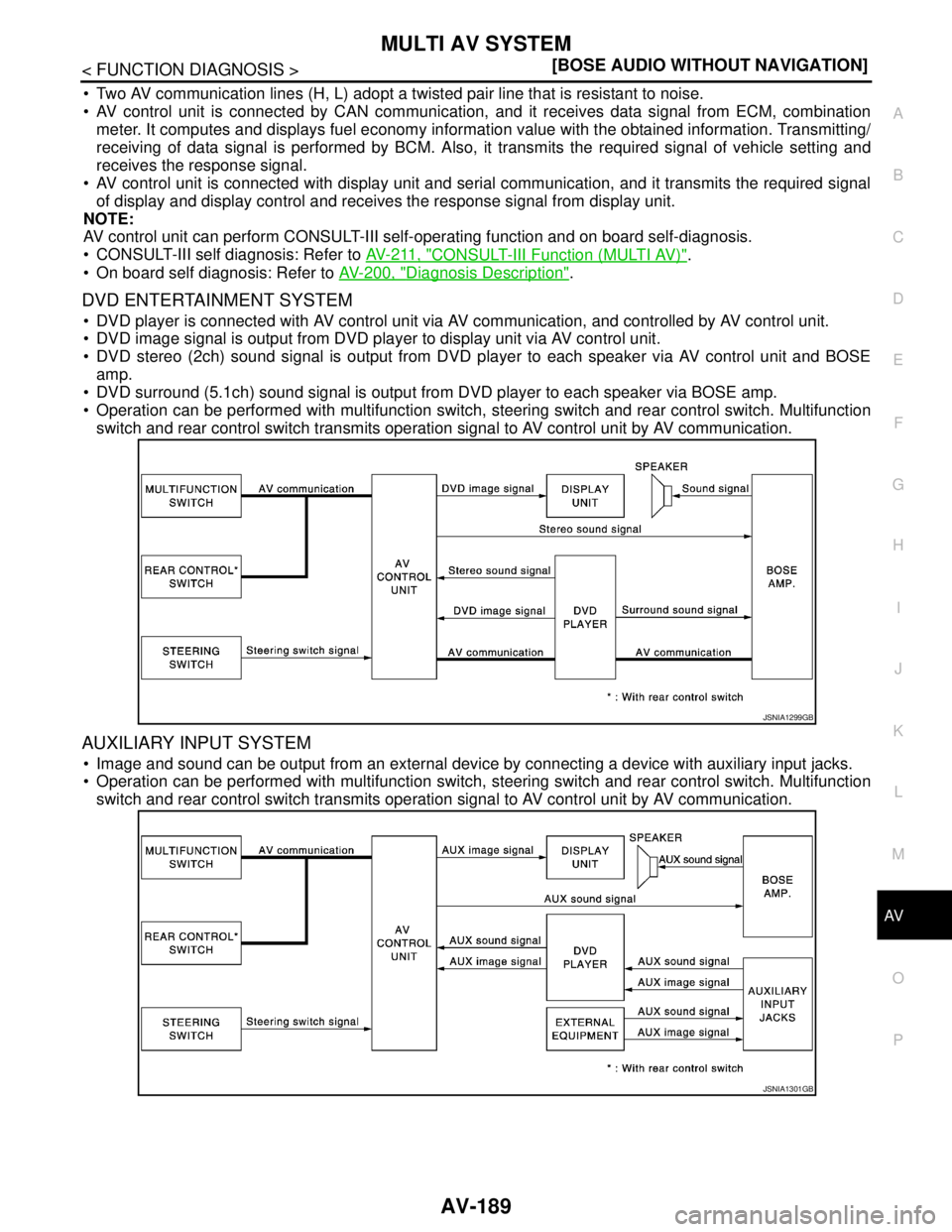

DVD ENTERTAINMENT SYSTEM
 DVD player is connected with AV control unit via AV communication, and controlled by AV control unit.
 DVD image signal is output from DVD player to display unit via AV control unit.
 DVD stereo (2ch) sound signal is output from DVD player to each speaker via AV control unit and BOSE
amp.
 DVD surround (5.1ch) sound signal is output from DVD player to each speaker via BOSE amp.
 Operation can be performed with multifunction switch, steering switch and rear control switch. Multifunction
switch and rear control switch transmits operation signal to AV control unit by AV communication.
AUXILIARY INPUT SYSTEM
 Image and sound can be output from an external device by connecting a device with auxiliary input jacks.
 Operation can be performed with multifunction switch, steering switch and rear control switch. Multifunction
switch and rear control switch transmits operation signal to AV control unit by AV communication.
JSNIA1299GB
JSNIA1301GB

AV-190
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
MULTI AV SYSTEM

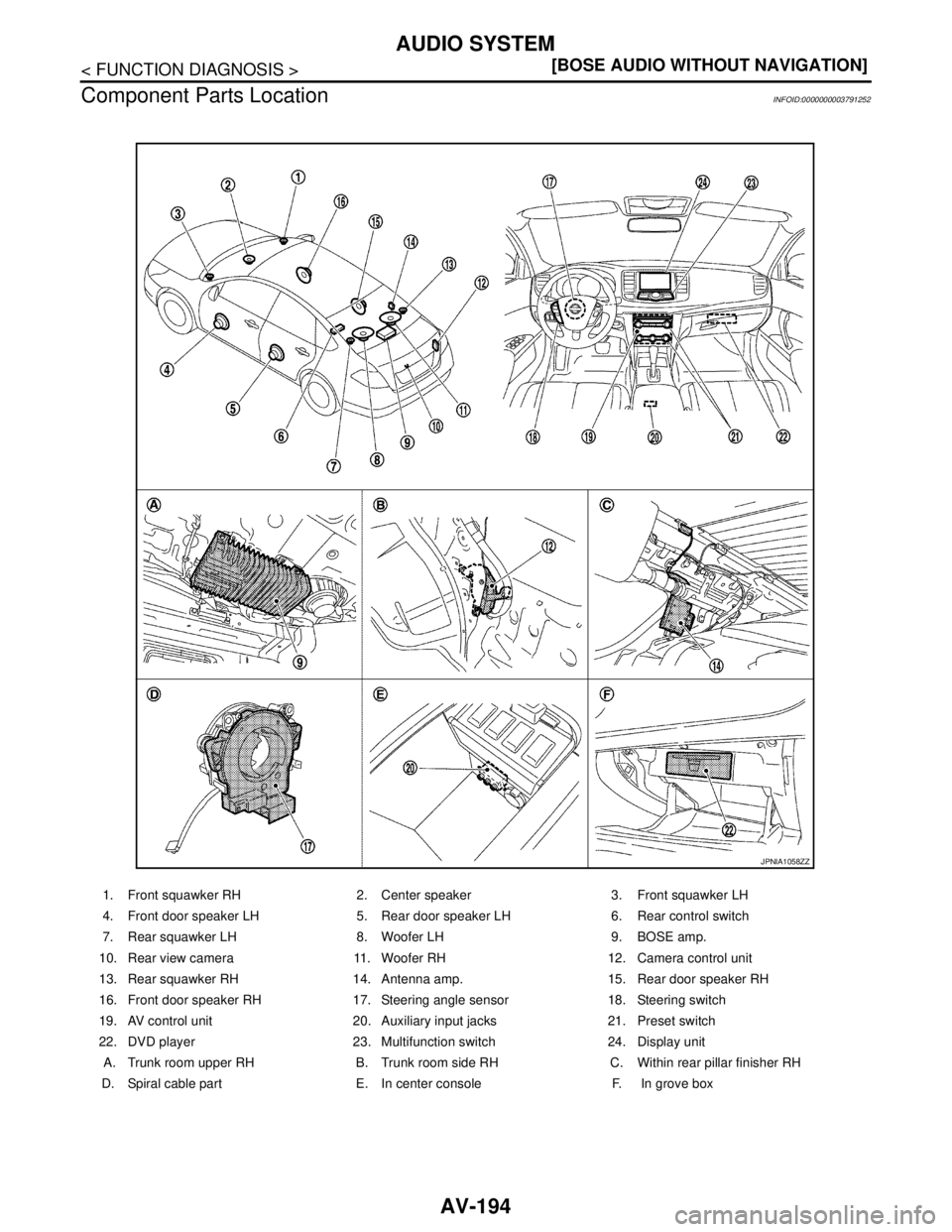

Component Parts Location
INFOID:0000000003765643
1. Front squawker RH 2. Center speaker 3. Front squawker LH
4. Front door speaker LH 5. Rear door speaker LH 6. Rear control switch
7. Rear squawker LH 8. Woofer LH 9. BOSE amp.
10. Rear view camera 11. Woofer RH 12. Camera control unit
13. Rear squawker RH 14. Antenna amp. 15. Rear door speaker RH
16. Front door speaker RH 17. Steering angle sensor 18. Steering switch
19. AV control unit 20. Auxiliary input jacks 21. Preset switch
22. DVD player 23. Multifunction switch 24. Display unit
A. Trunk room upper RH B. Trunk room side RH C. Within rear pillar finisher RH
D. Spiral cable part E. In center console F. In grove box
JPNIA1058ZZ

AV
MULTI AV SYSTEM
AV-191
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
Component DescriptionINFOID:0000000003791245
Part name Description
AV CONTROL UNIT It is the master unit of the MULTI AV system, and it is connected to each control
unit by communication. It operates each system according to communication
signals from the AV control unit.
 AV control unit includes audio function and vehicle information function.
 It is connected to ECM and combination meter via CAN communication to ob-
tain necessary information for the vehicle information function.
 It is connected to BCM via CAN communication transmitting/receiving for the
vehicle settings function.
 Composite image signal (AUX and DVD images) is input from DVD player.
 Camera image signal is input from camera control unit.
 Composite image (DVD, AUX and camera images) signal is output to display
unit.
 Sound signal (DVD and AUX sounds) is input from the DVD player.
 Power (signal VCC and inverter VCC) is transmitted to front display unit.
DISPLAY UNIT Display image is controlled by the serial communication from AV control unit.
 It receives the power (signal VCC and inverter VCC) from the AV control unit
and operates.
 RGB image signal is input from AV control unit (RGB, RGB area and RGB syn-
chronizing).
 Composite image (DVD, AUX and camera images) signal is input from AV con-
trol unit.
 Synchronize signal (HP, VP) is output to AV control unit.
BOSE AMP.Inputs sound signal from AV control unit and DVD player, and outputs sound sig-
nal to woofer and each speaker.
WOOFER Outputs sound signal from BOSE amp.
 Outputs low frequency sound.
FRONT SPEAKER Outputs sound signal from BOSE amp.
 Outputs sound (mid and low range).
REAR SPEAKER Outputs sound signal from BOSE amp.
 Outputs sound (mid and low range).
FRONT SQUAWKER Outputs sound signal from BOSE amp.
 Outputs sound (high and mid range).
REAR SQUAWKER Outputs sound signal from BOSE amp.
 Outputs sound (high and mid range).
CENTER SPEAKER Outputs sound signal from BOSE amp.
 Outputs sound (high and mid range).
MULTIFUNCTION SWITCH Operation panel is equipped with the centralized switch where camera, audio,
DVD and auxiliary input operations are integrated.
 The multifunction switch is connected to the preset switch by wiring harness,
and it transmits the operation signal to the preset switch.
PRESET SWITCH Operation panel is equipped with the centralized switch where audio and air
conditioner operations are integrated.
 The preset switch is connected via AV communication, and it transmits the op-
eration signals of the preset switch and multifunction switch.
 The disk ejection operating signal is performed by wiring harness.
CAMERA CONTROL UNIT Camera image signal is input from rear view camera. Camera image signal
output to AV control unit.
 Power supply is transmitted to rear view camera.
 AV control unit recognizes the presence of camera system with camera con-
nection recognition signal.
 Camera control unit is connected via AV communication.
REAR VIEW CAMERA The image of vehicle rear view is transmitted to camera control unit.
 It receives the power supply from the camera control unit and operates.
STEERING ANGLE SENSOR Sensor signal (steering angle) is transmitted to camera control unit.

AV-192
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
MULTI AV SYSTEM
MICROPHONE Used for hands-free phone operation.
 Mic. signal is transmitted to NAVI control unit
 Power (Mic. VCC) is supplied from NAVI control unit.
STEERING SWITCH The operations of audio, etc. can be performed.
 Steering switch signal (operation signal) is output to AV control unit.
DVD PLAYERIt transmits the playback DVD image signal and DVD sound signal to the AV con-
trol unit.
AUXILIARY INPUT JACKS The image signal of the auxiliary input is output via the DVD player and AV con-
trol unit to the display unit.
 The sound signal of the auxiliary input is output via the DVD player and AV con-
trol unit to the BOSE amp.
The image signal of the auxiliary input is output via the AV control unit to the dis-
play, and it outputs the sound signal to the AV control unit.
REAR CONTROL SWITCH Operations for audio, etc. are possible.
 The rear control switch is connected via AV communication, and it transmits
the operation signals of the rear control switch.
ANTENNA AMP. Radio signal received by glass antenna is amplified and transmitted to AV con-
trol unit.
 Power (antenna amp ON signal) is supplied from AV control unit. Part name Description

AV
AUDIO SYSTEM
AV-193
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P

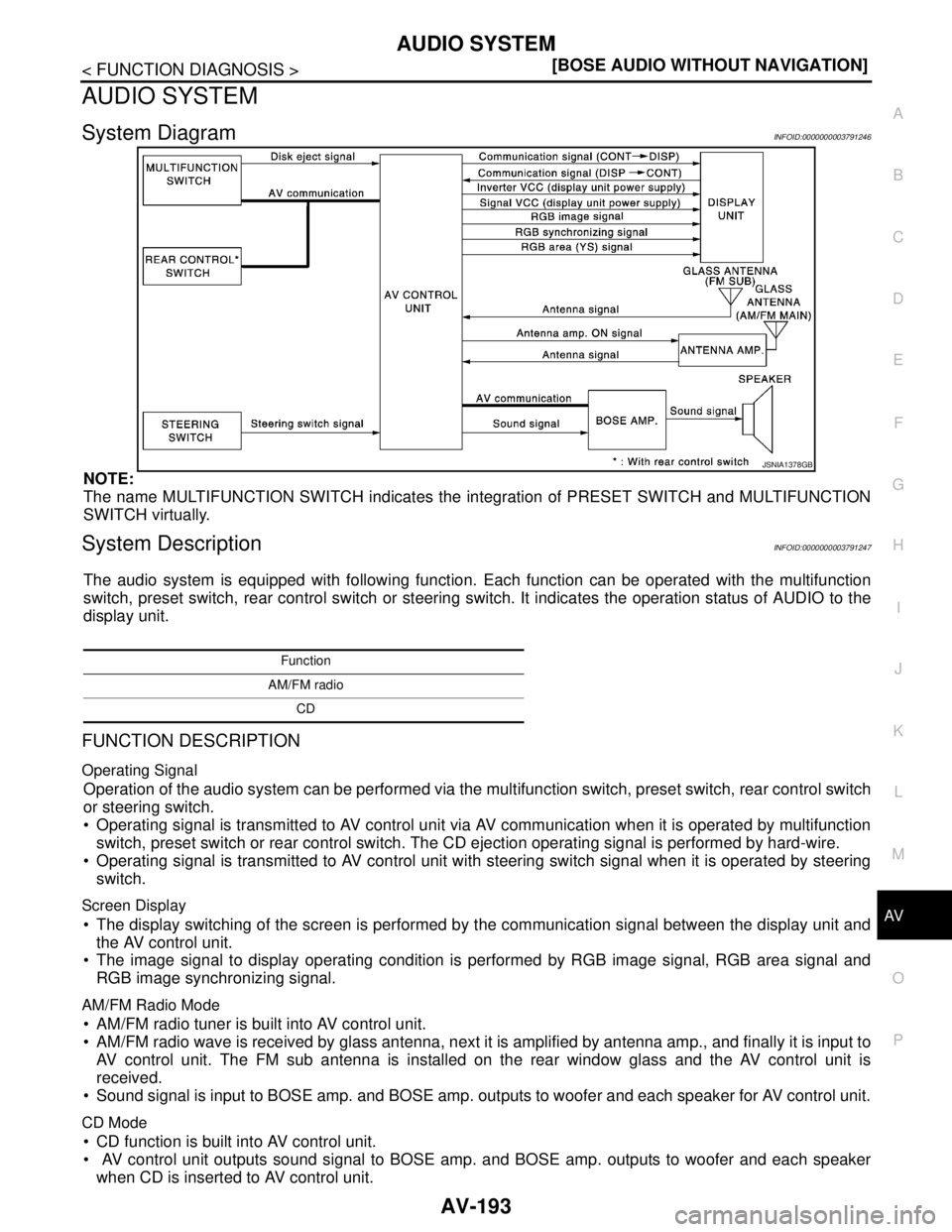

AUDIO SYSTEM
System DiagramINFOID:0000000003791246
NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.
System DescriptionINFOID:0000000003791247
The audio system is equipped with following function. Each function can be operated with the multifunction
switch, preset switch, rear control switch or steering switch. It indicates the operation status of AUDIO to the
display unit.
FUNCTION DESCRIPTION
Operating Signal
Operation of the audio system can be performed via the multifunction switch, preset switch, rear control switch
or steering switch.
 Operating signal is transmitted to AV control unit via AV communication when it is operated by multifunction
switch, preset switch or rear control switch. The CD ejection operating signal is performed by hard-wire.
 Operating signal is transmitted to AV control unit with steering switch signal when it is operated by steering
switch.
Screen Display
 The display switching of the screen is performed by the communication signal between the display unit and
the AV control unit.
 The image signal to display operating condition is performed by RGB image signal, RGB area signal and
RGB image synchronizing signal.
AM/FM Radio Mode
 AM/FM radio tuner is built into AV control unit.
 AM/FM radio wave is received by glass antenna, next it is amplified by antenna amp., and finally it is input to
AV control unit. The FM sub antenna is installed on the rear window glass and the AV control unit is
received.
 Sound signal is input to BOSE amp. and BOSE amp. outputs to woofer and each speaker for AV control unit.
CD Mode
 CD function is built into AV control unit.
 AV control unit outputs sound signal to BOSE amp. and BOSE amp. outputs to woofer and each speaker
when CD is inserted to AV control unit.
JSNIA1378GB
Function
AM/FM radio
CD

AV-194
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
AUDIO SYSTEM
Component Parts Location
INFOID:0000000003791252
1. Front squawker RH 2. Center speaker 3. Front squawker LH
4. Front door speaker LH 5. Rear door speaker LH 6. Rear control switch
7. Rear squawker LH 8. Woofer LH 9. BOSE amp.
10. Rear view camera 11. Woofer RH 12. Camera control unit
13. Rear squawker RH 14. Antenna amp. 15. Rear door speaker RH
16. Front door speaker RH 17. Steering angle sensor 18. Steering switch
19. AV control unit 20. Auxiliary input jacks 21. Preset switch
22. DVD player 23. Multifunction switch 24. Display unit
A. Trunk room upper RH B. Trunk room side RH C. Within rear pillar finisher RH
D. Spiral cable part E. In center console F. In grove box
JPNIA1058ZZ

AV
AUDIO SYSTEM
AV-195
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
Component DescriptionINFOID:0000000003885448
Part name Description
AV CONTROL UNIT The AM/FM receiving function and the CD playing function are equipped.
 Sound signal is transmitted to BOSE amp.
DISPLAY UNIT Display image is controlled by the serial communication from AV control unit.
 RGB image signal (audio operation condition) is input from AV control unit.
BOSE AMP.Inputs sound signal from AV control unit, and outputs sound signal to woofer and
each speaker.
WOOFER Outputs sound signal from BOSE amp.
 Outputs low frequency sound.
FRONT SPEAKER Outputs sound signal from BOSE amp.
 Outputs sound (mid and low range).
REAR SPEAKER Outputs sound signal from BOSE amp.
 Outputs sound (mid and low range).
FRONT SQUAWKER Outputs sound signal from BOSE amp.
 Outputs sound (high and mid range).
REAR SQUAWKER Outputs sound signal from BOSE amp.
 Outputs sound (high and mid range).
CENTER SPEAKER Outputs sound signal from BOSE amp.
 Outputs sound (high and mid range).
MULTIFUNCTION SWITCH Each audio operation can be operated.
 The multifunction switch is connected to the preset switch by wiring harness,
and it transmits the operation signal to the preset switch.
PRESET SWITCH Each audio operation can be operated.
 The preset switch is connected via AV communication, and it transmits the op-
eration signals of the preset switch and multifunction switch.
 The disk ejection operating signal is performed by hard-wire.
STEERING SWITCH Each audio operation can be operated.
 Steering switch signal (operation signal) is output to AV control unit.
REAR CONTROL SWITCH Each audio operation can be operated.
 The rear control switch is connected via AV communication, and it transmits
the operation signals of the rear control switch.
ANTENNA AMP. Radio signal received by glass antenna is amplified and transmitted to AV con-
trol unit.
 Power (antenna amp. ON signal) is supplied from AV control unit.

AV-196
< FUNCTION DIAGNOSIS >[BOSE AUDIO WITHOUT NAVIGATION]
REAR VIEW MONITOR SYSTEM
REAR VIEW MONITOR SYSTEM

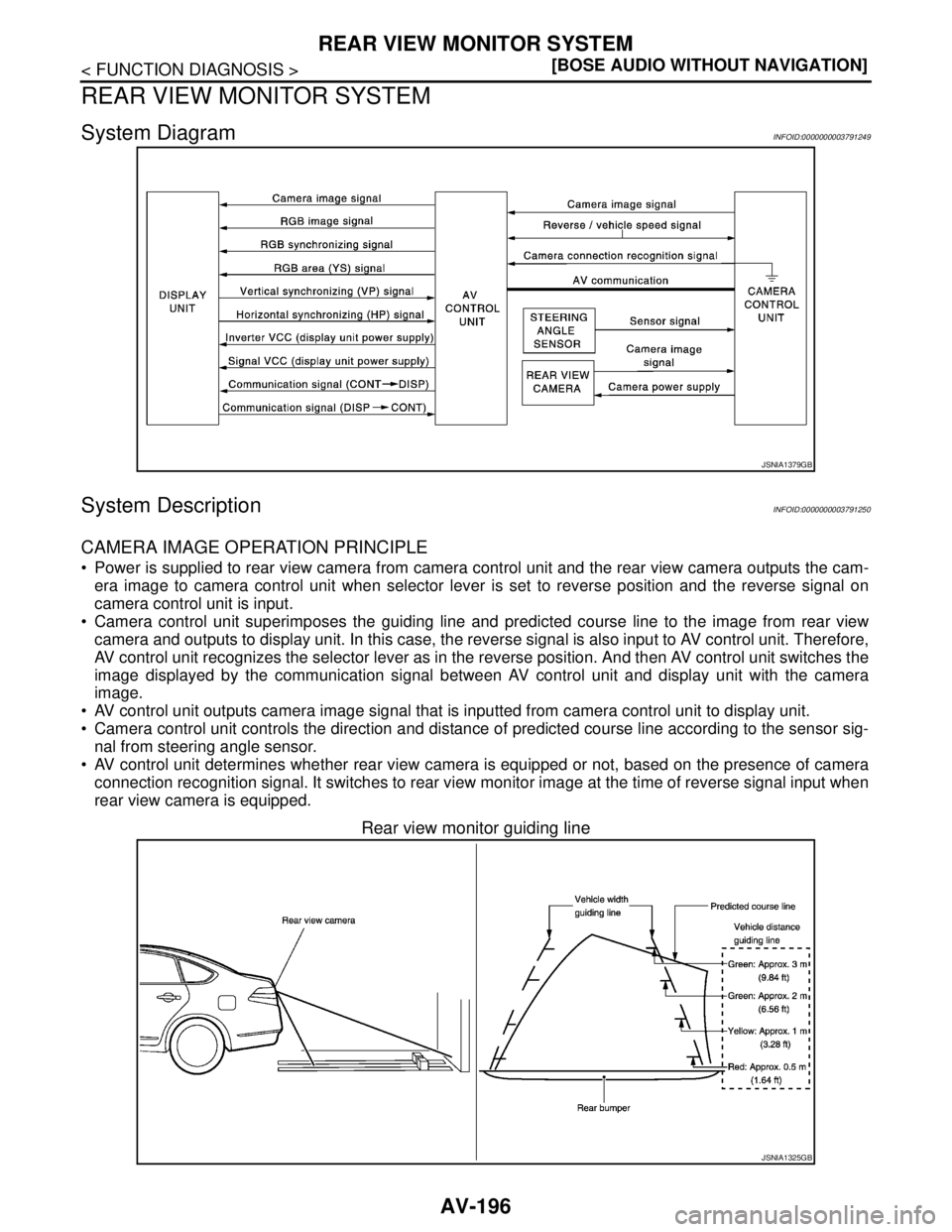

System DiagramINFOID:0000000003791249
System DescriptionINFOID:0000000003791250
CAMERA IMAGE OPERATION PRINCIPLE
 Power is supplied to rear view camera from camera control unit and the rear view camera outputs the cam-
era image to camera control unit when selector lever is set to reverse position and the reverse signal on
camera control unit is input.
 Camera control unit superimposes the guiding line and predicted course line to the image from rear view
camera and outputs to display unit. In this case, the reverse signal is also input to AV control unit. Therefore,
AV control unit recognizes the selector lever as in the reverse position. And then AV control unit switches the
image displayed by the communication signal between AV control unit and display unit with the camera
image.
 AV control unit outputs camera image signal that is inputted from camera control unit to display unit.
 Camera control unit controls the direction and distance of predicted course line according to the sensor sig-
nal from steering angle sensor.
 AV control unit determines whether rear view camera is equipped or not, based on the presence of camera
connection recognition signal. It switches to rear view monitor image at the time of reverse signal input when
rear view camera is equipped.
Rear view monitor guiding line
JSNIA1379GB
JSNIA1325GB
