NISSAN TEANA 2008 Service Manual

AV
CAMERA CONTROL UNIT
AV-157
< ECU DIAGNOSIS >[BASE AUDIO AND DISPLAY SYSTEM]
C
D
E
F
G
H
I
J
K
L
MB A
O
P

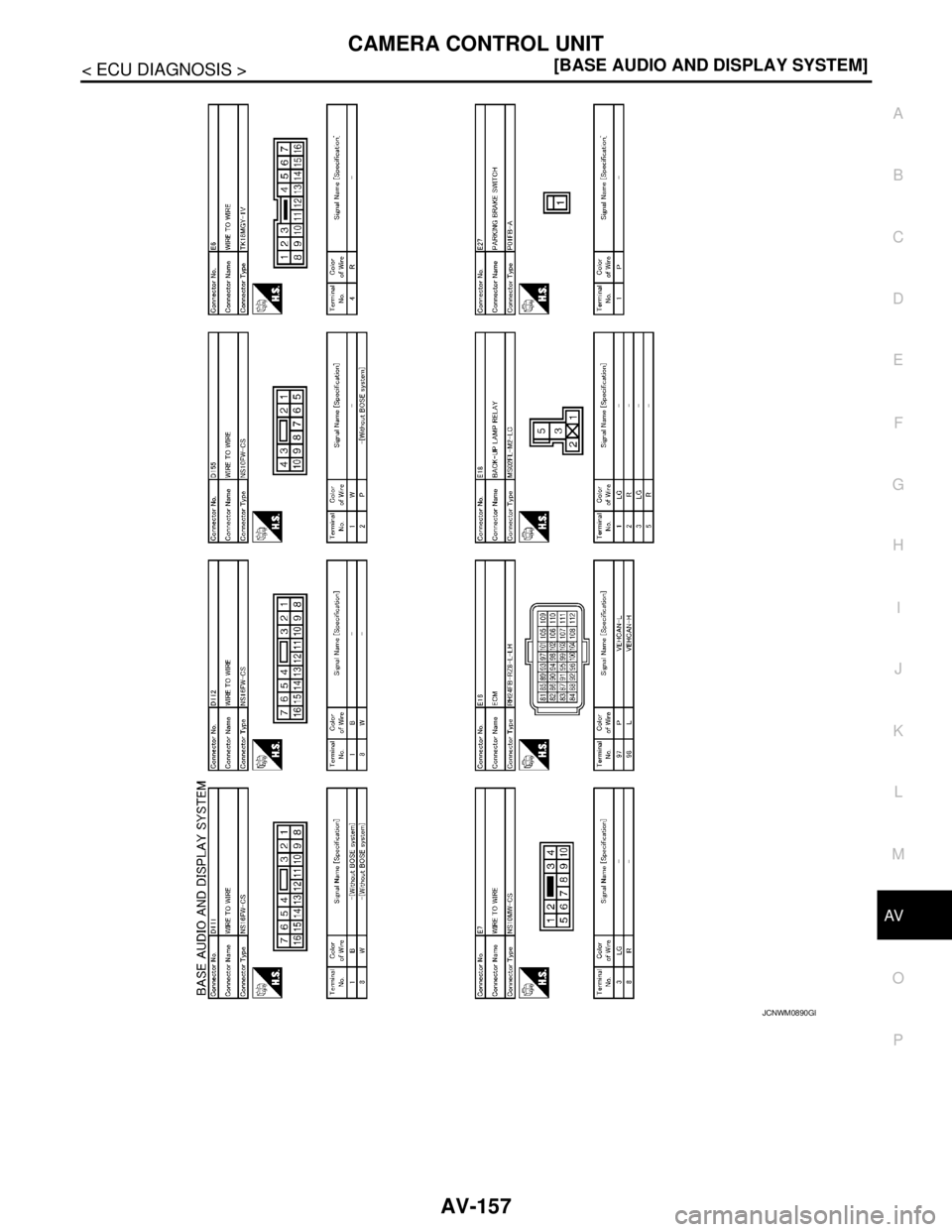

JCNWM0890GB

AV-158
< ECU DIAGNOSIS >[BASE AUDIO AND DISPLAY SYSTEM]
CAMERA CONTROL UNIT

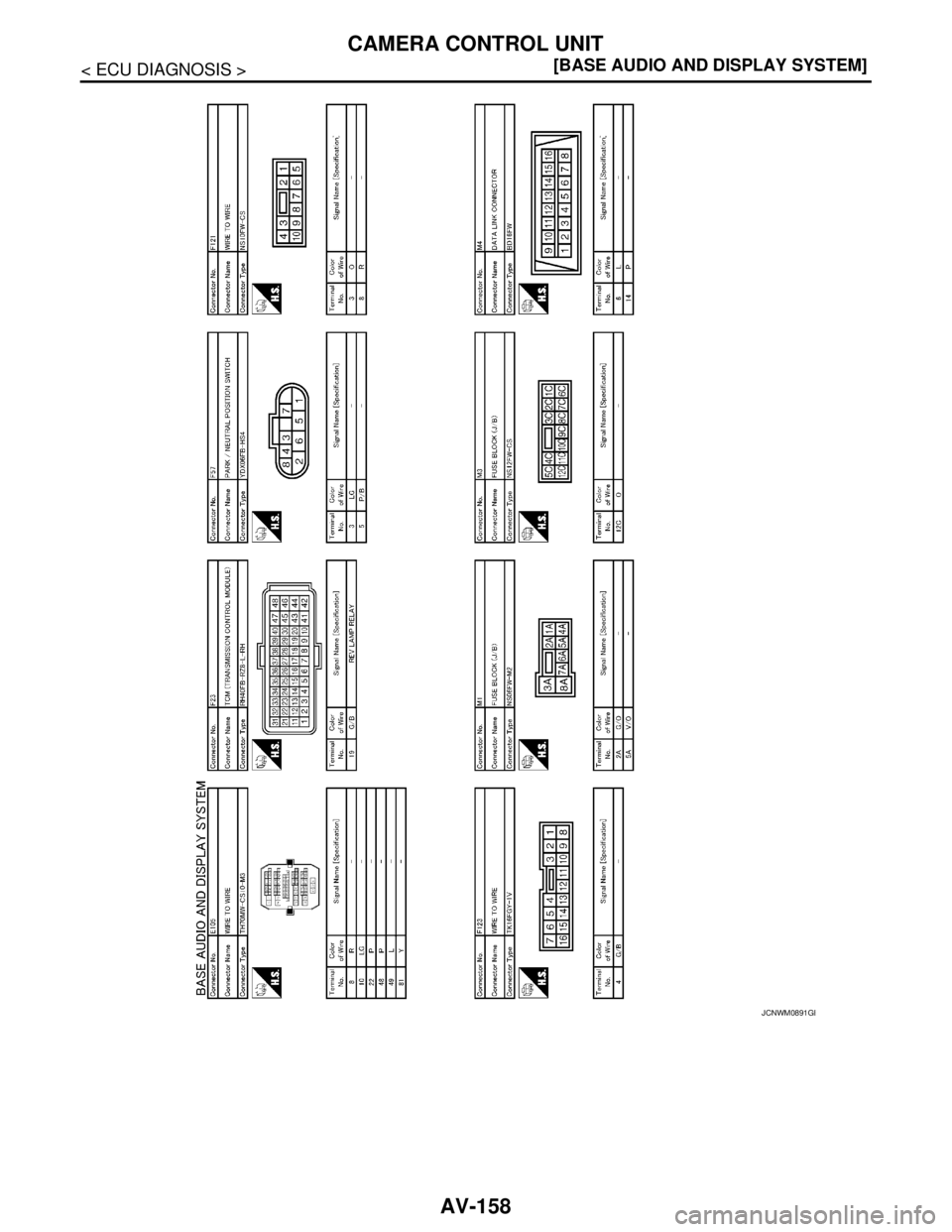

JCNWM0891GB

AV
CAMERA CONTROL UNIT
AV-159
< ECU DIAGNOSIS >[BASE AUDIO AND DISPLAY SYSTEM]
C
D
E
F
G
H
I
J
K
L
MB A
O
P

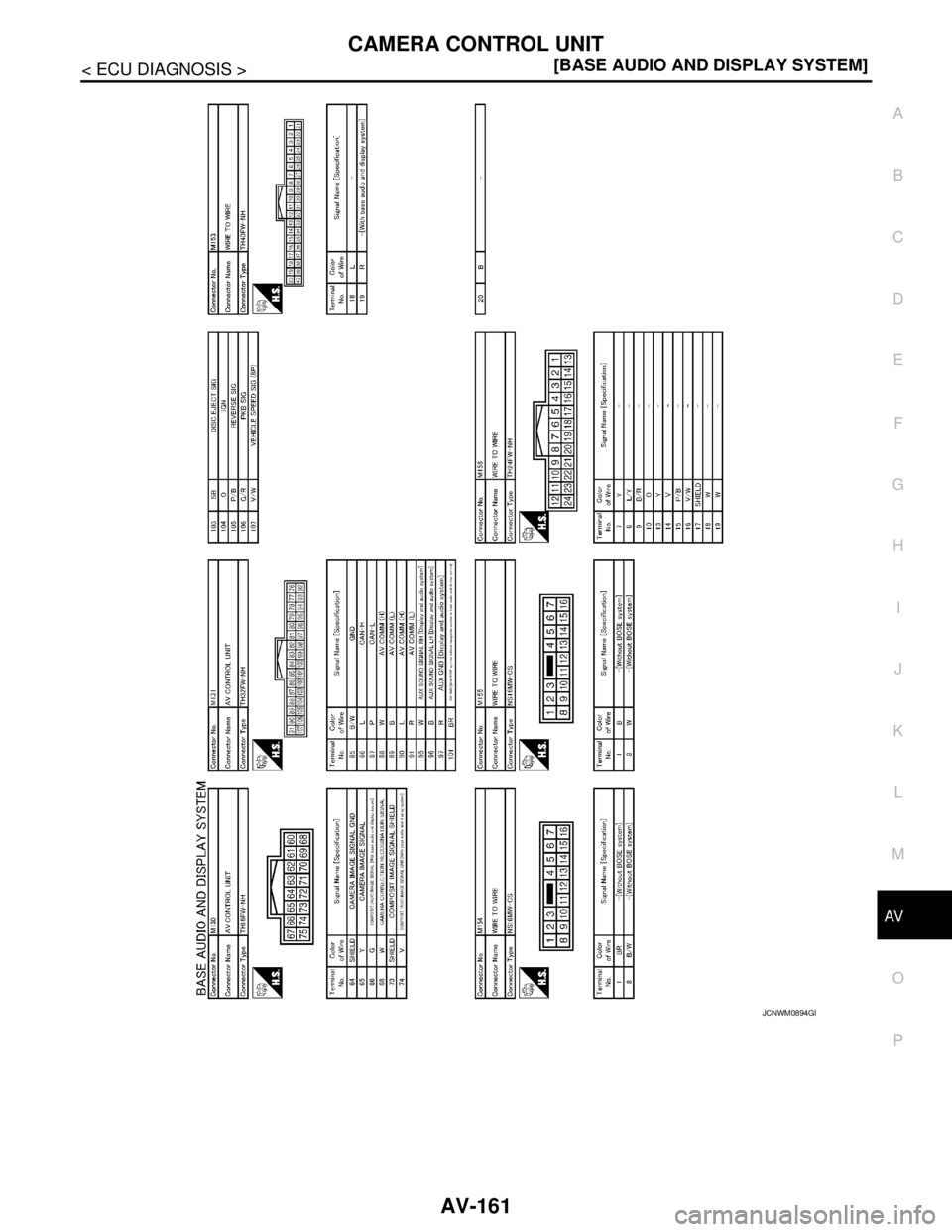

JCNWM0892GB

AV-160
< ECU DIAGNOSIS >[BASE AUDIO AND DISPLAY SYSTEM]
CAMERA CONTROL UNIT
JCNWM0893GB

AV
CAMERA CONTROL UNIT
AV-161
< ECU DIAGNOSIS >[BASE AUDIO AND DISPLAY SYSTEM]
C
D
E
F
G
H
I
J
K
L
MB A
O
P

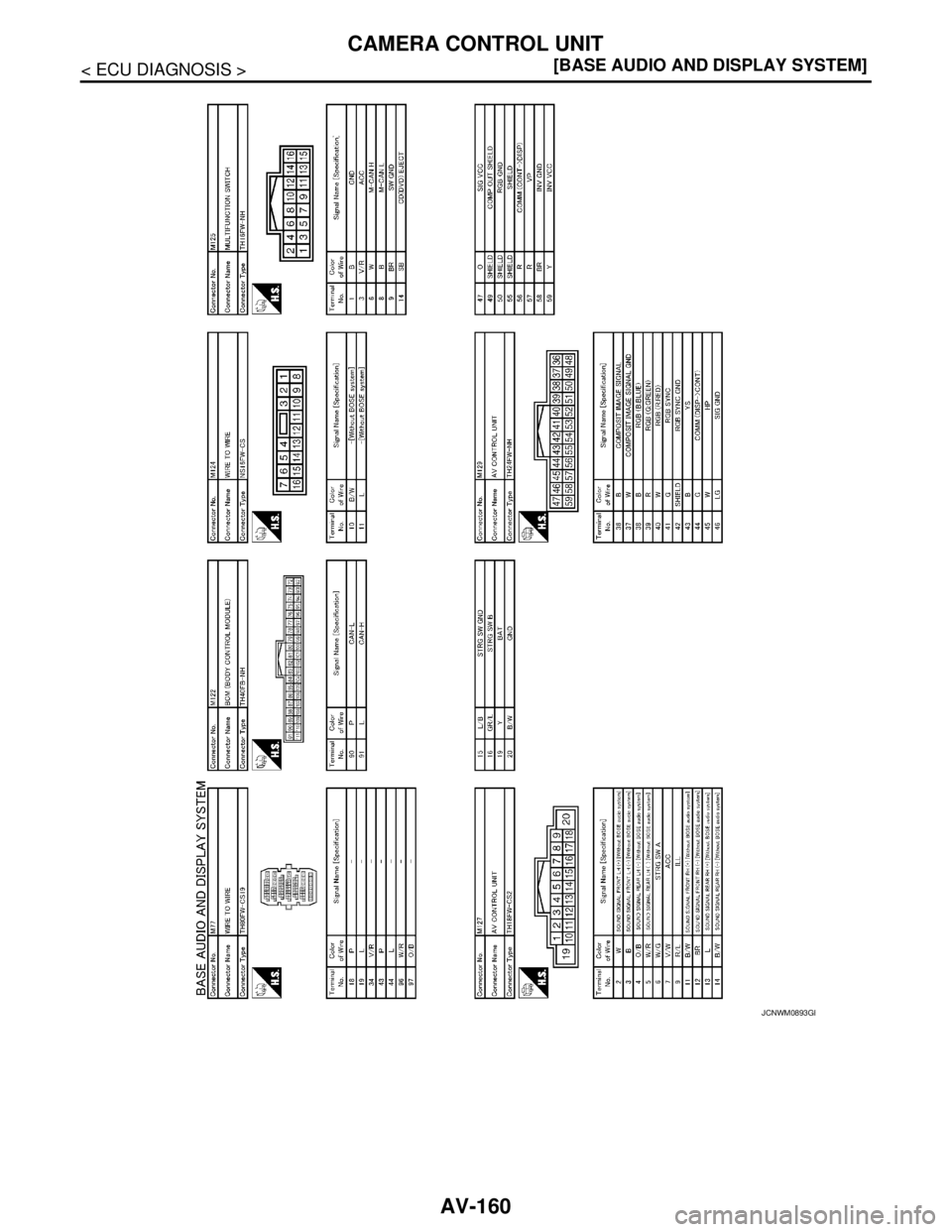

JCNWM0894GB

AV-162
< ECU DIAGNOSIS >[BASE AUDIO AND DISPLAY SYSTEM]
CAMERA CONTROL UNIT
JCNWM0895GB

AV
CAMERA CONTROL UNIT
AV-163
< ECU DIAGNOSIS >[BASE AUDIO AND DISPLAY SYSTEM]
C
D
E
F
G
H
I
J
K
L
MB A
O
P

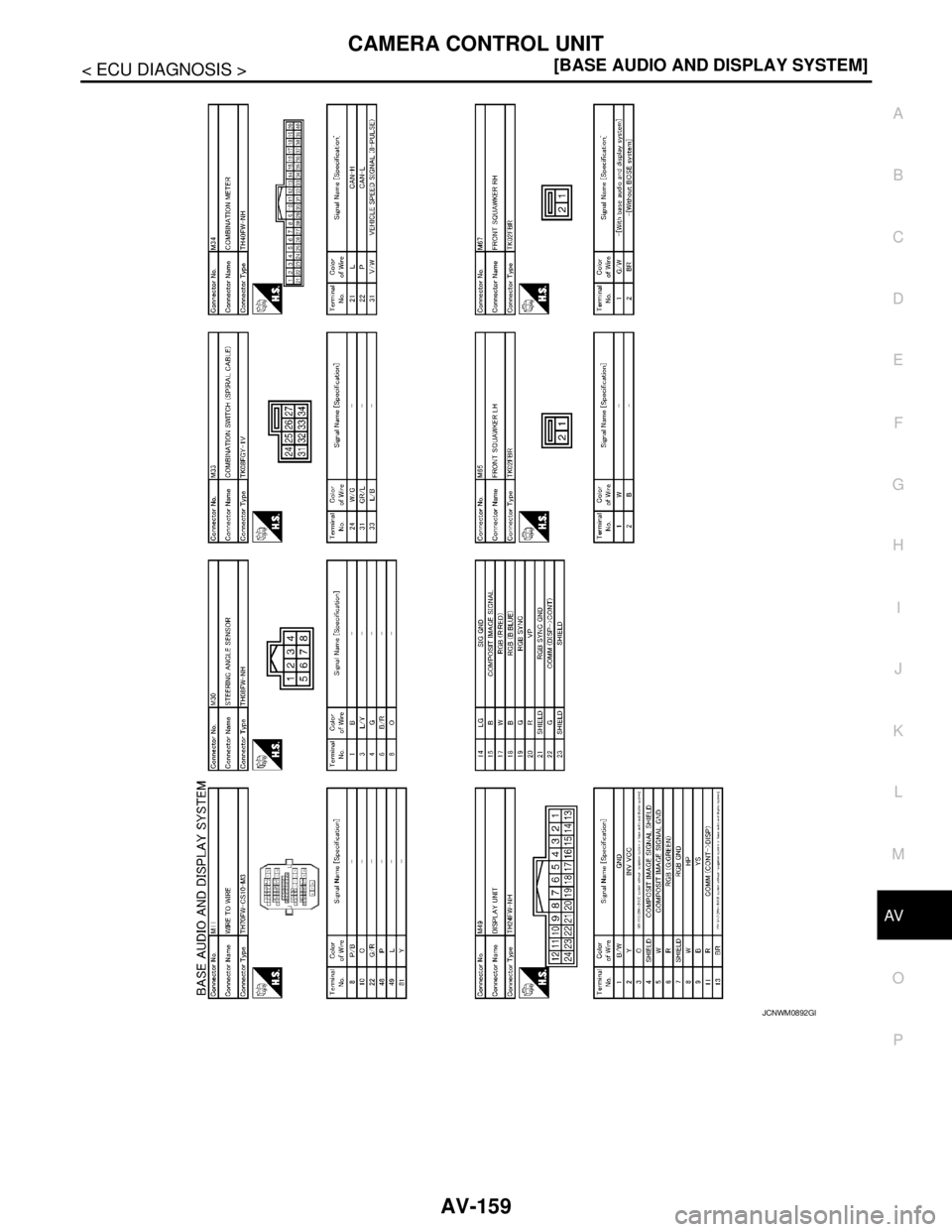

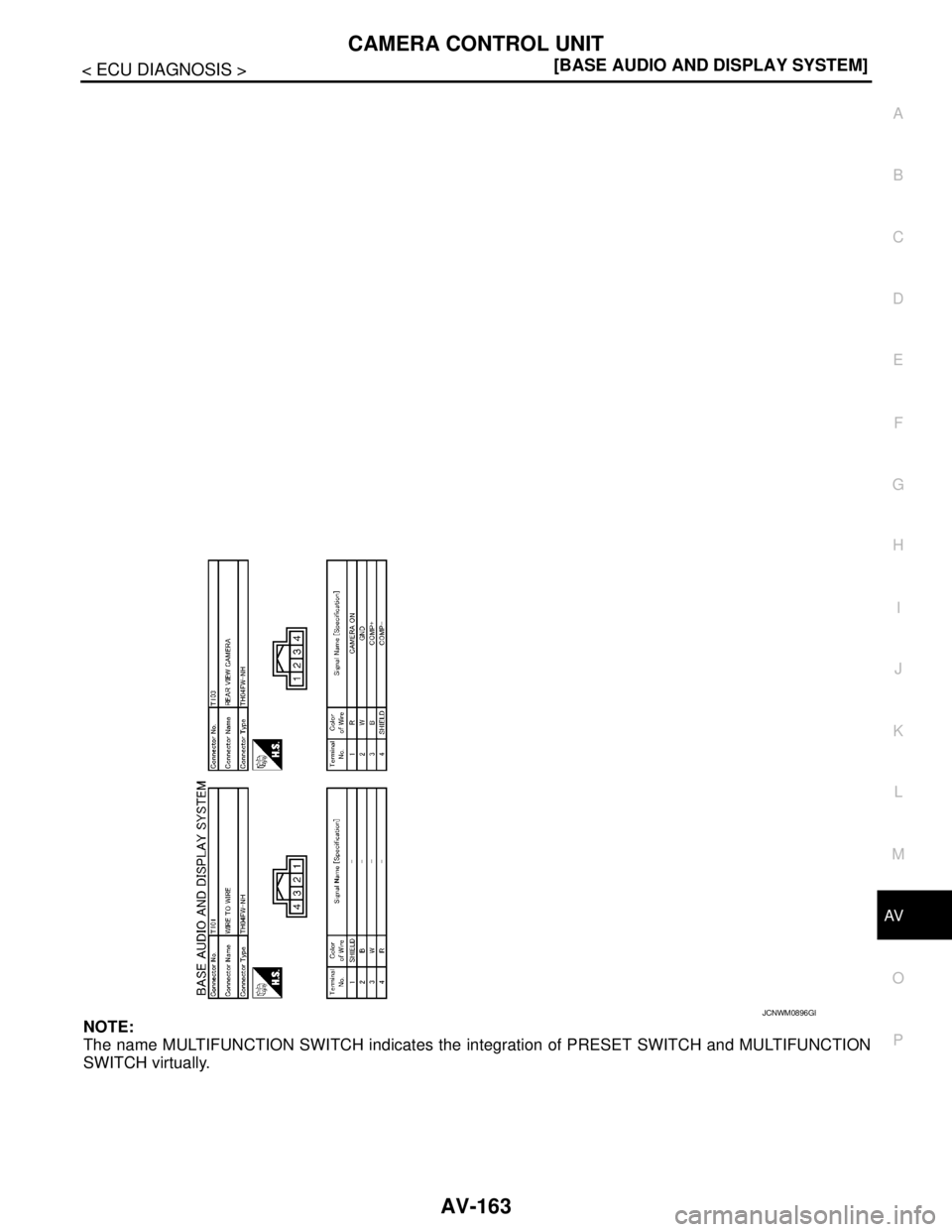

NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.
JCNWM0896GB

AV-164
< SYMPTOM DIAGNOSIS >[BASE AUDIO AND DISPLAY SYSTEM]
MULTI AV SYSTEM SYMPTOMS
SYMPTOM DIAGNOSIS
MULTI AV SYSTEM SYMPTOMS
Symptom TableINFOID:0000000003882785
RELATED TO VEHICLE INFORMATION
RELATED TO REAR VIEW MONITOR
RELATED TO RGB IMAGE
Symptoms Check items Possible malfunction location / Action to take
Multifunction switch and preset
switch operation does not work. All switches cannot be operated.
 “Multi AV” is displayed on system se-
lection display when the CONSULT-
III is initialized.Perform CONSULT-III self-diagnosis.
Refer to AV- 6 8 , "
CONSULT-III Function (MULTI AV)".
 All switches cannot be operated
 “Multi AV” is not displayed on system
selection screen when the CON-
SULT-III is initialized.AV control unit power supply and ground circuits mal-
function.
Refer to AV- 8 2 , "
AV CONTROL UNIT : Diagnosis Proce-
dure".
Only specified switch cannot be operat-
edMultifunction switch or preset switch malfunction.
Replace multifunction switch or preset switch.
For multifunction switch, refer to AV- 1 7 6 , "
Removal and
Installation".
For preset switch, refer to AV- 1 7 7 , "
Removal and Instal-
lation".
Fuel economy display, vehicle set-
ting operation is abnormalThere is malfunction in the CONSULT-
III self-diagnosis resultPerform detected DTC self-diagnosis.
There is no malfunction in the self-diag-
nosis resultsIgnition signal. Refer to AV- 8 2 , "
AV CONTROL UNIT :
Diagnosis Procedure".
Symptoms Check itemsProbable malfunction location / Action
to take
It cannot be switched to rear view
monitor even when the selector le-
ver is in the reverse position. There is malfunction in the CONSULT-III self-diagno-
sis result.Perform CONSULT-III self-diagnosis.
Refer to AV- 6 8 , "
CONSULT-III Function
(MULTI AV)".
There is not malfunction in the CONSULT-III self-diag-
nosis result.Reverse signal circuit malfunction.(AV
control unit)
Camera image is not shown. AUX images are normal.  Rear view camera power supply cir-
cuit malfunction.
Refer to AV- 8 4 , "
CAMERA CON-
TROL UNIT : Diagnosis Procedure".
 Camera image signal circuit malfunc-
tion.
Refer to AV- 9 6 , "
Diagnosis Proce-
dure".
Possible route line is indicated ab-
normally when camera image is dis-
played.The “Steer. Angle Sensor” is not turned ON at “Con-
nection Confirmation” of “Camera Cont.”Steering angle sensor signal circuits.
Refer to AV-98, "
Diagnosis Procedure".
Camera image is rolling. AUX image is rolling Horizontal synchronizing (HP) signal
circuit malfunction between AV con-
trol unit and display unit.
Refer to AV- 9 1 , "
Diagnosis Proce-
dure".
 Vertical synchronizing (VP) signal cir-
cuit malfunction between AV control
unit and display unit.
Refer to AV- 9 2 , "
Diagnosis Proce-
dure".

AV
MULTI AV SYSTEM SYMPTOMS
AV-165
< SYMPTOM DIAGNOSIS >[BASE AUDIO AND DISPLAY SYSTEM]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
RELATED TO AUDIO
RELATED TO STEERING SWITCH
Trouble diagnosis chart by symptom
RELATED TO AUXILIARY INPUT
NOTE:
Symptoms Check items Possible malfunction location / Action to take
RGB image is not shown. All RGB images are not shown.
 Composite images are not dis-
played.(camera and AUX image)  Display unit power supply and ground circuit malfunc-
tion.
Refer to AV- 8 2 , "
DISPLAY UNIT : Diagnosis Proce-
dure".
 Communication Circuit malfunction between AV control
unit and display unit.
Perform CONSULT-III self-diagnosis.
Refer to AV- 6 8 , "
CONSULT-III Function (MULTI AV)".
 All RGB images are not shown.
 Camera image is normal.
 AUX images are not displayed. Perform CONSULT-III self-diagnosis.
Refer to AV- 6 8 , "
CONSULT-III Function (MULTI AV)".
 All RGB images are not shown.
 “Multi AV” is not displayed on system
selection screen when the CONSULT-
III is initialized.AV control unit power supply and ground circuit malfunc-
tion.
Refer to AV- 8 2 , "
AV CONTROL UNIT : Diagnosis Proce-
dure".
 All RGB images are not shown.
 Composite images are normal. (cam-
era and AUX image) RGB area (YS) signal circuit malfunction.
Refer to AV- 9 0 , "
Diagnosis Procedure".
Color of RGB image is not
proper. (All RGB image)Light blue (Cyan) tint.RGB signal (R: red) circuit malfunction between AV con-
trol unit and display unit.
Refer to AV- 8 6 , "
Diagnosis Procedure".
Purple (Magenta) tint.RGB signal (G: green) circuit malfunction between AV
control unit and display unit.
Refer to AV- 8 7 , "
Diagnosis Procedure".
Screen looks yellowish.RGB signal (B: blue) circuit malfunction between AV con-
trol unit and display unit.
Refer to AV- 8 8 , "
Diagnosis Procedure".
RGB screen is rolling. All RGB screen is rolling.RGB synchronizing signal circuit malfunction between AV
control unit and display unit.
Refer to AV- 8 9 , "
Diagnosis Procedure".
Symptoms Check items Possible malfunction location / Action to take
The CD cannot be removed. —Disk eject signal circuit.
Refer to AV- 9 4 , "
Diagnosis Procedure".
Audio sound is not heard.No sound from all speakers.Perform CONSULT-III self-diagnosis.
Refer to AV- 6 8 , "
CONSULT-III Function (MULTI AV)"
Sound is not heard only from the specific
places (RH front, RH rear, LH front and
LH rear).Sound signal circuit of suspect system
AM/FM radio is not received. Other audio sounds are normal. Antenna amp. ON signal circuit.
Symptoms Probable malfunction location
None of the steering switch operations work.Steering switch signal GND circuit. Refer toAV- 1 0 5 , "
Component In-
spection".
Only specified switch cannot be operated Replace steering switch. Refer to ST-12, "
Exploded View".
Steering switch's “SOURCE”, “MENU UP”, “MENU DOWN”
switches do not work.Steering switch signal A circuit. Refer to AV- 1 0 0 , "
Diagnosis Procedure".
Steering switch's “VOL UP”, “VOL DOWN” switches do not
work.Steering switch signal B circuit. Refer to AV- 1 0 2 , "
Diagnosis Procedure".

AV-166
< SYMPTOM DIAGNOSIS >[BASE AUDIO AND DISPLAY SYSTEM]
MULTI AV SYSTEM SYMPTOMS
Check that there is no malfunction of AUX equipment main body before performing a diagnosis.
RELATED TO REAR CONTROL SWITCH
Symptoms Check items Probable malfunction location
No voice sound is heard when
AUX mode is selected.Voice sound is heard when other modes
are selected.AUX sound signal circuits malfunction between auxiliary
input jacks and AV control unit.
AUX image is not displayed displayed in black and nothing can be dis-
played RGB area synchronizing (YS) signal circuit malfunc-
tion between AV control unit and display unit.
Refer to AV- 9 0 , "
Diagnosis Procedure".
 Horizontal synchronizing (HP) signal circuit malfunc-
tion between AV control unit and display unit.
Refer to AV- 9 1 , "
Diagnosis Procedure".
 Vertical synchronizing (VP) signal circuit malfunction
between AV control unit and display unit.
Refer to AV- 9 2 , "
Diagnosis Procedure".
Camera image is normal.AUX image signal circuit malfunction between auxiliary
input jacks and AV control unit.
Refer to AV- 9 3 , "
Diagnosis Procedure".
Symptoms Check items Probable malfunction location
None of the rear control switch operations
work.—Perform CONSULT-III self-diagnosis. Refer
to AV- 6 8 , "
CONSULT-III Function (MULTI
AV )".
