DIAGNOSIS SYSTEM (BCM)
FREEZE FRAME DATA (FFD) AND IGN COUNTER
Freeze Frame Data
The BCM records the following condition at the moment a particular DTC is detected.
 Vehicle Speed
 Odo/Trip Meter
 Vehicle Condition (BCM detected condition)
IGN Counter
IGN counter indicates the number of times that ignition switch is turned ON after DTC is detected.
 The number is 0 when a malfunction is detected now.
 The number increases like 1 → 2 → 3...38 → 39 after returning to the normal condition whenever ignition
switch OFF → ON.
 The number is fixed to 39 until the self-diagnosis results are erased if it is over 39.
RETAINED PWR
RETAINED PWR : CONSULT-III Function (BCM - RETAINED PWR)INFOID:0000000003812849
Data monitor
CONSULT screen terms Description
SLEEP>LOCKWhile turning BCM status from low power consumption mode to normal mode (Power supply
position is “LOCK”)
SLEEP>OFFWhile turning BCM status from low power consumption mode to normal mode (Power supply
position is “OFF”.)
LOCK>ACC While turning power supply position from “LOCK” to “ACC”
ACC>ON While turning power supply position from “ACC” to “IGN”
RUN>ACCWhile turning power supply position from “RUN” to “ACC” (Vehicle is stopping and selector
lever is except P position.)
CRANK>RUNWhile turning power supply position from “CRANKING” to “RUN” (From cranking up the en-
gine to run it)
RUN>URGENT While turning power supply position from “RUN“ to “ACC” (Emergency stop operation)
ACC>OFF While turning power supply position from “ACC” to “OFF”
OFF>LOCK While turning power supply position from “OFF” to “LOCK”
OFF>ACC While turning power supply position from “OFF” to “ACC”
ON>CRANK While turning power supply position from “IGN” to “CRANKING”
OFF>SLEEPWhile turning BCM status from normal mode (Power supply position is “OFF”.) to low power
consumption mode
LOCK>SLEEPWhile turning BCM status from normal mode (Power supply position is “LOCK”.) to low pow-
er consumption mode
LOCK Power supply position is “LOCK” (Ignition switch OFF with steering is locked.)
OFF Power supply position is “OFF” (Ignition switch OFF with steering is unlocked.)
ACC Power supply position is “ACC” (Ignition switch ACC)
ON Power supply position is “IGN” (Ignition switch ON with engine stopped)
ENGINE RUN Power supply position is “RUN” (Ignition switch ON with engine running)
CRANKING Power supply position is “CRANKING” (At engine cranking)
Monitor Item Description
DOOR SW-DR Indicates [ON/OFF] condition of driver side door switch.
DOOR SW-AS Indicates [ON/OFF] condition of passenger side door switch.

POWER SUPPLY AND GROUND CIRCUIT
RF-11
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
L
MA
B
RF
N
O
P
COMPONENT DIAGNOSIS
POWER SUPPLY AND GROUND CIRCUIT
BCM
BCM : Diagnosis ProcedureINFOID:0000000003812850
1.CHECK FUSE AND FUSIBLE LINK
Check that the following fuse and fusible link are not blown.
Is the fuse fusing?
YES >> Replace the blown fuse or fusible link after repairing the affected circuit if a fuse or fusible link is
blown.
NO >> GO TO 2.
2.CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connectors.
3. Check voltage between BCM harness connector and ground.
Is the measurement value normal?
YES >> GO TO 3.
NO >> Repair or replace harness.
3.CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
Does continuity exist?
YES >> INSPECTION END
NO >> Repair or replace harness.
SUNROOF MOTOR ASSEMBLY
SUNROOF MOTOR ASSEMBLY : Diagnosis ProcedureINFOID:0000000003812851
1.CHECK POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect sunroof motor assembly connector.
3. Turn ignition switch ON.
4. Check voltage between sunroof motor assembly harness connector and ground.
Signal name Fuse and fusible link No.
Battery power supplyI (40A)
10 (10A)
(+)
Vol tag e
(Approx.) BCM (−)
Ground Connector Terminal
M118 1
Battery voltage
M119 11
BCM
GroundContinuity
Connector Terminal
M119 13 Existed

RF-12
< COMPONENT DIAGNOSIS >
POWER SUPPLY AND GROUND CIRCUIT
Is the inspection result normal?
YES >> GO TO 2.
NO >> GO TO 3.
2.CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between sunroof motor assembly harness connector and ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair or replace harness.
3.CHECK SUNROOF MOTOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check continuity between BCM harness connector and sunroof motor assembly harness connector.
4. Check continuity between BCM harness connector and ground.
Is the inspection result normal?
YES >> Replace BCM. Refer to BCS-78, "Removal and Installation".
NO >> Repair or replace harness.
4.CHECK INTERMITTENT INCIDENT
Refer to GI-35, "
Intermittent Incident".
>> INSPECTION END
SUNSHADE MOTOR ASSEMBLY
SUNSHADE MOTOR ASSEMBLY : Diagnosis ProcedureINFOID:0000000003812852
1.CHECK POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect sunshade motor assembly connector.
3. Turn ignition switch ON.
(+)
(–)Voltage (V)
(Approx.) Sunroof motor assembly
Connector Terminal
R1013
Ground Battery voltage
6
Sunroof motor assembly
GroundContinuity
Connector Terminal
R1011
Existed
2
BCM Sunroof motor assembly
Continuity
Connector Terminal Connector Terminal
M1182
R1016
Existed
33
BCM
GroundContinuity
Connector Terminal
M1182
Not existed
3

POWER SUPPLY AND GROUND CIRCUIT
RF-13
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
L
MA
B
RF
N
O
P
4. Check voltage between sunshade motor assembly harness connector and ground.
Is the inspection result normal?
YES >> GO TO 2.
NO >> GO TO 3.
2.CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between sunshade motor assembly harness connector and ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair or replace harness.
3.CHECK SUNSHADE MOTOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check continuity between BCM harness connector and sunshade motor assembly harness connector.
4. Check continuity between BCM harness connector and ground.
Is the inspection result normal?
YES >> Replace BCM. Refer to BCS-78, "Removal and Installation".
NO >> Repair or replace harness.
4.CHECK INTERMITTENT INCIDENT
Refer to GI-35, "
Intermittent Incident".
>> INSPECTION END
(+)
(–)Voltage (V)
(Approx.) Sunshade motor assembly
Connector Terminal
R102 6 Ground Battery voltage
Sunshade motor assembly
GroundContinuity
Connector Terminal
R102 1 Existed
BCM Sunshade motor assembly
Continuity
Connector Terminal Connector Terminal
M118 2 R102 6 Existed
BCM
GroundContinuity
Connector Terminal
M118 2 Not existed

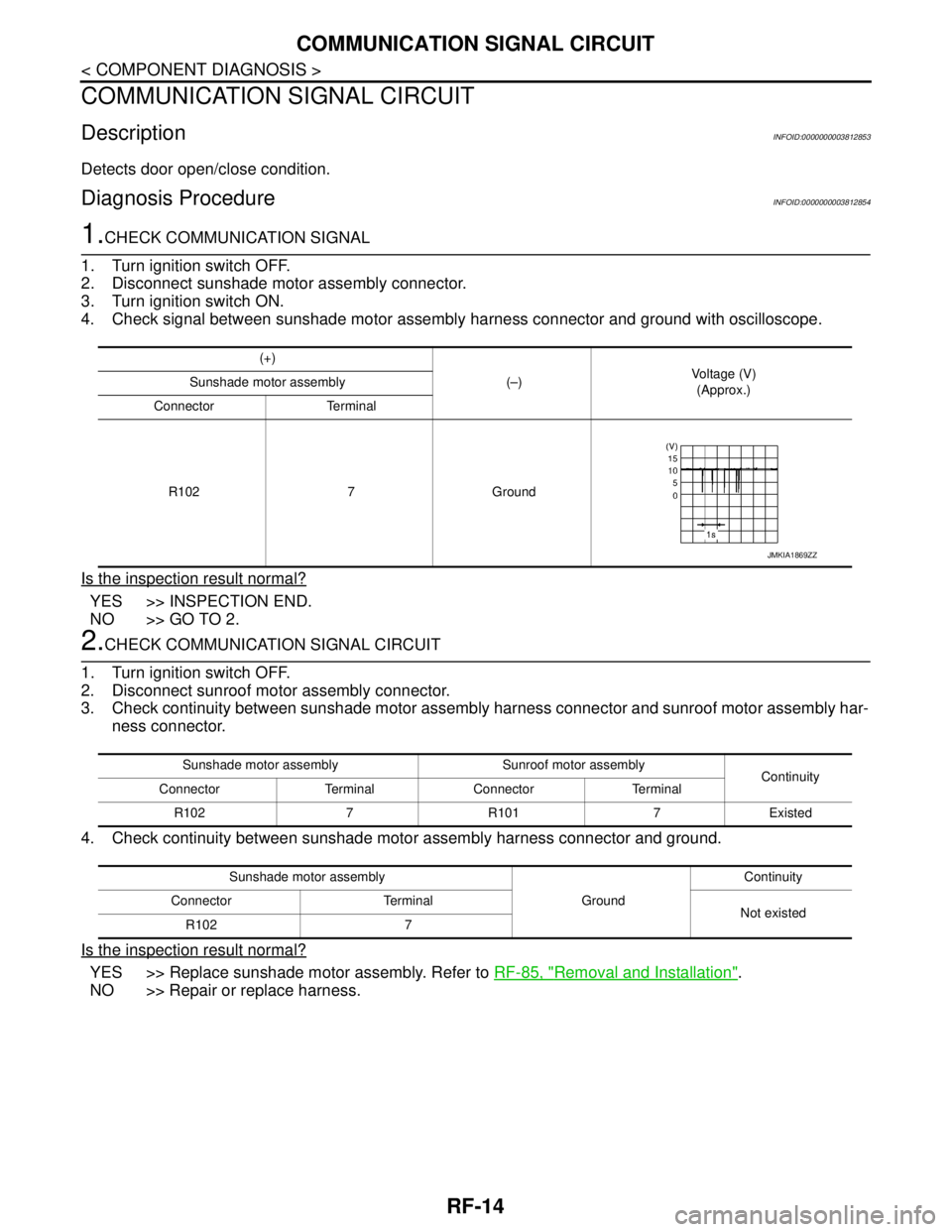

RF-14
< COMPONENT DIAGNOSIS >
COMMUNICATION SIGNAL CIRCUIT
COMMUNICATION SIGNAL CIRCUIT
DescriptionINFOID:0000000003812853
Detects door open/close condition.
Diagnosis ProcedureINFOID:0000000003812854
1.CHECK COMMUNICATION SIGNAL
1. Turn ignition switch OFF.
2. Disconnect sunshade motor assembly connector.
3. Turn ignition switch ON.
4. Check signal between sunshade motor assembly harness connector and ground with oscilloscope.
Is the inspection result normal?
YES >> INSPECTION END.
NO >> GO TO 2.
2.CHECK COMMUNICATION SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect sunroof motor assembly connector.
3. Check continuity between sunshade motor assembly harness connector and sunroof motor assembly har-
ness connector.
4. Check continuity between sunshade motor assembly harness connector and ground.
Is the inspection result normal?
YES >> Replace sunshade motor assembly. Refer to RF-85, "Removal and Installation".
NO >> Repair or replace harness.
(+)
(–)Voltage (V)
(Approx.) Sunshade motor assembly
Connector Terminal
R102 7 Ground
JMKIA1869ZZ
Sunshade motor assembly Sunroof motor assembly
Continuity
Connector Terminal Connector Terminal
R102 7 R101 7 Existed
Sunshade motor assembly
GroundContinuity
Connector Terminal
Not existed
R102 7

SUNROOF SWITCH
RF-15
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
L
MA
B
RF
N
O
P
SUNROOF SWITCH
DescriptionINFOID:0000000003812855
Transmits switch operation signal to sunroof motor assembly.
Component Function CheckINFOID:0000000003866180
1.CHECK SUNROOF FUNTION
Check tilt up/down & slide open/close operations with sunroof switch.
Is the inspection result normal?
YES >> Sunroof function is OK.
NO >> Refer to RF-15, "
DiagnosisProcedure".
Diagnosis ProcedureINFOID:0000000003812856
1. CHECK SUNROOF SWITCH INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect sunroof switch harness connector.
3. Turn ignition switch ON.
4. Check voltage between sunroof switch harness connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> GO TO 2.
2.CHECK SUNROOF SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect sunroof motor assembly connector.
3. Check continuity between sunroof switch harness connector and sunroof motor assembly harness con-
nector.
4. Check continuity between sunroof motor assembly harness connector and ground.
(+)
(–)Voltage (V)
(Approx.) Sunroof switch
Connector Terminal
R62
Ground Battery voltage 3
4
5
Sunroof switch Sunroof motor assembly
Continuity
Connector Terminal Connector Terminal
R62
R1019
Existed 35
410
54

RF-16
< COMPONENT DIAGNOSIS >
SUNROOF SWITCH
Is the inspection result normal?
YES >> Replace sunroof motor assembly. Refer toRF-83, "Removal and Installation"
NO >> Repair or replace harness.
3.CHECK SUNROOF SWITCH GROUND CIRCUIT
Check continuity between sunroof switch harness connector and ground.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair or replace the harness.
4.CHECK SUNROOF SWITCH
Check sunroof switch.
Refer to RF-16, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 5.
NO >> Replace sunroof switch. Refer to RF-101, "
Removal and Installation".
5.CHECK INTERMITTENT INCIDENT
Refer to GI-35, "
Intermittent Incident".
>> INSPECTION END
Component InspectionINFOID:0000000003812857
SUNROOF SWITCH
1.CHECK SUNROOF SWITCH
1. Turn ignition switch OFF.
2. Disconnect sunroof switch connector.
3. Check continuity sunroof switch terminals.
Sunroof switch
GroundContinuity
Connector Terminal
R62
Not existed 3
4
5
Sunroof switch
GroundContinuity
Connector Terminal
R6 1 Existed
Terminals Condition Continuity

SUNROOF SWITCH
RF-17
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
L
MA
B
RF
N
O
P
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace sunroof switch (built in map lamp assembly). Refer to RF-101, "
Removal and Installa-
tion".
2
1Sunroof switch is operated
OPEN (2nd) or CLOSE (2nd)Existed
Other than above Not existed
3 Sunroof switch is operated
OPEN (1st) or OPEN (2nd)Existed
Other than above Not existed
4Sunroof switch is operated
CLOSE (1st) or CLOSE (2nd)Existed
Other than above Not existed
5Sunroof switch is operated
PUSHExisted
Other than above Not existed

RF-18
< COMPONENT DIAGNOSIS >
DOOR SWITCH
DOOR SWITCH
DescriptionINFOID:0000000003812858
Detects door open/close condition.
Component Function CheckINFOID:0000000003812859
1.CHECK FUNCTION
Check door switches (“DOOR SW-DR”, “DOOR SW-AS”) in Data Monitor mode with CONSULT-III.
Is the inspection result normal?
YES >> Door switch is OK.
NO >> Refer to RF-18, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000003812860
1.CHECK DOOR SWITCH INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect malfunctioning door switch connector.
3. Check signal between malfunctioning door switch harness connector and ground with oscilloscope.
Is the inspection result normal?
YES >> GO TO 3.
NO >> GO TO 2.
2.CHECK DOOR SWITCH CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between BCM harness connector and door switch harness connector.
Monitor item Condition Status
DOOR SW-DR Front door (driver side)OPEN ON
CLOSE OFF
DOOR SW-AS Front door (passenger side)OPEN ON
CLOSE OFF
(+)
(–)Voltage (V)
(Approx.) Door switch
Connector Terminal
Driver side B34 2
Ground
Passenger side B220 2
JPMIA0011GB
JPMIA0011GB

DOOR SWITCH
RF-19
< COMPONENT DIAGNOSIS >
C
D
E
F
G
H
I
J
L
MA
B
RF
N
O
P
3. Check continuity between BCM harness connector and ground.
Is the inspection result normal?
YES >> Replace BCM. Refer to BCS-78, "Removal and Installation".
NO >> Repair or replace harness.
3.CHECK DOOR SWITCH
Refer to RF-19, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 4.
NO >> Replace malfunctioning door switch. Refer to DLK-234, "
Removal and Installation".
4.CHECK INTERMITTENT INCIDENT
Refer to GI-35, "
Intermittent Incident".
>> INSPECTION END
Component InspectionINFOID:0000000003812861
1.CHECK DOOR SWITCH
1. Turn ignition switch OFF.
2. Disconnect door switch connector.
3. Check door switch terminals.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace malfunction door switch. Refer to DLK-234, "
Removal and Installation".
BCM Door switch
Continuity
Connector Terminal Connector Terminal
M123150 B34 (Driver side)
2Existed
124 B220 (Passenger side)
BCM
GroundContinuity
Connector Terminal
M123150
Not existed
124
Te r m i n a l
Ground part of door
switchCondition Continuity
Door switch
Each door 2Door switch pressed Not existed
Door switch released Existed
