ON-VEHICLE REPAIR
STARTER MOTOR
VQ25DE
VQ25DE : Exploded ViewINFOID:0000000003860436
REMOVAL
DISASSEMBLY

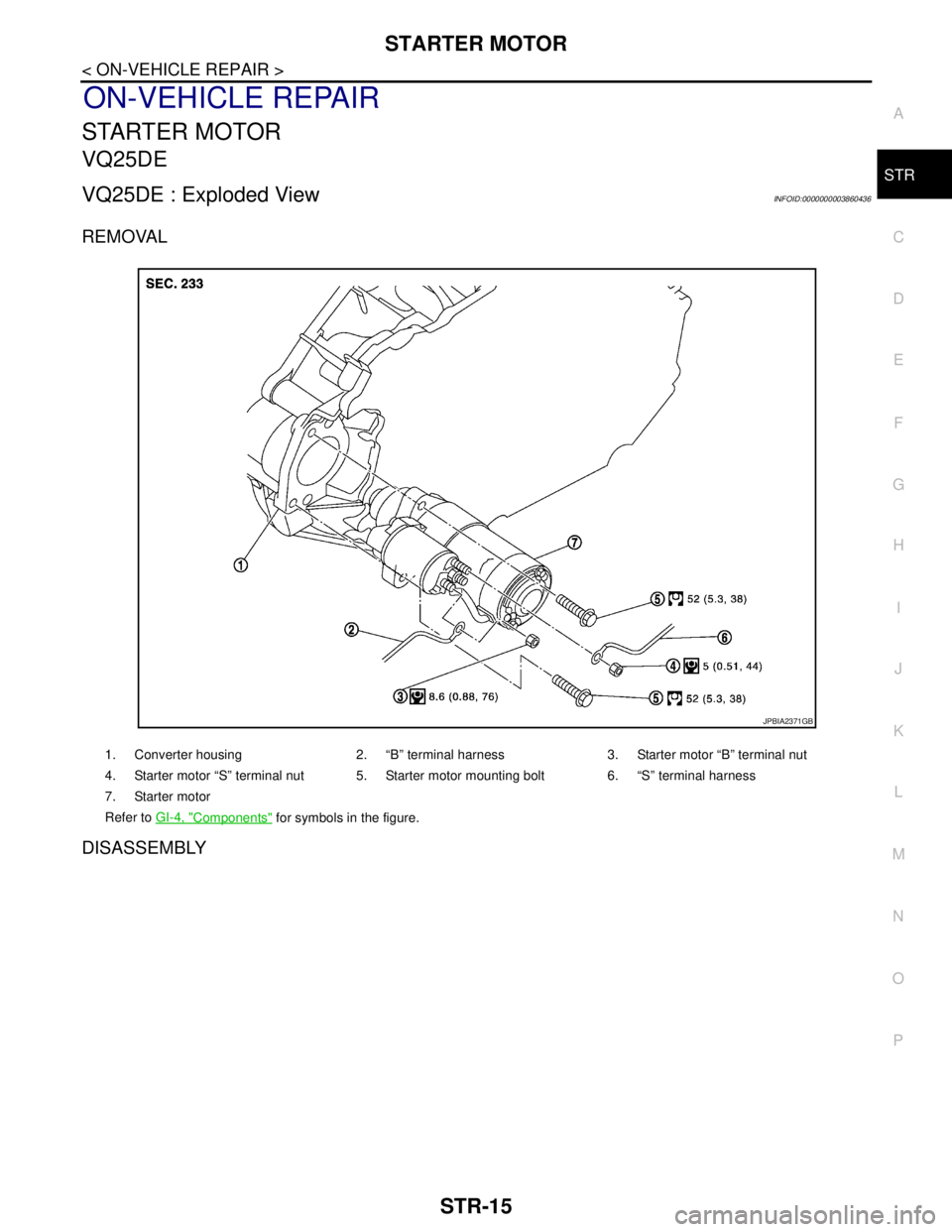

1. Converter housing 2. “B” terminal harness 3. Starter motor “B” terminal nut
4. Starter motor “S” terminal nut 5. Starter motor mounting bolt 6.“S” terminal harness
7. Starter motor
Refer to GI-4, "
Components" for symbols in the figure.
JPBIA2371GB

STR-16
< ON-VEHICLE REPAIR >
STARTER MOTOR
Type: S114-936
VQ25DE : Removal and InstallationINFOID:0000000003860437
REMOVAL
1. Remove the battery. Refer to PG-109, "Removal and Installation".
2. Remove the air cleaner assembly and air ducts.
3. Disconnect the following unit connectors:
ECM
IPDM E/R
4. Remove the battery tray.
5. Remove the “B”terminal nut and “S” terminal nut.
6. Remove the starter motor mounting bolts.
7. Remove the starter motor upward from the vehicle.
INSTALLATION
Installation is in the reverse order of removal.
VQ25DE : InspectionINFOID:0000000003860438
MAGNETIC SWITCH
 Before starting to check, disconnect the battery cable from the negative terminal.
JSAIA0936GB
1. Magnetic switch assembly 2. Adjusting plate 3. Dust cover
4. Shift lever set 5. Pinion stopper clip 6. Pinion stopper
7. Pinion 8. Pinion spring 9. Gear case assembly
10. Center bracket (A) 11. Yoke assembly 12. Armature assembly
13. Brush holder assembly 14. Thrust washer 15. Rear cover
16. Internal gear 17. Planetary gear 18. Pinion stopper
19. Packing 20. Thrust washer 21. Center bracket (P)
22. Thrust washer 23. E-ring 24. Clutch gear assembly
Refer to GI-4, "
Components" for symbols not described on the above.

STARTER MOTOR
STR-17
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
K
L
MA
STR
N
P O

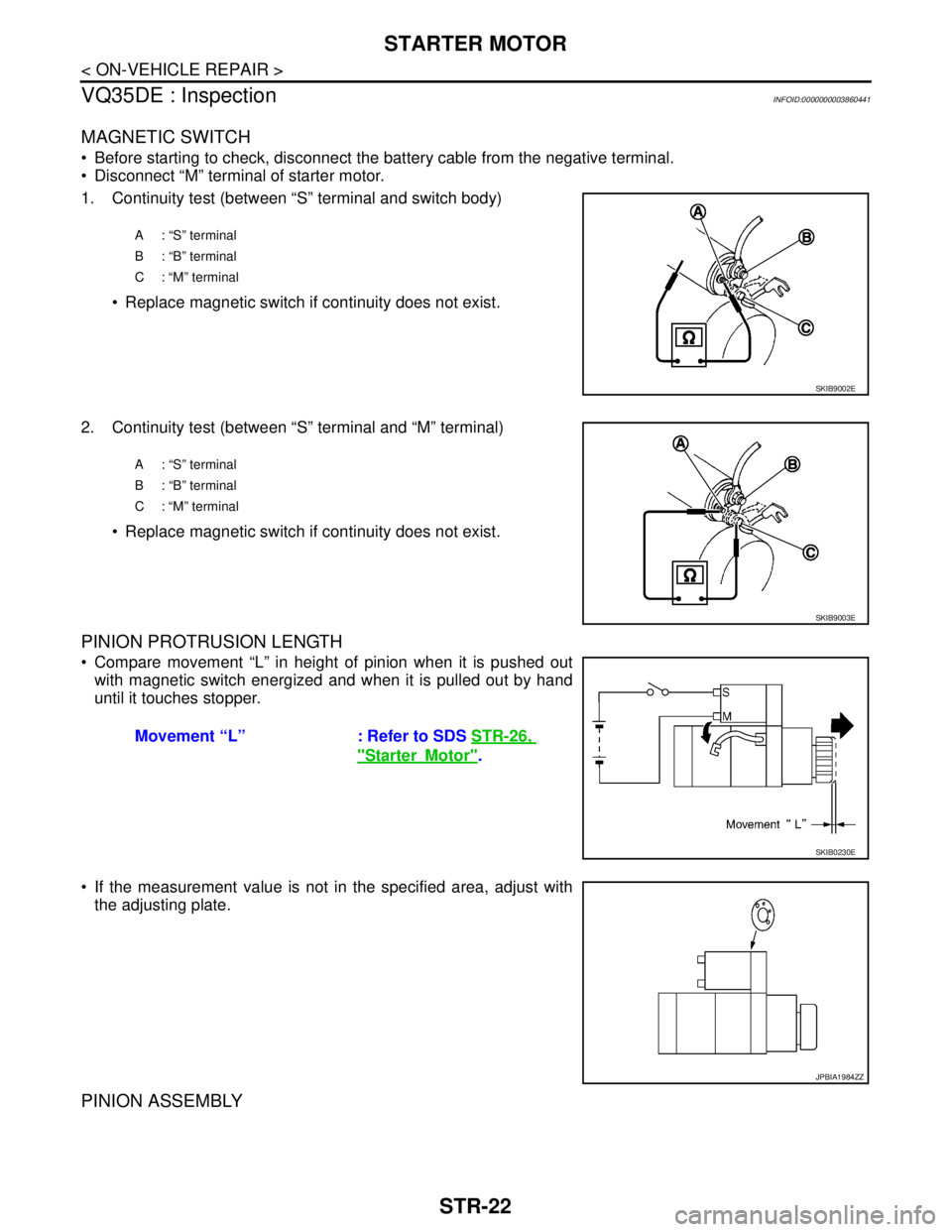

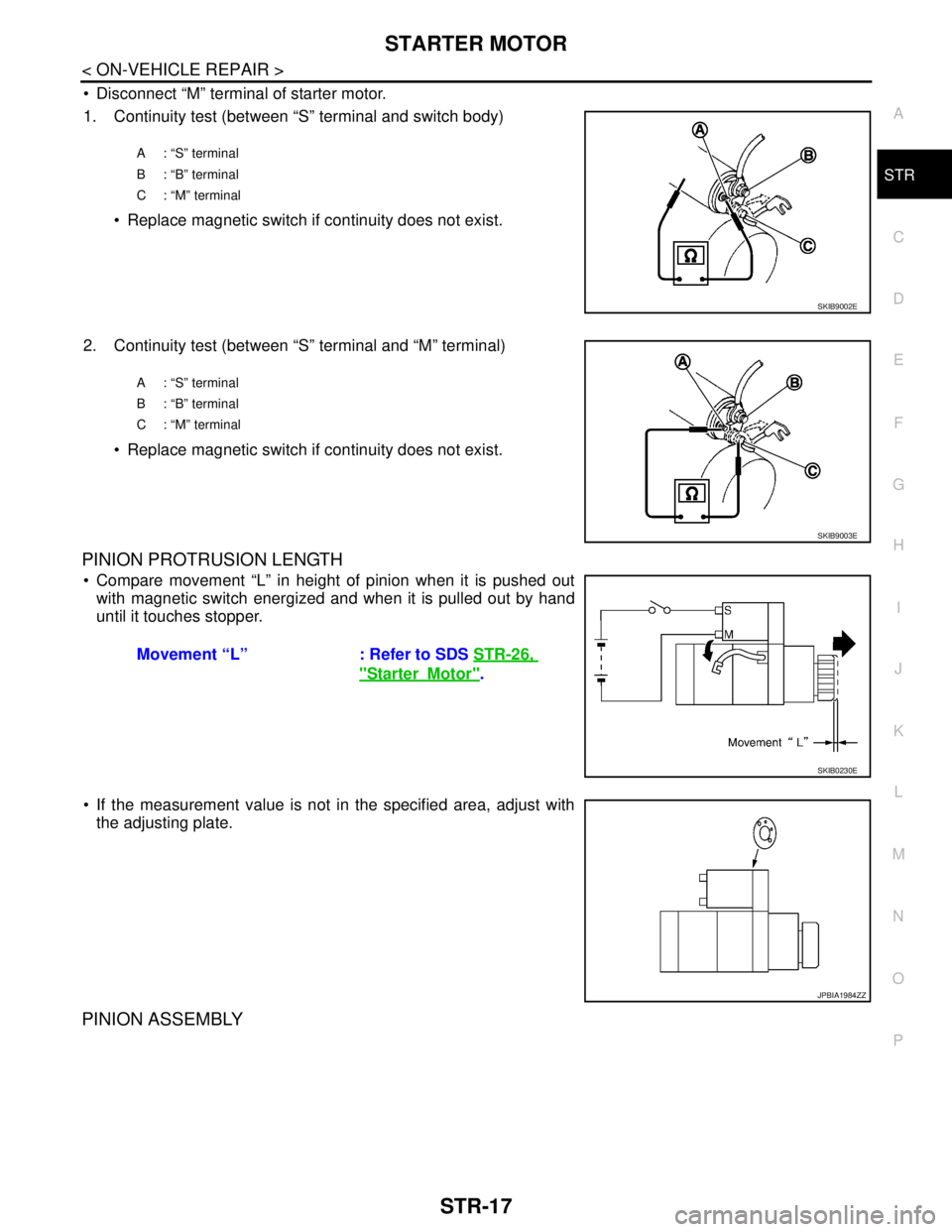

 Disconnect “M” terminal of starter motor.
1. Continuity test (between “S” terminal and switch body)
 Replace magnetic switch if continuity does not exist.
2. Continuity test (between “S” terminal and “M” terminal)
 Replace magnetic switch if continuity does not exist.
PINION PROTRUSION LENGTH
 Compare movement “L” in height of pinion when it is pushed out
with magnetic switch energized and when it is pulled out by hand
until it touches stopper.
 If the measurement value is not in the specified area, adjust with
the adjusting plate.
PINION ASSEMBLY
A : “S” terminal
B : “B” terminal
C : “M” terminal
SKIB9002E
A : “S” terminal
B : “B” terminal
C : “M” terminal
SKIB9003E
Movement “L” : Refer to SDS STR-26,
"StarterMotor".
SKIB0230E
JPBIA1984ZZ

STR-18
< ON-VEHICLE REPAIR >
STARTER MOTOR

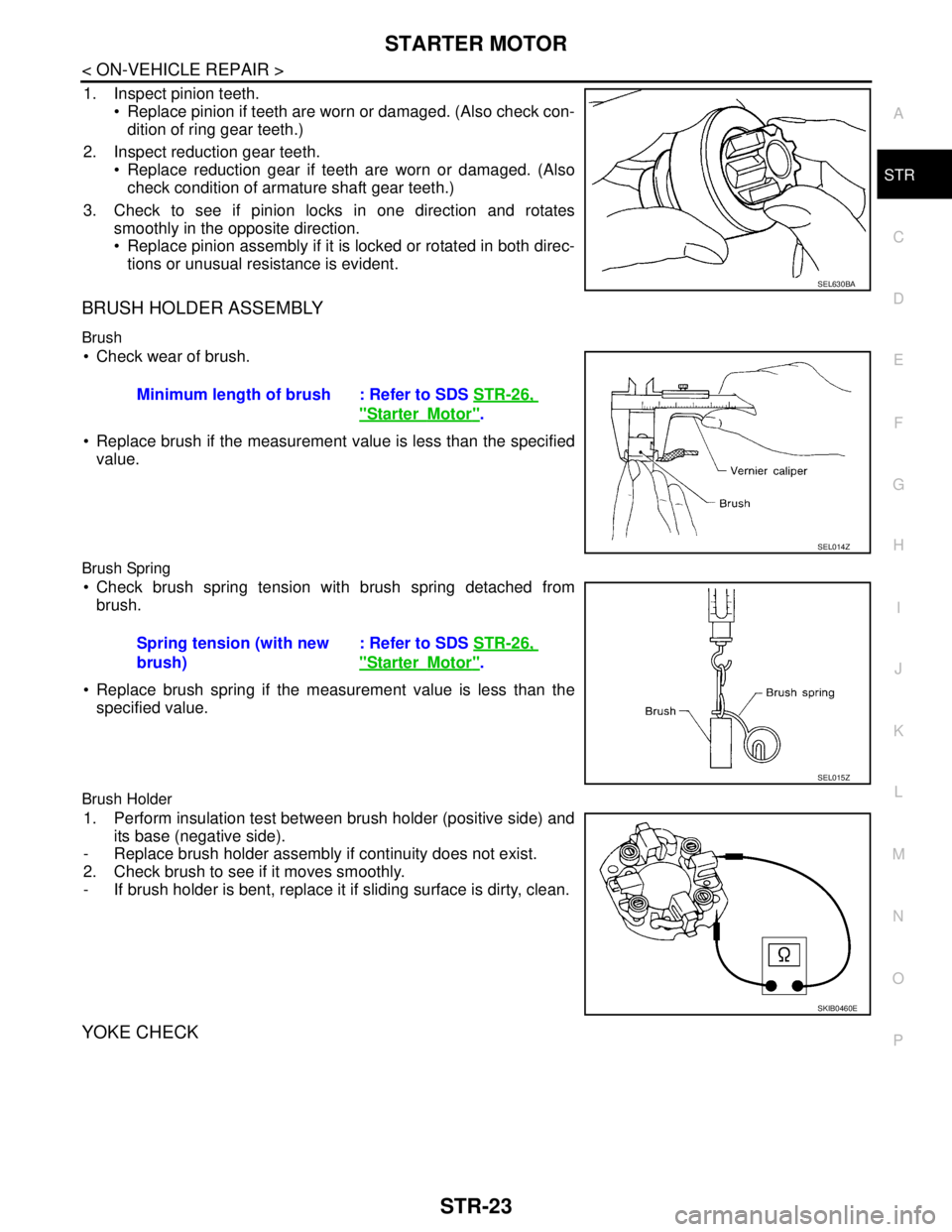

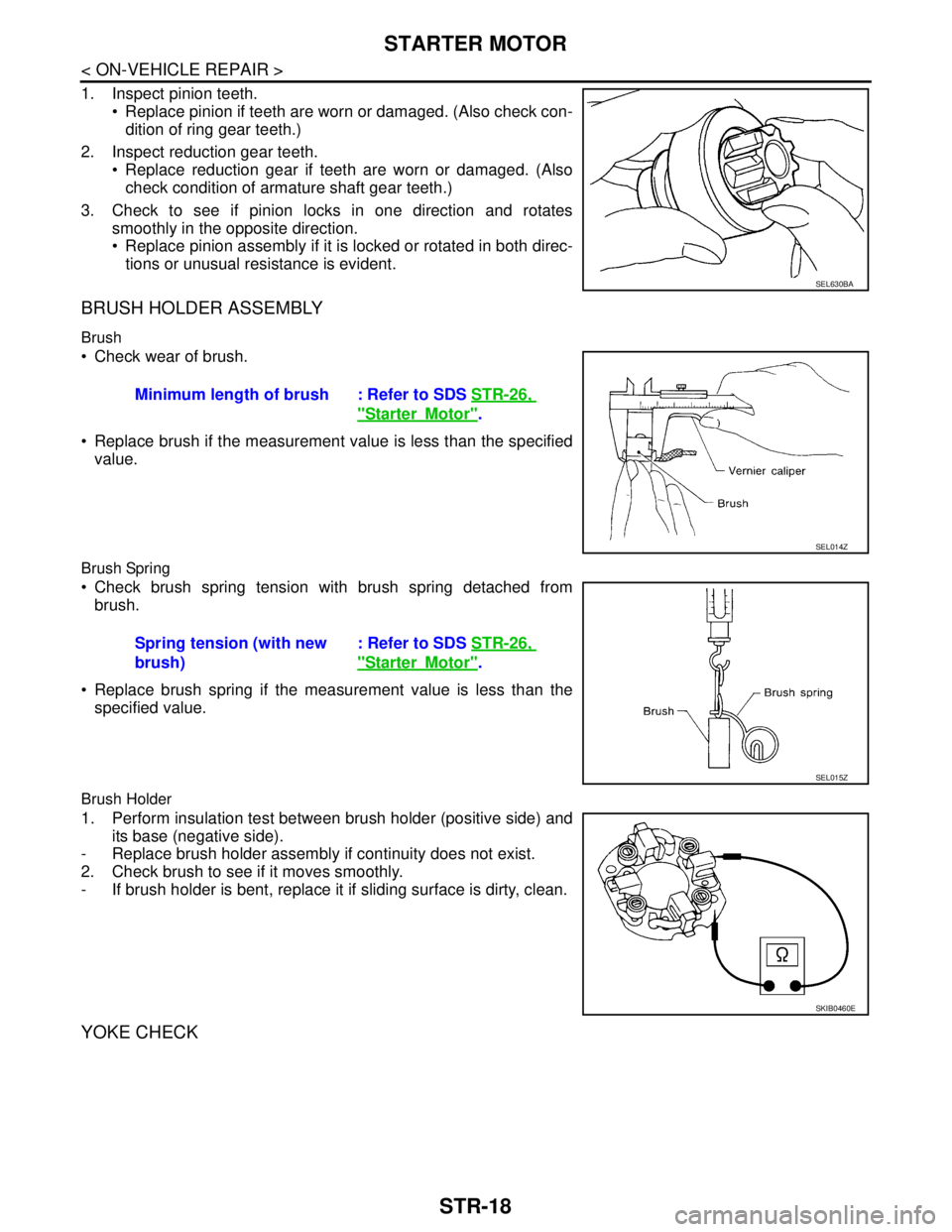

1. Inspect pinion teeth.
 Replace pinion if teeth are worn or damaged. (Also check con-
dition of ring gear teeth.)
2. Inspect reduction gear teeth.
 Replace reduction gear if teeth are worn or damaged. (Also
check condition of armature shaft gear teeth.)
3. Check to see if pinion locks in one direction and rotates
smoothly in the opposite direction.
 Replace pinion assembly if it is locked or rotated in both direc-
tions or unusual resistance is evident.
BRUSH HOLDER ASSEMBLY
Brush
 Check wear of brush.
 Replace brush if the measurement value is less than the specified
value.
Brush Spring
 Check brush spring tension with brush spring detached from
brush.
 Replace brush spring if the measurement value is less than the
specified value.
Brush Holder
1. Perform insulation test between brush holder (positive side) and
its base (negative side).
- Replace brush holder assembly if continuity does not exist.
2. Check brush to see if it moves smoothly.
- If brush holder is bent, replace it if sliding surface is dirty, clean.
YOKE CHECK
SEL630BA
Minimum length of brush : Refer to SDS STR-26,
"StarterMotor".
SEL014Z
Spring tension (with new
brush): Refer to SDS STR-26,
"StarterMotor".
SEL015Z
SKIB0460E

STARTER MOTOR
STR-19
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
K
L
MA
STR
N
P O

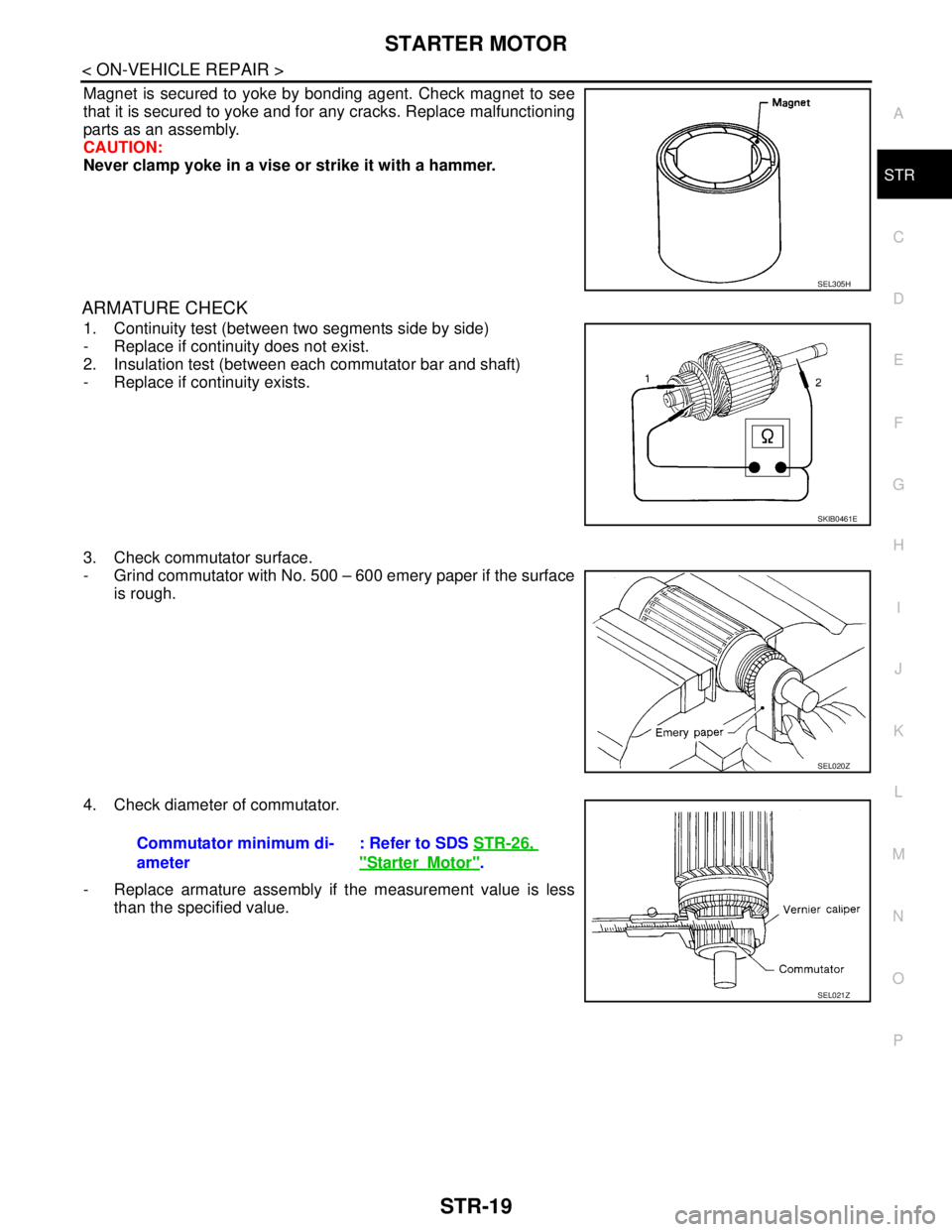

Magnet is secured to yoke by bonding agent. Check magnet to see
that it is secured to yoke and for any cracks. Replace malfunctioning
parts as an assembly.
CAUTION:
Never clamp yoke in a vise or strike it with a hammer.
ARMATURE CHECK
1. Continuity test (between two segments side by side)
- Replace if continuity does not exist.
2. Insulation test (between each commutator bar and shaft)
- Replace if continuity exists.
3. Check commutator surface.
- Grind commutator with No. 500 – 600 emery paper if the surface
is rough.
4. Check diameter of commutator.
- Replace armature assembly if the measurement value is less
than the specified value.
SEL305H
SKIB0461E
SEL020Z
Commutator minimum di-
ameter: Refer to SDS STR-26,
"StarterMotor".
SEL021Z

STR-20
< ON-VEHICLE REPAIR >
STARTER MOTOR
5. Check depth of insulating mold from commutator surface.
- Undercut to 0.5 to 0.8 mm (0.020 to 0.031 in) if the depth is 0.2
mm (0.008 in) or less.
VQ35DE
VQ35DE : Exploded ViewINFOID:0000000003860439
REMOVAL
SEL022Z

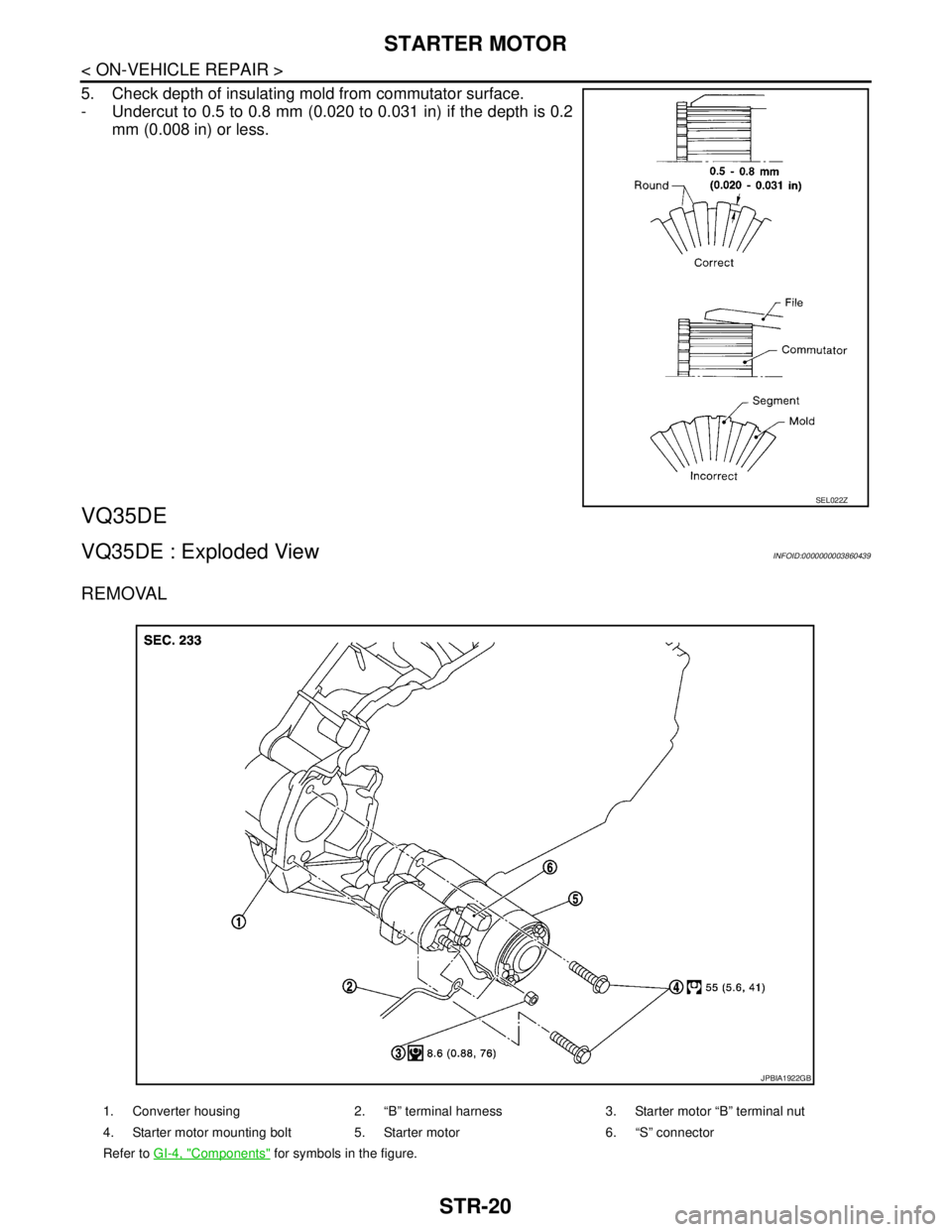

1. Converter housing 2. “B” terminal harness 3. Starter motor “B” terminal nut
4. Starter motor mounting bolt 5. Starter motor 6. “S” connector
Refer to GI-4, "
Components" for symbols in the figure.
JPBIA1922GB

STARTER MOTOR
STR-21
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
K
L
MA
STR
N
P O
DISASSEMBLY
Type: M000TA0072
VQ35DE : Removal and InstallationINFOID:0000000003860440
REMOVAL
1. Remove the battery. Refer to PG-109, "Removal and Installation".
2. Remove the air cleaner assembly and air ducts.
3. Disconnect the following unit connectors:
ECM
TCM
IPDM E/R
4. Remove the battery tray.
5. Disconnect the starter motor harness connectors.
6. Remove the “B” terminal nut.
7. Remove the starter motor mounting bolts.
8. Remove the starter motor upward from the vehicle.
INSTALLATION
Installation is in the reverse order of removal.
JPBIA1777GB
1. Magnetic switch assembly 2. Adjusting plate 3. Gear case assembly
4. Pinion assembly 5. Stopper 6. Ring
7. Ring 8. Stopper 9. Yoke assembly
10. Armature assembly 11. Brush holder assembly 12. Metal
13. Rear cover 14. Gear assembly 15. Shift lever set
16. Clutch gear assembly 17. Center bracket 18. Packing
19. Gear shaft
Refer to GI-4, "
Components" for symbols not described on the above.

STR-22
< ON-VEHICLE REPAIR >
STARTER MOTOR
VQ35DE : Inspection
INFOID:0000000003860441
MAGNETIC SWITCH
 Before starting to check, disconnect the battery cable from the negative terminal.
 Disconnect “M” terminal of starter motor.
1. Continuity test (between “S” terminal and switch body)
 Replace magnetic switch if continuity does not exist.
2. Continuity test (between “S” terminal and “M” terminal)
 Replace magnetic switch if continuity does not exist.
PINION PROTRUSION LENGTH
 Compare movement “L” in height of pinion when it is pushed out
with magnetic switch energized and when it is pulled out by hand
until it touches stopper.
 If the measurement value is not in the specified area, adjust with
the adjusting plate.
PINION ASSEMBLY
A : “S” terminal
B : “B” terminal
C : “M” terminal
SKIB9002E
A : “S” terminal
B : “B” terminal
C : “M” terminal
SKIB9003E
Movement “L” : Refer to SDS STR-26,
"StarterMotor".
SKIB0230E
JPBIA1984ZZ

STARTER MOTOR
STR-23
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
K
L
MA
STR
N
P O
1. Inspect pinion teeth.
 Replace pinion if teeth are worn or damaged. (Also check con-
dition of ring gear teeth.)
2. Inspect reduction gear teeth.
 Replace reduction gear if teeth are worn or damaged. (Also
check condition of armature shaft gear teeth.)
3. Check to see if pinion locks in one direction and rotates
smoothly in the opposite direction.
 Replace pinion assembly if it is locked or rotated in both direc-
tions or unusual resistance is evident.
BRUSH HOLDER ASSEMBLY
Brush
 Check wear of brush.
 Replace brush if the measurement value is less than the specified
value.
Brush Spring
 Check brush spring tension with brush spring detached from
brush.
 Replace brush spring if the measurement value is less than the
specified value.
Brush Holder
1. Perform insulation test between brush holder (positive side) and
its base (negative side).
- Replace brush holder assembly if continuity does not exist.
2. Check brush to see if it moves smoothly.
- If brush holder is bent, replace it if sliding surface is dirty, clean.
YOKE CHECK
SEL630BA
Minimum length of brush : Refer to SDS STR-26,
"StarterMotor".
SEL014Z
Spring tension (with new
brush): Refer to SDS STR-26,
"StarterMotor".
SEL015Z
SKIB0460E
