NISSAN TEANA 2008 Service Manual

TM-178
< BASIC INSPECTION >[CVT: RE0F10A]
DIAGNOSIS AND REPAIR WORK FLOW
DIAGNOSTIC WORK SHEET
Symptomso Vehicle does not move. (o Any positiono Particular position)
o No shift
o Lock-up malfunction
o Shift shock or slip (o N → Do N → Ro Lock-upo Any drive position)
o Noise or vibration
o No pattern select
o Others
()
Malfunction Indicator (MI)o Continuously lito Not lit
1o Read the item on cautions concerning fail-safe and understand the customer's complaint.TM-283
2o CVT fluid inspection, stall test and line pressure test
o CVT fluid inspection
TM-304
o Leak (Repair leak location.)
o State
o Amount
o Stall test
TM-306
,
TM-308
o Torque converter one-way clutch
o Reverse brake
o Forward clutch
o Steel belto Engine
o Line pressure low
o Primary pulley
o Secondary pulley
o Line pressure inspection - Suspected part:
3o Perform self-diagnosis.
TM-204
Enter checks for detected items.
4o Perform road test.TM-310
4-1. Check before engine is started TM-310
4-2. Check at idleTM-311
4-3. Cruise testTM-312
o Check malfunction phenomena to repair or replace malfunctioning part after completing all road tests. Refer to TM-286,
"Symptom Table".
5o Drive vehicle to check that the malfunction phenomenon has been resolved.
6o Erase the results of the self-diagnosis from the TCM and the ECM.TM-202
,
TM-204

INSPECTION AND ADJUSTMENT
TM-179
< BASIC INSPECTION >[CVT: RE0F10A]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
INSPECTION AND ADJUSTMENT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Service After Replac-
ing TCM and Transaxle Assembly
INFOID:0000000003806346
SERVICE AFTER REPLACING TCM AND TRANSAXLE ASSEMBLY
Perform the applicable service according to the following sheet when replacing TCM or transaxle assembly.
CAUTION:
 Never start the engine until the service is completed.
 “TCM-POWER SUPPLY [P1701]” may be indicated soon after replacing TCM or transaxle assembly
(after erasing the memory at the pattern B). Restart the self-diagnosis after erasing the self-diagnosis
result. Check that no error is detected.
NOTE:
Old unit means that the unit has been already used for another vehicle.
PATTERN A
1. Shift the selector lever to “P” position after replacing TCM. Turn the ignition switch ON.
2. Check that the shift position indicator in the combination meter turns ON (It indicates approximately 1 or 2
seconds after turning the ignition switch ON.)
 Check the following items if the shift position indicator does not turn ON. Repair or replace the shift posi-
tion indicator if necessary.
- The harness between TCM and ROM ASSY in the transaxle assembly is open or shorted.
- Cable disconnected, loosen, or bent from the connector housing.
PATTERN B
1. Turn the ignition switch ON after replacing each part.
2. Start engine.
CAUTION:
Never start driving.
3. Select “Data Monitor” mode for “TRANSMISSION”.
4. Warm up the transaxle assembly until “ATFTEMP COUNT” indicates 47 [approximately 20°C (68°F)] or
more. Turn the ignition switch OFF.
5. Turn the ignition switch ON.
CAUTION:
Never start engine.
6. Select “Self Diagnostic Results” mode for “TRANSMISSION”.
7. Shift the selector lever to “R” position.
8. Depress slightly the accelerator pedal (Pedal angle: 2/8) while depressing the brake pedal.
9. Perform “Erase”.
10. Shift the selector lever to “R” position after replacing TCM. Turn the ignition switch OFF.
11. Wait approximately 10 seconds after turning the ignition switch OFF.
12. Turn the ignition switch ON while shifting the selector lever to “R” position.
CAUTION:
Never start engine.
13. Select “Special Function” mode for “TRANSMISSION”.
14. Check that the value on “CALIBRATION DATA” is the same as the data after erasing “Calibration Data”.
TCM CVT assembly Service pattern
Replace the new unit. Do not replace the unit. “PATTERN A”
Do not replace the unit. Replace either an old unit or new unit.
“PATTERN B”
Replace the old unit.Do not replace the unit.
Replace either an old unit or new unit.
Replace the new unit. Replace either an old unit or new unit. “PATTERN C”

TM-180
< BASIC INSPECTION >[CVT: RE0F10A]
INSPECTION AND ADJUSTMENT
 Restart the procedure from step 3 if the values are not the same.
15. Shift the selector lever to “P” position.
16. Check that the shift position indicator in the combination meter turns ON. (It indicates approximately 1 or 2
seconds after shifting the selector lever to “P” position.)
 Check the following items if the shift position indicator does not turn ON. Repair or replace the shift posi-
tion indicator if necessary.
- The harness between TCM and ROM ASSY in the transaxle assembly is open or shorted.
- Cable disconnected, loosen, or bent from the connector housing.
- Power supply and ground of TCM. Refer to TM-249, "
Description".
Calibration Data
Data after deletion
PATTERN C
1. Replace the transaxle assembly first, and then replace TCM.
2. Perform the service of “PATTERN A”.
(Perform the service of “PATTERN B” if TCM is replaced first.)
Item name Display value Item name Display value
UNIT CLB ID 1 00 GAIN PL 256
UNIT CLB ID 2 00 OFFSET PL 40
UNIT CLB ID 3 00 OFFSET2 PL 0
UNIT CLB ID 4 00 MAP NO SEC 32
UNIT CLB ID 5 00 GAIN SEC 256
UNIT CLB ID 6 00 OFFSET SEC 40
MAP NO LU 33 OFFSET2 SEC 0
GAIN LU 256 MAP NO SL 32
OFFSET LU 40 GAIN SL 256
OFFSET2 LU 0 OFFSET SL 40
MAP NO PL 32 OFFSET2 SL 0

CVT SYSTEM
TM-181
< FUNCTION DIAGNOSIS >[CVT: RE0F10A]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
FUNCTION DIAGNOSIS
CVT SYSTEM

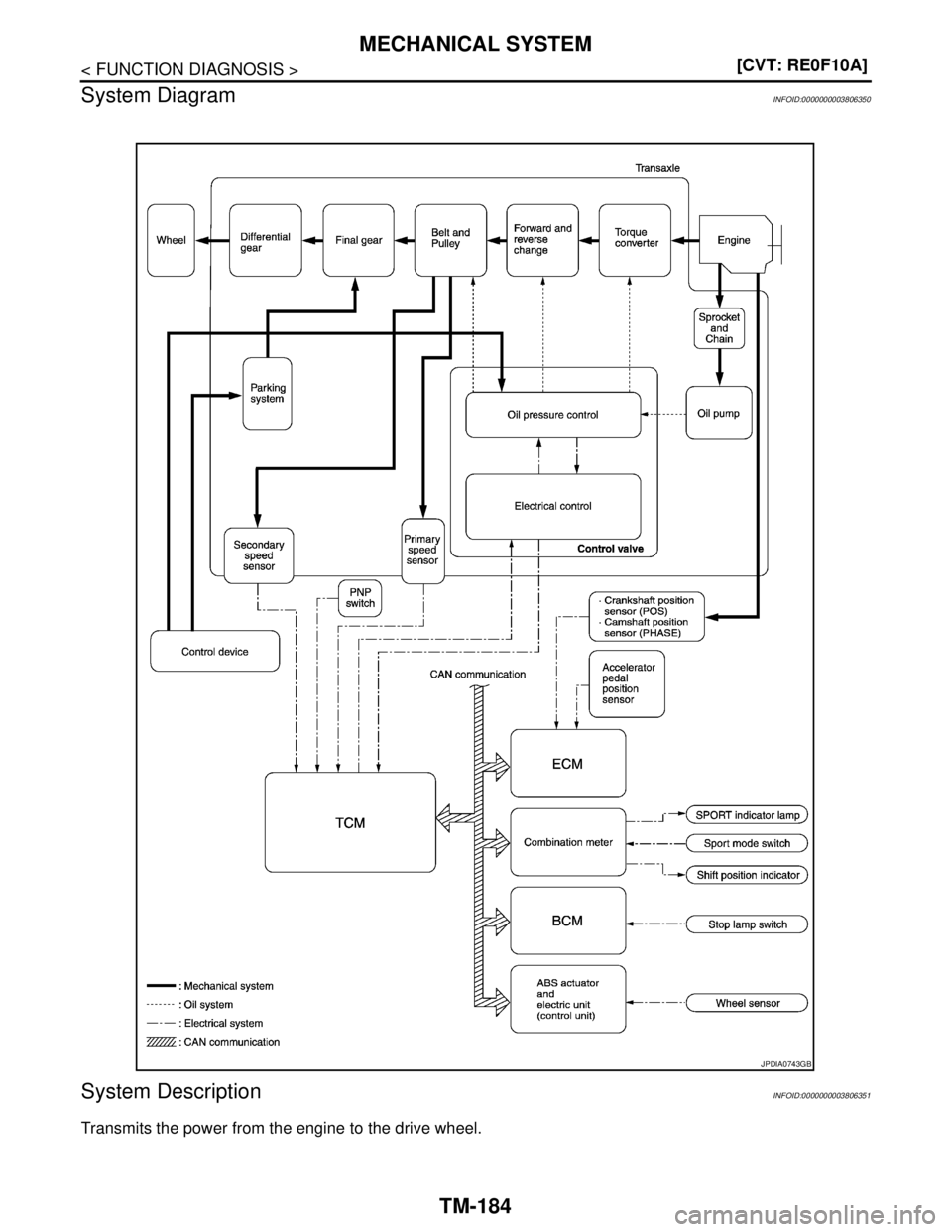

System DiagramINFOID:0000000003806347
JPDIA0743GB

TM-182
< FUNCTION DIAGNOSIS >[CVT: RE0F10A]
CVT SYSTEM
Component Parts Location
INFOID:0000000003806348
*: Control valve assembly is included in CVT assembly.
NOTE:
The following components are included in control valve assembly (8).
 CVT fluid temperature sensor
 Torque converter clutch solenoid valve
 Line pressure solenoid valve
 Step motor
ROM assembly
 Secondary pressure sensor
 Secondary pressure solenoid valve
 Lock-up select solenoid valve

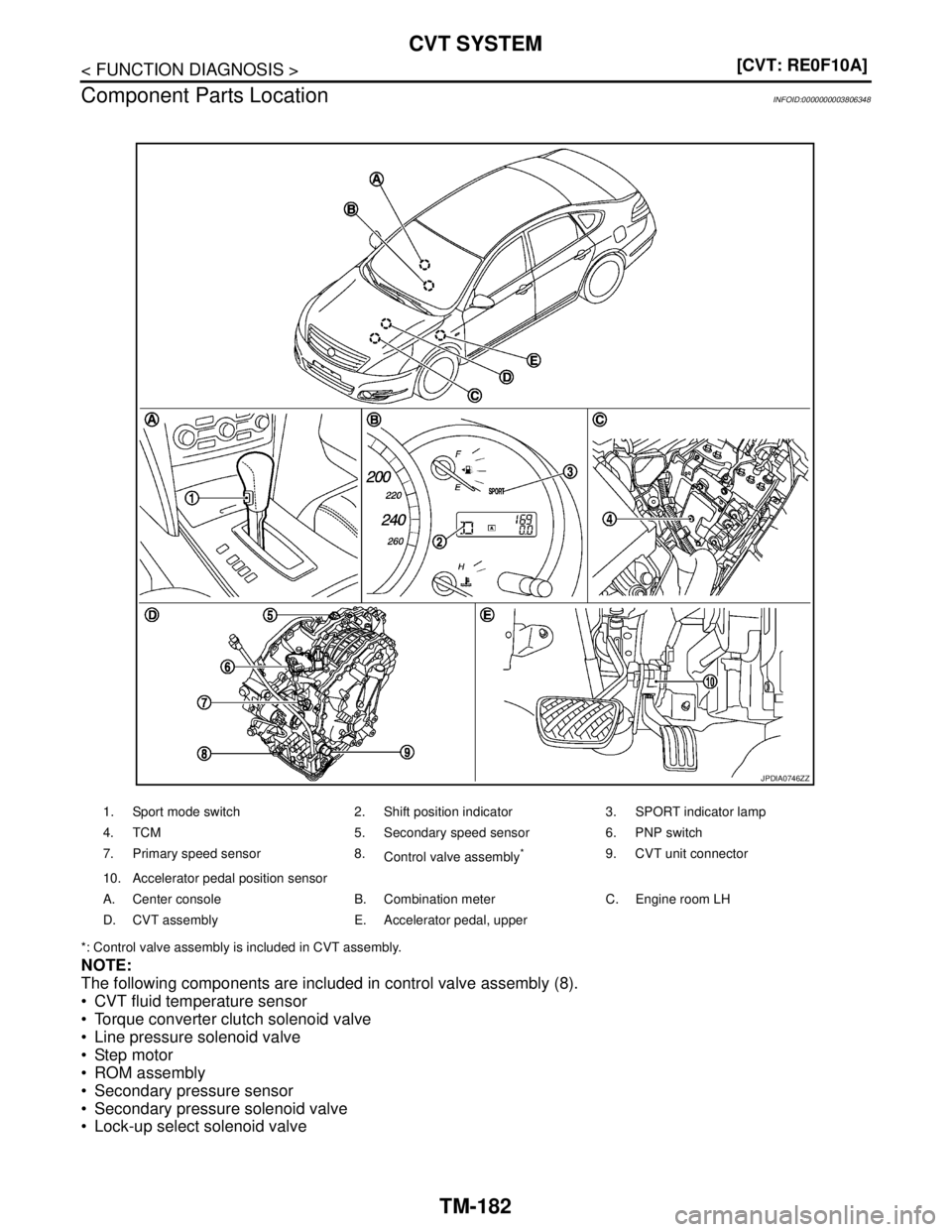

1. Sport mode switch 2. Shift position indicator 3. SPORT indicator lamp
4. TCM 5. Secondary speed sensor 6. PNP switch
7. Primary speed sensor 8.
Control valve assembly
*9. CVT unit connector
10. Accelerator pedal position sensor
A. Center console B. Combination meter C. Engine room LH
D. CVT assembly E. Accelerator pedal, upper
JPDIA0746ZZ

MECHANICAL SYSTEM
TM-183
< FUNCTION DIAGNOSIS >[CVT: RE0F10A]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
MECHANICAL SYSTEM
Cross-Sectional ViewINFOID:0000000003806349

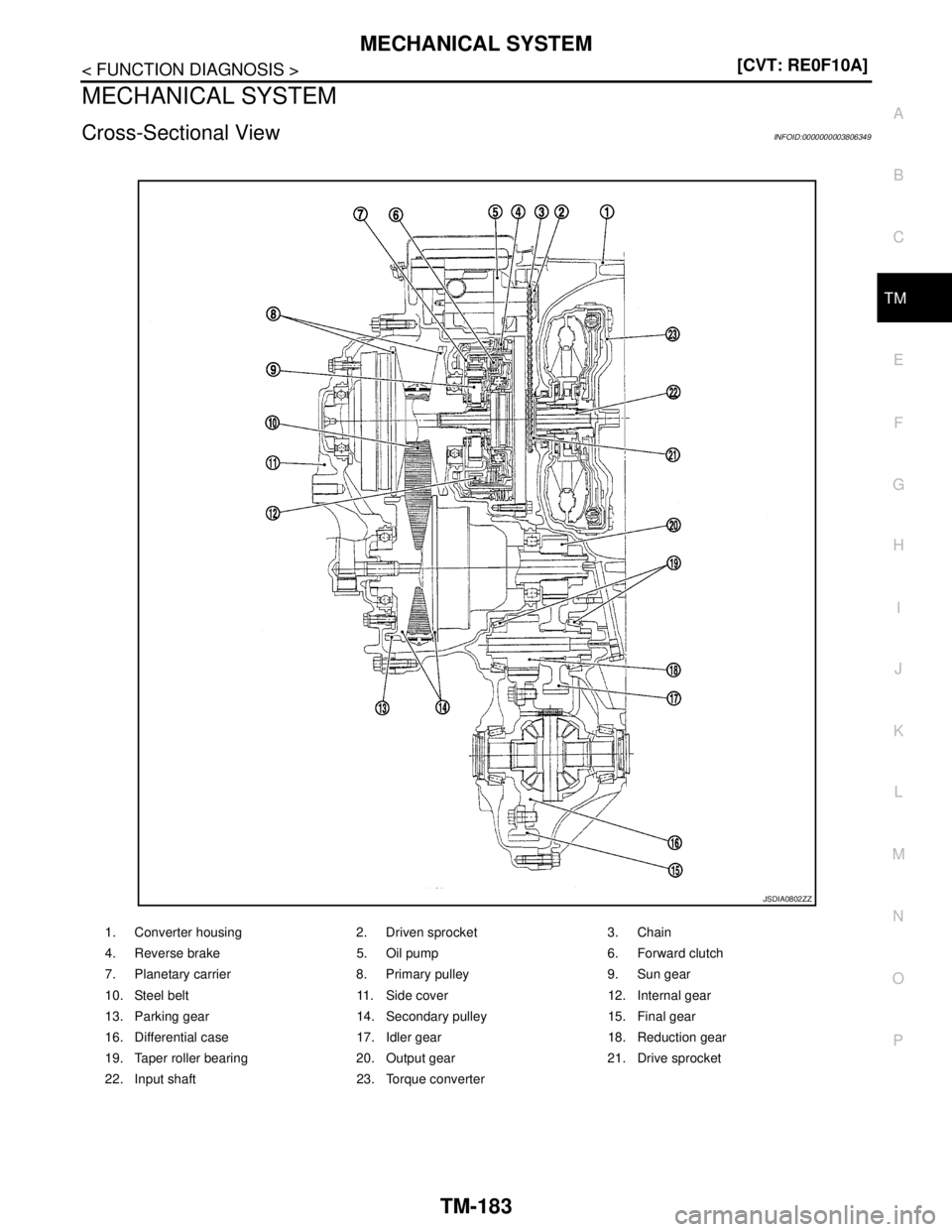

1. Converter housing 2. Driven sprocket 3. Chain
4. Reverse brake 5. Oil pump 6. Forward clutch
7. Planetary carrier 8. Primary pulley 9. Sun gear
10. Steel belt 11. Side cover 12. Internal gear
13. Parking gear 14. Secondary pulley 15. Final gear
16. Differential case 17. Idler gear 18. Reduction gear
19. Taper roller bearing 20. Output gear 21. Drive sprocket
22. Input shaft 23. Torque converter
JSDIA0802ZZ

TM-184
< FUNCTION DIAGNOSIS >[CVT: RE0F10A]
MECHANICAL SYSTEM
System Diagram
INFOID:0000000003806350
System DescriptionINFOID:0000000003806351
Transmits the power from the engine to the drive wheel.

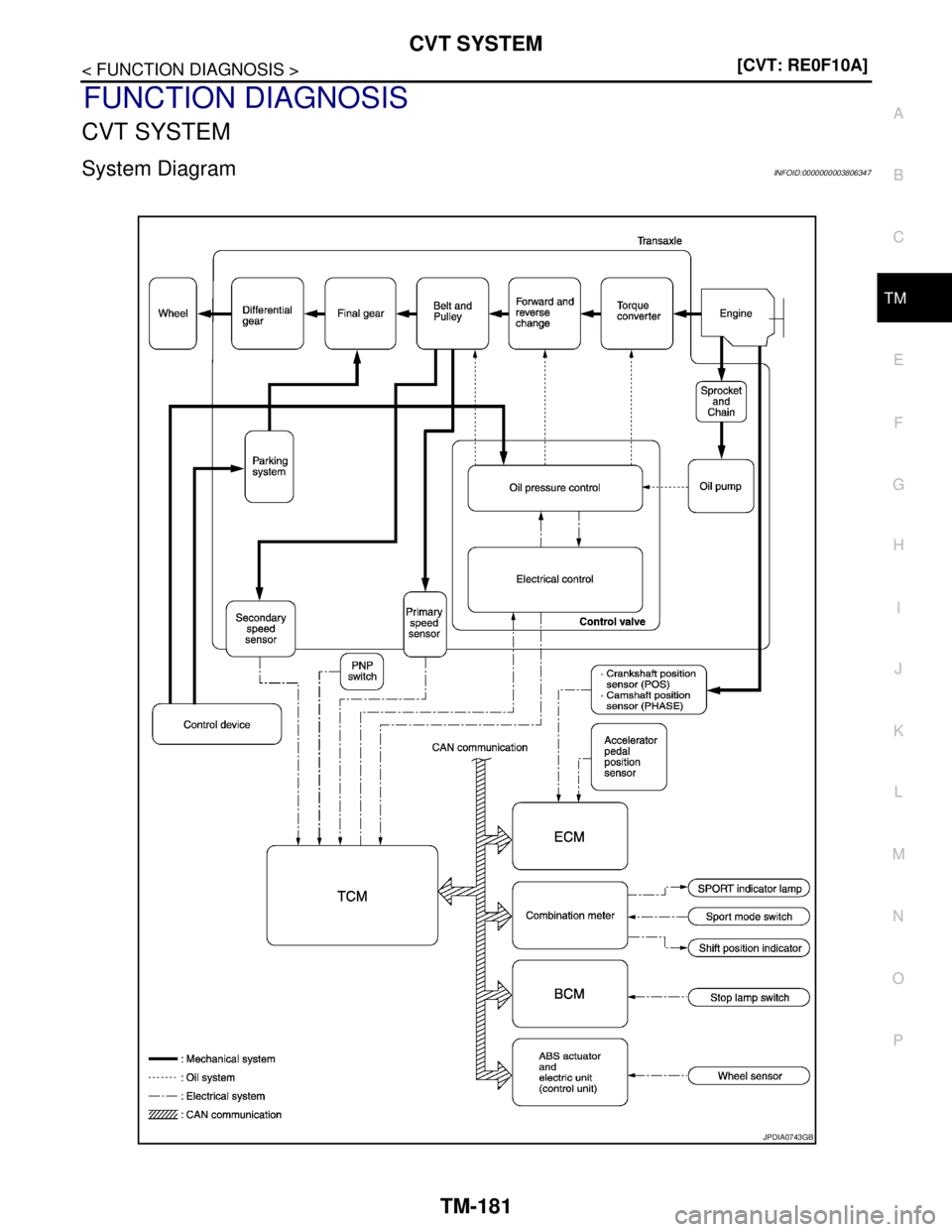

JPDIA0743GB

MECHANICAL SYSTEM
TM-185
< FUNCTION DIAGNOSIS >[CVT: RE0F10A]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
Component Parts LocationINFOID:0000000003809651
*: Control valve assembly is included in CVT assembly.
NOTE:
The following components are included in control valve assembly (8).
 CVT fluid temperature sensor
 Torque converter clutch solenoid valve
 Line pressure solenoid valve
 Step motor
 ROM assembly
 Secondary pressure sensor
 Secondary pressure solenoid valve
 Lock-up select solenoid valve

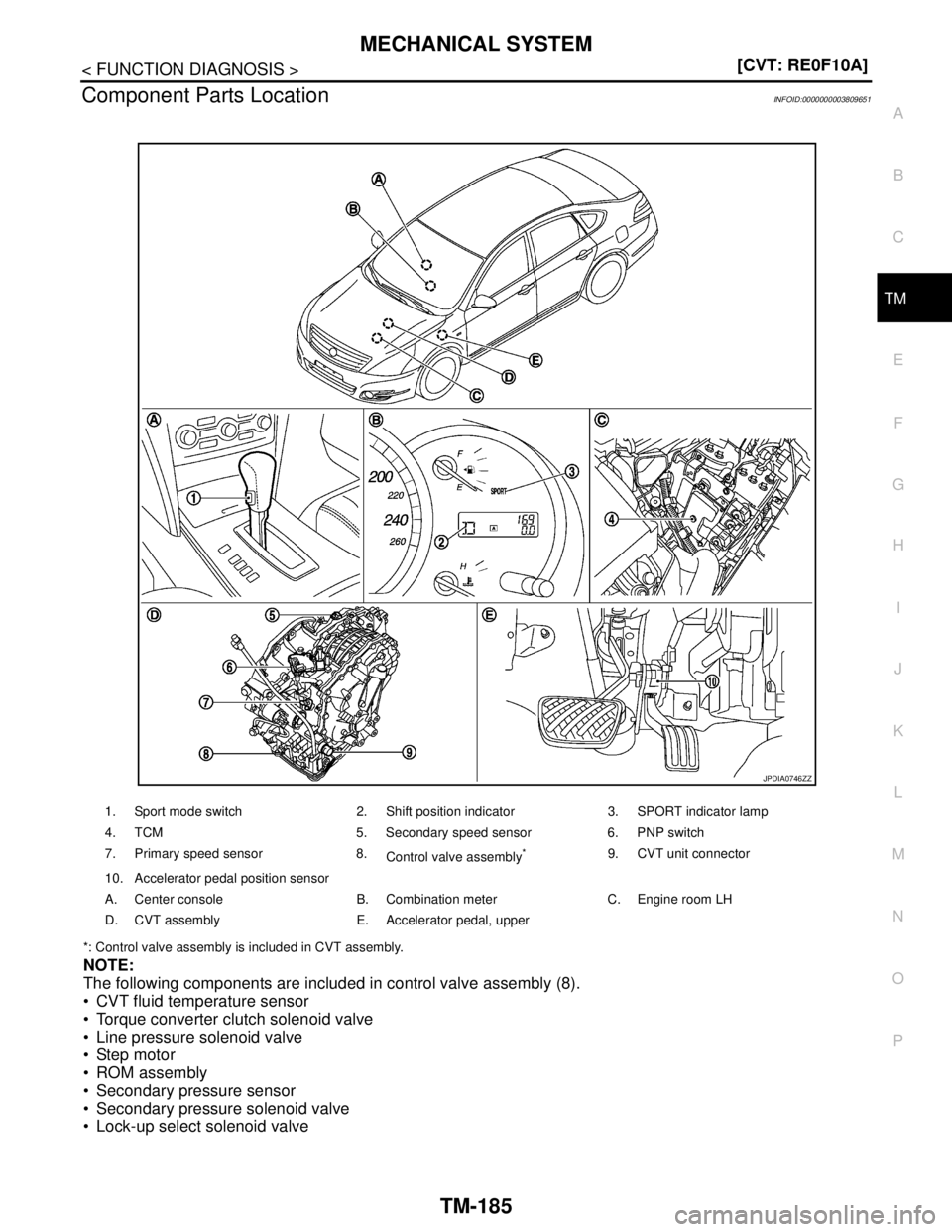

1. Sport mode switch 2. Shift position indicator 3. SPORT indicator lamp
4. TCM 5. Secondary speed sensor 6. PNP switch
7. Primary speed sensor 8.
Control valve assembly
*9. CVT unit connector
10. Accelerator pedal position sensor
A. Center console B. Combination meter C. Engine room LH
D. CVT assembly E. Accelerator pedal, upper
JPDIA0746ZZ

TM-186
< FUNCTION DIAGNOSIS >[CVT: RE0F10A]
MECHANICAL SYSTEM
Component Description
INFOID:0000000003806353
Item Function
Torque converterThe torque converter is the device that increases the engine torque as well as the conventional
CVT and transmits it to the transaxle.
Oil pumpThe efficiency of pump discharge rate has been increased at low-rpm and optimized at high-rpm
by adopting a vane-type oil pump controlled by the engine. Discharged oil from oil pump is trans-
mitted to the control valve. It is used as the oil of primary and secondary pulley operation and the
oil of clutch operation and the lubricant for each part.
Planetary gear
Perform the transmission of drive power and the switching of forward/backward movement. Forward clutch
Reverse brake
Primary pulley It is composed of a pair of pulleys (the groove width is changed freely in the axial direction) and
the steel belt (the steel star wheels are placed continuously and the belt is guided with the mul-
tilayer steel rings on both sides). The groove width changes according to wrapping radius of steel
belt and pulley from low status to overdrive status continuously with non-step. It is controlled with
the oil pressures of primary pulley and secondary pulley. Secondary pulley
Steel belt
Output gear
Reduction gear consists of primary deceleration (output gear and idler gear in pair) and second-
ary deceleration (reduction gear and final gear in pair). Each of them uses a helical gear. Idler gear
Reduction gear
Final gear
Differential
Manual shaft
The parking rod rotates the parking pole and the parking pole engages with the parking gear
when the manual shaft is in P position. As a result the parking gear and the output axis are fixed. Parking rod
Parking pawl
Parking gear

HYDRAULIC CONTROL SYSTEM
TM-187
< FUNCTION DIAGNOSIS >[CVT: RE0F10A]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
HYDRAULIC CONTROL SYSTEM
System DiagramINFOID:0000000003806354
System DescriptionINFOID:0000000003806355
The hydraulic control mechanism consists of the oil pump directly driven by the engine, the hydraulic control
valve that controls line pressure and transmission, and the input signal line.

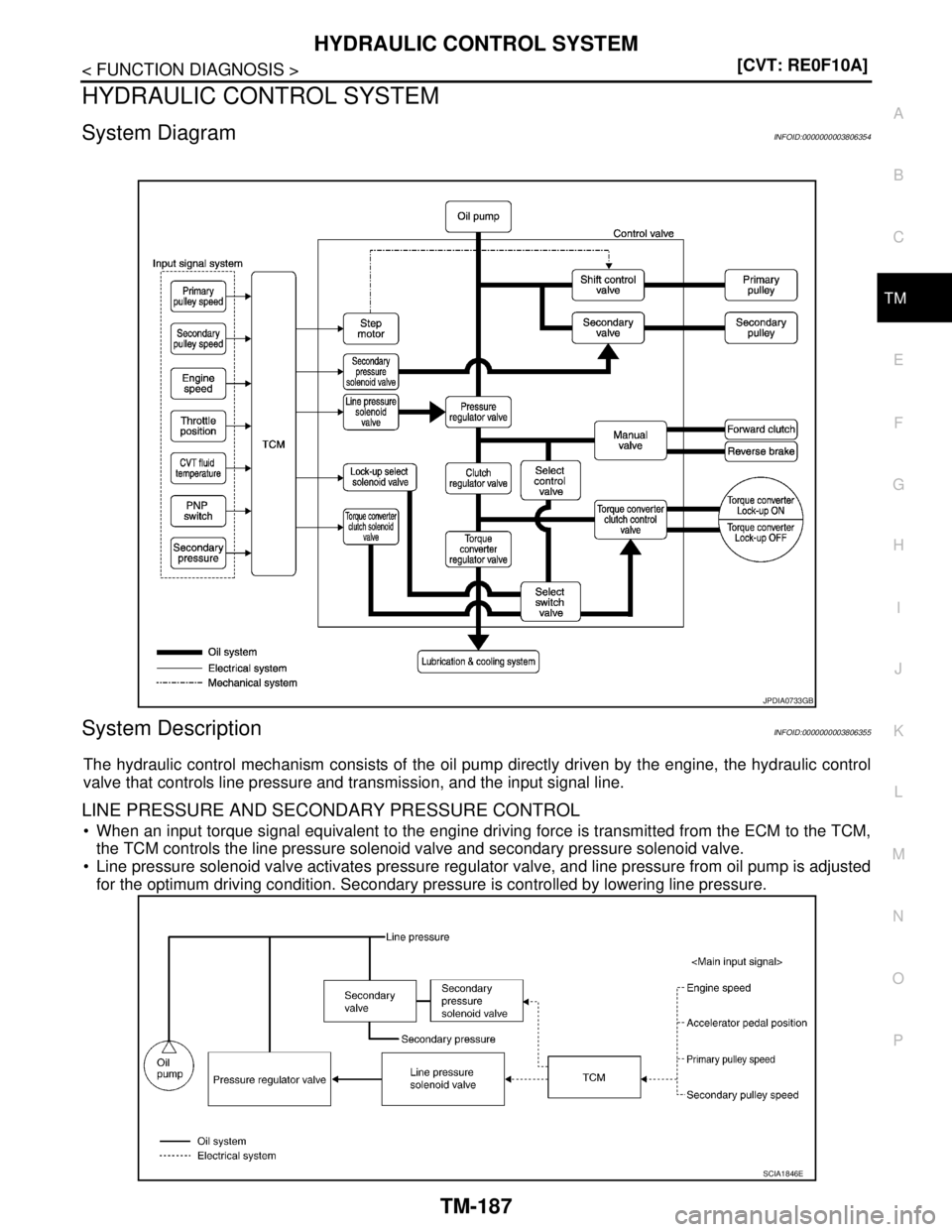

LINE PRESSURE AND SECONDARY PRESSURE CONTROL
 When an input torque signal equivalent to the engine driving force is transmitted from the ECM to the TCM,
the TCM controls the line pressure solenoid valve and secondary pressure solenoid valve.
 Line pressure solenoid valve activates pressure regulator valve, and line pressure from oil pump is adjusted
for the optimum driving condition. Secondary pressure is controlled by lowering line pressure.
JPDIA0733GB
SCIA1846E
