NISSAN TEANA 2014 Service Manual

ENGINE CONTROL SYSTEMEC-161
< WIRING DIAGRAM > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O

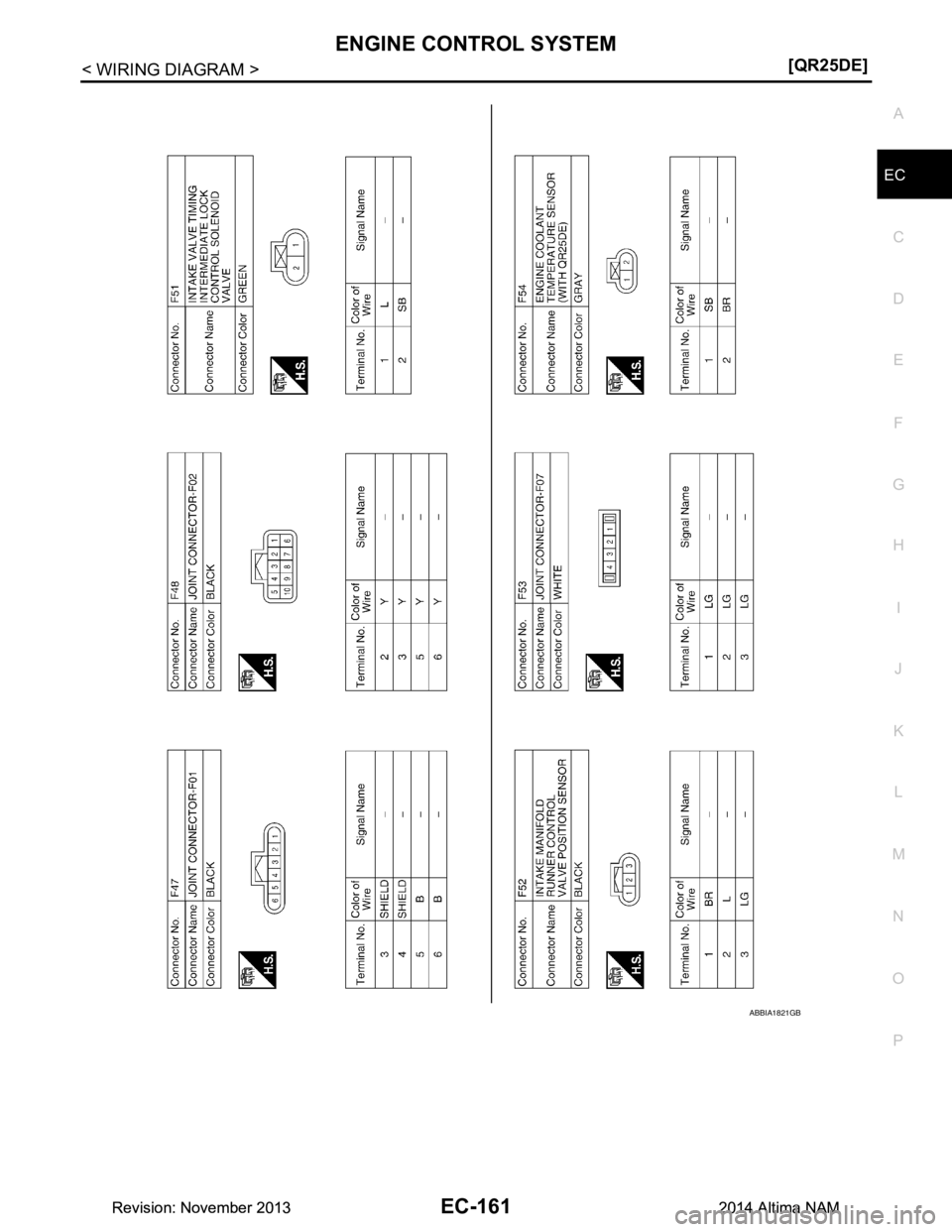

ABBIA1821GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-162
< WIRING DIAGRAM >[QR25DE]
ENGINE CONTROL SYSTEM

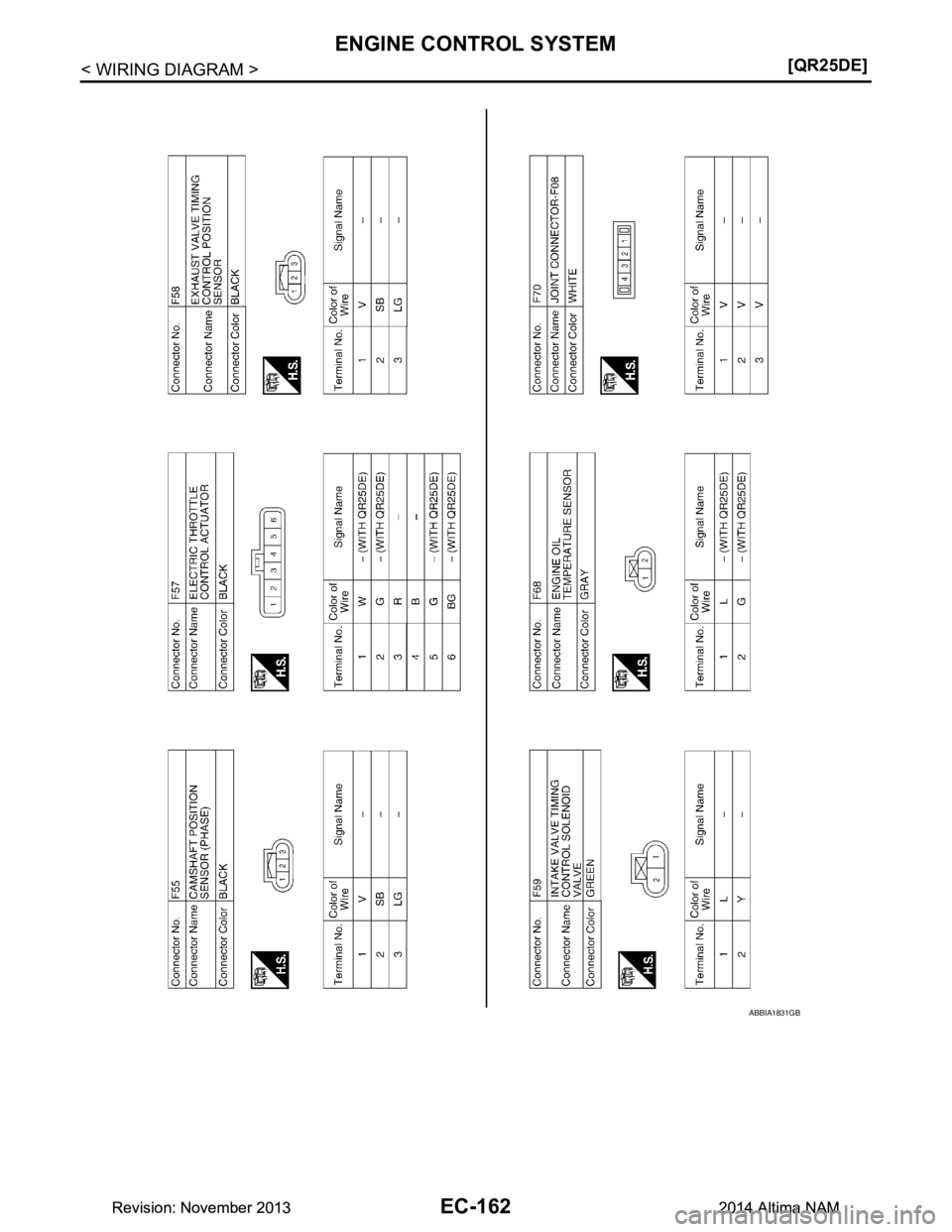

ABBIA1831GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

ENGINE CONTROL SYSTEMEC-163
< WIRING DIAGRAM > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O

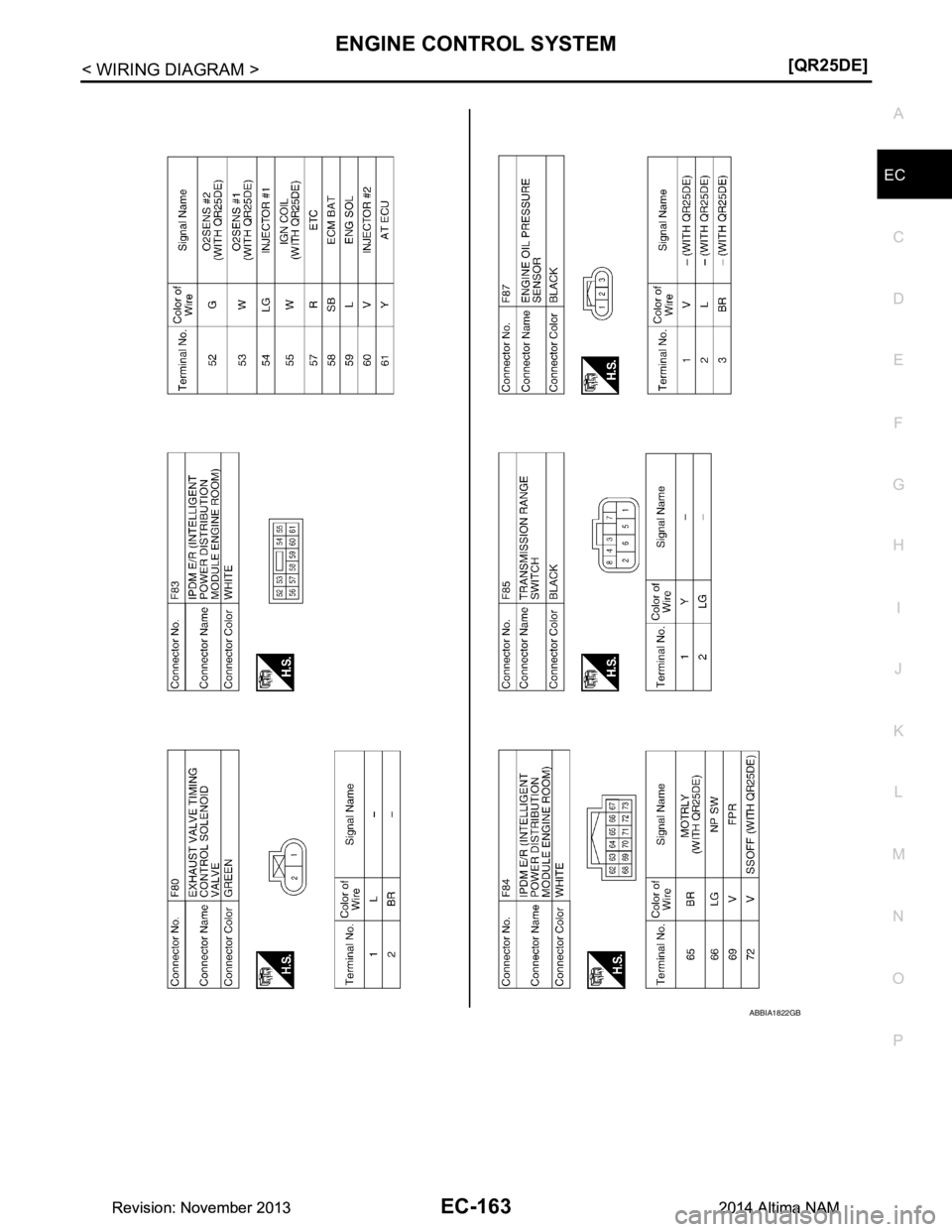

ABBIA1822GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-164
< WIRING DIAGRAM >[QR25DE]
ENGINE CONTROL SYSTEM

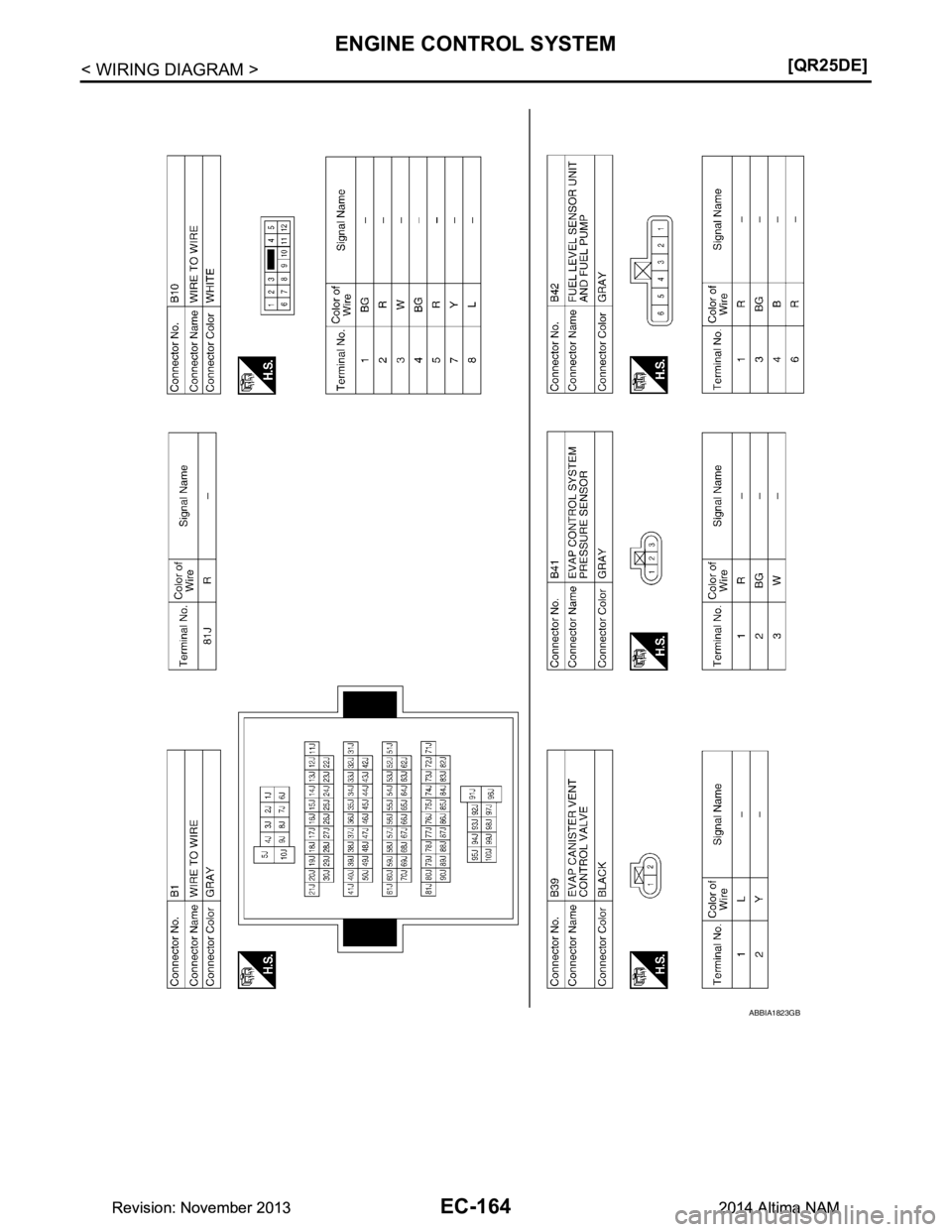

ABBIA1823GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DIAGNOSIS AND REPAIR WORKFLOWEC-165
< BASIC INSPECTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000009462127

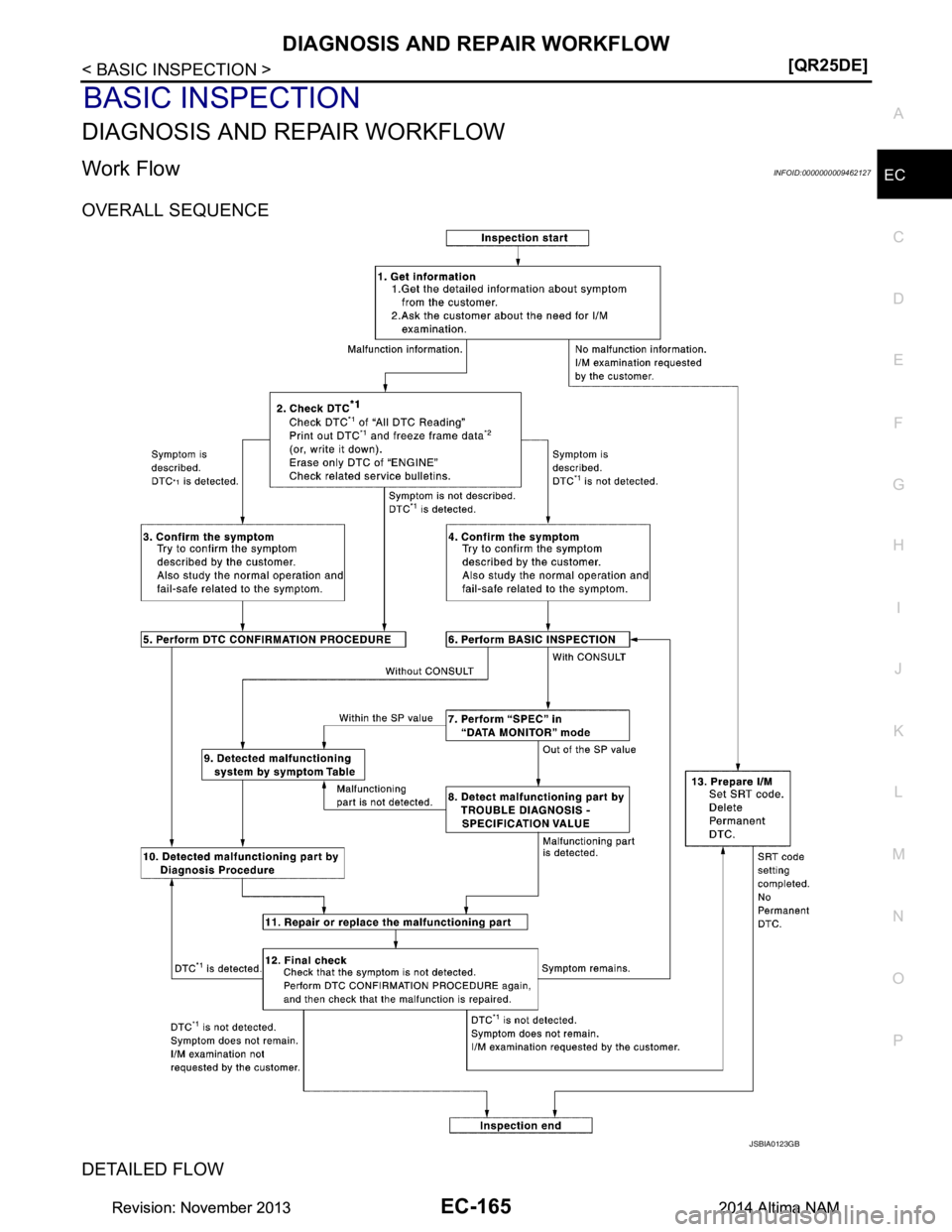

OVERALL SEQUENCE
DETAILED FLOW
JSBIA0123GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-166
< BASIC INSPECTION >[QR25DE]
DIAGNOSIS AND REPAIR WORKFLOW
1.GET INFORMATION FOR SYMPTOM
1. Get the detailed information from the customer about the symptom (the condition and the environment
when the incident/malfunction occurred) using the “Diagnostic Work Sheet”. (Refer to EC-168, "Diagnostic
Work Sheet".)
2. Ask if the customer requests I/M examination.
Malfunction information, obtained>>GO TO 2.
No malfunction information, but a request for I/M examination>>GO TO 13.
2.CHECK DTC
1. Check DTC.
2. Perform the following procedure if DTC is displayed.
- Record DTC and freeze frame data. (Print them out with CONSULT or GST.)
- Erase only DTC of “ENGINE”.
With CONSULT: “How to Erase DTC and 1st Trip DTC” in EC-77, "CONSULT Function"
.
Without CONSULT: “How to Erase Self-diagnostic Results” in EC-74, "On Board Diagnosis Function"
.
- Study the relationship between the cause detected by DTC and the symptom described by the customer.
(Symptom Matrix Chart is useful. Refer to EC-527, "Symptom Table"
.)
3. Check related service bulletins for information.
Are any symptoms described and any DTCs detected?
Symptom is described, DTC is detected>>GO TO 3.
Symptom is described, DTC is not detected>>GO TO 4.
Symptom is not described, DTC is detected>>GO TO 5.
3.CONFIRM THE SYMPTOM
Try to confirm the symptom described by the customer (except MIL ON).
Also study the normal operation and fail-s afe related to the symptom. Refer to EC-533, "Description"
and EC-
101, "Fail Safe".
Diagnosis Work Sheet is useful to verify the incident.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 5.
4.CONFIRM THE SYMPTOM
Try to confirm the symptom described by the customer.
Also study the normal operation and fail-safe re lated to the symptom. Refer to Refer to EC-533, "Description"
and EC-101, "Fail Safe".
Diagnosis Work Sheet is useful to verify the incident.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 6.
5.PERFORM DTC CONFIRMATION PROCEDURE
Perform DTC CONFIRMATION PROCEDURE for the disp layed DTC, and then check that DTC is detected
again.
If two or more DTCs are detected, refer to EC-104, "DTC Inspection Priority Chart"
and determine trouble
diagnosis order.
NOTE:
• Freeze frame data is useful if the DTC is not detected.
• Perform Component Function Check if DTC CONFIR MATION PROCEDURE is not included on Service
Manual. This simplified check procedure is an effect ive alternative though DTC cannot be detected during
this check.
If the result of Component Function Check is NG, it is the same as the detection of DTC by DTC CONFIR-
MATION PROCEDURE.
Is DTC detected?
YES >> GO TO 10.
NO >> Check according to GI-43, "Intermittent Incident"
.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DIAGNOSIS AND REPAIR WORKFLOWEC-167
< BASIC INSPECTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
6.PERFORM BASIC INSPECTION
Perform EC-170, "Work Procedure"
.
Do you have CONSULT?
YES >> GO TO 7.
NO >> GO TO 9.
7.PERFORM SPEC IN DATA MONITOR MODE
With CONSULT
Check that “MAS A/F SE-B1”, “MAS A/F SE-B2”, “B/FUEL SCHDL”, “A/F ALPHA-B1” and “A/F ALPHA-B2”
are within the SP value using “SPEC” in “D ATA MONITOR” mode with CONSULT. Refer to EC-195, "Compo-
nent Function Check".
Is the measurement value within the SP value?
YES >> GO TO 9.
NO >> GO TO 8.
8.DETECT MALFUNCTIONING PART BY TROU BLE DIAGNOSIS - SPECIFICATION VALUE
Detect malfunctioning part according to EC-196, "Diagnosis Procedure"
.
Is a malfunctioning part detected?
YES >> GO TO 11.
NO >> GO TO 9.
9.DETECT MALFUNCTIONING SY STEM BY SYMPTOM TABLE
Detect malfunctioning system according to EC-527, "Symptom Table"
based on the confirmed symptom in
step 4, and determine the trouble diagnosis or der based on possible causes and symptoms.
>> GO TO 10.
10.DETECT MALFUNCTIONING PART BY DIAGNOSIS PROCEDURE
Inspect according to Diagnosis Procedure of the system.
NOTE:
The Diagnosis Procedure in EC section described based on open circuit inspection. A short circuit inspection
is also required for the circuit check in the Diagnosis Procedure. For details, refer to GI-46, "Circuit Inspec-
tion".
Is a malfunctioning part detected?
YES >> GO TO 11.
NO >> Monitor input data from related sensors or check voltage of related ECM terminals using CON-
SULT. Refer to EC-88, "Reference Value"
.
11 .REPAIR OR REPLACE THE MALFUNCTIONING PART
1. Repair or replace the malfunctioning part.
2. Reconnect parts or connectors disconnected during Diagnosis Procedure again after repair and replace-
ment.
3. Check DTC. If DTC is displayed, erase it. Refer to the following.
With CONSULT: “How to Erase DTC and 1st Trip DTC” in EC-77, "CONSULT Function"
.
Without CONSULT: “How to Erase Self-diagnostic Results” in EC-74, "On Board Diagnosis Function"
.
>> GO TO 12.
12.FINAL CHECK
When DTC was detected in step 2, perform DTC CO NFIRMATION PROCEDURE or Component Function
Check again, and then check that the malfunction have been completely repaired.
When symptom was described from the customer, refer to confirmed symptom in step 3 or 4, and check that
the symptom is not detected.
Is DTC detected and does symptom remain?
YES-1 >> DTC is detected: GO TO 10.
YES-2 >> Symptom remains: GO TO 6.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-168
< BASIC INSPECTION >[QR25DE]
DIAGNOSIS AND REPAIR WORKFLOW
NO-1 >> No request for I/M examination from the custom
er: Before returning the vehicle to the customer,
always erase unnecessary DTC in ECM and TCM ( With CONSULT: Refer to “How to Erase
DTC and 1st Trip DTC” in EC-77, "CONSULT Function"
, Without CONSULT: Refer to “How to
Erase Self-diagnostic Results” in EC-74, "On Board Diagnosis Function"
). If the completion of
SRT is needed, drive vehicle under the specific driving pattern. Refer to EC-184, "SRT Set Driving
Pattern".
NO-2 >> I/M examination, requested from the customer: GO TO 13.
13.PREPARE FOR I/M EXAMINATION
1. Set SRT codes. Refer to EC-183, "Description"
.
2. Erase permanent DTCs. Refer to EC-189, "Description"
.
>> INSPECTION END
Diagnostic Work SheetINFOID:0000000009462128
DESCRIPTION
There are many operating conditions that lead to the malfunction of
engine components. A good grasp of such conditions can make trou-
bleshooting faster and more accurate.
In general, each customer feels differently about symptoms. It is
important to fully understand the symptoms or conditions for a cus-
tomer complaint.
Utilize a diagnostic worksheet like the WORKSHEET SAMPLE
below in order to organize all the information for troubleshooting.
Some conditions may cause the MIL to illuminate or blink, and DTC
to be detected. Examples:
• Vehicle ran out of fuel, which caused the engine to misfire.
• Fuel filler cap was left off or incorrectly screwed on, allowing fuel to evaporate into the atmosphere.
SEF907L
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DIAGNOSIS AND REPAIR WORKFLOWEC-169
< BASIC INSPECTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O

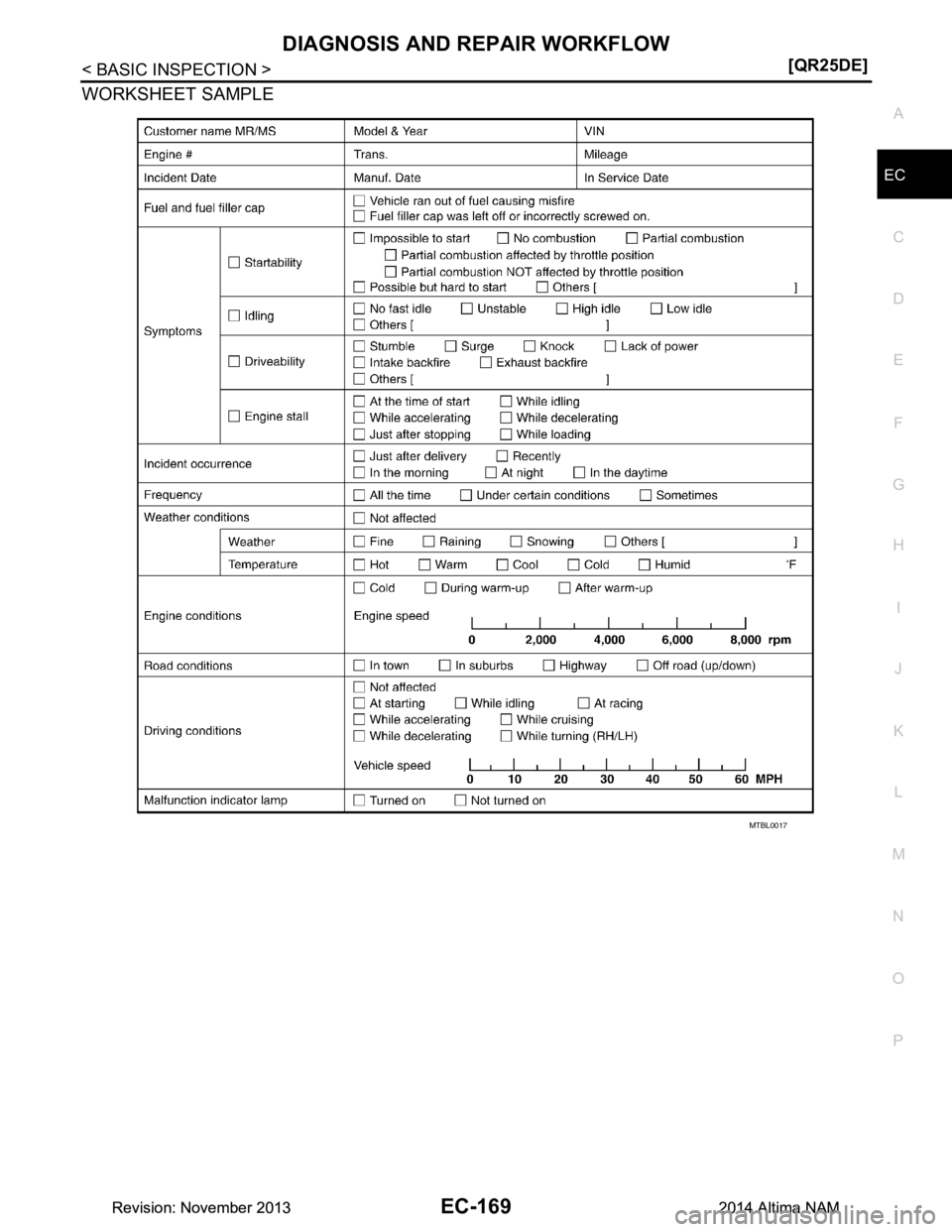

WORKSHEET SAMPLE
MTBL0017
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-170
< BASIC INSPECTION >[QR25DE]
BASIC INSPECTION
BASIC INSPECTION
Work ProcedureINFOID:0000000009462129
1.INSPECTION START
1. Check service records for any recent repairs that ma y indicate a related malfunction, or a current need for
scheduled maintenance.
2. Open engine hood and check the following:
- Harness connectors for improper connections
- Wiring harness for improper connections, pinches and cut
- Vacuum hoses for splits, kinks and improper connections
- Hoses and ducts for leaks
- Air cleaner clogging
- Gasket
3. Confirm that electrical or mechanical loads are not applied.
- Headlamp switch is OFF.
- Air conditioner switch is OFF.
- Rear window defogger switch is OFF.
- Steering wheel is in the straight-ahead position, etc.
4. Start engine and warm it up until engine coolant temperature indicator points the middle of gauge.
Ensure engine stays below 1,000 rpm.
5. Run engine at about 2,000 rpm for about 2 minutes under no load.
6. Make sure that no DTC is displayed with CONSULT or GST.
Is any DTC detected?
YES >> GO TO 2.
NO >> GO TO 3.
2.REPAIR OR REPLACE
Repair or replace components as necessary according to corresponding Diagnostic Procedure.
>> GO TO 3.
3.CHECK TARGET IDLE SPEED
1. Run engine at about 2,000 rpm for about 2 minutes under no load.
SEF983U
SEF976U
SEF977U
