NISSAN TEANA 2014 Service Manual

MIXTURE RATIO SELF-LEARNING VALUE CLEAREC-181
< BASIC INSPECTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
MIXTURE RATIO SELF-LEARNING VALUE CLEAR
DescriptionINFOID:0000000009462140
This describes how to erase the mixture ratio self-lear
ning value. For the actual procedure, follow the instruc-
tions in “Diagnosis Procedure”.
Work ProcedureINFOID:0000000009462141
1.START
With CONSULT
1. Start engine and warm it up to normal operating temperature.
2. Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode of “ENGINE” using CONSULT.
3. Clear mixture ratio self-learning value by touching “CLEAR”.
With GST
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF.
3. Disconnect mass air flow sensor harness connector.
4. Restart engine and let it idle for at least 5 seconds.
5. Stop engine and reconnect mass air flow sensor harness connector.
6. Select Service $03 with GST. Make sure DTC P0102 is detected.
7. Select Service $04 with GST to erase the DTC P0102.
>> END
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-182
< BASIC INSPECTION >[QR25DE]
FUEL PRESSURE
FUEL PRESSURE
Work ProcedureINFOID:0000000009462142
FUEL PRESSURE RELEASE
1.FUEL PRESSURE RELEASE
With CONSULT
1. Turn ignition switch ON.
2. Perform “FUEL PRESSURE RELEA SE” in “WORK SUPPORT” mode of “ENGINE” using CONSULT.
3. Start engine.
4. After engine stalls, crank it two or three times to release all fuel pressure.
5. Turn ignition switch OFF.
Without CONSULT
1. Remove fuel pump fuse located in IPDM E/R. For the fuse number, refer to EC-117, "Wiring Diagram"
. For
the fuse arrangement, refer to PG-72, "Fuse, Connector and Terminal Arrangement"
.
2. Start engine.
3. After engine stalls, crank it two or three times to release all fuel pressure.
4. Turn ignition switch OFF.
5. Reinstall fuel pump fuse after servicing fuel system.
>> END
FUEL PRESSURE CHECK
CAUTION:
Before disconnecting fuel line, release fuel pr essure from fuel line to eliminate danger.
NOTE:
• Prepare pans or saucers under the disconnected fuel line because the fuel may spill out. The fuel
pressure cannot be completely released because th is models do not have fuel return system.
• Use Fuel Pressure Gauge Kit [SST: (J-44321)] to check fuel pressure.
1.FUEL PRESSURE CHECK
1. Release fuel pressure to zero.
2. Connect fuel tube adapter [SST:KV10120000] (B) to quick con-
nector.
3. Turn ignition switch ON and check for fuel leakage.
4. Start engine and check for fuel leakage.
5. Read the indication of fuel pressure gauge.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 2.
2.CHECK FUEL HOSES AND FUEL TUBES
Check fuel hoses and fuel tubes for clogging.
Is the inspection result normal?
YES >> Replace “fuel filter and fuel pump assembly”. Refer to FL-6, "Removal and Installation".
NO >> Repair or replace error-detected parts.
A : Fuel pressure gauge
C : Fuel feed hose
: Vehicle front
At idling : Approximately 350 kPa (3.57 kg/cm2, 51 psi)
ALBIA0811ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

HOW TO SET SRT CODEEC-183
< BASIC INSPECTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
HOW TO SET SRT CODE
DescriptionINFOID:0000000009462143
OUTLINE
In order to set all SRTs, the self-diagnoses as in
the “SRT ITEM” table must have been performed at least
once. Each diagnosis may require actual driving for a long period of time under various conditions.
SRT ITEM
The table below shows required self-diagnostic items to set the SRT to “CMPLT”.
*1: Though displayed on the CONSULT screen, “HO2S HTR” is not SRT item.
*2: If completion of several SRTs is required, perfo rm driving patterns (DTC confirmation procedure), one by
one based on the priority for models with CONSULT.
SRT SERVICE PROCEDURE
SRT item*1
(CONSULT indication) Performance
Priority*2Required self-diagnostic items to set the SRT to “CMPLT” Corresponding
DTC No.
CATALYST 1 Three way catalyst function P0420
EVAP SYSTEM 1 EVAP control system purge flow monitoring P0441
1 EVAP control system P0456
HO2S 1 Air fuel ratio (A/F) sensor 1 P014C, P014D, P015A, P015B
Heated oxygen sensor 2 P0137
Heated oxygen sensor 2 P0138
Heated oxygen sensor 2 P0139
EGR/VVT SYSTEM 2 Intake value timing control function P0011, P052A,
P052B
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-184
< BASIC INSPECTION >[QR25DE]
HOW TO SET SRT CODE

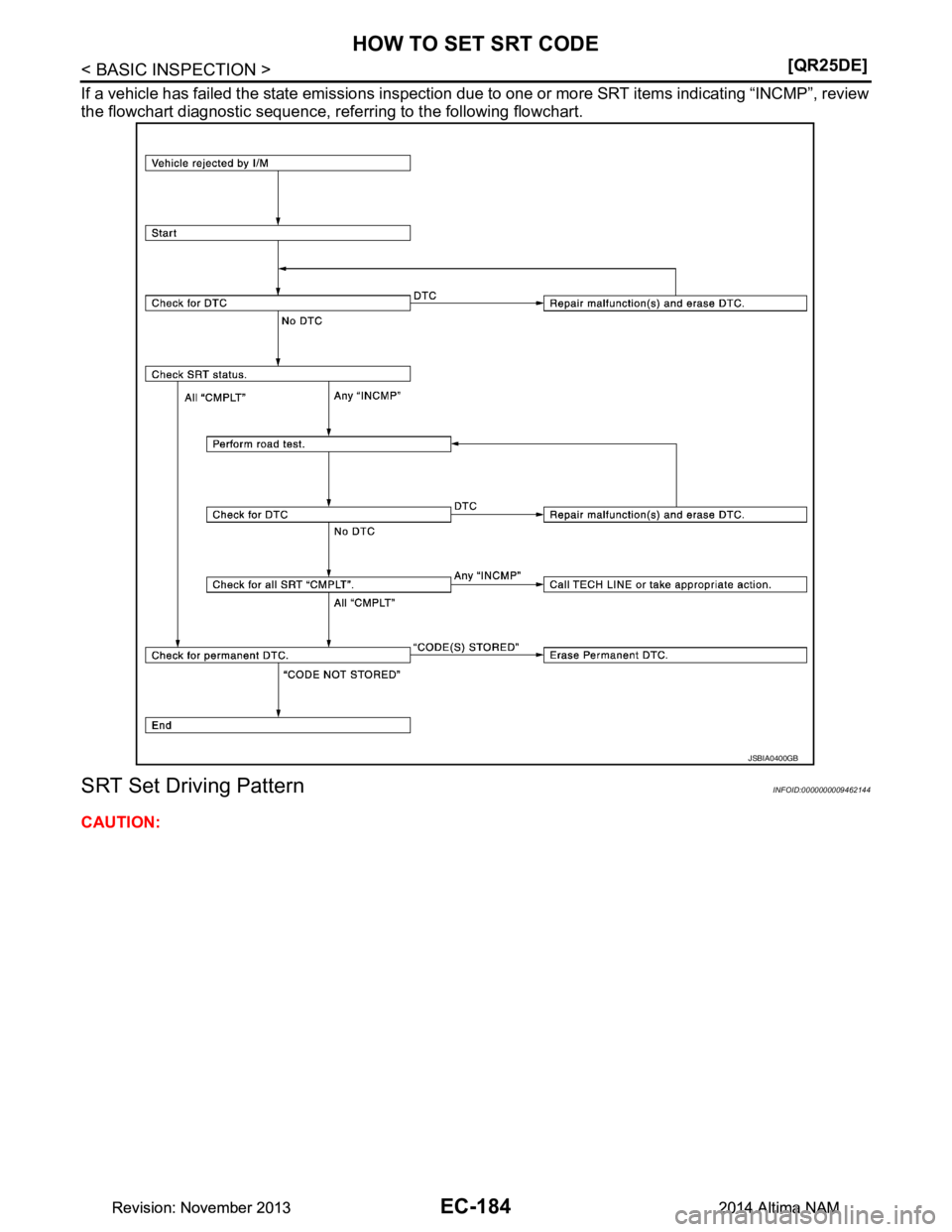

If a vehicle has failed the state emissions inspection
due to one or more SRT items indicating “INCMP”, review
the flowchart diagnostic sequence, refe rring to the following flowchart.

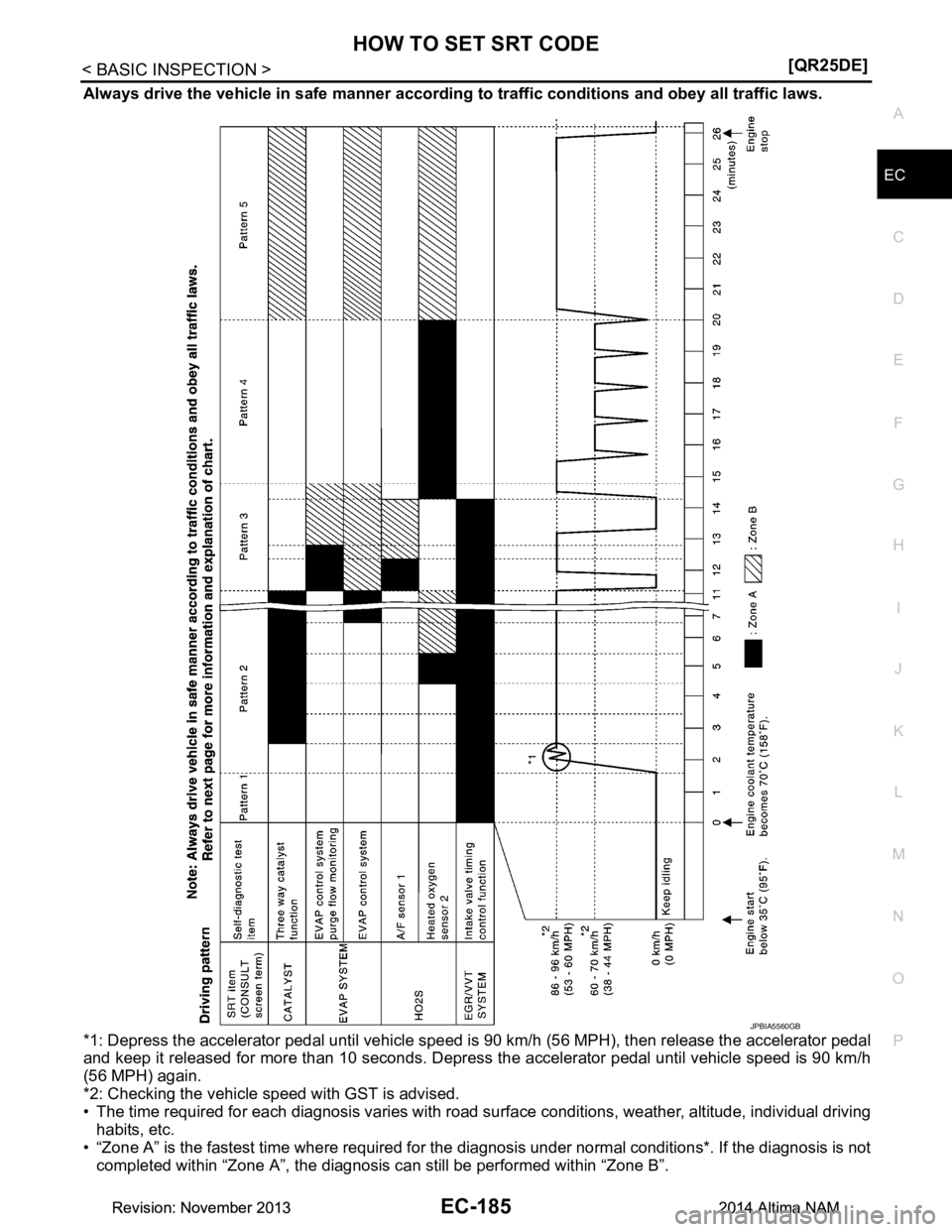

SRT Set Driving PatternINFOID:0000000009462144
CAUTION:
JSBIA0400GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

HOW TO SET SRT CODEEC-185
< BASIC INSPECTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
Always drive the vehicle in safe ma
nner according to traffic conditions and obey all traffic laws.
*1: Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH), then release the accelerator pedal
and keep it released for more than 10 seconds. Depress the accelerator pedal until vehicle speed is 90 km/h
(56 MPH) again.
*2: Checking the vehicle speed with GST is advised.
• The time required for each diagnosis varies with road su rface conditions, weather, altitude, individual driving
habits, etc.
• “Zone A” is the fastest time where required for the diagnosis under normal conditions*. If the diagnosis is not
completed within “Zone A”, the diagnosis can still be performed within “Zone B”.
JPBIA5560GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-186
< BASIC INSPECTION >[QR25DE]
HOW TO SET SRT CODE
*: Normal conditions- Sea level
- Flat road
- Ambient air temperature: 20 – 30 °C (68 – 86 °F)
NOTE:
Diagnosis is performed as quickly as possible under normal conditions. However, under other conditions,
diagnosis may also be performed. [For example: ambient air temperature other than 20 – 30°C (68 – 86 °F)]
Work ProcedureINFOID:0000000009462145
1.CHECK DTC
Check DTC.
Is any DTC detected?
YES >> Repair malfunction(s) and erase DTC. Refer to EC-105, "DTC Index".
NO >> GO TO 2.
2.CHECK SRT STATUS
With CONSULT
Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT.
Without CONSULT
Perform “SRT status” mode with EC-74, "On Board Diagnosis Function"
.
With GST
Select Service $01 with GST.
Is SRT code(s) set?
YES >> GO TO 11.
NO-1 >> With CONSULT: GO TO 3.
NO-2 >> Without CONSULT: GO TO 4.
3.DTC CONFIRMATION PROCEDURE
1. Select “SRT WORK SUPPORT” in “DTC & SRT CONFIRMATION” mode with CONSULT.
2. For SRT(s) that is not set, perform the corre sponding “DTC CONFIRMATION PROCEDURE” according to
the “Performance Priority” in the “SRT ITEM” table. Refer to EC-183, "Description"
.
3. Check DTC.
Is any DTC detected?
YES >> Repair malfunction(s) and erase DTC. Refer to EC-105, "DTC Index".
NO >> GO TO 10.
4.PERFORM ROAD TEST
• Check the “Performance Priority” in the “SRT ITEM” table. Refer to EC-183, "Description"
.
• Perform the most efficient SRT set driving pattern to set the SRT properly. Refer to EC-184, "SRT Set Driv-
ing Pattern".
In order to set all SRTs, the SRT set driving pattern must be performed at least once.
>> GO TO 5.
5.PATTERN 1
1. Check the vehicle condition;
- Engine coolant temperature is −10 to 35 °C (14 to 95 °F).
- Fuel tank temperature is more than 0 °C (32 °F).
2. Start the engine.
3. Keep engine idling until the engine coolant temperature is greater than 70 °C (158 °F)
NOTE:
ECM terminal voltage is follows;
• Engine coolant temperature
- −10 to 35 °C (14 to 95 °F): 3.0 – 4.3 V
-70 °(158 °F): Less than 4.1 V
• Fuel tank temperature: Less than 1.4 V
Refer to EC-88, "Reference Value"
.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

HOW TO SET SRT CODEEC-187
< BASIC INSPECTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
>> GO TO 6.
6.PATTERN 2
1. Drive the vehicle. And depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH), then
release the accelerator pedal and keep it released for more than 10 seconds.
2. Depress the accelerator pedal until vehicle speed is 90 km/h (56 MPH) again
NOTE:
• Checking the vehicle speed with GST is advised.
• When steady-state driving is performed again even afte r it is interrupted, each diagnosis can be conducted.
In this case, the time required for diagnosis may be extended.
>> GO TO 7.
7.PATTERN 3
• Operate vehicle following the driving pattern shown in the figure.
- Release the accelerator pedal during deceleration of vehicle speed
from 90 km/h (56 MPH) to 0 km/h (0 MPH).
>> GO TO 8.
8.PATTERN 4
• Operate vehicle following the driving pattern shown in the figure.
- Drive the vehicle in a proper gear at 60 km/h (38 MPH) and main-
tain the speed.
- Release the accelerator pedal fully at least 5 seconds.
- Repeat the above two steps at least 5 times.
>> GO TO 9.
9.PATTERN 5
• The accelerator pedal must be held very steady during steady-state driving.
• If the accelerator pedal is moved, the test must be conducted again.
>> GO TO 10.
10.CHECK SRT STATUS
With CONSULT
Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT.
Without CONSULT
Perform “SRT status” mode with EC-74, "On Board Diagnosis Function"
.
With GST
Select Service $01 with GST.
Is SRT(s) set?
YES >> GO TO 11.
NO >> Call TECH LINE or take appropriate action.
11 .CHECK PERMANENT DTC
PBIB2244E
JSBIA0160GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-188
< BASIC INSPECTION >[QR25DE]
HOW TO SET SRT CODE
NOTE:
Permanent DTC cannot be checked with a tool other than CONSULT or GST.
With CONSULT
Select “SRT STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT.
With GST
Select Service $0A with GST.
Is permanent DTC(s) detected?
YES >> Proceed to EC-189, "Description".
NO >> END
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

HOW TO ERASE PERMANENT DTCEC-189
< BASIC INSPECTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
HOW TO ERASE PERMANENT DTC
DescriptionINFOID:0000000009462146
OUTLINE

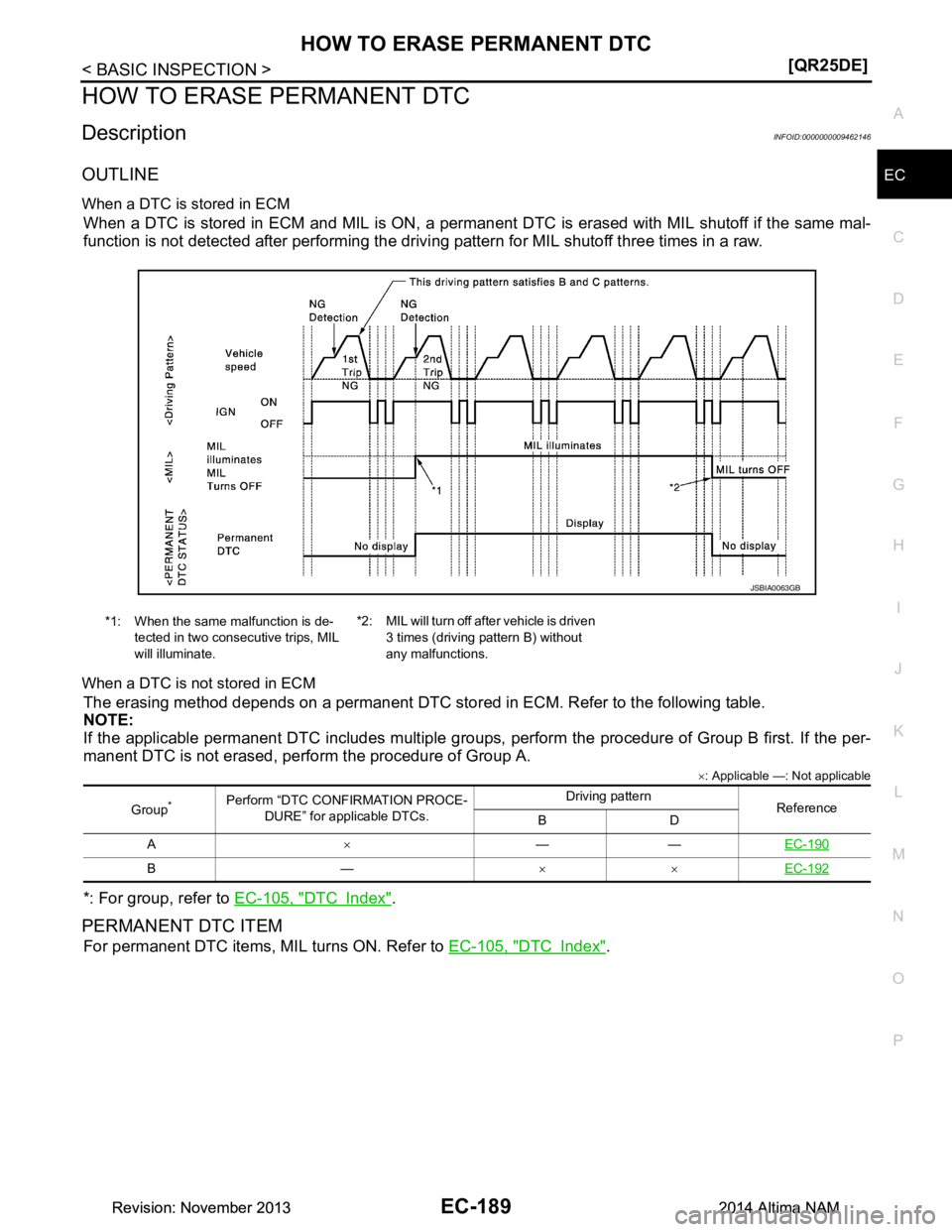

When a DTC is stored in ECM
When a DTC is stored in ECM and MIL is ON, a permanent
DTC is erased with MIL shutoff if the same mal-
function is not detected after performing the drivi ng pattern for MIL shutoff three times in a raw.
When a DTC is not stored in ECM
The erasing method depends on a permanent DTC stor ed in ECM. Refer to the following table.
NOTE:
If the applicable permanent DTC includes multiple groups, perform the procedure of Group B first. If the per-
manent DTC is not erased, per form the procedure of Group A.
×: Applicable —: Not applicable
*: For group, refer to EC-105, "DTC Index".
PERMANENT DTC ITEM
For permanent DTC items, MIL turns ON. Refer to EC-105, "DTC Index".
*1: When the same malfunction is de-
tected in two consecutive trips, MIL
will illuminate. *2: MIL will turn off after vehicle is driven
3 times (driving pattern B) without
any malfunctions.
JSBIA0063GB
Group*Perform “DTC CONFIRMATION PROCE- DURE” for applicable DTCs. Driving pattern
Reference
BD
A ×—— EC-190
B— ××EC-192
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-190
< BASIC INSPECTION >[QR25DE]
HOW TO ERASE PERMANENT DTC
PERMANENT DTC SERVICE PROCEDURE

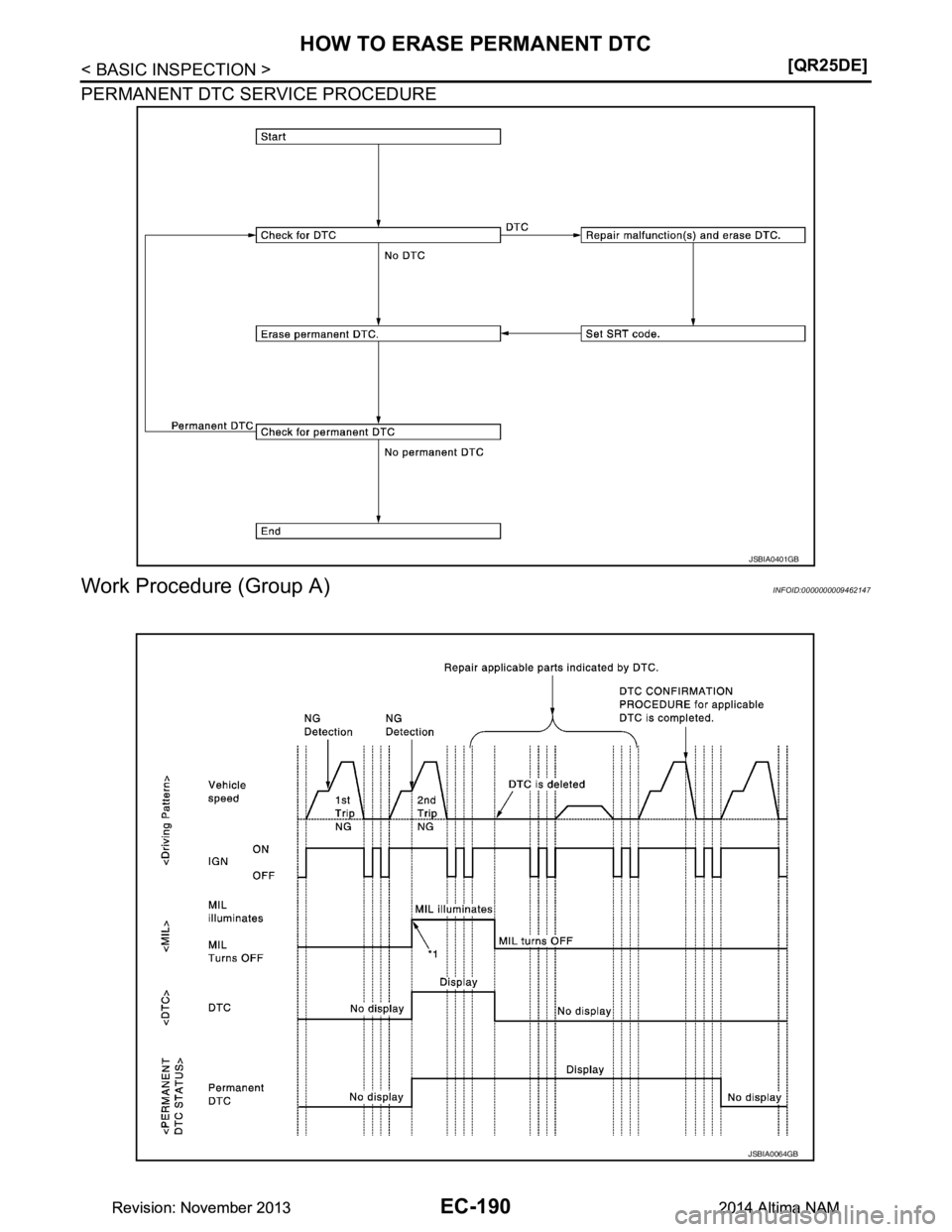

Work Procedure (Group A)INFOID:0000000009462147
JSBIA0401GB
JSBIA0064GB
