Page 2291 of 4801
DIAGNOSIS SYSTEM (IPDM E/R)EXL-25
< SYSTEM DESCRIPTION >
C
D E
F
G H
I
J
K
M A
B
EXL
N
O P
ACTIVE TEST
CAN DIAG SUPPORT MNTR
Refer to LAN-15, "CAN Diagnostic Support Monitor".
HORN CHIRP [On/Off] Indicates horn reminder signal received from BCM on CAN communication line
HOOD SW 2 [On/Off] Indicates condition of hood switch 2 Monitor Item [Unit]
Main
Signals Description
Test item Description
HORN This test is able to check horn operation [On].
FRONT WIPER This test is able to check wiper motor operation [Hi/Lo/Off].
MOTOR FAN This test is able to check cooling fan operation [4/3/2/1].
EXTERNAL LAMPS This test is able to check external lamp operation [Fog/Hi/Lo/TAIL/Off].
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2292 of 4801
EXL-26
< ECU DIAGNOSIS INFORMATION >
BCM, IPDM E/R
ECU DIAGNOSIS INFORMATION
BCM, IPDM E/R
List of ECU ReferenceINFOID:0000000009463564
ECU Reference
BCM BCS-31, "Reference Value"
BCS-50, "Fail Safe"
BCS-50, "DTC Inspection Priority Chart"
BCS-52, "DTC Index"
IPDM E/R
PCS-12, "Reference Value"PCS-19, "Fail Safe"
PCS-20, "DTC Index"
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2293 of 4801
HEADLAMPEXL-27
< WIRING DIAGRAM >
C
D E
F
G H
I
J
K
M A
B
EXL
N
O P
WIRING DIAGRAM
HEADLAMP

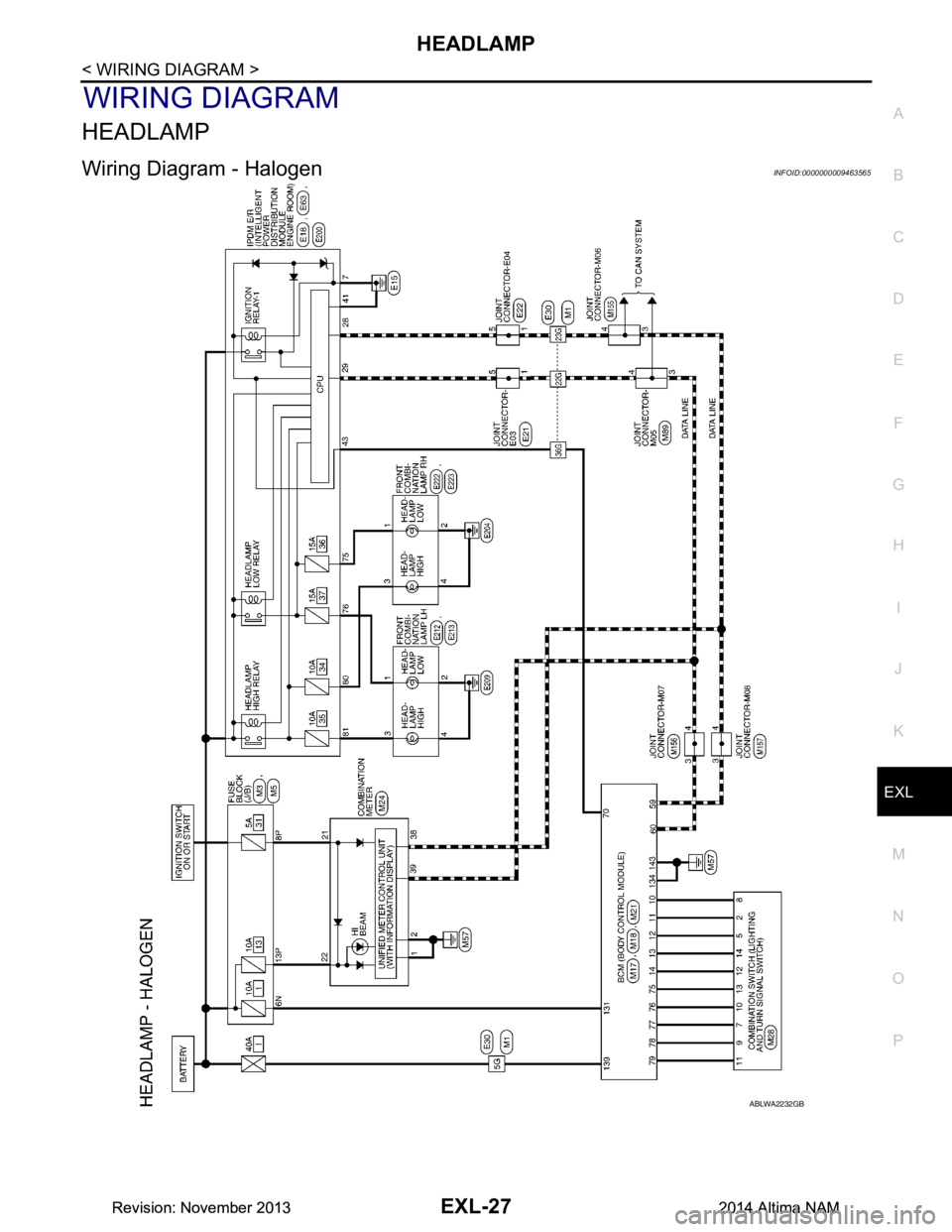

Wiring Diagram - HalogenINFOID:0000000009463565
ABLWA2232GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2294 of 4801
EXL-28
< WIRING DIAGRAM >
HEADLAMP
ABLIA3737GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2295 of 4801
HEADLAMPEXL-29
< WIRING DIAGRAM >
C
D E
F
G H
I
J
K
M A
B
EXL
N
O P

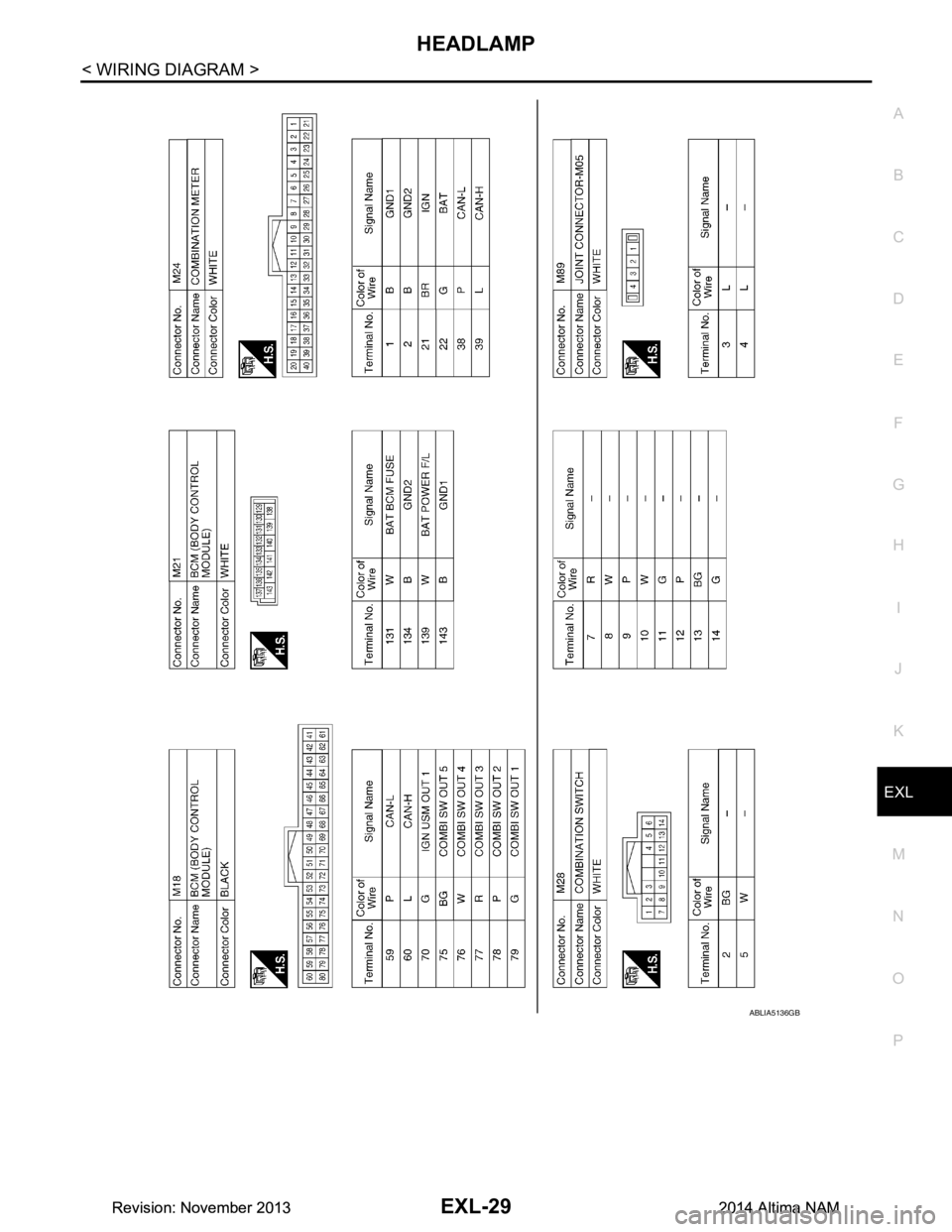

ABLIA5136GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2296 of 4801
EXL-30
< WIRING DIAGRAM >
HEADLAMP

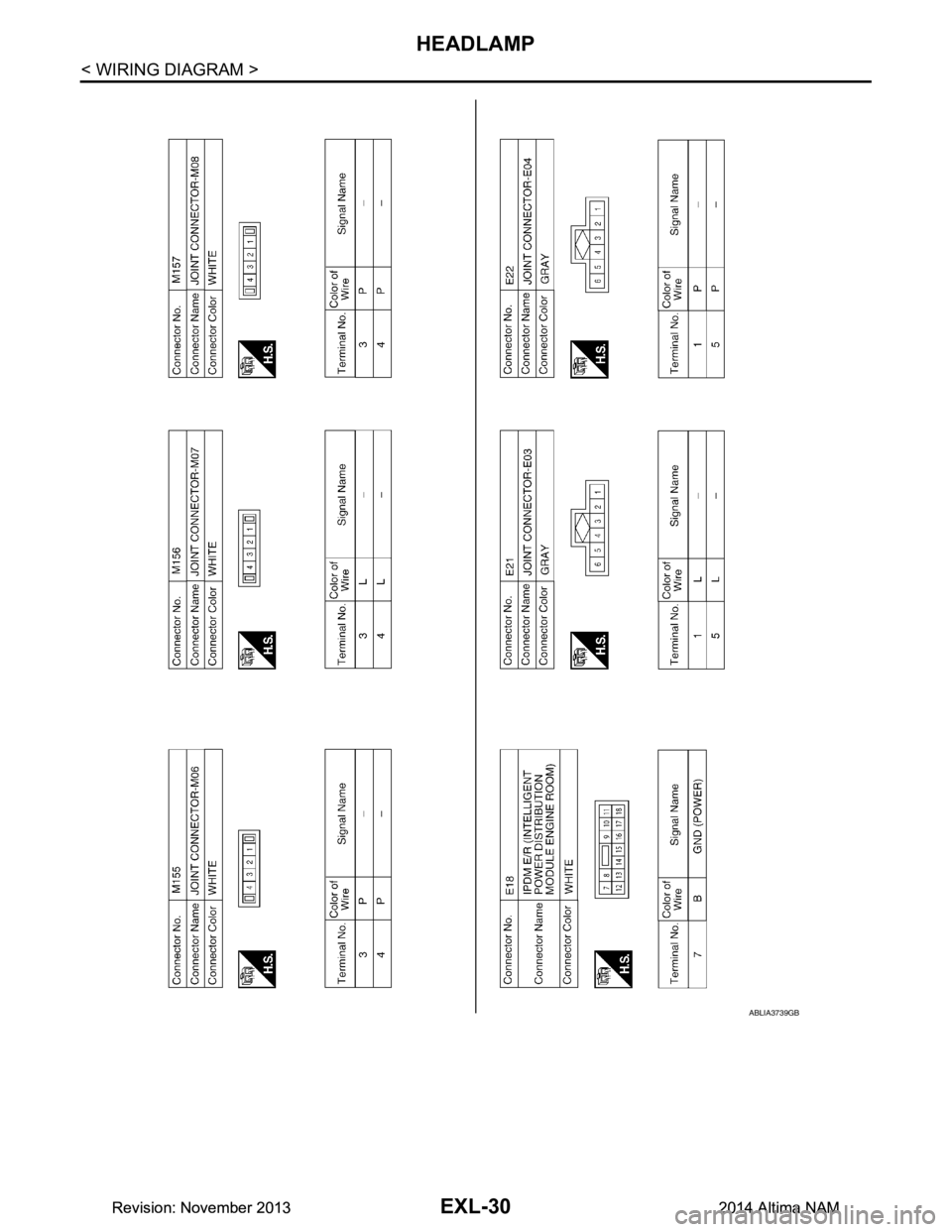

ABLIA3739GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2297 of 4801
HEADLAMPEXL-31
< WIRING DIAGRAM >
C
D E
F
G H
I
J
K
M A
B
EXL
N
O P

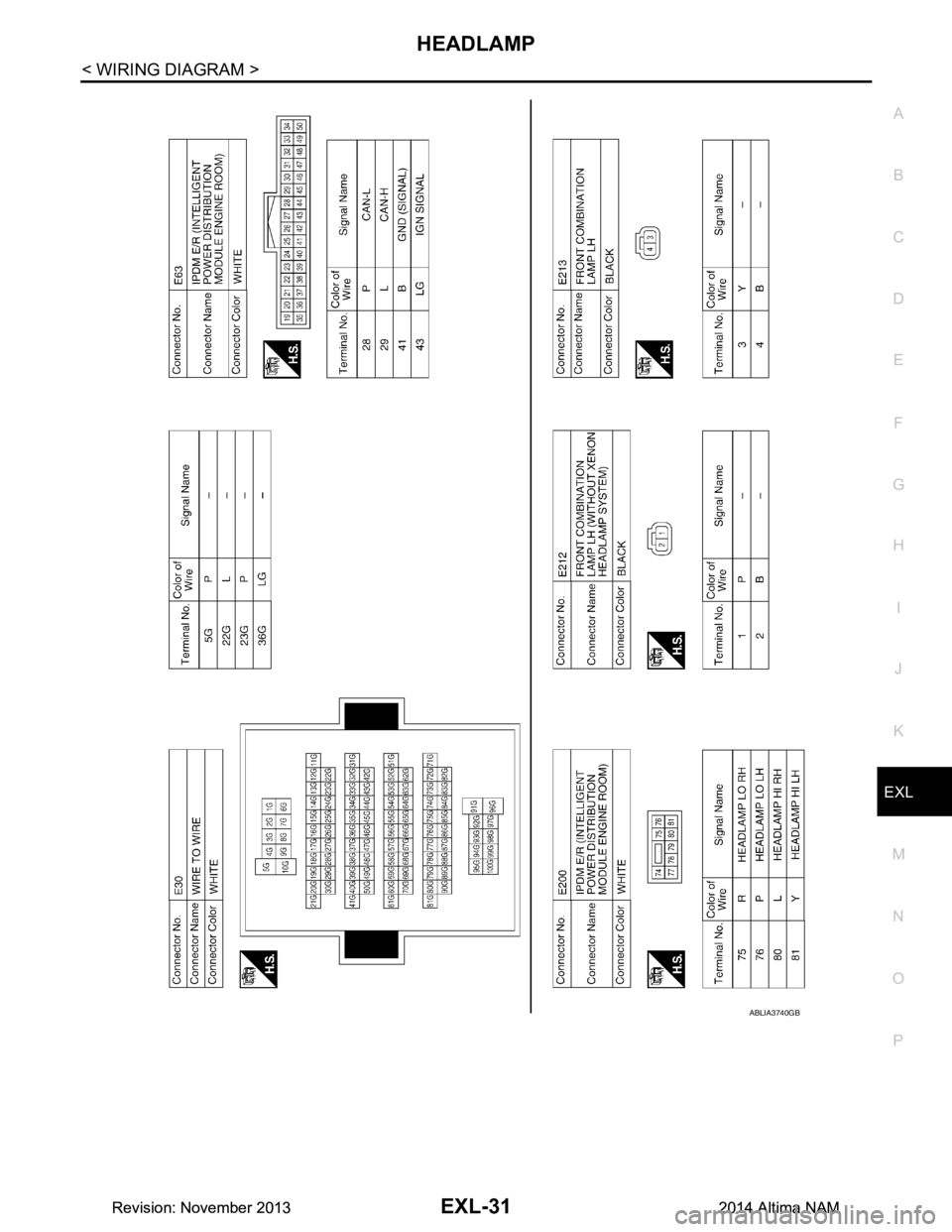

ABLIA3740GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2298 of 4801
EXL-32
< WIRING DIAGRAM >
HEADLAMP

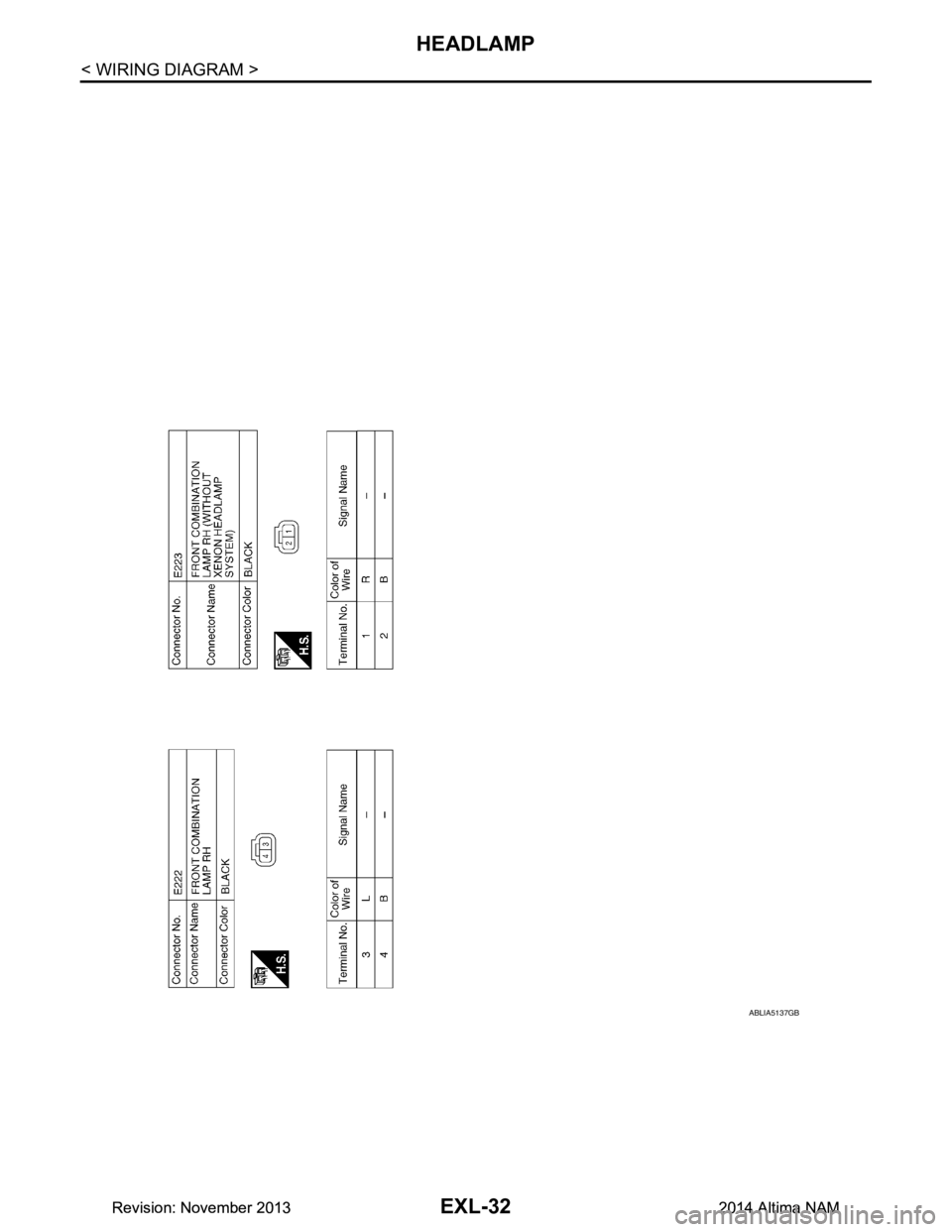

ABLIA5137GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2299 of 4801
HEADLAMPEXL-33
< WIRING DIAGRAM >
C
D E
F
G H
I
J
K
M A
B
EXL
N
O P

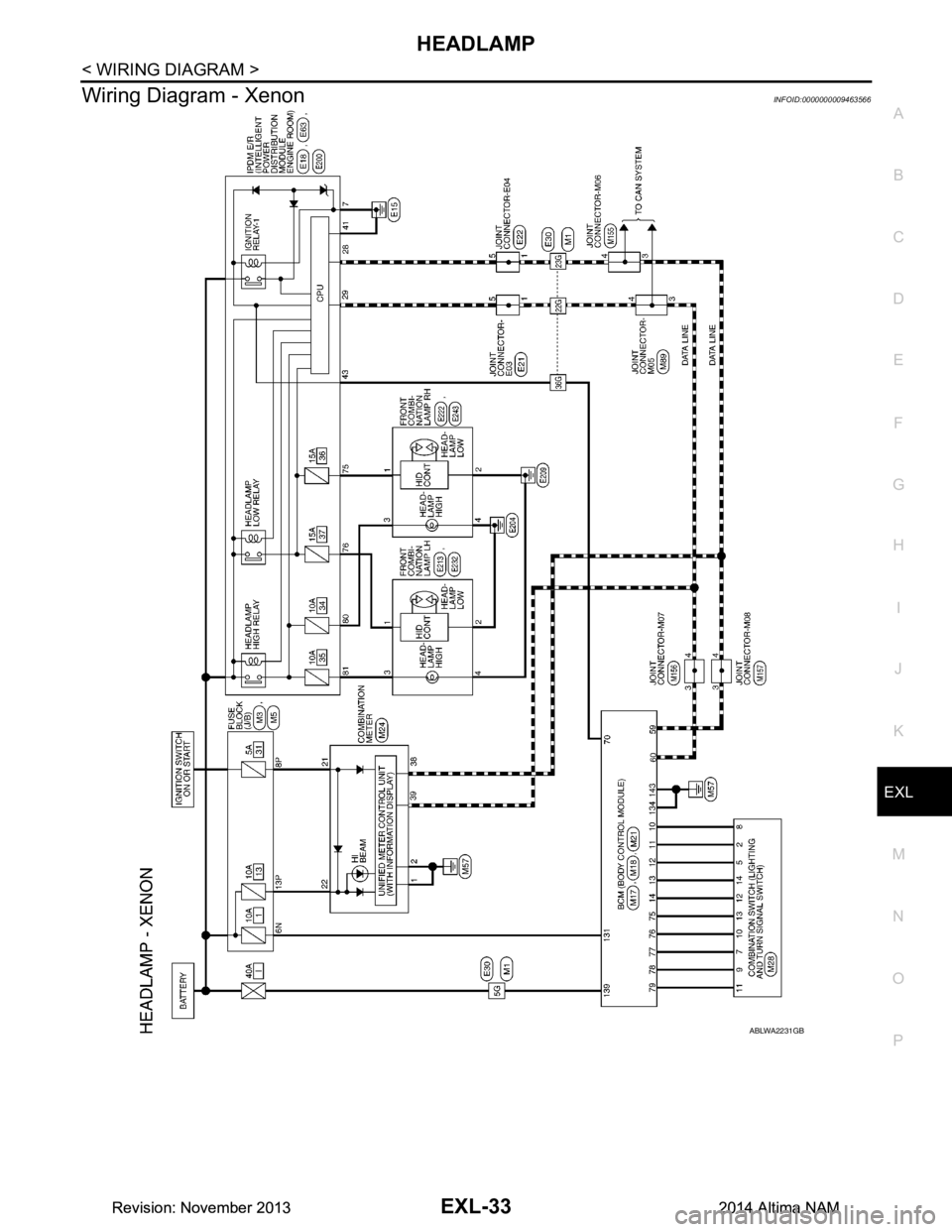

Wiring Diagram - XenonINFOID:0000000009463566
ABLWA2231GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 2300 of 4801
EXL-34
< WIRING DIAGRAM >
HEADLAMP

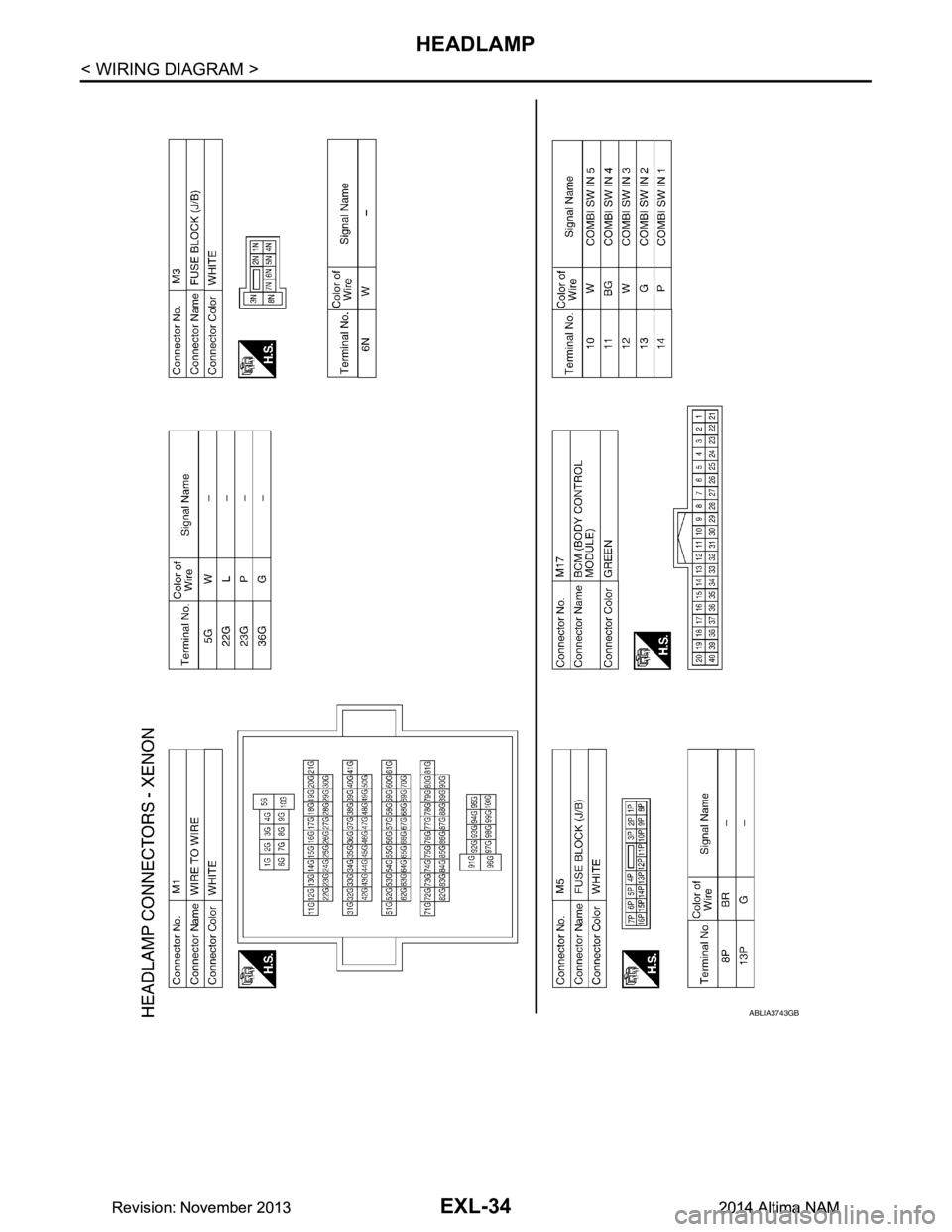

ABLIA3743GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
