LICENSE PLATE LAMP
Removal and InstallationINFOID:0000000009463633
REMOVAL

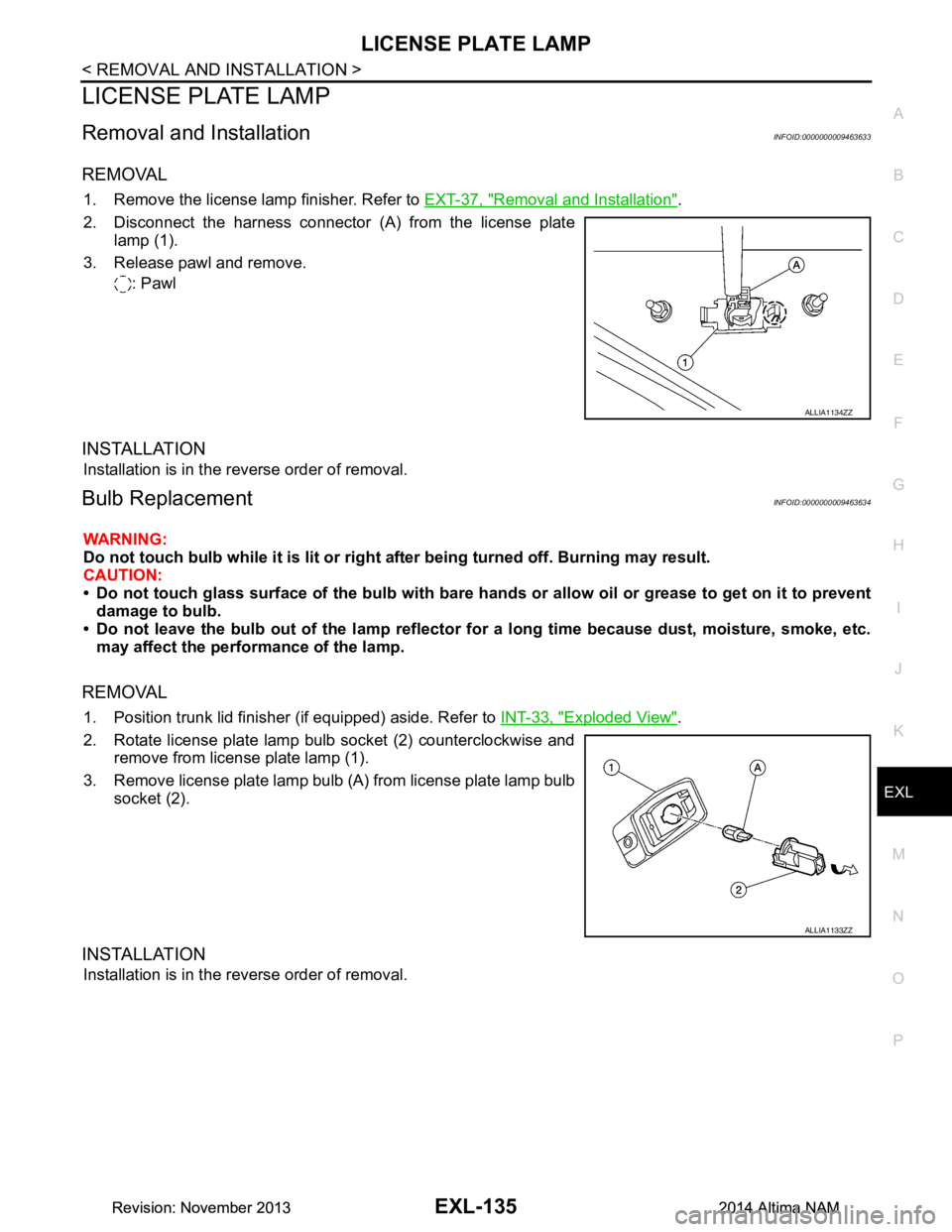

1. Remove the license lamp finisher. Refer to EXT-37, "Removal and Installation".
2. Disconnect the harness connector (A) from the license plate lamp (1).
3. Release pawl and remove. : Pawl
INSTALLATION
Installation is in the reverse order of removal.
Bulb ReplacementINFOID:0000000009463634
WARNING:
Do not touch bulb while it is lit or right after being turned off. Burning may result.
CAUTION:
• Do not touch glass surface of the bulb with bare hand s or allow oil or grease to get on it to prevent
damage to bulb.
• Do not leave the bulb out of the lamp reflector fo r a long time because dust, moisture, smoke, etc.
may affect the performance of the lamp.
REMOVAL
1. Position trunk lid finisher (if equipped) aside. Refer to INT-33, "Exploded View".
2. Rotate license plate lamp bulb socket (2) counterclockwise and remove from license plate lamp (1).
3. Remove license plate lamp bulb (A) from license plate lamp bulb socket (2).
INSTALLATION
Installation is in the reverse order of removal.
ALLIA1134ZZ
ALLIA1133ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EXL-136
< REMOVAL AND INSTALLATION >
REAR COMBINATION LAMP
REAR COMBINATION LAMP
Exploded ViewINFOID:0000000009463635

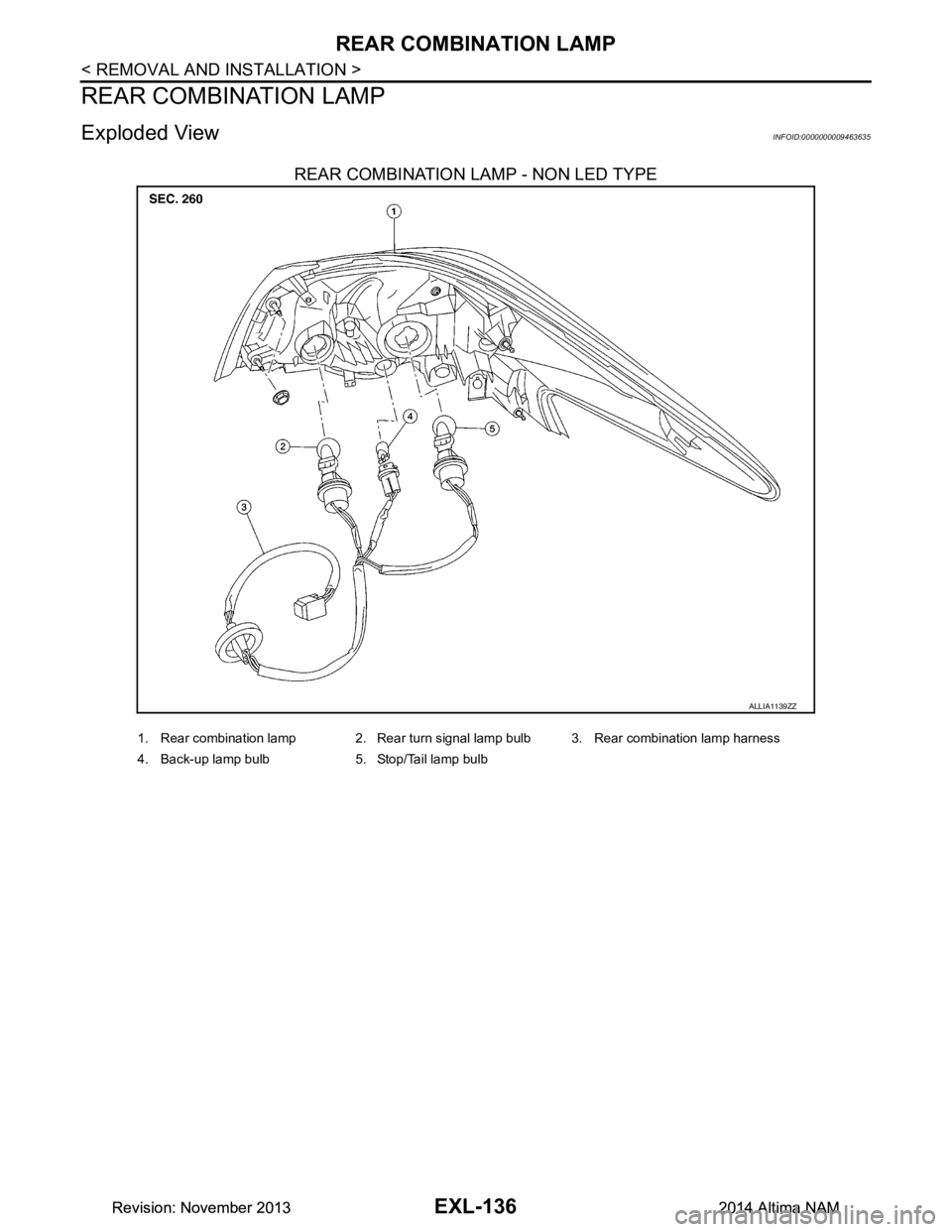

REAR COMBINATION LAMP - NON LED TYPE
ALLIA1139ZZ
1. Rear combination lamp 2. Rear turn signal lamp bulb 3. Rear combination lamp harness
4. Back-up lamp bulb 5. Stop/Tail lamp bulb
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

REAR COMBINATION LAMPEXL-137
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
J
K
M A
B
EXL
N
O P

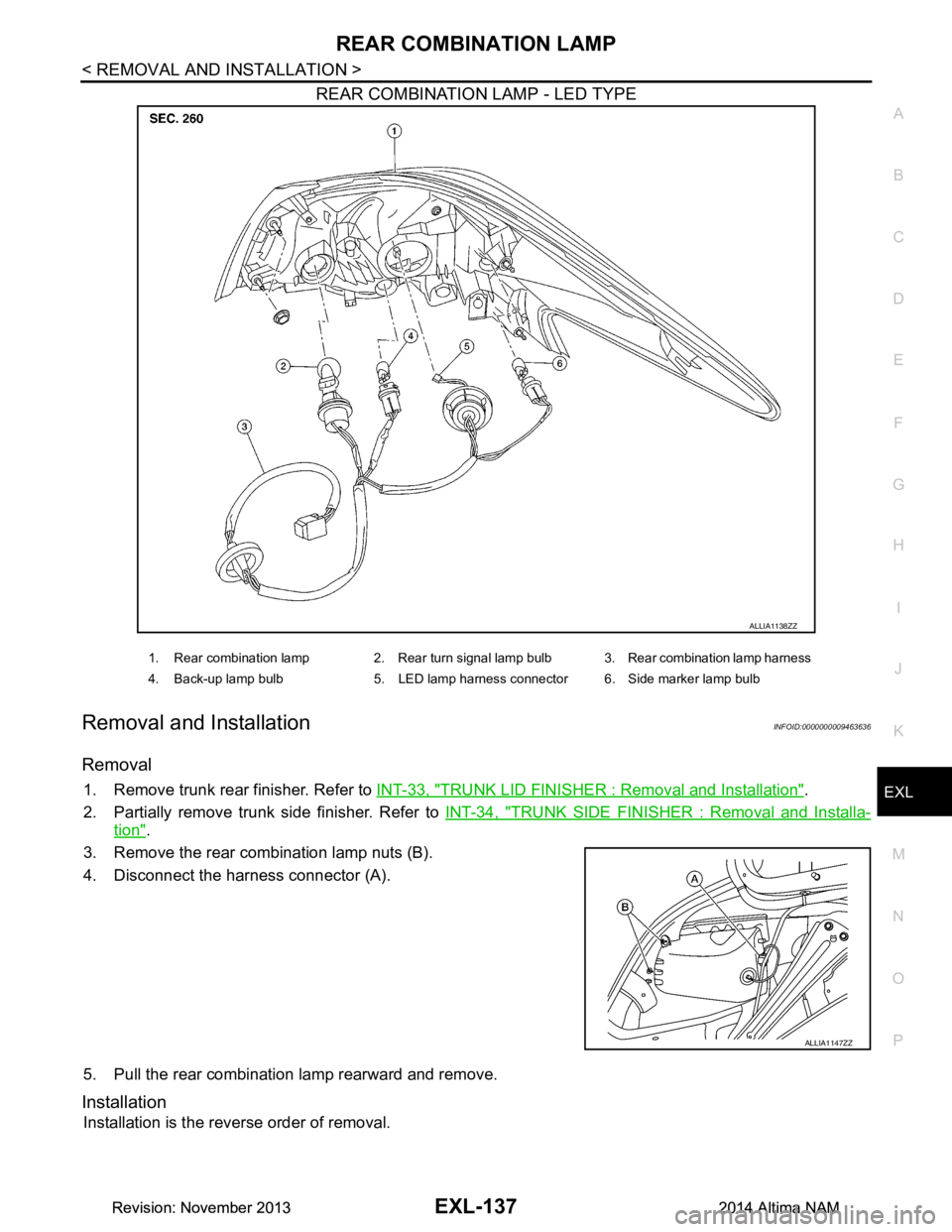

REAR COMBINATION LAMP - LED TYPE
Removal and InstallationINFOID:0000000009463636
Removal
1. Remove trunk rear finisher. Refer to INT-33, "TRUNK LID FINISHER : Removal and Installation".
2. Partially remove trunk side finisher. Refer to INT-34, "TRUNK SIDE FINISHER : Removal and Installa-
tion".
3. Remove the rear combination lamp nuts (B).
4. Disconnect the harness connector (A).
5. Pull the rear combination lamp rearward and remove.
Installation
Installation is the reverse order of removal.
ALLIA1138ZZ
1. Rear combination lamp 2. Rear turn signal lamp bulb 3. Rear combination lamp harness
4. Back-up lamp bulb 5. LED lamp harness connector 6. Side marker lamp bulb
ALLIA1147ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EXL-138
< REMOVAL AND INSTALLATION >
REAR COMBINATION LAMP
Bulb Replacement
INFOID:0000000009463637
WARNING:
Do not touch bulb while it is lit or right after being turned off. Burning may result.
CAUTION:
• Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent
damage to bulb.
• Do not leave the bulb out of the lamp reflector fo r a long time because dust, moisture, smoke, etc.
may affect the performance of the lamp.
REAR TURN SIGNAL LAMP BULB
Removal
1. Remove the rear combination lamp. Refer to EXL-137, "Removal and Installation".
2. Rotate the rear turn signal lamp bulb socket counterclockwise and remove.
3. Remove the rear turn signal lamp bulb from the bulb socket.
Installation
Installation is in the reverse order of removal.
CAUTION:
After installing, be sure to install the bu lb socket securely to ensure watertightness.
STOP/TAIL LAMP BULB (IF EQUIPPED)
Removal
1. Remove the rear combination lamp. Refer to EXL-137, "Removal and Installation".
2. Rotate the stop/tail lamp bulb socket counterclockwise and remove.
3. Remove the stop/tail lamp bulb from the bulb socket.
Installation
Installation is in the reverse order of removal.
CAUTION:
After installing, be sure to install the bu lb socket securely to ensure watertightness.
STOP/TAIL LAMP LED (IF EQUIPPED)
The stop/tail lamp LED is integrated into the rear combination lamp and is serviced as an assembly. Refer to
EXL-137, "Removal and Installation"
.
BACK-UP LAMP BULB
Removal
1. Remove the rear combination lamp. Refer to EXL-137, "Removal and Installation".
2. Rotate the back-up lamp bulb socket counterclockwise and remove.
3. Remove the back-up lamp bulb from the bulb socket.
Installation
Installation is in the reverse order of removal.
CAUTION:
After installing, be sure to install the bu lb socket securely to ensure watertightness.
SIDE MARKER LAMP BULB
Removal
1. Remove the rear combination lamp. Refer to EXL-137, "Removal and Installation".
2. Rotate the side marker lamp bulb socket counterclockwise and remove.
3. Remove the side marker lamp bulb from the bulb socket.
Installation
Installation is in the reverse order of removal.
CAUTION:
After installing, be sure to install the bu lb socket securely to ensure watertightness.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

COMBINATION SWITCHEXL-139
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
J
K
M A
B
EXL
N
O P
COMBINATION SWITCH
Exploded ViewINFOID:0000000009463638
NOTE:
Shown with the steering wheel removed for clarity only.
Removal and InstallationINFOID:0000000009463639
REMOVAL
CAUTION:
• Before servicing, turn the ignition switch OFF, disconnect both battery terminals and wait at least
three minutes.
• Do not use air tools or electric tools for servicing.
1. Disconnect both the negative and positive battery terminal s, then wait at least three minutes. Refer to PG-
73, "Removal and Installation (Battery)".
2. Remove the steering column covers. Refer to IP-17, "Removal and Installation"
.
3. Rotate steering wheel clockwise to access first combination switch bolt and remove.
4. Rotate steering wheel counter-clockwise to access second combination switch bolt and remove.
5. Disconnect the harness connector from the combination switch and remove.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• After the work is completed, make sure no system malfunction is detected by air bag warning lamp.
• In case a malfunction is detected by the air bag wa rning lamp, reset with the self-diagnosis function
and delete the memory with CONSULT.
• If a malfunction is still detected after the above operation, perform self-diagnosis to repair malfunc-
tions. Refer to SRC-42, "ADDITIONAL SERVICE WHEN RE PLACING CONTROL UNIT : Special Repair
Requirement".
AWMIA1293ZZ

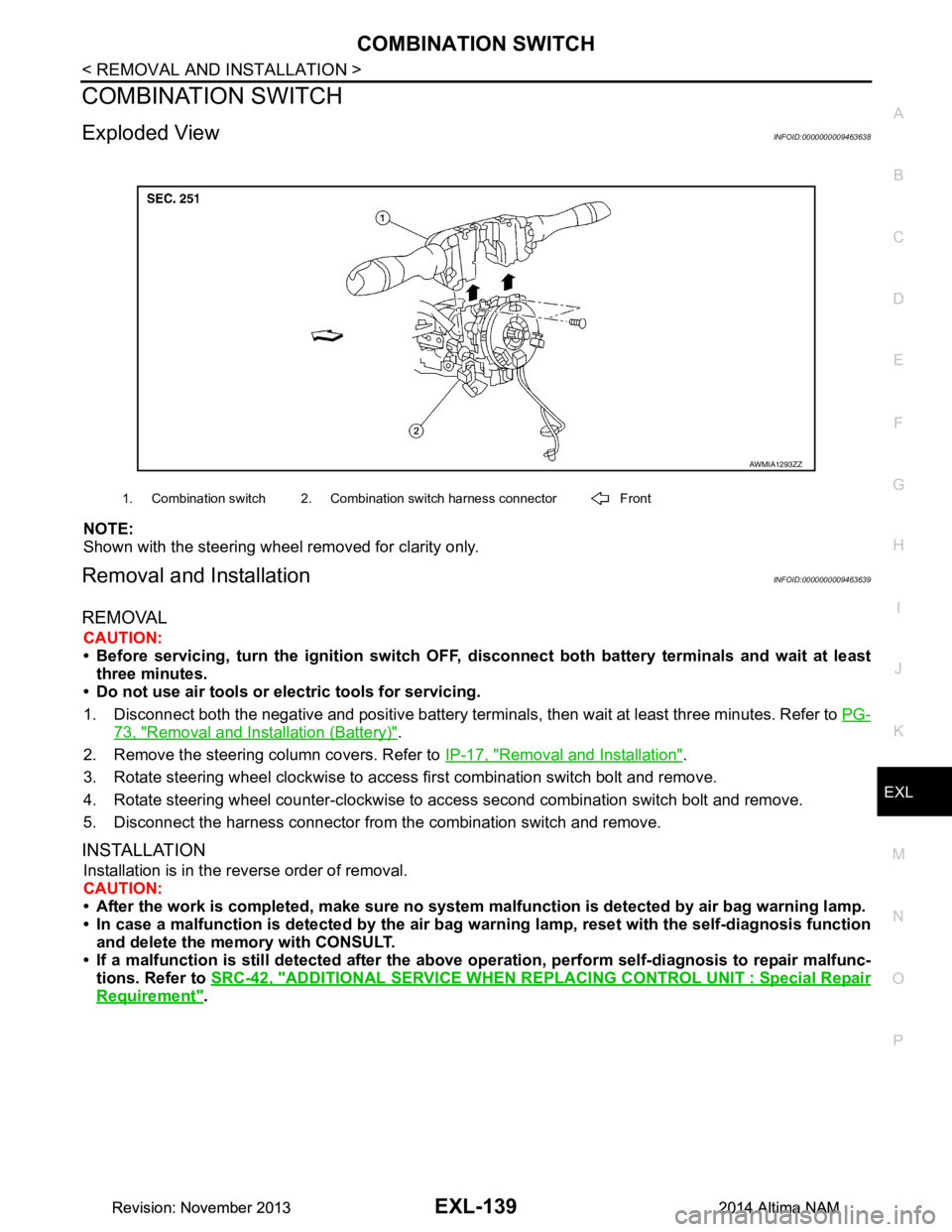

1. Combination switch 2. Combination switch harness connector Front
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EXL-140
< REMOVAL AND INSTALLATION >
HAZARD SWITCH
HAZARD SWITCH
Removal and InstallationINFOID:0000000009463640
REMOVAL

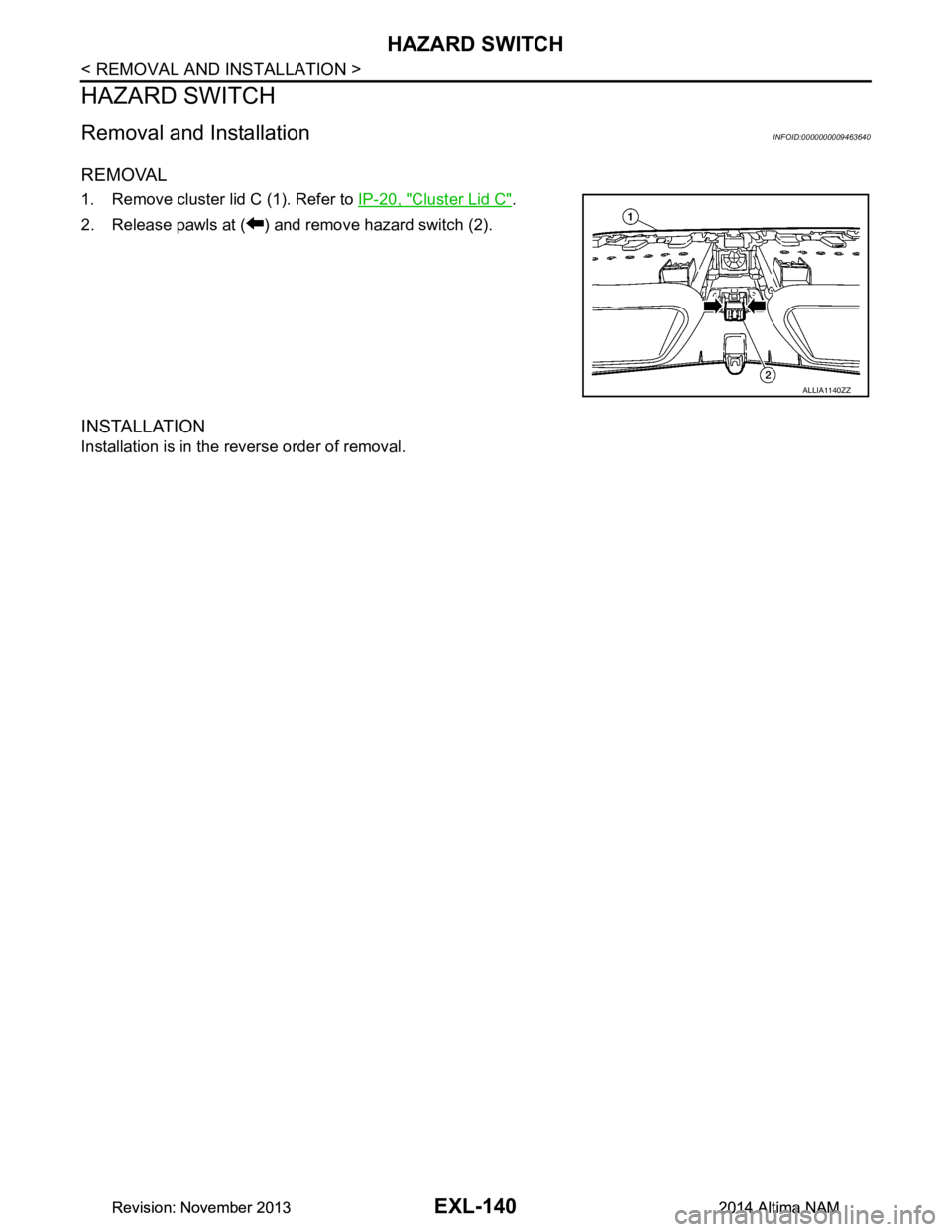

1. Remove cluster lid C (1). Refer to IP-20, "Cluster Lid C".
2. Release pawls at ( ) and remove hazard switch (2).
INSTALLATION
Installation is in the reverse order of removal.
ALLIA1140ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

OPTICAL SENSOREXL-141
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
J
K
M A
B
EXL
N
O P
OPTICAL SENSOR
Removal and InstallationINFOID:0000000009463641
REMOVAL

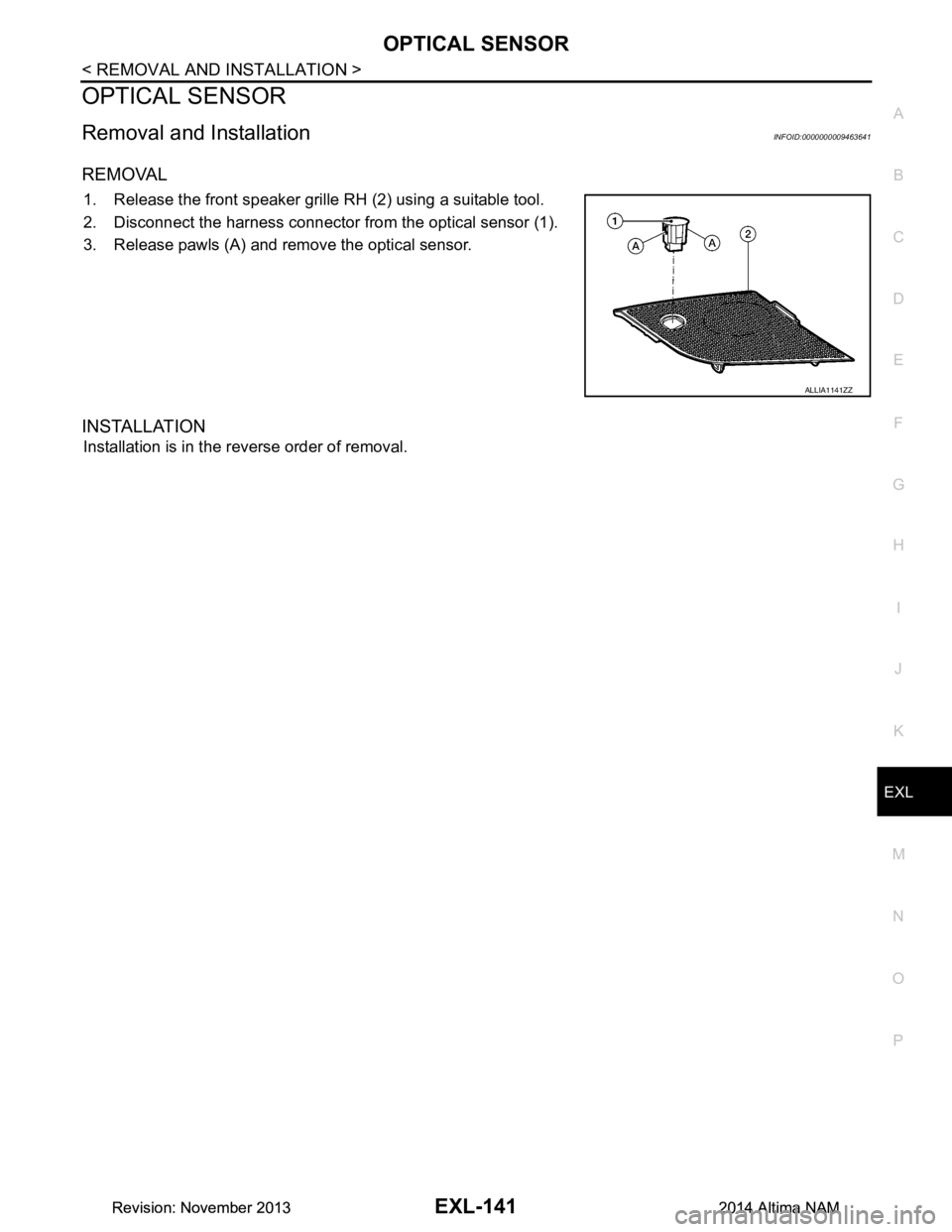

1. Release the front speaker grille RH (2) using a suitable tool.
2. Disconnect the harness connector from the optical sensor (1).
3. Release pawls (A) and remove the optical sensor.
INSTALLATION
Installation is in the reverse order of removal.
ALLIA1141ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EXL-142
< UNIT DISASSEMBLY AND ASSEMBLY >
FRONT COMBINATION LAMP
UNIT DISASSEMBLY AND ASSEMBLY
FRONT COMBINATION LAMP
Exploded View - XenonINFOID:0000000009463642

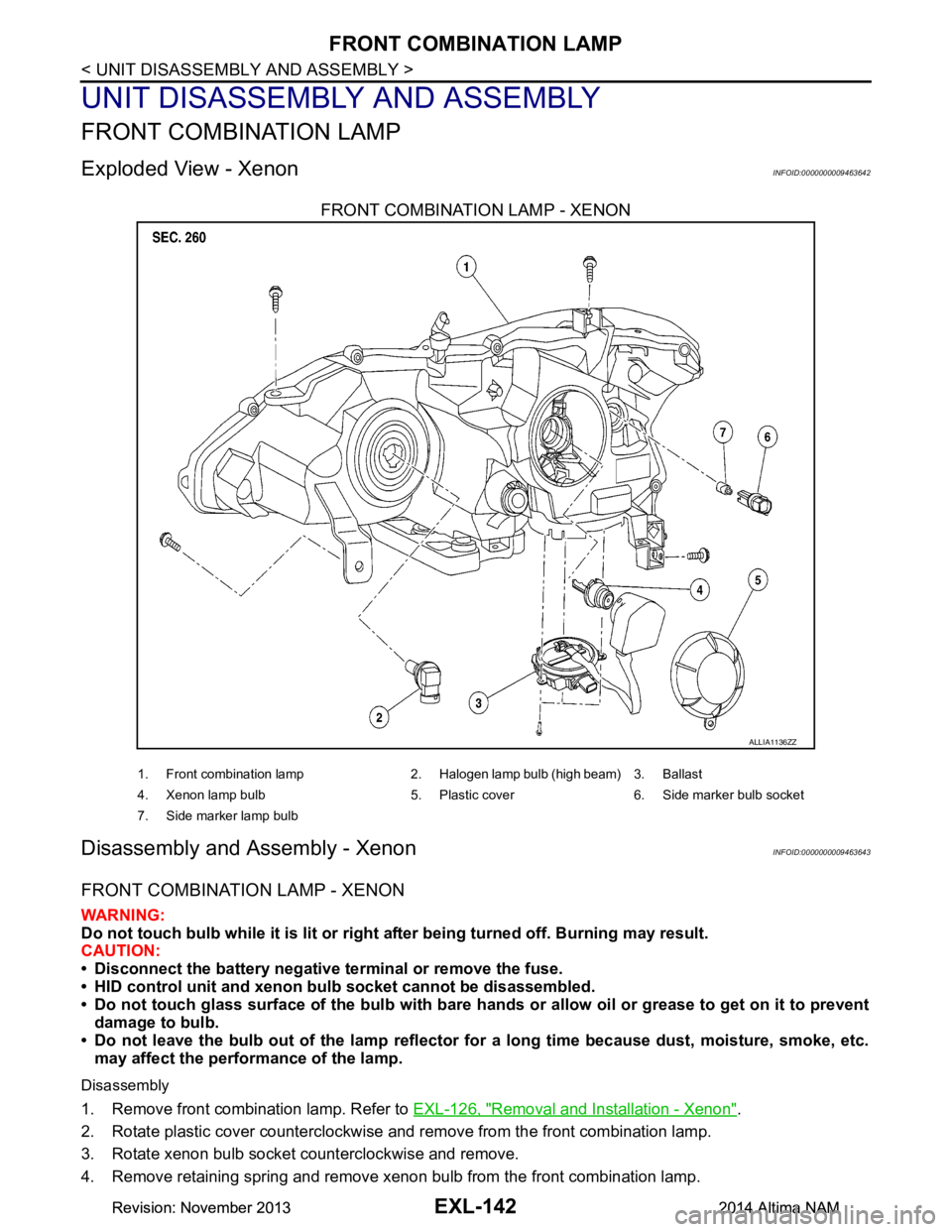

FRONT COMBINATION LAMP - XENON
Disassembly and Assembly - XenonINFOID:0000000009463643
FRONT COMBINATION LAMP - XENON
WARNING:
Do not touch bulb while it is lit or right after being turned off. Burning may result.
CAUTION:
• Disconnect the battery negative terminal or remove the fuse.
• HID control unit and xenon bu lb socket cannot be disassembled.
• Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent
damage to bulb.
• Do not leave the bulb out of the lamp reflector fo r a long time because dust, moisture, smoke, etc.
may affect the performance of the lamp.
Disassembly
1. Remove front combination lamp. Refer to EXL-126, "Removal and Installation - Xenon".
2. Rotate plastic cover counterclockwise and remove from the front combination lamp.
3. Rotate xenon bulb socket counterclockwise and remove.
4. Remove retaining spring and remove xenon bulb from the front combination lamp.
ALLIA1136ZZ
1. Front combination lamp 2. Halogen lamp bulb (high beam) 3. Ballast
4. Xenon lamp bulb 5. Plastic cover 6. Side marker bulb socket
7. Side marker lamp bulb
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

FRONT COMBINATION LAMPEXL-143
< UNIT DISASSEMBLY AND ASSEMBLY >
C
D E
F
G H
I
J
K
M A
B
EXL
N
O P
5. Rotate the halogen lamp bulb (high beam) counterclockwise and remove.
6. Rotate the side marker bulb socket counterclockwise and remove.
7. Remove the side marker lamp bulb from the sidemarker bulb socket.
Assembly
Assembly is in the reverse order of disassembly.
CAUTION:
• After installing the xenon bulb, be sure to install plastic cover securely to ensure watertightness.
• After installing, be sure to install the bulb sockets securely to ensure watertightness.
Exploded View - HalogenINFOID:0000000009463644

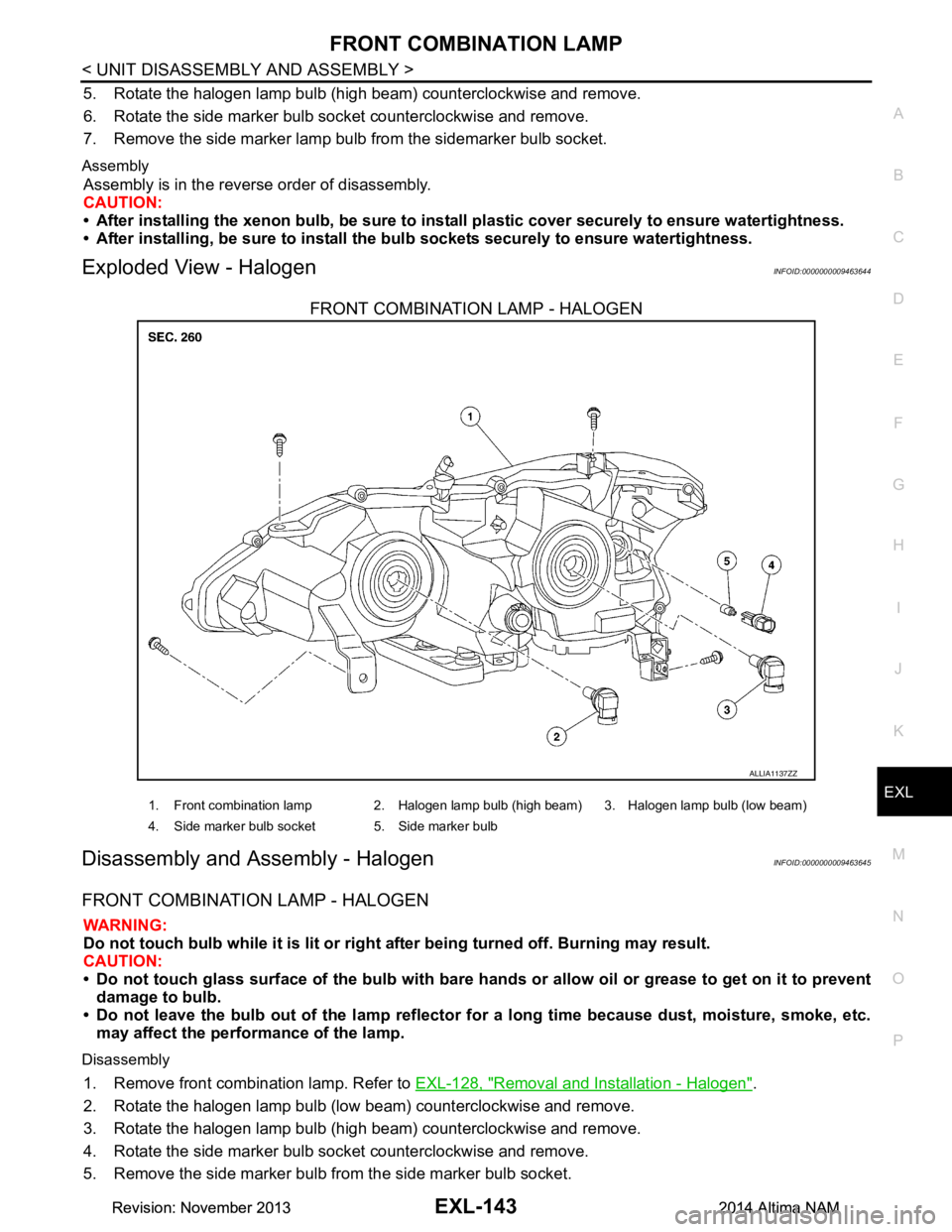

FRONT COMBINATION LAMP - HALOGEN
Disassembly and Assembly - HalogenINFOID:0000000009463645
FRONT COMBINATION LAMP - HALOGEN
WARNING:
Do not touch bulb while it is lit or right after being turned off. Burning may result.
CAUTION:
• Do not touch glass surface of the bulb with bare hand s or allow oil or grease to get on it to prevent
damage to bulb.
• Do not leave the bulb out of the lamp reflector fo r a long time because dust, moisture, smoke, etc.
may affect the performance of the lamp.
Disassembly
1. Remove front combination lamp. Refer to EXL-128, "Removal and Installation - Halogen".
2. Rotate the halogen lamp bulb (low beam) counterclockwise and remove.
3. Rotate the halogen lamp bulb (high beam) counterclockwise and remove.
4. Rotate the side marker bulb socket counterclockwise and remove.
5. Remove the side marker bulb from the side marker bulb socket.
ALLIA1137ZZ
1. Front combination lamp 2. Halogen lamp bulb (high beam) 3. Halogen lamp bulb (low beam)
4. Side marker bulb socket 5. Side marker bulb
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EXL-144
< UNIT DISASSEMBLY AND ASSEMBLY >
FRONT COMBINATION LAMP
Assembly
Assembly is in the reverse order of disassembly.
CAUTION:
After installing, be sure to install the bu lb sockets securely to ensure watertightness.
