NISSAN TEANA 2014 Service Manual

FENDER PROTECTOREXT-27
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
J
L
M A
B
EXT
N
O P
REAR WHEEL HOUSE PROTECTOR : Exploded ViewINFOID:0000000009461004
REAR WHEEL HOUSE PROTECTOR : Removal and InstallationINFOID:0000000009461005
REMOVAL
1. Remove the rear tires. Refer to WT-55, "Adjustment".
2. Remove the rear wheel house protector clips.
3. Remove rear wheel house protector plastic nuts and the rear wheel house protector.
INSTALLATION
Installation is in the reverse order of removal.
1. Rear wheel house protector A. Plastic nut B. Clip
ALKIA2667ZZ
Revision: November 20132014 Altima NAM

EXT-28
< REMOVAL AND INSTALLATION >
FRONT UNDER COVER
FRONT UNDER COVER
Exploded ViewINFOID:0000000009461006
Removal and InstallationINFOID:0000000009461007
REMOVAL
Remove the front under cover screws and clips, then remove front under cover.
INSTALLATION
Installation is in the reverse order of removal.
1. Front under cover A. Clip B. Screws
ALKIA2669ZZ
Revision: November 20132014 Altima NAM

REAR UNDER COVEREXT-29
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
J
L
M A
B
EXT
N
O P
REAR UNDER COVER
Removal and InstallationINFOID:0000000009461008
REMOVAL
Remove the rear under cover clips (A) and nuts (B), then remove
rear under cover (1).
INSTALLATION
Installation is in the reverse order of removal.
ALKIA2681ZZ
Revision: November 20132014 Altima NAM

EXT-30
< REMOVAL AND INSTALLATION >
MUDGUARD
MUDGUARD
Exploded ViewINFOID:0000000009461009
NOTE:
LH side shown; RH side similar.
Removal and InstallationINFOID:0000000009461010
REMOVAL
1. Remove the center mudguard clips located on the under body.
2. Remove the center mudguard screws and the center mudguard.
INSTALLATION
Installation is in the reverse order of removal.
1. Center mudguard 2. Rear wheel wind deflector Clips
Front
ALKIA2661ZZ
Revision: November 20132014 Altima NAM

DOOR SASH MOLDINGEXT-31
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
J
L
M A
B
EXT
N
O P
DOOR SASH MOLDING
Exploded ViewINFOID:0000000009461011
NOTE:
RH side shown; LH side similar.
Removal and Installation INFOID:0000000009461012
FRONT DOOR
Removal
1. Remove the door mirror assembly. Refer to MIR-20, "Removal and Installation".
2. Remove the clip (A) using a suitable tool (B). CAUTION:
Do not reuse the clip (A).
1. Front door 2. Front door weatherstrip 3. Front door sash molding
4. Sash molding inner finisher A. Clip
ALKIA2642ZZ
ALKIA2652ZZ
Revision: November 20132014 Altima NAM

EXT-32
< REMOVAL AND INSTALLATION >
DOOR SASH MOLDING
3. Reposition the front door weatherstrip (2).
4. Reposition the front door rubber run (3).
5. Remove the front door sash molding (1) using a suitable tool (A), starting at the lower rear edge and rotating towards the top of
the door as shown and remove.
Installation
Installation is in the reverse order of removal.
REAR DOOR
Removal
NOTE:
RH side shown; LH side similar
1. Remove the rear door finisher. Refer to INT-18, "Removal and Installation"
.
ALKIA2653ZZ
1. Rear door 2. Rear door weatherstrip 3. Rear door sash molding
A. Rear door clip (front/rear)
ALKIA2644ZZ
Revision: November 20132014 Altima NAM

DOOR SASH MOLDINGEXT-33
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
J
L
M A
B
EXT
N
O P
2. Remove the rear door front clip (A) using a suitable tool (B) and remove.
CAUTION:
Do not reuse the clip (A).
3. Remove the rear door rear clip (A) using a suitable tool (B) and remove.
CAUTION:
Do not reuse the clip (A).
4. Reposition the rear door weatherstrip (2).
5. Reposition the rear door rubber run (3).
6. Remove the rear door sash molding (1) using a suitable tool (A), starting at the lower rear edge and rotating towards the top of
the door as shown and remove.
Installation
Installation is in the reverse order of removal.
ALKIA2655ZZ
ALKIA2656ZZ
ALKIA2657ZZ
Revision: November 20132014 Altima NAM

EXT-34
< REMOVAL AND INSTALLATION >

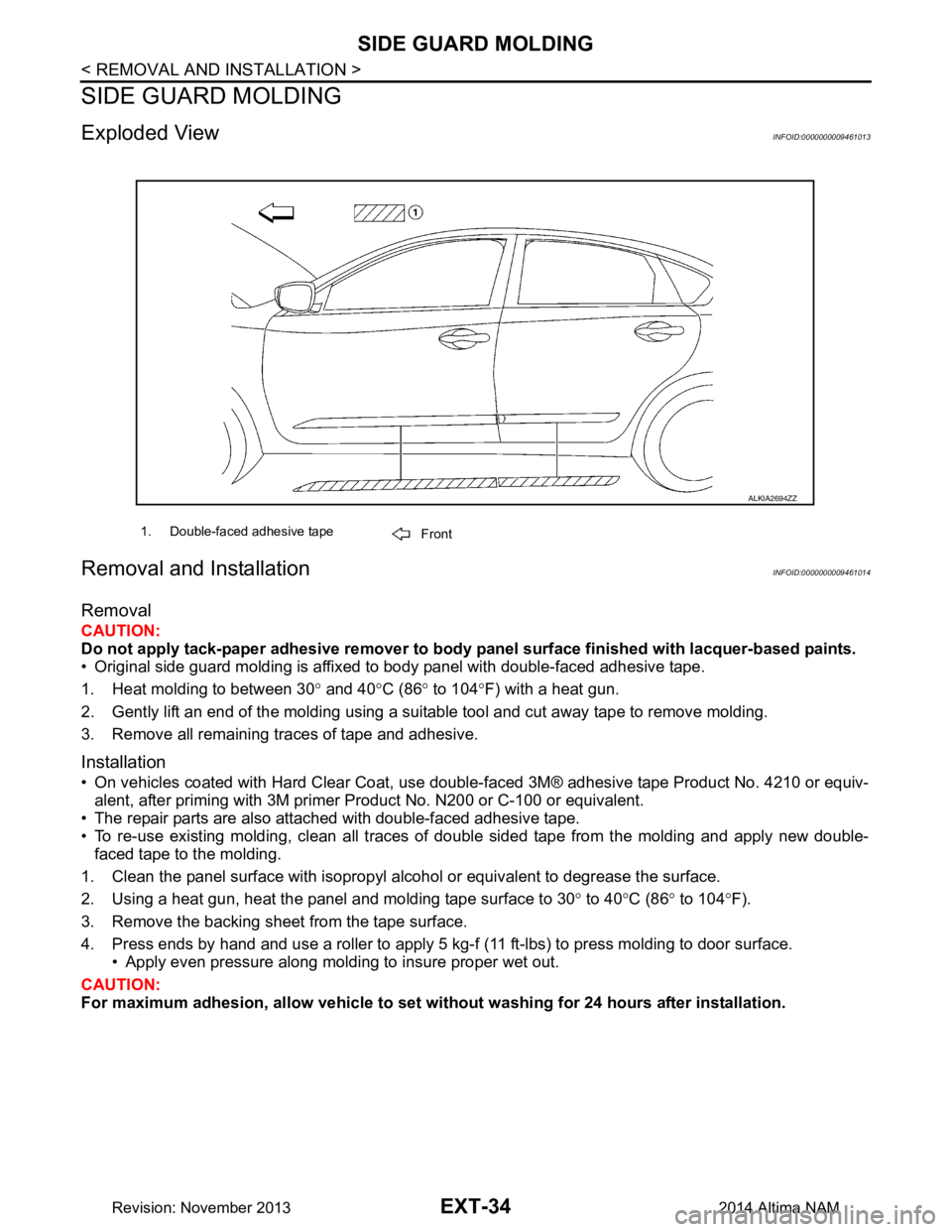

SIDE GUARD MOLDING
SIDE GUARD MOLDING
Exploded ViewINFOID:0000000009461013
Removal and InstallationINFOID:0000000009461014
Removal
CAUTION:
Do not apply tack-paper adhesive re mover to body panel surface finished with lacquer-based paints.
• Original side guard molding is affixed to body panel with double-faced adhesive tape.
1. Heat molding to between 30 ° and 40 °C (86 ° to 104 °F) with a heat gun.
2. Gently lift an end of the molding using a suitable tool and cut away tape to remove molding.
3. Remove all remaining traces of tape and adhesive.
Installation
• On vehicles coated with Hard Clear Coat, use double-faced 3M® adhesive tape Product No. 4210 or equiv-
alent, after priming with 3M primer Product No. N200 or C-100 or equivalent.
• The repair parts are also attached with double-faced adhesive tape.
• To re-use existing molding, clean all traces of double sided tape from the molding and apply new double-
faced tape to the molding.
1. Clean the panel surface with isopropyl alc ohol or equivalent to degrease the surface.
2. Using a heat gun, heat the panel and molding tape surface to 30 ° to 40 °C (86 ° to 104 °F).
3. Remove the backing sheet from the tape surface.
4. Press ends by hand and use a roller to apply 5 kg-f (11 ft-lbs) to press molding to door surface. • Apply even pressure along molding to insure proper wet out.
CAUTION:
For maximum adhesion, allow vehic le to set without washing for 24 hours after installation.
1. Double-faced adhesive tape
Front
ALKIA2694ZZ
Revision: November 20132014 Altima NAM

DOOR OUTSIDE MOLDINGEXT-35
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
J
L
M A
B
EXT
N
O P

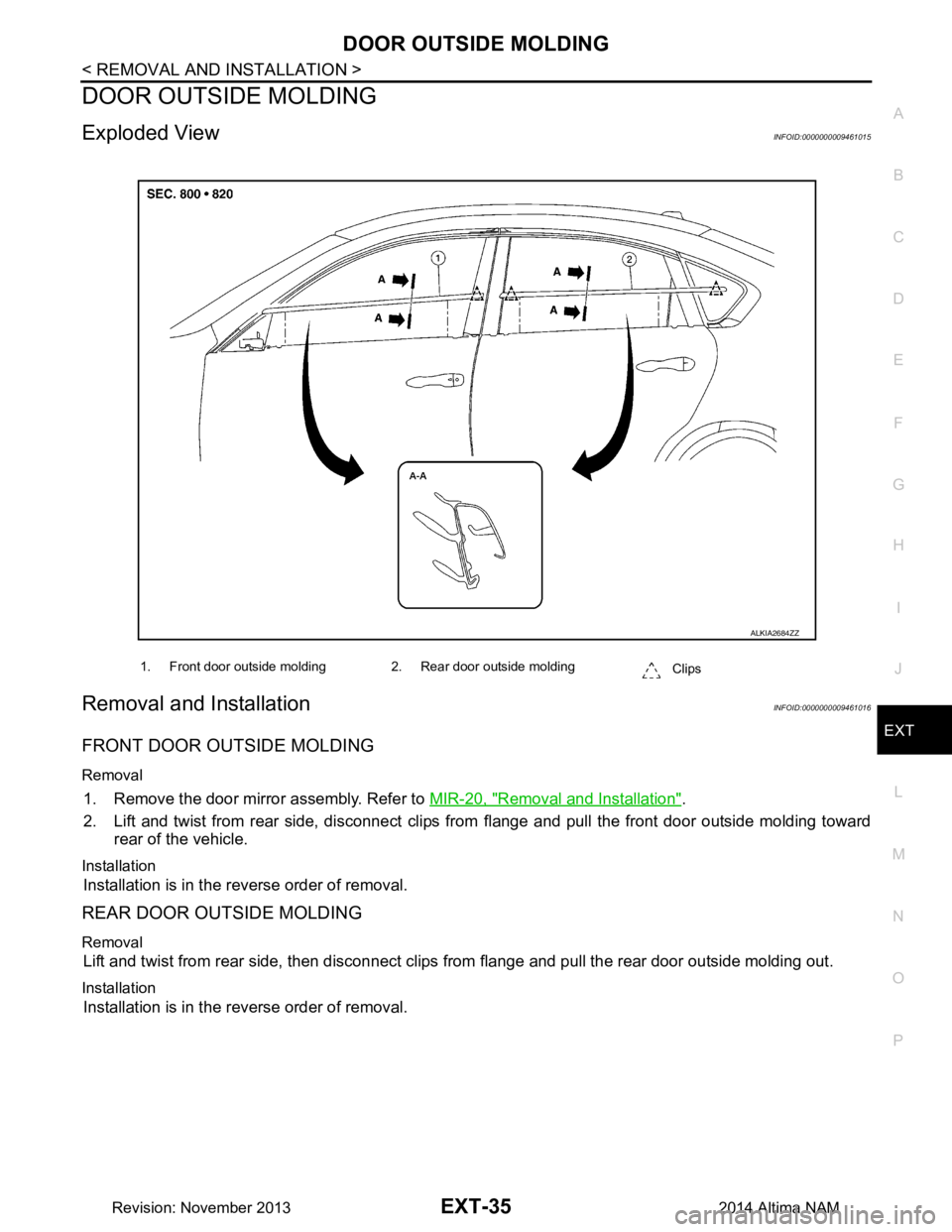

DOOR OUTSIDE MOLDING
Exploded ViewINFOID:0000000009461015
Removal and InstallationINFOID:0000000009461016
FRONT DOOR OUTSIDE MOLDING
Removal
1. Remove the door mirror assembly. Refer to MIR-20, "Removal and Installation".
2. Lift and twist from rear side, disconnect clips fr om flange and pull the front door outside molding toward
rear of the vehicle.
Installation
Installation is in the reverse order of removal.
REAR DOOR OUTSIDE MOLDING
Removal
Lift and twist from rear side, then disconnect clips from flange and pull the rear door outside molding out.
Installation
Installation is in the reverse order of removal.
1. Front door outside molding 2. Rear door outside molding
Clips
ALKIA2684ZZ
Revision: November 20132014 Altima NAM

EXT-36
< REMOVAL AND INSTALLATION >

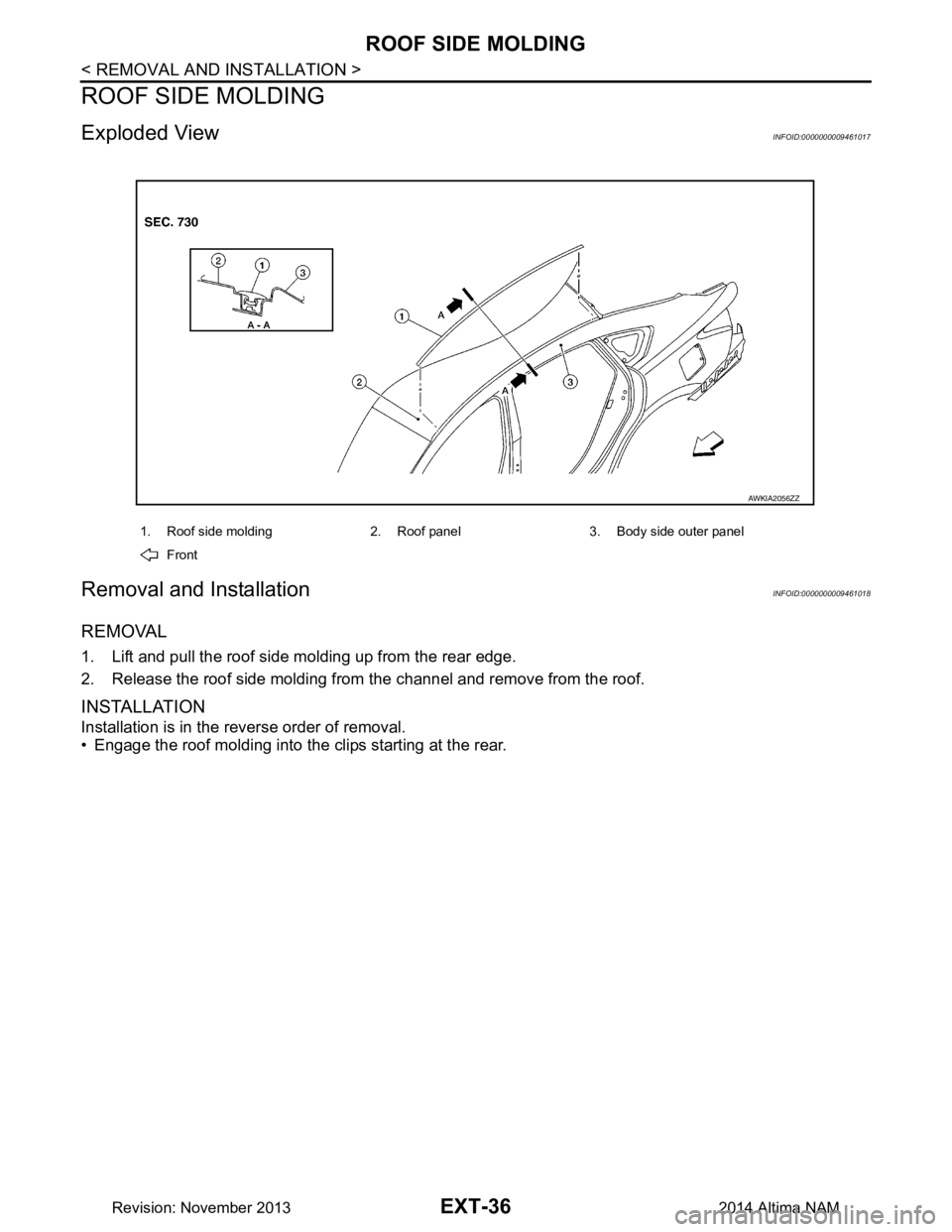

ROOF SIDE MOLDING
ROOF SIDE MOLDING
Exploded ViewINFOID:0000000009461017
Removal and InstallationINFOID:0000000009461018
REMOVAL
1. Lift and pull the roof side molding up from the rear edge.
2. Release the roof side molding from the channel and remove from the roof.
INSTALLATION
Installation is in the reverse order of removal.
• Engage the roof molding into the clips starting at the rear.
1. Roof side molding 2. Roof panel 3. Body side outer panel
Front
AWKIA2056ZZ
Revision: November 20132014 Altima NAM
