LICENSE LAMP FINISHER
Removal and InstallationINFOID:0000000009461019
REMOVAL
1. Remove the trunk lid finisher (if equipped). Refer to INT-33, "TRUNK LID FINISHER : Removal and Instal-
lation".
2. Remove the license lamp finisher nuts and bolts.
3. Remove license lamp finisher by pulling toward the rear, then disconnect the harness connector from the trunk opener request switch and remove.
INSTALLATION
Installation is in the reverse order of removal.

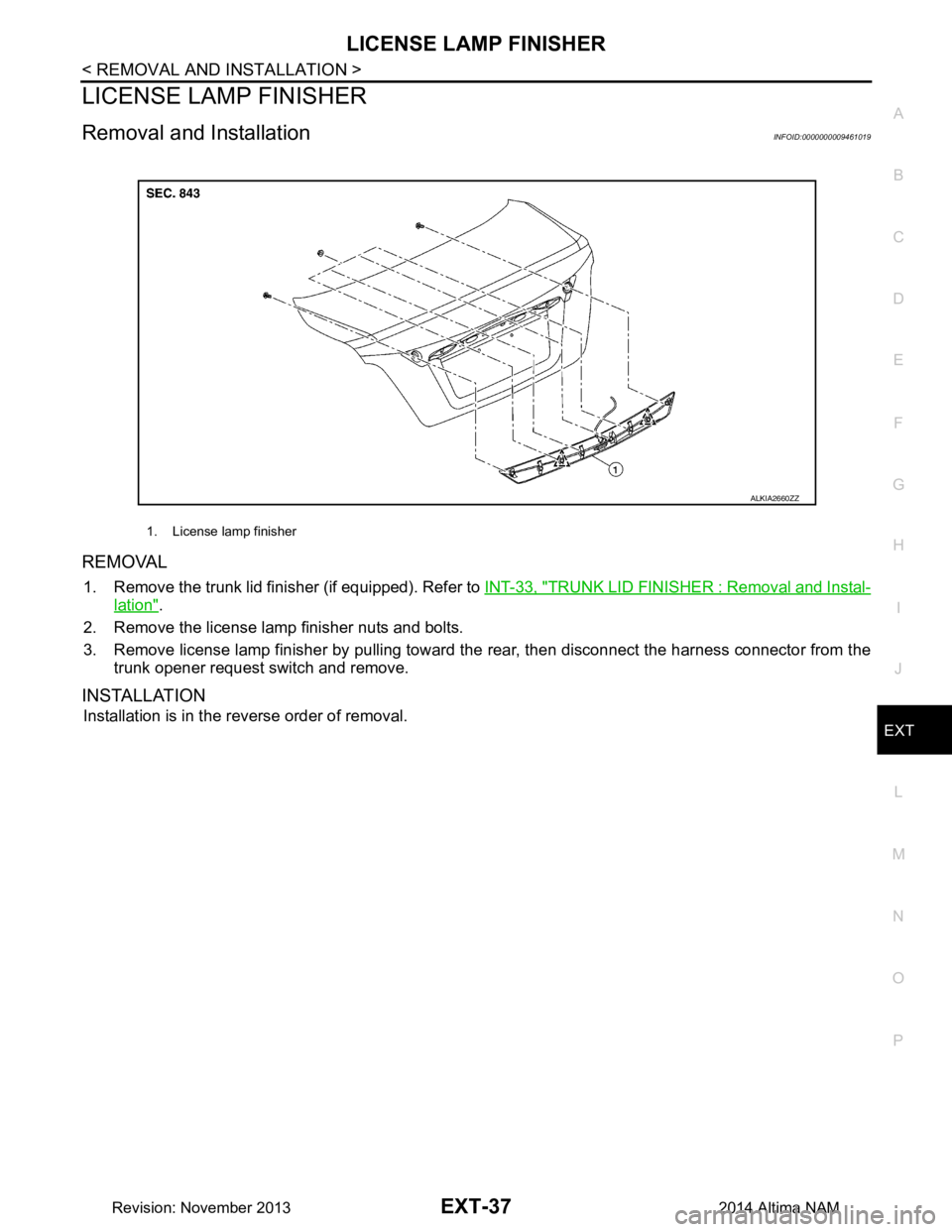

1. License lamp finisher
ALKIA2660ZZ
Revision: November 20132014 Altima NAM

EXT-38
< REMOVAL AND INSTALLATION >
REAR SPOILER
REAR SPOILER
Exploded ViewINFOID:0000000009461020
Removal and InstallationINFOID:0000000009461021
Removal
1. Remove trunk lid finisher (if equipped). Refer to INT-33, "TRUNK LID FINISHER : Removal and Installa-
tion".
2. Disconnect harness connector from the high mounted stop lamp.
3. Remove foam tape free from trunk lid surface, using a suitable tool. CAUTION:
Use care not to damage painted surfaces during removal of or releasing adhesive backed foam
tape.
4. Release the high mounted stop lamp harness grommet from trunk lid, then remove rear spoiler.
Installation
Installation is in the reverse order of removal.
NOTE:
• Before installing rear spoiler, clean the surface w here it will be mounted with isopropyl alcohol or equivalent
to degrease the surface.
• Before installing, be sure there are no gaps or wa ves in the foam tape where the surfaces meet.
• During installation, be sure grommet of high mounted stop lamp harness is fully seated into trunk lid opening
prior to final rear spoiler assembly placement.

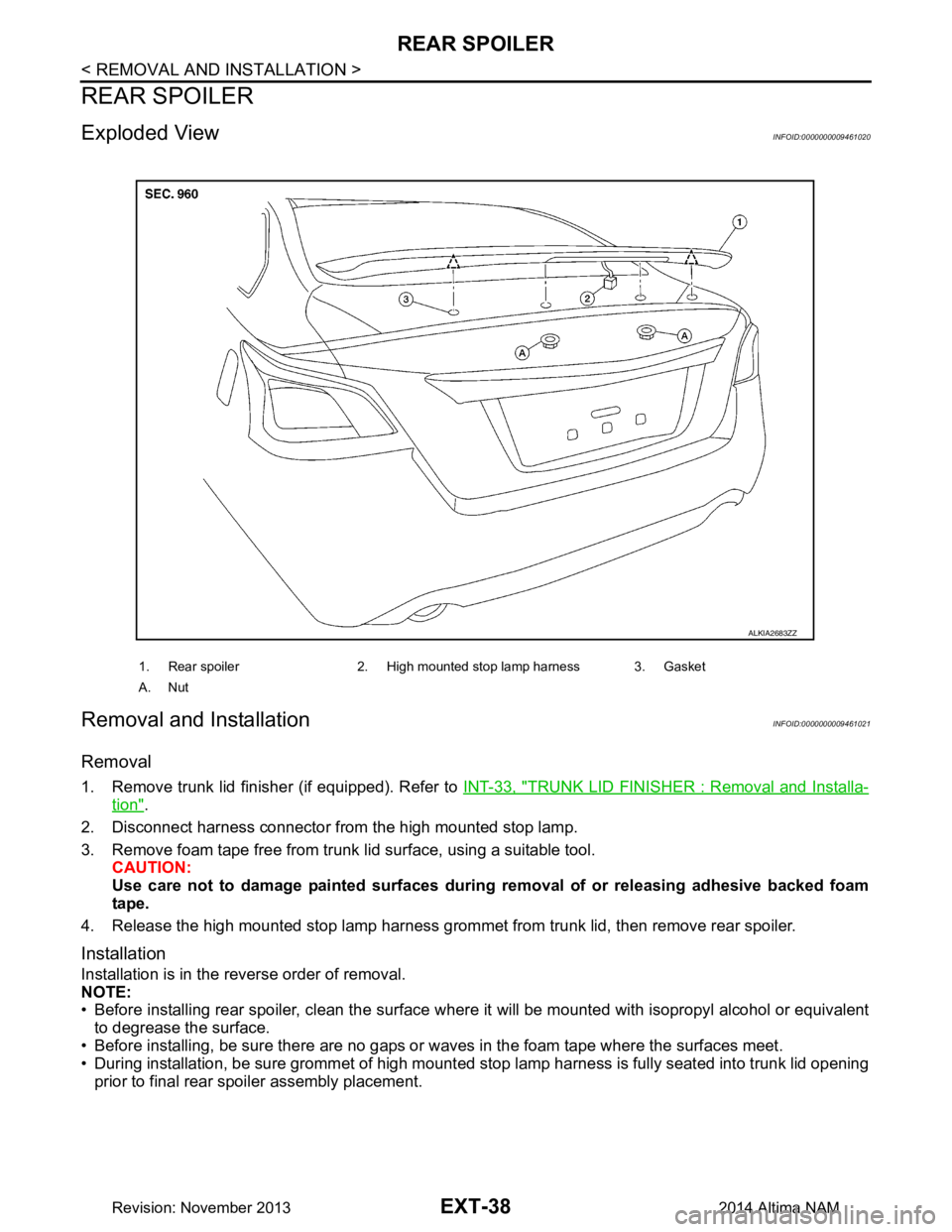

1. Rear spoiler 2. High mounted stop lamp harness 3. Gasket
A. Nut
ALKIA2683ZZ
Revision: November 20132014 Altima NAM

FAX-1
TRANSMISSION & DRIVELINE
CEF
G H
I
J
K L
M
SECTION FA X
A
B
FA X
N
O P
CONTENTS
FRONT AXLE
PRECAUTION ................ ...............................2
PRECAUTIONS .............................................. .....2
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
2
Precautions for Drive Shaft .......................................2
PREPARATION ............................................3
PREPARATION .............................................. .....3
Special Service Tool ........................................... ......3
Commercial Service Tool ..........................................3
SYMPTOM DIAGNOSIS ...............................5
NOISE, VIBRATION, AND HARSHNESS
(NVH) TROUBLESHOOTING ........................ .....
5
NVH Troubleshooting Chart ................................ ......5
PERIODIC MAINTENANCE ..........................6
FRONT WHEEL HUB ..................................... .....6
Inspection ............................................................ ......6
FRONT DRIVE SHAFT ........................................7
Inspection ............................................................ ......7
REMOVAL AND INSTALLATION ................8
FRONT WHEEL HUB .........................................8
Exploded View ..................................................... .....8
Removal and Installation ..........................................8
FRONT DRIVE SHAFT .....................................10
Exploded View (LH) .................................................10
Removal and Installation (LH) .................................10
Exploded View (RH) ............................................ ....12
Removal and Installation (RH) .................................12
UNIT DISASSEMBLY AND ASSEMBLY ....15
FRONT DRIVE SHAFT .....................................15
Disassembly and Assembly (LH) ......................... ....15
Disassembly and Assembly (RH) ............................20
SERVICE DATA AND SPECIFICATIONS
(SDS) ............... .............................................
27
SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................
27
Wheel Bearing ..................................................... ....27
Drive Shaft ...............................................................27
Dynamic Damper .....................................................27
Boot Bands ..............................................................28
Revision: November 20132014 Altima NAM

FAX-2
< PRECAUTION >
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000009951700
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inopera tive, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISS AN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintent ional activation of the system. For re moval of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipmen t on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harn esses can be identified by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or electri c power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three minutes before performing any service.
Precautions for Drive ShaftINFOID:0000000009464432
Observe the following precautions when disassembling and assembling drive shaft.
• Joint sub-assembly does not disass emble because it is non-overhaul parts.
• Perform work in a location which is as dust-free as possible.
• Before disassembling and assembling, clean the outside of parts.
• Prevention of the entry of foreign objects must be tak en into account during disassembly of the service loca-
tion.
• Disassembled parts must be carefully reassembled in the correct order. If work is interrupted, a clean cover must be placed over parts.
• Paper shop cloths must be used. Fabric shop cloths must not be used because of the danger of lint adhering
to parts.
• Disassembled parts (except for rubber parts) should be cleaned with kerosene which shall be removed by
blowing with air or wiping with paper shop cloths.
Revision: November 20132014 Altima NAM

PREPARATIONFAX-3
< PREPARATION >
CEF
G H
I
J
K L
M A
B
FA X
N
O P
PREPARATION
PREPARATION
Special Service ToolINFOID:0000000009464434
The actual shapes of the tools may differ from those illustrated here.

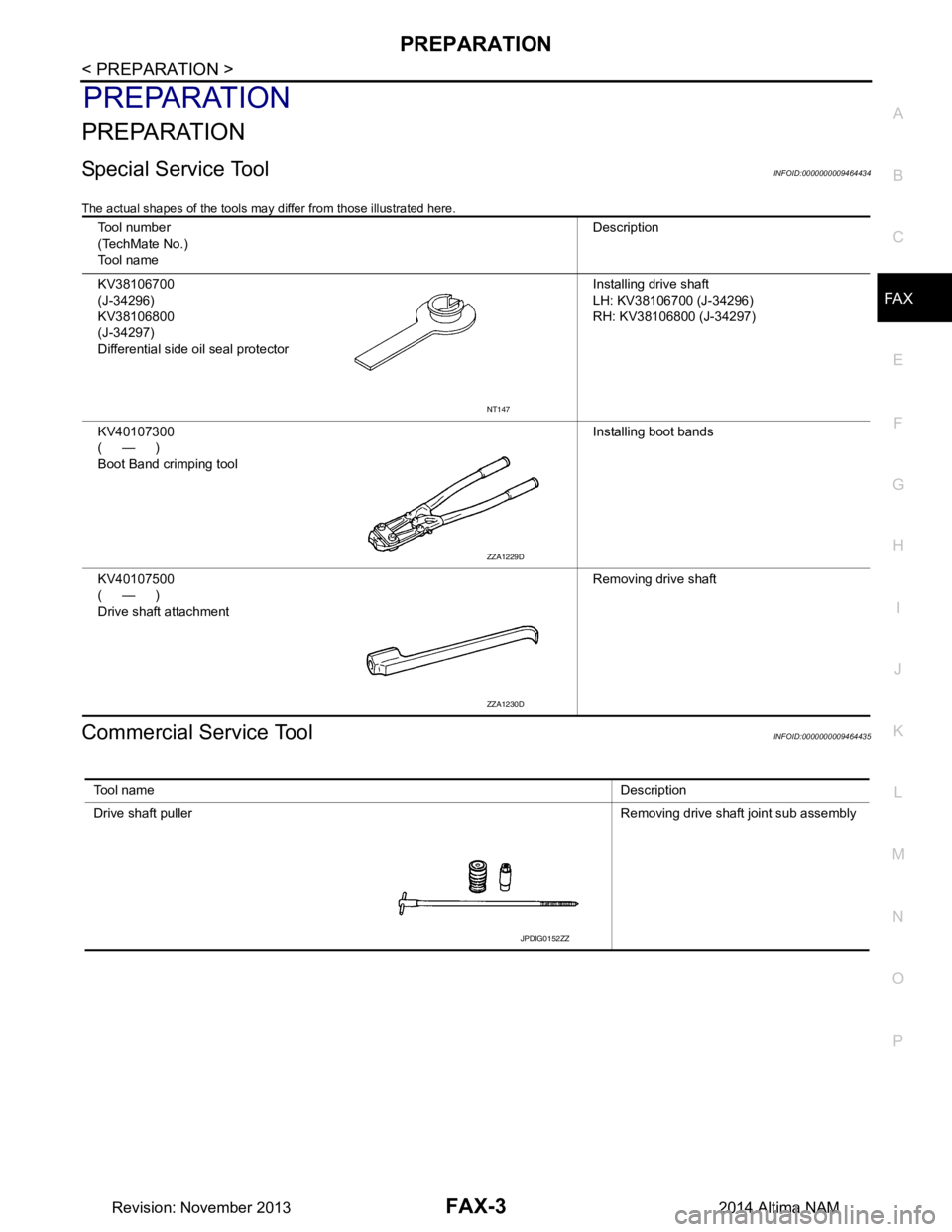

Commercial Service ToolINFOID:0000000009464435
Tool number
(TechMate No.)
Tool name Description
KV38106700
(J-34296)
KV38106800
(J-34297)
Differential side oil seal protector Installing drive shaft
LH: KV38106700 (J-34296)
RH: KV38106800 (J-34297)
KV40107300
(—)
Boot Band crimping tool Installing boot bands
KV40107500
(—)
Drive shaft attachment Removing drive shaft
NT147
ZZA1229D
ZZA1230D
Tool name
Description
Drive shaft puller Removing drive shaft joint sub assembly
JPDIG0152ZZ
Revision: November 20132014 Altima NAM

FAX-4
< PREPARATION >
PREPARATION
Sliding hammerRemoving drive shaft
Power tool Loosening nuts, screws and bolts
ZZA0023D
PIIB1407E
Revision: November 20132014 Altima NAM

NOISE, VIBRATION, AND HARSHNESS (NVH) TROUBLESHOOTINGFAX-5
< SYMPTOM DIAGNOSIS >
CEF
G H
I
J
K L
M A
B
FA X
N
O P
SYMPTOM DIAGNOSIS
NOISE, VIBRATION, AND HARSHNESS (N VH) TROUBLESHOOTING
NVH Troubleshooting ChartINFOID:0000000009464433
Use chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.
×: ApplicableReference page
—
FAX-15, "Disassembly and Assembly (LH)", FAX-20, "Disassembly and Assembly (RH)"
FAX-7, "Inspection"
FAX-10, "Removal and Installation (LH)"
, FAX-12, "Removal and Installation (RH)"—
FAX-6, "Inspection"
FSU-6, "NVH Troubleshooting Chart"Refer to FRONT AXLE in this chart.
WT-52, "NVH Troubleshooting Chart"WT-52, "NVH Troubleshooting Chart"Refer to DRIVE SHAFT in this chart. BR-6, "NVH Troubleshooting Chart"ST-29, "NVH Troubleshooting Chart"
Possible cause and SUSPECTED PARTS
Excessive joint angle
Joint sliding resistance
Imbalance
Improper installation, looseness
Parts interference
Wheel bearing damage
SUSPENSION
FRONT AXLE
TIRES
ROAD WHEEL
DRIVE SHAFT
BRAKES
STEERING
Symptom DRIVE
SHAFT Noise
×× × ××× ××
Shake × × × ××× ××
FRONT
AXLE Noise
×× × ×××××
Shake ×× × ×××××
Vibration ××××××
Shimmy ×××××××
Shudder ××××××
Poor quality ride or handling ××× × ××
Revision: November 20132014 Altima NAM

FAX-6
< PERIODIC MAINTENANCE >
FRONT WHEEL HUB
PERIODIC MAINTENANCE
FRONT WHEEL HUB
InspectionINFOID:0000000009464436
• Move wheel hub and bearing assembly in the axial direction by hand. Make sure there is no looseness of
wheel bearing.
• Rotate wheel hub and make sure that is no unusual noise or other irregular conditions. If there is any of irregular conditions, replace wheel hub and bearing assembly Axial end play : Refer to
FAX-27, "Wheel Bearing"
.
Revision: November 20132014 Altima NAM

FRONT DRIVE SHAFTFAX-7
< PERIODIC MAINTENANCE >
CEF
G H
I
J
K L
M A
B
FA X
N
O P
FRONT DRIVE SHAFT
InspectionINFOID:0000000009464437
• Check drive shaft mounting point and joint for looseness and other damage.
• Check boot for cracks and other damage. CAUTION:
Replace entire drive shaft assembly when noi se or vibration occur from drive shaft.
Revision: November 20132014 Altima NAM

FAX-8
< REMOVAL AND INSTALLATION >
FRONT WHEEL HUB
REMOVAL AND INSTALLATION
FRONT WHEEL HUB
Exploded ViewINFOID:0000000009464438
Removal and InstallationINFOID:0000000009464439
REMOVAL
1. Remove front wheel and tire using power tool. Refer to WT-55, "Adjustment".
2. Remove brake caliper using power tool, leaving brak e caliper hydraulic hose attached. Position brake cal-
iper aside with wire. Refer to BR-36, "BRAKE CALIPER ASSEMBLY : Exploded View"
.
CAUTION:
• Do not depress brake pedal while brake caliper is removed.
• Do not twist or stretch the brake hose.
3. Put alignment marks on disc rotor and wheel hub and bearing assembly, then remove disc rotor.

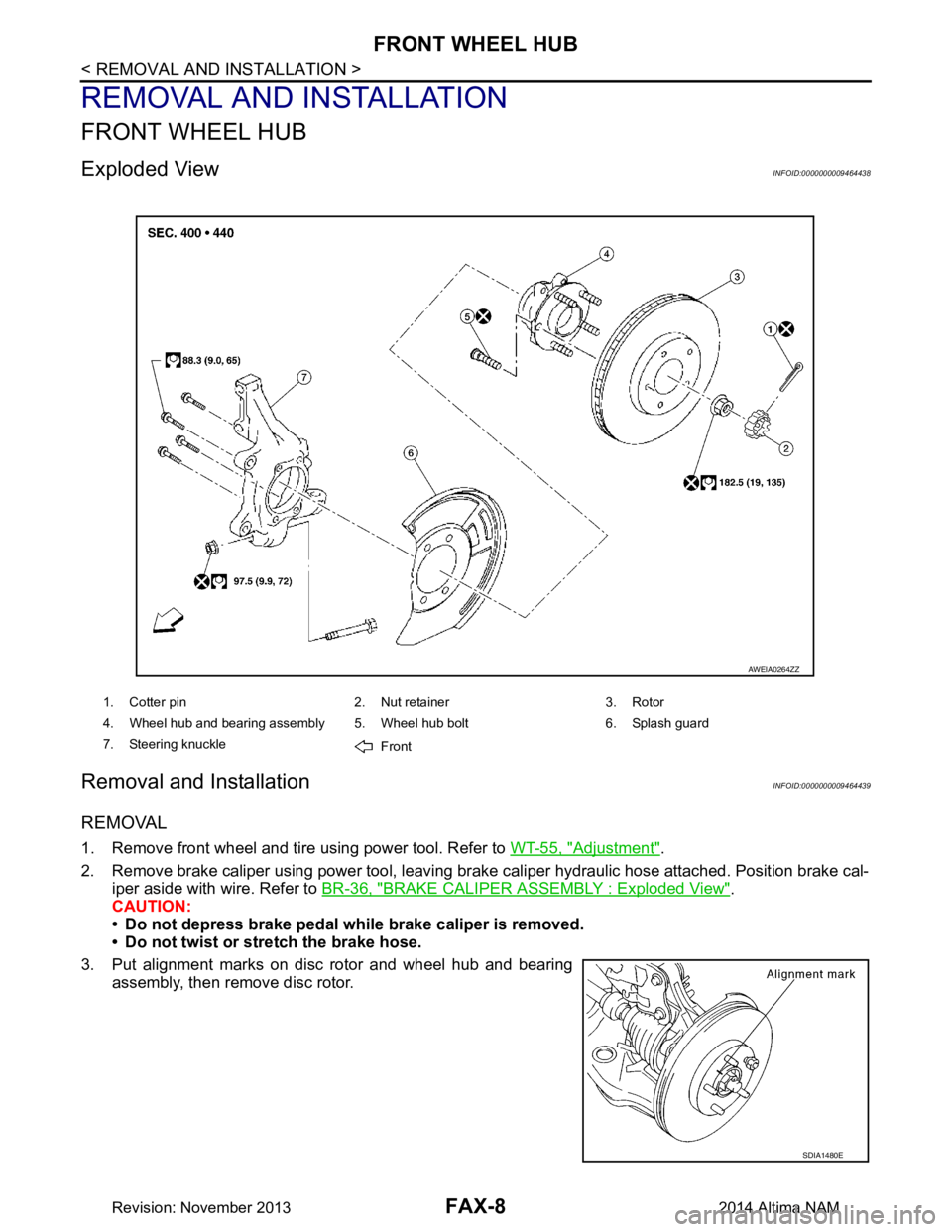

1. Cotter pin 2. Nut retainer 3. Rotor
4. Wheel hub and bearing assembly 5. Wheel hub bolt 6. Splash guard
7. Steering knuckle Front
AWEIA0264ZZ
SDIA1480E
Revision: November 20132014 Altima NAM
