NISSAN TEANA 2014 Service Manual

HAC-32
< ECU DIAGNOSIS INFORMATION >[AUTOMATIC AIR CONDITIONER]
A/C AUTO AMP.
*: Perform self-diagnosis under direct sunlight. When performing indoors, aim a light (more than 60 W) at sunload sensor, other
wise self-
diagnosis reports an error even though the sunload sensor is functioning normally. B2655 B/L2 DOOR FAIL
HAC-73, "DTC Logic"
B27B0 A/C AUTO AMP. HAC-77, "DTC Logic"
DTCItems
(CONSULT screen terms) Reference
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

ECM, IPDM E/R, BCMHAC-33
< ECU DIAGNOSIS INFORMATION > [AUTOMATIC AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P
ECM, IPDM E/R, BCM
List of ECU ReferenceINFOID:0000000009463107
ECU Reference
ECM EC-88, "Reference Value"
(QR25DE)
EC-613, "Reference Value"
(VQ35DE)
EC-101, "Fail Safe"
(QR25DE)
EC-627, "Fail-safe"
(VQ35DE)
EC-104, "DTC Inspection Priority Chart"
(QR25DE)
EC-629, "DTC Inspection Priority Chart"
(VQ35DE)
EC-105, "DTC Index"
(QR25DE)
EC-630, "DTC Index"
(VQ35DE)
IPDM E/R PCS-12, "Reference Value"
PCS-19, "Fail Safe"
PCS-20, "DTC Index"
BCMBCS-31, "Reference Value"BCS-50, "Fail Safe"
BCS-50, "DTC Inspection Priority Chart"
BCS-52, "DTC Index"
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

HAC-34
< WIRING DIAGRAM >[AUTOMATIC AIR CONDITIONER]
AIR CONDITIONER CONTROL
WIRING DIAGRAM
AIR CONDITIONER CONTROL

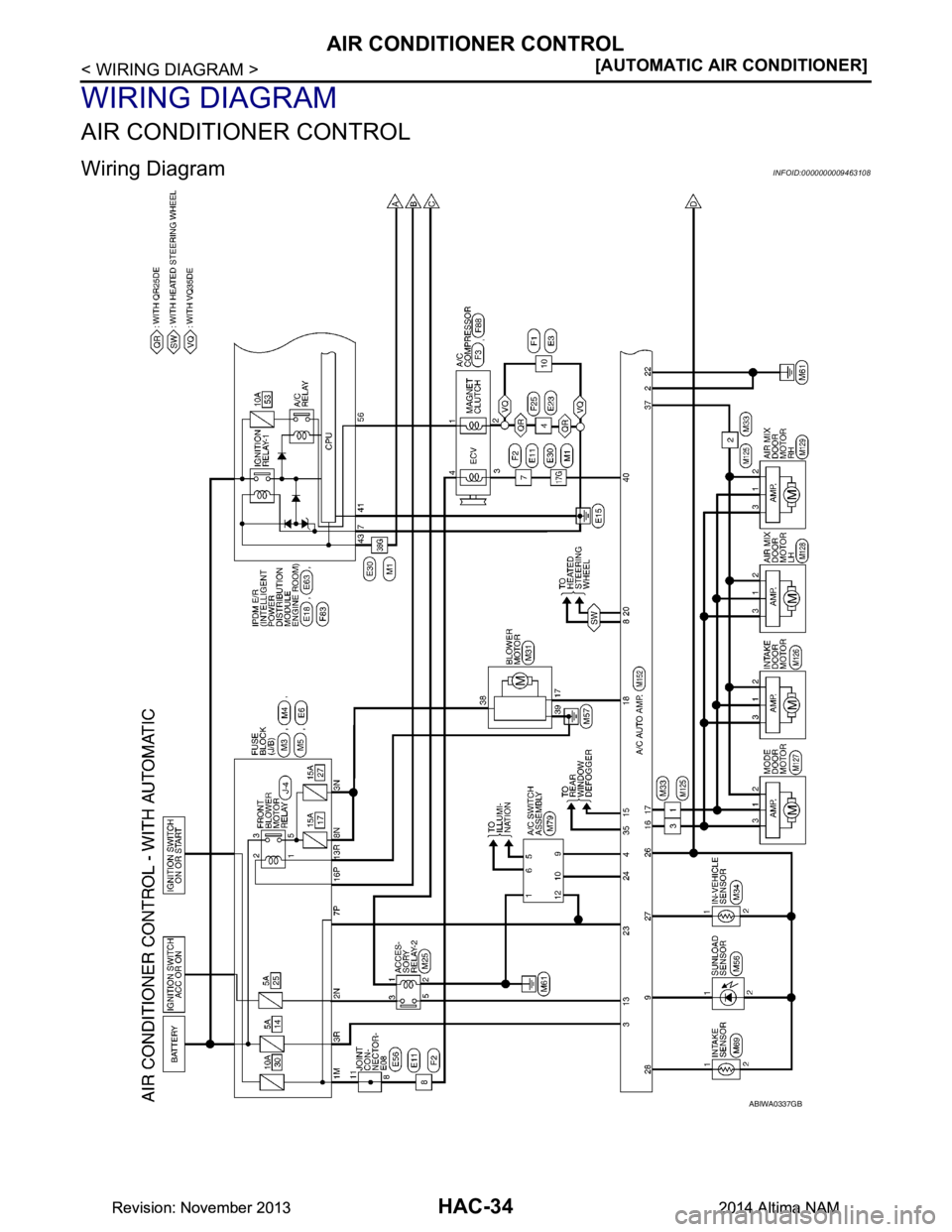

Wiring DiagramINFOID:0000000009463108
ABIWA0337GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

AIR CONDITIONER CONTROLHAC-35
< WIRING DIAGRAM > [AUTOMATIC AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P

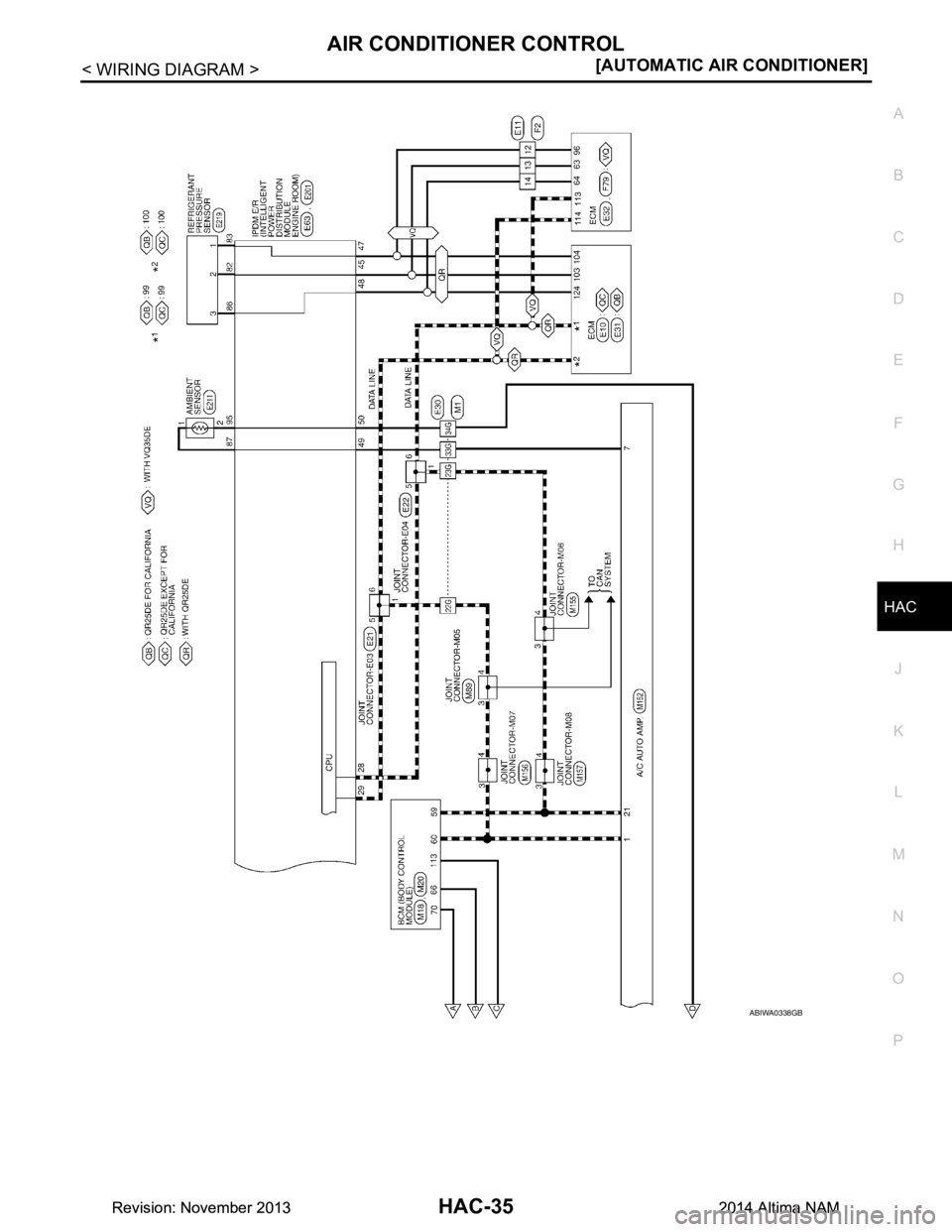

ABIWA0338GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

HAC-36
< WIRING DIAGRAM >[AUTOMATIC AIR CONDITIONER]
AIR CONDITIONER CONTROL

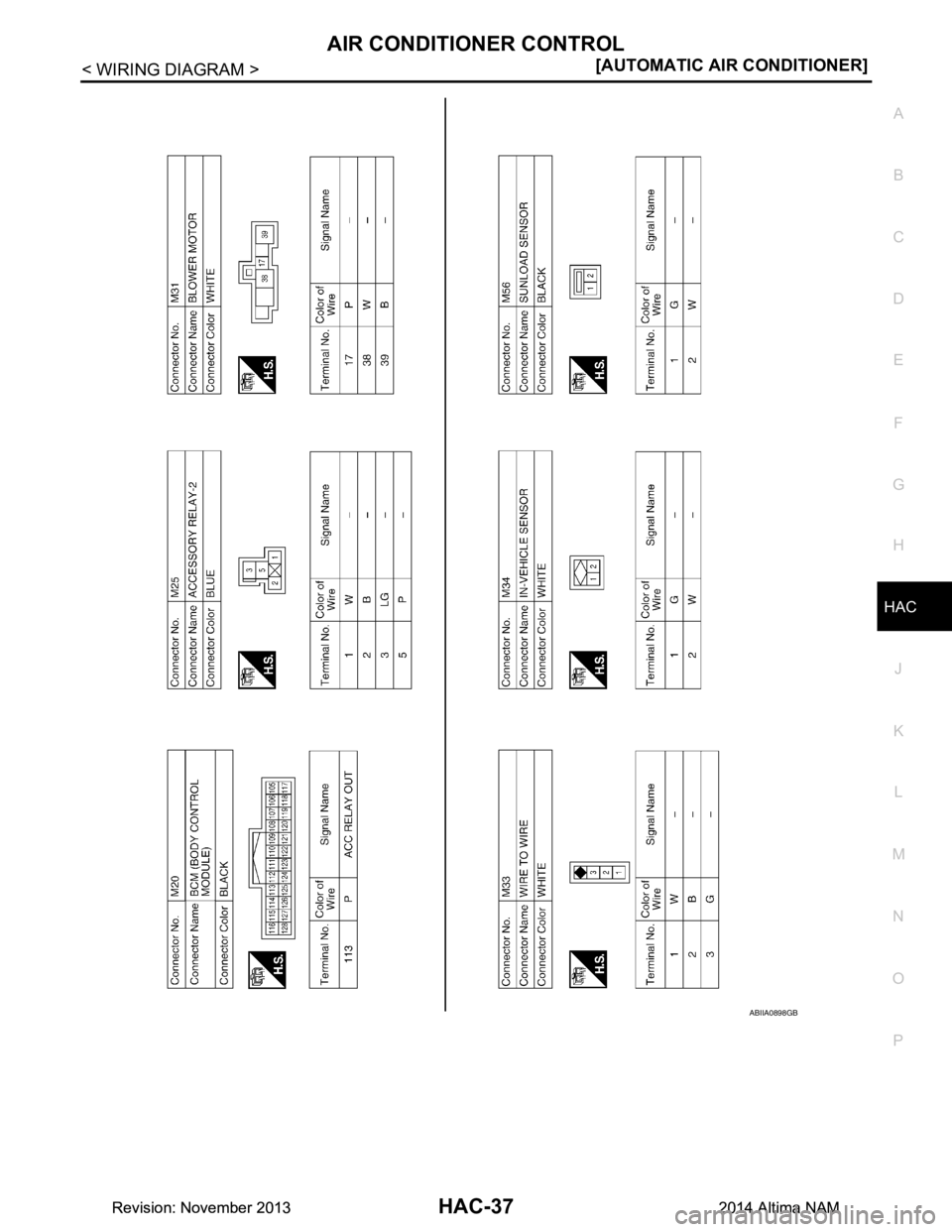

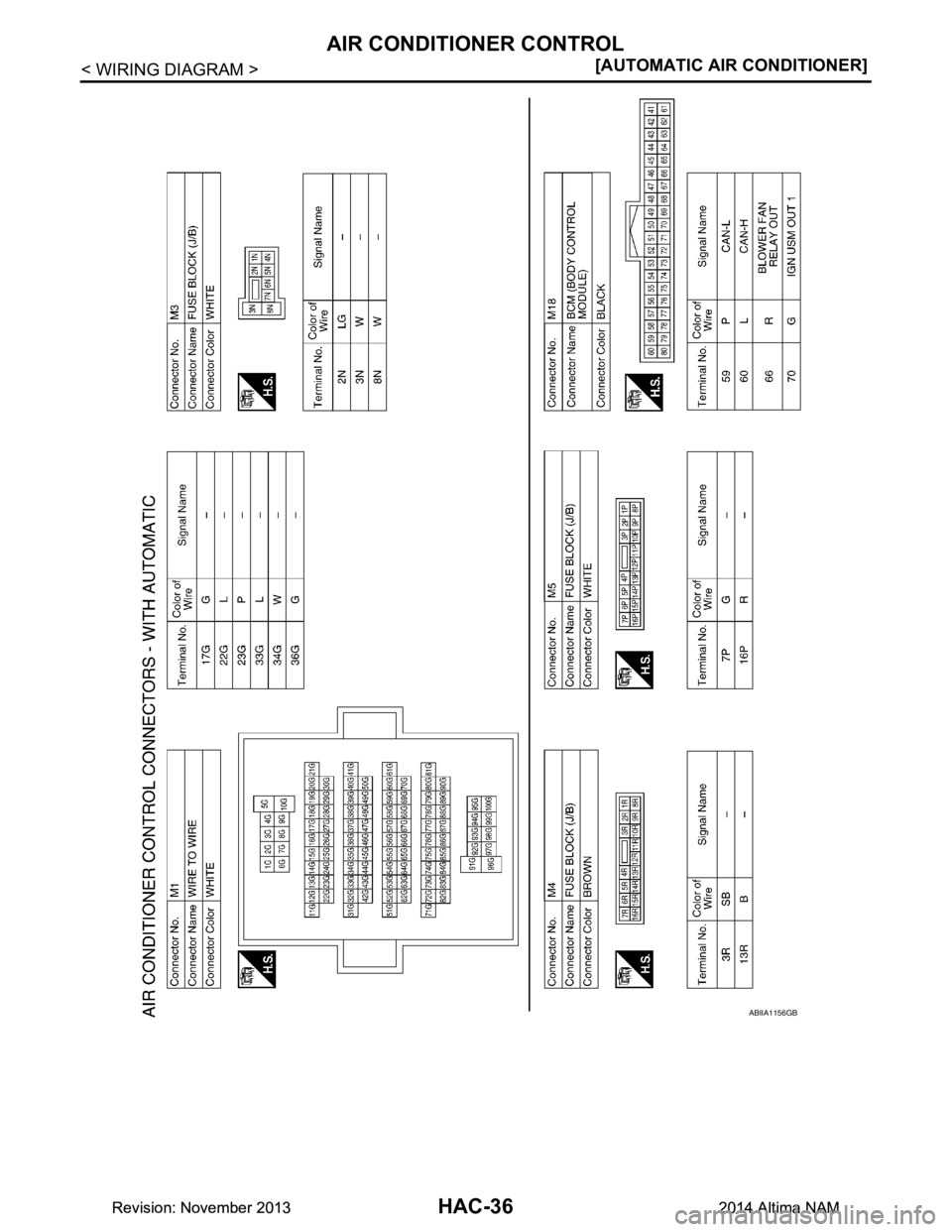

ABIIA1156GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

AIR CONDITIONER CONTROLHAC-37
< WIRING DIAGRAM > [AUTOMATIC AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P

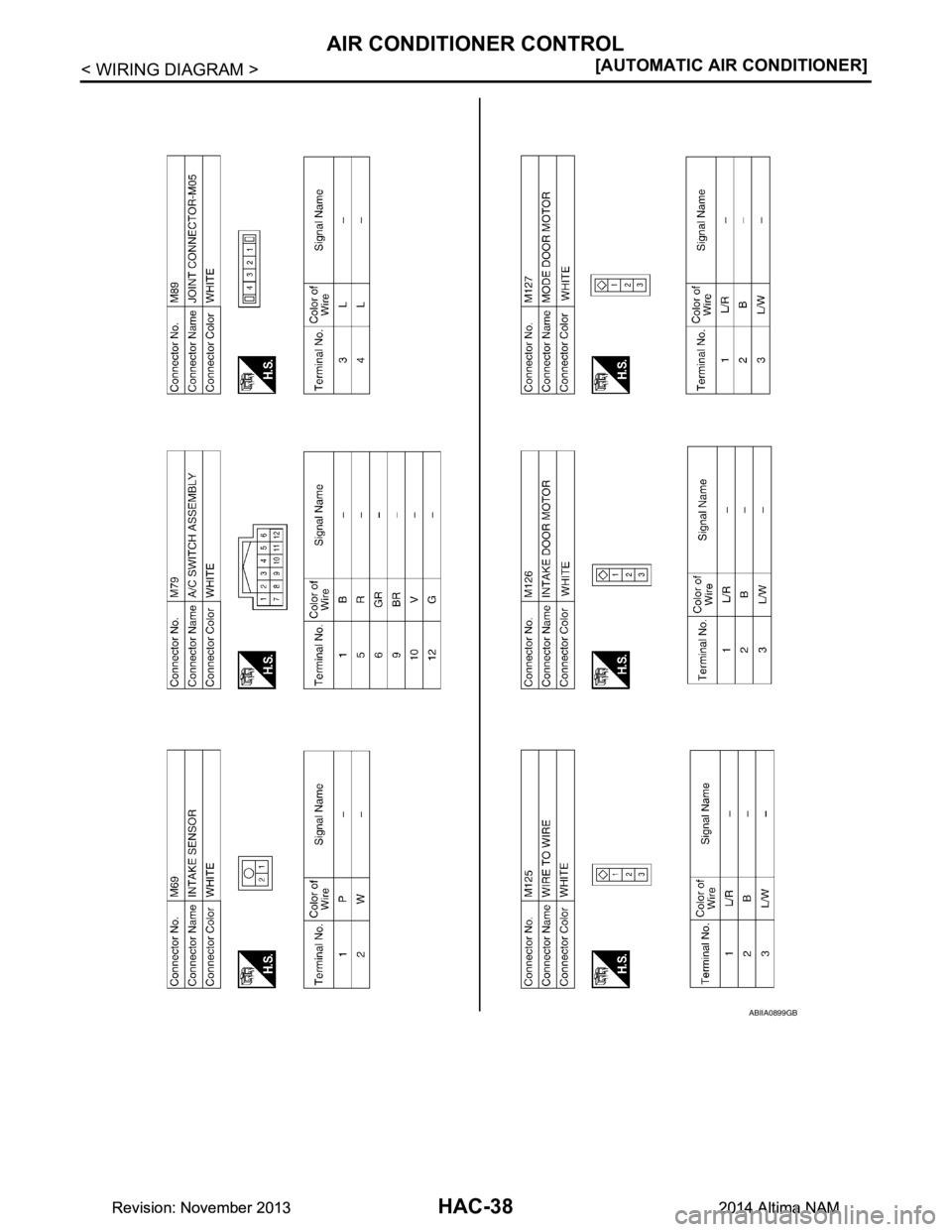

ABIIA0898GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

HAC-38
< WIRING DIAGRAM >[AUTOMATIC AIR CONDITIONER]
AIR CONDITIONER CONTROL
ABIIA0899GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

AIR CONDITIONER CONTROLHAC-39
< WIRING DIAGRAM > [AUTOMATIC AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P

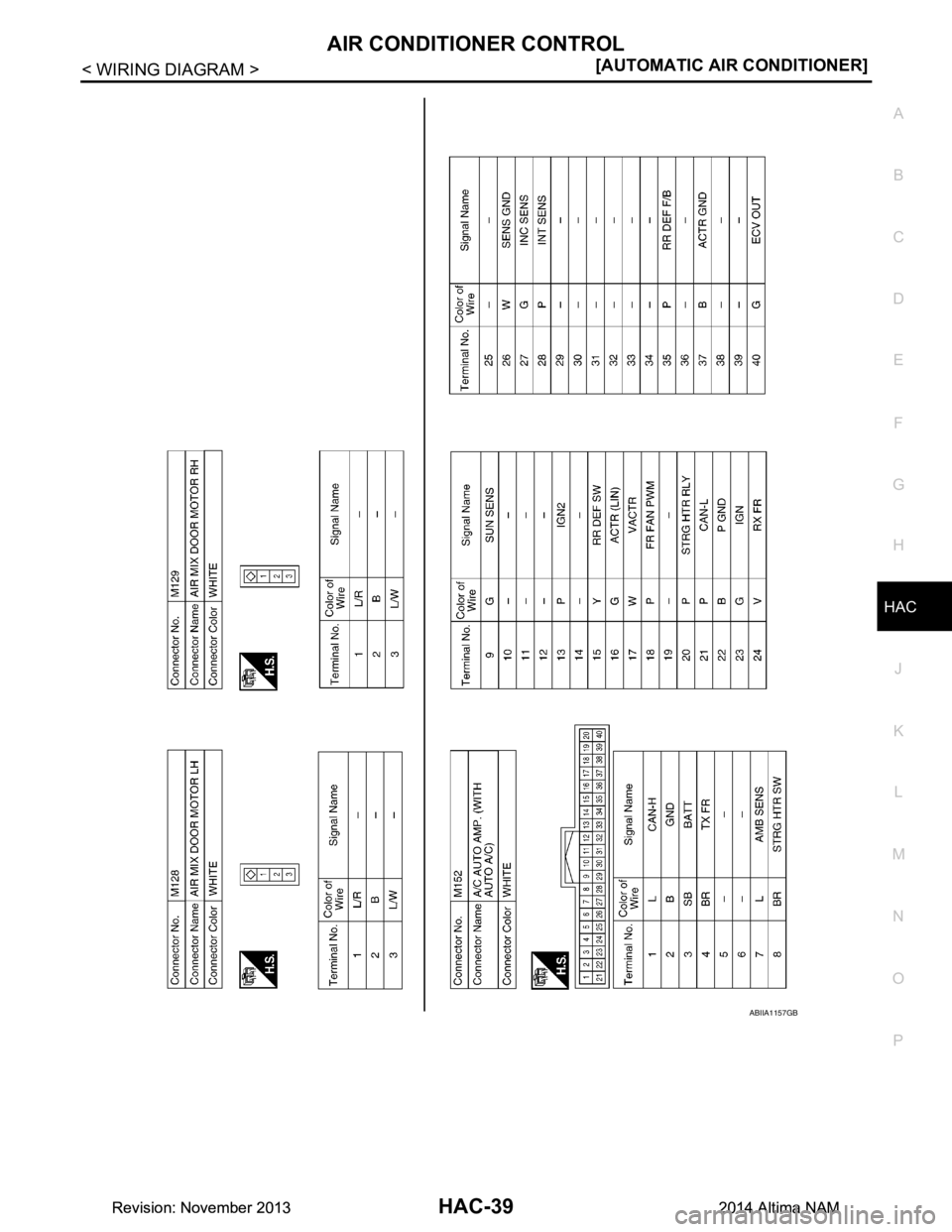

ABIIA1157GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

HAC-40
< WIRING DIAGRAM >[AUTOMATIC AIR CONDITIONER]
AIR CONDITIONER CONTROL

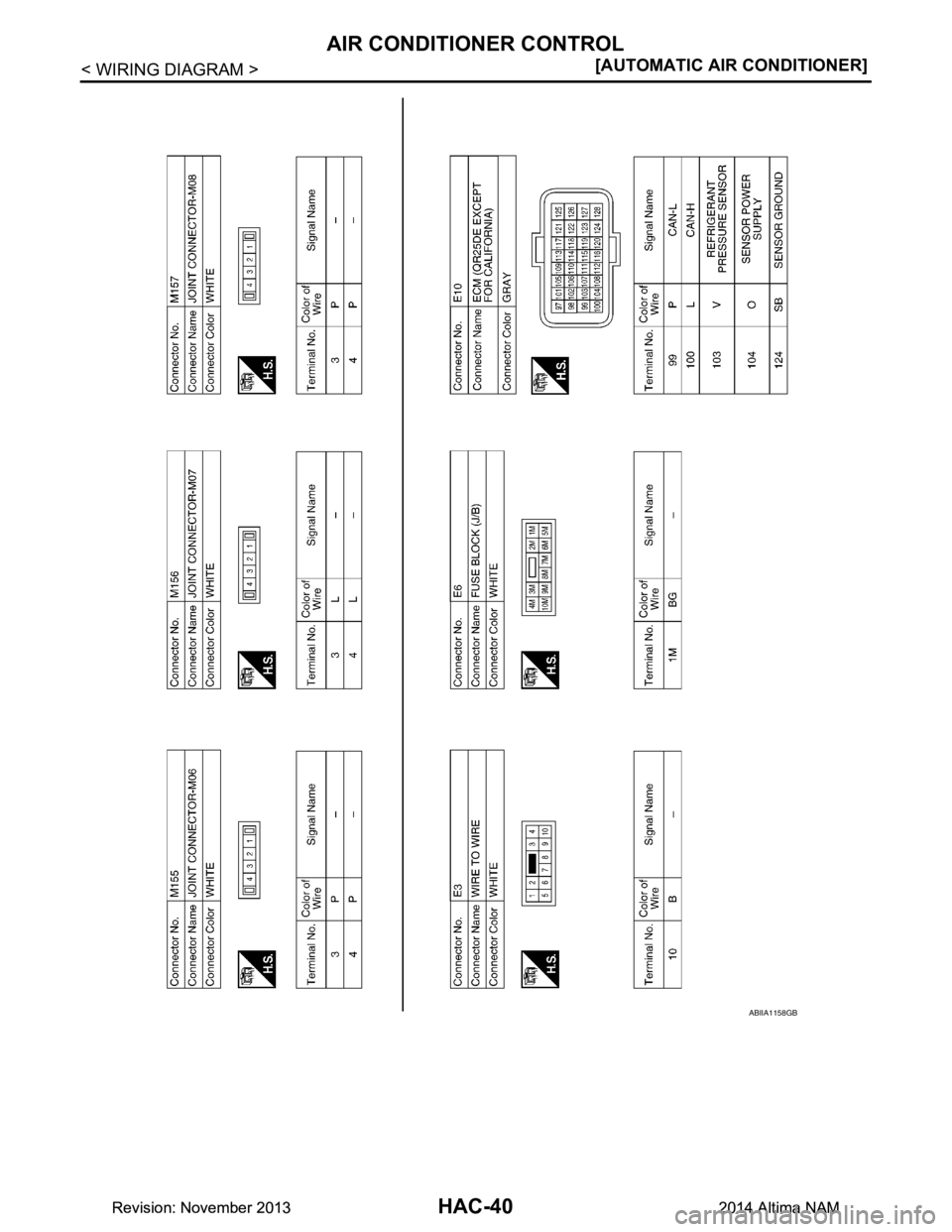

ABIIA1158GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

AIR CONDITIONER CONTROLHAC-41
< WIRING DIAGRAM > [AUTOMATIC AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P

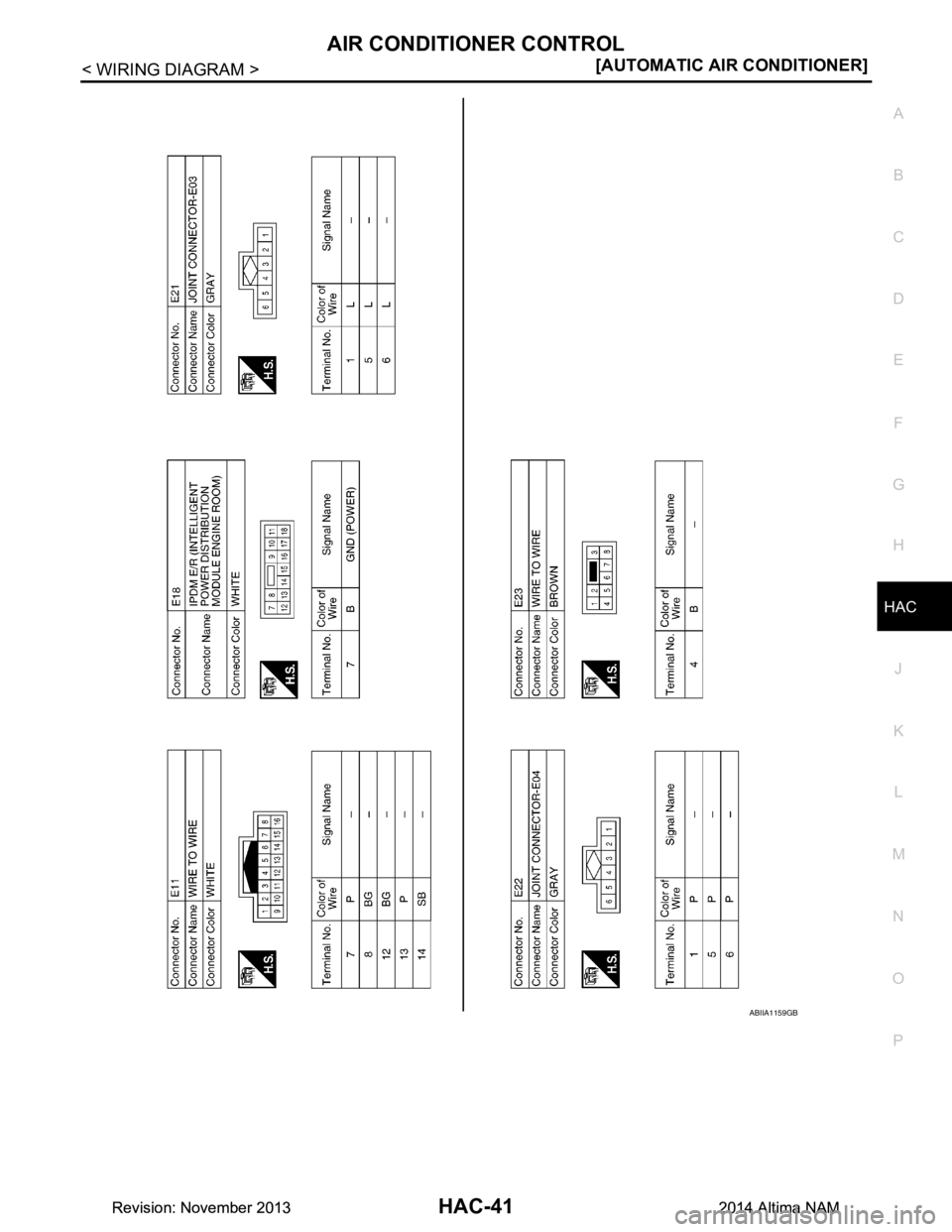

ABIIA1159GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
