NISSAN TEANA 2014 Service Manual

HAC-42
< WIRING DIAGRAM >[AUTOMATIC AIR CONDITIONER]
AIR CONDITIONER CONTROL

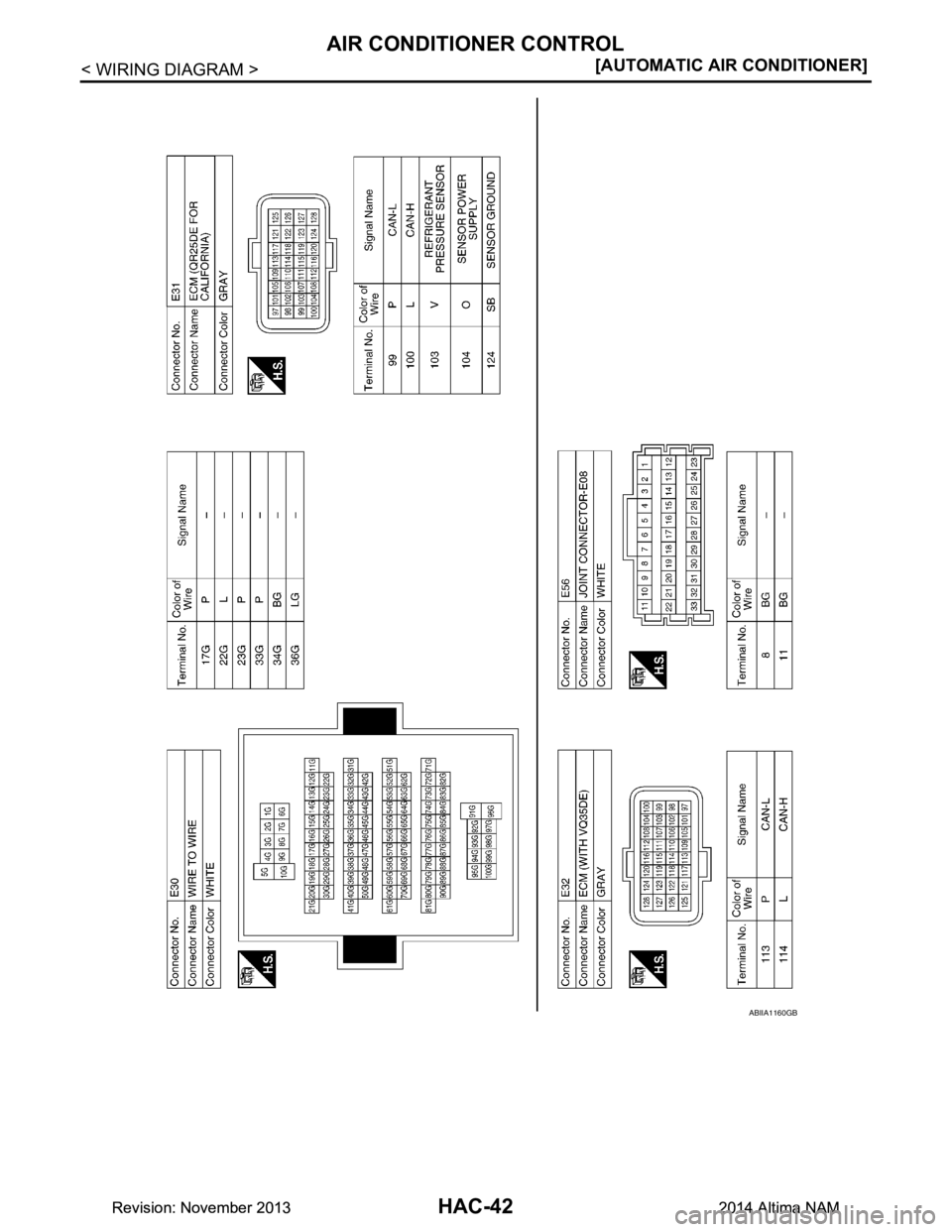

ABIIA1160GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

AIR CONDITIONER CONTROLHAC-43
< WIRING DIAGRAM > [AUTOMATIC AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P

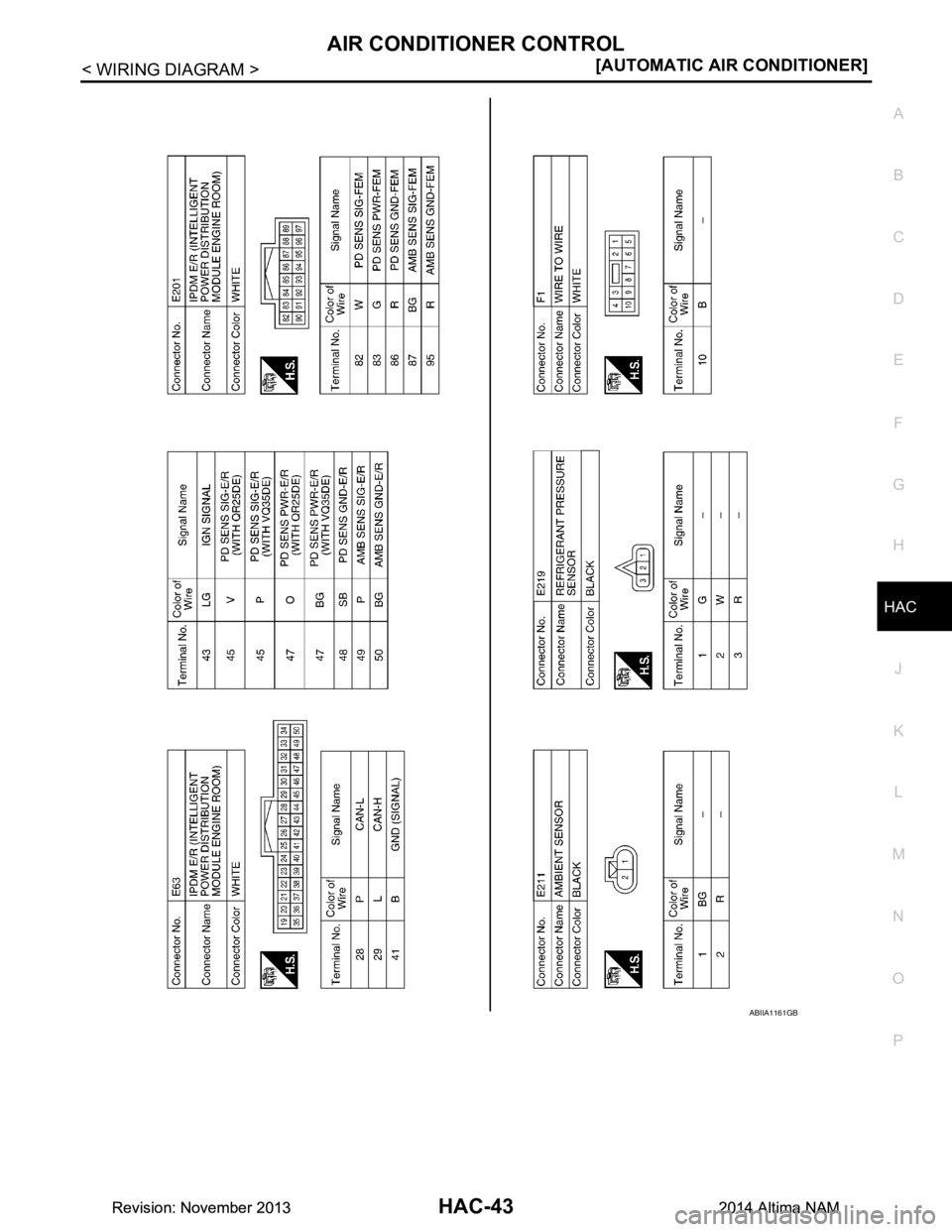

ABIIA1161GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

HAC-44
< WIRING DIAGRAM >[AUTOMATIC AIR CONDITIONER]
AIR CONDITIONER CONTROL

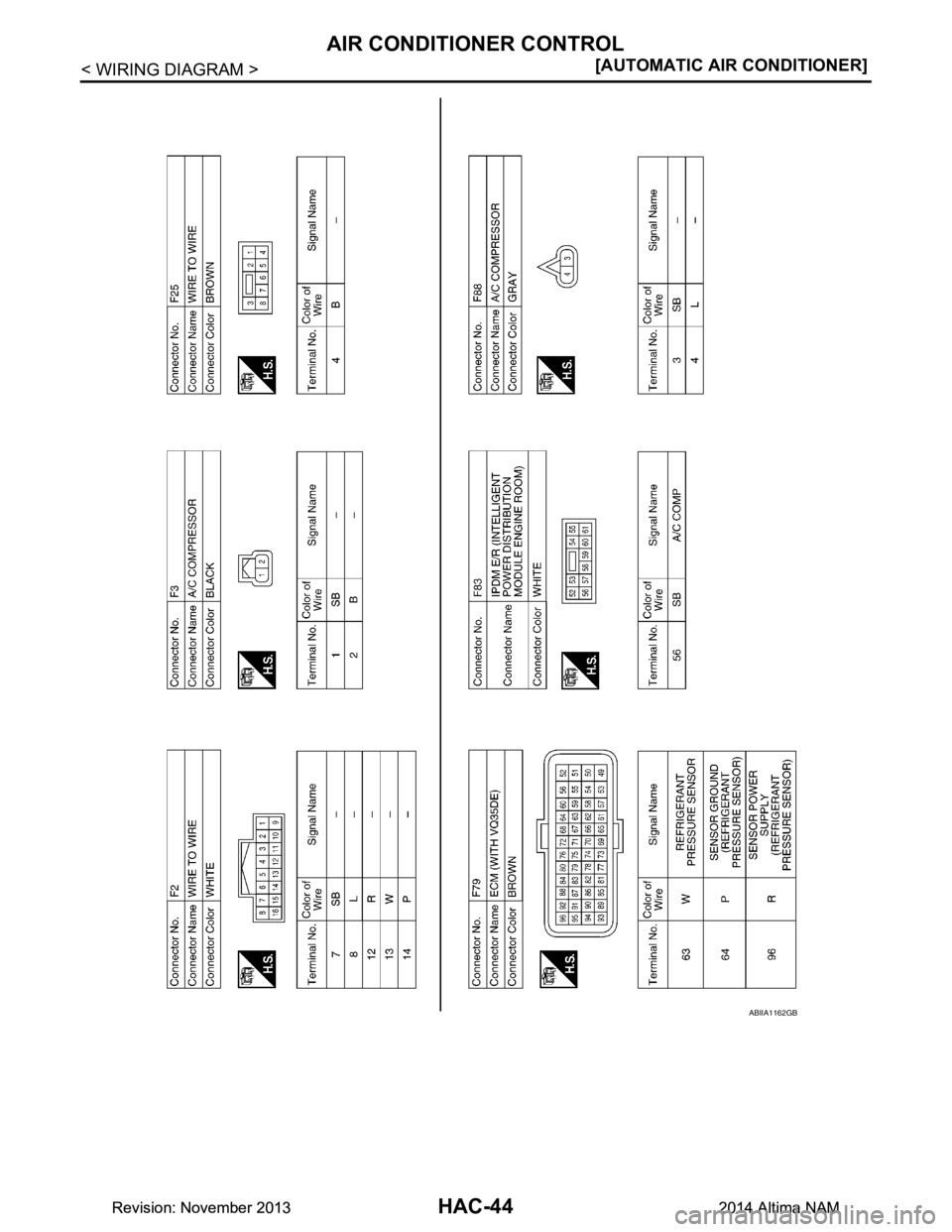

ABIIA1162GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

AIR CONDITIONER CONTROLHAC-45
< WIRING DIAGRAM > [AUTOMATIC AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P

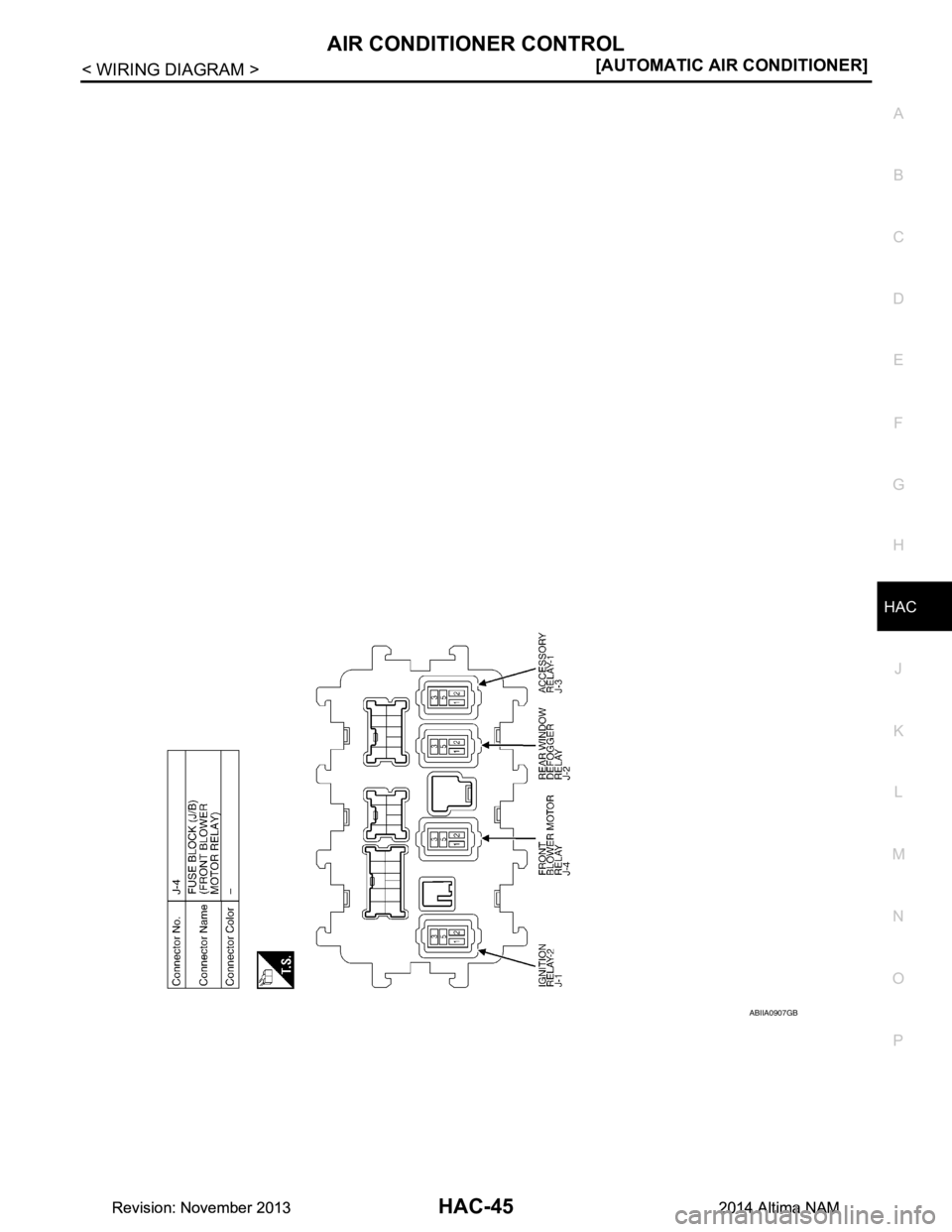

ABIIA0907GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

HAC-46
< BASIC INSPECTION >[AUTOMATIC AIR CONDITIONER]
DIAGNOSIS AND REPAIR WORKFLOW
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW

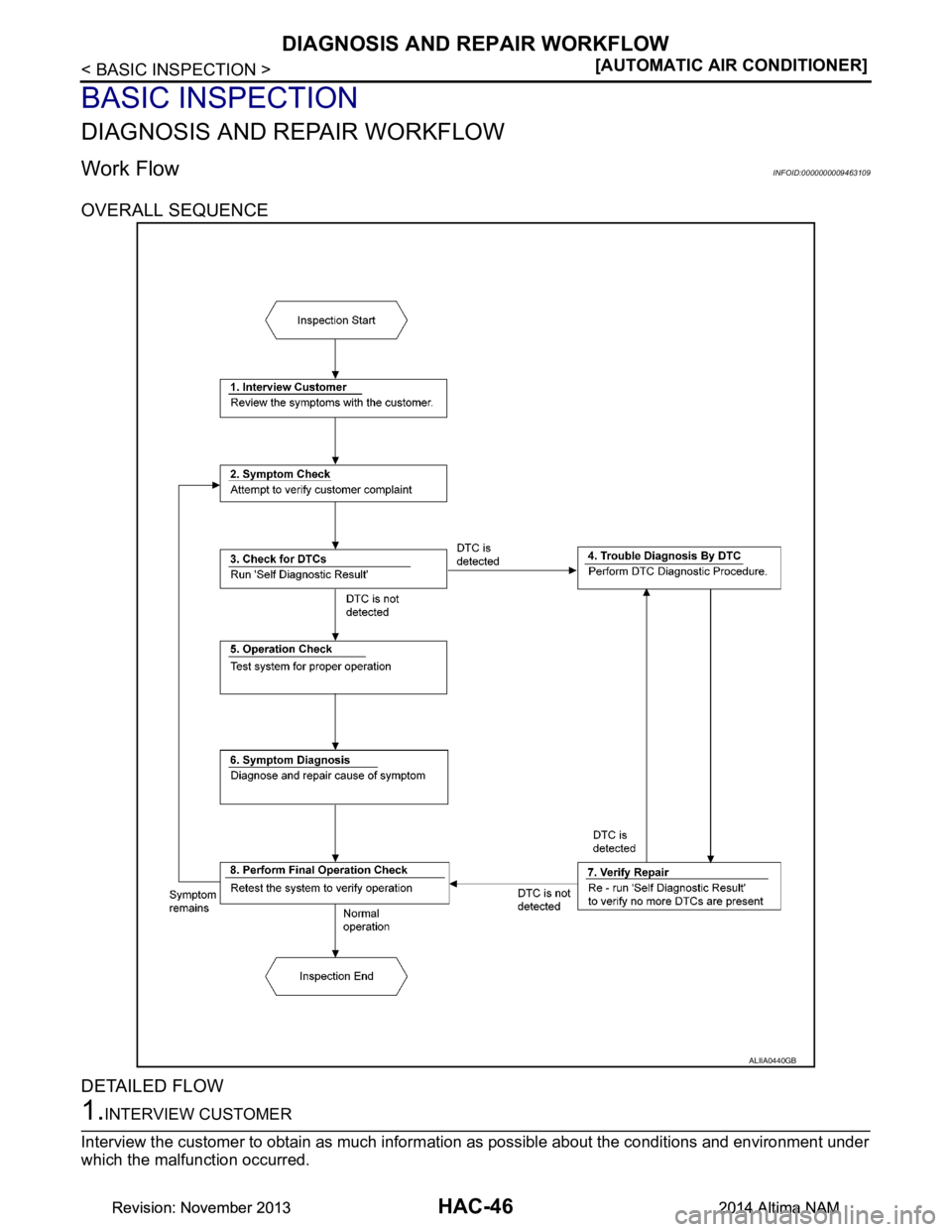

Work FlowINFOID:0000000009463109
OVERALL SEQUENCE
DETAILED FLOW
1.INTERVIEW CUSTOMER
Interview the customer to obtain as much inform ation as possible about the conditions and environment under
which the malfunction occurred.
ALIIA0440GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DIAGNOSIS AND REPAIR WORKFLOWHAC-47
< BASIC INSPECTION > [AUTOMATIC AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P
>> GO TO 2.
2.SYMPTOM CHECK
Verify symptoms.
>> GO TO 3.
3.CHECK FOR DTCS
With CONSULT
1. Turn ignition switch ON.
2. Select “Self Diagnostic Result” mode of “HVAC” using CONSULT.
3. Check DTC.
Is any DTC detected?
YES >> GO TO 4.
NO >> GO TO 5.
4.PERFORM DTC DIAGNOSTIC PROCEDURE
Perform the diagnostic procedure fo r the detected DTC. Refer to HAC-30, "DTC Inspection Priority Chart"
.
>> GO TO 7.
5.OPERATION CHECK
Perform the operation check. Refer to HAC-48, "Work Procedure"
.
>> GO TO 6.
6.SYMPTOM DIAGNOSIS
Check the symptom diagnosis table. Refer to HAC-94, "Diagnosis Chart By Symptom"
.
>> GO TO 8.
7.VERIFY REPAIR.
With CONSULT
1. Turn ignition switch ON.
2. Select “Self Diagnostic Result” mode of “HVAC” using CONSULT.
3. Check DTC.
Is any DTC detected?
YES >> GO TO 4.
NO >> GO TO 8.
8.PERFORM FINAL OPERATION CHECK
Perform the operation check. Refer to HAC-48, "Work Procedure"
.
Does it operate normally?
YES >> Inspection End.
NO >> GO TO 2.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

HAC-48
< BASIC INSPECTION >[AUTOMATIC AIR CONDITIONER]
OPERATION INSPECTION
OPERATION INSPECTION
Work ProcedureINFOID:0000000009463110
DESCRIPTION
The purpose of the operational check is to che
ck that the individual system operates normally.
INSPECTION PROCEDURE
1.CHECK MEMORY FUNCTION
1. Start the engine.
2. Operate the temperature control switch (drive r side) and raise the temperature setting to 32°C (90 °F).
3. Press the OFF switch.
4. Turn the ignition switch OFF.
5. Turn the ignition switch ON.
6. Press the AUTO switch.
7. Check that the temperature setting, before turning the ignition switch OFF, is stored.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Check power and ground circuits for A/C auto amp. Refer to HAC-78, "A/C AUTO AMP. : Diagno-
sis Procedure".
2.CHECK BLOWER MOTOR SPEED
1. Operate the fan control dial. Check that the fan speed changes.
2. Check the operation for all fan speeds.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Check blower motor system. Refer to HAC-84, "Diagnosis Procedure"
.
3.CHECK DISCHARGE AIR (MODE SWITCH AND DEF SWITCH)
1. Press the MODE switch and the DEF switch.
2. Check that the air outlets change according to each i ndicated air outlet by placing a hand in front of the
outlets. Refer to HAC-13, "System Description"
.
NOTE:
Confirm that the A/C compressor clutch is engaged (sound or visual inspection) and intake door position is at
FRE ( ) when the D/F ( ) or DEF ( ) is selected.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Check mode door system. Refer to HAC-80, "MODE DOOR MOTOR : Diagnosis Procedure"
.
4.CHECK INTAKE AIR
1. Press the REC ( ) switch. Indicator is turned ON.
2. Press the FRE ( ) switch. Indicator is turned ON.
3. Listen for the intake door position change. (Slight change of blower sound can be heard.)
NOTE:
Confirm that the A/C compressor clutch is engaged (sound or visual inspection) and the FRE ( ) switch is
pressed when the D/F ( ) or DEF ( ) is selected.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Check intake door system. Refer to HAC-81, "INTAKE DOOR MOTOR : Diagnosis Procedure"
.
5.CHECK A/C SWITCH
1. Press the A/C switch.
2. The A/C switch indicator is turned ON.
Confirm that the A/C compressor clutch engages (sound or visual inspection).
Is the inspection result normal?
Conditions : Engine running at normal operating temperature
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

OPERATION INSPECTIONHAC-49
< BASIC INSPECTION > [AUTOMATIC AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P
YES >> GO TO 6.
NO >> Check magnet clutch system. Refer to HAC-87, "Diagnosis Procedure"
.
6.CHECK TEMPERATURE DECREASE
1. Operate the A/C compressor.
2. Operate the temperature control switch (drive r side) and lower the temperature setting to 18°C (60 °F).
3. Check that the cool air blows from the outlets.
Is the inspection result normal?
YES >> GO TO 7.
NO >> Check for insufficient cooling. Refer to HAC-96, "Diagnosis Procedure"
.
7.CHECK TEMPERATURE INCREASE
1. Operate the temperature control switch (drive r side) and raise the temperature setting to 32°C (90 °F) after
warming up the engine.
2. Check that the warm air blows from the outlets.
Is the inspection result normal?
YES >> GO TO 8.
NO >> Check for insufficient heating. Refer to HAC-98, "Diagnosis Procedure"
.
8.CHECK DUAL MODE FUNCTION
1. Press the DUAL mode switch, and then check that “DUAL” is shown on the display.
2. Operate the temperature control switch (driver si de). Check that the discharge air temperature (driver
side) changes.
3. Operate the temperature control switch (passenger side). Check that the discharge air temperature (pas-
senger side) changes.
4. Press the DUAL mode switch, and then check that the temperature setting (driver/passenger) is unified to
the driver side temperature setting.
Is the inspection result normal?
YES >> GO TO 9.
NO >> Refer to HAC-94, "Diagnosis Chart By Symptom"
and perform the appropriate diagnosis.
9.CHECK AUTO MODE
1. Press the AUTO switch, and then check t hat “AUTO” is shown on the display.
2. Operate the temperature control switch (driver side) . Check that the fan speed, outlet air or intake air
changes. The discharge air temperature or fan speed varies depending on the ambient temperature, in-
vehicle temperature, and temperature setting.
Is the inspection result normal?
YES >> Inspection End
NO >> Refer to HAC-94, "Diagnosis Chart By Symptom"
and perform the appropriate diagnosis.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

HAC-50
< BASIC INSPECTION >[AUTOMATIC AIR CONDITIONER]
SYSTEM SETTING
SYSTEM SETTING
Temperature Setting TrimmerINFOID:0000000009463111
Description
If the temperature felt by the customer is different
than the airflow temperature controlled by the temperature
setting, the auto amplifier control temperature can be adjusted to compensate for the temperature setting.
How to set
Using CONSULT, perform “TEMP SET CORRECT” in “WORK SUPPORT” of HVAC.
NOTE:
• When the temperature setting is set to 25.0 °C (77 °F) and −3.0 °C ( −6 °F), the temperature controlled by auto amp is 25.0 °C (77 °F) −
3.0 °C (6 °F) = 22.0 °C (71 °F) and the temperature becomes lower than the temperature setting.
• When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10V or less, the setting of the
difference between the temperature setting and control temperature may be cancelled.
Foot Position Setting TrimmerINFOID:0000000009463112
Description
In the FOOT mode, the air blowing to the DEF can be turned ON/OFF.
How to set
Using CONSULT, perform “BLOW SE T” in “WORK SUPPORT” of HVAC.
NOTE:
When the battery cable is disconnec ted from the negative terminal or when the battery voltage becomes 10V
or less, the setting of the discharge air mix ratio in FOOT mode may be cancelled.
Inlet Port Memory Function (FRE)INFOID:0000000009463113
Description
Work support items Display ( °F) Display ( °C)
TEMP SET CORRECT 63.0
52.5
42.0
31.5
21.0
10.5
0 (initial status) 0 (initial status) −1 −0.5
− 2 −1.0
− 3 −1.5
− 4 −2.0
− 5 −2.5
− 6 −3.0
Work support items Display DEF door position
Auto control Manual control
BLOW SET Mode 1 OPEN CLOSE
Mode 2 (initial status) OPEN OPEN
Mode 3 CLOSE OPEN
Mode 4 CLOSE CLOSE
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

SYSTEM SETTINGHAC-51
< BASIC INSPECTION > [AUTOMATIC AIR CONDITIONER]
C
D E
F
G H
J
K L
M A
B
HAC
N
O P
• If the ignition switch is turned to the OFF position while the FRE ( ) switch is set to ON (fresh air intake),
“Perform the memory” or “Do not perform the memory” of the FRE ( ) switch ON (fresh air intake) con-
dition can be selected.
• If “Perform the memory” was set, the FRE ( ) switch will be ON (fresh air intake) when turning the igni- tion switch to the ON position again.
• If “Do not perform the memory” was set, the air inlets will be controlled automatically when turning the igni- tion switch to the ON position again.
How to set
Using CONSULT, perform “FRE MEMORY SET” in “WORK SUPPORT” of HVAC.
NOTE:
When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10V or less, the setting of the
FRE switch memory function may be cancelled.
Inlet Port Memory Function (REC)INFOID:0000000009463114
Description
• If the ignition switch is turned to the OFF position wh ile the REC ( ) switch is set to ON (recirculation),
“Perform the memory” or “Do not perform the memory” of the REC ( ) switch ON (recirculation) condi-
tion can be selected.
• If “Perform the memory” was set, the REC ( ) switch will be ON (recirculation) when turning the ignition
switch to the ON position again.
• If “Do not perform the memory” was set, the air inlets will be controlled automatically when turning the igni-
tion switch to the ON position again.
How to set
Using CONSULT, perform “REC MEMORY SET” in “WORK SUPPORT” of HVAC.
NOTE:
When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10V or less, the setting of the
REC switch memory function may be cancelled.
Target Evaporator Temp Upper LimitINFOID:0000000009463115
DESCRIPTION
Set the target evaporator temperature upper limit.
HOW TO SET
With CONSULT
Perform the “TARGET EVAPORATOR TEMP UPPER LI MIT SETTING” of HVAC work support item.
Work support items Display Setting
FRE MEMORY SET WITHOUT Perform the memory of manual FRE
WITH (initial status) Do not perform the memory of manual FRE (auto
control)
Work support items Display Setting
REC MEMORY SET WITHOUT (initial status) Perform the memory of manual REC
WITH Do not perform the memory of manual REC (auto
control)
Work support items Display
TARGET EVAPORATOR TEMP UPPER LIMIT
SETTING Initial Setting
Low
Middle
High
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
