NISSAN TEANA 2014 Service Manual

INL-40
< WIRING DIAGRAM >
ILLUMINATION

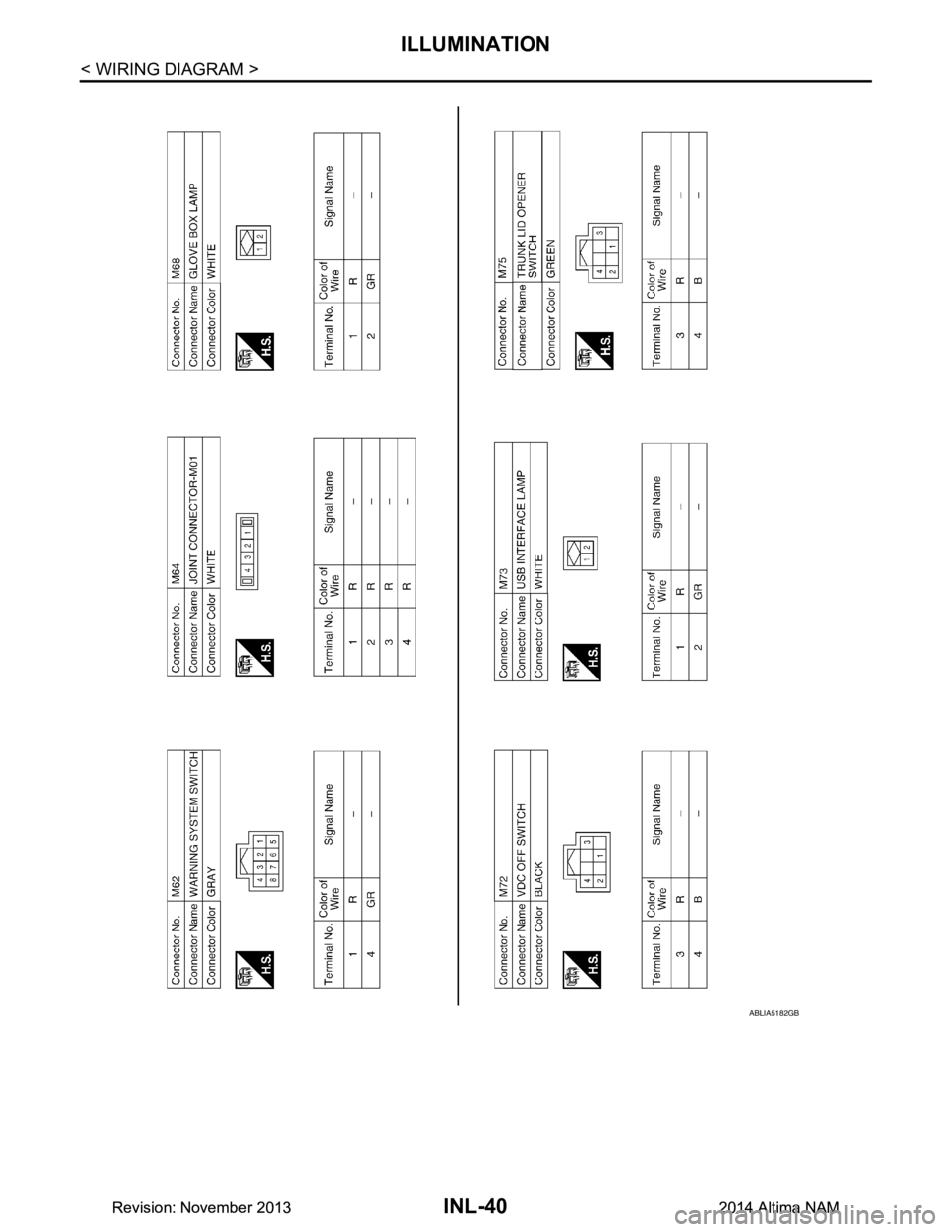

ABLIA5182GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

ILLUMINATIONINL-41
< WIRING DIAGRAM >
C
D E
F
G H
I
J
K
M A
B
INL
N
O P
ABLIA5183GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

INL-42
< WIRING DIAGRAM >
ILLUMINATION

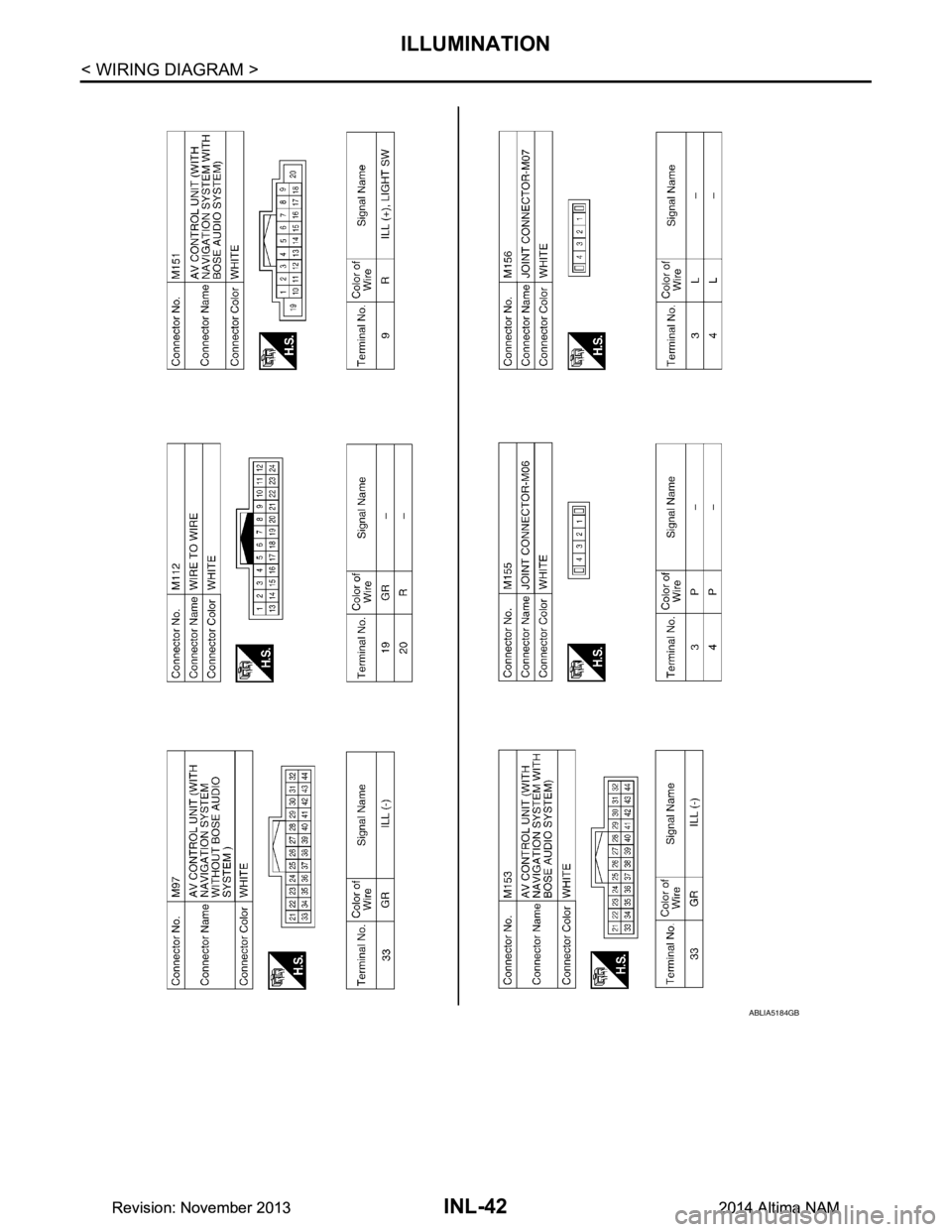

ABLIA5184GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

ILLUMINATIONINL-43
< WIRING DIAGRAM >
C
D E
F
G H
I
J
K
M A
B
INL
N
O P

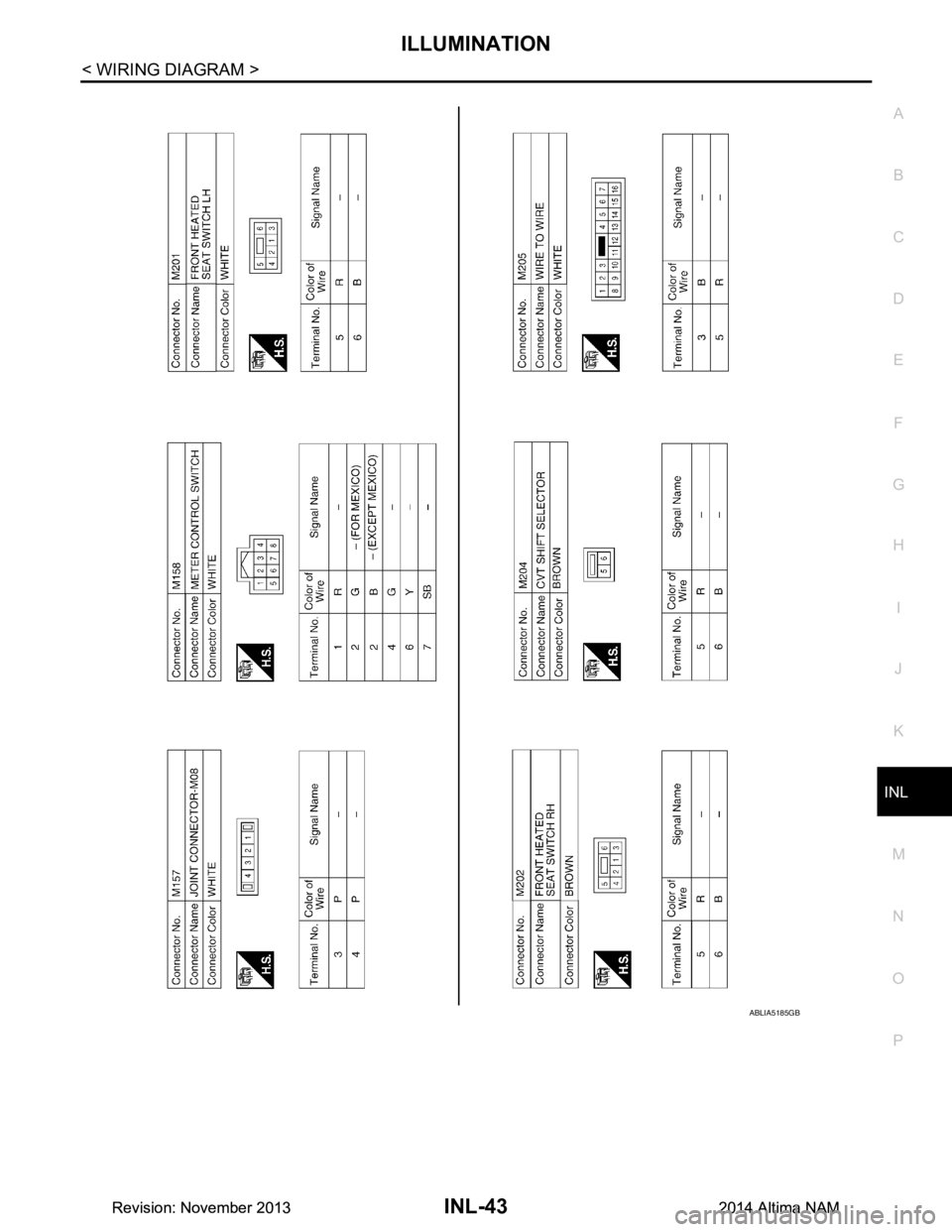

ABLIA5185GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

INL-44
< WIRING DIAGRAM >
ILLUMINATION
ABLIA5186GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

ILLUMINATIONINL-45
< WIRING DIAGRAM >
C
D E
F
G H
I
J
K
M A
B
INL
N
O P

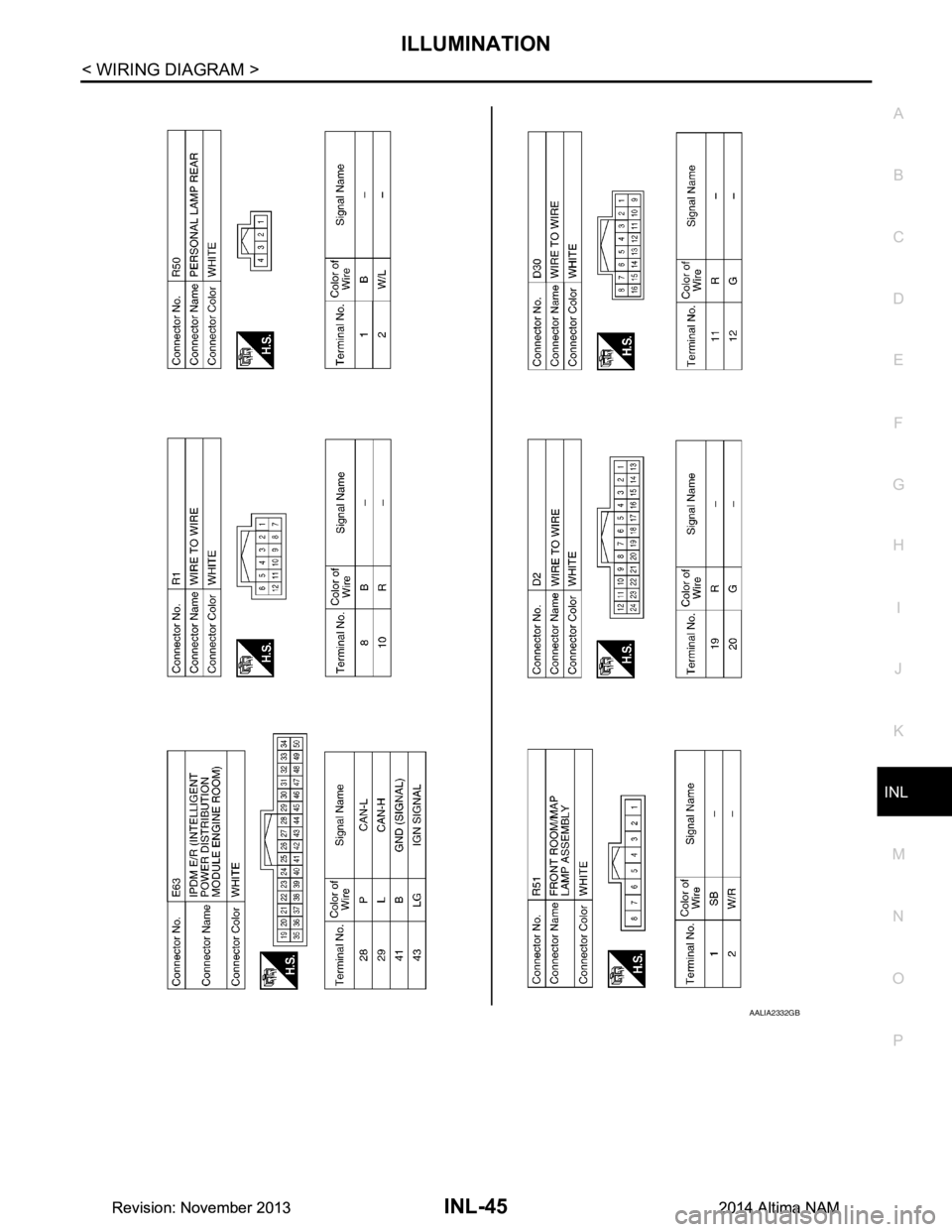

AALIA2332GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

INL-46
< WIRING DIAGRAM >
ILLUMINATION

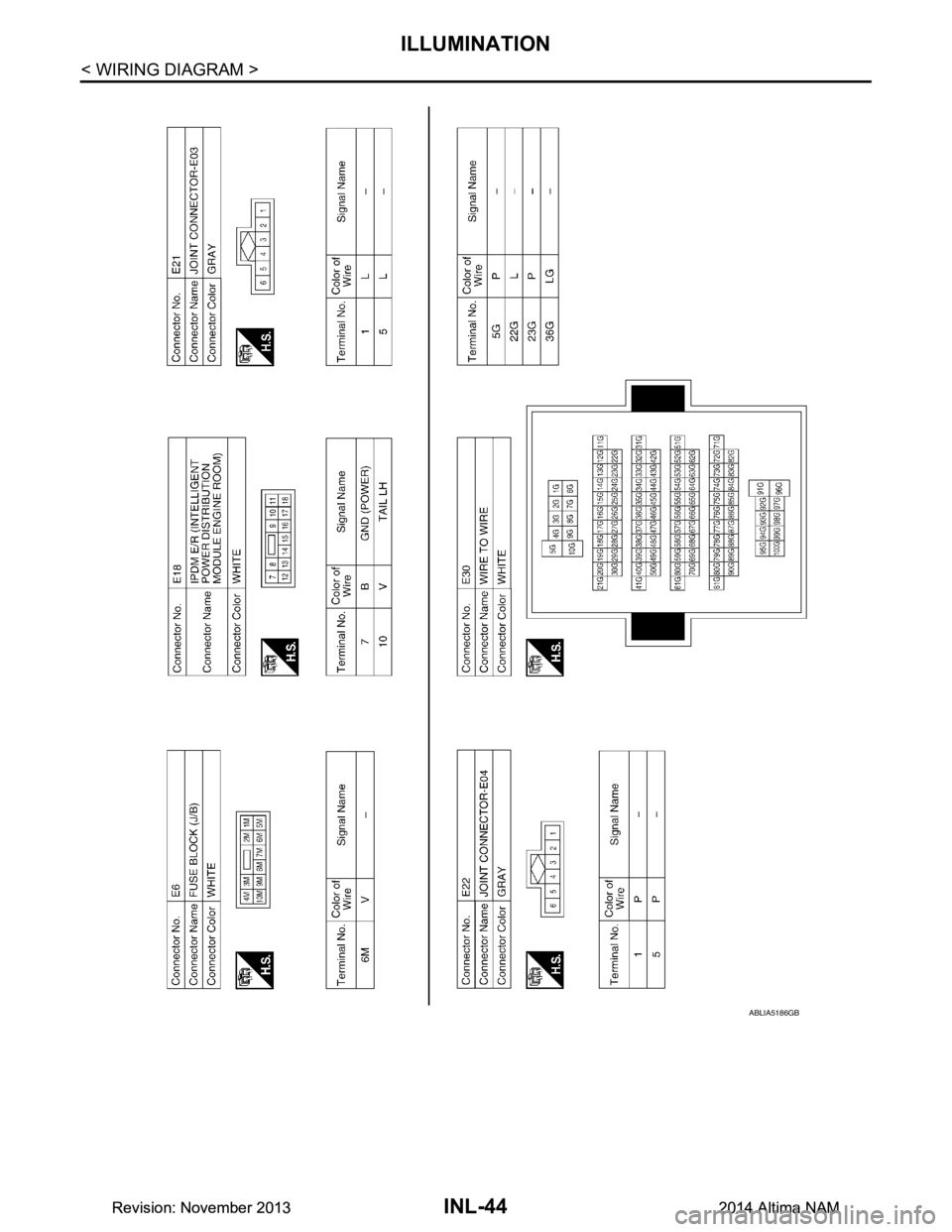

ABLIA5188GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DIAGNOSIS AND REPAIR WORKFLOWINL-47
< BASIC INSPECTION >
C
D E
F
G H
I
J
K
M A
B
INL
N
O P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW

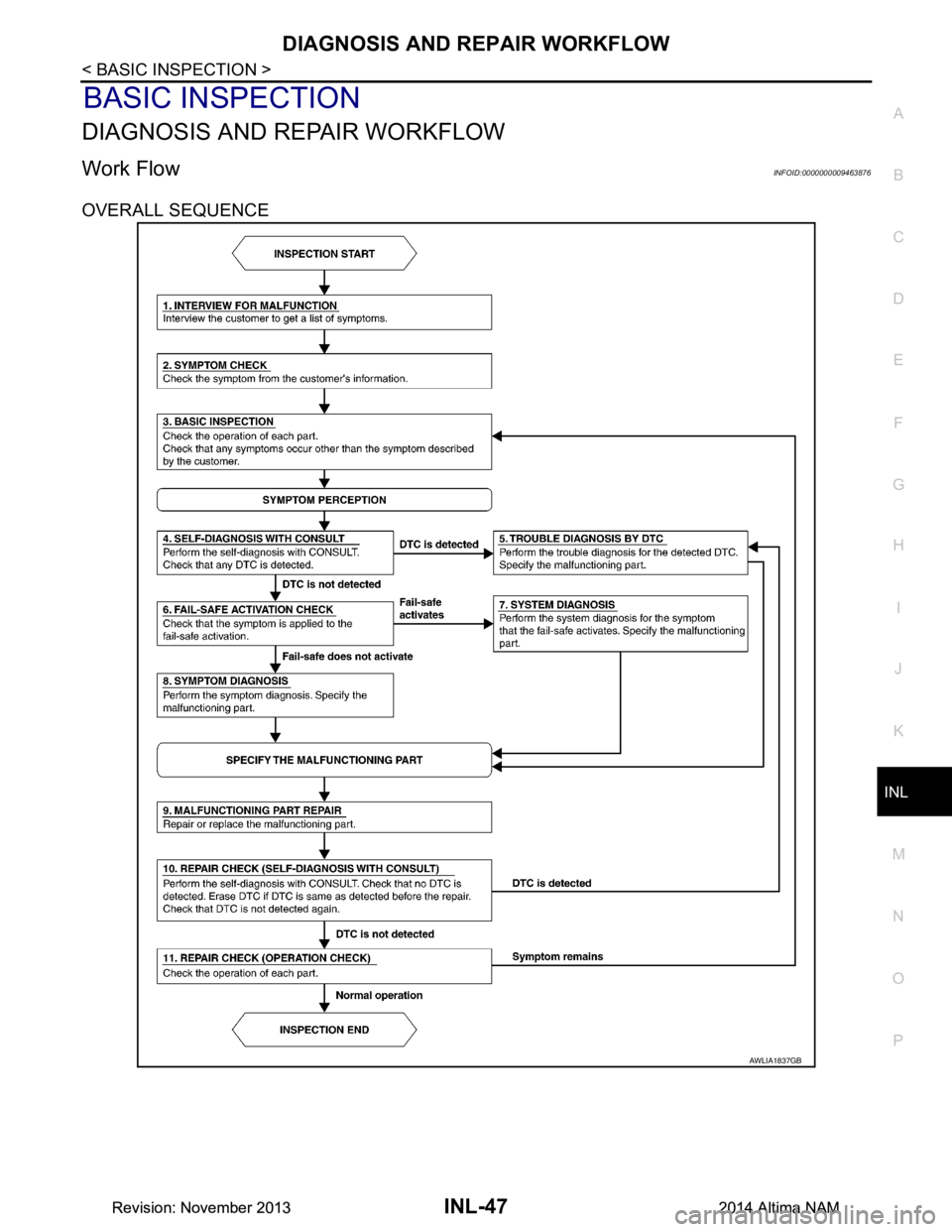

Work FlowINFOID:0000000009463876
OVERALL SEQUENCE
AWLIA1837GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

INL-48
< BASIC INSPECTION >
DIAGNOSIS AND REPAIR WORKFLOW
DETAILED FLOW
1.INTERVIEW FOR MALFUNCTION
Find out what the customer's concerns are.
>> GO TO 2.
2.SYMPTOM CHECK
Verify the symptom from t he customer's information.
>> GO TO 3.
3.BASIC INSPECTION
Check the operation of each part. Check that any conc erns occur other than those mentioned in the customer
interview.
>> GO TO 4.
4.SELF-DIAGNOSIS WITH CONSULT
Perform the self-diagnosis with CONSUL T. Check that any DTC is detected.
Is any DTC detected?
YES >> GO TO 5.
NO >> GO TO 6.
5.TROUBLE DIAGNOSIS BY DTC
Perform the trouble diagnosis for the detect ed DTC. Specify the malfunctioning part.
>> GO TO 9.
6.FAIL-SAFE ACTIVATION CHECK
Determine if the customer's concern is related to fail-safe activation.
Does the fail-safe activate?
YES >> GO TO 7.
NO >> GO TO 8.
7.SYSTEM DIAGNOSIS
Perform the system diagnosis for the system in which the fail-safe activates. Specify the malfunctioning part.
>> GO TO 9.
8.SYMPTOM DIAGNOSIS
Perform the symptom diagnosis, refer to INL-62, "Symptom Table"
. Specify the malfunctioning part.
>> GO TO 9.
9.MALFUNCTION PART REPAIR
Repair or replace the malfunctioning part.
>> GO TO 10.
10.REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT)
Perform the self-diagnosis with CONSULT. Verify that no DTCs are detected. Erase all DTCs detected prior to
the repair. Verify that DTC is not detected again.
Is any DTC detected?
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DIAGNOSIS AND REPAIR WORKFLOWINL-49
< BASIC INSPECTION >
C
D E
F
G H
I
J
K
M A
B
INL
N
O P
YES >> GO TO 5.
NO >> GO TO 11.
11 .REPAIR CHECK (OPERATION CHECK)
Check the operation of each part.
Does it operate normally?
YES >> Inspection End
NO >> GO TO 3.
