CONTENTS
STARTING SYSTEM
PRECAUTION ................ ...............................2
PRECAUTIONS .............................................. .....2
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
2
PREPARATION ............................................3
PREPARATION .............................................. .....3
Special Service Tool ........................................... ......3
Commercial Service Tool ..........................................3
SYSTEM DESCRIPTION ..............................4
COMPONENT PARTS ................................... .....4
QR25DE ................................................................. ......4
QR25DE : Component Parts Location ......................4
QR25DE : Component Description ..........................4
VQ35DE ................................................................. ......4
VQ35DE : Component Parts Location ......................5
VQ35DE : Component Description ...........................5
SYSTEM ..............................................................6
System Diagram .................................................. ......6
System Description ...................................................6
Component Description ............................................6
WIRING DIAGRAM .......................................7
STARTING SYSTEM ...................................... .....7
Wiring Diagram ................................................... ......7
BASIC INSPECTION ...................................12
DIAGNOSIS AND REPAIR WORKFLOW ........12
Work Flow (With GR8-1200 NI) ........................... ....12
Work Flow (Without GR8-1200 NI) ..........................16
DTC/CIRCUIT DIAGNOSIS .........................18
B TERMINAL CIRCUIT .....................................18
Description ........................................................... ....18
Diagnosis Procedure ...............................................18
S CONNECTOR CIRCUIT .................................20
Description ...............................................................20
Diagnosis Procedure ...............................................20
SYMPTOM DIAGNOSIS ..............................21
STARTING SYSTEM .........................................21
Symptom Table ................................................... ....21
REMOVAL AND INSTALLATION ...............22
STARTER MOTOR ...........................................22
QR25DE ................................................................. ....22
QR25DE : Exploded View .......................................22
QR25DE : Removal and Installation ........................22
VQ35DE ................................................................. ....23
VQ35DE : Exploded View ........................................23
VQ35DE : Removal and Installation ........................23
SERVICE DATA AND SPECIFICATIONS
(SDS) ............... .............................................
25
STARTER MOTOR ...........................................25
Starter .................................................................. ....25
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

STR-2
< PRECAUTION >
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000009951694
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inopera tive, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISS AN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintent ional activation of the system. For re moval of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipmen t on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harn esses can be identified by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or electri c power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three minutes before performing any service.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

PREPARATIONSTR-3
< PREPARATION >
C
D E
F
G H
I
J
K L
M A
STR
NP
O
PREPARATION
PREPARATION
Special Service ToolINFOID:0000000009461217
The actual shapes of the tools may differ from those illustrated here.
Commercial Service ToolINFOID:0000000009461218
Tool number
(TechMate No.)
Tool name Description
—
(—) Model GR8-1200 NI
Multitasking battery and electrical diag-
nostic station Tests batteries, starting and charging
systems and charges batteries.
For operating instruct ions, refer to diag-
nostic station instruction manual.
AWIIA1239ZZ
Tool name Description
Power tool Loosening nuts, screws and bolts
PIIB1407E
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

STR-4
< SYSTEM DESCRIPTION >
COMPONENT PARTS
SYSTEM DESCRIPTION
COMPONENT PARTS
QR25DE
QR25DE : Component Parts LocationINFOID:0000000009461219
QR25DE : Component DescriptionINFOID:0000000009461220
VQ35DE
1. Transmission range switch 2. Starter motor 3. IPDM E/R
4. BCM (view with combination meter re- moved)
AWBIA1287ZZ
Component part Description
Transmission range switch Transmission range switch supplies power to the starter relay and
starter control relay inside the IPDM E/R when the shift selector is
placed in the P or N position.
BCM BCM controls the starter relay inside IPDM E/R.
IPDM E/R CPU inside IPDM E/R operates the starter relay when the ignition
switch is in the start position.
Starter motor The starter motor plunger closes and the motor is supplied with
battery power, which in turn cranks the engine, when the S termi-
nal is supplied with electric power.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

COMPONENT PARTSSTR-5
< SYSTEM DESCRIPTION >
C
D E
F
G H
I
J
K L
M A
STR
NP
O
VQ35DE : Component Parts LocationINFOID:0000000009461221
VQ35DE : Component DescriptionINFOID:0000000009461222
Vehicle front
1. Starter motor 2. Transmission range switch 3. IPDM E/R
4. BCM (view combination meter re- moved)
AWBIA1288ZZ
Component part Description
Transmission range switch Transmission range switch supplies power to the starter relay and
starter control relay inside the IPDM E/R when the shift selector is
placed in the P or N position.
BCM BCM controls the starter relay inside IPDM E/R.
IPDM E/R CPU inside IPDM E/R operates the starter relay when the ignition
switch is in the start position.
Starter motor The starter motor plunger closes and the motor is supplied with
battery power, which in turn cranks the engine, when the S termi-
nal is supplied with electric power.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

STR-6
< SYSTEM DESCRIPTION >
SYSTEM
SYSTEM

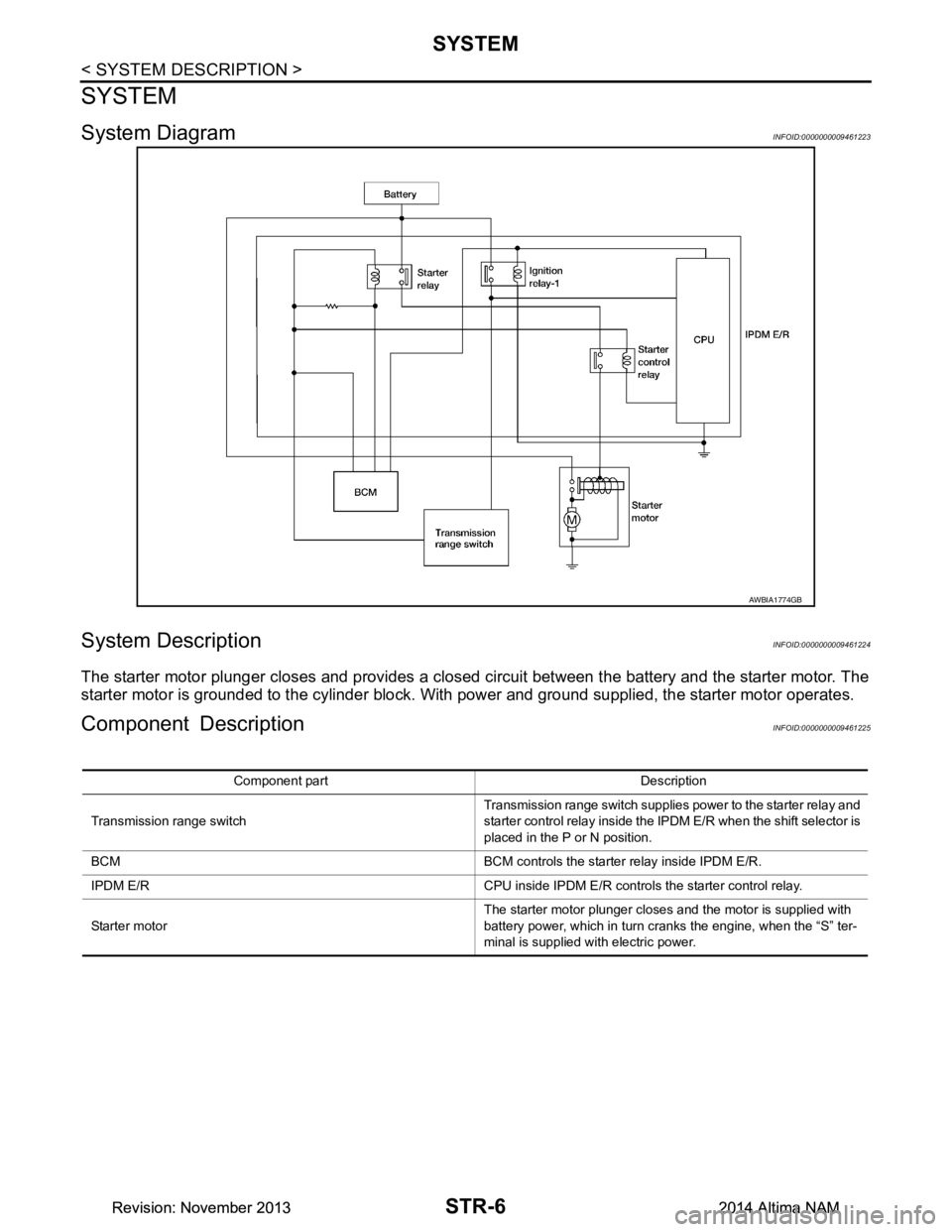

System DiagramINFOID:0000000009461223
System DescriptionINFOID:0000000009461224
The starter motor plunger closes and provides a closed circuit between the battery and the starter motor. The
starter motor is grounded to the cylinder block. With power and ground supplied, the starter motor operates.
Component DescriptionINFOID:0000000009461225
AWBIA1774GB
Component part Description
Transmission range switch Transmission range switch supplies power to the starter relay and
starter control relay inside the IPDM E/R when the shift selector is
placed in the P or N position.
BCM BCM controls the starter relay inside IPDM E/R.
IPDM E/R CPU inside IPDM E/R controls the starter control relay.
Starter motor The starter motor plunger closes and the motor is supplied with
battery power, which in turn cranks the engine, when the “S” ter-
minal is supplied with electric power.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

STARTING SYSTEMSTR-7
< WIRING DIAGRAM >
C
D E
F
G H
I
J
K L
M A
STR
NP
O
WIRING DIAGRAM
STARTING SYSTEM

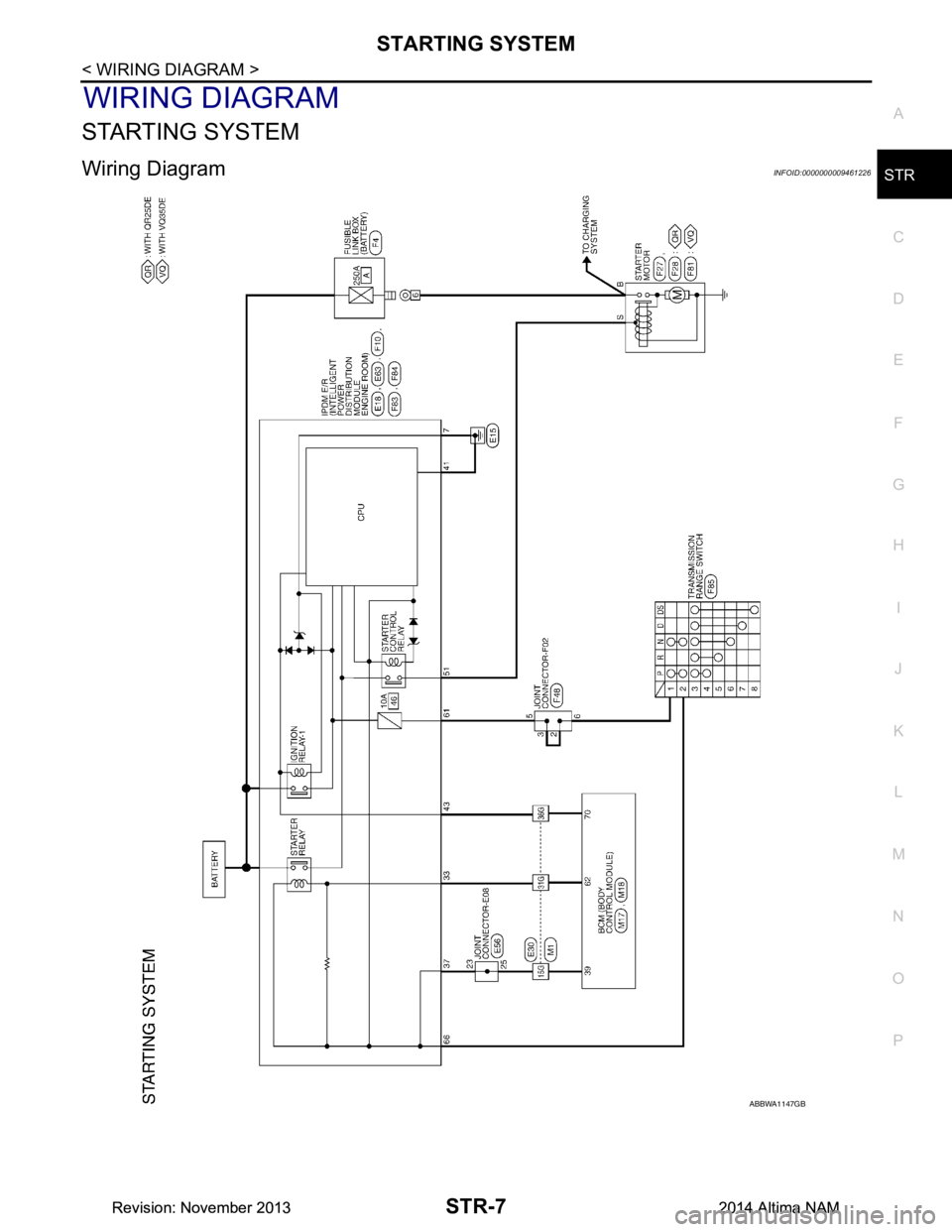

Wiring Diagram INFOID:0000000009461226
ABBWA1147GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

STR-8
< WIRING DIAGRAM >
STARTING SYSTEM

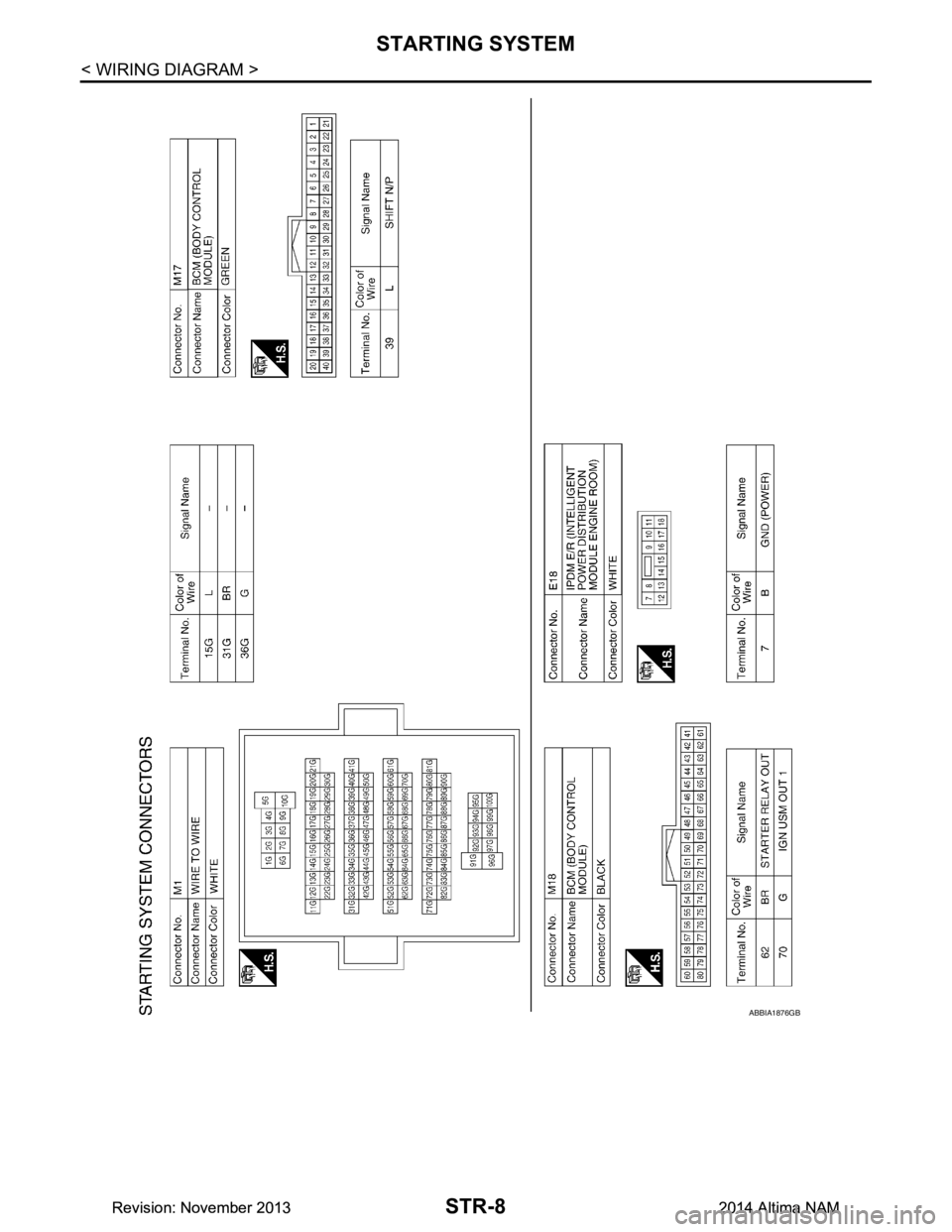

ABBIA1876GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

STARTING SYSTEMSTR-9
< WIRING DIAGRAM >
C
D E
F
G H
I
J
K L
M A
STR
NP
O

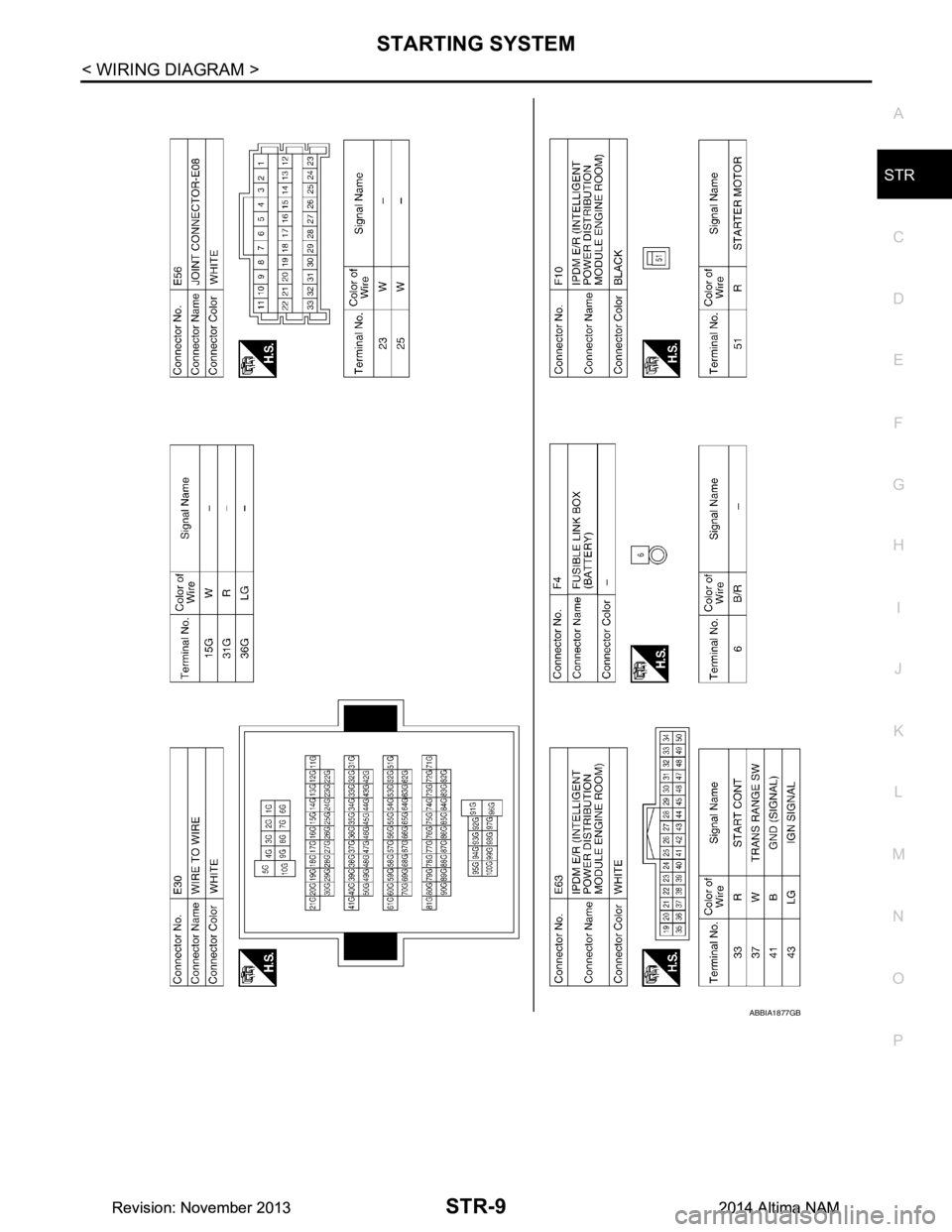

ABBIA1877GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

STR-10
< WIRING DIAGRAM >
STARTING SYSTEM

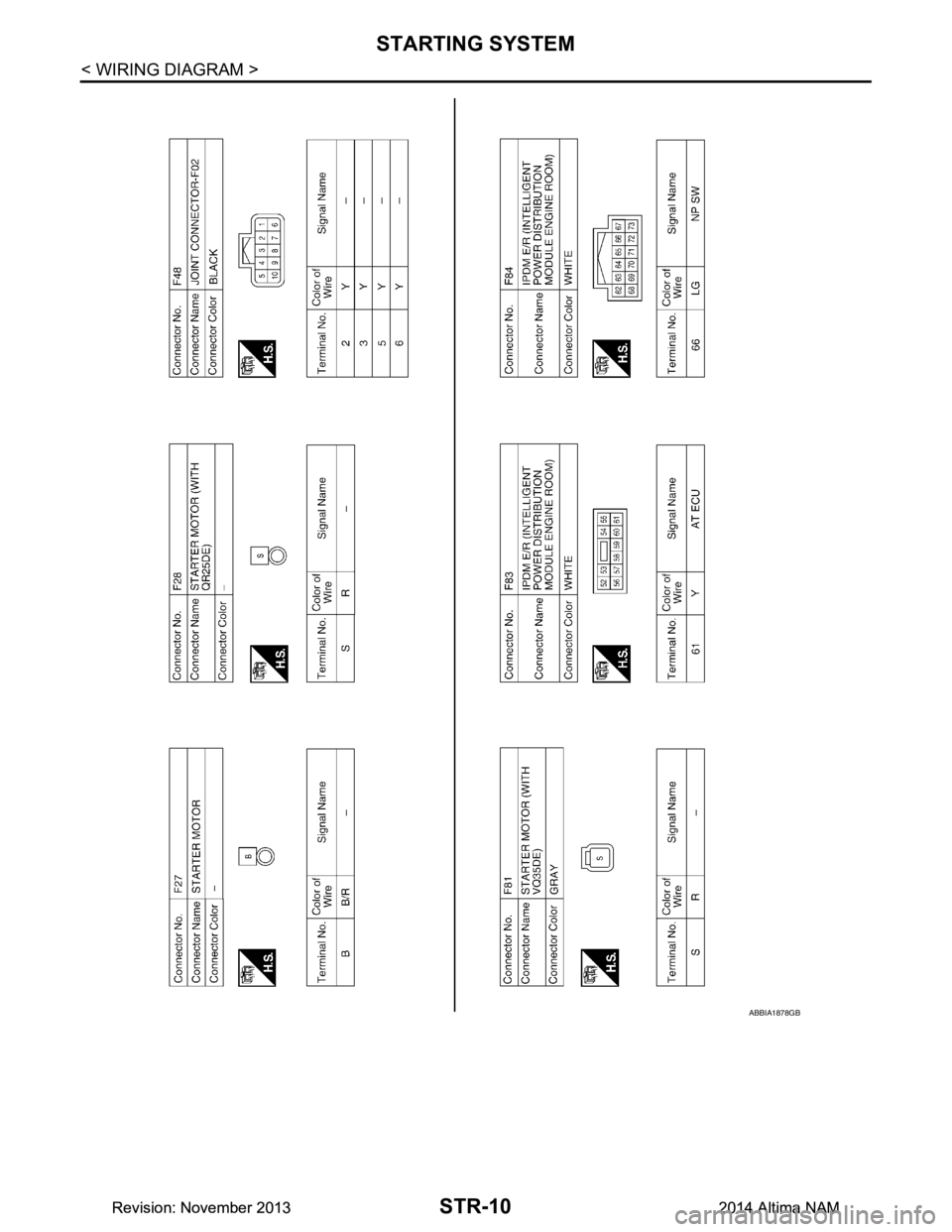

ABBIA1878GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
