CVT CONTROL SYSTEM : TCMINFOID:0000000009463963
• The vehicle driving status is judged based on the signals
from the sensors, switches, and other control units,
and the optimal transaxle control is performed.
• For TCM control items, refer to TM-30, "CVT CONTROL SYSTEM : System Description"
.
CVT CONTROL SYSTEM : Transmission Range SwitchINFOID:0000000009463964
• The transmission range switch is installed to upper part of transaxle case.
• The transmission range switch detects the selector lever position.
CVT CONTROL SYSTEM : Primary Speed SensorINFOID:0000000009463965
• The primary speed sensor is installed to side cover of transaxle.
• The primary speed sensor detects primary pulley speed.

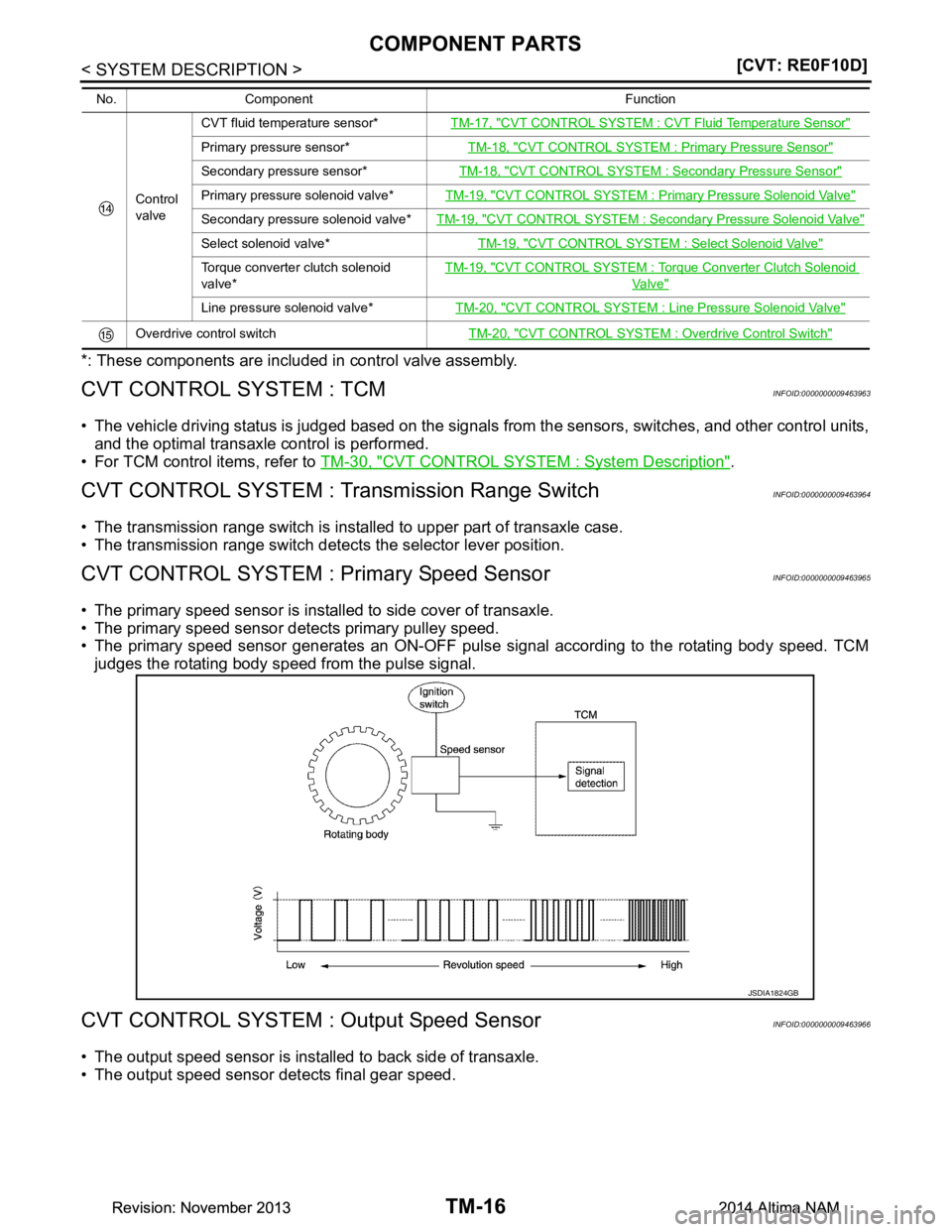

• The primary speed sensor generates an ON-OFF pulse signal according to the rotating body speed. TCM
judges the rotating body speed from the pulse signal.
CVT CONTROL SYSTEM : Output Speed SensorINFOID:0000000009463966
• The output speed sensor is installed to back side of transaxle.
• The output speed sensor detects final gear speed.
Control
valve CVT fluid temperature sensor*
TM-17, "CVT CONTROL SYSTEM : CVT Fluid Temperature Sensor"
Primary pressure sensor* TM-18, "CVT CONTROL SYSTEM : Primary Pressure Sensor"
Secondary pressure sensor* TM-18, "CVT CONTROL SYSTEM : Secondary Pressure Sensor"
Primary pressure solenoid valve* TM-19, "CVT CONTROL SYSTEM : Primary Pressure Solenoid Valve"
Secondary pressure solenoid valve* TM-19, "CVT CONTROL SYSTEM : Secondary Pressure Solenoid Valve"
Select solenoid valve* TM-19, "CVT CONTROL SYSTEM : Select Solenoid Valve"
Torque converter clutch solenoid
valve* TM-19, "CVT CONTROL SYSTEM : Torq
ue Converter Clutch Solenoid
Va l v e "
Line pressure solenoid valve* TM-20, "CVT CONTROL SYSTEM : Line Pressure Solenoid Valve"
Overdrive control switch TM-20, "CVT CONTROL SYSTEM : Overdrive Control Switch"
No. Component Function
JSDIA1824GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

COMPONENT PARTSTM-17
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

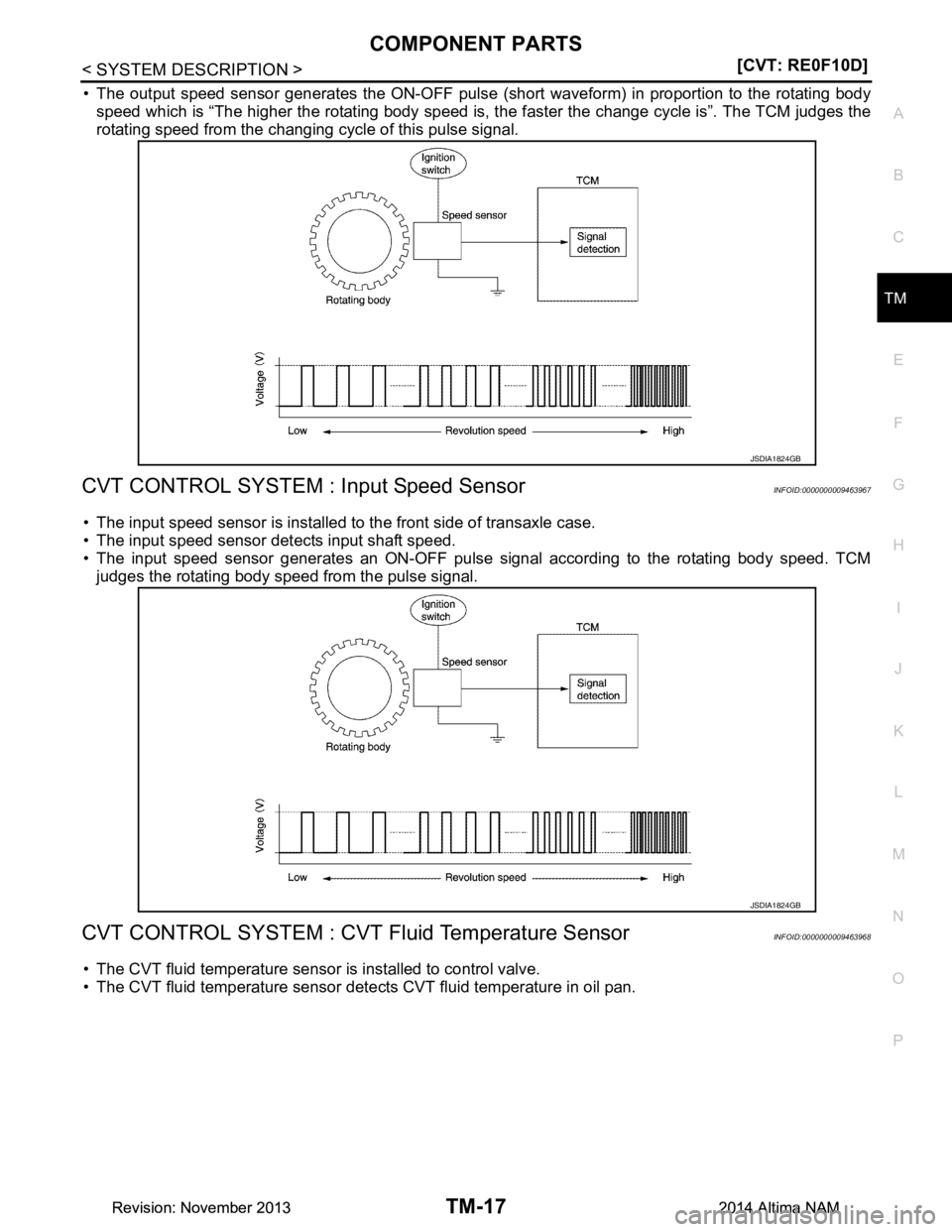

• The output speed sensor generates the ON-OFF pulse (short waveform) in proportion to the rotating body
speed which is “The higher the rotating body speed is, t he faster the change cycle is”. The TCM judges the
rotating speed from the changing cycle of this pulse signal.
CVT CONTROL SYSTEM : Input Speed SensorINFOID:0000000009463967
• The input speed sensor is installed to the front side of transaxle case.
• The input speed sensor detects input shaft speed.
• The input speed sensor generates an ON-OFF pulse signal according to the rotating body speed. TCM
judges the rotating body speed from the pulse signal.
CVT CONTROL SYSTEM : CVT Fluid Temperature SensorINFOID:0000000009463968
• The CVT fluid temperature sensor is installed to control valve.
• The CVT fluid temperature sensor detects CVT fluid temperature in oil pan.
JSDIA1824GB
JSDIA1824GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TM-18
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
COMPONENT PARTS

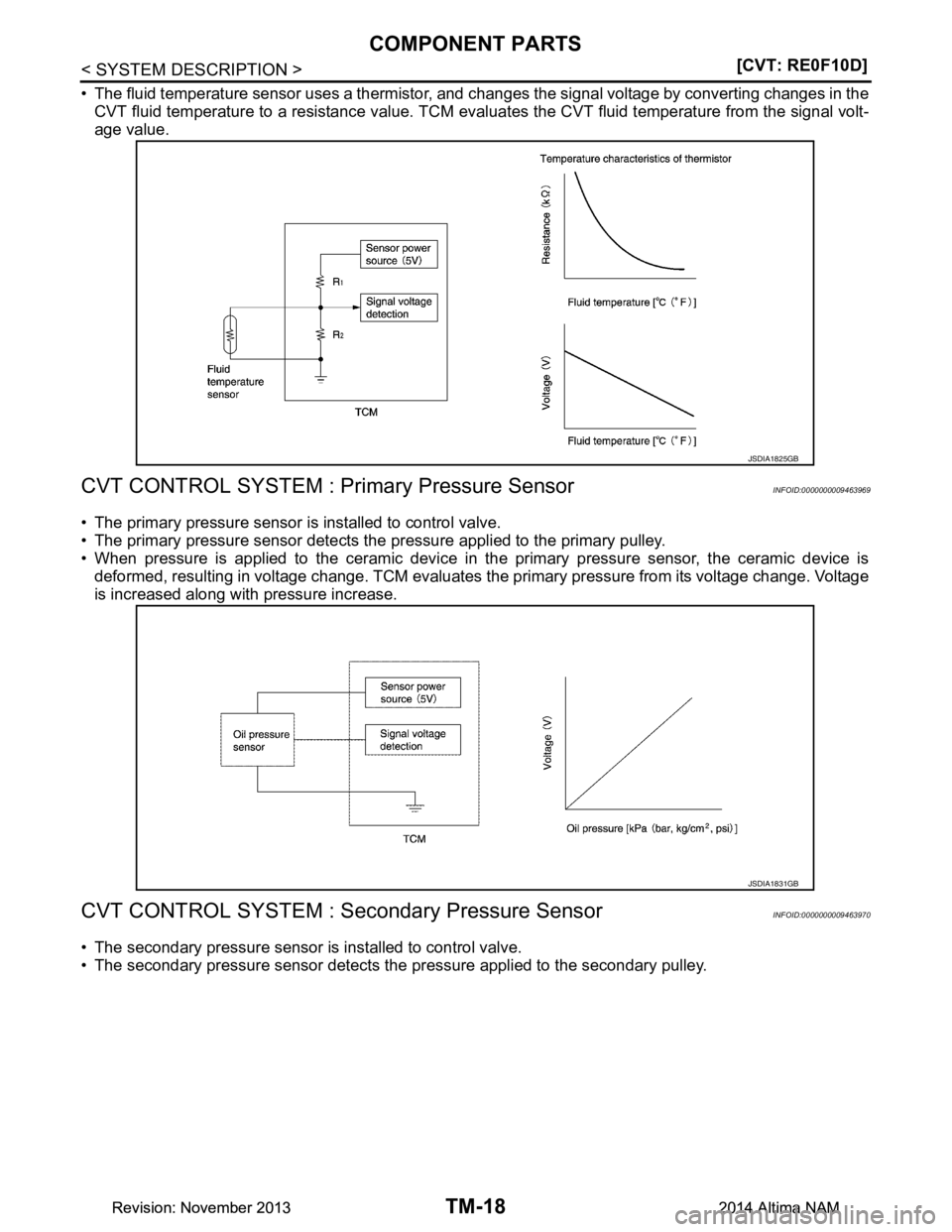

• The fluid temperature sensor uses a thermistor, and
changes the signal voltage by converting changes in the
CVT fluid temperature to a resistance value. TCM eval uates the CVT fluid temperature from the signal volt-
age value.
CVT CONTROL SYSTEM : Primary Pressure SensorINFOID:0000000009463969
• The primary pressure sensor is installed to control valve.
• The primary pressure sensor detects the pressure applied to the primary pulley.

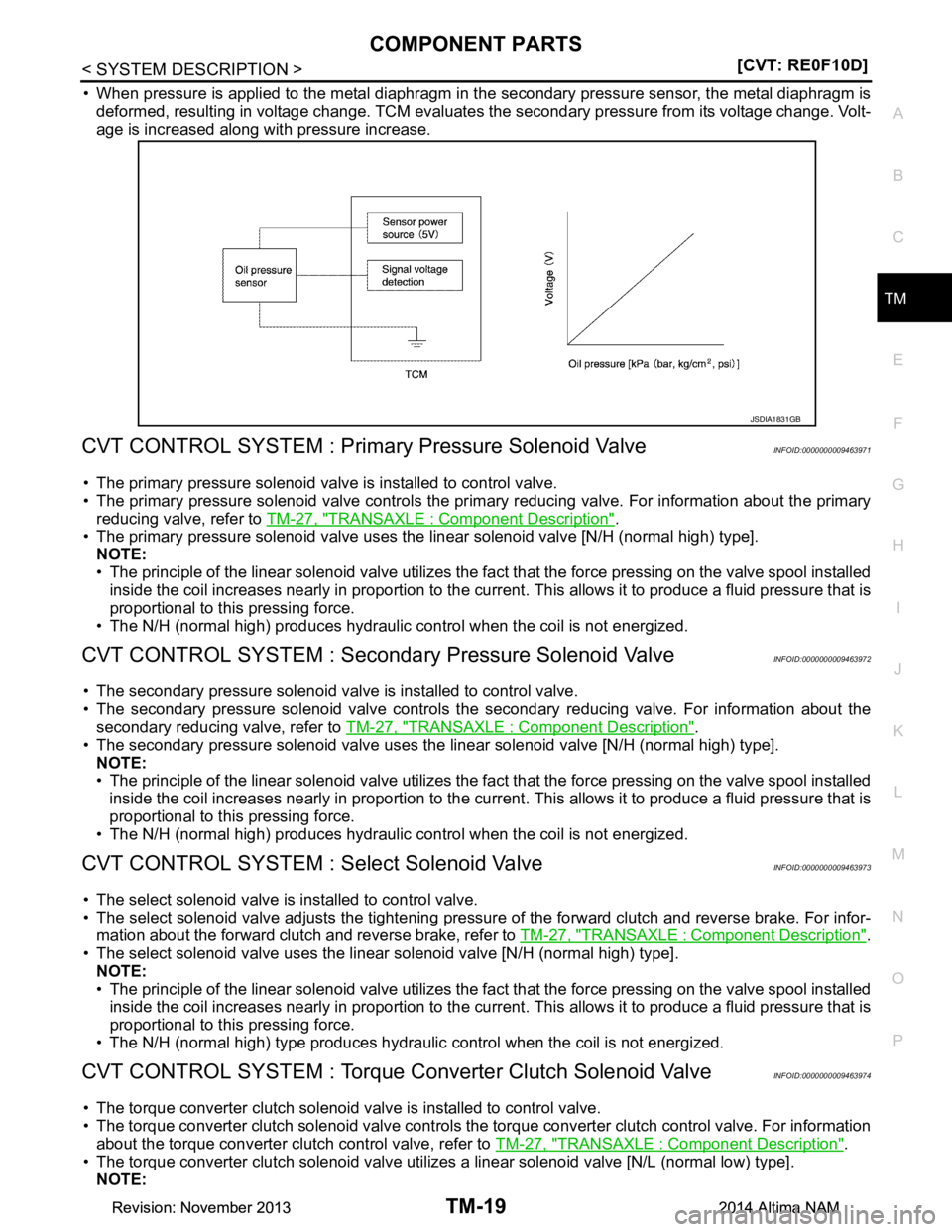

• When pressure is applied to the ceramic device in the primary pressure sensor, the ceramic device is
deformed, resulting in voltage change. TCM evaluates the primary pressure from its voltage change. Voltage
is increased along with pressure increase.
CVT CONTROL SYSTEM : Secondary Pressure SensorINFOID:0000000009463970
• The secondary pressure sensor is installed to control valve.
• The secondary pressure sensor detects the pressure applied to the secondary pulley.
JSDIA1825GB
JSDIA1831GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

COMPONENT PARTSTM-19
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
• When pressure is applied to the metal diaphragm in the secondary pressure sensor, the metal diaphragm is deformed, resulting in voltage change. TCM evaluates the secondary pressure from its voltage change. Volt-
age is increased along with pressure increase.
CVT CONTROL SYSTEM : Primar y Pressure Solenoid ValveINFOID:0000000009463971
• The primary pressure solenoid valve is installed to control valve.
• The primary pressure solenoid valve controls the pr imary reducing valve. For information about the primary
reducing valve, refer to TM-27, "TRANSAXLE : Component Description"
.
• The primary pressure solenoid valve uses the linear solenoid valve [N/H (normal high) type].
NOTE:
• The principle of the linear solenoid valve utilizes the fa ct that the force pressing on the valve spool installed
inside the coil increases nearly in proportion to the current . This allows it to produce a fluid pressure that is
proportional to this pressing force.
• The N/H (normal high) produces hydraulic control when the coil is not energized.
CVT CONTROL SYSTEM : Secondar y Pressure Solenoid ValveINFOID:0000000009463972
• The secondary pressure solenoid valve is installed to control valve.
• The secondary pressure solenoid valve controls the secondary reducing valve. For information about the
secondary reducing valve, refer to TM-27, "TRANSAXLE : Component Description"
.
• The secondary pressure solenoid valve uses the linear solenoid valve [N/H (normal high) type].
NOTE:
• The principle of the linear solenoid valve utilizes the fa ct that the force pressing on the valve spool installed
inside the coil increases nearly in proportion to the current . This allows it to produce a fluid pressure that is
proportional to this pressing force.
• The N/H (normal high) produces hydraulic control when the coil is not energized.
CVT CONTROL SYSTEM : Se lect Solenoid ValveINFOID:0000000009463973
• The select solenoid valve is installed to control valve.
• The select solenoid valve adjusts the tightening pressure of the forward clutch and reverse brake. For infor- mation about the forward clutch and reverse brake, refer to TM-27, "TRANSAXLE : Component Description"
.
• The select solenoid valve uses the linear solenoid valve [N/H (normal high) type].
NOTE:
• The principle of the linear solenoid valve utilizes the fa ct that the force pressing on the valve spool installed
inside the coil increases nearly in proportion to the current . This allows it to produce a fluid pressure that is
proportional to this pressing force.
• The N/H (normal high) type produces hydraulic control when the coil is not energized.
CVT CONTROL SYSTEM : Torque Converter Clutch Solenoid ValveINFOID:0000000009463974
• The torque converter clutch solenoid valve is installed to control valve.
• The torque converter clutch solenoid valve controls the torque converter clutch control valve. For information
about the torque converter clutch control valve, refer to TM-27, "TRANSAXLE : Component Description"
.
• The torque converter clutch solenoid valve utilizes a linear solenoid valve [N/L (normal low) type].
NOTE:
JSDIA1831GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TM-20
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
COMPONENT PARTS
• The principle of the linear solenoid valve utilizes the fa
ct that the force pressing on the valve spool installed
inside the coil increases nearly in proportion to the current . This allows it to produce a fluid pressure that is
proportional to this pressing force.
• The N/L (normal low) type does not produce hydr aulic control when the coil is not energized.
CVT CONTROL SYSTEM : Line Pressure Solenoid ValveINFOID:0000000009463975
• The line pressure solenoid valve is installed to control valve.
• The line pressure solenoid valve controls the pressure regulator valve. For information about the pressure
regulator valve, refer to TM-27, "TRANSAXLE : Component Description"
.
• The line pressure solenoid valve uses the linear solenoid valve [N/H (normal high) type]. NOTE:
• The principle of the linear solenoid valve utilizes the fa ct that the force pressing on the valve spool installed
inside the coil increases nearly in proportion to the current . This allows it to produce a fluid pressure that is
proportional to this pressing force.
• The N/H (normal high) produces hydraulic control when the coil is not energized.
CVT CONTROL SYSTEM : Overdrive Control SwitchINFOID:0000000009463976
• The overdrive control switch is inst alled to the selector lever knob.
• If the overdrive control switch is pressed when the O/D OFF indicator lamp on the combination meter is not
lit, the status changes to overdrive OFF and the O/D OFF indicator lamp illuminates.
• If the overdrive control switch is pressed when the O/ D OFF indicator lamp on the combination meter is lit,
the overdrive OFF status is canceled and the O/D OFF indicator lamp turns off.
CVT CONTROL SYSTEM : O/D OFF Indicator LampINFOID:0000000009463977
• O/D OFF indicator lamp is positioned on the combination meter.
• The O/D OFF indicator lamp illuminates when the overdrive function is deactivated (O/D OFF).
• For checking the bulb, this lamp turns on for a cert ain period of time when the ignition switch turns ON,
andthen turns off.
CVT CONTROL SYSTEM : Sh ift Position IndicatorINFOID:0000000009463978
TCM transmits shift position signal to combination meter via CAN communication. The actual shift position is
displayed on combination meter according to the signal.
SHIFT LOCK SYSTEM
Condition (status) O/D OFF indicator lamp
Ignition switch OFF. OFF
Ignition switch ON. ON (Approx. 2 seconds)
Overdrive control switch is pressed when the selector lever is in
the D position and the O/D OFF indicator lamp is OFF (when sys-
tem is normal). ON
Overdrive control switch is pressed when the selector lever is in
the D position and the O/D OFF indicator lamp is ON. OFF
Selector lever is shifted from the D position to another position-
when the O/D OFF indicator lamp is ON. OFF
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

COMPONENT PARTSTM-21
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

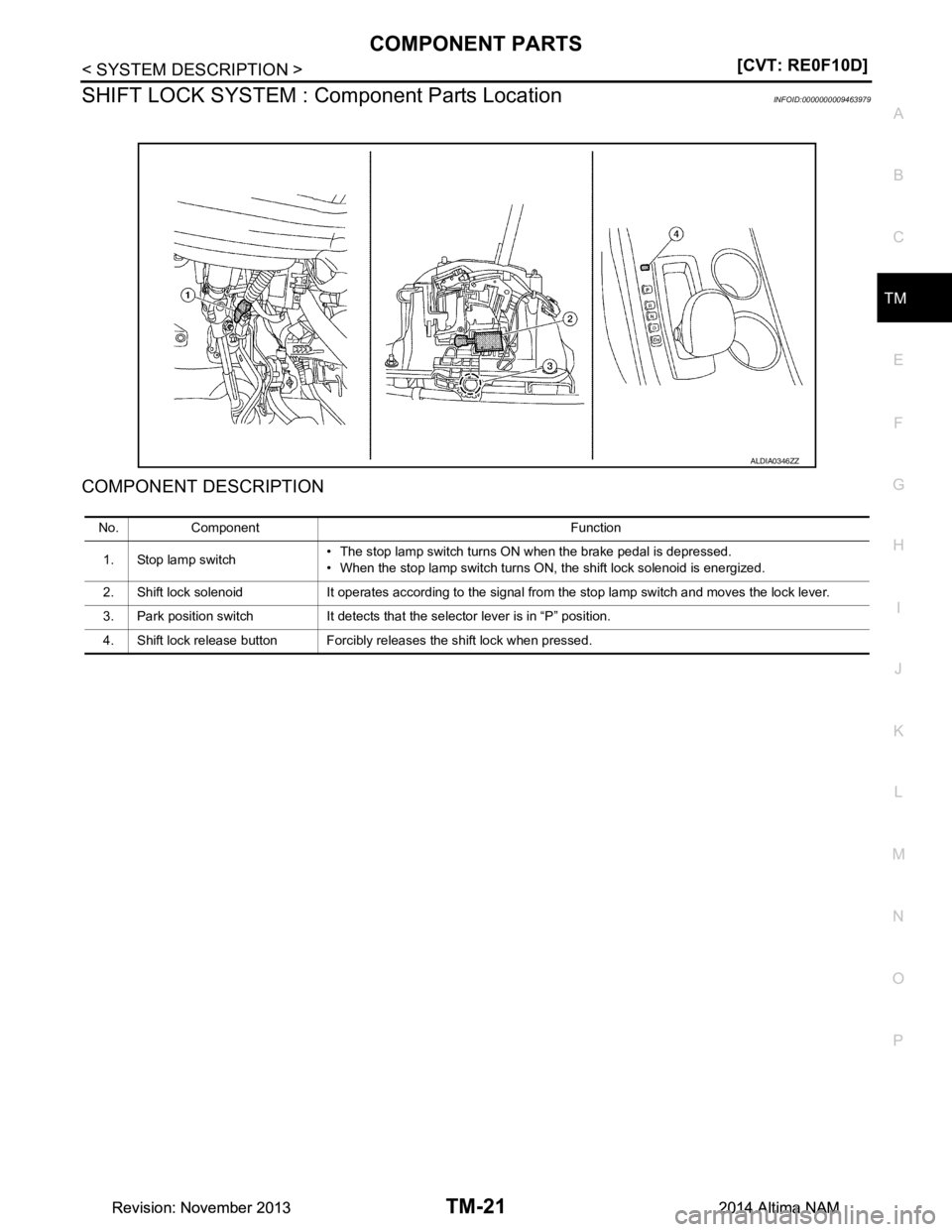

SHIFT LOCK SYSTEM : Co mponent Parts LocationINFOID:0000000009463979
COMPONENT DESCRIPTION
ALDIA0346ZZ
No. Component Function
1. Stop lamp switch • The stop lamp switch turns ON when the brake pedal is depressed.
• When the stop lamp switch turns ON, the shift lock solenoid is energized.
2. Shift lock solenoid It operates according to the signal from the stop lamp switch and moves the lock lever.
3. Park position switch It detects that the selector lever is in “P” position.
4. Shift lock release button Forcibly releases the shift lock when pressed.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TM-22
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
STRUCTURE AND OPERATION
STRUCTURE AND OPERATION
TRANSAXLE

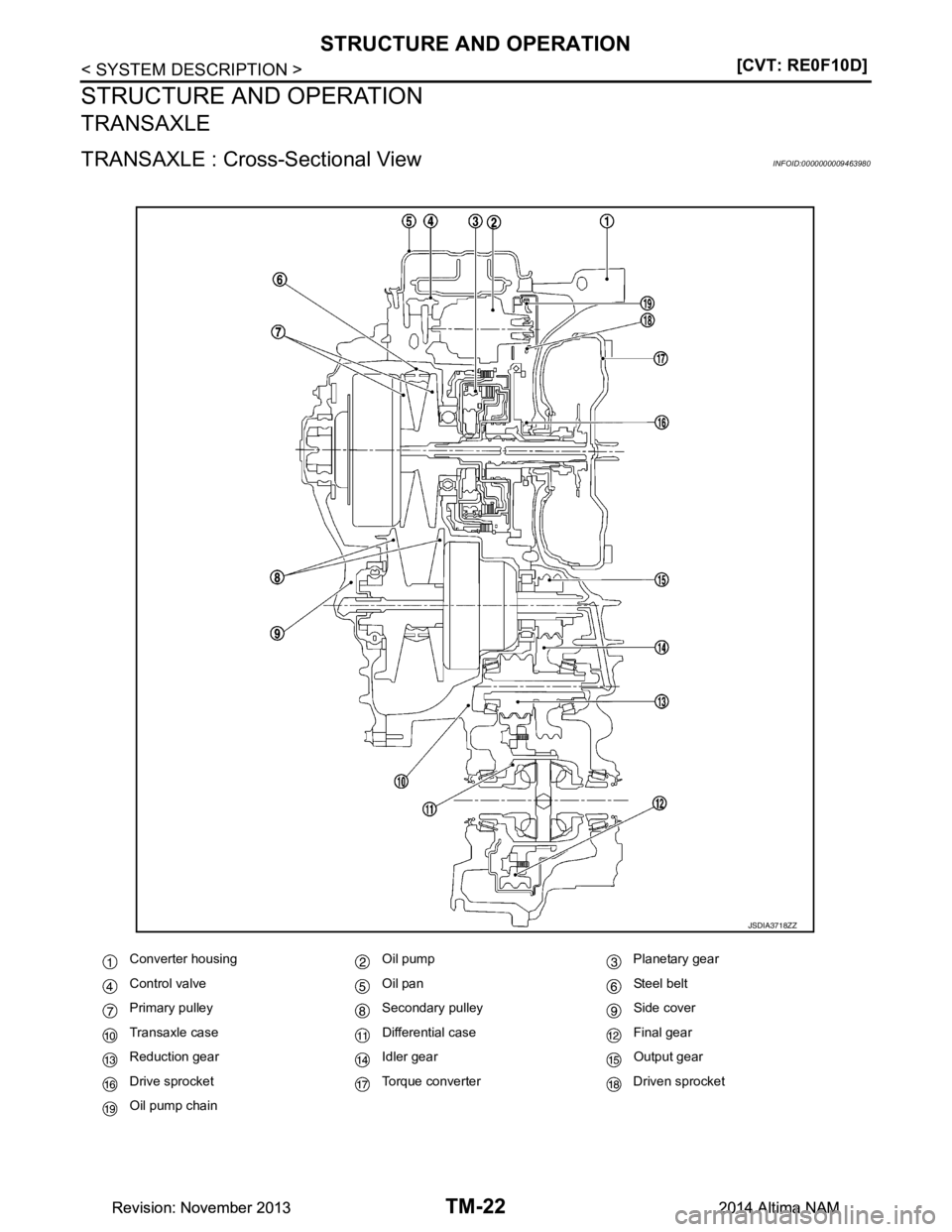

TRANSAXLE : Cross-Sectional ViewINFOID:0000000009463980
Converter housing Oil pump Planetary gear
Control valve Oil pan Steel belt
Primary pulley Secondary pulley Side cover
Transaxle case Differential case Final gear
Reduction gear Idler gear Output gear
Drive sprocket Torque converter Driven sprocket
Oil pump chain
JSDIA3718ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

STRUCTURE AND OPERATIONTM-23
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
TRANSAXLE : Operation StatusINFOID:0000000009463981
× : Engaged or applied.
TRANSAXLE : Transaxle MechanismINFOID:0000000009463982
TORQUE CONVERTER (WITH LOCK-UP FUNCTION)
In the same way as a conventional A/T, the torque c onverter is a system that increases the engine torque and
transmits the torque to the transaxle. A symmetr ical 3-element, 1-stage, 2-phase type is used here.
OIL PUMP
Utilizes a vane-type oil pump that is driven by the engi ne through the oil pump drive chain in order to increase
efficiency of pump discharge volume in low-speed zone and optimize pump discharge volume in high-speed
zone. Discharged oil from oil pump is transmitted to contro l valve. It is used as the oil of primary and second-
ary pulley operation, the oil of clutch operation, and the lubricant for each part.
PLANETARY GEAR

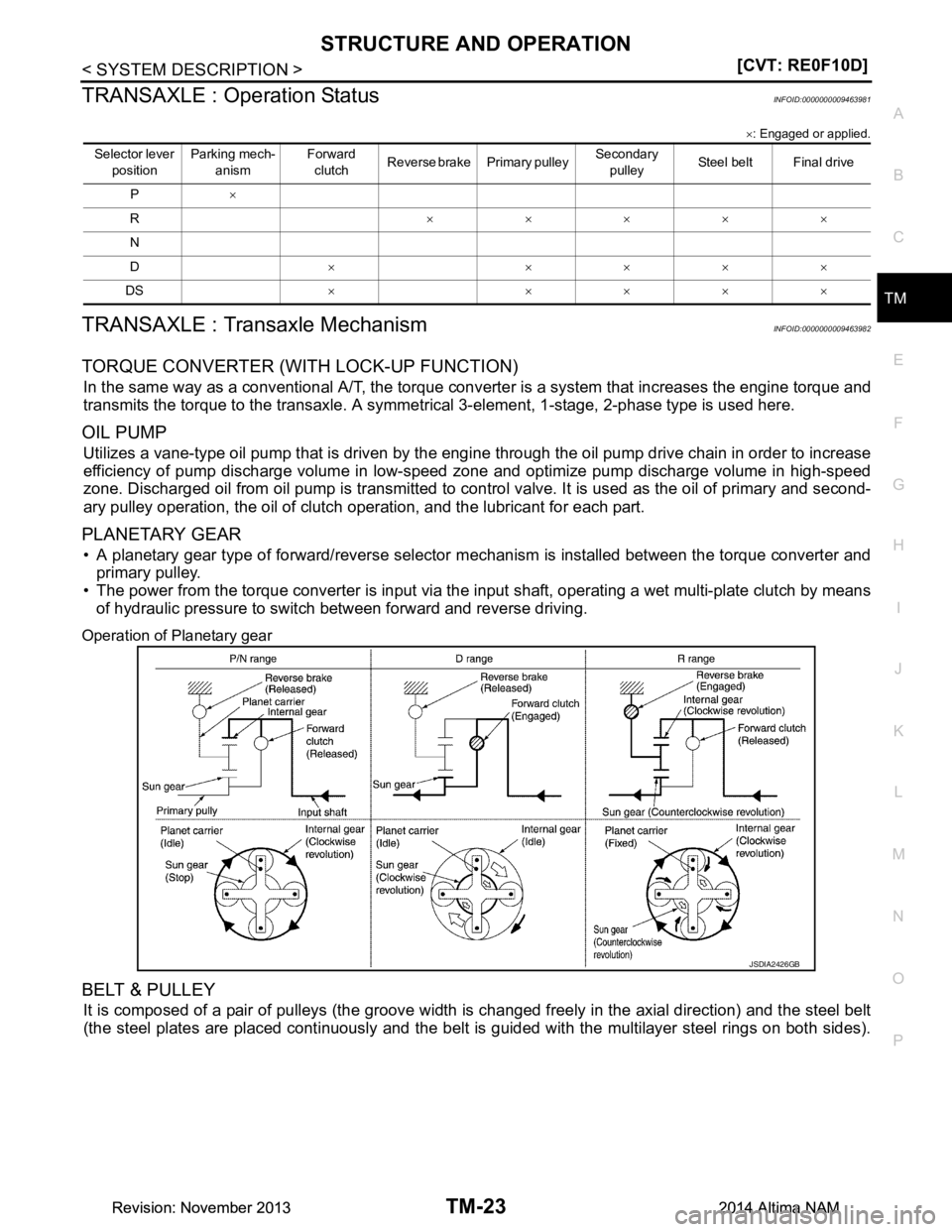

• A planetary gear type of forward/reverse selector me chanism is installed between the torque converter and
primary pulley.
• The power from the torque converter is input via the i nput shaft, operating a wet multi-plate clutch by means
of hydraulic pressure to switch between forward and reverse driving.
Operation of Planetary gear
BELT & PULLEY

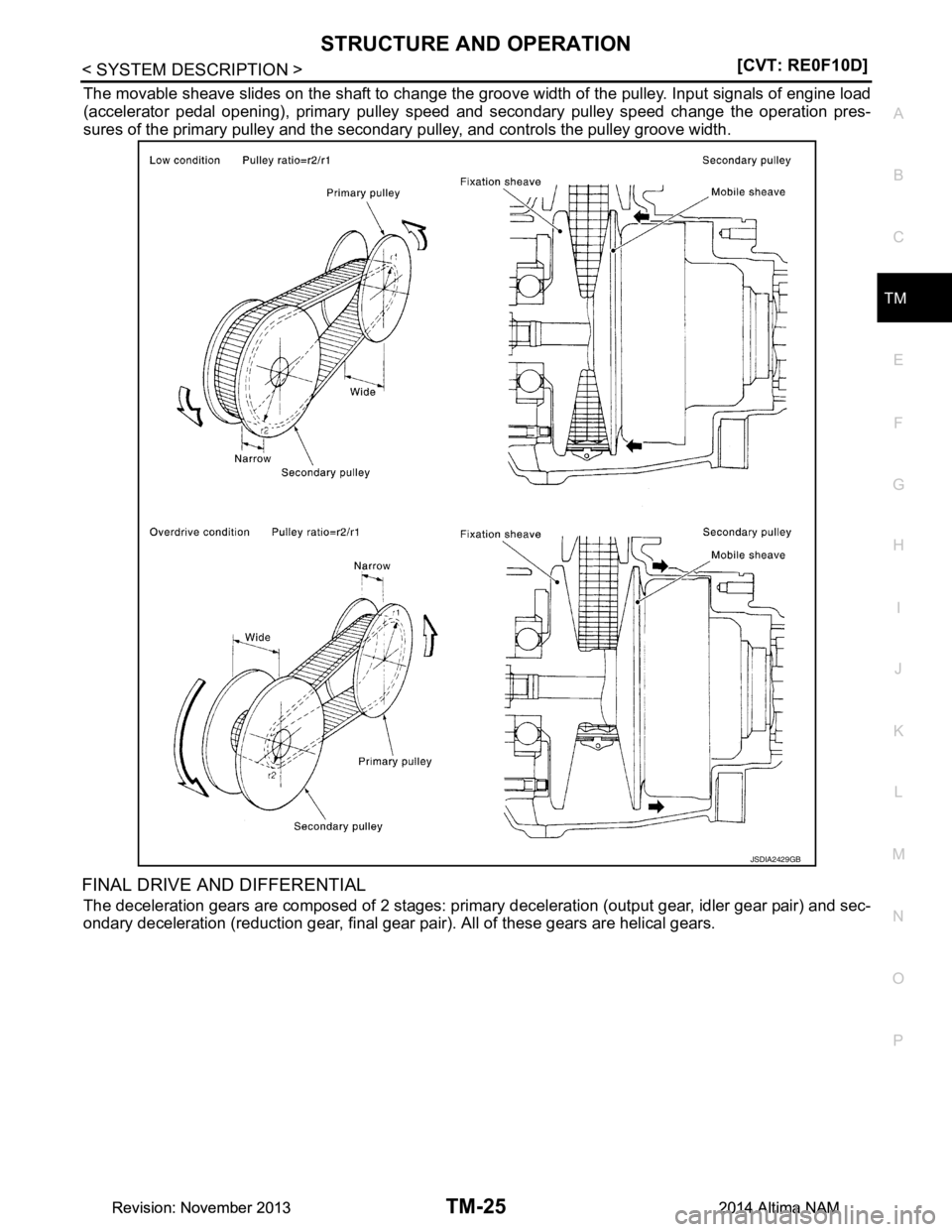

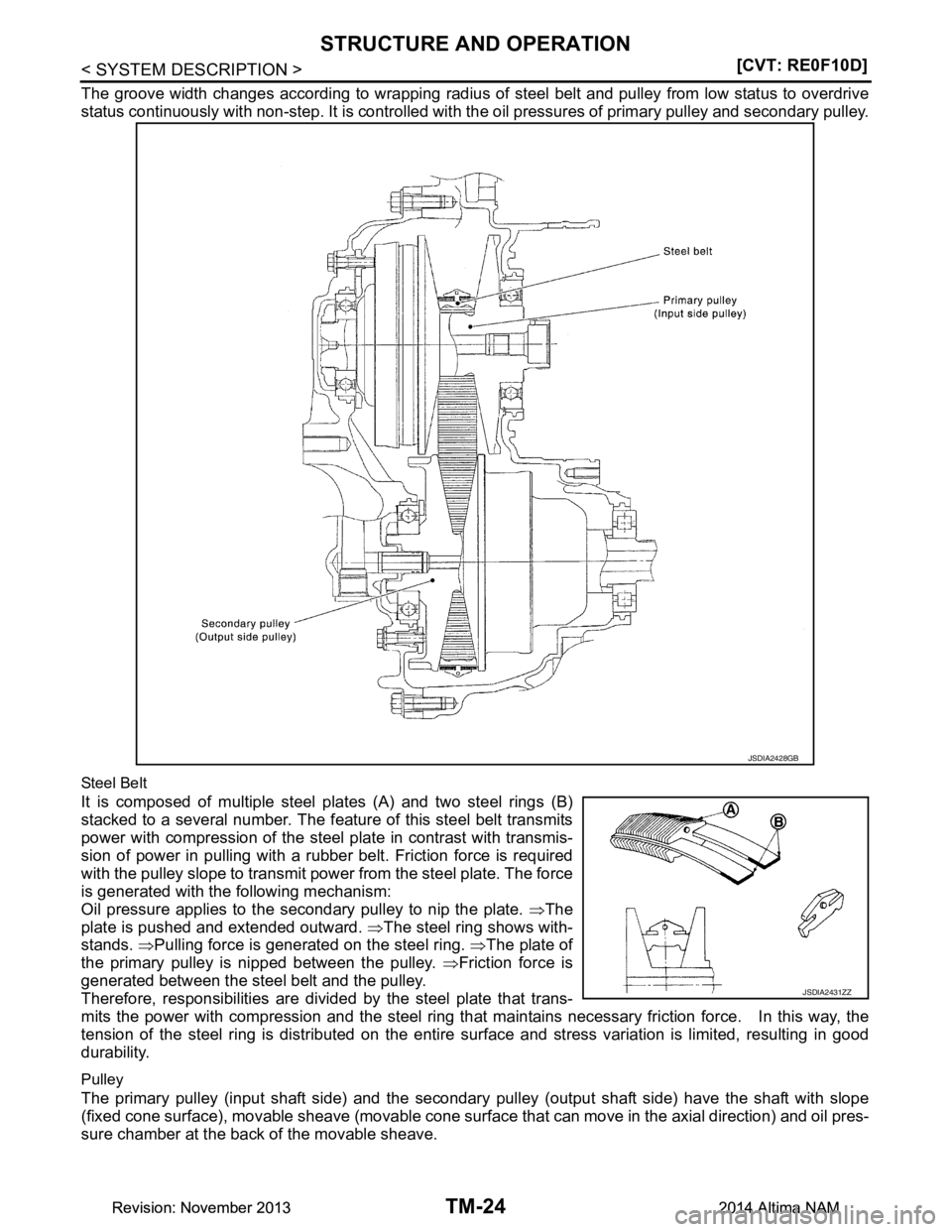

It is composed of a pair of pulleys (the groove width is changed freely in the axial direction) and the steel belt
(the steel plates are placed conti nuously and the belt is guided with the multilayer steel rings on both sides).
Selector lever
position Parking mech-
anism Forward
clutch Reverse brake Primary pulley Secondary
pulley Steel belt Final drive
P ×
R ×××××
N
D × ××××
DS × ××××
JSDIA2426GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TM-24
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
STRUCTURE AND OPERATION
The groove width changes according to wrapping radius of
steel belt and pulley from low status to overdrive
status continuously with non-step. It is controlled wit h the oil pressures of primary pulley and secondary pulley.
Steel Belt
It is composed of multiple steel plates (A) and two steel rings (B)
stacked to a several number. The feature of this steel belt transmits
power with compression of the steel plate in contrast with transmis-
sion of power in pulling with a rubber belt. Friction force is required
with the pulley slope to transmit power from the steel plate. The force
is generated with the following mechanism:
Oil pressure applies to the secondary pulley to nip the plate. ⇒The
plate is pushed and extended outward. ⇒The steel ring shows with-
stands. ⇒Pulling force is generated on the steel ring. ⇒The plate of
the primary pulley is nipped between the pulley. ⇒Friction force is
generated between the steel belt and the pulley.
Therefore, responsibilities are divi ded by the steel plate that trans-
mits the power with compression and the steel ring that main tains necessary friction force. In this way, the
tension of the steel ring is distributed on the entire su rface and stress variation is limited, resulting in good
durability.
Pulley
The primary pulley (input shaft side) and the secondary pulley (output shaft side) have the shaft with slope
(fixed cone surface), movable sheave (movable cone surface that can move in the axial direction) and oil pres-
sure chamber at the back of the movable sheave.
JSDIA2428GB
JSDIA2431ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

STRUCTURE AND OPERATIONTM-25
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
The movable sheave slides on the shaft to change the gr oove width of the pulley. Input signals of engine load
(accelerator pedal opening), primary pulley speed and secondary pulley speed change the operation pres-
sures of the primary pulley and the secondary pulley, and controls the pulley groove width.
FINAL DRIVE AND DIFFERENTIAL
The deceleration gears are composed of 2 stages: primar y deceleration (output gear, idler gear pair) and sec-
ondary deceleration (reduction gear, final gear pa ir). All of these gears are helical gears.
JSDIA2429GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
