WATER OUTLET AND WATER PIPINGCO-51
< REMOVAL AND INSTALLATION > [VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
NP
O
WATER OUTLET AND WATER PIPING
Exploded ViewINFOID:0000000009460424
WARNING:
Do not remove the radiator cap when the engine is hot. Serious burns could occur from high-pressure
engine coolant escaping from the radiator. Wrap a thick cloth around the cap. Slowly push down and
turn it a quarter turn to allow built-up pressure to escape. Carefully remove the cap by pushing it down
and turning it all the way.
NOTE:
When removing components such as hoses, tubes/lines, etc. , cap or plug openings to prevent fluid from spill-
ing.
Removal and InstallationINFOID:0000000009460425
REMOVAL
1. Remove engine room cover. Refer to EM-28, "Removal and Installation".
CAUTION:
Perform when the engine is cold.

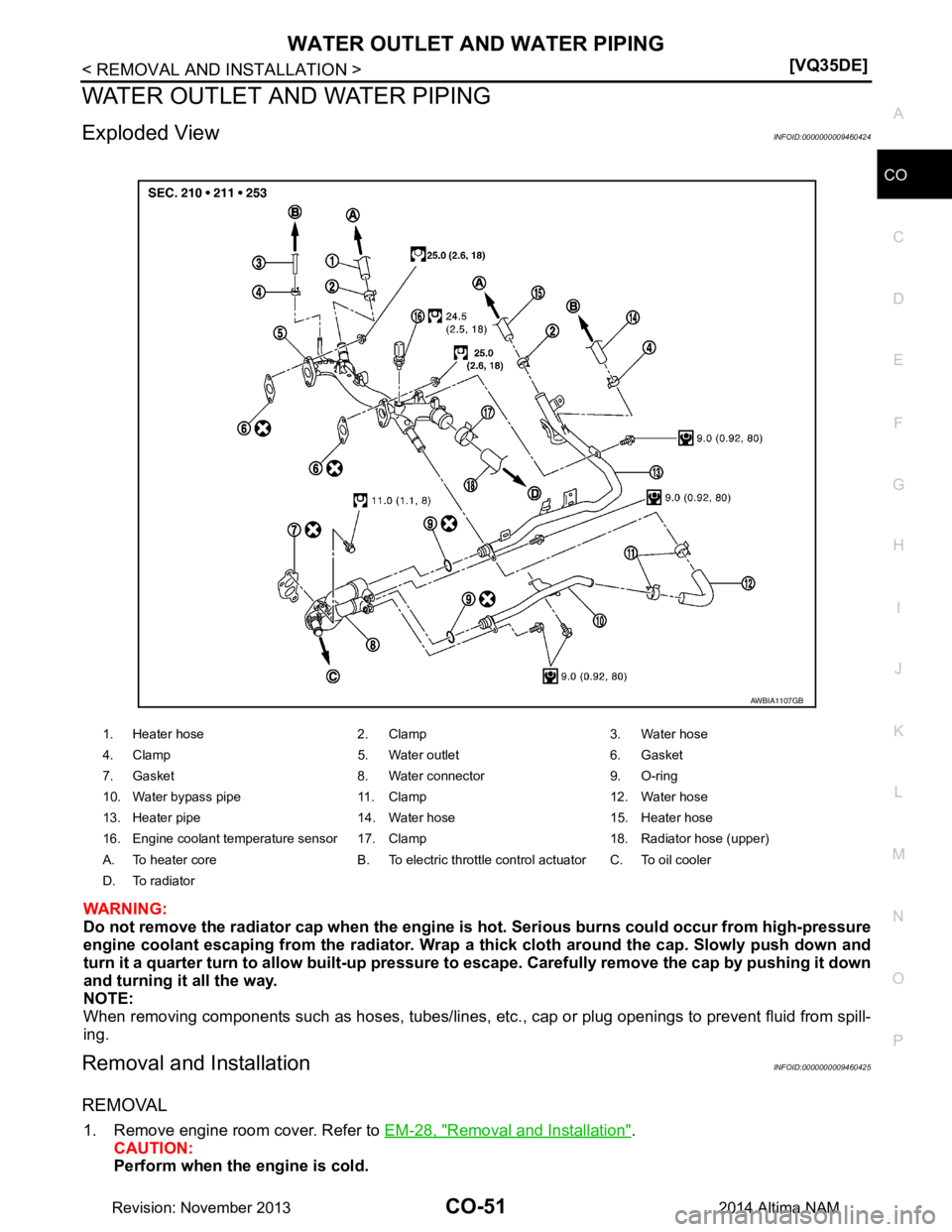

1. Heater hose 2. Clamp 3. Water hose
4. Clamp 5. Water outlet 6. Gasket
7. Gasket 8. Water connector 9. O-ring
10. Water bypass pipe 11. Clamp 12. Water hose
13. Heater pipe 14. Water hose 15. Heater hose
16. Engine coolant temperature sensor 17. Clamp 18. Radiator hose (upper)
A. To heater core B. To electric throttle control actuator C. To oil cooler
D. To radiator
AWBIA1107GB
Revision: November 20132014 Altima NAM
Page 432 of 4801
![NISSAN TEANA 2014 Service Manual
CO-52
< REMOVAL AND INSTALLATION >[VQ35DE]
WATER OUTLET AND WATER PIPING
2. Partially drain engine coolant from radiator. Refer to
CO-36, "Changing Engine Coolant".
3. Remove the core support cover](/img/5/57390/w960_57390-431.png "NISSAN TEANA 2014 Service Manual
CO-52
< REMOVAL AND INSTALLATION >[VQ35DE]
WATER OUTLET AND WATER PIPING
2. Partially drain engine coolant from radiator. Refer to
CO-36, \"Changing Engine Coolant\".
3. Remove the core support cover")
CO-52
< REMOVAL AND INSTALLATION >[VQ35DE]
WATER OUTLET AND WATER PIPING
2. Partially drain engine coolant from radiator. Refer to
CO-36, "Changing Engine Coolant".

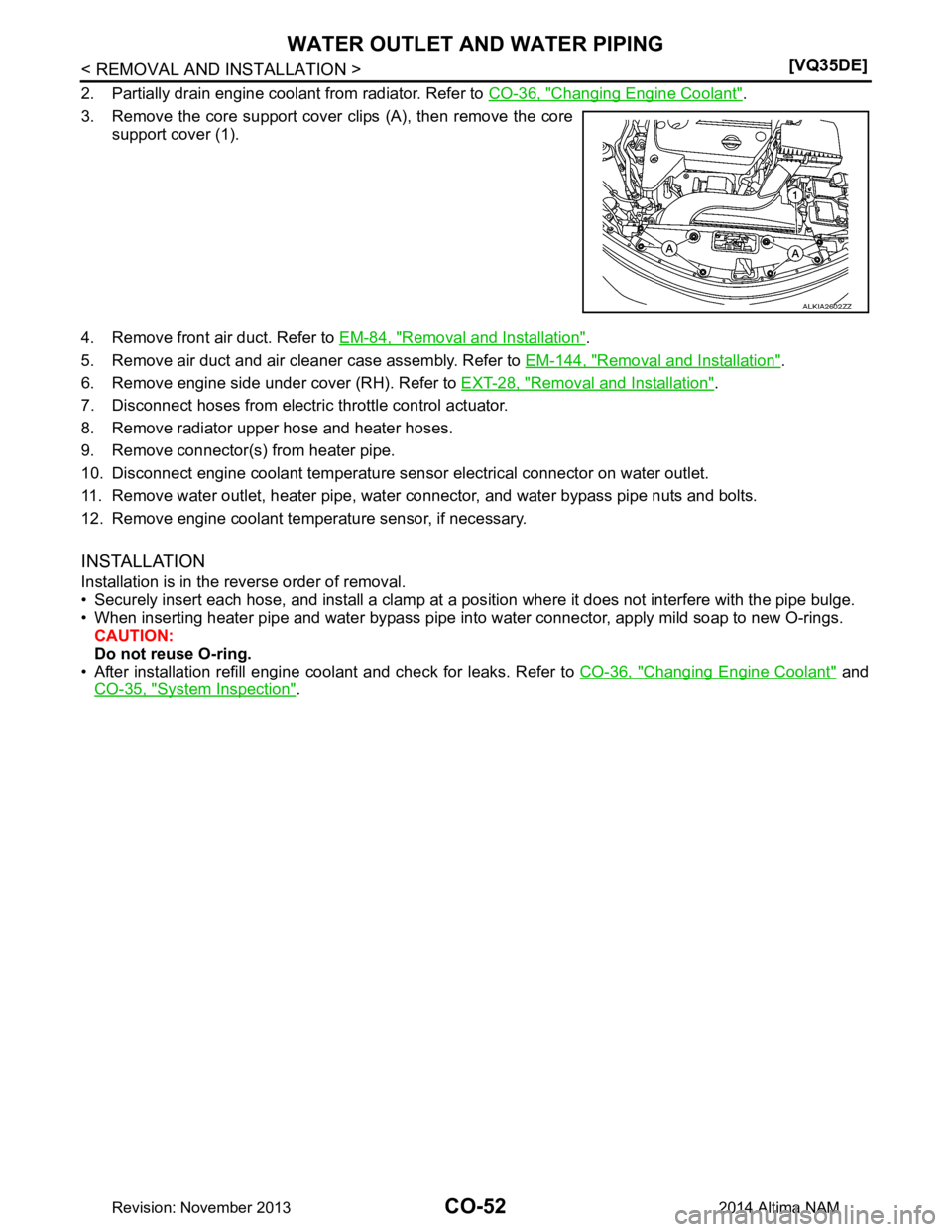

3. Remove the core support cover clips (A), then remove the core support cover (1).
4. Remove front air duct. Refer to EM-84, "Removal and Installation"
.
5. Remove air duct and air cleaner case assembly. Refer to EM-144, "Removal and Installation"
.
6. Remove engine side under cover (RH). Refer to EXT-28, "Removal and Installation"
.
7. Disconnect hoses from electric throttle control actuator.
8. Remove radiator upper hose and heater hoses.
9. Remove connector(s) from heater pipe.
10. Disconnect engine coolant temperature sens or electrical connector on water outlet.
11. Remove water outlet, heater pipe, water connector, and water bypass pipe nuts and bolts.
12. Remove engine coolant temperature sensor, if necessary.
INSTALLATION
Installation is in the reverse order of removal.
• Securely insert each hose, and install a clamp at a pos ition where it does not interfere with the pipe bulge.
• When inserting heater pipe and water bypass pipe into water connector, apply mild soap to new O-rings.
CAUTION:
Do not reuse O-ring.
• After installation refill engine coolant and check for leaks. Refer to CO-36, "Changing Engine Coolant"
and
CO-35, "System Inspection"
.
ALKIA2602ZZ
Revision: November 20132014 Altima NAM
Page 433 of 4801
![NISSAN TEANA 2014 Service Manual
SERVICE DATA AND SPECIFICATIONS (SDS)CO-53
< SERVICE DATA AND SPECIFICATIONS (SDS) [VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
NP
O
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SD](/img/5/57390/w960_57390-432.png "NISSAN TEANA 2014 Service Manual
SERVICE DATA AND SPECIFICATIONS (SDS)CO-53
< SERVICE DATA AND SPECIFICATIONS (SDS) [VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
NP
O
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SD")
SERVICE DATA AND SPECIFICATIONS (SDS)CO-53
< SERVICE DATA AND SPECIFICATIONS (SDS) [VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
NP
O
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
CapacityINFOID:0000000009460426
(US qt, Imp qt)
ThermostatINFOID:0000000009460427
RadiatorINFOID:0000000009460428
Unit: kPa (kg/cm2, psi)
Coolant capacity (With reservoir ta
nk at MAX level) 9.2 (9-3/4, 8-1/8)
Valve opening temperature 82 °C (180 °F)
Full-open lift amount 8.6 mm / 95 °C (0.339 in / 203 °F)
Valve closing temperature 77 °C (171 °F)
Cap relief pressure Standard 127 ± 9.8 (1.30 ± 0.10, 18.4 ± 1.42)
Testing pressure 156 (1.6, 23)
Revision: November 20132014 Altima NAM
