TM-206
< UNIT REMOVAL AND INSTALLATION >[CVT: RE0F10D]
TRANSAXLE ASSEMBLY
UNIT REMOVAL AND INSTALLATION
TRANSAXLE ASSEMBLY

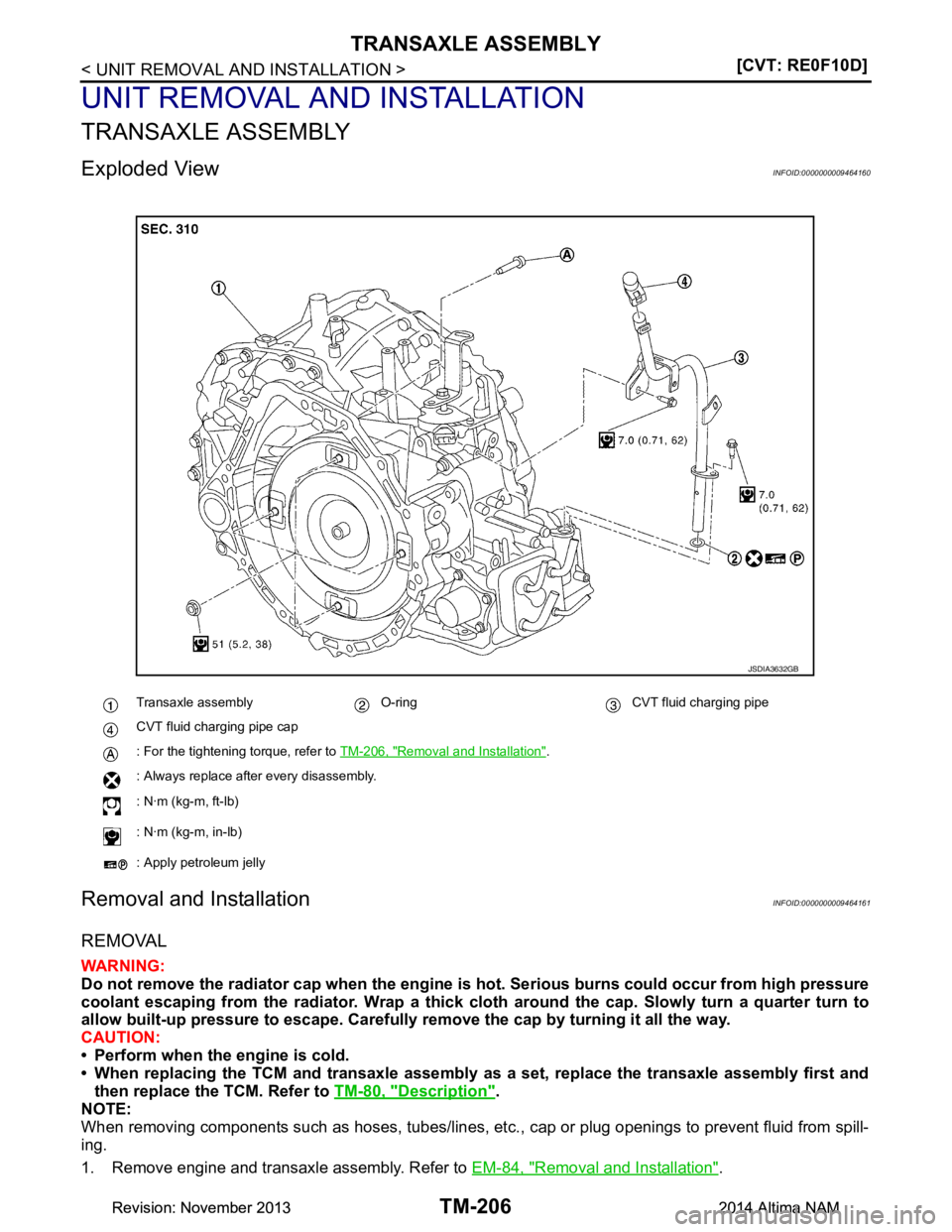

Exploded ViewINFOID:0000000009464160
Removal and InstallationINFOID:0000000009464161
REMOVAL
WARNING:
Do not remove the radiator cap when the engine is hot. Serious burns could occur from high pressure
coolant escaping from the radiator. Wrap a thick cl oth around the cap. Slowly turn a quarter turn to
allow built-up pressure to escape. Carefully remove the cap by turning it all the way.
CAUTION:
• Perform when the engine is cold.
• When replacing the TCM and transaxle assembly as a set, replace the transaxle assembly first and
then replace the TCM. Refer to TM-80, "Description"
.
NOTE:
When removing components such as hoses, tubes/lines, etc. , cap or plug openings to prevent fluid from spill-
ing.
1. Remove engine and transaxle assembly. Refer to EM-84, "Removal and Installation"
.
Transaxle assembly O-ring CVT fluid charging pipe
CVT fluid charging pipe cap
: For the tightening torque, refer to TM-206, "Removal and Installation"
.
: Always replace after every disassembly.
: N·m (kg-m, ft-lb)
: N·m (kg-m, in-lb)
: Apply petroleum jelly
JSDIA3632GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4422 of 4801
![NISSAN TEANA 2014 Service Manual
TRANSAXLE ASSEMBLYTM-207
< UNIT REMOVAL AND INSTALLATION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
2. Disconnect the transaxle harness connectors.
3. Disconnect the CVT oil warmer water hose NISSAN TEANA 2014 Service Manual
TRANSAXLE ASSEMBLYTM-207
< UNIT REMOVAL AND INSTALLATION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
2. Disconnect the transaxle harness connectors.
3. Disconnect the CVT oil warmer water hose](/img/5/57390/w960_57390-4421.png)
TRANSAXLE ASSEMBLYTM-207
< UNIT REMOVAL AND INSTALLATION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
2. Disconnect the transaxle harness connectors.
3. Disconnect the CVT oil warmer water hoses from engine side. Refer to TM-199, "WATER HOSE :
Removal and Installation".
4. Remove the transaxle to engine and engine to transaxle bolts.
5. Remove the CVT fluid charging pipe.
6. Separate the engine from the transaxle assembly. Refer to EM-84, "Removal and Installation"
.
NOTE:

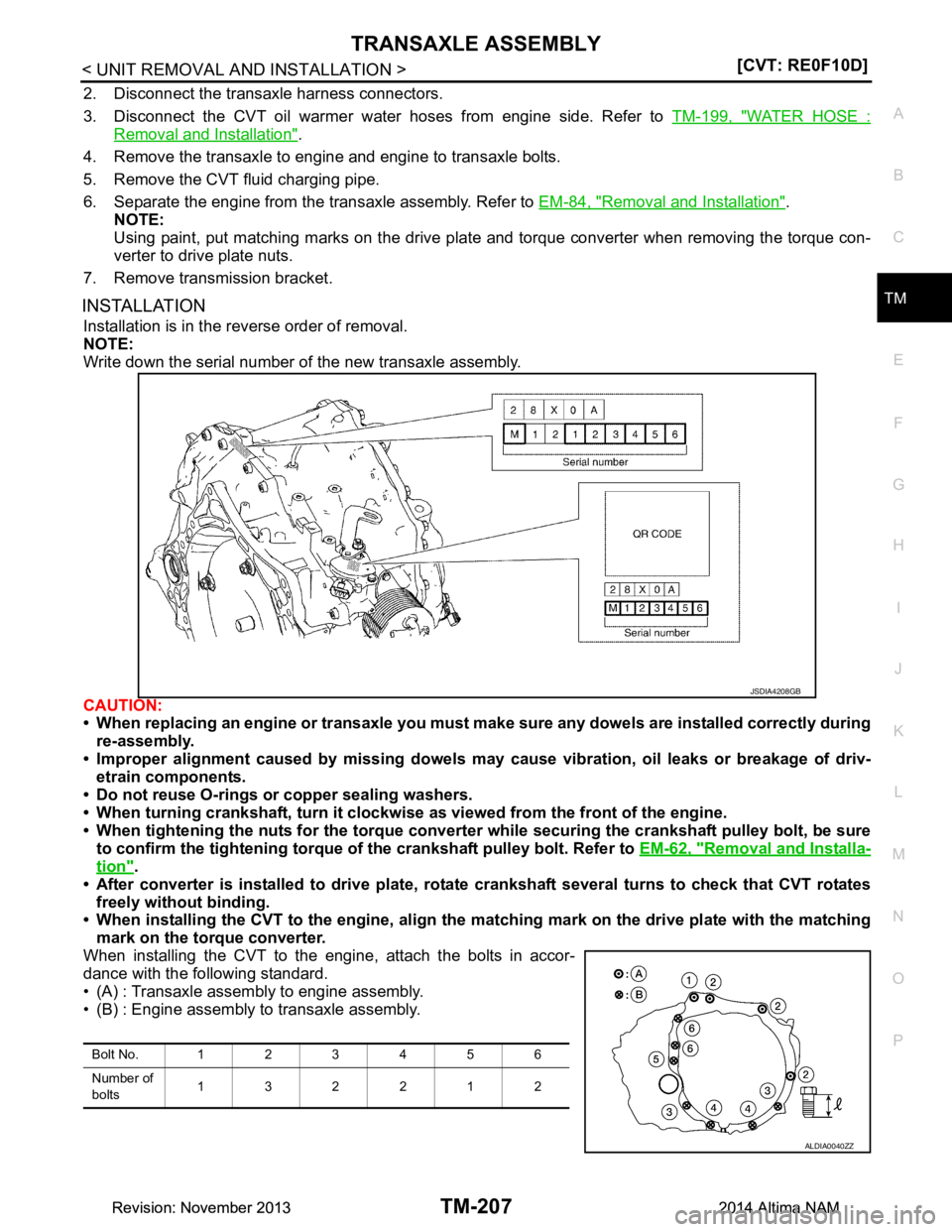

Using paint, put matching marks on the drive plate and torque converter when removing the torque con-
verter to drive plate nuts.
7. Remove transmission bracket.
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
Write down the serial number of the new transaxle assembly.
CAUTION:
• When replacing an engine or tr ansaxle you must make sure any dowels are installed correctly during
re-assembly.
• Improper alignment caused by missing dowels m ay cause vibration, oil leaks or breakage of driv-
etrain components.
• Do not reuse O-rings or copper sealing washers.
• When turning crankshaft, turn it clockwise as viewed from the front of the engine.
• When tightening the nuts for the torque converter while securing the crankshaft pulley bolt, be sure
to confirm the tightening torque of the crankshaft pulley bolt. Refer to EM-62, "Removal and Installa-
tion".
• After converter is installed to drive plate, rota te crankshaft several turns to check that CVT rotates
freely without binding.
• When installing the CVT to the engine, align the ma tching mark on the drive plate with the matching
mark on the torque converter.
When installing the CVT to the engine, attach the bolts in accor-
dance with the following standard.
• (A) : Transaxle assembly to engine assembly.
• (B) : Engine assembly to transaxle assembly.
Bolt No.123456
Number of
bolts 132212
JSDIA4208GB
ALDIA0040ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4423 of 4801
![NISSAN TEANA 2014 Service Manual
TM-208
< UNIT REMOVAL AND INSTALLATION >[CVT: RE0F10D]
TRANSAXLE ASSEMBLY
• When installing the drive plate to torque converter nuts,
tighten them temporarily. then tighten the nuts to the
specifi NISSAN TEANA 2014 Service Manual
TM-208
< UNIT REMOVAL AND INSTALLATION >[CVT: RE0F10D]
TRANSAXLE ASSEMBLY
• When installing the drive plate to torque converter nuts,
tighten them temporarily. then tighten the nuts to the
specifi](/img/5/57390/w960_57390-4422.png)
TM-208
< UNIT REMOVAL AND INSTALLATION >[CVT: RE0F10D]
TRANSAXLE ASSEMBLY
• When installing the drive plate to torque converter nuts,
tighten them temporarily. then tighten the nuts to the
specified torque.
Inspection and AdjustmentINFOID:0000000009464162
INSPECTION BEFORE INSTALLATION

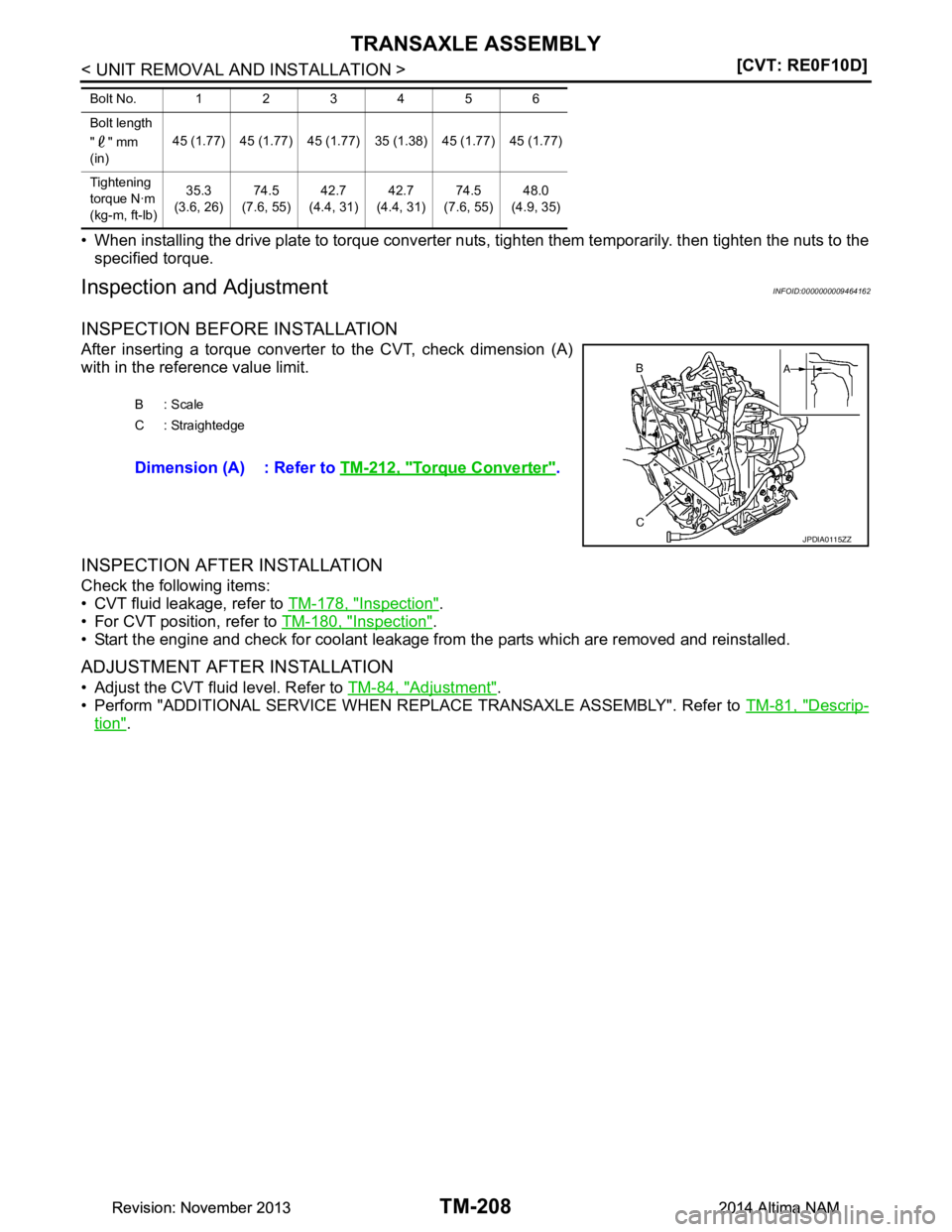

After inserting a torque converter to the CVT, check dimension (A)
with in the reference value limit.
INSPECTION AFTER INSTALLATION
Check the following items:
• CVT fluid leakage, refer to TM-178, "Inspection"
.
• For CVT position, refer to TM-180, "Inspection"
.
• Start the engine and check for coolant leakage from the parts which are removed and reinstalled.
ADJUSTMENT AFTER INSTALLATION
• Adjust the CVT fluid level. Refer to TM-84, "Adjustment".
• Perform "ADDITIONAL SERVICE WHEN REPLACE TRANSAXLE ASSEMBLY". Refer to TM-81, "Descrip-
tion".
Bolt length
"" mm
(in) 45 (1.77) 45 (1.77) 45 (1.77) 35 (1.38) 45 (1.77) 45 (1.77)
Tightening
torque N·m
(kg-m, ft-lb) 35.3
(3.6, 26) 74.5
(7.6, 55) 42.7
(4.4, 31) 42.7
(4.4, 31) 74.5
(7.6, 55) 48.0
(4.9, 35)
Bolt No.123456
B: Scale
C : Straightedge
Dimension (A) : Refer to TM-212, "Torque Converter".
JPDIA0115ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4424 of 4801
![NISSAN TEANA 2014 Service Manual
TORQUE CONVERTER AND CONVERTER HOUSING OIL SEALTM-209
< UNIT DISASSEMBLY AND ASSEMBLY > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
UNIT DISASSEMBLY AND ASSEMBLY
TORQUE CONVERTER AND CO NVERTER H NISSAN TEANA 2014 Service Manual
TORQUE CONVERTER AND CONVERTER HOUSING OIL SEALTM-209
< UNIT DISASSEMBLY AND ASSEMBLY > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
UNIT DISASSEMBLY AND ASSEMBLY
TORQUE CONVERTER AND CO NVERTER H](/img/5/57390/w960_57390-4423.png)
TORQUE CONVERTER AND CONVERTER HOUSING OIL SEALTM-209
< UNIT DISASSEMBLY AND ASSEMBLY > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
UNIT DISASSEMBLY AND ASSEMBLY
TORQUE CONVERTER AND CO NVERTER HOUSING OIL SEAL

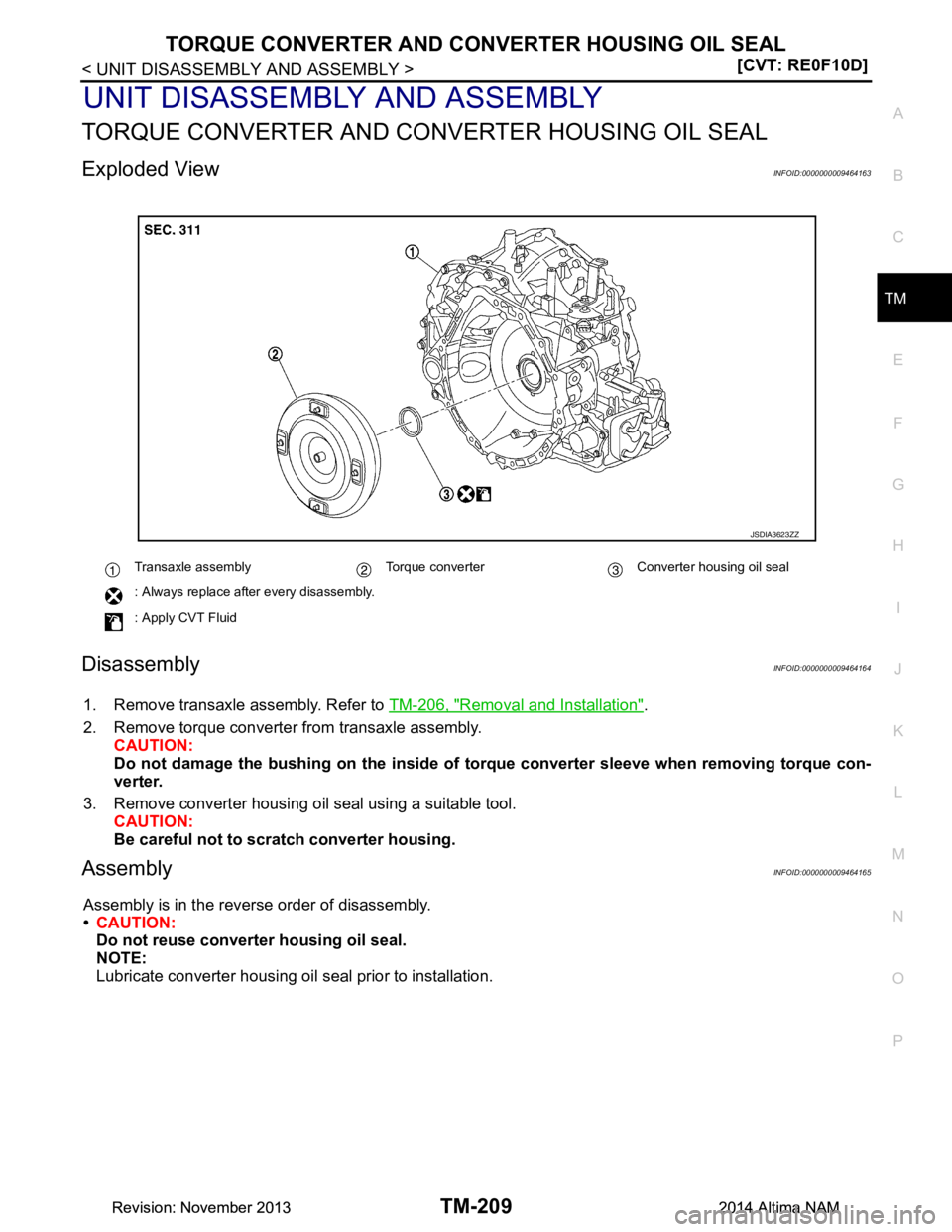

Exploded ViewINFOID:0000000009464163
DisassemblyINFOID:0000000009464164
1. Remove transaxle assembly. Refer to TM-206, "Removal and Installation".
2. Remove torque converter from transaxle assembly. CAUTION:
Do not damage the bushing on the inside of torque converter sleeve when removing torque con-
verter.
3. Remove converter housing oil seal using a suitable tool. CAUTION:
Be careful not to scratch converter housing.
AssemblyINFOID:0000000009464165
Assembly is in the reverse order of disassembly.
• CAUTION:
Do not reuse converter housing oil seal.
NOTE:
Lubricate converter housing oil seal prior to installation.
Transaxle assembly Torque converter Converter housing oil seal
: Always replace after every disassembly.
: Apply CVT Fluid
JSDIA3623ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4425 of 4801
![NISSAN TEANA 2014 Service Manual
TM-210
< UNIT DISASSEMBLY AND ASSEMBLY >[CVT: RE0F10D]
TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

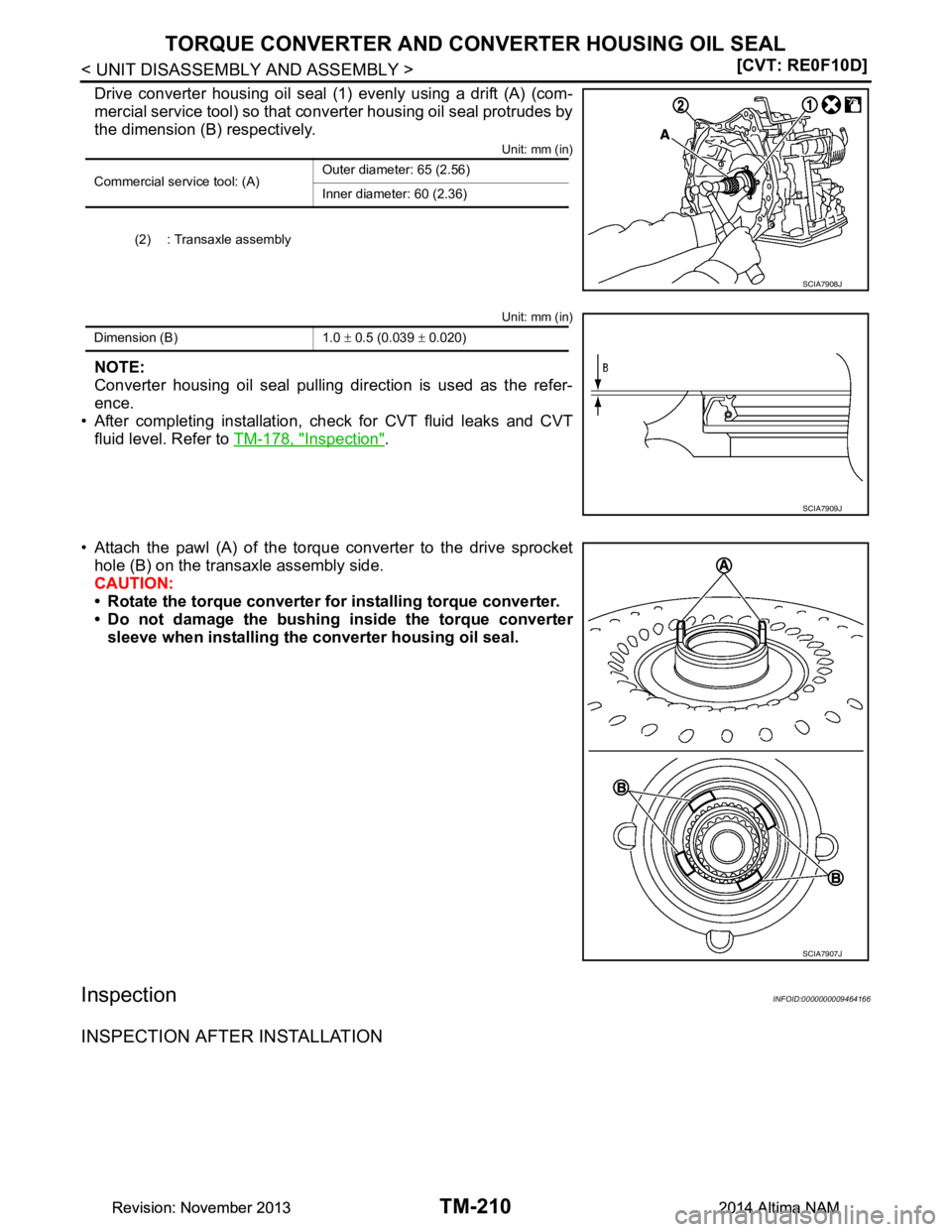

Drive converter housing oil seal (1) evenly using a drift (A) (com-
mercial service tool) so th NISSAN TEANA 2014 Service Manual
TM-210
< UNIT DISASSEMBLY AND ASSEMBLY >[CVT: RE0F10D]
TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL
Drive converter housing oil seal (1) evenly using a drift (A) (com-
mercial service tool) so th](/img/5/57390/w960_57390-4424.png)
TM-210
< UNIT DISASSEMBLY AND ASSEMBLY >[CVT: RE0F10D]
TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL
Drive converter housing oil seal (1) evenly using a drift (A) (com-
