CVT CONTROL SYSTEM : Protection Control
INFOID:0000000009464206
The TCM becomes the protection control status temporar ily to protect the safety w NISSAN TEANA 2014 Service Manual
TM-236
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
SYSTEM
CVT CONTROL SYSTEM : Protection Control
INFOID:0000000009464206
The TCM becomes the protection control status temporar ily to protect the safety w](/img/5/57390/w960_57390-4450.png)
TM-236
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
SYSTEM
CVT CONTROL SYSTEM : Protection Control
INFOID:0000000009464206
The TCM becomes the protection control status temporar ily to protect the safety when the safety of TCM and
transmission is lost. It automatically returns to the normal status if the safety is secured.
The TCM has the following protection control.
CONTROL FOR WHEEL SPIN
TORQUE IS REDUCED WHEN DRIVING WITH THE REVERSE GEAR
CONTROL WHEN FLUID TEMPERATURE IS HIGH
P2813 • Selector shock is large
•Start is slow
• Acceleration is slow
• Vehicle speed is not increased When a malfunction occurs on the low oil pressure side
• Selector shock is large When a malfunction occurs on the high oil pressure side
P2814 • Selector shock is large —
P2815 • Selector shock is large —
U0073 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
U0100 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
U0140 • Not changed from normal driving —
U0141 • Not changed from normal driving —
U0155 • Not changed from normal driving —
U0300 • Selector shock is large
•Start is slow
• Acceleration is slow
• Lock-up is not performed —
U1000 • Not changed from normal driving — U1117 • Not changed from normal driving — DTC Vehicle behavior Conditions of vehicle
Control
When a wheel spin is detected, the engine output and gear ratio are limited and the line pressure is increased.
Limits engine output when a wheel spin occurs in any of right and left drive wheels.
Vehicle behavior in
control If the accelerator is kept depressing during wheel spin, the engine revolution and vehicle speed are limited to
a certain degree.
Normal retu rn condi-
tion Wheel spin convergence returns the control to the normal control.
Control Engine output is controlled according to a vehicle speed while reversing the vehicle.
Vehicle behavior in
control Power performance may be lowered while reversing the vehicle.
Normal retu rn condi-
tion Torque returns to normal by positioning the selector lever in a range other than “R” position.
Control
When the CVT fluid temperature is high, the gear shift permission maximum revolution and the maximum
torque are reduced than usual to prevent increase of the oil temperature.
Vehicle behavior in
control Power performance may be lowered, compared to normal control.
Normal retu rn condi-
tion The control returns to the normal control when CVT fluid temperature is lowered.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4452 of 4801
![NISSAN TEANA 2014 Service Manual
SYSTEMTM-237
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
REVERSE PROHIBIT CONTROL
LINE PRESSURE CONTROL
LINE PRESSURE CONTROL : System DescriptionINFOID:0000000009464207
S NISSAN TEANA 2014 Service Manual
SYSTEMTM-237
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
REVERSE PROHIBIT CONTROL
LINE PRESSURE CONTROL
LINE PRESSURE CONTROL : System DescriptionINFOID:0000000009464207
S](/img/5/57390/w960_57390-4451.png)
SYSTEMTM-237
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
REVERSE PROHIBIT CONTROL
LINE PRESSURE CONTROL
LINE PRESSURE CONTROL : System DescriptionINFOID:0000000009464207

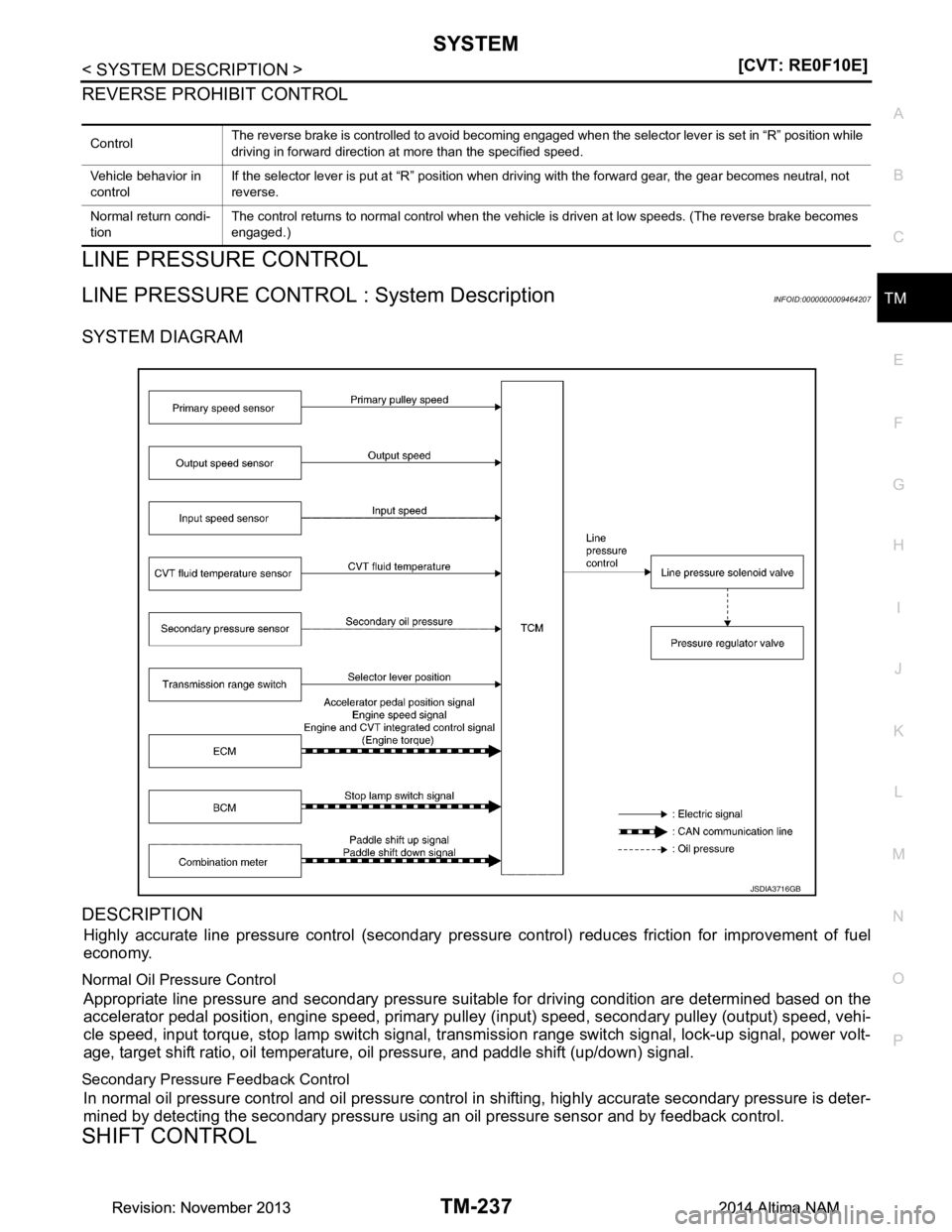

SYSTEM DIAGRAM
DESCRIPTION
Highly accurate line pressure control (secondary pressure control) reduces friction for improvement of fuel
economy.
Normal Oil Pressure Control
Appropriate line pressure and secondary pressure suitable for driving condition are determined based on the
accelerator pedal position, engine speed, primary pulley (input) speed, secondary pulley (output) speed, vehi-
cle speed, input torque, stop lamp switch signal, transmission range switch signal, lock-up signal, power volt-
age, target shift ratio, oil temperature, oil pressure, and paddle shift (up/down) signal.
Secondary Pressure Feedback Control
In normal oil pressure control and oil pressure control in shifting, highly accurate secondary pressure is deter-
mined by detecting the secondary pressure using an oil pressure sensor and by feedback control.
SHIFT CONTROL
Control The reverse brake is controlled to avoid becoming engaged when the selector lever is set in “R” position while
driving in forward direction at more than the specified speed.
Vehicle behavior in
control If the selector lever is put at “R” position when driving with the forward gear, the gear becomes neutral, not
reverse.
Normal return condi-
tion The control returns to normal control when the vehicle is driven at low speeds. (The reverse brake becomes
engaged.)
JSDIA3716GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4453 of 4801
![NISSAN TEANA 2014 Service Manual
TM-238
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
SYSTEM
SHIFT CONTROL : System Description
INFOID:0000000009464208
SYSTEM DIAGRAM
DESCRIPTION
To select the gear ratio that can give the driving force to NISSAN TEANA 2014 Service Manual
TM-238
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
SYSTEM
SHIFT CONTROL : System Description
INFOID:0000000009464208
SYSTEM DIAGRAM
DESCRIPTION
To select the gear ratio that can give the driving force to](/img/5/57390/w960_57390-4452.png)
TM-238
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
SYSTEM
SHIFT CONTROL : System Description
INFOID:0000000009464208
SYSTEM DIAGRAM
DESCRIPTION

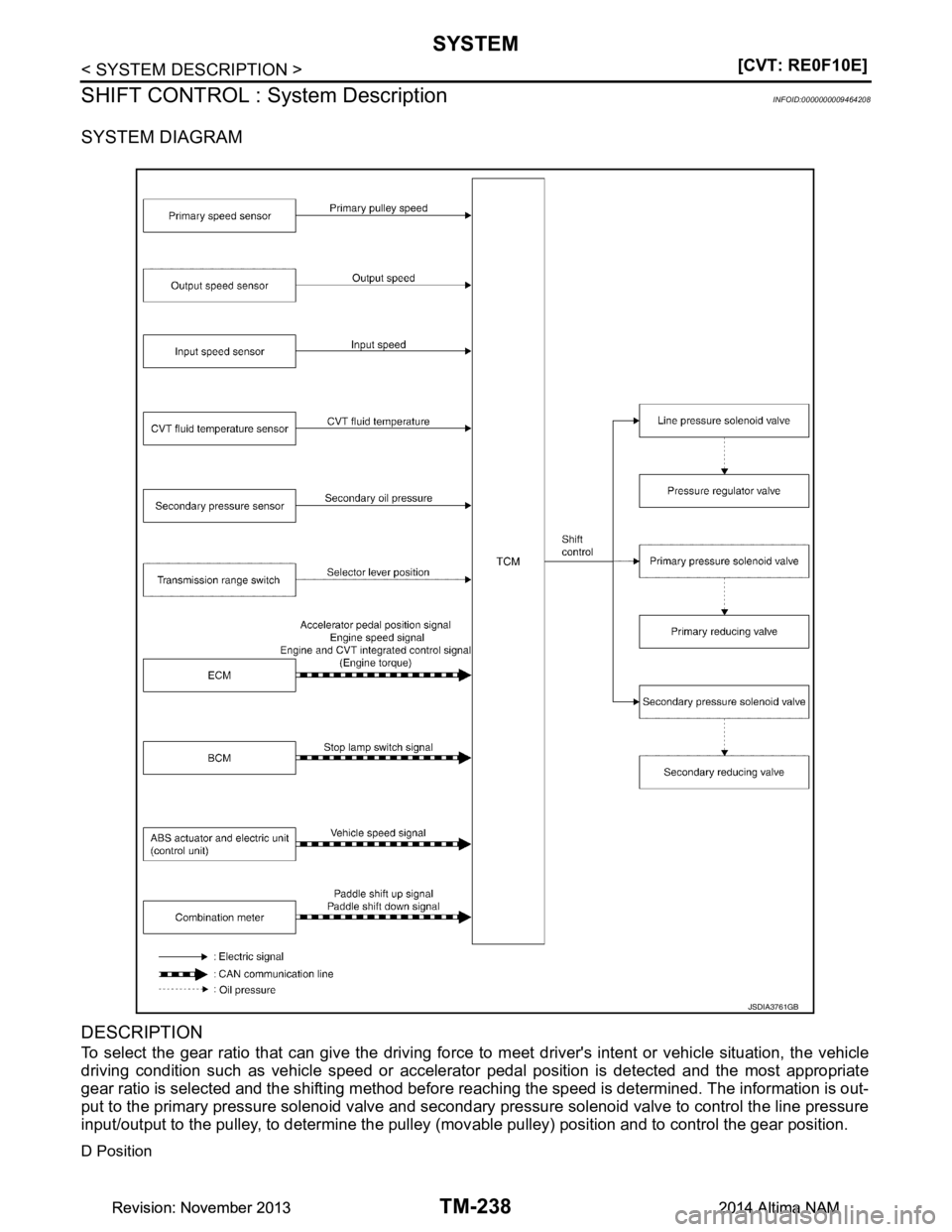

To select the gear ratio that can give the driving force to meet driver's intent or vehicle situation, the vehicle
driving condition such as vehicle speed or accelera tor pedal position is detected and the most appropriate
gear ratio is selected and the shifting method before reaching the speed is determined. The information is out-
put to the primary pressure solenoid valve and secondary pressure solenoid valve to control the line pressure
input/output to the pulley, to determine the pulley (mov able pulley) position and to control the gear position.
D Position
JSDIA3761GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4454 of 4801
![NISSAN TEANA 2014 Service Manual
SYSTEMTM-239
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
Gear shifting is performed in all shifting ranges from the lowest to the
highest gear ratio.
DS Position
Pressing NISSAN TEANA 2014 Service Manual
SYSTEMTM-239
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
Gear shifting is performed in all shifting ranges from the lowest to the
highest gear ratio.
DS Position
Pressing](/img/5/57390/w960_57390-4453.png)
SYSTEMTM-239
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
Gear shifting is performed in all shifting ranges from the lowest to the
highest gear ratio.
DS Position

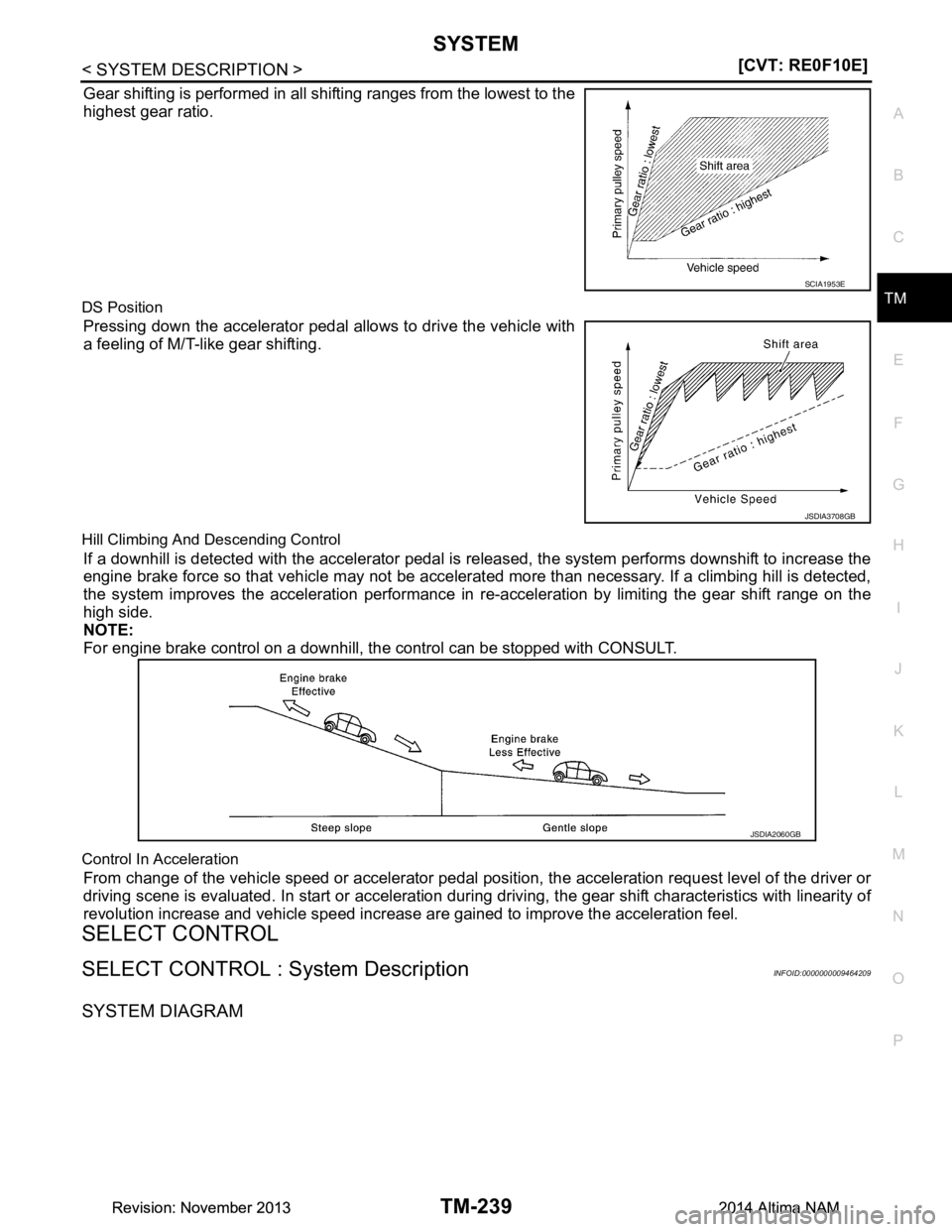

Pressing down the accelerator pedal allows to drive the vehicle with
a feeling of M/T-like gear shifting.
Hill Climbing And Descending Control
If a downhill is detected with the accelerator pedal is released, the system performs downshift to increase the
engine brake force so that vehicle may not be accelerat ed more than necessary. If a climbing hill is detected,
the system improves the acceleration performance in re-acceleration by limiting the gear shift range on the
high side.
NOTE:
For engine brake control on a downhill, the control can be stopped with CONSULT.
Control In Acceleration
From change of the vehicle speed or accelerator pedal pos ition, the acceleration request level of the driver or
driving scene is evaluated. In start or acceleration duri ng driving, the gear shift characteristics with linearity of
revolution increase and vehicle speed increase ar e gained to improve the acceleration feel.
SELECT CONTROL
SELECT CONTROL : System DescriptionINFOID:0000000009464209
SYSTEM DIAGRAM
SCIA1953E
JSDIA3708GB
JSDIA2060GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4455 of 4801
![NISSAN TEANA 2014 Service Manual
TM-240
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
SYSTEM
DESCRIPTION
Based on accelerator pedal angle, engine speed, prim
ary pulley speed, and the input speed, the optimum
operating pressure is set to red NISSAN TEANA 2014 Service Manual
TM-240
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
SYSTEM
DESCRIPTION
Based on accelerator pedal angle, engine speed, prim
ary pulley speed, and the input speed, the optimum
operating pressure is set to red](/img/5/57390/w960_57390-4454.png)
TM-240
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
SYSTEM
DESCRIPTION
Based on accelerator pedal angle, engine speed, prim
ary pulley speed, and the input speed, the optimum

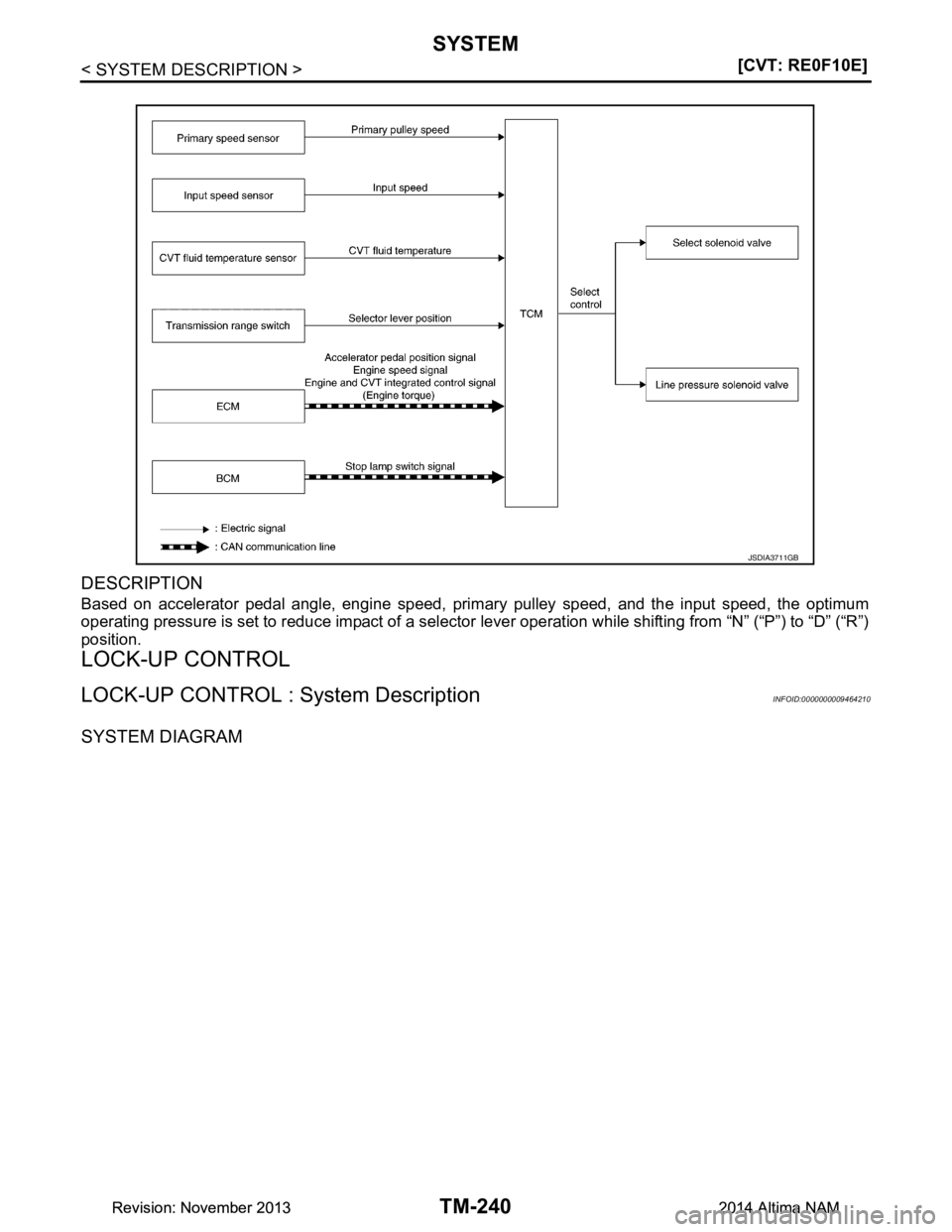

operating pressure is set to reduce impact of a selector lever operation while shifting from “N” (“P”) to “D” (“R”)
position.
LOCK-UP CONTROL
LOCK-UP CONTROL : System DescriptionINFOID:0000000009464210
SYSTEM DIAGRAM

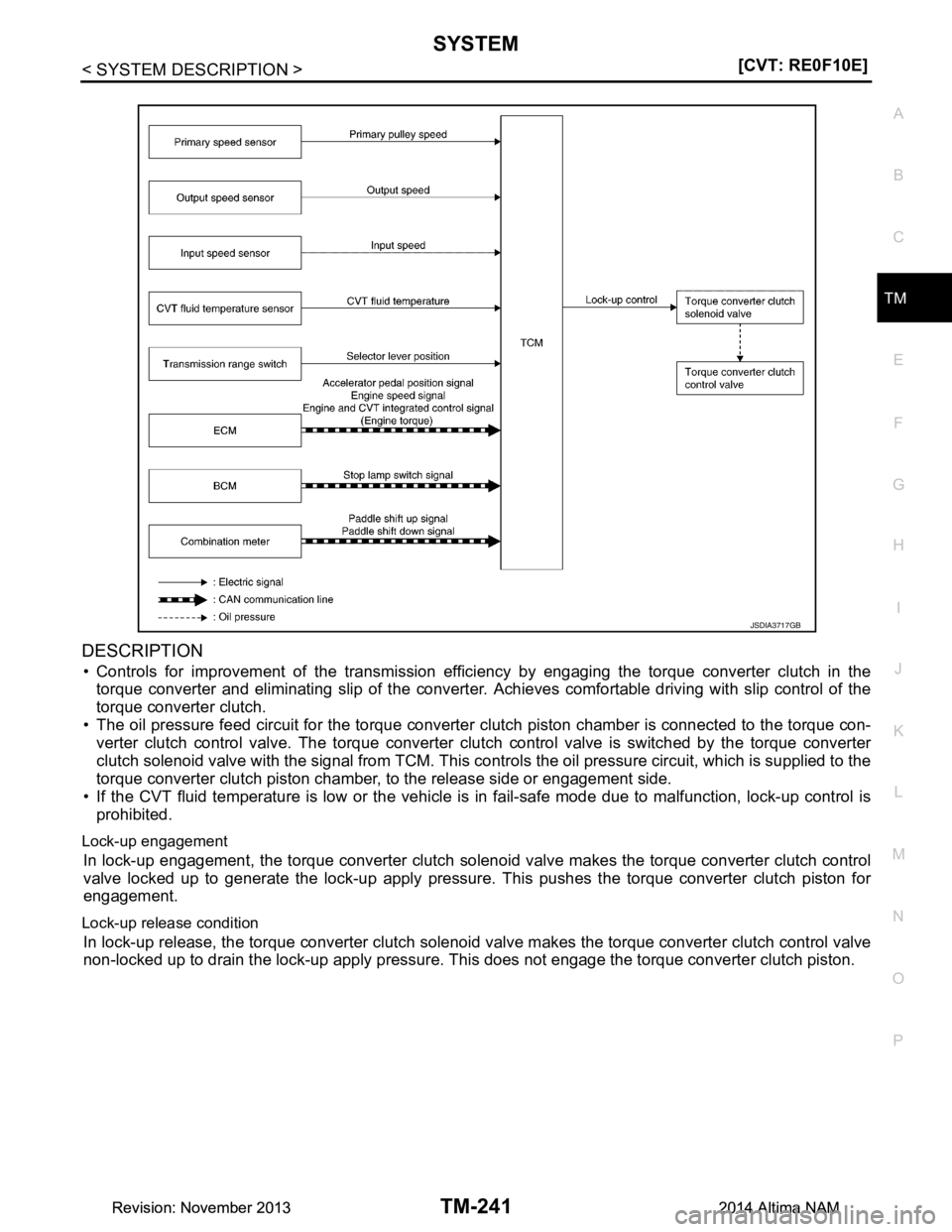

JSDIA3711GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4456 of 4801
![NISSAN TEANA 2014 Service Manual
SYSTEMTM-241
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
DESCRIPTION
• Controls for improvement of the transmission effici ency by engaging the torque converter clutch in NISSAN TEANA 2014 Service Manual
SYSTEMTM-241
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
DESCRIPTION
• Controls for improvement of the transmission effici ency by engaging the torque converter clutch in](/img/5/57390/w960_57390-4455.png)
SYSTEMTM-241
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
DESCRIPTION
• Controls for improvement of the transmission effici ency by engaging the torque converter clutch in the
torque converter and eliminating slip of the converter. Achieves comfortable driving with slip control of the
torque converter clutch.
• The oil pressure feed circuit for the torque converter clutch piston chamber is connected to the torque con-
verter clutch control valve. The torque converter clut ch control valve is switched by the torque converter
clutch solenoid valve with the signal from TCM. This contro ls the oil pressure circuit, which is supplied to the
torque converter clutch piston chamber, to the release side or engagement side.
• If the CVT fluid temperature is low or the vehicle is in fail-safe mode due to malfunction, lock-up control is
prohibited.
Lock-up engagement
In lock-up engagement, the torque converter clutch solenoi d valve makes the torque converter clutch control
valve locked up to generate the lock-up apply pressure. This pushes the torque converter clutch piston for
engagement.
Lock-up release condition
In lock-up release, the torque converter clutch solenoi d valve makes the torque converter clutch control valve
non-locked up to drain the lock-up apply pressure. This does not engage the torque converter clutch piston.
JSDIA3717GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4457 of 4801
![NISSAN TEANA 2014 Service Manual
TM-242
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
ON BOARD DIAGNOST
IC (OBD) SYSTEM
DescriptionINFOID:0000000009464211
This is an on board diagnosis system which records di NISSAN TEANA 2014 Service Manual
TM-242
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
ON BOARD DIAGNOST
IC (OBD) SYSTEM
DescriptionINFOID:0000000009464211
This is an on board diagnosis system which records di](/img/5/57390/w960_57390-4456.png)
TM-242
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
ON BOARD DIAGNOST
IC (OBD) SYSTEM
DescriptionINFOID:0000000009464211
This is an on board diagnosis system which records diagnosis information related to the exhaust gases. It
detects malfunctions related to sensors and actuators. The malfunctions are indicated by means of the mal-
function indicator lamp (MIL) and are stored as DTC in the ECU memory. The diagnosis information can be
checked using a diagnosis tool (GST: Generic Scan Tool).
Function of OBDINFOID:0000000009464212
The GST is connected to the diagnosis connector on t he vehicle and communicates with the on-board control
units to perform diagnosis. The diagnosis connector is the same as for CONSULT. Refer to GI-51, "Function
and System Application".
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4458 of 4801
![NISSAN TEANA 2014 Service Manual
DIAGNOSIS SYSTEM (TCM)TM-243
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
DIAGNOSIS SYSTEM (TCM)
DIAGNOSIS DESCRIPTION
DIAGNOSIS DESCRIPTION : 1 Tr ip Detection Diagnosis an NISSAN TEANA 2014 Service Manual
DIAGNOSIS SYSTEM (TCM)TM-243
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
DIAGNOSIS SYSTEM (TCM)
DIAGNOSIS DESCRIPTION
DIAGNOSIS DESCRIPTION : 1 Tr ip Detection Diagnosis an](/img/5/57390/w960_57390-4457.png)
DIAGNOSIS SYSTEM (TCM)TM-243
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
DIAGNOSIS SYSTEM (TCM)
DIAGNOSIS DESCRIPTION
DIAGNOSIS DESCRIPTION : 1 Tr ip Detection Diagnosis and 2 Trip Detection Diagno-
sis
INFOID:0000000009464213
NOTE:
“Start the engine and turn OFF the ignition switch after warm-up.” This is defined as 1 trip.
1 TRIP DETECTION DIAGNOSIS
When initial malfunction is detected, TCM memorize s DTC. In these diagnoses, some illuminate MIL and
some do not. Refer to TM-263, "DTC Index"
.
2 TRIP DETECTION DIAGNOSIS
When initial malfunction is detected, TCM memorizes DTC of the 1st trip. MIL does not light at this stage. <1
trip>
If the same malfunction is detected again in next drivi ng, TCM memorizes DTC. When DTC is memorized, MIL
lights. <2 trip>
“Trip” of the “2 trip detection diagnosis” indicates the driving mode that executes self-diagnosis during driving.
×: Check possible —: Check not possible
DIAGNOSIS DESCRIPTION : DTC and DTC of 1st TripINFOID:0000000009464214
2 TRIP DETECTION DIAGNOSIS THAT ILLUMINATES MIL
• The DTC number of the 1st trip is the same as the DTC number.
• When a malfunction is detected at the 1st trip, TCM memo rizes DTC of the 1st trip. MIL does not light at this
stage. If the same malfunction is not detected at t he 2nd trip (conforming to necessary driving conditions),
DTC at the 1st trip is erased from TCM. If the same malfunction is detected at the 2nd trip, TCM memorizes
DTC and MIL lights at the same time.
• The DTC of the 1st trip is specified in Service $01 of SAE J1979/ISO 15031-5. Since detection of DTC at the
1st trip does not illuminate MIL, warning for a problem is not given to a driver.
• For procedure to delete DTC and 1st trip DTC from TCM, refer to TM-245, "CONSULT Function"
.
• If DTC of the 1st trip is detected, it is necessary to check the cause according to the “Diagnosis flow”. Refer
to TM-279, "Work Flow"
.
DIAGNOSIS DESCRIPTION : Malf unction Indicator Lamp (MIL)INFOID:0000000009464215
• TCM not only detects DTC, but also sends the MI L signal to ECM through CAN communication. ECM sends
the MIL signal to the combination meter through CAN communication according to the signal, and illumi-
nates MIL.
• For malfunction indicator lamp (MIL) description, refer to EC-598, "DIAGNOSIS DESCRIPTION : Malfunc-
tion Indicator Lamp (MIL)".
DIAGNOSIS DESCRIPTION : Counter SystemINFOID:0000000009464216
RELATION BETWEEN DTC AT 1ST TRIP/DTC/MIL AND DRIVING CONDITIONS (FOR 2 TRIP DE-
TECTION DIAGNOSIS THAT ILLUMINATES MIL)
• When initial malfunction is detected, TCM memorizes DT C of the 1st trip. MIL does not light at this stage.
• If the same malfunction is detect ed at the 2nd trip, TCM memorizes DTC and MIL lights at the same time.
• Then, MIL goes after driving the vehicle for 3 tr ips under “Driving condition B” without malfunction.
• DTC is displayed until 40 trips of “Driving condition A” are satisfied without detecting the same malfunction.
DTC is erased when 40 trips are satisfied.
Item DTC at the 1st trip DTC MIL
Display at the 1st trip Display at the
2nd trip Display at the
1st trip Display at the
2nd trip Illumination at
the 1st trip Illumination at
the 2nd trip
1 trip detection diagnosis
(Refer to TM-263, "DTC Index"
) ——
×— ×—
2 trip detection diagnosis
(Refer to TM-263, "DTC Index"
) ×
—— ×— ×
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4459 of 4801
![NISSAN TEANA 2014 Service Manual
TM-244
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
DIAGNOSIS SYSTEM (TCM)
• When the self-diagnosis result is acceptable at the 2nd
trip (conforming to driving condition B), DTC of the
1st trip is erased NISSAN TEANA 2014 Service Manual
TM-244
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
DIAGNOSIS SYSTEM (TCM)
• When the self-diagnosis result is acceptable at the 2nd
trip (conforming to driving condition B), DTC of the
1st trip is erased](/img/5/57390/w960_57390-4458.png)
TM-244
< SYSTEM DESCRIPTION >[CVT: RE0F10E]
DIAGNOSIS SYSTEM (TCM)
• When the self-diagnosis result is acceptable at the 2nd
trip (conforming to driving condition B), DTC of the
1st trip is erased.
COUNTER SYSTEM LIST
DRIVING CONDITION
Driving condition A
Driving condition A is the driving condition that provides warm-up.
In specific, count-up is performed when all of the following conditions are satisfied.
• Engine speed is 400 rpm or more.
• After start of the engine, the water temperature increased by 20 °C (36 °F) or more.
• Water temperature was 70 °C (158 °F) or more.
• The ignition switch was changed from ON to OFF.
NOTE:
• If the same malfunction is detected regardless of the driving condition, reset the A counter.
• When the above is satisfied without detecting t he same malfunction, count up the A counter.
• When MIL goes off due to the malfunction and the A counter reaches 40, the DTC is erased.
Driving condition B
Driving condition B is the driving condition that performs all diagnoses once.
In specific, count-up is performed when all of the following conditions are satisfied.
• Engine speed is 400 rpm or more.
• Water temperature was 70 °C (158 °F) or more.
• In closed loop control, vehicle speed of 70 – 120 km/h (43 – 75 MPH) continued for 60 seconds or more.
• In closed loop control, vehicle speed of 30 – 60 km/h (19 – 37 MPH) continued for 10 seconds or more.
• In closed loop control, vehicle speed of 4 km/h (2 MPH) or less and idle determination ON continued for 12
seconds or more.
• After start of the engine, 22 minutes or more have passed.
• The condition that the vehicle speed is 10 km/h (6 MPH) or more continued for 10 seconds or more in total.
• The ignition switch was changed from ON to OFF.
NOTE:
• If the same malfunction is detected regardless of the driving condition, reset the B counter.
• When the above is satisfied without detecting t he same malfunction, count up the B counter.
• When the B counter reaches 3 wit hout malfunction, MIL goes off.
• When the B counter is counted once without detecting the same malfunction after TCM memorizes DTC of
the 1st trip, DTC of the 1st trip is erased.
Item Driving condition Trip
MIL (OFF) B 3
DTC (clear) A 40
DTC at 1st trip (clear) B 1
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
Page 4460 of 4801
![NISSAN TEANA 2014 Service Manual
DIAGNOSIS SYSTEM (TCM)TM-245
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

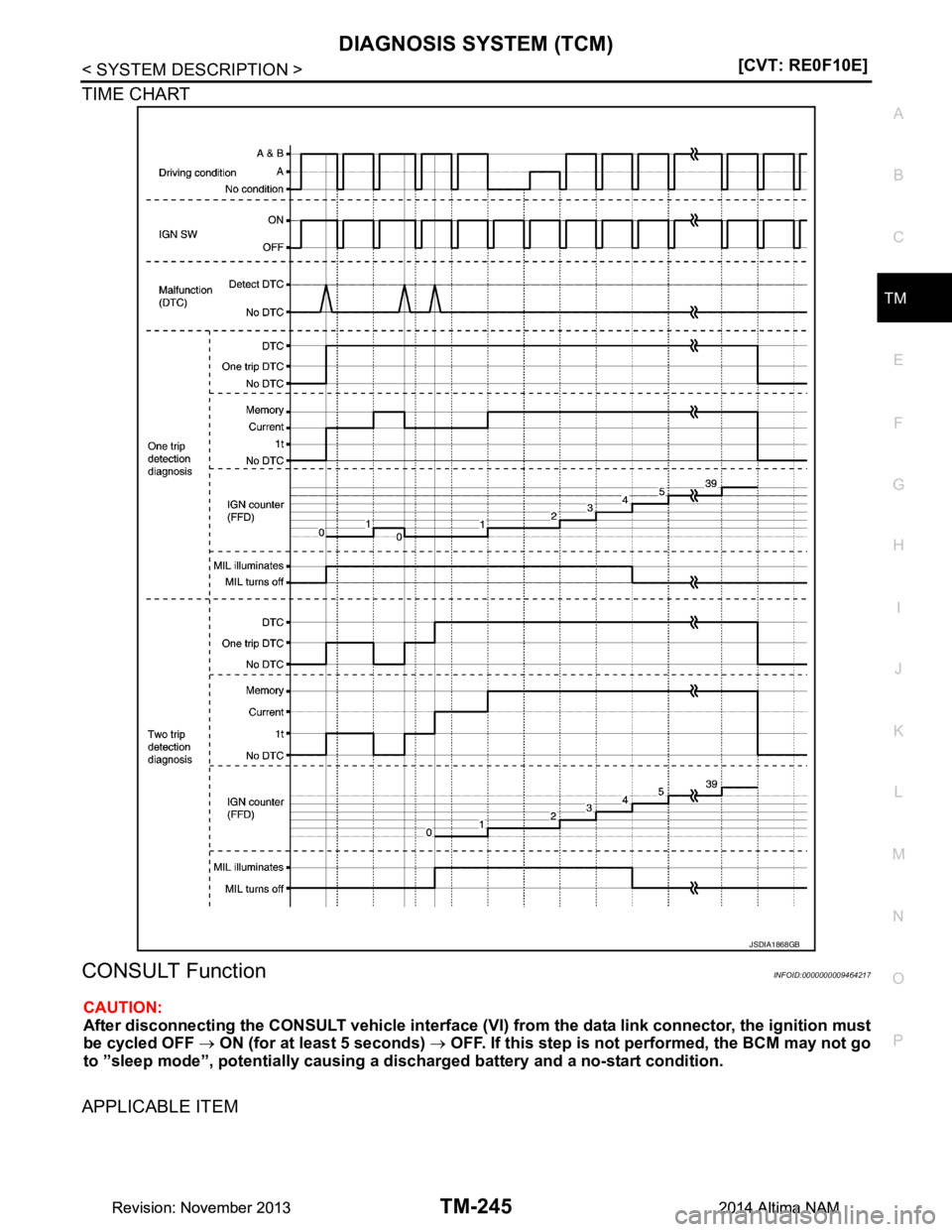

TIME CHART
CONSULT FunctionINFOID:0000000009464217
CAUTION:
After disconnecting the CONSULT vehicl NISSAN TEANA 2014 Service Manual
DIAGNOSIS SYSTEM (TCM)TM-245
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
TIME CHART
CONSULT FunctionINFOID:0000000009464217
CAUTION:
After disconnecting the CONSULT vehicl](/img/5/57390/w960_57390-4459.png)
DIAGNOSIS SYSTEM (TCM)TM-245
< SYSTEM DESCRIPTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
TIME CHART
CONSULT FunctionINFOID:0000000009464217
CAUTION:
After disconnecting the CONSULT vehicle interface (VI) from the data link connector, the ignition must
be cycled OFF → ON (for at least 5 seconds) → OFF. If this step is not performed, the BCM may not go
to ”sleep mode”, potentiall y causing a discharged battery and a no-start condition.
APPLICABLE ITEM
JSDIA1868GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
