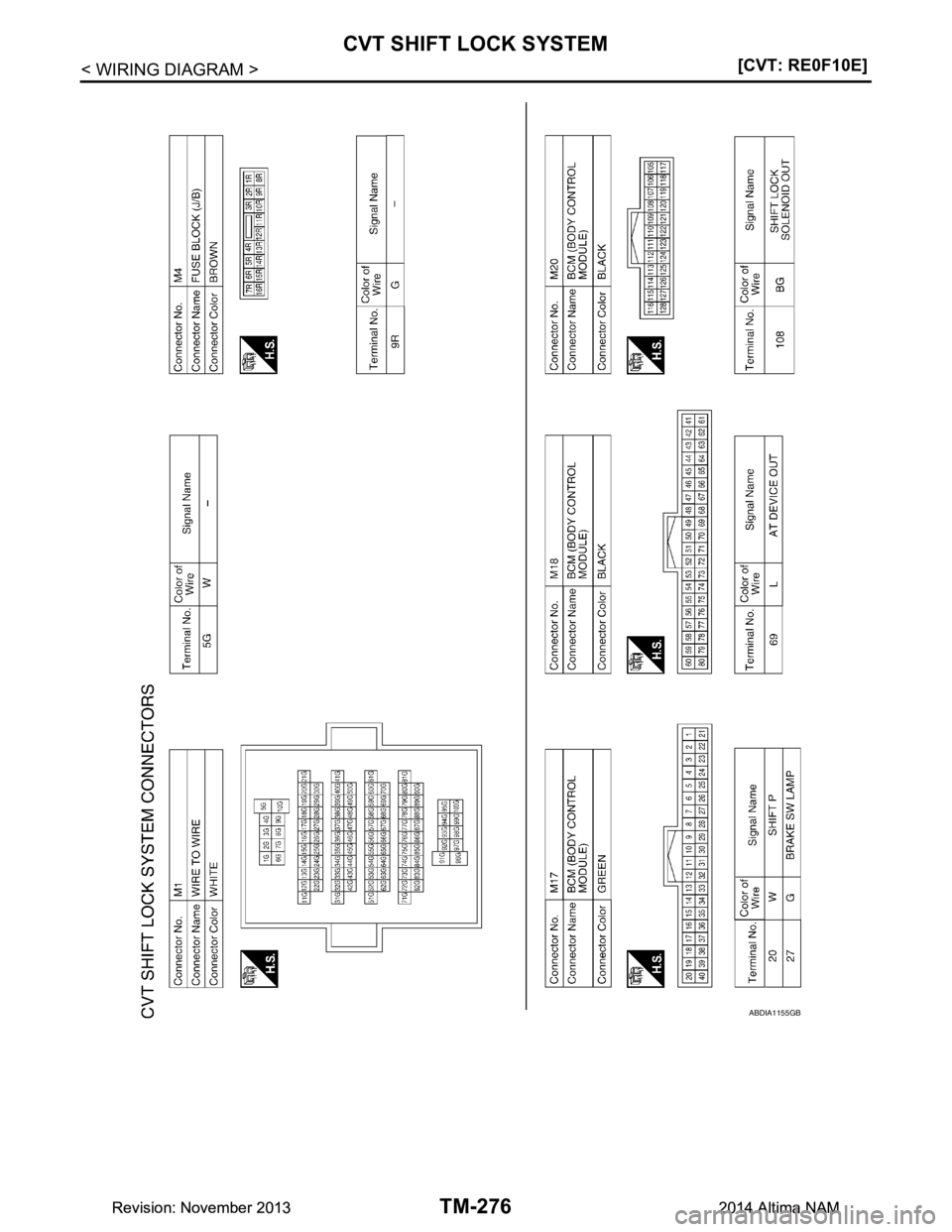

NISSAN TEANA 2014 Service Manual

TM-276
< WIRING DIAGRAM >[CVT: RE0F10E]
CVT SHIFT LOCK SYSTEM
ABDIA1155GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

CVT SHIFT LOCK SYSTEMTM-277
< WIRING DIAGRAM > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

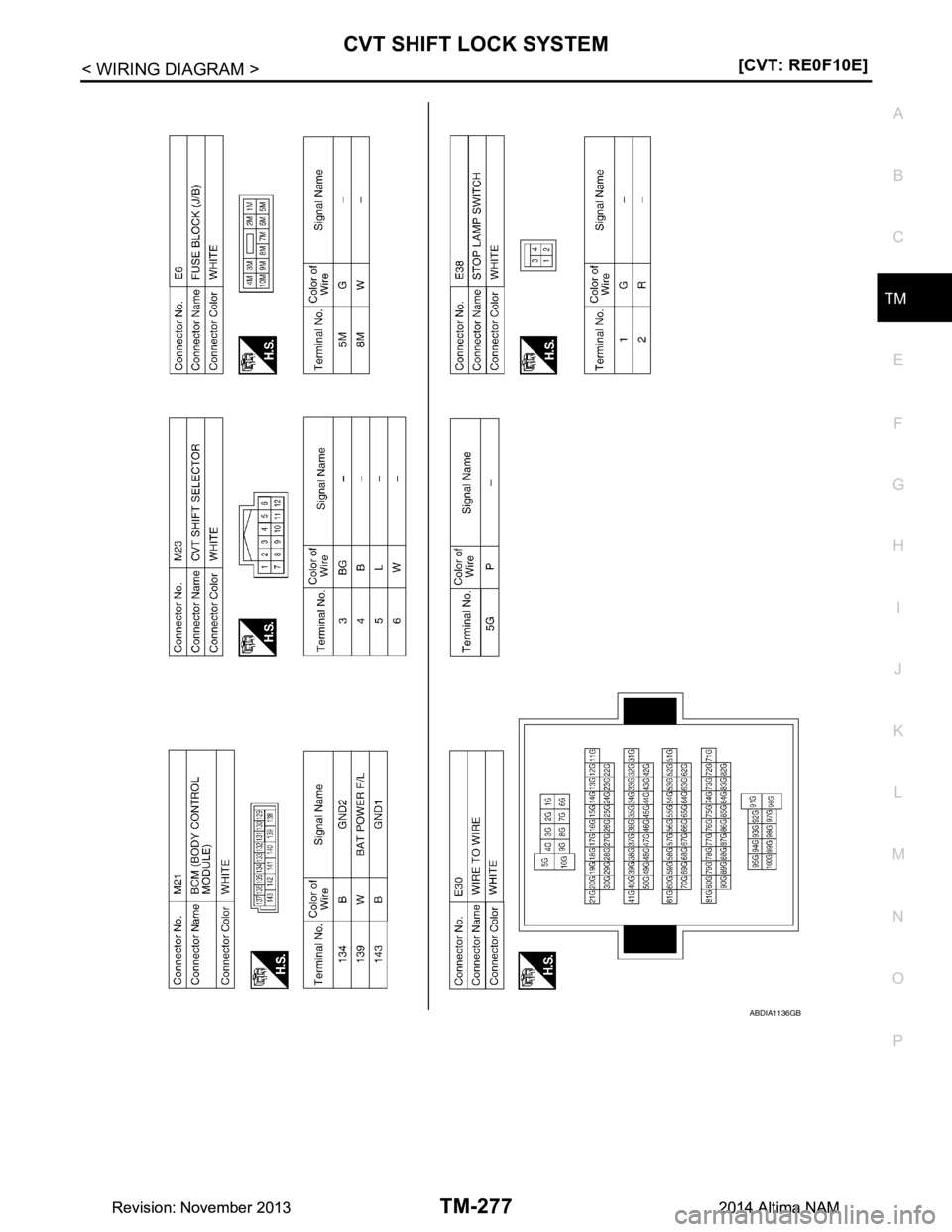

ABDIA1136GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

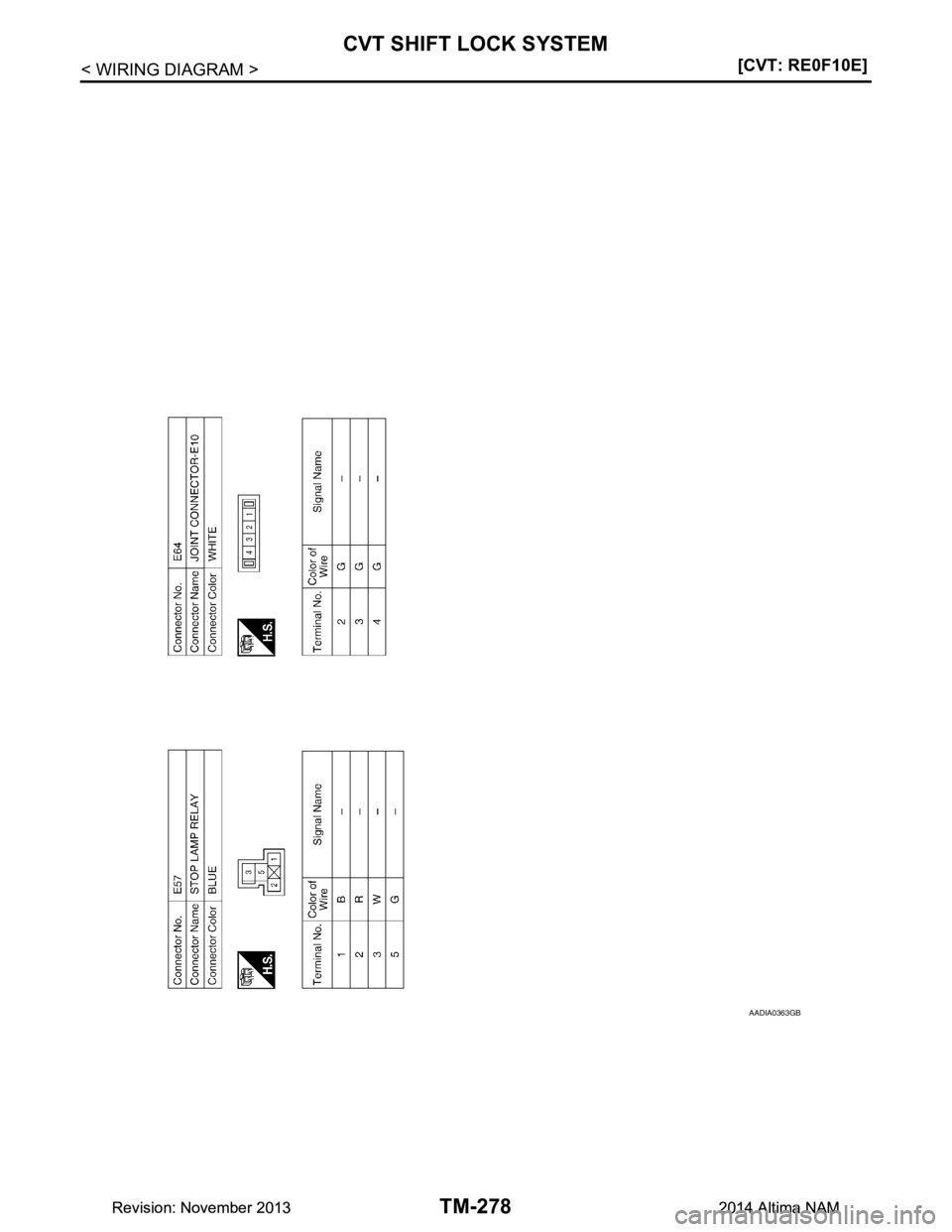

TM-278
< WIRING DIAGRAM >[CVT: RE0F10E]
CVT SHIFT LOCK SYSTEM
AADIA0363GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DIAGNOSIS AND REPAIR WORK FLOWTM-279
< BASIC INSPECTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work FlowINFOID:0000000009464225
NOTE:
“DTC” includes DTC at the 1st trip.
1.OBTAIN INFORMATION ABOUT SYMPTOM
Refer to TM-280, "Diagnostic Work Sheet"
and interview the customer to obtain the malfunction information
(conditions and environment when the malfunction occurred) as much as possible when the customer brings
in the vehicle.
>> GO TO 2.
2.CHECK DTC
1. Before checking the malfunction, check whether any DTC exists.
2. If DTC exists, perform the following operations.
- Records the DTCs. (Print out using CONS ULT and affix to the Work Order Sheet.)
- Erase DTCs.
- Check the relation between the cause found by DT C and the malfunction information from customer. TM-
373, "Symptom Table" can be used effectively.
3. Check the relevant information including STI, etc.
Do malfunction information and DTC exists?
Malfunction information and DTC exists.>>GO TO 3.
Malfunction information exists but no DTC.>>GO TO 4.
No malfunction information, but DTC exists.>>GO TO 5.
3.REPRODUCE MALFUCTION SYSTEM
Check the malfunction described by the customer on the vehicle.
Check if the behavior is fail safe or normal operation. Refer to TM-258, "Fail-safe"
.
Interview sheet can be used effectively when reproduce malfunction conditions. Refer to TM-280, "Diagnostic
Work Sheet".
Verify the relationship between the symptom and the condi tions in which the malfunction described by the cus-
tomer occurs.
>> GO TO 5.
4.REPRODUCE MALFUNCTION SYMPTOM
Check the malfunction described by the customer on the vehicle.
Check if the behavior is fail safe or normal operation. Refer to TM-258, "Fail-safe"
.
Interview sheet can be used effectively when reproduce malfunction conditions. Refer to TM-280, "Diagnostic
Work Sheet".
Verify the relationship between the symptom and the condi tions in which the malfunction described by the cus-
tomer occurs.
>> GO TO 6.
5.PERFORM “DTC CONFIRMATION PROCEDURE”
Perform “DTC CONFIRMATION PROCEDURE” of the appr opriate DTC to check if DTC is detected again.
Refer to TM-262, "DTC Inspection Priority Chart"
when multiple DTCs are detected, and then determine the
order for performing the diagnosis.
Is any DTC detected?
YES >> GO TO 7.
NO >> Follow GI-43, "Intermittent Incident"
to check.
6.IDENTIFY MALFUNCTIONING SYSTEM WI TH “DIAGNOSIS CHART BY SYMPTOM”
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TM-280
< BASIC INSPECTION >[CVT: RE0F10E]
DIAGNOSIS AND REPAIR WORK FLOW
Use
TM-373, "Symptom Table" from the symptom inspection result in step 4. Then identify where to start per-
forming the diagnosis based on possible causes and symptoms.
>> GO TO 8.
7.REPAIR OR REPLACE THE MALFUNCTIONING PARTS
Repair or replace the detected malfunctioning parts.
Reconnect parts or connector after repairing or replacing, and then erase DTC if necessary.
>> GO TO 8.
8.FINAL CHECK
Perform “DTC CONFIRMATION PROCEDURE” again to make sure that the repair is correctly performed.
Check that malfunctions are not reproduced when obtaini ng the malfunction information from the customer,
referring to the symptom inspection result in step 3 or 4.
Is DTC or malfunction symptom reproduced?
YES-1 (DTC is reproduced.)>>GO TO 5.
YES-2 (Malfunction is reproduced.)>>GO TO 6.
NO >> Before delivering the vehicle to the customer, make sure that DTC is erased.
Diagnostic Work SheetINFOID:0000000009464226
DESCRIPTION
There are many operating conditions that may cause a malfunction
of the transmission parts. By understanding those conditions prop-
erly, a quick and exact diagnosis can be achieved.
In general, perception of a problem varies depending on individuals.
Ask the customer about his/her concer ns carefully. It is important to
understand the phenomenon or status. To systemize all the informa-
tion for the diagnosis, prepare the question sheet referring to the
question points.
In some cases, multiple conditions that appear simultaneously may
cause a DTC to be detected.
Worksheet Sample
SEF907L
Question sheet
Customer's
name MR/MSRegistration
number Initial year
registration Ye a r M o n t h
day
Vehicle type Chassis No.
Storage date Year Month
dayEngine Mileage km/mile
Symptom † Vehicle does not start. ( † R position † D position † DS position † M position)
† Upshifting does not occur. † Downshifting does not occur.
† Lock-up malfunction
† Shift point is too high. † Shift point is too low.
† Shift shock ( † N ⇒D † Lock-up † R, D, DS and M position)
† Slip ( † N ⇒D † Lock-up † R, D, DS and M position)
† Noise † Vibration
When selector lever position is shifted, shift pattern does not change.
† Other
( )
First occurrence † Recently (as from month of year )
Frequency of occurrence † Always † Under certain conditions † Sometimes ( time(s)/day)
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DIAGNOSIS AND REPAIR WORK FLOWTM-281
< BASIC INSPECTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
Climate con-
ditions Irrelevant
Weather † Clear † Cloud † Rain † Snow † Others )
Temperature † Hot † Warm † Cool † Cold † Temperature (Approx. °C/ °F)
Relative humidity † High † Moderate † Low
Transaxle condition † In cold-start † During warm -up (approx. °C/ °F) † After warm-up
† Engine speed: rpm
Road conditions †
Urban area † Suburb area † Highway
† Mountainous road (uphill or downhill)
Operating condition, etc. Irrelevant † When engine starts † During idling † During driving
† During acceleration † At constant speed driving † During deceleration
† During cornering (RH curve or LH curve)
Other conditions Question sheet
Customer's
name MR/MSRegistration
number Initial year
registration Year Month
day
Vehicle type Chassis No.
Storage date Ye a r M o n t h
dayEngine Mileage km/mile
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TM-282
< BASIC INSPECTION >[CVT: RE0F10E]
ADDITIONAL SERVICE WHEN REPLACING TCM
ADDITIONAL SERVICE WHEN REPLACING TCM
DescriptionINFOID:0000000009464227
Always perform the following items when the TCM is replaced.
SAVING AND WRITING OF TCM DATA• TCM performs accurate control by retrieving data (inher
ent characteristic value) of each solenoid. For this
reason, it is necessary to save data of current TCM in CONSULT before replacing the TCM. After this, the
saved data must be written in new TCM.
Work ProcedureINFOID:0000000009464228
CAUTION:
When replacing TCM together with transaxle assembly, perform “ADDITIONAL SERVICE WHEN
REPLACING TRANSAXLE ASSEMBLY”. Refer to TM-283, "Work Procedure"
.
1.SAVE THE TCM DATA
NOTE:
Save necessary data stored in TCM in CONSULT according to the following instructions:
1. Turn ignition switch OFF and wait for 10 seconds.
2. Turn ignition switch ON.
3. Select “Work Support” in “TRANSMISSION”.
4. Select “READ IP CHARA - REPLACEMENT TCM”.
5. Import data according to the in structions on the CONSULT screen.
>> GO TO 2.
2.REPLACE THE TCM
1. Turn ignition switch OFF and wait for 10 seconds.
2. Replace the TCM. Refer to TM-384, "Removal and Installation"
.
>> GO TO 3.
3.WRITE THE TCM DATA
NOTE:
Write data saved in CONSULT into a new TCM according to the following instructions:
1. Turn ignition switch OFF and wait for 10 seconds.
2. Turn ignition switch ON.
3. Select “Work Support” in “TRANSMISSION”.
4. Select “WRITE IP CHARA - REPLACEMENT TCM”.
5. Write data saved in CONSULT in TCM according to the instructions on the CONSULT screen.
>> WORK END
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

ADDITIONAL SERVICE WHEN REPLACING TRANSAXLE ASSEMBLY
TM-283
< BASIC INSPECTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
ADDITIONAL SERVICE WHEN RE PLACING TRANSAXLE ASSEMBLY
DescriptionINFOID:0000000009464229
Perform the following work after the transaxle assembly is replaced.
ERASING AND WRITING TCM DATA• TCM performs accurate control by retrieving data (inher ent characteristic value) of each solenoid. For this
reason, after replacing transaxle assembly, it is nec essary to erase data stored in TCM and write new data.
ERASING OF CVT FLUID DEGRADATION LEVEL DATA • TCM records the degradation level of the CVT fluid calc ulated from the vehicle driving status. Therefore, if
the transaxle assembly is replaced, it is necessary to erase the CVT fluid degradation level data recorded by
TCM.
Work ProcedureINFOID:0000000009464230
1.CHECK THE SERIAL NUMBER (PART 1)
Write down the serial number of new transaxle assembly.
>> GO TO 2.
2.CHECK THE SERIAL NUMBER (PART 2)
1. Turn ignition switch ON.
2. Insert the attached CD into CONSULT.
3. Select “Work Support” in “TRANSMISSION”.
4. Select “WRITE IP CHARA - REPLACEMENT AT/CVT”.
5. Check that the serial number displayed on CO NSULT screen and those written in the memo agree.
CAUTION:
Never perform writing procedure.
6. Go back to MENU of “Work Support”.
>> GO TO 3.
3.INITIALIZE TCM
1. Set parking brake.
2. Select “ERASE MEMORY DATA”.
3. Touch “Start” according to the instructions on the CONSULT screen.
Is
“COMPLETED” displayed?
YES >> GO TO 4.
NO >> Turn ignition switch OFF and wait for a mi nimum of 10 seconds then perform the work again.
JSDIA4208GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TM-284
< BASIC INSPECTION >[CVT: RE0F10E]
ADDITIONAL SERVICE WHEN REPLACING TRANSAXLE ASSEMBLY
4.WRITE THE DATA
NOTE:
Write data of new solenoid in TCM according to the following instructions:
1. Shift the selector lever to the P position.
2. Turn ignition switch OFF and wait for 10 seconds.
3. Turn ignition switch ON.
4. Select “Work Support” in “TRANSMISSION”.
5. Select “WRITE IP CHARA - REPLACEMENT AT/CVT”.
6. Write data in TCM according to t he instructions on the CONSULT screen.
NOTE:
When writing is complete, the shift position indicator of the combination meter displays P.
>> GO TO 5.
5.ERASE CVT FLUID DEGRADATION LEVEL DATA
1. Select “WORK SUPPORT” in “TRANSMISSION”.
2. Select “CONFORM CVTF DETERIORTN”.
3. Touch “Clear”.
>> WORK END
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

CVT FLUIDTM-285
< BASIC INSPECTION > [CVT: RE0F10E]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
CVT FLUID
ReplacementINFOID:0000000009464231
CAUTION:
• Always use shop paper. Never use shop cloth.
• Replace a drain plug gasket with new ones at the fi nal stage of the operation when installing.
• Use caution when looking into the drain hole as there is a risk of dripping fluid entering the eye.
• After replacement, always pe rform CVT fluid leakage check.
1. Select “Data Monitor” in “TRANSMISSION” using CONSULT.
2. Select “FLUID TEMP” and confirm t hat the CVT fluid temperature is 40°C (104 °F) or less.
3. Check that the selector lever is in the “P ” position, then completely engage the parking brake.
4. Lift up the vehicle.
5. Remove the drain plug and drain the CVT fluid from the oil pan. Refer to TM-387, "Exploded View"
.
6. Install the drain plug to oil pan. CAUTION:
Drain plug gasket use the old one.
7. Remove the overflow plug from converter housing.
8. Install the charging pipe set (KV311039S0) (A) into the overflow plug hole.
CAUTION:
Tighten the charging pipe by hand.
9. Install the ATF changer hose (B) to the charging pipe. CAUTION:
Press the ATF changer hose all the way onto the charging
pipe until it stops.
10. Fill approximately 3 liter (2-5 /8 lmp qt) of the CVT fluid.
11. Remove the ATF changer hose and charging pipe, then install the overflow plug.
NOTE:
Perform this work quickly because CVT fluid leaks.
12. Lift down the vehicle.
13. Start the engine.
14. While depressing the brake pedal, shift the selector leve r to the entire position from “P” to “DS”, and shift it
to the “P” position.
NOTE:
Hold the lever at each position for 5 seconds.
15. Check that the CONSULT “Data Monitor” in “FLUID TEMP” is 35°C (95 °F) to 45 °C (113 °F).
16. Stop the engine.
17. Lift up the vehicle.
18. Remove the drain plug, and then drain CVT fluid from oil pan. CVT fluid : Refer to
TM-413, "General Specification"
.
Fluid capacity : Refer to TM-413, "General Specification"
.
JSDIA3714ZZ
JSDIA3713ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
