9. Adjust the clearance (E) and surface hei ght (F) between the front fender and the hood.
10. Adjust the clearance (M) and surface height (N ) between the front fender and the body side outer.
11. Tighten the inner front fender bolts.
12. Adjust the clearance (G) and the surface height (H) between the front fender and the front fascia.
13. Tighten the front fender to front fascia and bracket screws.
14. Install front fascia.
15. Install the center mudguard. Refer to EXT-30, "Removal and Installation"
.
16. Install the front fender protector. Refer to EXT-26, "FENDER PROTECTOR : Removal and Installation"
.
17. Install the cowl top side trim cover.
18. Install hoodledge finisher.
CAUTION:
• If the clearance measurements cannot be corrected by adjusting the fender, adjust the following as
necessary.
- Hood assembly: Refer to DLK-172, "HOOD ASSEMBLY : Adjustment"
.
- Front door: Refer to DLK-186, "DOOR ASSEMB LY : Adjustment"
.
• After adjusting, apply touch-up paint (body co lor) onto the head of the front fender bolts.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DLK-184
< REMOVAL AND INSTALLATION >
FRONT DOOR
FRONT DOOR
DOOR ASSEMBLY
DOOR ASSEMBLY : Removal and InstallationINFOID:0000000009461933
CAUTION:
• Use two people when removing or installing the front door assembly due to its heavy weight.
• When removing and installing front door assembl y, support front door with a suitable tool.
• Do not use air tools or el ectric tools for servicing.
• Before servicing, turn ignition sw itch OFF, disconnect both battery terminals and wait at least three
minutes.
NOTE:
LH side shown; RH side similar.
REMOVAL
1. Disconnect the battery negative and positive terminals and wait at least three minutes with the side air bag (satellite) sensor (if equipped).
2. Remove front door harness grommet LH (1) then pull out door harness from body (2).
3. Disconnect the harness connectors (A) from the front door har- ness.
4. Remove the check link bolt (body side).
JMKIA8070ZZ
JMKIA8071ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

FRONT DOORDLK-185
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
J
L
M A
B
DLK
N
O P
5. Remove front door hinge nuts (A) (door side) and the door assembly (1).
INSTALLATION
Installation is in the reverse order of removal.
Tighten door hinge nuts to specified torque.
CAUTION:
• After installation, check front door open/close, lock/unlock operation.
• After installation, perf orm the front door adjustment procedure. Refer to DLK-186, "DOOR ASSEM-
BLY : Adjustment".
ALKIA2705ZZ
Front door hinge nuts 24.5 N·m (2.5 kg-m, 18 ft-lb)
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DLK-186
< REMOVAL AND INSTALLATION >
FRONT DOOR
DOOR ASSEMBLY : Adjustment
INFOID:0000000009461934
Check the clearance and surface height between front door and each part by visual inspection and tactile feel.

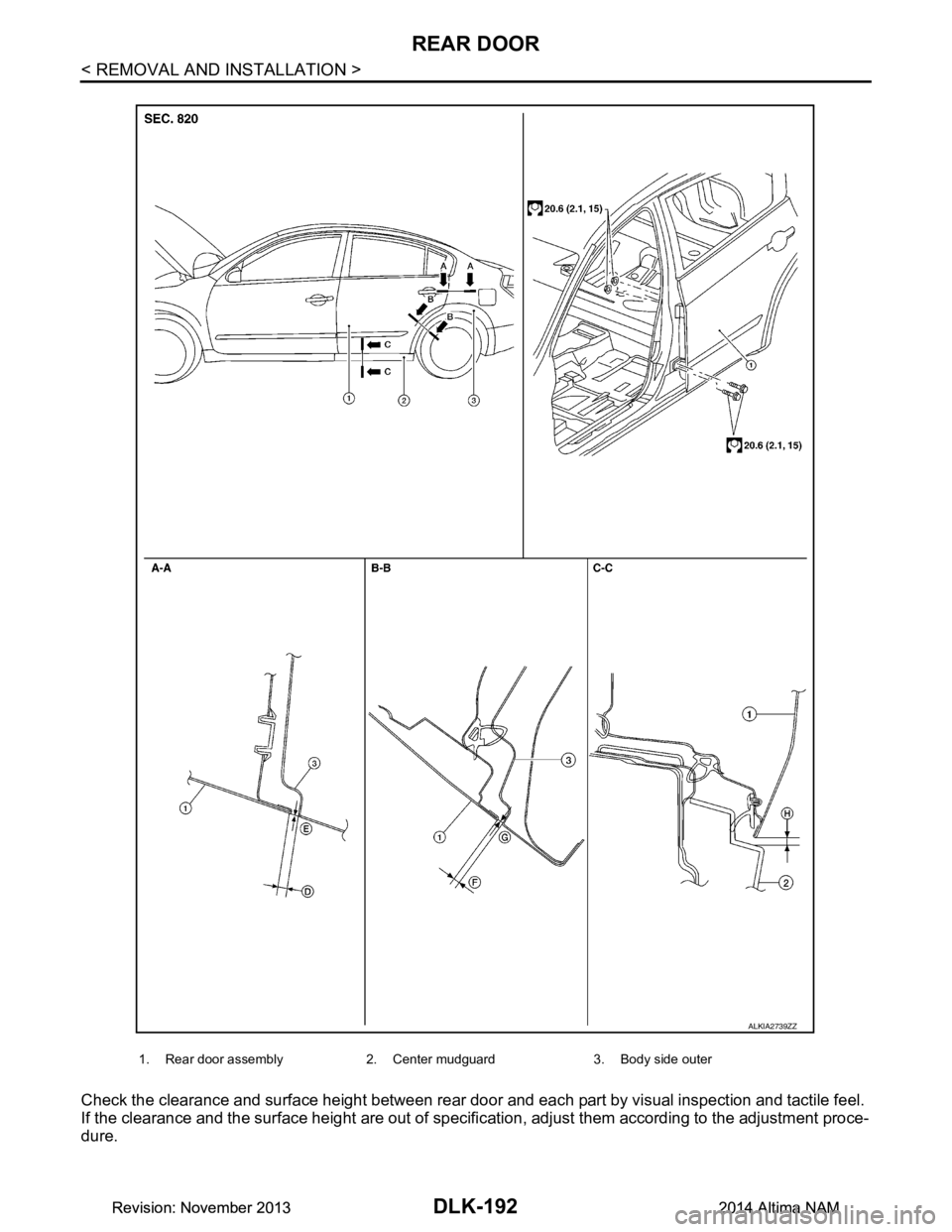

1. Front fender 2. Front door assembly 3. Rear door assembly
4. Center mudguard 5. Center pillar 6. Outer sill
ALKIA2709ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

FRONT DOORDLK-187
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
J
L
M A
B
DLK
N
O P
If the clearance and the surface height are out of specific ation, adjust them according to the adjustment proce-
dure.
Unit: mm (in)
LONGITUDINAL CLEARANCE
1. Remove the front fender. Refer to DLK-181, "Removal and Installation".
2. Loosen the front door hinge to body bolts. Move the door forward or backward as necessary until within specifications provided.
3. Tighten the hinge to body bolts to specified torque.
4. Install the front fender. Refer to DLK-181, "Removal and Installation"
.
SURFACE HEIGHT ADJUSTMENT
1. Loosen the front door hinge nuts (A).
2. Move the top and/or bottom of the door (1) in or out as neces- sary until it is within specifications provided.
3. Tighten the front door hinge nuts to specified torque.
CAUTION:
• Check front door hinge rotating po int for poor lubrication. If necessary, apply a suitable multi-pur-
pose grease.
• After adjusting, apply touch-up paint (body color) to the head of front door hinge bolts and nuts.
• If the clearance measurements cannot be corrected by adjusting the front door, adjust the following
as necessary.
- Front fender: Refer to DLK-182, "Adjustment"
.
- Rear door: Refer to DLK-191, "DOOR ASSEMBLY : Adjustment"
.

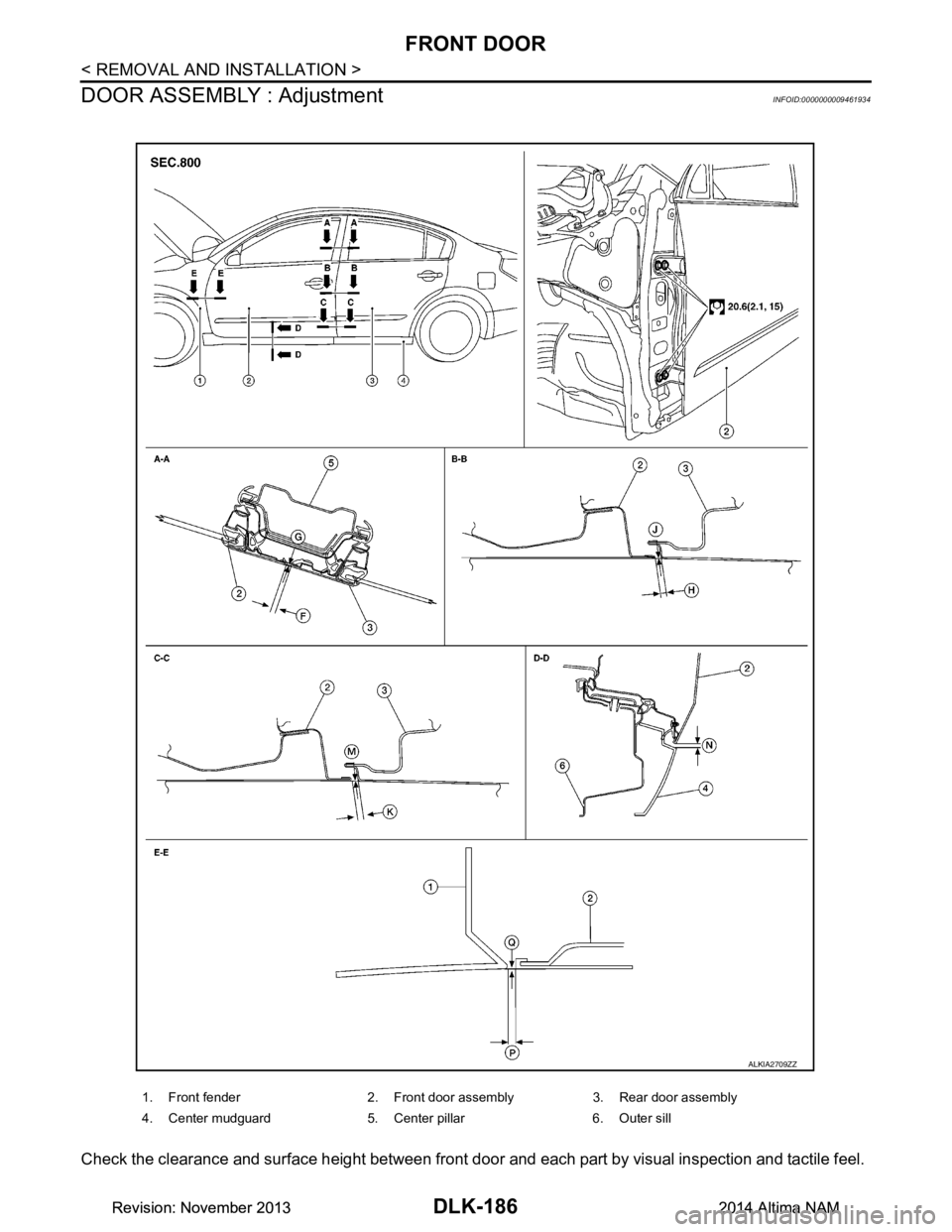

Section Item Measurement Standard
A – A F Clearance 4.5
± 1.5 (0.18 ± 0.06)
G Surface height 0.0 ± 1.0 (0.0 ± 0.04)
B – B H Clearance 4.2
± 1.0 (0.17 ± 0.04)
J Surface height 0.0 ± 1.0 (0.0 ± 0.04)
C – C K Clearance 4.2
± 1.0 (0.17 ± 0.04)
M Surface height 0.0 ± 1.0 (0.0 ± 0.04)
D – D N Clearance 7.4 ± 1.7 (0.29 ± 0.07)
E – E P Clearance 3.6
± 1.0 (0.14 ± 0.04)
Q Surface height 0.0 ± 1.0 (0.0 ± 0.04)
Front door hinge bolts 20.6 N·m (2.5 kg-m, 18 ft-lb)
Front door hinge nuts 24.5 N·m (2.5 kg-m, 18 ft-lb)
ALKIA2705ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DLK-188
< REMOVAL AND INSTALLATION >
FRONT DOOR
DOOR STRIKER ADJUSTMENT
Adjust front door striker so that it becomes parallel with door lock insertion direction.
DOOR STRIKER
DOOR STRIKER : Removal and InstallationINFOID:0000000009461935
REMOVAL
Remove striker bolts (A) and front door striker (1).
INSTALLATION
Installation is in the reverse order of removal.
Tighten front door striker bolts to specified torque.
CAUTION:
• When installing do not reuse striker bolts.
• After installation, check front doo r open/close, lock/unlock operation.
• After installation, perform the front door adjustment procedure. Refer to DLK-186, "DOOR ASSEM-
BLY : Adjustment".
DOOR HINGE
DOOR HINGE : Removal and InstallationINFOID:0000000009461936
CAUTION:
• Use two people when removing and installing the front door assembly due to its heavy weight.
• When removing and installing front door assembly, support door using a suitable tool.
REMOVAL
1. Remove front door assembly. Refer to DLK-184, "DOOR ASSEMBLY : Removal and Installation".
2. Remove door hinge bolts (B) and hinge (1). : Grease
INSTALLATION
Installation is in the reverse order of removal.
Tighten front door hinge bolts to specified torque.
ALKIA2707ZZ
Front door striker bolts 16.7 N·m (1.7 kg-m, 12 ft-lb)
ALKIA2708ZZ
Front door hinge bolts 20.6 N·m (2.5 kg-m, 18 ft-lb)
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

FRONT DOORDLK-189
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
J
L
M A
B
DLK
N
O P
CAUTION:
• Apply anticorrosive agent onto th e front door hinge mating surface.
• After installation, check front door open/close, lock/unlock operation.
• After installation, perf orm the front door adjustment procedure. Refer to DLK-186, "DOOR ASSEM-
BLY : Adjustment".
DOOR CHECK LINK
DOOR CHECK LINK : Removal and InstallationINFOID:0000000009461937
REMOVAL
1. Fully close the front door glass.
2. Remove front door speaker. Refer to AV-49, "Removal and Installation"
.
3. Remove door check link bolt from body.
4. Remove door check link bolts on door panel.
5. Remove door check link (1) through the hole in door panel (2).
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• After installation, check front door open/close, lock/unlock operation.
• Check front door check link rotating point for poor lubrication. If necessary, apply a suitable multi-
purpose grease.
: Grease
JMKIA8073ZZ
JMKIA8074ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DLK-190
< REMOVAL AND INSTALLATION >
REAR DOOR
REAR DOOR
DOOR ASSEMBLY
DOOR ASSEMBLY : Removal and InstallationINFOID:0000000009461938
CAUTION:
• Use two people when removing or installing the rear door assembly due to its heavy weight.
• When removing and installing rear door assembly, support rear door with a suitable tool.
REMOVAL
1. Remove rear door harness grommet LH (1) then pull out door
harness from body (2).
2. Disconnect the harness connector (A) from the door harness.
3. Remove the check link bolt from the body.
4. Remove rear door hinge nuts (A) (door side) and the door assembly (1).
JMKIA8083ZZ
JMKIA8084ZZ
ALKIA2710ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

REAR DOORDLK-191
< REMOVAL AND INSTALLATION >
C
D E
F
G H
I
J
L
M A
B
DLK
N
O P
INSTALLATION
Installation is in the reverse order of removal.
Tighten rear door hinge nuts (door side) to specified torque.
CAUTION:
• After installation, check rear doo r open/close, lock/unlock operation.
• After installation, perform the rear door adjustment procedure. Refer to DLK-191, "DOOR ASSEMBLY
: Adjustment".
DOOR ASSEMBLY : AdjustmentINFOID:0000000009461939
ADJUSTMENT
Rear door hinge nuts 24.5 N·m (2.5 kg-m, 18 ft-lb)
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DLK-192
< REMOVAL AND INSTALLATION >
REAR DOOR
Check the clearance and surface height between rear door and each part by visual inspection and tactile feel.
If the clearance and the surface height are out of specific ation, adjust them according to the adjustment proce-
dure.
1. Rear door assembly 2. Center mudguard 3. Body side outer
ALKIA2739ZZ
