NISSAN TERRANO 2002 Service Repair Manual

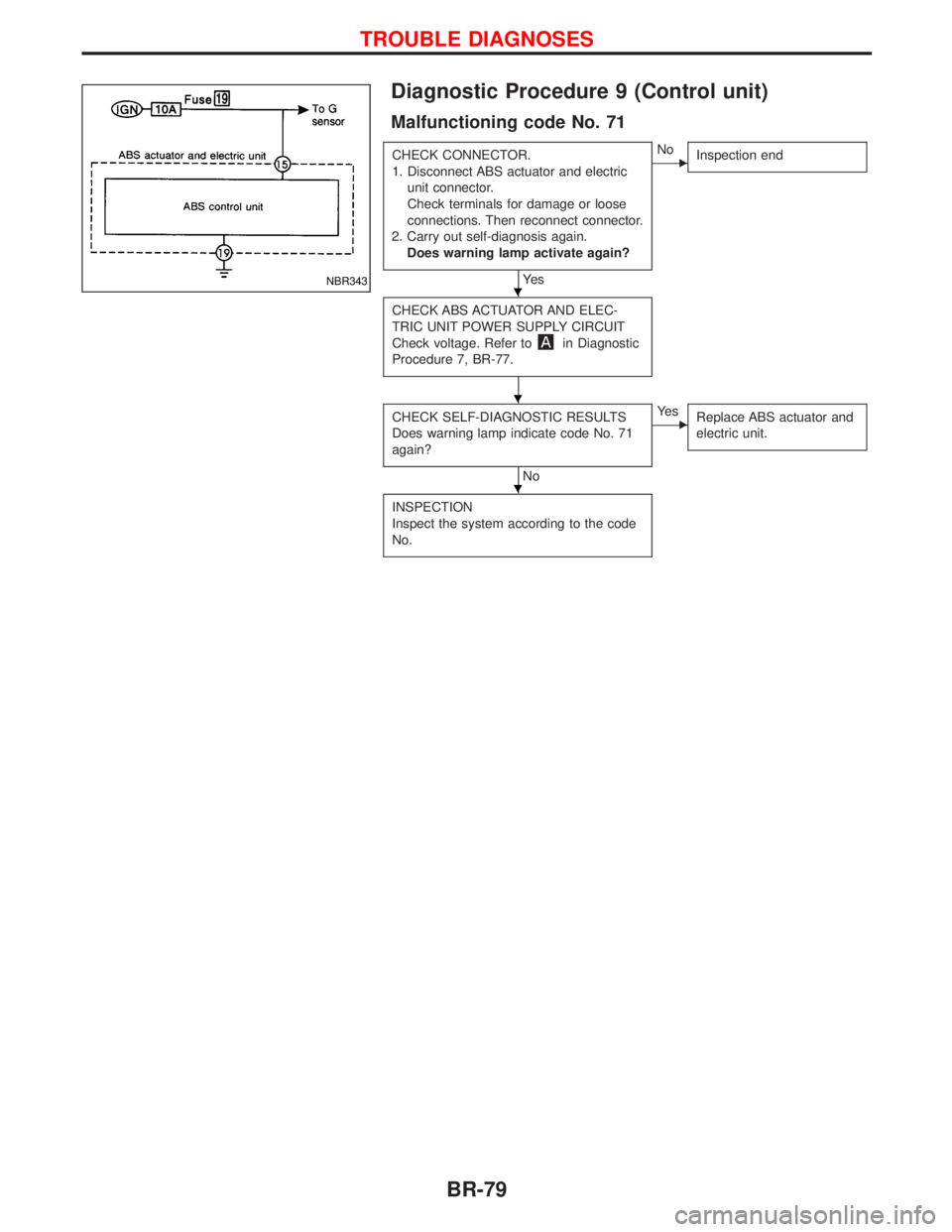

Diagnostic Procedure 9 (Control unit)
Malfunctioning code No. 71
CHECK CONNECTOR.
1. Disconnect ABS actuator and electric
unit connector.
Check terminals for damage or loose
connections. Then reconnect connector.
2. Carry out self-diagnosis again.
Does warning lamp activate again?
Ye s
ENo
Inspection end
CHECK ABS ACTUATOR AND ELEC-
TRIC UNIT POWER SUPPLY CIRCUIT
Check voltage. Refer to
in Diagnostic
Procedure 7, BR-77.
CHECK SELF-DIAGNOSTIC RESULTS
Does warning lamp indicate code No. 71
again?
No
EYe s
Replace ABS actuator and
electric unit.
INSPECTION
Inspect the system according to the code
No.
NBR343H
H
H
TROUBLE DIAGNOSES
BR-79

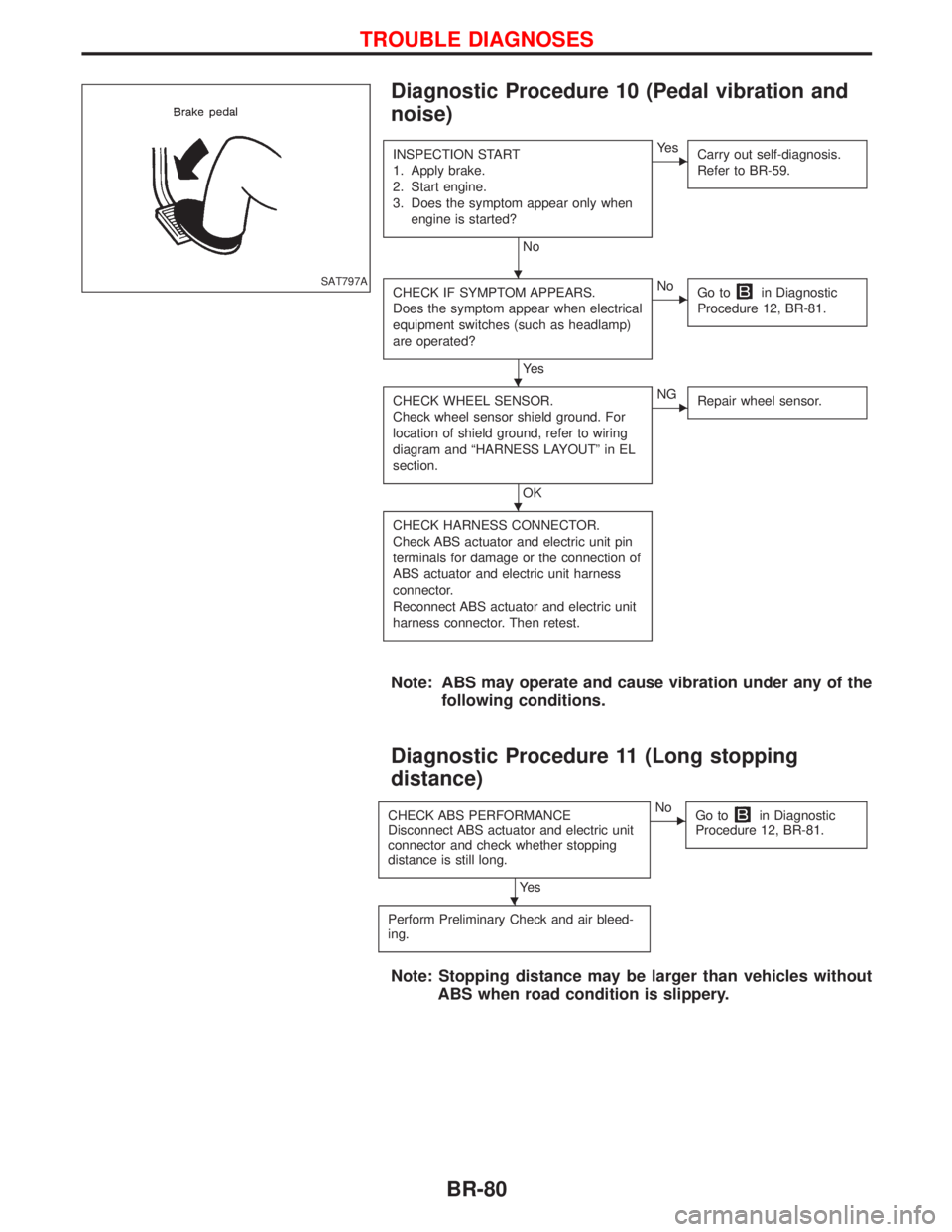

Diagnostic Procedure 10 (Pedal vibration and
noise)
INSPECTION START
1. Apply brake.
2. Start engine.
3. Does the symptom appear only when
engine is started?
No
EYe s
Carry out self-diagnosis.
Refer to BR-59.
CHECK IF SYMPTOM APPEARS.
Does the symptom appear when electrical
equipment switches (such as headlamp)
are operated?
Ye s
ENo
Go toin Diagnostic
Procedure 12, BR-81.
CHECK WHEEL SENSOR.
Check wheel sensor shield ground. For
location of shield ground, refer to wiring
diagram and ªHARNESS LAYOUTº in EL
section.
OK
ENG
Repair wheel sensor.
CHECK HARNESS CONNECTOR.
Check ABS actuator and electric unit pin
terminals for damage or the connection of
ABS actuator and electric unit harness
connector.
Reconnect ABS actuator and electric unit
harness connector. Then retest.
Note: ABS may operate and cause vibration under any of the
following conditions.
Diagnostic Procedure 11 (Long stopping
distance)
CHECK ABS PERFORMANCE
Disconnect ABS actuator and electric unit
connector and check whether stopping
distance is still long.
Ye s
ENo
Go toin Diagnostic
Procedure 12, BR-81.
Perform Preliminary Check and air bleed-
ing.
Note: Stopping distance may be larger than vehicles without
ABS when road condition is slippery.
SAT797AH
H
H
H
TROUBLE DIAGNOSES
BR-80

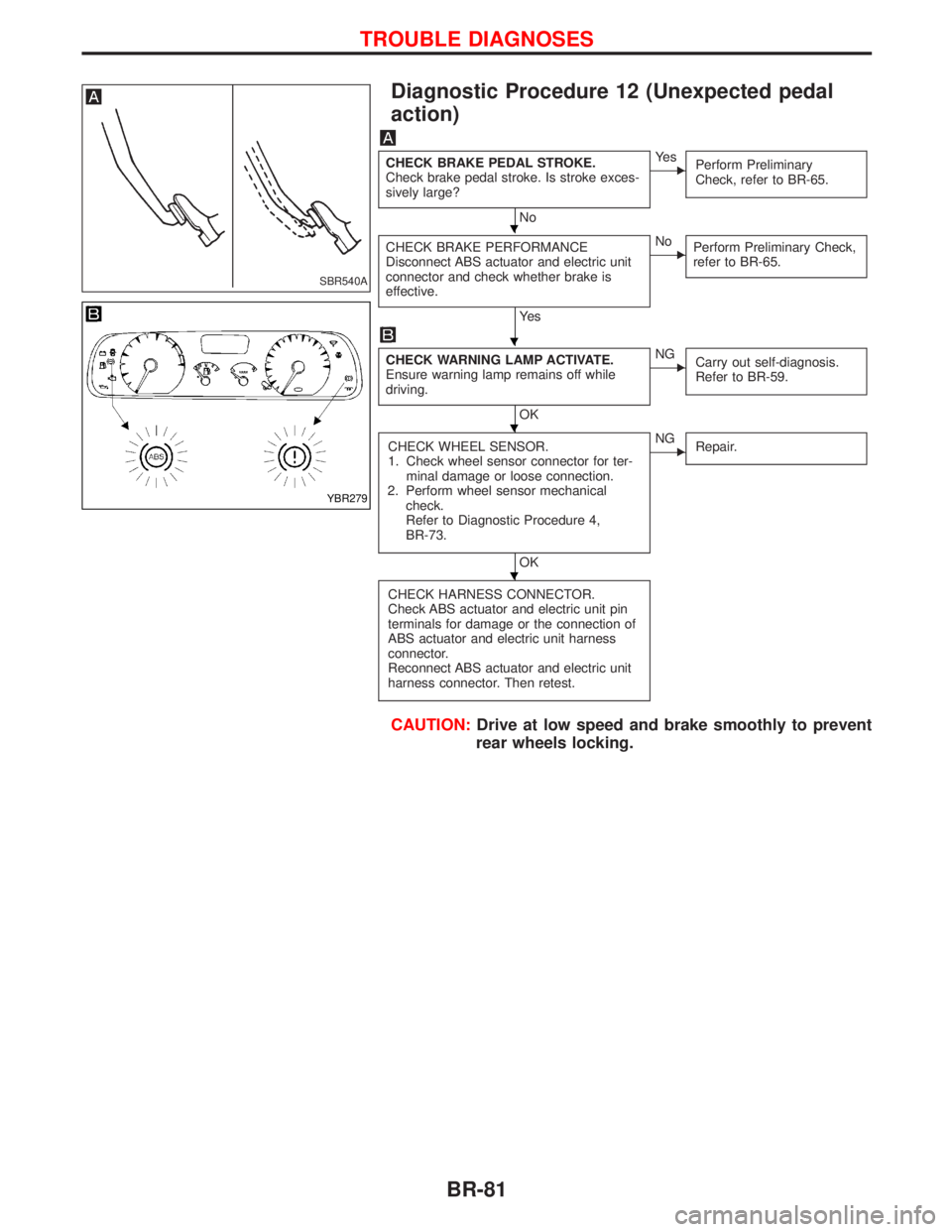

Diagnostic Procedure 12 (Unexpected pedal
action)
CHECK BRAKE PEDAL STROKE.
Check brake pedal stroke. Is stroke exces-
sively large?
No
EYe s
Perform Preliminary
Check, refer to BR-65.
CHECK BRAKE PERFORMANCE
Disconnect ABS actuator and electric unit
connector and check whether brake is
effective.
Ye s
ENo
Perform Preliminary Check,
refer to BR-65.
CHECK WARNING LAMP ACTIVATE.
Ensure warning lamp remains off while
driving.
OK
ENG
Carry out self-diagnosis.
Refer to BR-59.
CHECK WHEEL SENSOR.
1. Check wheel sensor connector for ter-
minal damage or loose connection.
2. Perform wheel sensor mechanical
check.
Refer to Diagnostic Procedure 4,
BR-73.
OK
ENG
Repair.
CHECK HARNESS CONNECTOR.
Check ABS actuator and electric unit pin
terminals for damage or the connection of
ABS actuator and electric unit harness
connector.
Reconnect ABS actuator and electric unit
harness connector. Then retest.
CAUTION:Drive at low speed and brake smoothly to prevent
rear wheels locking.
SBR540A
YBR279
H
H
H
H
TROUBLE DIAGNOSES
BR-81

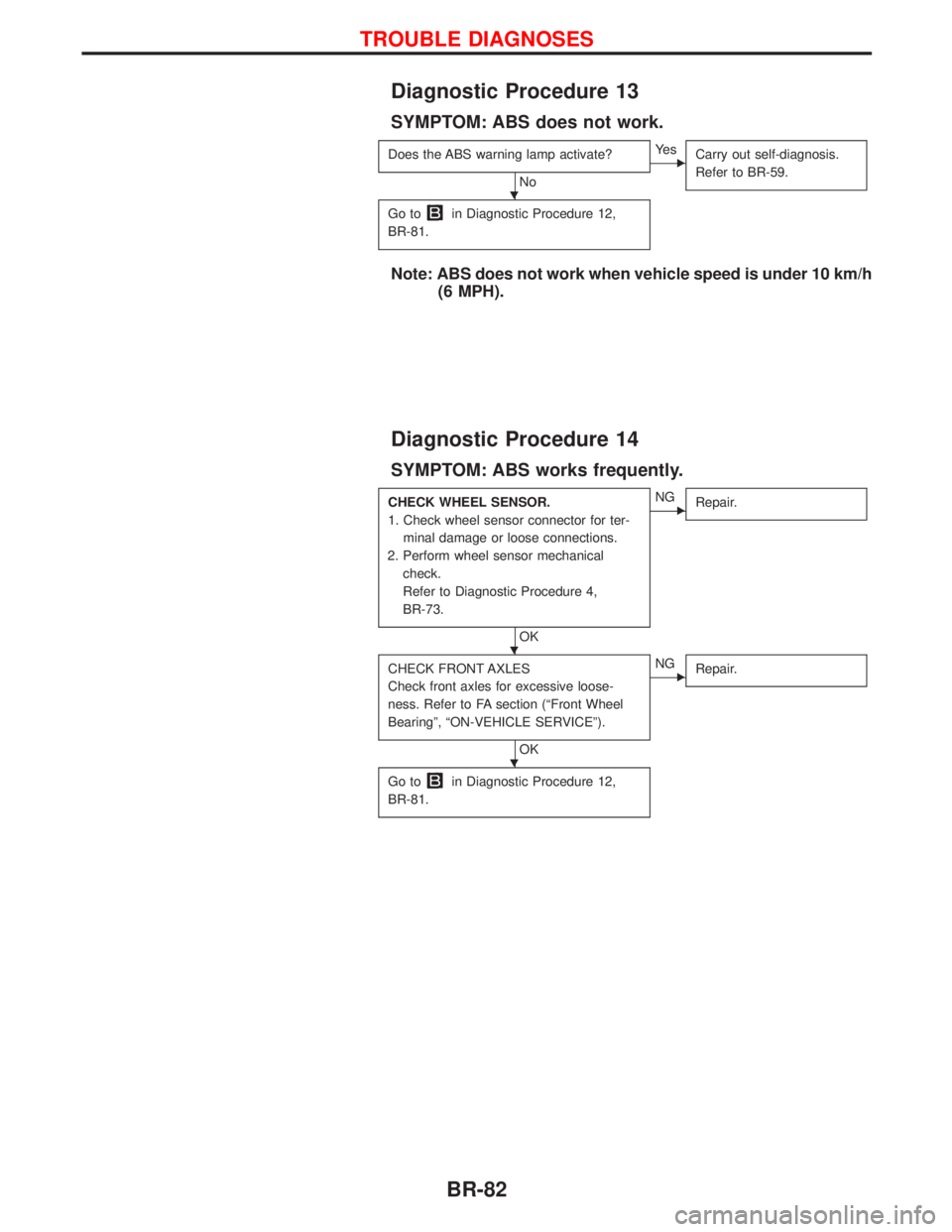

Diagnostic Procedure 13
SYMPTOM: ABS does not work.
Does the ABS warning lamp activate?
No
EYe s
Carry out self-diagnosis.
Refer to BR-59.
Go toin Diagnostic Procedure 12,
BR-81.
Note: ABS does not work when vehicle speed is under 10 km/h
(6 MPH).
Diagnostic Procedure 14
SYMPTOM: ABS works frequently.
CHECK WHEEL SENSOR.
1. Check wheel sensor connector for ter-
minal damage or loose connections.
2. Perform wheel sensor mechanical
check.
Refer to Diagnostic Procedure 4,
BR-73.
OK
ENG
Repair.
CHECK FRONT AXLES
Check front axles for excessive loose-
ness. Refer to FA section (ªFront Wheel
Bearingº, ªON-VEHICLE SERVICEº).
OK
ENG
Repair.
Go toin Diagnostic Procedure 12,
BR-81.
H
H
H
TROUBLE DIAGNOSES
BR-82

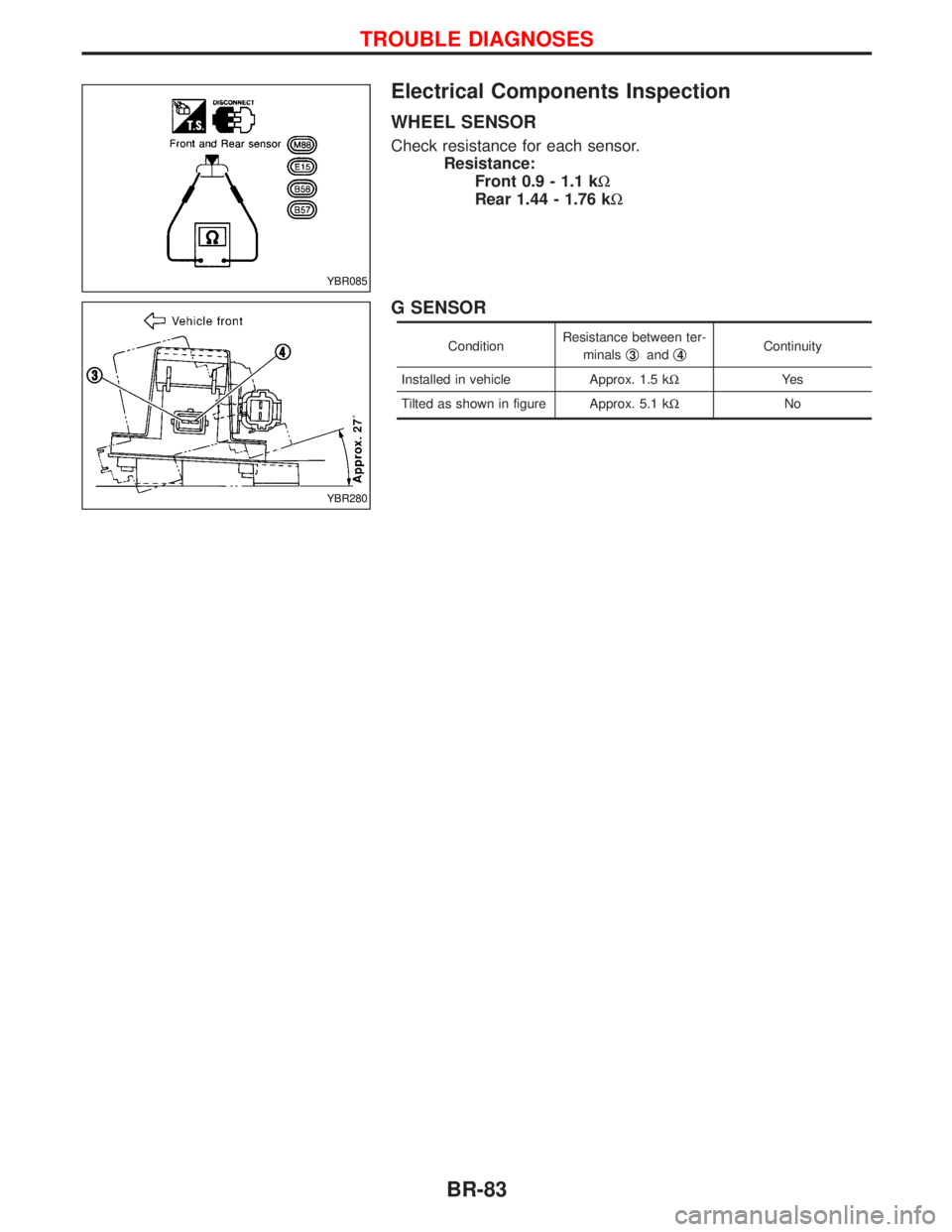

Electrical Components Inspection
WHEEL SENSOR
Check resistance for each sensor.
Resistance:
Front 0.9 - 1.1 kW
Rear 1.44 - 1.76 kW
G SENSOR
ConditionResistance between ter-
minalsq3andq4Continuity
Installed in vehicle Approx. 1.5 kWYe s
Tilted as shown in figure Approx. 5.1 kWNo
YBR085
YBR280
TROUBLE DIAGNOSES
BR-83

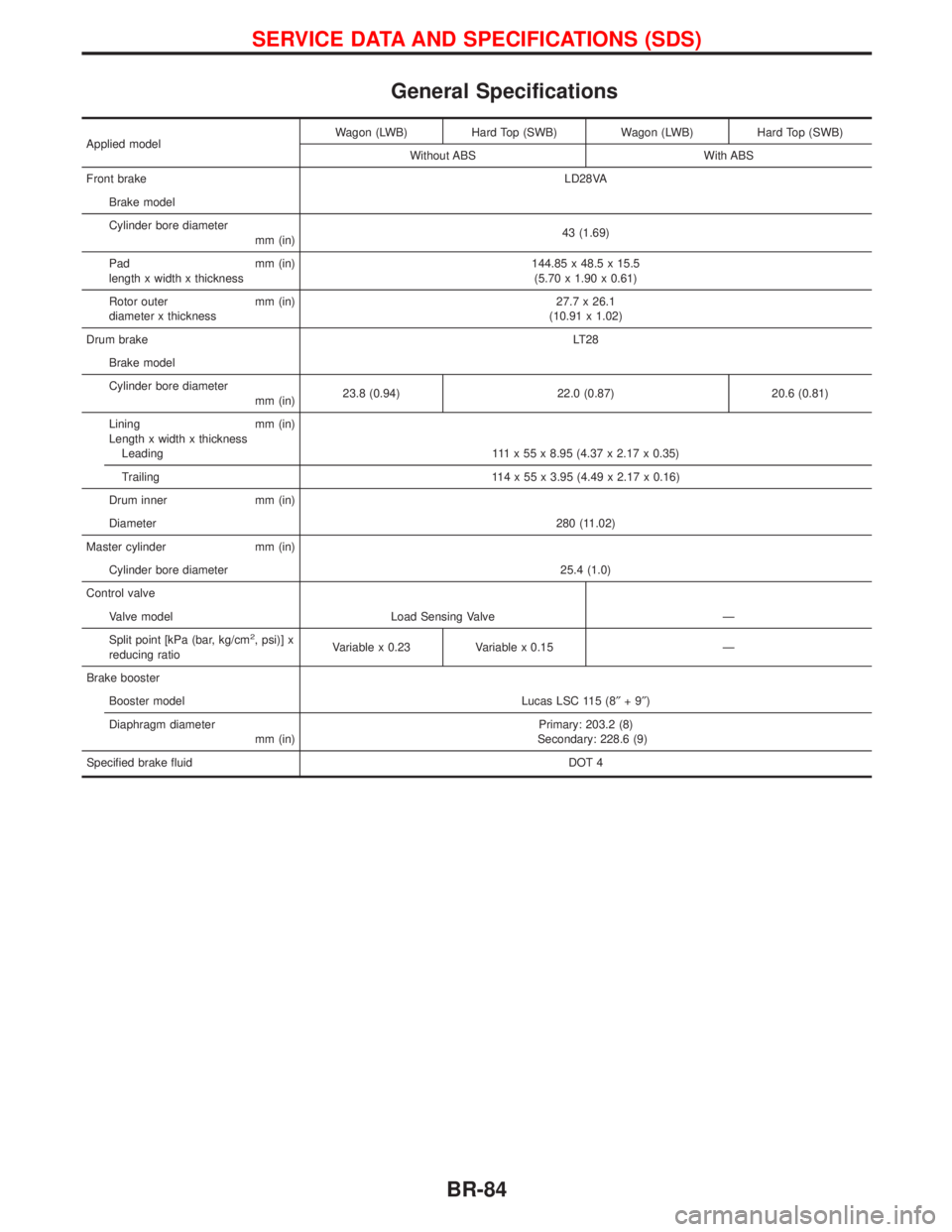

General Specifications
Applied modelWagon (LWB) Hard Top (SWB) Wagon (LWB) Hard Top (SWB)
Without ABS With ABS
Front brakeLD28VA
Brake model
Cylinder bore diameter
mm (in)43 (1.69)
Pad mm (in)
length x width x thickness144.85 x 48.5 x 15.5
(5.70 x 1.90 x 0.61)
Rotor outer mm (in)
diameter x thickness27.7 x 26.1
(10.91 x 1.02)
Drum brakeLT28
Brake model
Cylinder bore diameter
mm (in)23.8 (0.94) 22.0 (0.87) 20.6 (0.81)
Lining mm (in)
Length x width x thickness
Leading 111 x 55 x 8.95 (4.37 x 2.17 x 0.35)
Trailing 114 x 55 x 3.95 (4.49 x 2.17 x 0.16)
Drum inner mm (in)
Diameter280 (11.02)
Master cylinder mm (in)
Cylinder bore diameter 25.4 (1.0)
Control valve
Valve model Load Sensing Valve Ð
Split point [kPa (bar, kg/cm
2, psi)] x
reducing ratioVariable x 0.23 Variable x 0.15 Ð
Brake booster
Booster model Lucas LSC 115 (8²+9²)
Diaphragm diameter
mm (in)Primary: 203.2 (8)
Secondary: 228.6 (9)
Specified brake fluidDOT 4
SERVICE DATA AND SPECIFICATIONS (SDS)
BR-84

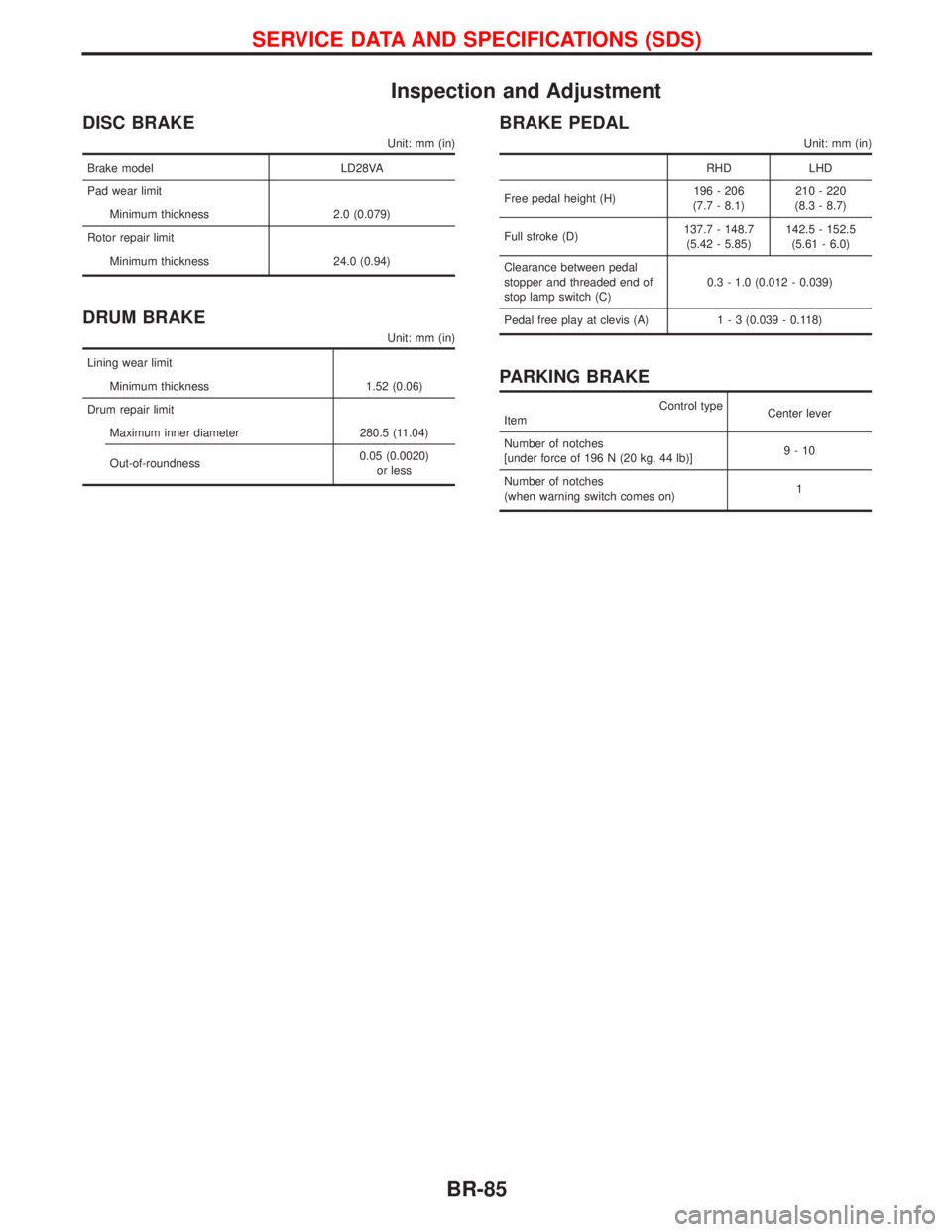

Inspection and Adjustment
DISC BRAKE
Unit: mm (in)
Brake model LD28VA
Pad wear limit
Minimum thickness 2.0 (0.079)
Rotor repair limit
Minimum thickness 24.0 (0.94)
DRUM BRAKE
Unit: mm (in)
Lining wear limit
Minimum thickness 1.52 (0.06)
Drum repair limit
Maximum inner diameter 280.5 (11.04)
Out-of-roundness0.05 (0.0020)
or less
BRAKE PEDAL
Unit: mm (in)
RHD LHD
Free pedal height (H)196 - 206
(7.7 - 8.1)210 - 220
(8.3 - 8.7)
Full stroke (D)137.7 - 148.7
(5.42 - 5.85)142.5 - 152.5
(5.61 - 6.0)
Clearance between pedal
stopper and threaded end of
stop lamp switch (C)0.3 - 1.0 (0.012 - 0.039)
Pedal free play at clevis (A)1 - 3 (0.039 - 0.118)
PARKING BRAKE
Control type
ItemCenter lever
Number of notches
[under force of 196 N (20 kg, 44 lb)]9-10
Number of notches
(when warning switch comes on)1
SERVICE DATA AND SPECIFICATIONS (SDS)
BR-85

NOTES

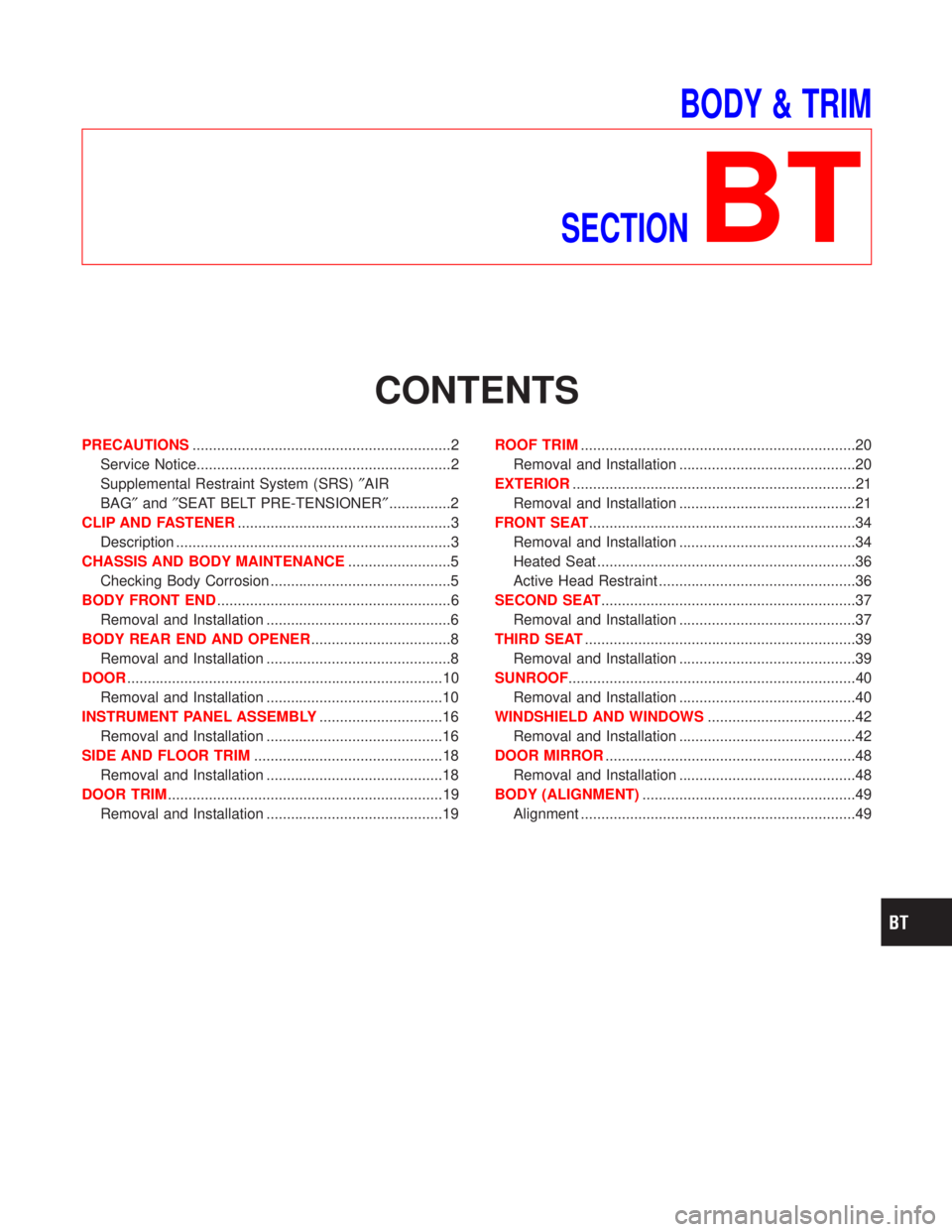

BODY & TRIM
SECTION
BT
CONTENTS
PRECAUTIONS...............................................................2
Service Notice..............................................................2
Supplemental Restraint System (SRS)²AIR
BAG²and²SEAT BELT PRE-TENSIONER²...............2
CLIP AND FASTENER....................................................3
Description ...................................................................3
CHASSIS AND BODY MAINTENANCE.........................5
Checking Body Corrosion ............................................5
BODY FRONT END.........................................................6
Removal and Installation .............................................6
BODY REAR END AND OPENER..................................8
Removal and Installation .............................................8
DOOR.............................................................................10
Removal and Installation ...........................................10
INSTRUMENT PANEL ASSEMBLY..............................16
Removal and Installation ...........................................16
SIDE AND FLOOR TRIM..............................................18
Removal and Installation ...........................................18
DOOR TRIM...................................................................19
Removal and Installation ...........................................19ROOF TRIM...................................................................20
Removal and Installation ...........................................20
EXTERIOR.....................................................................21
Removal and Installation ...........................................21
FRONT SEAT.................................................................34
Removal and Installation ...........................................34
Heated Seat ...............................................................36
Active Head Restraint ................................................36
SECOND SEAT..............................................................37
Removal and Installation ...........................................37
THIRD SEAT..................................................................39
Removal and Installation ...........................................39
SUNROOF......................................................................40
Removal and Installation ...........................................40
WINDSHIELD AND WINDOWS....................................42
Removal and Installation ...........................................42
DOOR MIRROR.............................................................48
Removal and Installation ...........................................48
BODY (ALIGNMENT)....................................................49
Alignment ...................................................................49

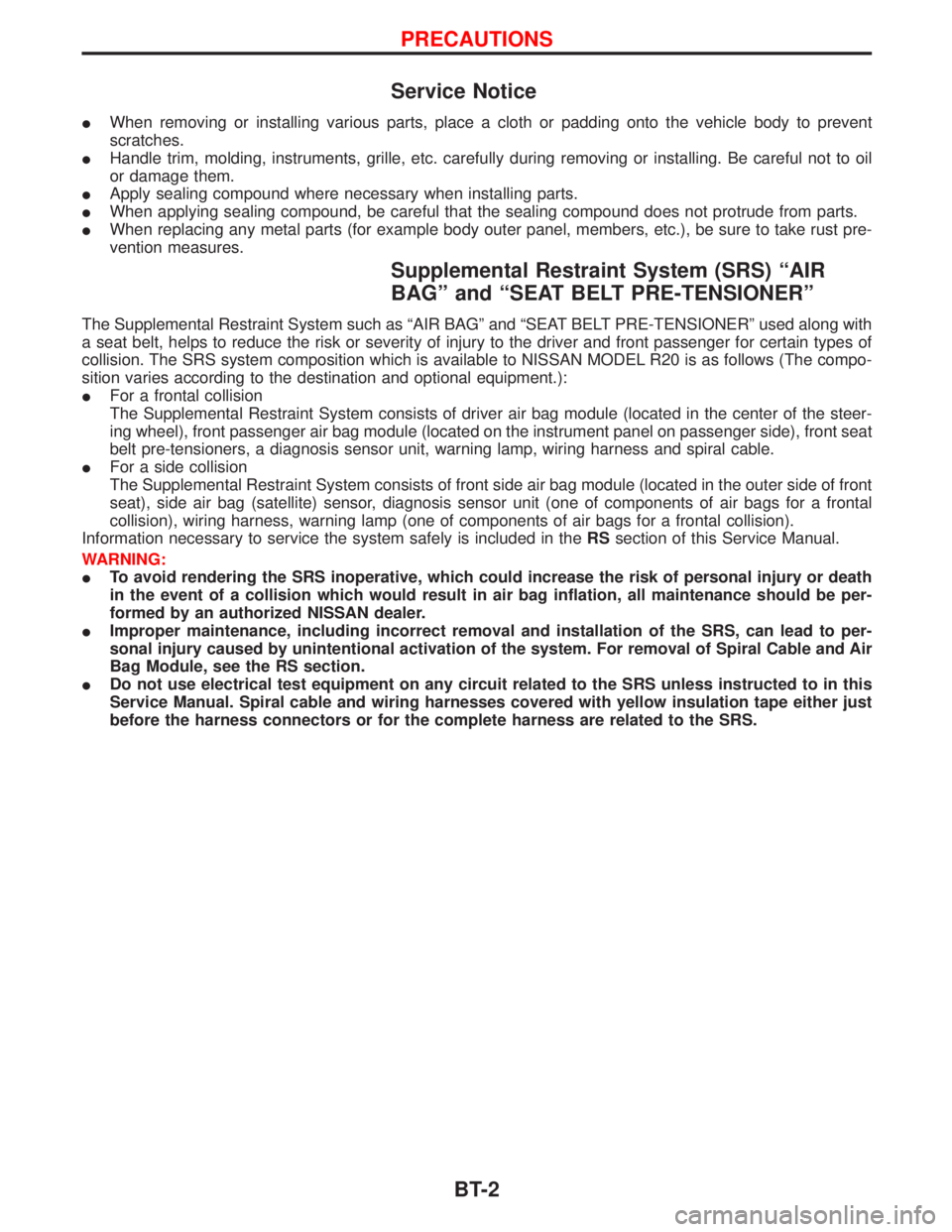

Service Notice
IWhen removing or installing various parts, place a cloth or padding onto the vehicle body to prevent
scratches.
IHandle trim, molding, instruments, grille, etc. carefully during removing or installing. Be careful not to oil
or damage them.
IApply sealing compound where necessary when installing parts.
IWhen applying sealing compound, be careful that the sealing compound does not protrude from parts.
IWhen replacing any metal parts (for example body outer panel, members, etc.), be sure to take rust pre-
vention measures.
Supplemental Restraint System (SRS) ªAIR
BAGº and ªSEAT BELT PRE-TENSIONERº
The Supplemental Restraint System such as ªAIR BAGº and ªSEAT BELT PRE-TENSIONERº used along with
a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of
collision. The SRS system composition which is available to NISSAN MODEL R20 is as follows (The compo-
sition varies according to the destination and optional equipment.):
IFor a frontal collision
The Supplemental Restraint System consists of driver air bag module (located in the center of the steer-
ing wheel), front passenger air bag module (located on the instrument panel on passenger side), front seat
belt pre-tensioners, a diagnosis sensor unit, warning lamp, wiring harness and spiral cable.
IFor a side collision
The Supplemental Restraint System consists of front side air bag module (located in the outer side of front
seat), side air bag (satellite) sensor, diagnosis sensor unit (one of components of air bags for a frontal
collision), wiring harness, warning lamp (one of components of air bags for a frontal collision).
Information necessary to service the system safely is included in theRSsection of this Service Manual.
WARNING:
ITo avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance should be per-
formed by an authorized NISSAN dealer.
IImproper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the RS section.
IDo not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral cable and wiring harnesses covered with yellow insulation tape either just
before the harness connectors or for the complete harness are related to the SRS.
