EC-42
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
MULTIPORT FUEL INJECTION SYSTEM
1. Mass air flow sensor
(with intake air temperature sensor)2. Engine coolant temperature sensor 3. Electric throttle control actuator
4. Camshaft position sensor (PHASE) 5. Ignition coil (with power transistor) 6. Fuel injector
7. EVAP canister purge volume control
solenoid valve
Vehicle front
PBIB2940E

MULTIPORT FUEL INJECTION SYSTEM
EC-43
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
1. ECM harness connectors 2. ECM 3. IPDM E/R
4. Fuel pump fuse (15A) 5. Intake valve timing control solenoid
valve6. Knock sensor
7. Refrigerant pressure sensor 8. PCV valve
Vehicle front
PBIB2941E

EC-44
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
MULTIPORT FUEL INJECTION SYSTEM
1. Exhaust manifold 2. Heated oxygen sensor 1 3. Heated oxygen sensor 2
4. Heated oxygen sensor 2 harness
connector
Vehicle front
PBIB2942E
PBIB2943E

MULTIPORT FUEL INJECTION SYSTEM
EC-45
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
1. Cooling fan motor harness connec-
tor2. Crankshaft position sensor 3. Stop lamp switch
4. Brake pedal 5. Accelerator pedal position sensor
harness connector6. Accelerator pedal position sensor
7. Accelerator pedal 8. Fuel level sensor unit and fuel pump
harness connector (view with in-
spection hole cover removed)9. Fuel pressure regulator
10. Fuel pump
AWBIA0044ZZ

EC-46
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
MULTIPORT FUEL INJECTION SYSTEM
Component Description
INFOID:0000000001161145
1. ASCD steering switch 2. MAIN switch 3. CANCEL switch
4. SET/COAST switch 5. RESUME/ACCELERATE switch 6. ASCD brake switch
7. Stop lamp switch 8. ASCD clutch switch 9. Clutch pedal
ALBIA0273ZZ
Component Reference
Accelerator pedal position sensorEC-286, "
Description"
Camshaft position sensor (PHASE)EC-201, "Description"
Crankshaft position sensor (POS)EC-197, "Description"
Engine coolant temperature sensorEC-142, "Description"
Fuel injectorEC-313, "Description"
Heated oxygen sensor 1EC-148, "Description"
Heated oxygen sensor 2EC-166, "Description"
Intake air temperature sensorEC-139, "Description"
Knock sensorEC-195, "Description"
Mass air flow sensorEC-134, "Description"
Park/neutral position (PNP) switchEC-280, "Description"
Throttle position sensorEC-261, "Description"
Vehicle speed sensorEC-213, "Description"

ELECTRIC IGNITION SYSTEM
EC-47
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
ELECTRIC IGNITION SYSTEM
System DiagramINFOID:0000000001161146
System DescriptionINFOID:0000000001161147

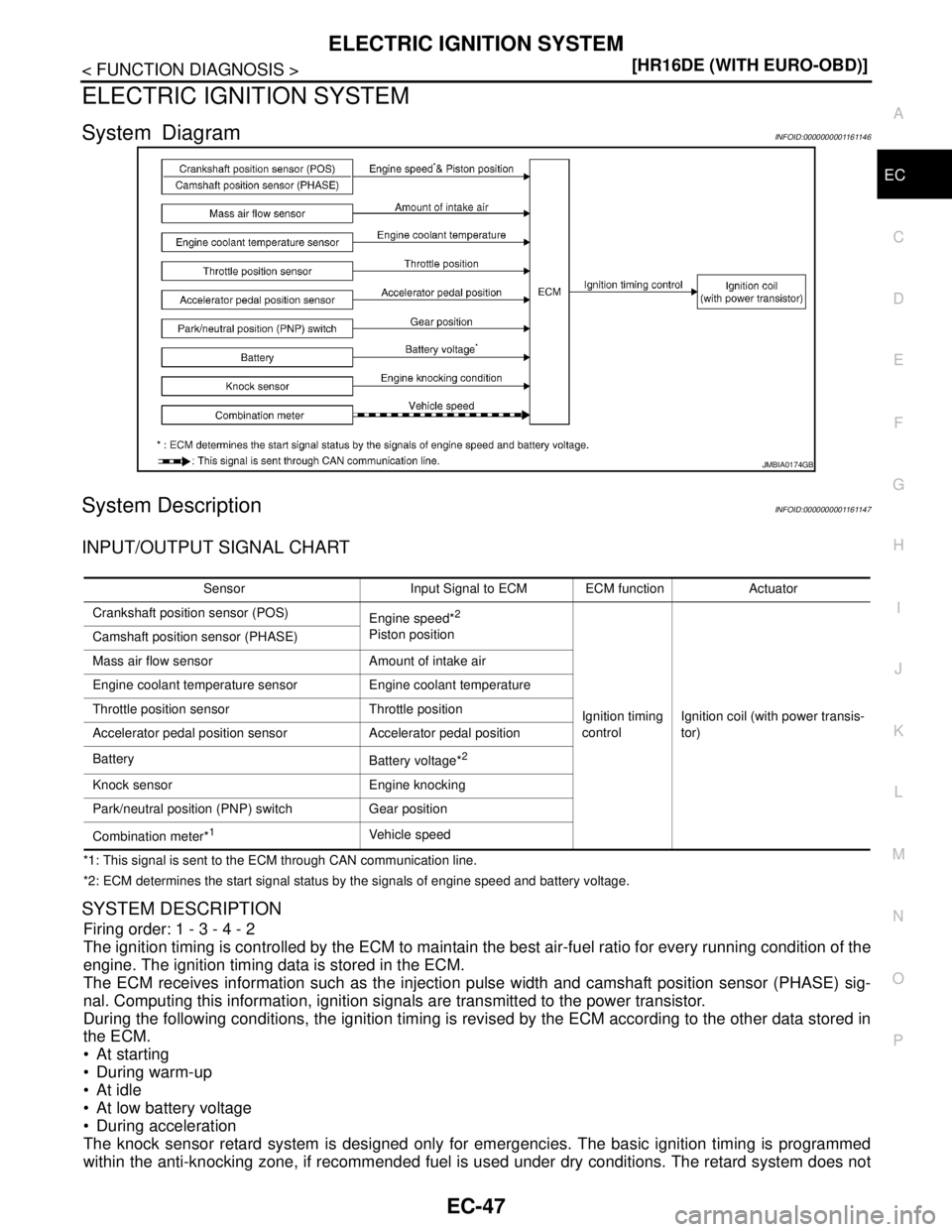

INPUT/OUTPUT SIGNAL CHART
*1: This signal is sent to the ECM through CAN communication line.
*2: ECM determines the start signal status by the signals of engine speed and battery voltage.
SYSTEM DESCRIPTION
Firing order: 1 - 3 - 4 - 2
The ignition timing is controlled by the ECM to maintain the best air-fuel ratio for every running condition of the
engine. The ignition timing data is stored in the ECM.
The ECM receives information such as the injection pulse width and camshaft position sensor (PHASE) sig-
nal. Computing this information, ignition signals are transmitted to the power transistor.
During the following conditions, the ignition timing is revised by the ECM according to the other data stored in
the ECM.
 At starting
 During warm-up
At idle
 At low battery voltage
 During acceleration
The knock sensor retard system is designed only for emergencies. The basic ignition timing is programmed
within the anti-knocking zone, if recommended fuel is used under dry conditions. The retard system does not
JMBIA0174GB
Sensor Input Signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Engine speed*
2
Piston position
Ignition timing
controlIgnition coil (with power transis-
tor) Camshaft position sensor (PHASE)
Mass air flow sensor Amount of intake air
Engine coolant temperature sensor Engine coolant temperature
Throttle position sensor Throttle position
Accelerator pedal position sensor Accelerator pedal position
Battery
Battery voltage*
2
Knock sensor Engine knocking
Park/neutral position (PNP) switch Gear position
Combination meter*
1Vehicle speed

EC-48
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
ELECTRIC IGNITION SYSTEM
operate under normal driving conditions. If engine knocking occurs, the knock sensor monitors the condition.
The signal is transmitted to the ECM. The ECM retards the ignition timing to eliminate the knocking condition.
Component Parts LocationINFOID:0000000001677953

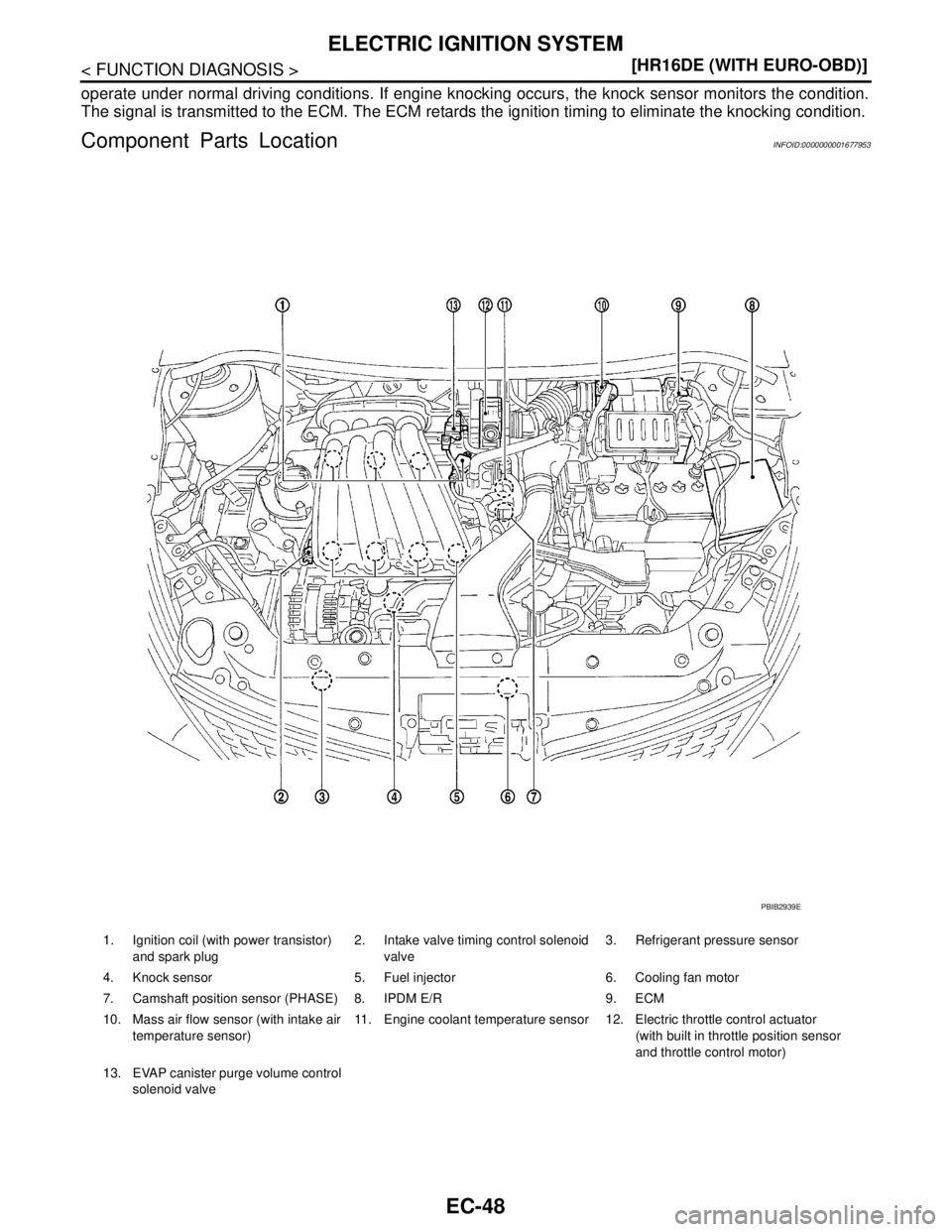

1. Ignition coil (with power transistor)
and spark plug2. Intake valve timing control solenoid
valve3. Refrigerant pressure sensor
4. Knock sensor 5. Fuel injector 6. Cooling fan motor
7. Camshaft position sensor (PHASE) 8. IPDM E/R 9. ECM
10. Mass air flow sensor (with intake air
temperature sensor)11. Engine coolant temperature sensor 12. Electric throttle control actuator
(with built in throttle position sensor
and throttle control motor)
13. EVAP canister purge volume control
solenoid valve
PBIB2939E

ELECTRIC IGNITION SYSTEM
EC-49
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
1. Mass air flow sensor
(with intake air temperature sensor)2. Engine coolant temperature sensor 3. Electric throttle control actuator
4. Camshaft position sensor (PHASE) 5. Ignition coil (with power transistor) 6. Fuel injector
7. EVAP canister purge volume control
solenoid valve
Vehicle front
PBIB2940E

EC-50
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
ELECTRIC IGNITION SYSTEM
1. ECM harness connectors 2. ECM 3. IPDM E/R
4. Fuel pump fuse (15A) 5. Intake valve timing control solenoid
valve6. Knock sensor
7. Refrigerant pressure sensor 8. PCV valve
Vehicle front
PBIB2941E

ELECTRIC IGNITION SYSTEM
EC-51
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O

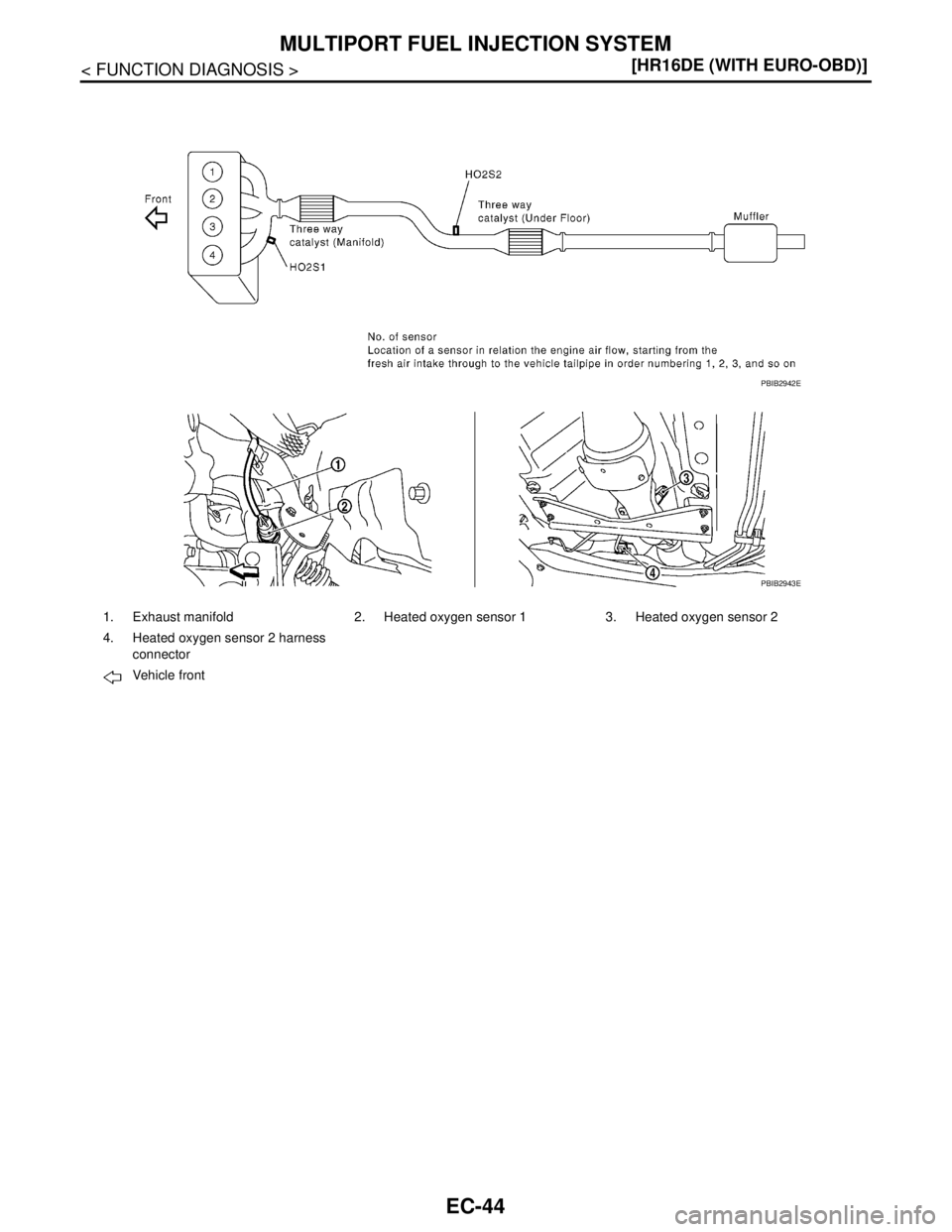

1. Exhaust manifold 2. Heated oxygen sensor 1 3. Heated oxygen sensor 2
4. Heated oxygen sensor 2 harness
connector
Vehicle front
PBIB2942E
PBIB2943E
