EC-72
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
COOLING FAN CONTROL
Component Parts Location
INFOID:0000000001677956

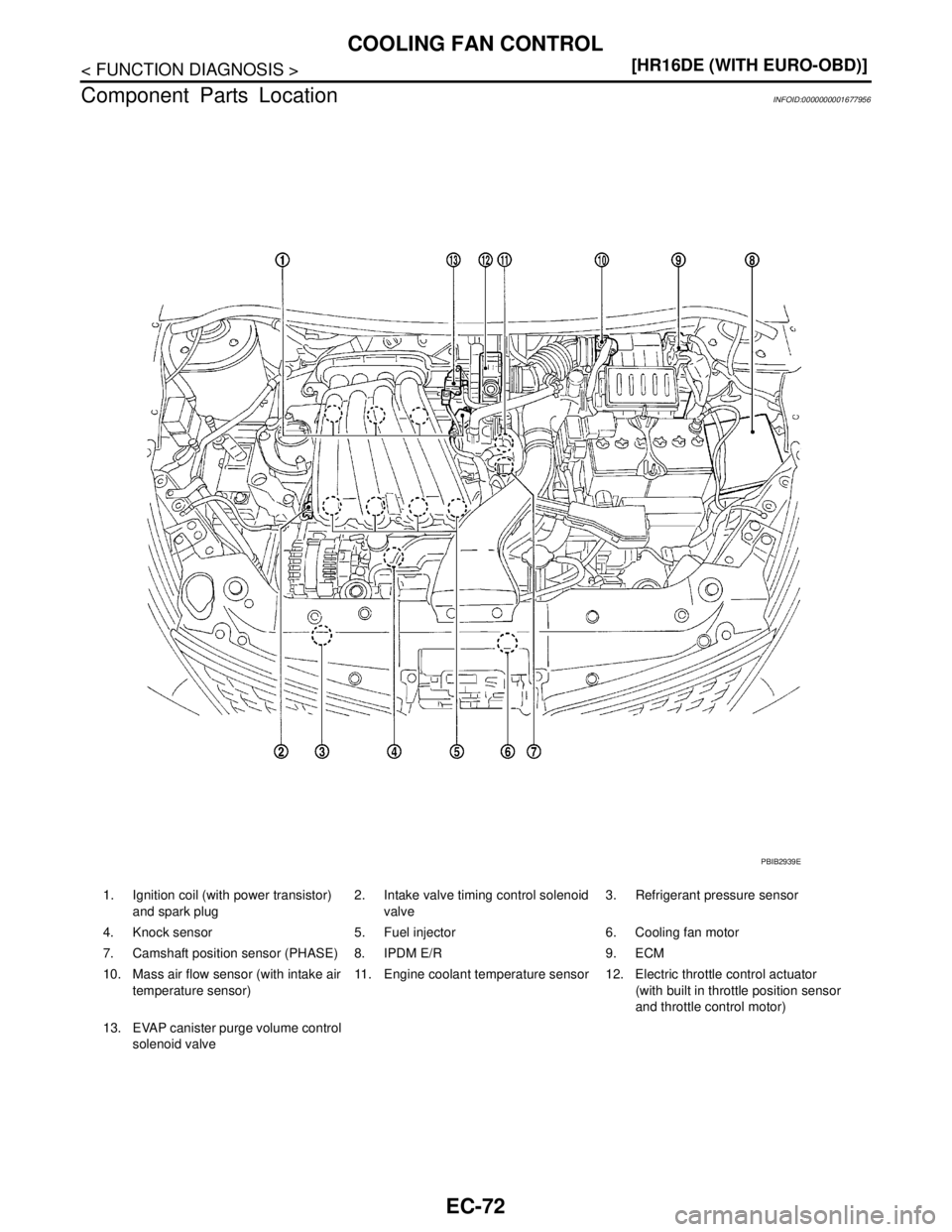

1. Ignition coil (with power transistor)
and spark plug2. Intake valve timing control solenoid
valve3. Refrigerant pressure sensor
4. Knock sensor 5. Fuel injector 6. Cooling fan motor
7. Camshaft position sensor (PHASE) 8. IPDM E/R 9. ECM
10. Mass air flow sensor (with intake air
temperature sensor)11. Engine coolant temperature sensor 12. Electric throttle control actuator
(with built in throttle position sensor
and throttle control motor)
13. EVAP canister purge volume control
solenoid valve
PBIB2939E

COOLING FAN CONTROL
EC-73
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O

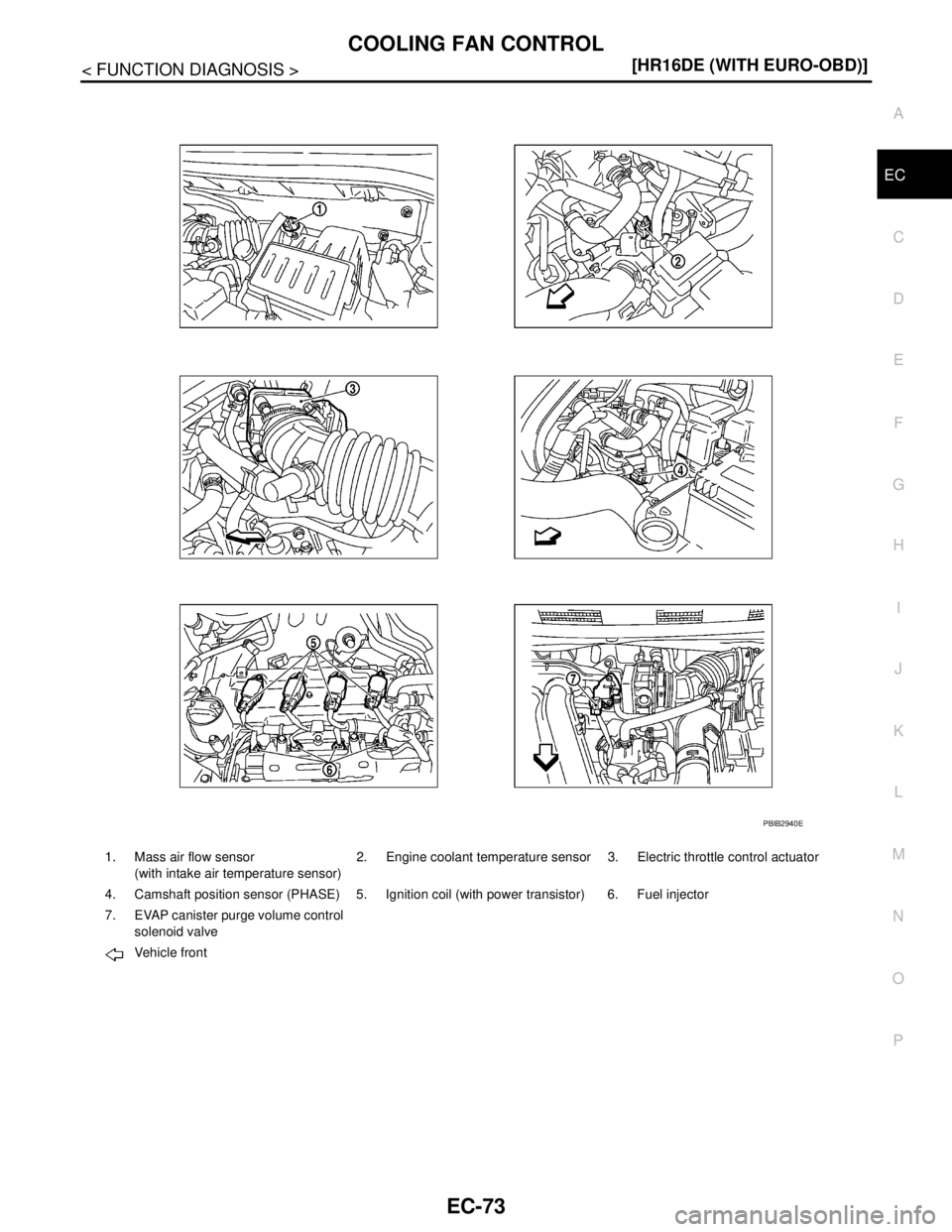

1. Mass air flow sensor
(with intake air temperature sensor)2. Engine coolant temperature sensor 3. Electric throttle control actuator
4. Camshaft position sensor (PHASE) 5. Ignition coil (with power transistor) 6. Fuel injector
7. EVAP canister purge volume control
solenoid valve
Vehicle front
PBIB2940E

EC-74
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
COOLING FAN CONTROL

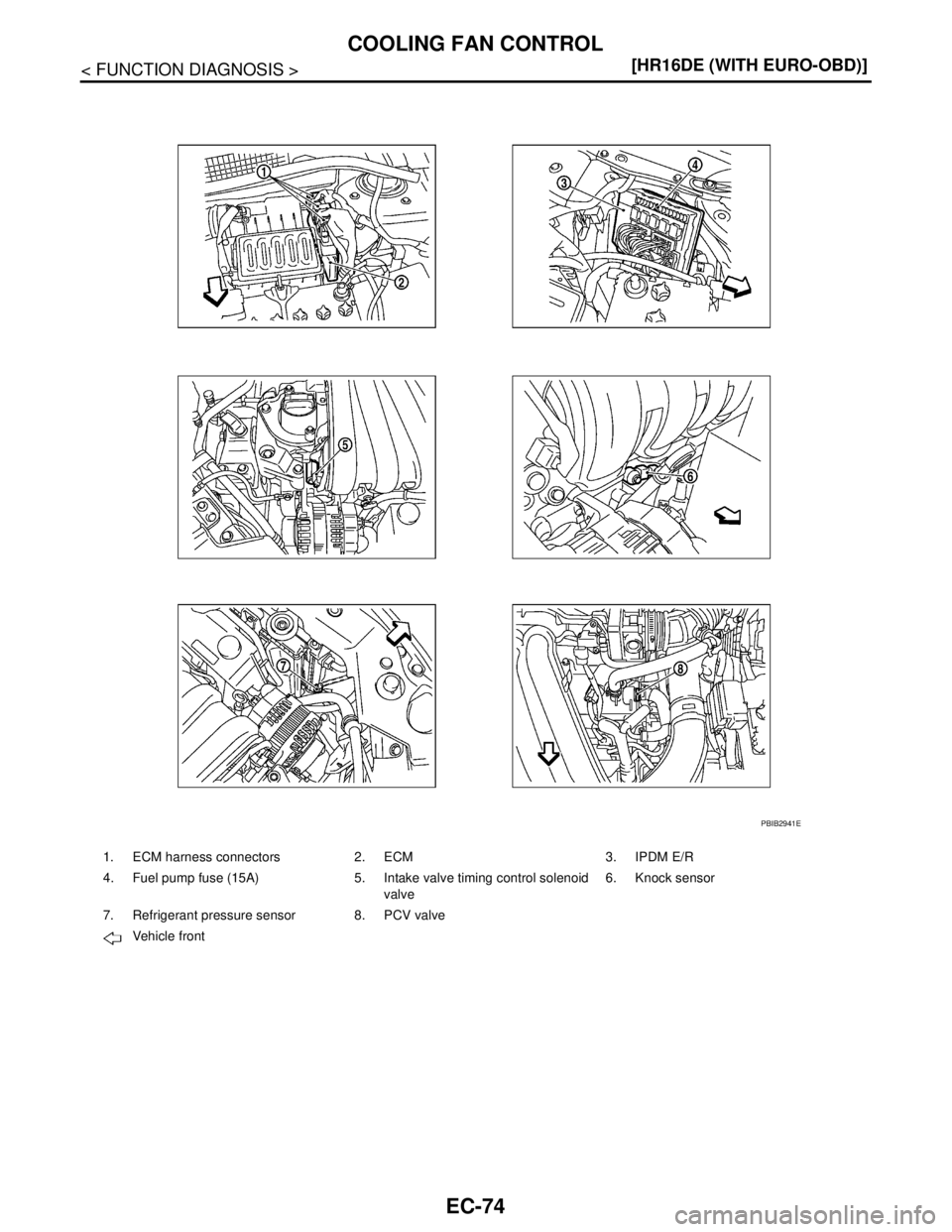

1. ECM harness connectors 2. ECM 3. IPDM E/R
4. Fuel pump fuse (15A) 5. Intake valve timing control solenoid
valve6. Knock sensor
7. Refrigerant pressure sensor 8. PCV valve
Vehicle front
PBIB2941E

COOLING FAN CONTROL
EC-75
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O

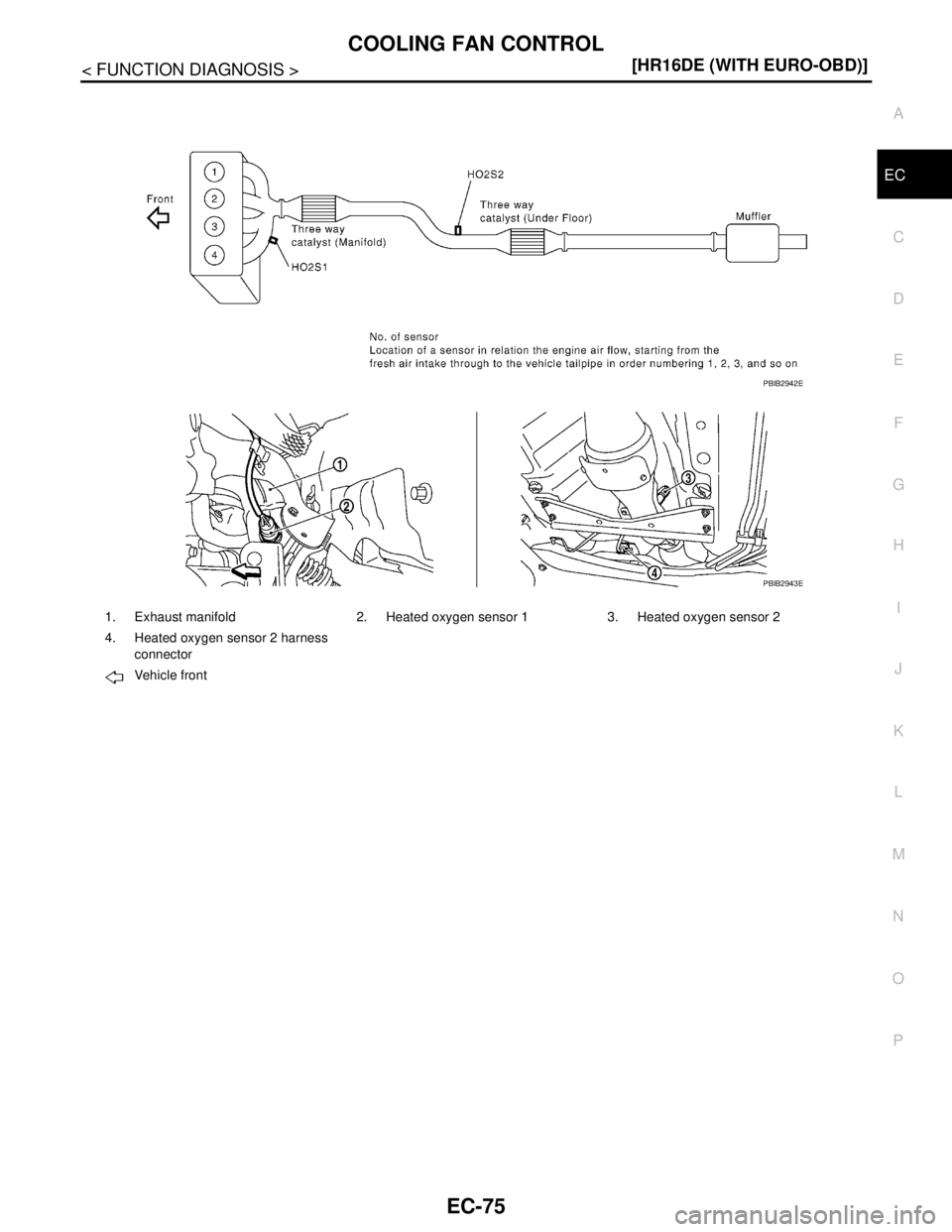

1. Exhaust manifold 2. Heated oxygen sensor 1 3. Heated oxygen sensor 2
4. Heated oxygen sensor 2 harness
connector
Vehicle front
PBIB2942E
PBIB2943E

EC-76
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
COOLING FAN CONTROL

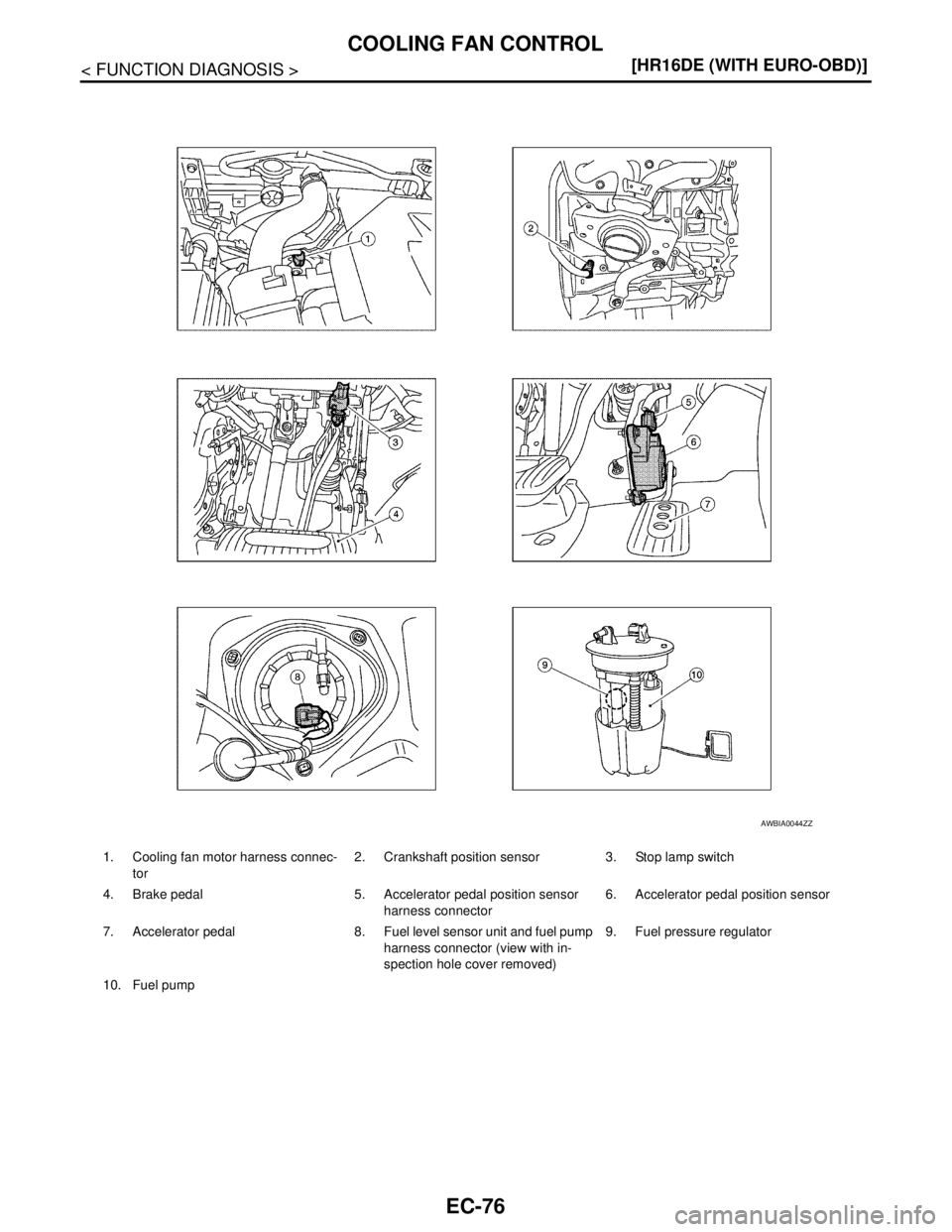

1. Cooling fan motor harness connec-
tor2. Crankshaft position sensor 3. Stop lamp switch
4. Brake pedal 5. Accelerator pedal position sensor
harness connector6. Accelerator pedal position sensor
7. Accelerator pedal 8. Fuel level sensor unit and fuel pump
harness connector (view with in-
spection hole cover removed)9. Fuel pressure regulator
10. Fuel pump
AWBIA0044ZZ

COOLING FAN CONTROL
EC-77
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Component DescriptionINFOID:0000000001161162

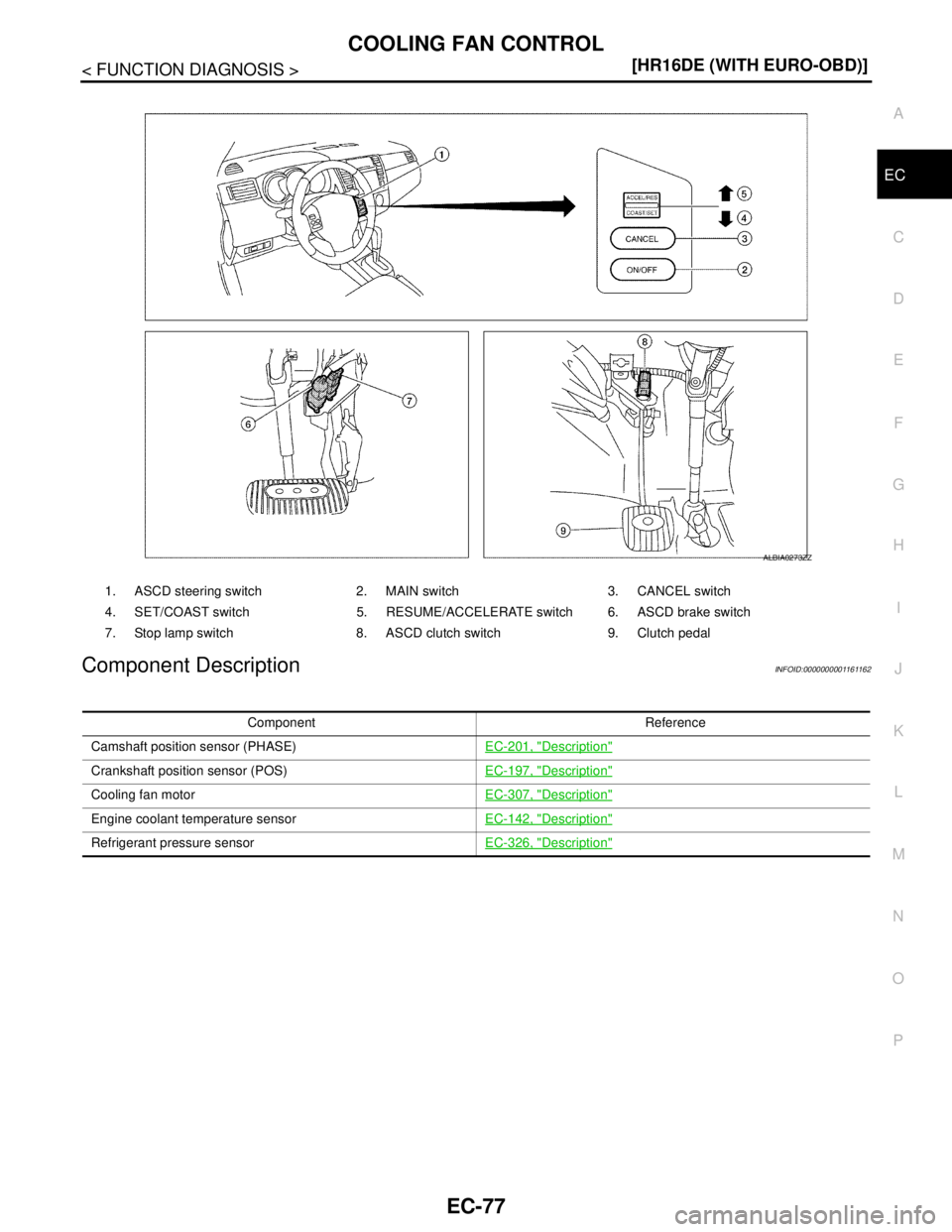

1. ASCD steering switch 2. MAIN switch 3. CANCEL switch
4. SET/COAST switch 5. RESUME/ACCELERATE switch 6. ASCD brake switch
7. Stop lamp switch 8. ASCD clutch switch 9. Clutch pedal
ALBIA0273ZZ
Component Reference
Camshaft position sensor (PHASE)EC-201, "
Description"
Crankshaft position sensor (POS)EC-197, "Description"
Cooling fan motorEC-307, "Description"
Engine coolant temperature sensorEC-142, "Description"
Refrigerant pressure sensorEC-326, "Description"

EC-78
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
EVAPORATIVE EMISSION SYSTEM
EVAPORATIVE EMISSION SYSTEM
System DiagramINFOID:0000000001161163

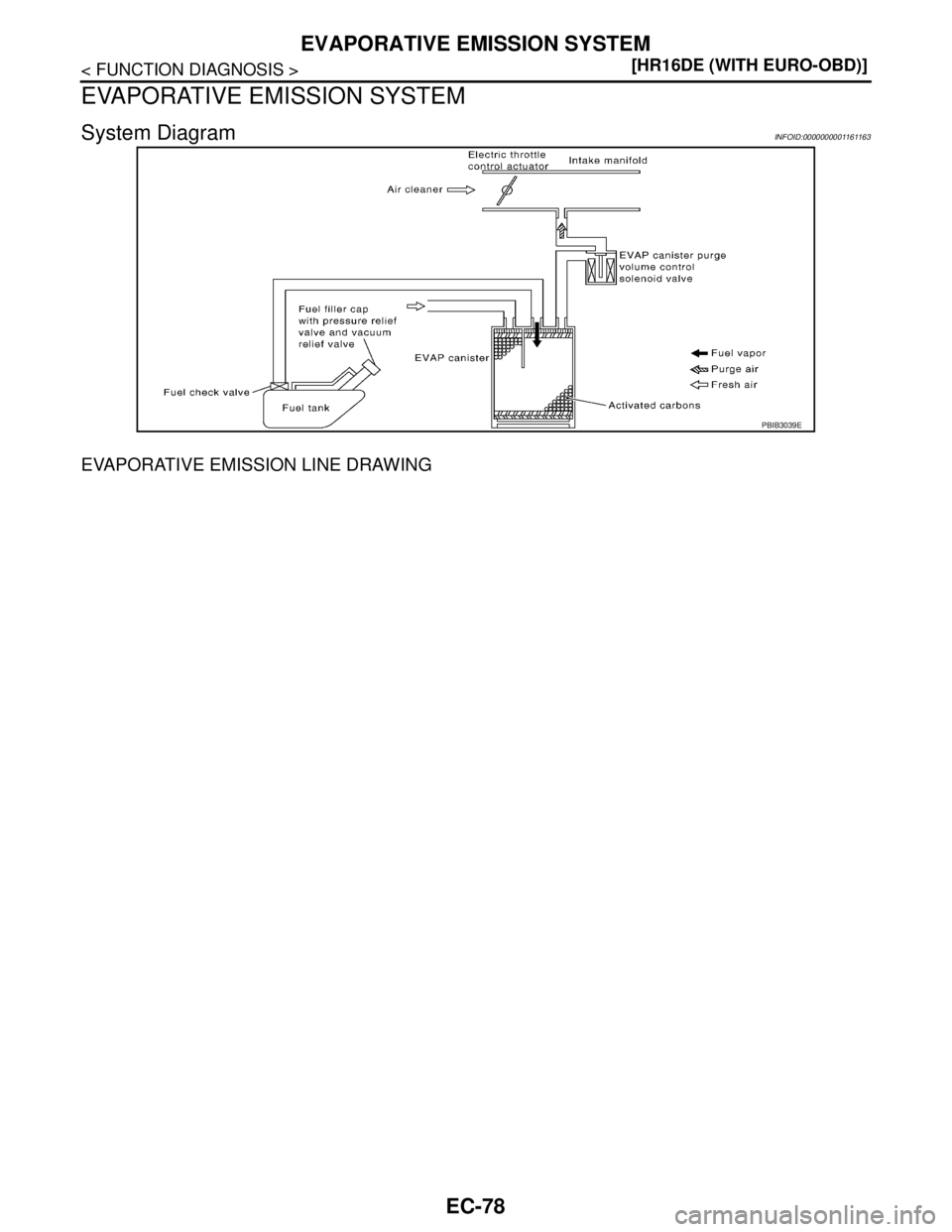

EVAPORATIVE EMISSION LINE DRAWING
PBIB3039E

EVAPORATIVE EMISSION SYSTEM
EC-79
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O

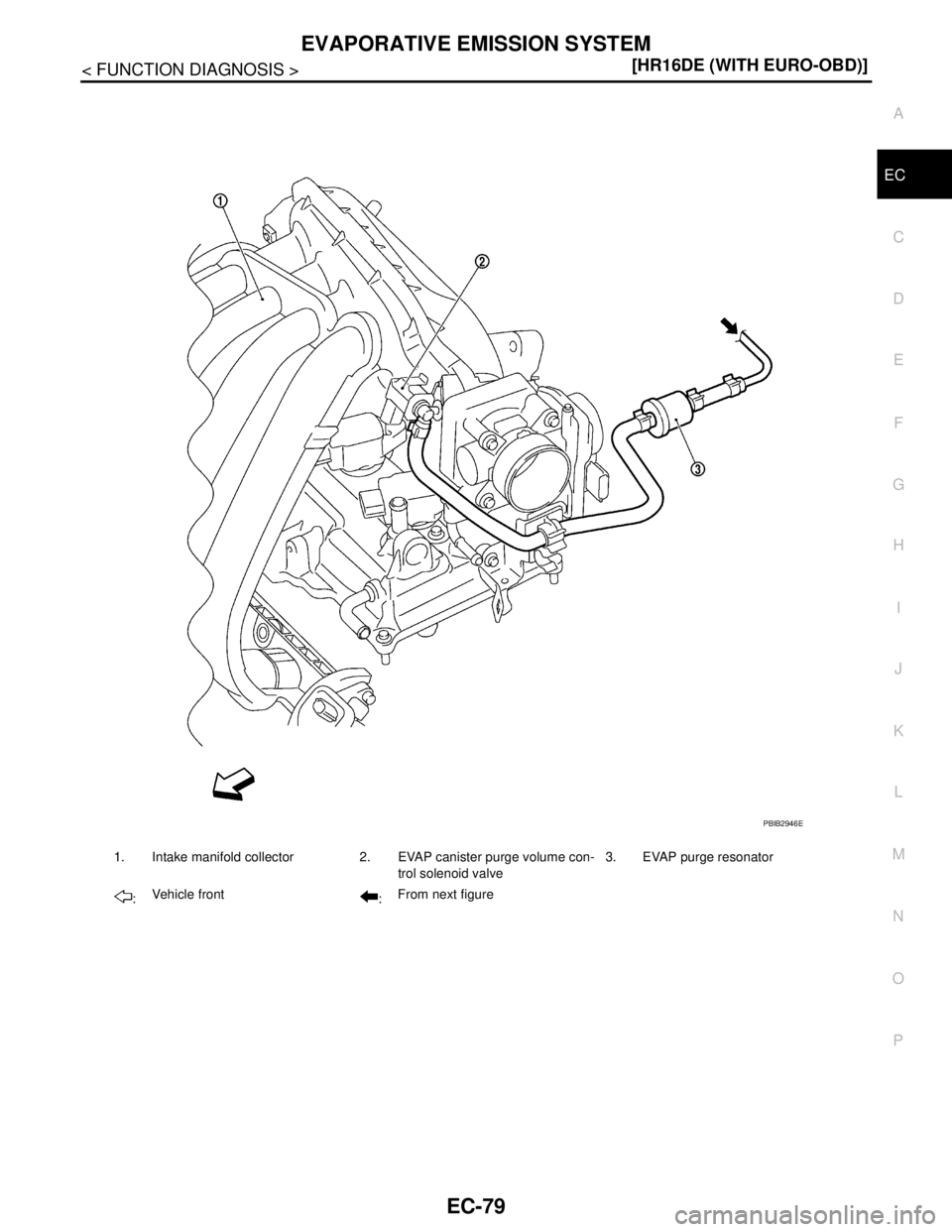

1. Intake manifold collector 2. EVAP canister purge volume con-
trol solenoid valve3. EVAP purge resonator
:Vehicle front
:From next figure
PBIB2946E

EC-80
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
EVAPORATIVE EMISSION SYSTEM
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.
System DescriptionINFOID:0000000001161164
INPUT/OUTPUT SIGNAL CHART
*1: ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to the ECM through CAN communication line.
SYSTEM DESCRIPTION
The evaporative emission system is used to reduce hydrocarbons emitted into the atmosphere from the fuel
system. This reduction of hydrocarbons is accomplished by activated charcoals in the EVAP canister.
The fuel vapor in the sealed fuel tank is led into the EVAP canister which contains activated carbon and the
vapor is stored there when the engine is not operating or when refueling to the fuel tank.

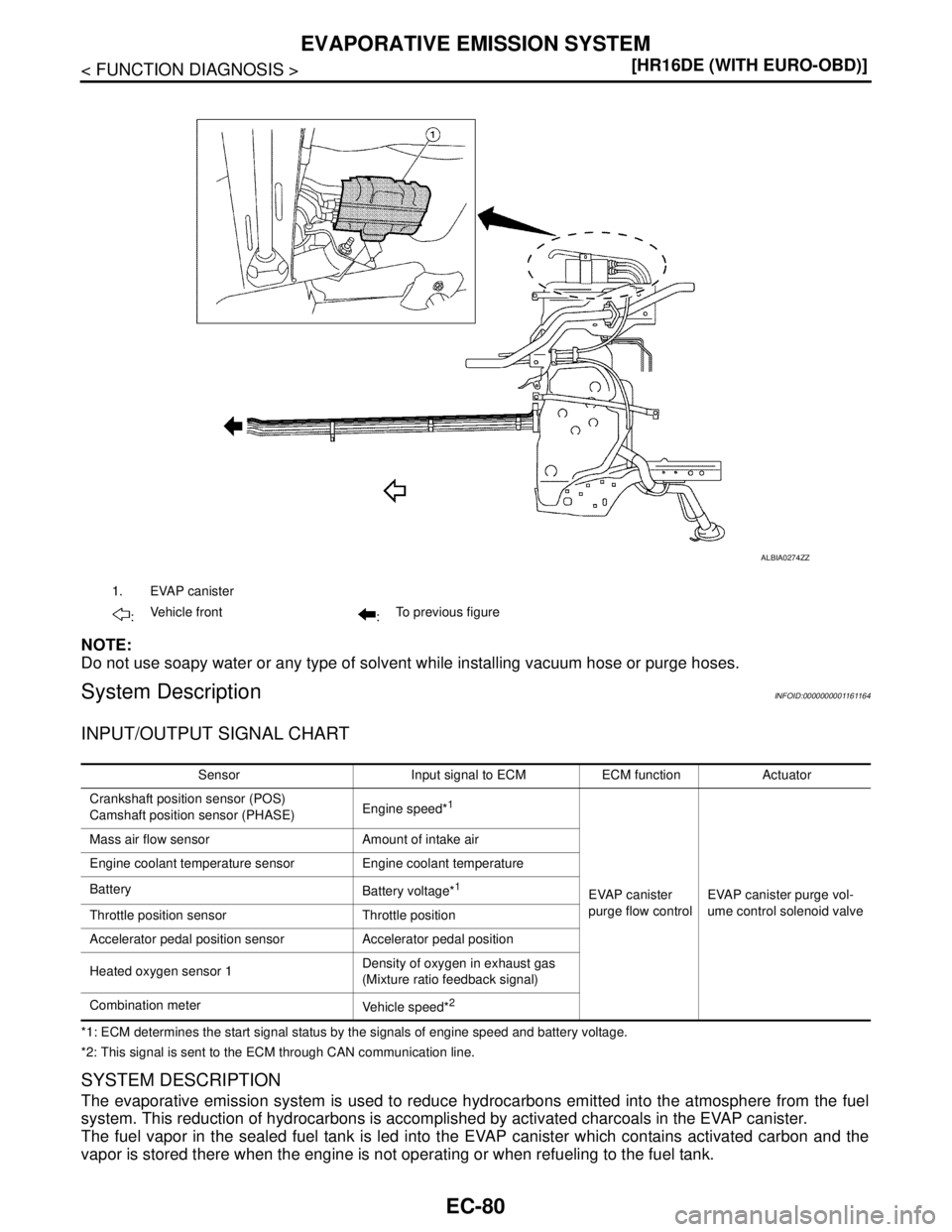

1. EVAP canister
:Vehicle front
:To previous figure
ALBIA0274ZZ
Sensor Input signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed*
1
EVAP canister
purge flow controlEVAP canister purge vol-
ume control solenoid valve Mass air flow sensor Amount of intake air
Engine coolant temperature sensor Engine coolant temperature
Battery
Battery voltage*1
Throttle position sensor Throttle position
Accelerator pedal position sensor Accelerator pedal position
Heated oxygen sensor 1Density of oxygen in exhaust gas
(Mixture ratio feedback signal)
Combination meter
Vehicle speed*
2

EVAPORATIVE EMISSION SYSTEM
EC-81
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
The vapor in the EVAP canister is purged by the air through the purge line to the intake manifold when the
engine is operating. EVAP canister purge volume control solenoid valve is controlled by ECM. When the
engine operates, the flow rate of vapor controlled by EVAP canister purge volume control solenoid valve is
proportionally regulated as the air flow increases.
EVAP canister purge volume control solenoid valve also shuts off the vapor purge line during decelerating.
Component Parts LocationINFOID:0000000001677957
1. Ignition coil (with power transistor)
and spark plug2. Intake valve timing control solenoid
valve3. Refrigerant pressure sensor
4. Knock sensor 5. Fuel injector 6. Cooling fan motor
7. Camshaft position sensor (PHASE) 8. IPDM E/R 9. ECM
10. Mass air flow sensor (with intake air
temperature sensor)11. Engine coolant temperature sensor 12. Electric throttle control actuator
(with built in throttle position sensor
and throttle control motor)
13. EVAP canister purge volume control
solenoid valve
PBIB2939E
