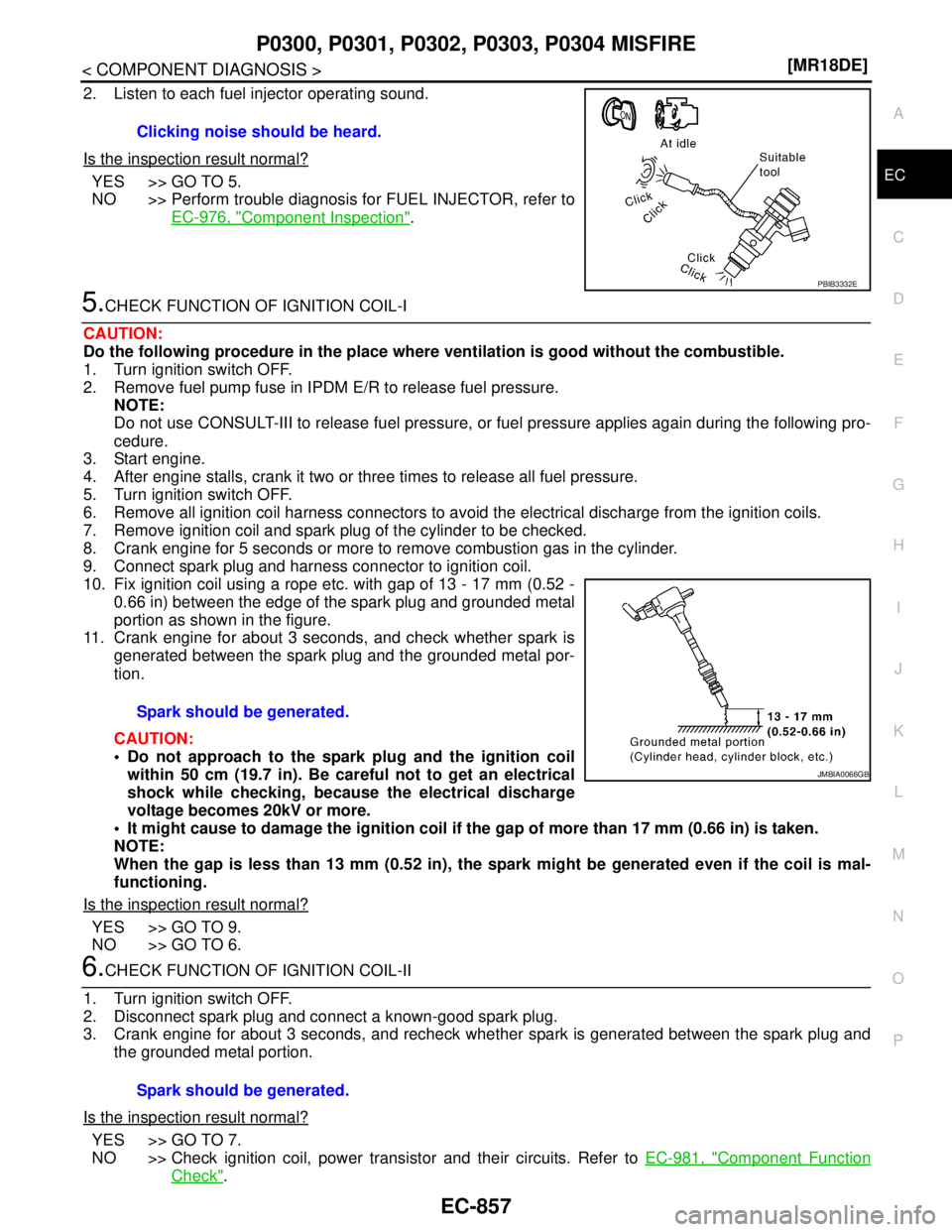

P0300, P0301, P0302, P0303, P0304 MISFIRE
EC-857
< COMPONENT DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
2. Listen to each fuel injector operating sound.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Perform trouble diagnosis for FUEL INJECTOR, refer to
EC-976, "
Component Inspection".
5.CHECK FUNCTION OF IGNITION COIL-I
CAUTION:
Do the following procedure in the place where ventilation is good without the combustible.
1. Turn ignition switch OFF.
2. Remove fuel pump fuse in IPDM E/R to release fuel pressure.
NOTE:
Do not use CONSULT-III to release fuel pressure, or fuel pressure applies again during the following pro-
cedure.
3. Start engine.
4. After engine stalls, crank it two or three times to release all fuel pressure.
5. Turn ignition switch OFF.
6. Remove all ignition coil harness connectors to avoid the electrical discharge from the ignition coils.
7. Remove ignition coil and spark plug of the cylinder to be checked.
8. Crank engine for 5 seconds or more to remove combustion gas in the cylinder.
9. Connect spark plug and harness connector to ignition coil.
10. Fix ignition coil using a rope etc. with gap of 13 - 17 mm (0.52 -
0.66 in) between the edge of the spark plug and grounded metal
portion as shown in the figure.
11. Crank engine for about 3 seconds, and check whether spark is
generated between the spark plug and the grounded metal por-
tion.
CAUTION:
Do not approach to the spark plug and the ignition coil
within 50 cm (19.7 in). Be careful not to get an electrical
shock while checking, because the electrical discharge
voltage becomes 20kV or more.
It might cause to damage the ignition coil if the gap of more than 17 mm (0.66 in) is taken.
NOTE:
When the gap is less than 13 mm (0.52 in), the spark might be generated even if the coil is mal-
functioning.
Is the inspection result normal?
YES >> GO TO 9.
NO >> GO TO 6.
6.CHECK FUNCTION OF IGNITION COIL-II
1. Turn ignition switch OFF.
2. Disconnect spark plug and connect a known-good spark plug.
3. Crank engine for about 3 seconds, and recheck whether spark is generated between the spark plug and
the grounded metal portion.
Is the inspection result normal?
YES >> GO TO 7.
NO >> Check ignition coil, power transistor and their circuits. Refer to EC-981, "
Component Function
Check". Clicking noise should be heard.
PBIB3332E
Spark should be generated.
JMBIA0066GB
Spark should be generated.
Page 2207 of 5883
![NISSAN TIIDA 2007 Service User Guide EC-858
< COMPONENT DIAGNOSIS >[MR18DE]
P0300, P0301, P0302, P0303, P0304 MISFIRE
7.CHECK SPARK PLUG
Check the initial spark plug for fouling, etc.
Is the inspection result normal?
YES >> Replace spark](/img/5/57395/w960_57395-2206.png "NISSAN TIIDA 2007 Service User Guide EC-858
< COMPONENT DIAGNOSIS >[MR18DE]
P0300, P0301, P0302, P0303, P0304 MISFIRE
7.CHECK SPARK PLUG
Check the initial spark plug for fouling, etc.
Is the inspection result normal?
YES >> Replace spark")
EC-858
< COMPONENT DIAGNOSIS >[MR18DE]
P0300, P0301, P0302, P0303, P0304 MISFIRE
7.CHECK SPARK PLUG
Check the initial spark plug for fouling, etc.
Is the inspection result normal?
YES >> Replace spark plug(s) with standard type one(s). For
spark plug type, refer to EM-145, "
Removal and Installa-
tion".
NO >> Repair or clean spark plug. Then GO TO 8.
8.CHECK FUNCTION OF IGNITION COIL-III
1. Reconnect the initial spark plugs.
2. Crank engine for about 3 seconds, and recheck whether spark is generated between the spark plug and
the grounded portion.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace spark plug(s) with standard type one(s). For spark plug type, refer to EM-145, "
Removal
and Installation".
9.CHECK COMPRESSION PRESSURE
Check compression pressure. Refer to EM-151, "
Checking Compression Pressure".
Is the inspection result normal?
YES >> GO TO 10.
NO >> Check pistons, piston rings, valves, valve seats and cylinder head gaskets.
10.CHECK FUEL PRESSURE
1. Install all removed parts.
2. Check fuel pressure. Refer to EC-1035, "
Inspection".
Is the inspection result normal?
YES >> GO TO 12.
NO >> GO TO 11.
11 .DETECT MALFUNCTIONING PART
Check fuel hoses and fuel tubes for clogging.
Is the inspection result normal?
YES >> Replace “fuel filter and fuel pump assembly”.
NO >> Repair or replace.
12.CHECK IGNITION TIMING
For procedure, refer to EC-689, "
BASIC INSPECTION : Special Repair Requirement".
For specification, refer to EC-1038, "
Idle Speed" and EC-1038, "Ignition Timing".
Is the inspection result normal?
YES >> GO TO 13.
NO >> Follow the EC-693, "
IGNITION TIMING : Special Repair Requirement".
13.CHECK HEATED OXYGEN SENSOR 1 HEATER
Refer to EC-829, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 14.
NO >> Replace heated oxygen sensor 1.
SEF156I
Spark should be generated.
Page 2222 of 5883
![NISSAN TIIDA 2007 Service User Guide P0420 THREE WAY CATALYST FUNCTION
EC-873
< COMPONENT DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Is the inspection result normal?
YES >> GO TO 6.
NO >> Perform EC-975, "
Diagnosis Procedure".](/img/5/57395/w960_57395-2221.png "NISSAN TIIDA 2007 Service User Guide P0420 THREE WAY CATALYST FUNCTION
EC-873
< COMPONENT DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Is the inspection result normal?
YES >> GO TO 6.
NO >> Perform EC-975, \"
Diagnosis Procedure\".")
P0420 THREE WAY CATALYST FUNCTION
EC-873
< COMPONENT DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Is the inspection result normal?
YES >> GO TO 6.
NO >> Perform EC-975, "
Diagnosis Procedure".
6.CHECK FUNCTION OF IGNITION COIL-I
CAUTION:
Do the following procedure in the place where ventilation is good without the combustible.
1. Turn ignition switch OFF.
2. Remove fuel pump fuse in IPDM E/R to release fuel pressure.
NOTE:
Do not use CONSULT-III to release fuel pressure, or fuel pressure applies again during the following pro-
cedure.
3. Start engine.
4. After engine stalls, crank it two or three times to release all fuel pressure.
5. Turn ignition switch OFF.
6. Remove all ignition coil harness connectors to avoid the electrical discharge from the ignition coils.
7. Remove ignition coil and spark plug of the cylinder to be checked.
8. Crank engine for 5 seconds or more to remove combustion gas in the cylinder.
9. Connect spark plug and harness connector to ignition coil.
10. Fix ignition coil using a rope etc. with gap of 13 - 17 mm (0.52 -
0.66 in) between the edge of the spark plug and grounded metal
portion as shown in the figure.
11. Crank engine for about 3 seconds, and check whether spark is
generated between the spark plug and the grounded metal por-
tion.
CAUTION:
Do not approach to the spark plug and the ignition coil
within 50 cm (19.7 in). Be careful not to get an electrical
shock while checking, because the electrical discharge
voltage becomes 20kV or more.
It might cause to damage the ignition coil if the gap of more than 17 mm (0.66 in) is taken.
NOTE:
When the gap is less than 13 mm (0.52 in), the spark might be generated even if the coil is mal-
functioning.
Is the inspection result normal?
YES >> GO TO 10.
NO >> GO TO 7.
7.CHECK FUNCTION OF IGNITION COIL-II
1. Turn ignition switch OFF.
2. Disconnect spark plug and connect a known-good spark plug.
3. Crank engine for about 3 seconds, and recheck whether spark is generated between the spark plug and
the grounded metal portion.
Is the inspection result normal?
YES >> GO TO 8.
(+) (–)
Voltag e
Connector Terminal Connector Terminal
F1025
E16 108 Battery voltage 29
30
31
Spark should be generated.
JMBIA0066GB
Spark should be generated.
Page 2333 of 5883
![NISSAN TIIDA 2007 Service User Guide EC-984
< COMPONENT DIAGNOSIS >[MR18DE]
IGNITION SIGNAL
Component Inspection (Ignition Coil with Power Transistor)
INFOID:0000000001161980
1.CHECK IGNITION COIL WITH POWER TRANSISTOR-I
1. Turn ignition](/img/5/57395/w960_57395-2332.png "NISSAN TIIDA 2007 Service User Guide EC-984
< COMPONENT DIAGNOSIS >[MR18DE]
IGNITION SIGNAL
Component Inspection (Ignition Coil with Power Transistor)
INFOID:0000000001161980
1.CHECK IGNITION COIL WITH POWER TRANSISTOR-I
1. Turn ignition")
EC-984
< COMPONENT DIAGNOSIS >[MR18DE]
IGNITION SIGNAL
Component Inspection (Ignition Coil with Power Transistor)
INFOID:0000000001161980
1.CHECK IGNITION COIL WITH POWER TRANSISTOR-I
1. Turn ignition switch OFF.
2. Disconnect ignition coil harness connector.
3. Check resistance between ignition coil terminals as follows.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Replace malfunctioning ignition coil with power transistor.
2.CHECK IGNITION COIL WITH POWER TRANSISTOR-II
CAUTION:
Do the following procedure in the place where ventilation is good without the combustible.
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Remove fuel pump fuse in IPDM E/R to release fuel pressure.
NOTE:
Do not use CONSULT-III to release fuel pressure, or fuel pressure applies again during the following pro-
cedure.
4. Start engine.
5. After engine stalls, crank it two or three times to release all fuel pressure.
6. Turn ignition switch OFF.
7. Remove all ignition coil harness connectors to avoid the electrical discharge from the ignition coils.
8. Remove ignition coil and spark plug of the cylinder to be checked.
9. Crank engine for 5 seconds or more to remove combustion gas in the cylinder.
10. Connect spark plug and harness connector to ignition coil.
11. Fix ignition coil using a rope etc. with gap of 13 - 17 mm (0.52 -
0.66 in) between the edge of the spark plug and grounded metal
portion as shown in the figure.
12. Crank engine for about three seconds, and check whether spark
is generated between the spark plug and the grounded metal
portion.
CAUTION:
Do not approach to the spark plug and the ignition coil
within 50 cm (19.7 in). Be careful not to get an electrical
shock while checking, because the electrical discharge
voltage becomes 20kV or more.
It might cause to damage the ignition coil if the gap of more than 17 mm 0.66 in) is taken.
NOTE:
When the gap is less than 13 mm (0.52 in), the spark might be generated even if the coil is mal-
functioning.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Replace malfunctioning ignition coil with power transistor.
Component Inspection (Condenser)INFOID:0000000001161981
1.CHECK CONDENSER
1. Turn ignition switch OFF.
2. Disconnect condenser-2 harness connector.
Terminals Resistance [at 25°C (77°F)]
1 and 2 Except 0 or ∞ Ω
1 and 3
Except 0 Ω
2 and 3
Spark should be generated.
JMBIA0066GB
Page 2648 of 5883
EM-1
ENGINE
C
D
E
F
G
H
I
J
K
L
M
SECTION EM
A
EM
N
O
P
CONTENTS
ENGINE MECHANICAL
HR16DE
SYMPTOM DIAGNOSIS ...............................
5
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING .............................
5
NVH Troubleshooting - Engine Noise .......................5
Use the Chart Below to Help You Find the Cause
of the Symptom .........................................................
6
PRECAUTION ...............................................7
PRECAUTIONS ...................................................7
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................
7
Precaution for Procedure without Cowl Top Cover ......7
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect .....................................
7
Precaution for Drain Coolant .....................................8
Precaution for Disconnecting Fuel Piping .................8
Precaution for Removal and Disassembly ................8
Precaution for Inspection, Repair and Replace-
ment ..........................................................................
8
Precaution for Assembly and Installation ..................8
Parts Requiring Angular Tightening ..........................8
Precaution for Liquid Gasket .....................................9
PREPARATION ...........................................11
PREPARATION ..................................................11
Special Service Tools ..............................................11
Commercial Service Tools ......................................12
ON-VEHICLE MAINTENANCE ....................15
DRIVE BELTS ....................................................15
Checking .................................................................15
Tension Adjustment ................................................15
Removal and Installation .........................................16
AIR CLEANER FILTER ......................................18
Removal and Installation .........................................18
SPARK PLUG ...................................................19
Exploded View .........................................................19
Removal and Installation .........................................19
CAMSHAFT VALVE CLEARANCE ..................21
Inspection and Adjustment ......................................21
COMPRESSION PRESSURE ...........................24
Inspection ................................................................24
ON-VEHICLE REPAIR .................................25
DRIVE BELT IDLER PULLEY ..........................25
Exploded View .........................................................25
Removal and Installation .........................................25
AIR CLEANER AND AIR DUCT .......................27
Exploded View .........................................................27
Removal and Installation .........................................27
Inspection ................................................................28
INTAKE MANIFOLD .........................................29
Exploded View .........................................................29
Removal and Installation .........................................29
EXHAUST MANIFOLD ......................................32
Exploded View .........................................................32
Removal and Installation .........................................32
FUEL INJECTOR AND FUEL TUBE ................35
Exploded View .........................................................35
Removal and Installation .........................................35
Inspection ................................................................39
OIL PAN (LOWER) ...........................................40
Exploded View .........................................................40
Removal and Installation .........................................40
Inspection ................................................................41
OIL PAN (UPPER) AND OIL STRAINER .........42
Component ..............................................................42
Page 2649 of 5883
EM-2
Removal and Installation ........................................42
IGNITION COIL, SPARK PLUG AND ROCK-
ER COVER .........................................................
47
Exploded View ........................................................47
Removal and Installation ........................................47
TIMING CHAIN ..................................................50
Exploded View ........................................................50
Removal and Installation ........................................50
Inspection ...............................................................57
CAMSHAFT .......................................................59
Exploded View ........................................................59
Removal and Installation ........................................59
Inspection ...............................................................71
OIL SEAL ...........................................................77
VALVE OIL SEAL .....................................................77
VALVE OIL SEAL : Removal and Installation .........77
FRONT OIL SEAL .....................................................77
FRONT OIL SEAL : Removal and Installation ........78
REAR OIL SEAL .......................................................78
REAR OIL SEAL : Removal and Installation ..........78
CYLINDER HEAD ..............................................80
Removal and Installation ........................................80
Disassembly and Assembly ....................................82
REMOVAL AND INSTALLATION ...............89
ENGINE ASSEMBLY .........................................89
Exploded View ........................................................89
Removal and Installation ........................................89
Inspection ...............................................................92
DISASSEMBLY AND ASSEMBLY .............94
ENGINE STAND SETTING ................................94
Setting ....................................................................94
ENGINE UNIT ....................................................95
Disassembly ...........................................................95
Assembly ................................................................95
OIL PAN (UPPER) .............................................96
Exploded View ........................................................96
Removal and Installation ........................................96
Inspection ...............................................................99
CYLINDER BLOCK .........................................100
Exploded View .......................................................100
Disassembly and Assembly ...................................101
Inspection ..............................................................108
HOW TO SELECT PISTON AND BEARING ...117
Description .............................................................117
Connecting Rod Bearing .......................................117
Main Bearing .........................................................119
SERVICE DATA AND SPECIFICATIONS
(SDS) .........................................................
122
SERVICE DATA AND SPECIFICATIONS
(SDS) ................................................................
122
General Specification ............................................122
Drive Belts .............................................................122
Spark Plug ............................................................123
Exhaust Manifold ..................................................123
Camshaft ...............................................................123
Cylinder Head .......................................................125
Cylinder Block .......................................................127
Connecting Rod Bearing .......................................130
Main Bearing .........................................................131
MR18DE
SYMPTOM DIAGNOSIS ...........................
132
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING ...........................
132
NVH Troubleshooting - Engine Noise ...................132
Use the Chart Below to Help You Find the Cause
of the Symptom .....................................................
133
PRECAUTION ...........................................134
PRECAUTIONS ................................................134
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...............................................................
134
Precaution for Procedure without Cowl Top Cover .134
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ................................
134
Precaution for Drain Coolant .................................135
Precaution for Disconnecting Fuel Piping .............135
Precaution for Removal and Disassembly ............135
Precaution for Inspection, Repair and Replace-
ment ......................................................................
135
Precaution for Assembly and Installation ..............135
Parts Requiring Angular Tightening ......................135
Precaution for Liquid Gasket .................................136
PREPARATION .........................................138
PREPARATION ................................................138
Special Service Tool .............................................138
Commercial Service Tool ......................................140
ON-VEHICLE MAINTENANCE .................142
DRIVE BELTS ..................................................142
Component ...........................................................142
Checking Drive Belts .............................................142
Tension Adjustment ..............................................142
Removal and Installation .......................................142
AIR CLEANER FILTER ....................................144
Removal and Installation .......................................144
SPARK PLUG ...................................................145
Page 2650 of 5883
EM-3
C
D
E
F
G
H
I
J
K
L
M
EMA
N
O
P Component ............................................................
145
Removal and Installation .......................................145
CAMSHAFT VALVE CLEARANCE .................148
Valve Clearance ....................................................148
COMPRESSION PRESSURE ..........................151
Checking Compression Pressure ..........................151
ON-VEHICLE REPAIR ...............................153
DRIVE BELT AUTO TENSIONER ...................153
Component ............................................................153
Removal and Installation of Drive Belt Auto Ten-
sioner ....................................................................
153
AIR CLEANER AND AIR DUCT ......................154
Component ............................................................154
Removal and Installation .......................................154
INTAKE MANIFOLD .........................................156
Component ............................................................156
Removal and Installation .......................................156
EXHAUST MANIFOLD .....................................159
Component ............................................................159
Removal and Installation .......................................159
FUEL INJECTOR AND FUEL TUBE ...............162
Component ............................................................162
Removal and Installation .......................................162
OIL PAN ...........................................................166
Component ............................................................166
Removal and Installation .......................................166
IGNITION COIL ................................................172
Component ............................................................172
Removal and Installation .......................................172
ROCKER COVER .............................................173
Component ............................................................173
Removal and Installation .......................................173
TIMING CHAIN .................................................176
Component ............................................................176
Removal and Installation .......................................177
CAMSHAFT ......................................................186
Component ............................................................186
Removal and Installation .......................................186
OIL SEAL .........................................................195
Removal and Installation of Valve Oil Seal ...........195
Removal and Installation of Front Oil Seal ............195
Removal and Installation of Rear Oil Seal ............196
CYLINDER HEAD ............................................198
Component ............................................................198
Removal and Installation .......................................198
Component ............................................................200
Disassembly and Assembly ..................................200
Inspection After Disassembly ................................202
REMOVAL AND INSTALLATION .............207
ENGINE ASSEMBLY ......................................207
Component ............................................................207
Removal and Installation .......................................207
DISASSEMBLY AND ASSEMBLY ............211
ENGINE UNIT ..................................................211
Component ............................................................211
Disassembly and Assembly ...................................212
Inspection After Disassembly ................................219
HOW TO SELECT PISTON AND BEARING ..230
How to Select Piston and Bearing .........................230
SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................
238
SERVICE DATA AND SPECIFICATIONS
(SDS) ...............................................................
238
Standard and Limit ................................................238
K9K
SYMPTOM DIAGNOSIS ............................
249
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING .........................
249
NVH Troubleshooting - Engine Noise ....................249
Use the Chart Below to Help You Find the Cause
of the Symptom .....................................................
250
PRECAUTION ............................................251
PRECAUTIONS ...............................................251
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...............................................................
251
Precaution for Procedure without Cowl Top Cover ..251
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect .................................
251
Precaution for Drain Coolant .................................252
Precaution for Disconnecting Fuel Piping ..............252
Precaution for Removal and Disassembly .............252
Precaution for Inspection, Repair and Replace-
ment .......................................................................
252
Precaution for Assembly and Installation ..............252
Parts Requiring Angular Tightening .......................252
Precaution for Liquid Gasket .................................253
Precaution for Diesel Equipment ...........................253
Installation of Thread Inserts .................................257
PREPARATION .........................................258
PREPARATION ...............................................258
Special Service Tools ............................................258
Commercial Service Tools .....................................260
ON-VEHICLE MAINTENANCE ..................263
Page 2662 of 5883
![NISSAN TIIDA 2007 Service User Guide DRIVE BELTS
EM-15
< ON-VEHICLE MAINTENANCE >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
ON-VEHICLE MAINTENANCE
DRIVE BELTS
CheckingINFOID:0000000001381384
Inspection should be done only when engine is](/img/5/57395/w960_57395-2661.png "NISSAN TIIDA 2007 Service User Guide DRIVE BELTS
EM-15
< ON-VEHICLE MAINTENANCE >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
ON-VEHICLE MAINTENANCE
DRIVE BELTS
CheckingINFOID:0000000001381384
Inspection should be done only when engine is")
DRIVE BELTS
EM-15
< ON-VEHICLE MAINTENANCE >[HR16DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
ON-VEHICLE MAINTENANCE
DRIVE BELTS
CheckingINFOID:0000000001381384
Inspection should be done only when engine is cold or over 30
minutes after the engine is stopped.
Visually check belts for wear, damage, and cracks on inside and
edges.
Turn crankshaft pulley two time clockwise, and make sure tension on all pulleys is equal before doing the
test.
When measuring deflection, apply 98 N (10 kg, 22 lb) at the ( ) marked point.
Measure the belt tension and frequency with acoustic tension gauge (commercial service tool) at the ( )
marked point.
CAUTION:
When the tension and frequency are measured, the acoustic tension gauge should be used.
When checking immediately after installation, first adjust it to the specified value. Then, after turning
crankshaft two turns or more, re-adjust to the specified value to avoid variation in deflection
between pulleys.
Tension AdjustmentINFOID:0000000001381385
CAUTION:
When belt is replaced with new one, adjust belt tension to the value for “New belt”, because new belt
will not fully seat in the pulley groove.
When tension of the belt being used exceeds “Limit”, adjust it to the value for “After adjusted”.
When installing a belt, make sure it is correctly engaged with the pulley groove.
Never allow oil or engine coolant to get on the belt.
Never twist or bend the belt strongly.
1. Loosen the idler pulley lock nut (A) from the tightening position
with the specified torque by 45 degrees.
1 : Generator
2 : Water pump
3 : Crankshaft pulley
4: A/C compressor (with A/C models)
: Idler pulley (without A/C models)
5 : Idler pulley
6: Drive belt
Belt Deflection / Belt Tension and Frequency : Refer to EM-122, "Drive Belts".
PBIC3642E
Location Location of adjuster and tightening method
Drive belt Adjusting bolt on idler pulley
1 : Generator
2: Water pump
3 : Crankshaft pulley
4: A/C compressor (with A/C models)
: Idler pulley (without A/C models)
5 : Idler pulley
6: Drive belt
A : Idler pulley lock nut
B : Adjusting bolt
PBIC3643E
Page 2663 of 5883
![NISSAN TIIDA 2007 Service User Guide EM-16
< ON-VEHICLE MAINTENANCE >[HR16DE]
DRIVE BELTS
CAUTION:
When the lock nut is loosened excessively, the idler pulley tilts and the correct tension adjust-
ment cannot be performed. Never loosen](/img/5/57395/w960_57395-2662.png "NISSAN TIIDA 2007 Service User Guide EM-16
< ON-VEHICLE MAINTENANCE >[HR16DE]
DRIVE BELTS
CAUTION:
When the lock nut is loosened excessively, the idler pulley tilts and the correct tension adjust-
ment cannot be performed. Never loosen")
EM-16
< ON-VEHICLE MAINTENANCE >[HR16DE]
DRIVE BELTS
CAUTION:
When the lock nut is loosened excessively, the idler pulley tilts and the correct tension adjust-
ment cannot be performed. Never loosen it excessively (more than 45 degrees).
Put a matching mark on the lock nut, and check turning angle with a protractor. Never visually
check the tightening angle.
2. Adjust the belt tension by turning the adjusting bolt.
CAUTION:
When checking immediately after installation, first adjust it to the specified value. Then, after
turning crankshaft two turns or more, re-adjust to the specified value to avoid variation in deflec-
tion between pulleys.
When the tension adjustment is performed, the lock nut should be in the condition at step“2”. If
the tension adjustment is performed when the lock nut is loosened more than the standard, the
idler pulley tilts and the correct tension adjustment cannot be performed.
3. Tighten the idler pulley lock nut.
Removal and InstallationINFOID:0000000001381386
REMOVAL
1. Loosen the idler pulley lock nut (A), and then adjust the belt ten-
sion by turning the adjusting bolt (B).
2. Remove drive belt.
INSTALLATION
1. Pull the idler pulley in the loosening direction, and then tempo-
rarily tighten the idler pulley lock nut (A) to the following torque.
NOTE:
Do not move the lock nut from the tightened position. Proceed to step “2”.
2. Install the drive belt to each pulley.
CAUTION:
Make sure that there is no oil, grease, or coolant, etc. in pulley grooves.
Make sure that the belt is securely inside the groove on each pulley.
3. Adjust drive belt tension by turning the adjusting bolt. Refer to EM-15, "
Tension Adjustment".
CAUTION:Idler pulley lock nut : 34.8 N·m (3.5 kg-m, 26 ft-lb)
1 : Generator
2: Water pump
3 : Crankshaft pulley
4: A/C compressor (with A/C models)
: Idler pulley (without A/C models)
5 : Idler pulley
6 : Drive belt
PBIC3643E
1 : Generator
2: Water pump
3 : Crankshaft pulley
4: A/C compressor (with A/C models)
: Idler pulley (without A/C models)
5 : Idler pulley
6 : Drive belt
B : Adjusting bolt
Idler pulley lock nut : 4.4 N·m (0.45 kg-m, 39 in-lb)
PBIC3643E
Page 2671 of 5883
![NISSAN TIIDA 2007 Service User Guide EM-24
< ON-VEHICLE MAINTENANCE >[HR16DE]
COMPRESSION PRESSURE
COMPRESSION PRESSURE
InspectionINFOID:0000000001381392
1. Warm up engine thoroughly. Then, stop it.
2. Release fuel pressure. Refer to EC-](/img/5/57395/w960_57395-2670.png "NISSAN TIIDA 2007 Service User Guide EM-24
< ON-VEHICLE MAINTENANCE >[HR16DE]
COMPRESSION PRESSURE
COMPRESSION PRESSURE
InspectionINFOID:0000000001381392
1. Warm up engine thoroughly. Then, stop it.
2. Release fuel pressure. Refer to EC-")
EM-24
< ON-VEHICLE MAINTENANCE >[HR16DE]
COMPRESSION PRESSURE
COMPRESSION PRESSURE
InspectionINFOID:0000000001381392
1. Warm up engine thoroughly. Then, stop it.
2. Release fuel pressure. Refer to EC-377, "
Inspection" (EURO-OBD), EC-681, "Inspection" (WITHOUT
EURO-OBD).
3. Remove ignition coil and spark plug from each cylinder. Refer to EM-47, "
Exploded View".
4. Connect an engine tachometer (not required in use of CONSULT-III).
5. Install a compression tester (B) with an adapter (commercial
service tool) (A) onto spark plug hole.
Use the adapter whose picking up end inserted to spark plug
hole is smaller than 20 mm (0.79 in) in diameter. Otherwise, it
may be caught by cylinder head during removal.
6. With accelerator pedal fully depressed, turn ignition switch to “START” for cranking. When the gauge
pointer stabilizes, read the compression pressure and the engine rpm. Perform these steps to check each
cylinder.
CAUTION:
Always use fully a changed battery to obtain the specified engine speed.
If the engine speed is out of the specified range, check battery liquid for proper gravity. Check engine
speed again with normal battery gravity.
If compression pressure is below minimum value, check valve clearances and parts associated with
combustion chamber (Valve, valve seat, piston, piston ring, cylinder bore, cylinder head, cylinder head
gasket). After the checking, measure the compression pressure again.
If some cylinder has low compression pressure, pour small amount of engine oil into the spark plug hole
of the cylinder to re-check it for compression.
- If the added engine oil improves the compression, piston rings may be worn out or damaged. Check pis-
ton rings and replace if necessary.
- If the compression pressure remains at low level despite the addition of engine oil, valves may be mal-
functioning. Check valves for damage. Replace valve or valve seat accordingly.
If two adjacent cylinders have respectively low compression pressure and their compression remains
low even after the addition of engine oil, cylinder head gasket is leaking. In such a case, replace cylinder
head gasket.
7. After inspection is completed, install removed parts.
8. Start the engine, and confirm that the engine runs smoothly.
9. Perform trouble diagnosis. If DTC appears, erase it. Refer to EC-469, "
Description".
PBIC3730E
SBIA0533E
Compression Pressure: Refer to EM-122, "General Specification".
