NISSAN TIIDA 2007 Service Repair Manual

EC-1042
< BASIC INSPECTION >[K9K]
DIAGNOSIS AND REPAIR WORKFLOW

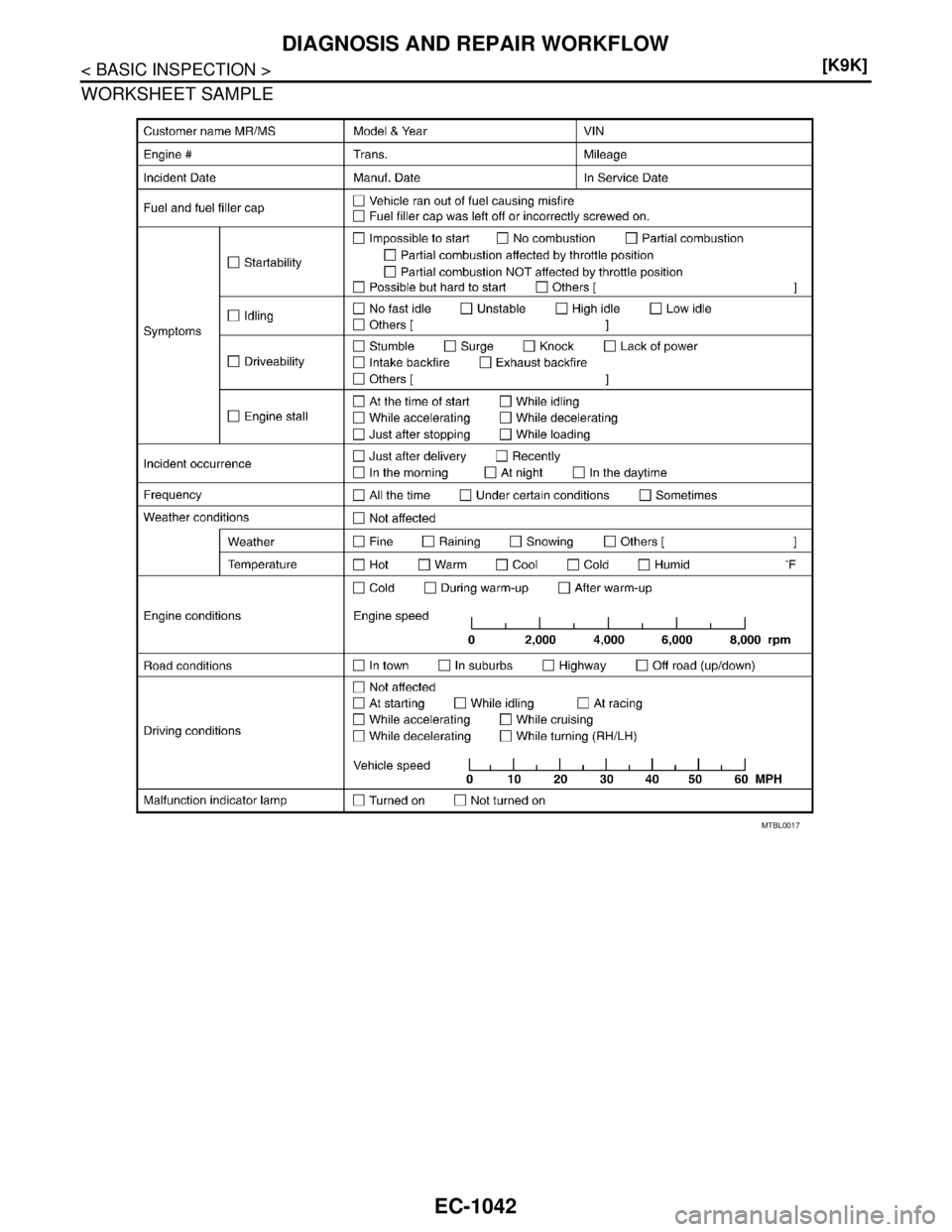

WORKSHEET SAMPLE
MTBL0017

INSPECTION AND ADJUSTMENT
EC-1043
< BASIC INSPECTION >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
INSPECTION AND ADJUSTMENT
BASIC INSPECTION
BASIC INSPECTION : DescriptionINFOID:0000000001162514
NOTE:
Only consult the tests after following the diagnostic procedure chart.
Some specific checks are grouped under the “tests” heading and are used as required in different diagnostic
charts.
BASIC INSPECTION : Special Repair Requirement (TEST 1: Low Pressure Fuel Sup-
ply System Check)
INFOID:0000000001162515
NOTE:
CAUSE
- No fuel can be seen in the transparent supply pipe leading to the pump or large air bubbles can be seen
(small air bubbles are permitted).
- engine does not start.
1.CHECK CONFORMITY
Check the conformity and presence of the fuel (gasoline instead of diesel, contaminated fuel).
Is the inspection result normal?
Yes >> GO TO 2.
No >> Bleed the fuel supply system with the manual priming pump.
Basic test Trouble diagnosis Reference page
Low pressure fuel supply system check TEST 1EC-1043, "
BASIC INSPEC-
TION : Special Repair Re-
quirement (TEST 1: Low
Pressure Fuel Supply System
Check)"
Internal fuel transfer pump check TEST 2EC-1044, "
BASIC INSPEC-
TION : Special Repair Re-
quirement (TEST 2: Internal
Fuel Transfer Pump Check)"
High pressure supply pump (Pressure control valve) check TEST 3EC-1044, "
BASIC INSPEC-
TION : Special Repair Re-
quirement [TEST 3: High
Pressure Supply Pump (Pres-
sure Control Valve) Check]"
High pressure supply pump (Volumetric control valve) check TEST 4EC-1045, "
BASIC INSPEC-
TION : Special Repair Re-
quirement [TEST 4: High
Pressure Supply Pump (Volu-
metric Control Valve) Check]"
Rail high pressure regulation check TEST 5EC-1048, "
BASIC INSPEC-
TION : Special Repair Re-
quirement (TEST 5: Rail High
Pressure Regulation Check)"
Major leak in fuel injectors/fuel injectors open TEST 6EC-1052, "
BASIC INSPEC-
TION : Special Repair Re-
quirement (TEST 6: Major
Leak in Fuel Injectors/Fuel In-
jectors Open)"
Incorrect fuel injection quantity TEST 7EC-1053, "
BASIC INSPEC-
TION : Special Repair Re-
quirement (TEST 7: Incorrect
Fuel Injection Quantity)"

EC-1044
< BASIC INSPECTION >[K9K]
INSPECTION AND ADJUSTMENT
2.CHECK FUEL CIRCUIT
Does the fuel circulate correctly when pumped manually?
Ye s o r N o
Ye s > > G O T O 5 .
No >> GO TO 3.
3.CHECK FOR LEAK
Look for leaks on the unions.
Are there leaks in the hoses and unions?
Yes >> Carry out the required repairs.
No >> GO TO 4.
4.CHECK FUEL FILTER
Check the correctness of the fuel filter.
Is the fuel filter correct?
Ye s > > G O T O 5 .
No >> Replace the fuel filter with a genuine part.
5.INSPECTION END
Low pressure circuit OK.
>>INSPECTION END
BASIC INSPECTION : Special Repair Requirement (TEST 2: Internal Fuel Transfer
Pump Check)
INFOID:0000000001162516
NOTE:
CONDITIONS PRIOR TO TEST
- Test 1 Low pressure fuel supply system check has been carried out previously and results are satisfactory.
CAUSE
- Fuel can be seen in the transparent supply pipe leading to the pump.
- However, fuel does not move during starting.
1.CHECK INTERNAL FUEL TRANSFER PUMP
1. Disconnect high pressure supply pump (volumetric control valve) harness connector
2. Remove fuel return pipe from the pump and block it so that it is sealed. Connect a pipe to the pump to
measure the flow of diesel.
3. To authorise a 15 second cranking engine and carry out this test it is essential to carry out the following
procedure: measure the flow of diesel.
- Turn ignition switch ON.
- Perform “SAVE DATA FOR CPU REPLC” in WORK SUPPORT mode with CONSULT-III.
- Perform “PRGRM REINITIALIZE” in WORK SUPPORT mode with CONSULT-III.
- Cranking engine for at least 15 seconds (starting speed 250 rpm)
- Check the flow rate of the fuel being collected in a graduated measuring cylinder (500 ml minimum).The
minimum flow rate must be 25 ml every 15 sec.
- Perform “WRT DATA AFTR REPLC CPU” in WORK SUPPORT mode with CONSULT-III.
Does the flow measure less than 25ml?
Yes >> Replace high pressure supply pump.
No >> GO TO 2.
2.INSPECTION END
Low pressure system OK.
>>INSPECTION END
BASIC INSPECTION : Special Repair Requirement [TEST 3: High Pressure Supply

INSPECTION AND ADJUSTMENT
EC-1045
< BASIC INSPECTION >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Pump (Pressure Control Valve) Check]INFOID:0000000001162517
NOTE:
CONDITIONS PRIOR TO TEST
- The entire low pressure system must be in good condition.
- Check the sealing of the high pressure pipes and unions.
CAUSE
- Rail pressure approximately 5000 kPa(50 bar, 51 kg/cm
2, 725 psi) during starting.
1.CHECK HIGH PRESSURE SUPPLY PUMP (PRESSURE CONTROL VALVE) POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect high pressure supply pump (pressure control valve) harness connector.
3. Turn ignition switch ON.
4. Check the voltage between high pressure supply pump (pressure control valve) harness connector and
ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> GO TO 2.
2.DETECT MALFUNCTIONING PART
Check the following.
 IPDM E/R
 Harness for open or short between IPDM E/R and high pressure supply pump (pressure control valve)
 Harness for open or short between ECM and high pressure supply pump (pressure control valve)
>> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK HIGH PRESSURE SUPPLY PUMP (PRESSURE CONTROL VALVE) OUTPUT SIGNAL CIRCUIT
FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between high pressure supply pump (pressure control valve) harness connector and
ECM harness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
4.HIGH PRESSURE SUPPLY PUMP (PRESSURE CONTROL VALVE) CHECK
Refer to EC-1123, "
Component Inspection".
Is the inspection result normal?
Yes >> INSPECTION END
No >> Replace high pressure supply pump.
BASIC INSPECTION : Special Repair Requirement [TEST 4: High Pressure Supply
High pressure supply pump
(Pressure control valve)
Ground Voltage
Connector Terminal
F53 3 Ground Battery voltage
High pressure supply pump
(Pressure control valve)ECM
Continuity
Connector Terminal Connector Terminal
F53 4 F11 49 Existed

EC-1046
< BASIC INSPECTION >[K9K]
INSPECTION AND ADJUSTMENT
Pump (Volumetric Control Valve) Check]
INFOID:0000000001162518
NOTE:
CONDITIONS PRIOR TO TEST
- The entire low pressure system must be in good condition.
- Check the sealing of the high pressure pipes and unions.
CAUSE
- Not enough or no rail pressure during starting.
- Rail reference pressure during starting, minimum 15 000 kPa (150 bar, 153 kg/cm
2, 2175 psi).
1.CHECK HIGH PRESSURE SUPPLY PUMP (VOLUMETRIC CONTROL VALVE)-I
Refer to EC-1110, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 2
NO >> Replace high pressure supply pump.
2.CHECK HIGH PRESSURE SUPPLY PUMP (VOLUMETRIC CONTROL VALVE)-II
 Reconnect all harness connectors disconnected.
 Turn ignition switch ON.
 Select “DATA MONITOR” mode with CONSULT-III.
 Check that the “FUEL FLOW S/V CU” indication when the cranking engine.
Is the excitation current between 0.6 - 1.0A?
YES >> GO TO 6.
NO >> GO TO 3.
3.CHECK HIGH PRESSURE SUPPLY PUMP (VOLUMETRIC CONTROL VALVE) POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect high pressure supply pump (volumetric control valve) harness connector.
3. Turn ignition switch ON.
4. Check the voltage between high pressure supply pump (volumetric control valve) harness connector and
ground.
Is the inspection result normal?
YES >> GO TO 5.
NO >> GO TO 4.
4.DETECT MALFUNCTIONING PART
Check the following.
 IPDM E/R
 Harness for open or short between ECM and high pressure supply pump (volumetric control valve)
 Harness for open or short between IPDM E/R and high pressure supply pump (volumetric control valve)
>> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK HIGH PRESSURE SUPPLY PUMP (VOLUMETRIC CONTROL VALVE) OUTPUT SIGNAL CIR-
CUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between high pressure supply pump (volumetric control valve) harness connector
and ECM harness connector.
High pressure supply pump
(volumetric control valve)
Ground Voltage
Connector Terminal
F54 1 Ground Battery voltage

INSPECTION AND ADJUSTMENT
EC-1047
< BASIC INSPECTION >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
6.CHECK ENGINE CONDITION
Start engine.
Is the engine start?
YES >> GO TO 7.
NO >> GO TO 9.
7.CHECK ENGINE CONDITION
 Check that the oil level is correct and that the engine coolant temperature is normal operation temperature
60°C (140°F)
 Engine running at idle speed.
- Select “HIGH PRES CIRCUIT LEAK TEST” in “ACTIVE TEST” mode with CONSULT-III.
- Engine will perform 4 acceleration cycles.
- Select “DATA MONITOR” mode with CONSULT-III.
- Check that the “RAIL PRES SET” and “RAIL PRESSURE” indication.
- Does “RAIL PRESSURER” follow “RAIL PRES SET” at ± 5000 kPa(50 bar, 51 kg/cm
2, 725 psi) during the
phase of the 4 acceleration cycles?
NOTE:
If the rail pressure does not reach the setpoint there is an fuel injector leak that is too great or the pressure sig-
nal is incorrect.
Is the inspection result normal?
YES >> GO TO 11.
NO >> GO TO 8.
8.CHECK RAIL HIGH PRESSURE CONTROL CIRCUIT
Carry out TEST 5.
>> GO TO 11.
9.CHECK ENGINE CONDITION
 Check that the oil level is correct.
 Select “DATA MONITOR” mode with CONSULT-III.
 Check that the “RAIL PRES SET” and “RAIL PRESSURE” indication.
 Does “RAIL PRESSURER” follow “RAIL PRES SET” when the cranking engine.
NOTE:
If the rail pressure does not reach the setpoint there is an fuel injector leak that is too great or the pressure sig-
nal is incorrect.
Is the inspection result normal?
YES >> GO TO 11.
NO >> GO TO 10.
10.CHECK MAJOR LEAK IN FUEL INJECTOR/FUEL INJECTORS OPEN
Carry out TEST 6.
>> GO TO 11.
11 .INSPECTION END
High pressure supply pump (volumetric control valve) OK.
High pressure supply pump
(volumetric control valve)ECM
Continuity
Connector Terminal Connector Terminal
F54 2 F11 50 Existed

EC-1048
< BASIC INSPECTION >[K9K]
INSPECTION AND ADJUSTMENT
>>INSPECTION END
BASIC INSPECTION : Special Repair Requirement (TEST 5: Rail High Pressure Reg-
ulation Check)
INFOID:0000000001162519
NOTE:
 If contaminants (swarf) can be seen in the transparent return pipe, the entire fuel injection system (fuel injec-
tors, pump, rail, high pressure pipes and all return pipes) must be replaced.
CONDITIONS PRIOR TO TEST
- Engine coolant temperature between 80 - 90°C (176 - 194°F).
- All the electrical load are switched off.
- Air conditioning is switched off.
- The tank is at least half-full.
- The pipe connections and unions have been checked.
- Check the sealing of the high pressure pipes and unions.
CAUSE
- Rail pressure variations around the setpoint.
- The rail reference pressure is not reached.
- Rough idle.
- Possibly noisy combustion.
1.CHECK AIR BUBBLES
1. Start engine
2. Are there large air bubbles in the transparent supply pipe going to the pump?
Is the inspection result normal?
YES >> Check low pressure system.
NO >> GO TO 2.
2.CHECK HIGH PRESSURE SUPPLY PUMP (VOLUMETRIC CONTROL VALVE)-I
Disconnect high pressure supply pump (volumetric control valve) harness connector.
Does the engine stop?
YES >> GO TO 3.
NO >> Replace high pressure supply pump (the high pressure supply pump [volumetric control valve]
remains open mechanically).
3.CHECK HIGH PRESSURE SUPPLY PUMP (PRESSURE CONTROL VALVE)-I
1. Reconnect high pressure supply pump (volumetric control valve) harness connector.
2. Turn ignition switch OFF and wait at least 30 seconds.
3. Start engine.
4. Disconnect high pressure supply pump (pressure control valve) harness connector.
Does the engine stop?
YES >> GO TO 4.
NO >> Replace high pressure supply pump (the high pressure supply pump [pressure control valve]
remains open mechanically).
4.CHECK FUEL INJECTOR
1. Reconnect high pressure supply pump (pressure control valve) harness connector.
2. Wait at least 30 seconds.
3. Start engine and let it idle speed.
4. Select “DATA MONITOR” mode with CONSULT-III.
5. Check that the “F/FLOW CORR CYL1”, “F/FLOW CORR CYL2”, “F/FLOW CORR CYL3”, “F/FLOW
CORR CYL4” indication.
Are the reference value 0.3 - 1.9?
YES >> GO TO 6.
NO >> GO TO 5.
5.CHECK MAJOR LEAK IN FUEL INJECTOR/FUEL INJECTORS OPEN
Carry out TEST 6.

INSPECTION AND ADJUSTMENT
EC-1049
< BASIC INSPECTION >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
>> INSPECTION END
6.CHECK ENGINE CONDITION
 Check that the oil level is correct and that the engine coolant temperature is normal operation tempera-
ture.60°C (140°F)
 Engine running at idle speed.
- Select “HIGH PRES CIRCUIT LEAK TEST” in “ACTIVE TEST” mode with CONSULT-III.
- Engine will perform 4 acceleration cycles.
- Select “DATA MONITOR” mode with CONSULT-III.
- Check that the “RAIL PRES SET” and “RAIL PRESSURE” indication.
- Does “RAIL PRESSURE” follow “RAIL PRES SET” at during the phase of 4 acceleration cycles?
Is the inspection result normal?
YES >> GO TO 22.
NO >> GO TO 7.
7.CHECK ENGINE COOLANT TEMPERATURE AND FUEL TEMPERATURE
1. Select “DATA MONITOR” mode with CONSULT-III.
2. Check that the “FUEL TEMP” indication when operating at idle speed is between 60 - 80°C (140 - 176°F)
3. Check that the “WATER TEMP” indication is between 80 - 90°C (176 - 194°F)
NOTE:
 When the fuel temperature is above 136°C (277°F), the maximum rail pressure is reduced to protect the
plastic pipes.
 When the coolant temperature is above 100°C (212°F), the maximum rail pressure is reduced to protect the
engine.
Are the
“FUEL TEMP” and “WATER TEMP” within the reference value range?
YES >> GO TO 8.
NO >> Check the fuel pump temperature sensor (Refer to EC-1137, "
Component Inspection") or engine
coolant temperature sensor (Refer to EC-1133, "
Component Inspection").
8.CHECK HIGH PRESSURE SUPPLY PUMP (VOLUMETRIC CONTROL VALVE) POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect high pressure supply pump (volumetric control valve) harness connector.
3. Turn ignition switch ON.
4. Check the voltage between high pressure supply pump (volumetric control valve) harness connector and
ground.
Is the inspection result normal?
YES >> GO TO 10.
NO >> GO TO 9.
9.DETECT MALFUNCTIONING PART
Check the following.
 IPDM E/R
 Harness for open or short between ECM and high pressure supply pump (volumetric control valve)
 Harness for open or short between IPDM E/R and high pressure supply pump (volumetric control valve)
>> Repair open circuit or short to ground or short to power in harness or connectors.
10.CHECK HIGH PRESSURE SUPPLY PUMP (VOLUMETRIC CONTROL VALVE) OUTPUT SIGNAL CIR-
CUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
High pressure supply pump
(volumetric control valve)
Ground Voltage
Connector Terminal
F54 1 Ground Battery voltage

EC-1050
< BASIC INSPECTION >[K9K]
INSPECTION AND ADJUSTMENT
3. Check the continuity between high pressure supply pump (volumetric control valve) harness connector
and ECM harness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 11.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
11 .CHECK HIGH PRESSURE SUPPLY PUMP (VOLUMETRIC CONTROL VALVE)-II
Refer to EC-1110, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 12.
NO >> Replace high pressure supply pump.
12.CHECK HIGH PRESSURE SUPPLY PUMP (PRESSURE CONTROL VALVE) POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect high pressure supply pump (pressure control valve) harness connector.
3. Turn ignition switch ON.
4. Check the voltage between high pressure supply pump (pressure control valve) harness connector and
ground.
Is the inspection result normal?
YES >> GO TO 14.
NO >> GO TO 13.
13.DETECT MALFUNCTIONING PART
Check the following.
 IPDM E/R
 Harness for open or short between IPDM E/R and high pressure supply pump (pressure control valve)
 Harness for open or short between ECM and high pressure supply pump (pressure control valve)
>> Repair open circuit or short to ground or short to power in harness or connectors.
14.CHECK HIGH PRESSURE SUPPLY PUMP (PRESSURE CONTROL VALVE) OUTPUT SIGNAL CIR-
CUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between high pressure supply pump (pressure control valve) harness connector and
ECM harness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
High pressure supply pump
(volumetric control valve)ECM
Continuity
Connector Terminal Connector Terminal
F54 2 F11 50 Existed
High pressure supply pump
(Pressure control valve)
Ground Voltage
Connector Terminal
F53 3 Ground Battery voltage
High pressure supply pump
(Pressure control valve)ECM
Continuity
Connector Terminal Connector Terminal
F53 4 F11 49 Existed

INSPECTION AND ADJUSTMENT
EC-1051
< BASIC INSPECTION >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
YES >> GO TO 15.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
15.CHECK HIGH PRESSURE SUPPLY PUMP (PRESSURE CONTROL VALVE)-II
Refer to EC-1123, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 16.
NO >> Replace high pressure supply pump.
16.CHECK FUEL RAIL PRESSURE SENSOR POWER SUUPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect fuel rail pressure sensor harness connector.
3. Turn ignition switch ON.
4. Check the voltage between fuel rail pressure sensor harness connector and ground.
Is the inspection result normal?
YES >> GO TO 17.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
17.CHECK FUEL RAIL PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check the continuity between fuel rail pressure sensor harness connector and ECM harness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 18.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
18.CHECK FUEL RAIL PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check the continuity between fuel rail pressure sensor harness connector and ECM harness connector.
2. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 19.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
19.CHECK FUEL RAIL PRESSURE SENSOR
Refer to EC-1139, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 20.
NO >> Replace fuel rail.
20.CHECK FUEL RAIL PRESSURE-I
1. Reconnect all harness connectors disconnected.
Fuel rail pressure sensor
Ground Voltage (V)
Connector Terminal
F51 3 Ground Approx. 5
Fuel rail pressure sensor ECM
Continuity
Connector Terminal Connector Terminal
F51 2 F10 15 Existed
Fuel rail pressure sensor ECM
Continuity
Connector Terminal Connector Terminal
F51 1 F10 19 Existed
