NISSAN TIIDA 2007 Service Repair Manual

EC-1022
< ECU DIAGNOSIS >[MR18DE]
ECM
DRIVING PATTERN
 The time required for each diagnosis varies with road surface conditions, weather, altitude, individual driving
habits, etc.
Zone A refers to the range where the time, required for the diagnosis under normal conditions*, is the short-
est.
Zone B refers to the range where the diagnosis can still be performed if the diagnosis is not completed within
zone A.
*: Normal conditions refer to the following:
PBIB3651E

ECM
EC-1023
< ECU DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
 Sea level
 Flat road
 Ambient air temperature: 20 - 30°C (68 - 86°F)
 Diagnosis is performed as quickly as possible under normal conditions.
Under different conditions [For example: ambient air temperature other than 20 - 30°C (68 - 86°F)], diagno-
sis may also be performed.

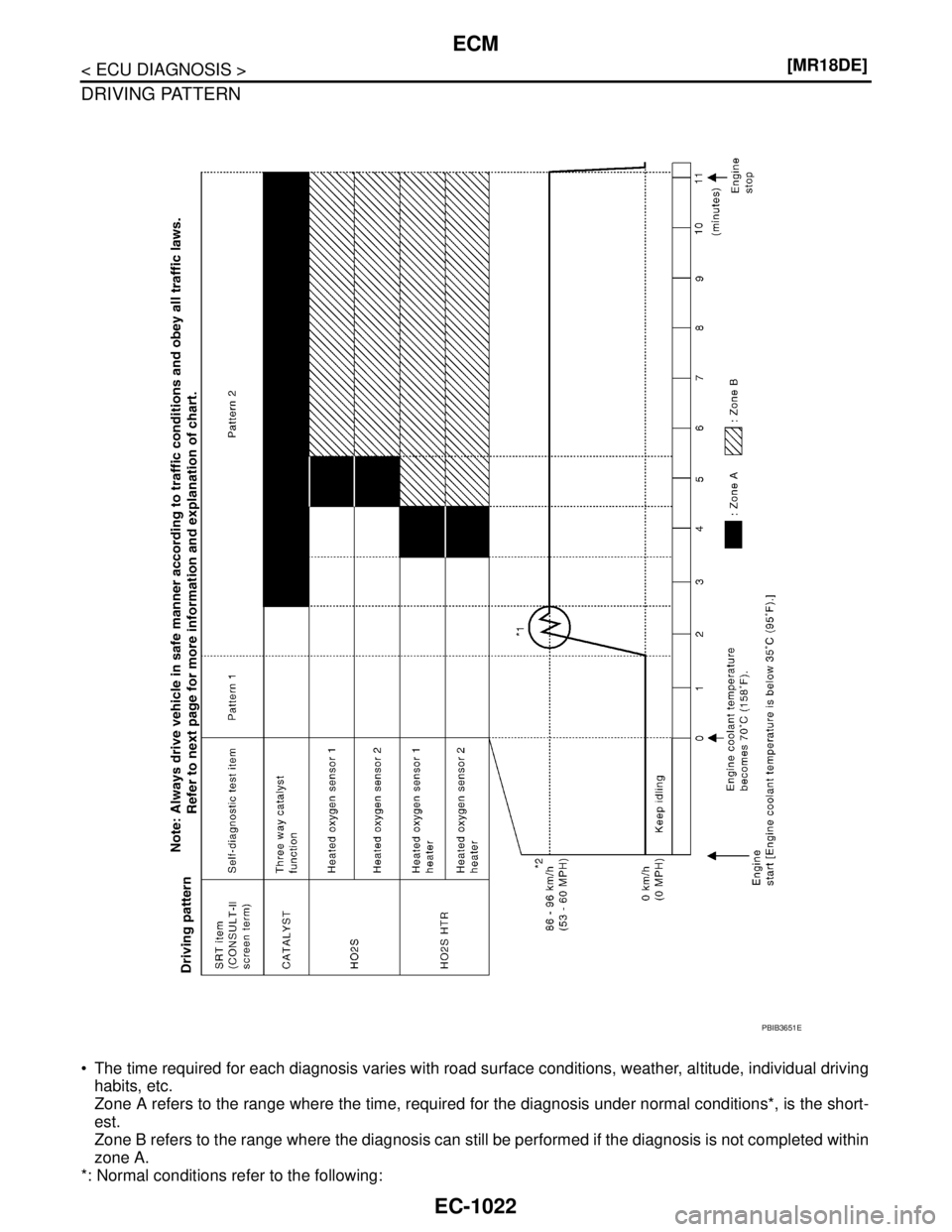

Pattern 1:
The engine is started at the engine coolant temperature of −10 to 35°C (14 to 95°F)
(where the voltage between the ECM terminal 46 and ground is 3.0 - 4.3V).
The engine must be operated at idle speed until the engine coolant temperature is greater than 70°C
(158°F) (where the voltage between the ECM terminal 46 and ground is lower than 1.4V).
The engine is started at the fuel tank temperature of warmer than 0°C (32°F) (where the voltage
between the ECM terminal 95 and ground is less than 4.1V).
Pattern 2:
 When steady-state driving is performed again even after it is interrupted, each diagnosis can be conducted.
In this case, the time required for diagnosis may be extended.
Test Value and Test LimitINFOID:0000000001161996
The following is the information specified in Service $06 of ISO 15031-5.
The test value is a parameter used to determine whether a system/circuit diagnostic test is OK or NG while
being monitored by the ECM during self-diagnosis. The test limit is a reference value which is specified as the
maximum or minimum value and is compared with the test value being monitored.
These data (test value and test limit) are specified by Test ID (TID) and Component ID (CID) and can be dis-
played on the GST screen.
SRT item Self-diagnostic test item DTCTe s t v a l u e
(GST display)
Te s t l i m i t
TID CID
CATALYST Three way catalyst functionP0420 01H 01H Max.
P0420 02H 81H Min.
HO2SHeated oxygen sensor 1P0133 09H 04H Max.
P1143 0AH 84H Min.
P1144 0BH 04H Max.
P0132 0CH 04H Max.
P0134 0DH 04H Max.
Heated oxygen sensor 2P0139 19H 86H Min.
P1147 1AH 86H Min.
P1146 1BH 06H Max.
P0138 1CH 06H Max.
HO2S HTRHeated oxygen sensor 1 heater P013529H 08H Max.
2AH 88H Min.
Heated oxygen sensor 2 heater P01412DH 0AH Max.
2EH 8AH Min.

EC-1024
< SYMPTOM DIAGNOSIS >[MR18DE]
ENGINE CONTROL SYSTEM
SYMPTOM DIAGNOSIS
ENGINE CONTROL SYSTEM
Symptom TableINFOID:0000000001161997
SYSTEM — BASIC ENGINE CONTROL SYSTEM
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel pump circuit 11232 22 3 2EC-978
Fuel pressure regulator system 334444444 4EC-1035
Fuel injector circuit 11232 22 2EC-975
Evaporative emission system 334444444 4EC-745
Air Positive crankcase ventilation sys-
tem
334444444 41EC-987
Incorrect idle speed adjustment 1 1 1 1 1EC-692
Electric throttle control actuator 112332222 2 2EC-885,
EC-887
IgnitionIncorrect ignition timing adjustment33111 11 1EC-693
Ignition circuit 11222 22 2EC-981
Main power supply and ground circuit 22333 33 23EC-789
Mass air flow sensor circuit
1
122
222 2EC-799
Engine coolant temperature sensor circuit
333EC-807
Heated oxygen sensor 1 circuitEC-813
,
EC-817
,
EC-823
,
EC-896
,
EC-901
Throttle position sensor circuit
22EC-810
,
EC-852
,
EC-924
,
EC-926
,
EC-956
Accelerator pedal position sensor circuit 3 2 1EC-948
,
EC-952
,
EC-956
Knock sensor circuit 2 3EC-860
Crankshaft position sensor (POS) circuit 2 2EC-862

ENGINE CONTROL SYSTEM
EC-1025
< SYMPTOM DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
1 - 6: The numbers refer to the order of inspection.
(continued on next page)
SYSTEM — ENGINE MECHANICAL & OTHER
Camshaft position sensor (PHASE) circuit 3 2EC-866
Vehicle speed signal circuit 2 3 3 3EC-878
ECM 22333333333EC-880
Intake valve timing control solenoid valve cir-
cuit32 13223 3EC-882
PNP switch circuit 3 3 3 3 3EC-942
Refrigerant pressure sensor circuit 2 3 3 4EC-988
Electrical load signal circuit 3EC-973
Air conditioner circuit 223333333 3 2HAC-92,
HAC-207
ABS actuator and electric unit (control unit) 4BRC-86
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA

EC-1026
< SYMPTOM DIAGNOSIS >[MR18DE]
ENGINE CONTROL SYSTEM
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code A
AAB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel tank
5
5FL-10
Fuel piping 555 55 5EM-162
Va p o r l o c k—
Valve deposit
5 555 55 5—
Poor fuel (Heavy weight gasoline,
Low octane)—
Air Air duct
55555 5EM-154
Air cleanerEM-154
Air leakage from air duct
(Mass air flow sensor — electric
throttle control actuator)
555 5EM-156
Electric throttle control actuator
Air leakage from intake manifold/
Collector/Gasket
Cranking Battery
111111
11PG-6
Generator circuitCHG-29
Starter circuit 3STR-24
Signal plate 6EM-219
PNP switch 4TM-665
Engine Cylinder head
55555 55 5EM-198
Cylinder head gasket 4 3
Cylinder block
66666 66 64
EM-200
Piston
Piston ring
Connecting rod
Bearing
Crankshaft
Va l v e
mecha-
nismTiming chain
55555 55 5EM-177
CamshaftEM-186
Intake valve timing controlEM-177
Intake valve
3EM-198
Exhaust valve

ENGINE CONTROL SYSTEM
EC-1027
< SYMPTOM DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
1 - 6: The numbers refer to the order of inspection.Exhaust Exhaust manifold/Tube/Muffler/
Gasket
55555 55 5EX-5
, EX-9
Three way catalyst
Lubrica-
tionOil pan/Oil strainer/Oil pump/Oil
filter/Oil gallery/Oil cooler
55555 55 5EM-166
,
LU-18
, LU-
19
Oil level (Low)/Filthy oilLU-15
Cooling Radiator/Hose/Radiator filler cap
55555 55 45CO-40
Thermostat 5CO-45
Water pumpCO-44
Water galleryCO-28
Cooling fan
5CO-43
Coolant level (Low)/Contaminat-
ed coolantCO-35
NATS (NISSAN Anti-Theft System) 1 1SEC-7
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code A
AAB AC AD AE AF AG AH AJ AK AL AM HA

EC-1028
< SYMPTOM DIAGNOSIS >[MR18DE]
NORMAL OPERATING CONDITION
NORMAL OPERATING CONDITION
DescriptionINFOID:0000000001161998
FUEL CUT CONTROL (AT NO LOAD AND HIGH ENGINE SPEED)
If the engine speed is above 1,800 rpm under no load (for example, the selector lever position is neutral and
engine speed is over 1,800 rpm) fuel will be cut off after some time. The exact time when the fuel is cut off var-
ies based on engine speed.
Fuel cut will be operated until the engine speed reaches 1,500 rpm, then fuel cut will be cancelled.
NOTE:
This function is different from deceleration control listed under Multiport Fuel Injection (MFI) System, EC-705,
"SystemDiagram".

PRECAUTIONS
EC-1029
< PRECAUTION >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000001161999
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRC and SB section of this Service Man-
ual.
WARNING:
 To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
 Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SRC section.
 Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.
Precaution for Procedure without Cowl Top CoverINFOID:0000000001162000
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.
Precautions For Xenon Headlamp ServiceINFOID:0000000001679886
WARNING:
Comply with the following warnings to prevent any serious accident.
 Disconnect the battery cable (negative terminal) or the power supply fuse before installing, remov-
ing, or touching the xenon headlamp (bulb included). The xenon headlamp contains high-voltage
generated parts.
 Never work with wet hands.
 Check the xenon headlamp ON-OFF status after assembling it to the vehicle. Never turn the xenon
headlamp ON in other conditions. Connect the power supply to the vehicle-side connector.
(Turning it ON outside the lamp case may cause fire or visual impairments.)
 Never touch the bulb glass immediately after turning it OFF. It is extremely hot.
CAUTION:
Comply with the following cautions to prevent any error and malfunction.
 Install the xenon bulb securely. (Insufficient bulb socket installation may melt the bulb, the connec-
tor, the housing, etc. by high-voltage leakage or corona discharge.)
 Never perform HID circuit inspection with a tester.
 Never touch the xenon bulb glass with hands. Never put oil and grease on it.
 Dispose of the used xenon bulb after packing it in thick vinyl without breaking it.
 Never wipe out dirt and contamination with organic solvent (thinner, gasoline, etc.).
PIIB3706J

EC-1030
< PRECAUTION >[MR18DE]
PRECAUTIONS
On Board Diagnostic (OBD) System of Engine
INFOID:0000000001679887
The ECM has an on board diagnostic system. It will light up the malfunction indicator lamp (MI) to warn the
driver of a malfunction causing emission deterioration.
CAUTION:
 Be sure to turn the ignition switch OFF and disconnect the negative battery cable before any repair
or inspection work. The open/short circuit of related switches, sensors, solenoid valves, etc. will
cause the MI to light up.
 Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will
cause the MI to light up due to the open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)
 Certain systems and components, especially those related to OBD, may use a new style slide-lock-
ing type harness connector. For description and how to disconnect, refer to XX-XX, "*****"
.
 Be sure to route and secure the harnesses properly after work. The interference of the harness with
a bracket, etc. may cause the MI to light up due to the short circuit.
 Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube
may cause the MI to light up due to the malfunction of the EVAP system or fuel injection system, etc.
 Be sure to erase the unnecessary malfunction information (repairs completed) from the ECM before
returning the vehicle to the customer.
General PrecautionsINFOID:0000000001162002
Always use a 12 volt battery as power source.
Do not attempt to disconnect battery cables while engine is
running.
Before connecting or disconnecting the ECM harness con-
nector, turn ignition switch OFF and disconnect negative bat-
tery cable. Failure to do so may damage the ECM because
battery voltage is applied to ECM even if ignition switch is
turned OFF.
Before removing parts, turn ignition switch OFF and then dis-
connect battery ground cable.
Do not disassemble ECM.
If a battery cable is disconnected, the memory will return to
the ECM value.
The ECM will now start to self-control at its initial value.
Engine operation can vary slightly when the terminal is dis-
connected. However, this is not an indication of a malfunc-
tion. Do not replace parts because of a slight variation.
If the battery is disconnected, the following emission-related
diagnostic information will be lost within 24 hours.
-Diagnostic trouble codes
-1st trip diagnostic trouble codes
-Freeze frame data
-1st trip freeze frame data
-System readiness test (SRT) codes
-Test values
When connecting ECM harness connector (1), fasten (B) it
securely with a lever as far as it will go as shown in the figure.
SEF289H
2. ECM
A. Loosen
PBIA9222J
PBIB2947E

PRECAUTIONS
EC-1031
< PRECAUTION >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
When connecting or disconnecting pin connectors into or
from ECM, take care not to damage pin terminals (bend or
break).
Make sure that there are not any bends or breaks on ECM pin
terminal, when connecting pin connectors.
Securely connect ECM harness connectors.
A poor connection can cause an extremely high (surge) volt-
age to develop in coil and condenser, thus resulting in dam-
age to ICs.
Keep engine control system harness at least 10 cm (4 in) away
from adjacent harness, to prevent engine control system mal-
functions due to receiving external noise, degraded operation
of ICs, etc.
Keep engine control system parts and harness dry.
Before replacing ECM, perform ECM Terminals and Reference
Value inspection and make sure ECM functions properly.
Refer to EC-990, "
Reference Value".
Handle mass air flow sensor carefully to avoid damage.
Do not clean mass air flow sensor with any type of detergent.
Do not disassemble electric throttle control actuator.
Even a slight leak in the air intake system can cause serious
incidents.
Do not shock or jar the camshaft position sensor (PHASE),
crankshaft position sensor (POS).
After performing each TROUBLE DIAGNOSIS, perform DTC
CONFIRMATION PROCEDURE or Component Function
Check. The DTC should not be displayed in the DTC Confirmation
Procedure if the repair is completed. The Component Function
Check should be a good result if the repair is completed.
PBIB0090E
MEF040D
SAT652J
