NISSAN TIIDA 2008 Service Repair Manual

EI-18
< ON-VEHICLE REPAIR >
REAR BUMPER
5. Pull the rear bumper fascia side outward and release the
bumper side bracket.
6. Remove rear bumper fascia upper clips and screws.
7. Release rear bumper upper retainer (1), then pull rear bumper
fascia outward away from rear of vehicle.
8. Disconnect license lamp connector.
9. Remove energy absorbing foam and rear bumper reinforcement.
10. Remove the bumper side bracket (1) RH/LH.
INSTALLATION
Installation is in the reverse order of removal.
Removal and Installation - SedanINFOID:0000000001704221
REMOVAL
1. Open trunk lid.
2. Remove rear combination lamp RH/LH. Refer to LT-86, "
Removal and Installation".
3. Remove rear bumper fascia spring nuts and screws RH/LH.
4. Remove rear fender protector. Refer to EI-23, "
Removal and Installation".
5. Pull the rear bumper fascia side outward and release the bumper side bracket.
6. Remove rear bumper fascia upper clips and screws.
LIIA2579E
LIIA2580E
LIIA2581E

REAR BUMPER
EI-19
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
J
K
L
MA
B
EI
N
O
P
7. Release rear bumper upper retainer (1), then pull rear bumper
fascia outward away from rear of vehicle.
8. Remove energy absorbing foam and rear bumper reinforcement.
9. Remove the bumper side bracket (1) RH/LH.
INSTALLATION
Installation is in the reverse order of removal.
LIIA2580E
LIIA2921E

EI-20
< ON-VEHICLE REPAIR >
FRONT GRILLE
FRONT GRILLE
Removal and InstallationINFOID:0000000001704222
REMOVAL
1. Open hood assembly.
2. Remove the clips, then remove upper radiator cover.
3. Remove the upper clips and release the lower pawls, then pull outward to remove the front grille.
INSTALLATION
Installation is in the reverse order of removal.
LIIA2564E
1. Upper radiator cover 2. Front grille 3. Front bumper fascia
4. Clip C205 Pawl

COWL TOP
EI-21
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
J
K
L
MA
B
EI
N
O
P
COWL TOP
Removal and InstallationINFOID:0000000001704223
REMOVAL
1. Remove front wiper arm RH/LH from vehicle. Refer to WW-18, "Removal and Installation of Front Wiper
Arms".
2. Disconnect washer tube.
3. Remove fender seal and fender cover RH/LH.
4. Release the cowl top seal clips, then remove cowl top seal.
LIIA2565E
1. Fender cover 2. Fender seal 3. Washer tube
4. Cowl top seal 5. Cowl extension panel 6. Dual lock fastener
7. Double-faced adhesive tape 8. Cowl top cover 9. Clip C205
10. EPT sealer 11. Cowl extension clip 12. Cover
Clip CE103⇐Vehicle front
PIIB2555J

EI-22
< ON-VEHICLE REPAIR >
COWL TOP
5. Release the cowl extension clip (1) by prying the center pawls
apart and pulling clip outward. Remove remaining clips, then
remove cowl top cover (2).
6. Disconnect and remove the front wiper motor and linkage
assembly. Refer to WW-19, "
Removal and Installation of Front
Wiper Drive Assembly".
CAUTION:
To avoid damage, make sure to cover the lower edge of
windshield with suitable protection material.
7. Remove cowl extension panel bolts, then remove cowl extension panel.
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
• For wiper arm RH/LH installation and adjustment, Refer to WW-18, "
Removal and Installation of Front Wiper
Arms".
• Always replace EPT sealer and double-faced adhesive tape when installing cowl top cover.
LIIA2566E
PIIB6038E

FENDER PROTECTOR
EI-23
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
J
K
L
MA
B
EI
N
O
P
FENDER PROTECTOR
ComponentINFOID:0000000001704224
Removal and InstallationINFOID:0000000001704225
FRONT FENDER PROTECTOR
Removal
1. Remove front fender protector bolts and clips.
2. Remove front fender protector.
Installation
Installation is in the reverse order of removal.
REAR FENDER PROTECTOR
Removal
1. Remove rear fender protector bolt and clip.
2. Remove rear fender protector.
Installation
Installation is in the reverse order of removal.
1. Front fender protector 2. Clip C205 3. Rear fender protector
Clip C103⇐Vehicle front
LIIA2567E

EI-24
< ON-VEHICLE REPAIR >
ROOF SIDE MOLDING
ROOF SIDE MOLDING
ComponentINFOID:0000000001704226
Hatchback Models
Sedan Models
Removal and InstallationINFOID:0000000001704227
REMOVAL
1. Using a suitable tool, release the rear roof side molding clip and remove.
2. Lift up rear edge of roof side molding working forward.
3. Release front roof side molding clip, then remove roof side molding.
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
WIIA1408E
1. Roof side molding A. Front roof side molding clip B. Rear roof side molding clip
WIIA1409E
1. Roof side molding A. Front roof side molding clip B. Rear roof side molding clip

ROOF SIDE MOLDING
EI-25
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
J
K
L
MA
B
EI
N
O
P
Make sure front edge of roof side molding contacts windshield mold-
ing with no gap.
• For setting a new clip A or B, use Epoxy Adhesive DP-100C made
by 3M. For adhesive DP-100C application use an applicator 9170
EPX W 1:1 and mixer nozzle 9742 EPX 50ML made by 3M.
PIIB2599J

EI-26
< ON-VEHICLE REPAIR >
DOOR OUTSIDE MOLDING
DOOR OUTSIDE MOLDING
ComponentINFOID:0000000001704228
Hatchback Models
WIIA1410E
1. Front door outside molding 2. Rear door outside molding 3. Rear door corner cover
A. Clip C101

DOOR OUTSIDE MOLDING
EI-27
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
J
K
L
MA
B
EI
N
O
P

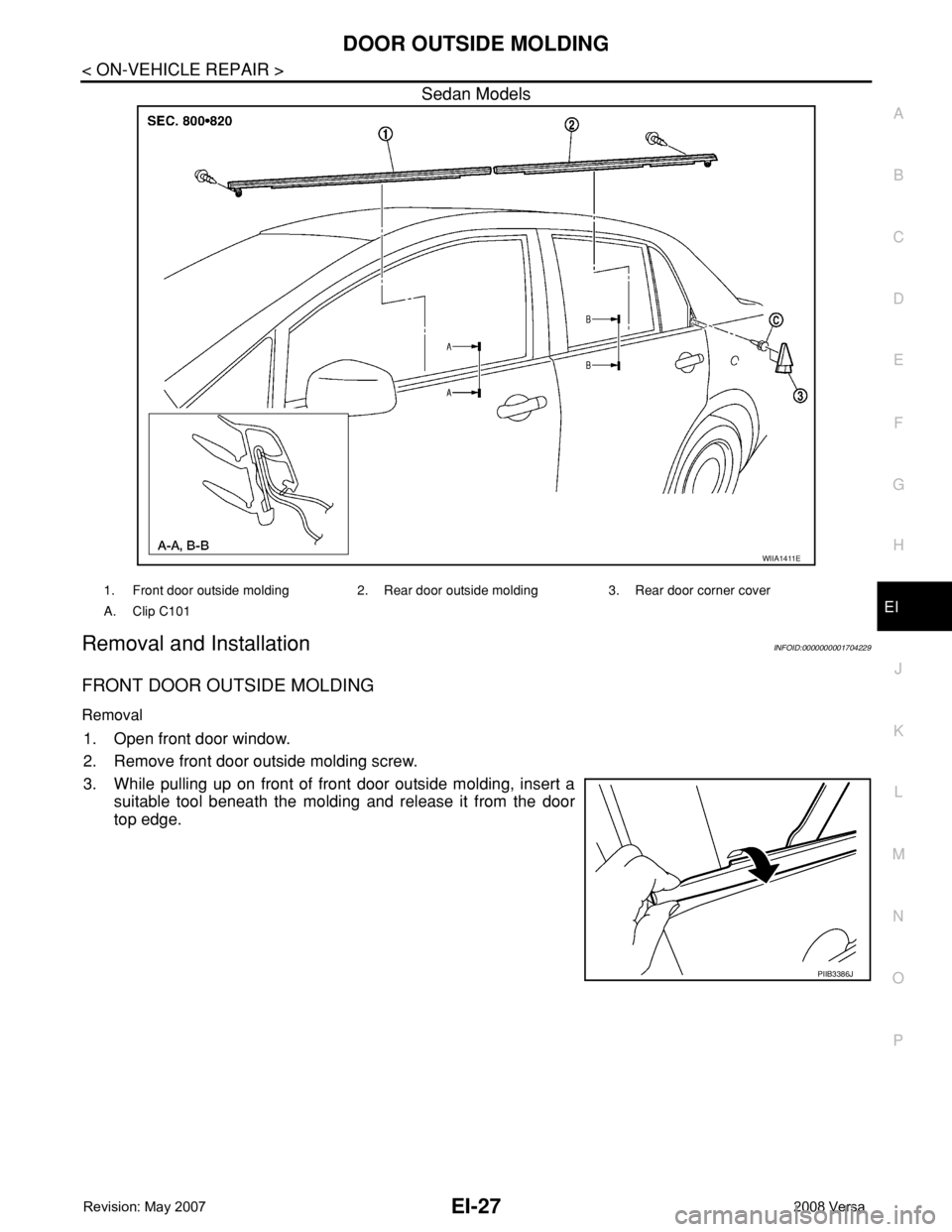

Sedan Models
Removal and InstallationINFOID:0000000001704229
FRONT DOOR OUTSIDE MOLDING
Removal
1. Open front door window.
2. Remove front door outside molding screw.
3. While pulling up on front of front door outside molding, insert a
suitable tool beneath the molding and release it from the door
top edge.
WIIA1411E
1. Front door outside molding 2. Rear door outside molding 3. Rear door corner cover
A. Clip C101
PIIB3386J
