SQUEAK AND RATTLE TROUBLE DIAGNOSES
SE-9
< SERVICE INFORMATION >
C
D E
F
G H
J
K L
M A
B SE
N
O P
Diagnostic Worksheet
INFOID:0000000004306506 LAIA0072E

SE-10< SERVICE INFORMATION >
SQUEAK AND RATTLE TROUBLE DIAGNOSES LAIA0071E

SE
N
O P
FRONT SEAT
Driver Seat INFOID:0000000004306507
1. Headrest 2. Headrest holder (locked) 3. Headrest holder (free)
4. Seat assembly 5. Seat belt buckle 6. Rear leg cover
7. Push nut 8. Seat cushion inner finisher 9. Snap pin
10. Reclining lever 11. Lever cover 12. Lifter lever
13. Seat cushion finisher B 14. Reclining device control wire 15. Front leg cover
16. Seat cushion lower finisher 17. Seat cushion outer finisher 18. Seat cushion pad
19. Seat cushion trim

SE
N
O P
1. Disconnect the negative and positive battery term
inals, then wait at least three minutes.
2. Remove the rear leg covers.
3. Remove the front leg covers.
4. Remove the mounting bolts on the back si de of the front seat. (TORX bolt: T50)
5. Remove the mounting bolts on the front side of the front seat. (TORX bolt: T50)
6. Disconnect the harness connector under the seat and remove harness securing clips.
7. Set seatback in a neutral position, and t hen remove front seat from the vehicle.
Installation Installation is in the reverse order of removal. Be careful of the following three points.
• Before the installation, confirm that the inside and outside slide rails are locked at the same positions.
• Confirm that the slide rail location pin is set to the hole on the floor.
• Clamp the harness in position.
Disassembly and Assembly INFOID:0000000004306510

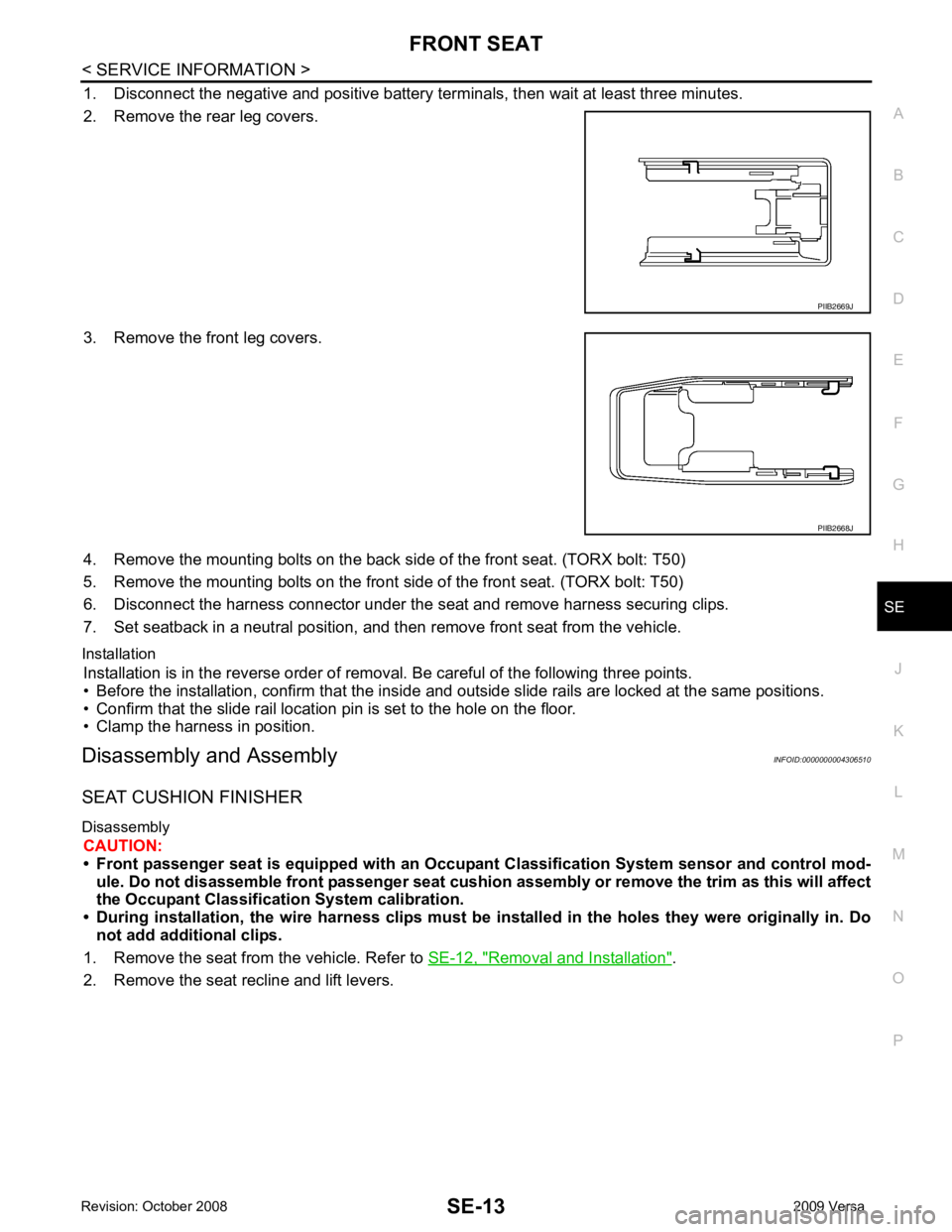

SEAT CUSHION FINISHER
Disassembly CAUTION:
• Front passenger seat is equipped with an Occu pant Classification System sensor and control mod-
ule. Do not disassemble front passenger seat cushion assembly or remove the trim as this will affect
the Occupant Classificatio n System calibration.
• During installation, the wire harn ess clips must be installed in the holes they were originally in. Do
not add additional clips.
1. Remove the seat from the vehicle. Refer to SE-12, " Removal and Installation " .
2. Remove the seat recline and lift levers. PIIB2668J

SE
N
O P
REAR SEAT
Component Parts Drawing INFOID:0000000004306511
60:40 SPLIT FOLD DOWN SEAT - HATCHBACK

WIIA1287E

SE
N
O P
4. Remove the seatback mounting bolts from the left rear seat
back brackets.
5. Remove the seatback from the vehicle.
6. Remove the kicking plate rear inner. Refer to EI-40, " Removal and Installation " .
7. Remove the bolt under the seatback side.
8. Pull seatback side up, and then remove seatback side.
9. Remove the bolts, and then remove rear seatback center bracket.
10. Remove the bolt, and then remove rear seatback side bracket from the vehicle.
11. Remove the rear seatback finisher. Refer to EI-53, " Removal and Installation " .
12. Remove the bolts, and then remove the rear seat striker.
Installation Installation is in the reverse order of removal. Be careful of the following point.
• When installing the rear seatback side bracket perform the following procedure. PIIB2482J
PIIB2484J
