DTC P0335 CKP SENSOR (POS)
Component Description INFOID:0000000004537264
The crankshaft position sensor (POS) is located on the cylinder
block rear housing facing the gear t eeth (cogs) of the signal plate at
the end of the crankshaft. It detects the fluctuation of the engine rev-
olution. The sensor consists of a permanent magnet and Hall IC.
When the engine is running, the high and low parts of the teeth
cause the gap with the sensor to change. The changing gap causes
the magnetic field near the sensor to change. Due to the changing
magnetic field, the voltage from the sensor changes. The ECM
receives the voltage signal and detects the fluctuation of the engine
revolution.
ECM receives the signals as shown in the figure.
CONSULT-III Reference Val ue in Data Monitor Mode INFOID:0000000004537265
Specification data are reference values.
On Board Diagnosis Logic INFOID:0000000004537266
DTC Confirmation Procedure INFOID:0000000004537267
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION: PBIA9209J
PBIB2997E
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED • Run engine and compare CONSULT-III value with the tachometer indica-
tion. Almost the same speed as the ta-
chometer indication. DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0335
0335 Crankshaft position sen-
sor (POS) circuit • The crankshaft position sensor (POS) signal is not
detected by the ECM during the first few seconds of
engine cranking.
• The proper pulse signal from the crankshaft position sensor (POS) is not sent to ECM while the engine is
running.
• The crankshaft position sensor (POS) signal is not in the normal pattern during engine running. • Harness or connectors
[Crankshaft position sensor (POS)
circuit is open or shorted.]
(Accelerator pedal position sensor
circuit is shorted.)
(Refrigerant pressure sensor circuit
is shorted.)
(EVAP control system pressure
sensor circuit is shorted.)
• Crankshaft position sensor (POS)
• Accelerator pedal position sensor
• Refrigerant pressure sensor
• EVAP control system pressure sen- sor
• Signal plate

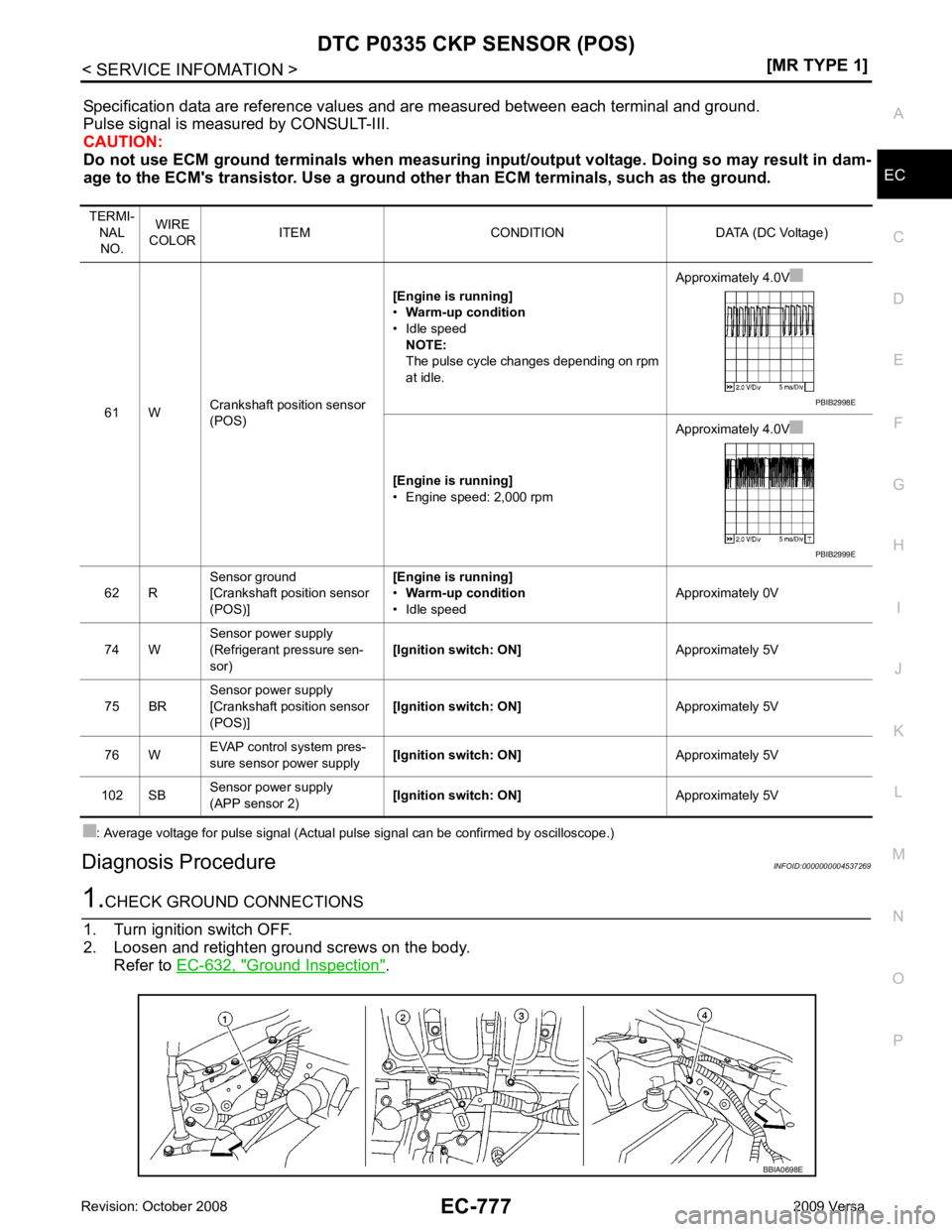

DTC P0335 CKP SENSOR (POS)
EC-777
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
Specification data are reference values
and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-III.
CAUTION:
Do not use ECM ground terminals wh en measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnosis Procedure INFOID:00000000045372691.
CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body. Refer to EC-632, " Ground Inspection " .
TERMI-
NAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
61 W Crankshaft position sensor
(POS) [Engine is running]
• Warm-up condition
• Idle speed NOTE:
The pulse cycle changes depending on rpm
at idle. Approximately 4.0V
[Engine is running]
• Engine speed: 2,000 rpm Approximately 4.0V
62 R Sensor ground
[Crankshaft position sensor
(POS)] [Engine is running]
• Warm-up condition
• Idle speed Approximately 0V
74 W Sensor power supply
(Refrigerant pressure sen-
sor) [Ignition switch: ON]
Approximately 5V
75 BR Sensor power supply
[Crankshaft position sensor
(POS)] [Ignition switch: ON]
Approximately 5V
76 W EVAP control system pres-
sure sensor power supply [Ignition switch: ON]
Approximately 5V
102 SB Sensor power supply
(APP sensor 2) [Ignition switch: ON]
Approximately 5V PBIB2998E
PBIB2999E
BBIA0698E

DTC P0451 EVAP CONTROL
SYSTEM PRESSURE SENSOR
EC-829
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
DTC P0451 EVAP CONTROL SYSTEM PRESSURE SENSOR
Component Description INFOID:0000000004537322
The EVAP control system pressure sensor (1) detects pressure in
the purge line. The sensor output voltage to the ECM increases as
pressure increases.
• EVAP canister (2)
• EVAP canister vent control valve (3)
CONSULT-III Reference Val ue in Data Monitor Mode INFOID:0000000004537323
Specification data are reference values.
On Board Diagnosis Logic INFOID:0000000004537324
DTC Confirmation Procedure INFOID:0000000004537325
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Start engine and wait at least 40 seconds. NOTE: BBIA0693E
PBIB1207E
MONITOR ITEM CONDITION SPECIFICATION
EVAP SYS PRES • Ignition switch: ON Approx. 1.8 - 4.8V DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0451
0451 EVAP control system
pressure sensor perfor-
mance ECM detects a sloshing signal from the EVAP
control system pressure sensor • Harness or connectors
[Crankshaft position sensor (POS) circuit
is shorted.]
(Accelerator pedal position sensor circuit
is shorted.)
(Refrigerant pressure sensor circuit is
shorted.)
• EVAP control system pressure sensor
• Crankshaft position sensor (POS)
• Accelerator pedal position sensor
• Refrigerant pressure sensor

EC-830< SERVICE INFOMATION >
[MR TYPE 1]
DTC P0451 EVAP CONTROL
SYSTEM PRESSURE SENSOR
Do not depress accelerator pedal even slightly.
3. Check 1st trip DTC.
4. If 1st trip DTC is detected, go to EC-830, " Diagnosis Procedure " .
Diagnosis Procedure INFOID:00000000045373261.
CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body.
Refer to EC-632, " Ground Inspection " .
OK or NG OK >> GO TO 2.
NG >> Repair or replace ground connections. 2.
CHECK EVPA CONTROL SYSTEM PRESS URE SENSOR CONNECTOR FOR WATER
1. Disconnect EVAP control system pressure sensor (1) harness connector.
- EVAP canister (2)
- EVAP canister vent control valve (3)
2. Check sensor harness connector for water.
OK or NG OK >> GO TO 3.
NG >> Repair or replace harness connector. 3.
CHECK COMPONENTS POWER SUPPLY
Check harness for short to power and short to ground, between the following terminals.
OK or NG OK >> GO TO 4.
NG >> Repair short to ground or short to power in harness or connectors. 4.
CHECK COMPONENTS
Check the following. :
Vehicle front
1. Body ground E24 2. Engine ground F9 3. engine ground F16
4. Body ground E15 BBIA0698E
Water should not exist.
BBIA0693E
ECM terminal Sensor terminal Reference Wiring Diagram
74 Refrigerant pressure sensor terminal 3 EC-1006, " Wiring Diagram "
75 Crankshaft position sensor (POS) terminal 1
EC-776, " Wiring Diagram "
76 EVAP control system pressure sensor terminal 3
EC-834, " Wiring Diagram "
102 APP sensor terminal 5
EC-949, " Wiring Diagram "

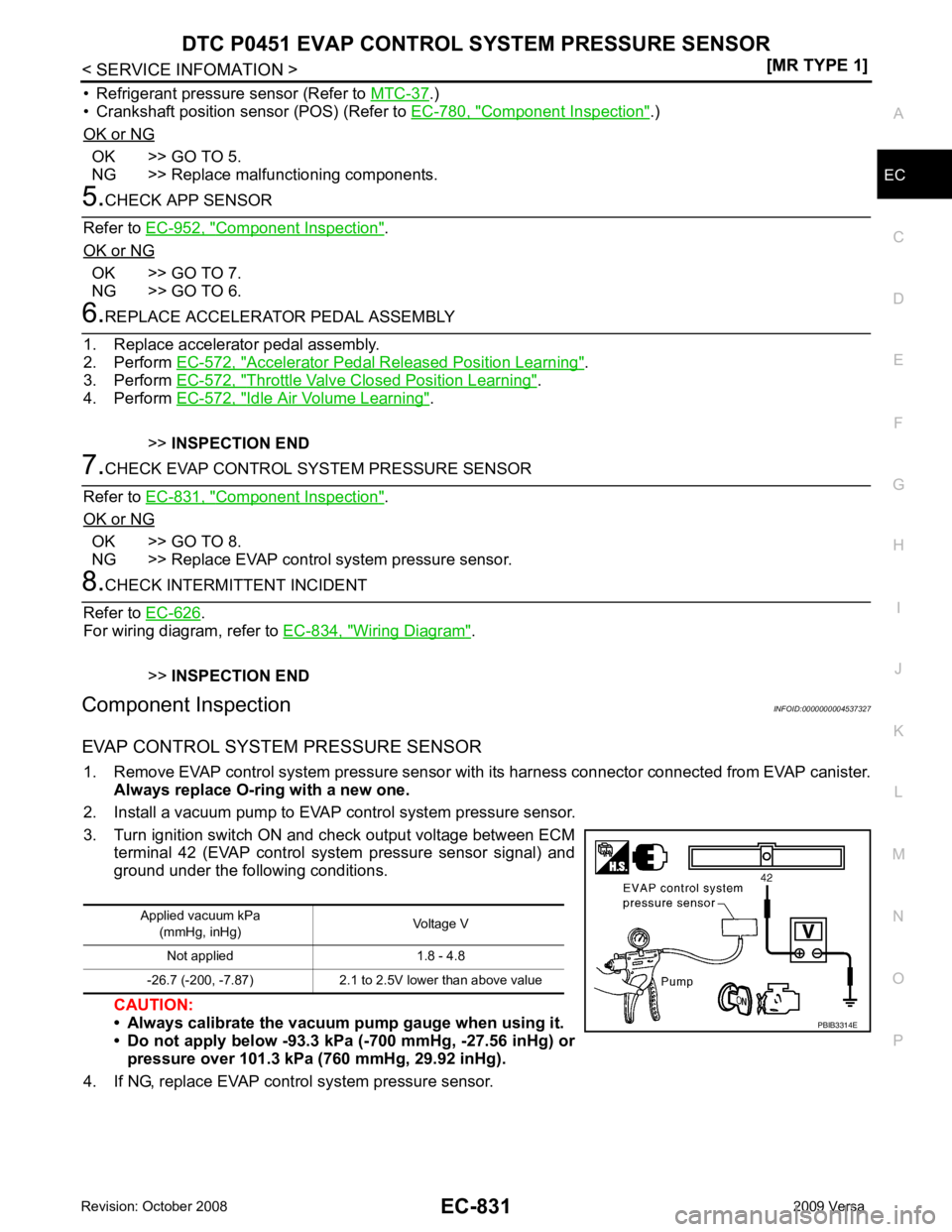

DTC P0451 EVAP CONTROL
SYSTEM PRESSURE SENSOR
EC-831
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
• Refrigerant pressure sensor (Refer to
MTC-37 .)
• Crankshaft position sensor (POS) (Refer to EC-780, " Component Inspection " .)
OK or NG OK >> GO TO 5.
NG >> Replace malfunctioning components. 5.
CHECK APP SENSOR
Refer to EC-952, " Component Inspection " .
OK or NG OK >> GO TO 7.
NG >> GO TO 6. 6.
REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-572, " Accelerator Pedal Released Position Learning " .
3. Perform EC-572, " Throttle Valve Closed Position Learning " .
4. Perform EC-572, " Idle Air Volume Learning " .
>> INSPECTION END 7.
CHECK EVAP CONTROL SYS TEM PRESSURE SENSOR
Refer to EC-831, " Component Inspection " .
OK or NG OK >> GO TO 8.
NG >> Replace EVAP control system pressure sensor. 8.
CHECK INTERMITTENT INCIDENT
Refer to EC-626 .
For wiring diagram, refer to EC-834, " Wiring Diagram " .
>> INSPECTION END
Component Inspection INFOID:0000000004537327
EVAP CONTROL SYSTEM PRESSURE SENSOR 1. Remove EVAP control system pr essure sensor with its harness connec tor connected from EVAP canister.
Always replace O-ring with a new one.
2. Install a vacuum pump to EVAP control system pressure sensor.
3. Turn ignition switch ON and check output voltage between ECM terminal 42 (EVAP control system pressure sensor signal) and
ground under the following conditions.
CAUTION:
• Always calibrate the vacuum pu mp gauge when using it.
• Do not apply below -93.3 kP a (-700 mmHg, -27.56 inHg) or
pressure over 101.3 kPa (760 mmHg, 29.92 inHg).
4. If NG, replace EVAP control system pressure sensor. Applied vacuum kPa
(mmHg, inHg) Voltage V
Not applied 1.8 - 4.8
-26.7 (-200, -7.87) 2.1 to 2.5V lower than above value PBIB3314E

EC-832< SERVICE INFOMATION >
[MR TYPE 1]
DTC P0452 EVAP CONTROL
SYSTEM PRESSURE SENSOR
DTC P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR
Component Description INFOID:0000000004537328
The EVAP control system pressure sensor (1) detects pressure in
the purge line. The sensor output voltage to the ECM increases as
pressure increases.
• EVAP canister (2)
• EVAP canister vent control valve (3)
CONSULT-III Reference Value in Data Monitor Mode INFOID:0000000004537329
Specification data are reference values.
On Board Diagn osis Logic INFOID:0000000004537330
DTC Confirmation Procedure INFOID:0000000004537331
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Always perform test at a temperature of 5 °C (41 °F) or more. BBIA0693E
PBIB1207E
MONITOR ITEM CONDITION SPECIFICATION
EVAP SYS PRES • Ignition switch: ON Approx. 1.8 - 4.8V DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0452
0452 EVAP control system
pressure sensor low in-
put An excessively low voltage from the sensor is
sent to ECM. • Harness or connectors
(EVAP control system pressure sensor
circuit is open or shorted.)
[Crankshaft position sensor (POS) circuit
is shorted.)
(Accelerator pedal position sensor circuit
is shorted.)
(Refrigerant pressure sensor circuit is
shorted.)
• EVAP control system pressure sensor
• Crankshaft position sensor (POS)
• Accelerator pedal position sensor
• Refrigerant pressure sensor

DTC P0452 EVAP CONTROL
SYSTEM PRESSURE SENSOR
EC-835
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
Diagnosis Procedure
INFOID:00000000045373331.
CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body.
Refer to EC-632, " Ground Inspection " .
OK or NG OK >> GO TO 2.
NG >> Repair or replace ground connections. 2.
CHECK CONNECTOR
TER-
MI-
NAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
42 V EVAP control system pres-
sure sensor [Ignition switch: ON]
Approximately 1.8 - 4.8V
51 O Sensor ground
(EVAP control system pres-
sure sensor) [Engine is running]
• Warm-up condition
• Idle speed Approximately 0V
74 W Sensor power supply
(Refrigerant pressure
sensor) [Ignition switch: ON]
Approximately 5V
75 BR Sensor power supply
[Crankshaft position sensor
(POS)] [Ignition switch: ON]
Approximately 5V
76 W EVAP control system pres-
sure sensor power supply [Ignition switch: ON]
Approximately 5V
102 SB Sensor power supply
(Accelerator pedal position
sensor 2) [Ignition switch: ON]
Approximately 5V:
Vehicle front
1. Body ground E24 2. Engine ground F9 3. Engine ground F16
4. Body ground E15 BBIA0698E

DTC P0453 EVAP CONTROL
SYSTEM PRESSURE SENSOR
EC-839
< SERVICE INFOMATION >
[MR TYPE 1] C
D E
F
G H
I
J
K L
M A EC
NP
O
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
Component Description INFOID:0000000004537335
The EVAP control system pressure sensor (1) detects pressure in
the purge line. The sensor output voltage to the ECM increases as
pressure increases.
• EVAP canister (2)
• EVAP canister vent control valve (3)
CONSULT-III Reference Val ue in Data Monitor Mode INFOID:0000000004537336
Specification data are reference values.
On Board Diagnosis Logic INFOID:0000000004537337
DTC Confirmation Procedure INFOID:0000000004537338
NOTE: BBIA0693E
PBIB1207E
MONITOR ITEM CONDITION SPECIFICATION
EVAP SYS PRES • Ignition switch: ON Approx. 1.8 - 4.8V DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0453
0453 EVAP control system
pressure sensor high in-
put An excessively high voltage from the sensor is
sent to ECM. • Harness or connectors
(EVAP control system pressure sensor
circuit is open or shorted.)
[Crankshaft position sensor (POS) circuit
is shorted.)
(Accelerator pedal position sensor circuit
is shorted.)
(Refrigerant pressure sensor circuit is
shorted.)
• EVAP control system pressure sensor
• Crankshaft position sensor (POS)
• Accelerator pedal position sensor
• Refrigerant pressure sensor
• EVAP canister vent control valve
• EVAP canister
• Rubber hose to EVAP canister vent con-
trol valve

EC-842< SERVICE INFOMATION >
[MR TYPE 1]
DTC P0453 EVAP CONTROL
SYSTEM PRESSURE SENSOR
Diagnosis Procedure INFOID:00000000045373401.
CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body.
Refer to EC-632, " Ground Inspection " .
OK or NG OK >> GO TO 2.
NG >> Repair or replace ground connections. 2.
CHECK CONNECTOR
TER-
MI-
NAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
42 V EVAP control system pres-
sure sensor [Ignition switch: ON]
Approximately 1.8 - 4.8V
51 O Sensor ground
(EVAP control system pres-
sure sensor) [Engine is running]
• Warm-up condition
• Idle speed Approximately 0V
74 W Sensor power supply
(Refrigerant pressure
sensor) [Ignition switch: ON]
Approximately 5V
75 BR Sensor power supply
[Crankshaft position sensor
(POS)] [Ignition switch: ON]
Approximately 5V
76 W EVAP control system pres-
sure sensor power supply [Ignition switch: ON]
Approximately 5V
102 SB Sensor power supply
(Accelerator pedal position
sensor 2) [Ignition switch: ON]
Approximately 5V:
Vehicle front
1. Engine ground E24 2. Engine ground F9 3. Engine ground F16
4. Body ground E15 BBIA0698E

EC-886< SERVICE INFOMATION >
[MR TYPE 1]
DTC P1217 ENGINE
OVER TEMPERATURE
DTC P1217 ENGINE OVER TEMPERATURE
System Description INFOID:0000000004537393
SYSTEM DESCRIPTION
NOTE:
• If DTC P1217 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-633 .
• If DTC P1217 is displayed with DTC U1010, first pe rform the trouble diagnosis for DTC U1010. Refer
to EC-635 .
Cooling Fan Control
*1: The ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to ECM through CAN communication line.
The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant
pressure, and air conditioner ON signal. The contro l system has 3-step control [HIGH/LOW/OFF].
Cooling Fan Operation
Models with A/C
Models without A/C Sensor Input Signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE) Engine speed*
1
Cooling fan
control IPDM E/R
(Cooling fan relays)
Battery
Battery voltage*1
ABS actuator and electric unit (control unit)
Vehicle speed*2
Combination meter
Engine coolant temperature sensor Engine coolant temperature
Air conditioner switch Air conditioner ON signal*2
Refrigerant pressure sensor Refrigerant pressure PBIB2483E
PBIB3335E
