NISSAN X-TRAIL 2001 Service Repair Manual

CYLINDER BLOCK
EM-91
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

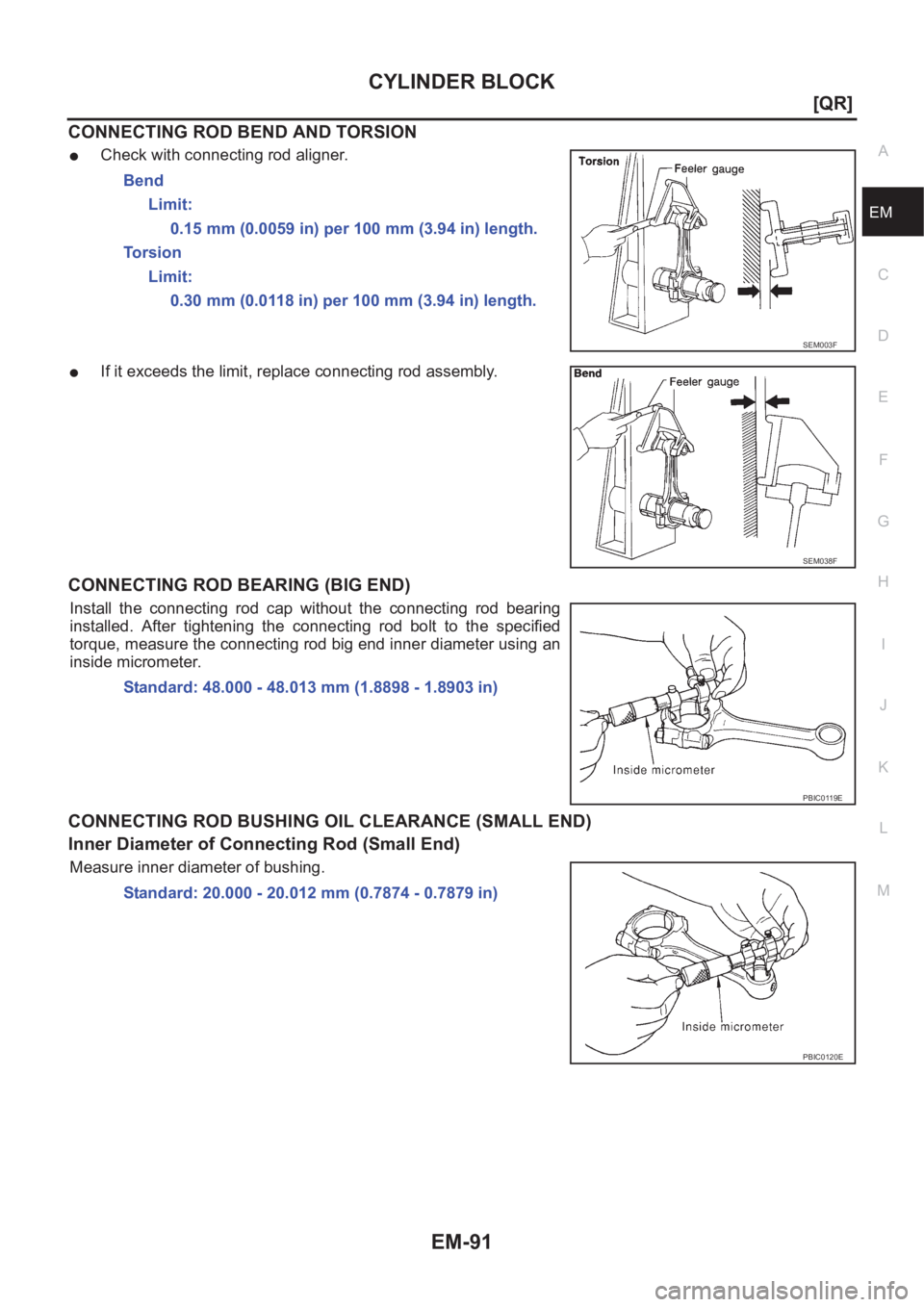

CONNECTING ROD BEND AND TORSION
●Check with connecting rod aligner.
●If it exceeds the limit, replace connecting rod assembly.
CONNECTING ROD BEARING (BIG END)
Install the connecting rod cap without the connecting rod bearing
installed. After tightening the connecting rod bolt to the specified
torque, measure the connecting rod big end inner diameter using an
inside micrometer.
CONNECTING ROD BUSHING OIL CLEARANCE (SMALL END)
Inner Diameter of Connecting Rod (Small End)
Measure inner diameter of bushing.Bend
Limit:
0.15 mm (0.0059 in) per 100 mm (3.94 in) length.
To r s i o n
Limit:
0.30 mm (0.0118 in) per 100 mm (3.94 in) length.
SEM003F
SEM038F
Standard: 48.000 - 48.013 mm (1.8898 - 1.8903 in)
PBIC0119E
Standard: 20.000 - 20.012 mm (0.7874 - 0.7879 in)
PBIC0120E

EM-92
[QR]
CYLINDER BLOCK

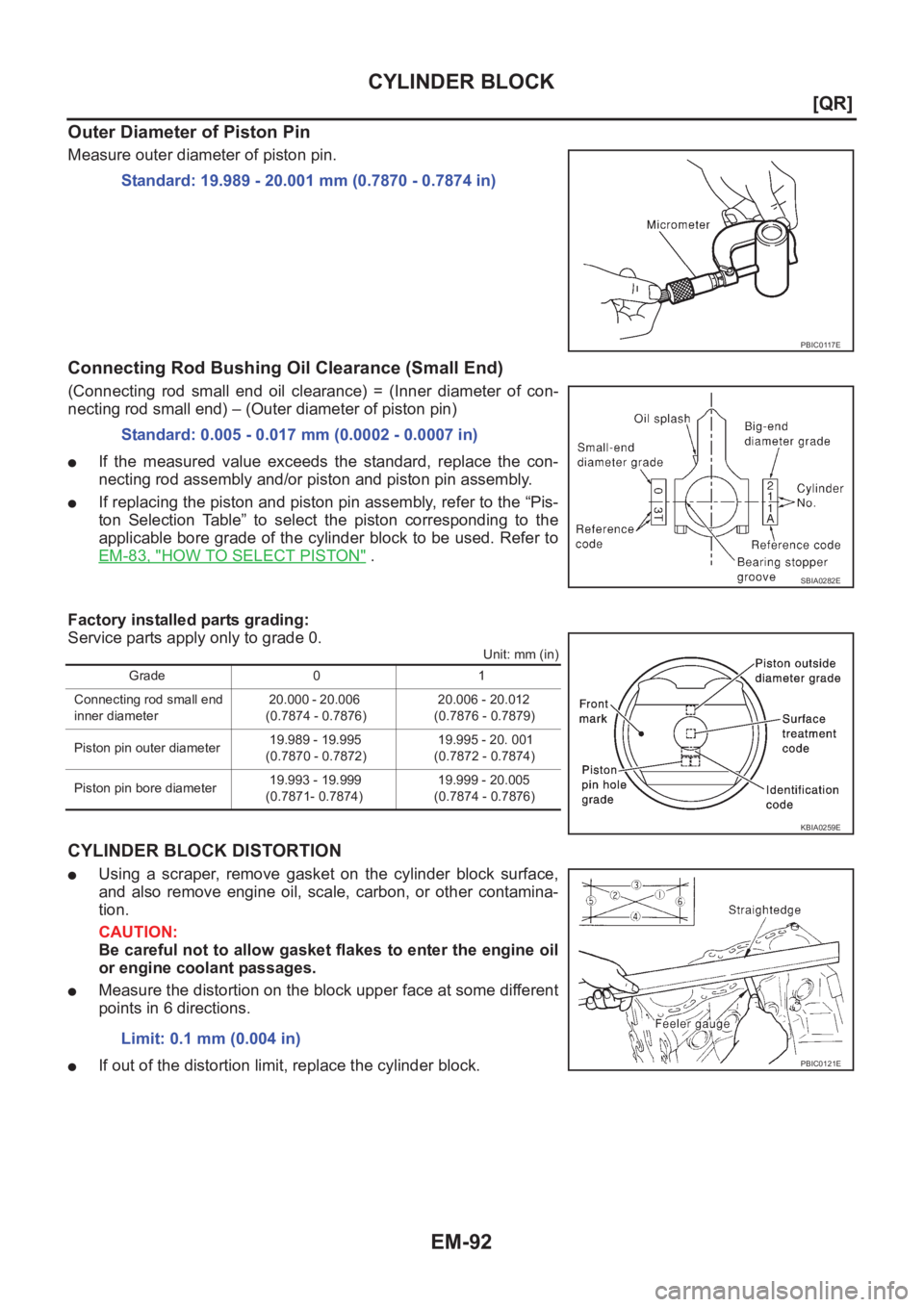

Outer Diameter of Piston Pin
Measure outer diameter of piston pin.
Connecting Rod Bushing Oil Clearance (Small End)
(Connecting rod small end oil clearance) = (Inner diameter of con-
necting rod small end) – (Outer diameter of piston pin)
●If the measured value exceeds the standard, replace the con-
necting rod assembly and/or piston and piston pin assembly.
●If replacing the piston and piston pin assembly, refer to the “Pis-
ton Selection Table” to select the piston corresponding to the
applicable bore grade of the cylinder block to be used. Refer to
EM-83, "
HOW TO SELECT PISTON" .
Factory installed parts grading:
Service parts apply only to grade 0.
Unit: mm (in)
CYLINDER BLOCK DISTORTION
●Using a scraper, remove gasket on the cylinder block surface,
and also remove engine oil, scale, carbon, or other contamina-
tion.
CAUTION:
Be careful not to allow gasket flakes to enter the engine oil
or engine coolant passages.
●Measure the distortion on the block upper face at some different
points in 6 directions.
●If out of the distortion limit, replace the cylinder block.Standard: 19.989 - 20.001 mm (0.7870 - 0.7874 in)
PBIC0117E
Standard: 0.005 - 0.017 mm (0.0002 - 0.0007 in)
SBIA0282E
Grade 0 1
Connecting rod small end
inner diameter 20.000 - 20 .0 06
(0.7874 - 0.7876) 20.006 - 20.012
(0.7876 - 0.7879)
Piston pin outer diameter 19.989 - 19.995
(0.7870 - 0.7872) 19.995 - 20. 001
(0.7872 - 0.7874)
Piston pin bore diameter 19.993 - 19.999
(0.7871- 0.7874) 19.999 - 20.005
(0.7874 - 0.7876)
KBIA0259E
Limit: 0.1 mm (0.004 in)
PBIC0121E

CYLINDER BLOCK
EM-93
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

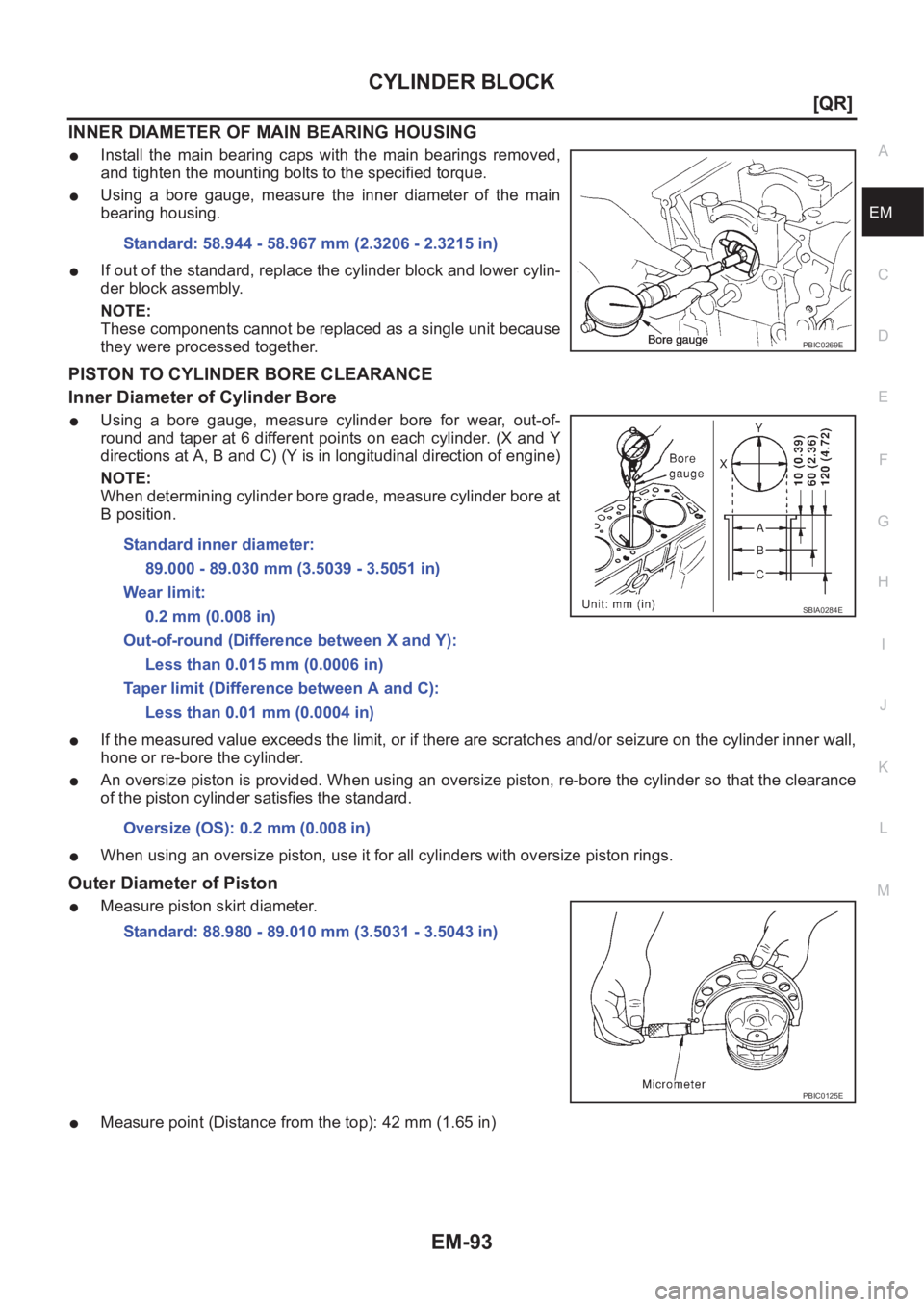

INNER DIAMETER OF MAIN BEARING HOUSING
●Install the main bearing caps with the main bearings removed,
and tighten the mounting bolts to the specified torque.
●Using a bore gauge, measure the inner diameter of the main
bearing housing.
●If out of the standard, replace the cylinder block and lower cylin-
der block assembly.
NOTE:
These components cannot be replaced as a single unit because
they were processed together.
PISTON TO CYLINDER BORE CLEARANCE
Inner Diameter of Cylinder Bore
●Using a bore gauge, measure cylinder bore for wear, out-of-
round and taper at 6 different points on each cylinder. (X and Y
directions at A, B and C) (Y is in longitudinal direction of engine)
NOTE:
When determining cylinder bore grade, measure cylinder bore at
B position.
●If the measured value exceeds the limit, or if there are scratches and/or seizure on the cylinder inner wall,
hone or re-bore the cylinder.
●An oversize piston is provided. When using an oversize piston, re-bore the cylinder so that the clearance
of the piston cylinder satisfies the standard.
●When using an oversize piston, use it for all cylinders with oversize piston rings.
Outer Diameter of Piston
●Measure piston skirt diameter.
●Measure point (Distance from the top): 42 mm (1.65 in)Standard: 58.944 - 58.967 mm (2.3206 - 2.3215 in)
PBIC0269E
Standard inner diameter:
89.000 - 89.030 mm (3.5039 - 3.5051 in)
Wear limit:
0.2 mm (0.008 in)
Out-of-round (Difference between X and Y):
Less than 0.015 mm (0.0006 in)
Taper limit (Difference between A and C):
Less than 0.01 mm (0.0004 in)
Oversize (OS): 0.2 mm (0.008 in)
SBIA0284E
Standard: 88.980 - 89.010 mm (3.5031 - 3.5043 in)
PBIC0125E

EM-94
[QR]
CYLINDER BLOCK

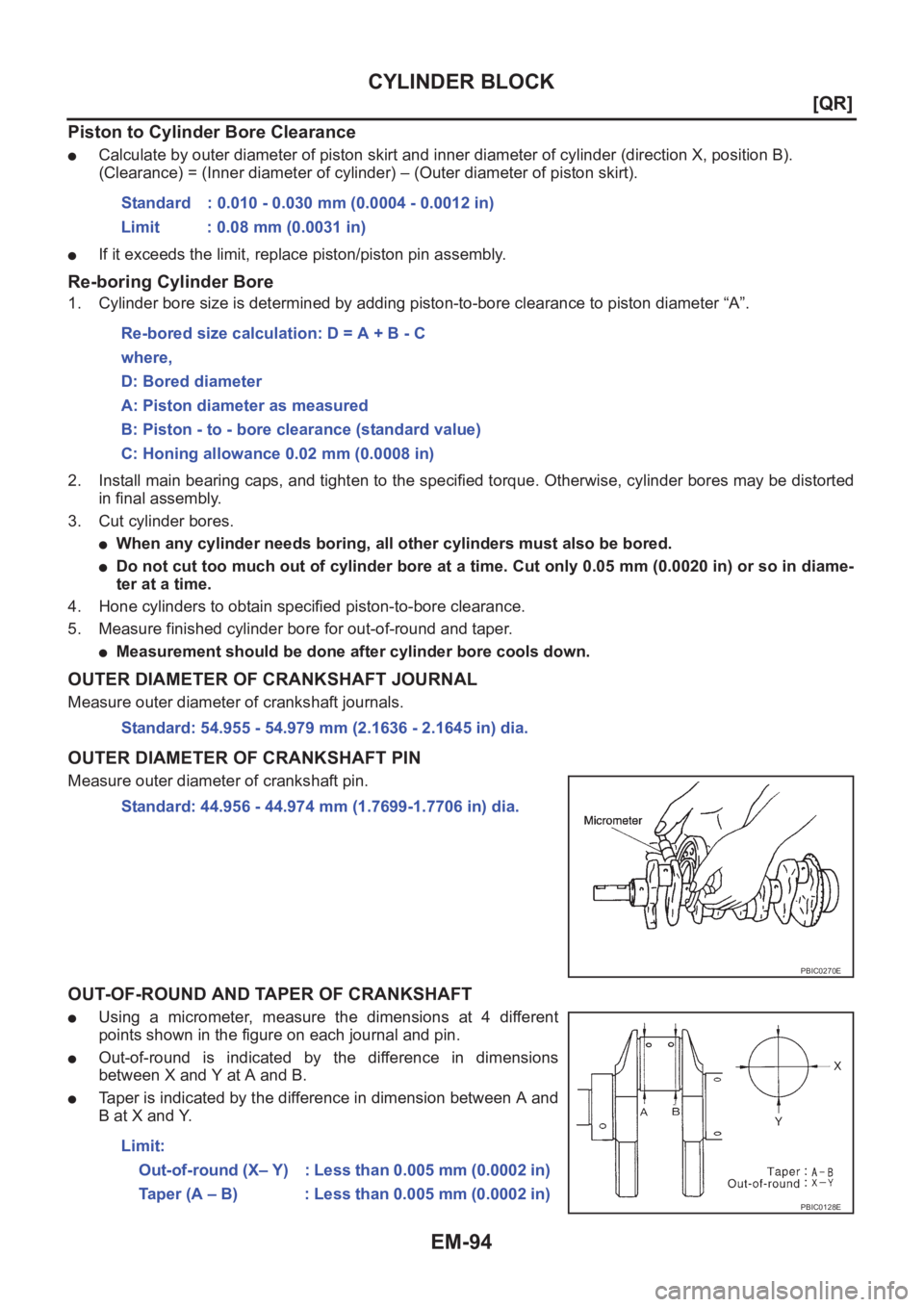

Piston to Cylinder Bore Clearance
●Calculate by outer diameter of piston skirt and inner diameter of cylinder (direction X, position B).
(Clearance) = (Inner diameter of cylinder) – (Outer diameter of piston skirt).
●If it exceeds the limit, replace piston/piston pin assembly.
Re-boring Cylinder Bore
1. Cylinder bore size is determined by adding piston-to-bore clearance to piston diameter “A”.
2. Install main bearing caps, and tighten to the specified torque. Otherwise, cylinder bores may be distorted
in final assembly.
3. Cut cylinder bores.
●When any cylinder needs boring, all other cylinders must also be bored.
●Do not cut too much out of cylinder bore at a time. Cut only 0.05 mm (0.0020 in) or so in diame-
ter at a time.
4. Hone cylinders to obtain specified piston-to-bore clearance.
5. Measure finished cylinder bore for out-of-round and taper.
●Measurement should be done after cylinder bore cools down.
OUTER DIAMETER OF CRANKSHAFT JOURNAL
Measure outer diameter of crankshaft journals.
OUTER DIAMETER OF CRANKSHAFT PIN
Measure outer diameter of crankshaft pin.
OUT-OF-ROUND AND TAPER OF CRANKSHAFT
●Using a micrometer, measure the dimensions at 4 different
points shown in the figure on each journal and pin.
●Out-of-round is indicated by the difference in dimensions
between X and Y at A and B.
●Taper is indicated by the difference in dimension between A and
B at X and Y.Standard : 0.010 - 0.030 mm (0.0004 - 0.0012 in)
Limit : 0.08 mm (0.0031 in)
Re-bored size calculation: D = A + B - C
where,
D: Bored diameter
A: Piston diameter as measured
B: Piston - to - bore clearance (standard value)
C: Honing allowance 0.02 mm (0.0008 in)
Standard: 54.955 - 54.979 mm (2.1636 - 2.1645 in) dia.
Standard: 44.956 - 44.974 mm (1.7699-1.7706 in) dia.
PBIC0270E
Limit:
Out-of-round (X– Y) : Less than 0.005 mm (0.0002 in)
Taper (A – B) : Less than 0.005 mm (0.0002 in)
PBIC0128E

CYLINDER BLOCK
EM-95
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

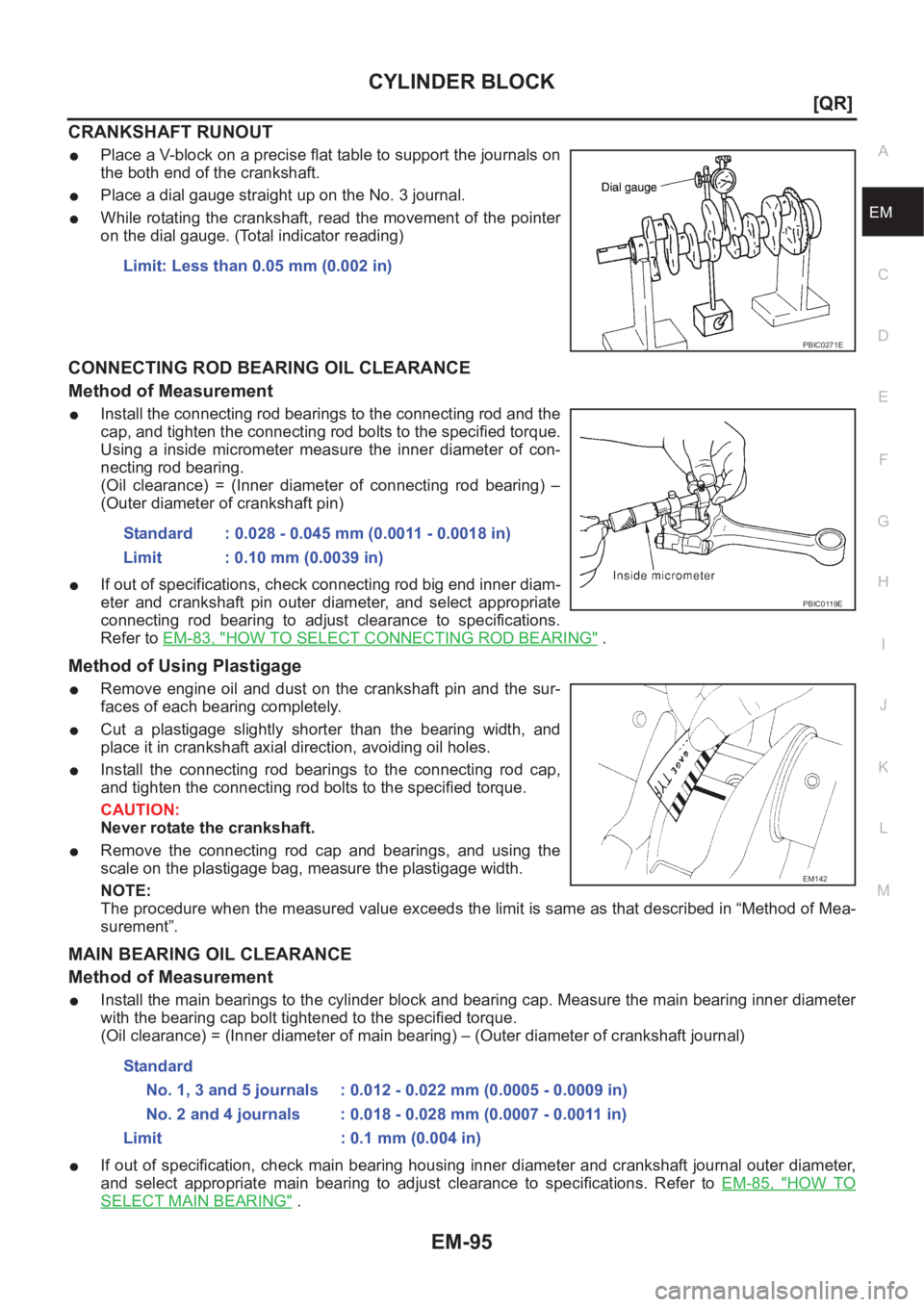

CRANKSHAFT RUNOUT
●Place a V-block on a precise flat table to support the journals on
the both end of the crankshaft.
●Place a dial gauge straight up on the No. 3 journal.
●While rotating the crankshaft, read the movement of the pointer
on the dial gauge. (Total indicator reading)
CONNECTING ROD BEARING OIL CLEARANCE
Method of Measurement
●Install the connecting rod bearings to the connecting rod and the
cap, and tighten the connecting rod bolts to the specified torque.
Using a inside micrometer measure the inner diameter of con-
necting rod bearing.
(Oil clearance) = (Inner diameter of connecting rod bearing) –
(Outer diameter of crankshaft pin)
●If out of specifications, check connecting rod big end inner diam-
eter and crankshaft pin outer diameter, and select appropriate
connecting rod bearing to adjust clearance to specifications.
Refer to EM-83, "
HOW TO SELECT CONNECTING ROD BEARING" .
Method of Using Plastigage
●Remove engine oil and dust on the crankshaft pin and the sur-
faces of each bearing completely.
●Cut a plastigage slightly shorter than the bearing width, and
place it in crankshaft axial direction, avoiding oil holes.
●Install the connecting rod bearings to the connecting rod cap,
and tighten the connecting rod bolts to the specified torque.
CAUTION:
Never rotate the crankshaft.
●Remove the connecting rod cap and bearings, and using the
scale on the plastigage bag, measure the plastigage width.
NOTE:
The procedure when the measured value exceeds the limit is same as that described in “Method of Mea-
surement”.
MAIN BEARING OIL CLEARANCE
Method of Measurement
●Install the main bearings to the cylinder block and bearing cap. Measure the main bearing inner diameter
with the bearing cap bolt tightened to the specified torque.
(Oil clearance) = (Inner diameter of main bearing) – (Outer diameter of crankshaft journal)
●If out of specification, check main bearing housing inner diameter and crankshaft journal outer diameter,
and select appropriate main bearing to adjust clearance to specifications. Refer to EM-85, "
HOW TO
SELECT MAIN BEARING" . Limit: Less than 0.05 mm (0.002 in)
PBIC0271E
Standard : 0.028 - 0.045 mm (0.0011 - 0.0018 in)
Limit : 0.10 mm (0.0039 in)
PBIC0119E
EM142
Standard
No. 1, 3 and 5 journals : 0.012 - 0.022 mm (0.0005 - 0.0009 in)
No. 2 and 4 journals : 0.018 - 0.028 mm (0.0007 - 0.0011 in)
Limit : 0.1 mm (0.004 in)

EM-96
[QR]
CYLINDER BLOCK

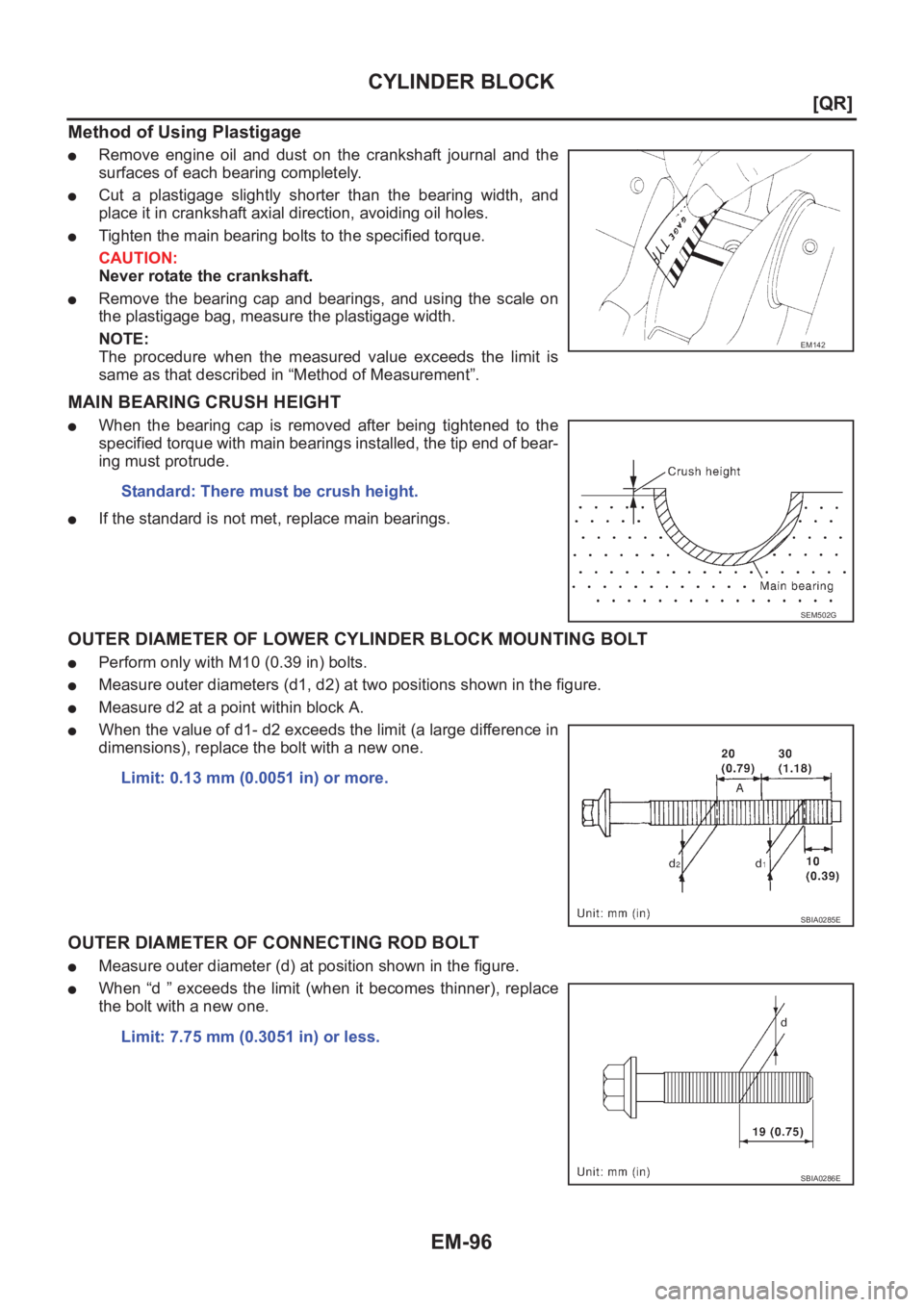

Method of Using Plastigage
●Remove engine oil and dust on the crankshaft journal and the
surfaces of each bearing completely.
●Cut a plastigage slightly shorter than the bearing width, and
place it in crankshaft axial direction, avoiding oil holes.
●Tighten the main bearing bolts to the specified torque.
CAUTION:
Never rotate the crankshaft.
●Remove the bearing cap and bearings, and using the scale on
the plastigage bag, measure the plastigage width.
NOTE:
The procedure when the measured value exceeds the limit is
same as that described in “Method of Measurement”.
MAIN BEARING CRUSH HEIGHT
●When the bearing cap is removed after being tightened to the
specified torque with main bearings installed, the tip end of bear-
ing must protrude.
●If the standard is not met, replace main bearings.
OUTER DIAMETER OF LOWER CYLINDER BLOCK MOUNTING BOLT
●Perform only with M10 (0.39 in) bolts.
●Measure outer diameters (d1, d2) at two positions shown in the figure.
●Measure d2 at a point within block A.
●When the value of d1- d2 exceeds the limit (a large difference in
dimensions), replace the bolt with a new one.
OUTER DIAMETER OF CONNECTING ROD BOLT
●Measure outer diameter (d) at position shown in the figure.
●When “d ” exceeds the limit (when it becomes thinner), replace
the bolt with a new one.
EM142
Standard: There must be crush height.
SEM502G
Limit: 0.13 mm (0.0051 in) or more.
SBIA0285E
Limit: 7.75 mm (0.3051 in) or less.
SBIA0286E

CYLINDER BLOCK
EM-97
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

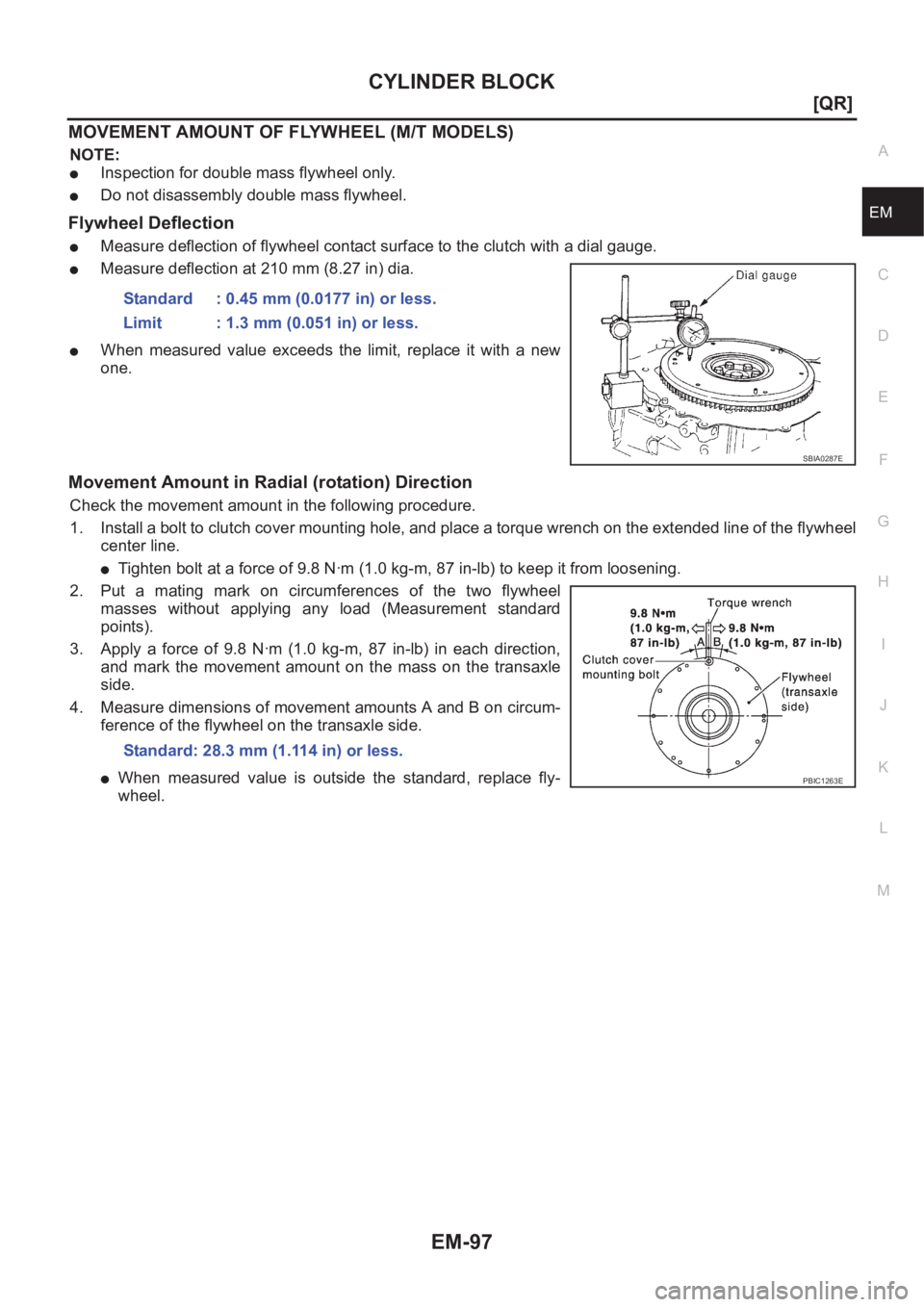

MOVEMENT AMOUNT OF FLYWHEEL (M/T MODELS)
NOTE:
●Inspection for double mass flywheel only.
●Do not disassembly double mass flywheel.
Flywheel Deflection
●Measure deflection of flywheel contact surface to the clutch with a dial gauge.
●Measure deflection at 210 mm (8.27 in) dia.
●When measured value exceeds the limit, replace it with a new
one.
Movement Amount in Radial (rotation) Direction
Check the movement amount in the following procedure.
1. Install a bolt to clutch cover mounting hole, and place a torque wrench on the extended line of the flywheel
center line.
●Tighten bolt at a force of 9.8 N·m (1.0 kg-m, 87 in-lb) to keep it from loosening.
2. Put a mating mark on circumferences of the two flywheel
masses without applying any load (Measurement standard
points).
3. Apply a force of 9.8 N·m (1.0 kg-m, 87 in-lb) in each direction,
and mark the movement amount on the mass on the transaxle
side.
4. Measure dimensions of movement amounts A and B on circum-
ference of the flywheel on the transaxle side.
●When measured value is outside the standard, replace fly-
wheel.Standard : 0.45 mm (0.0177 in) or less.
Limit : 1.3 mm (0.051 in) or less.
SBIA0287E
Standard: 28.3 mm (1.114 in) or less.
PBIC1263E

EM-98
[QR]

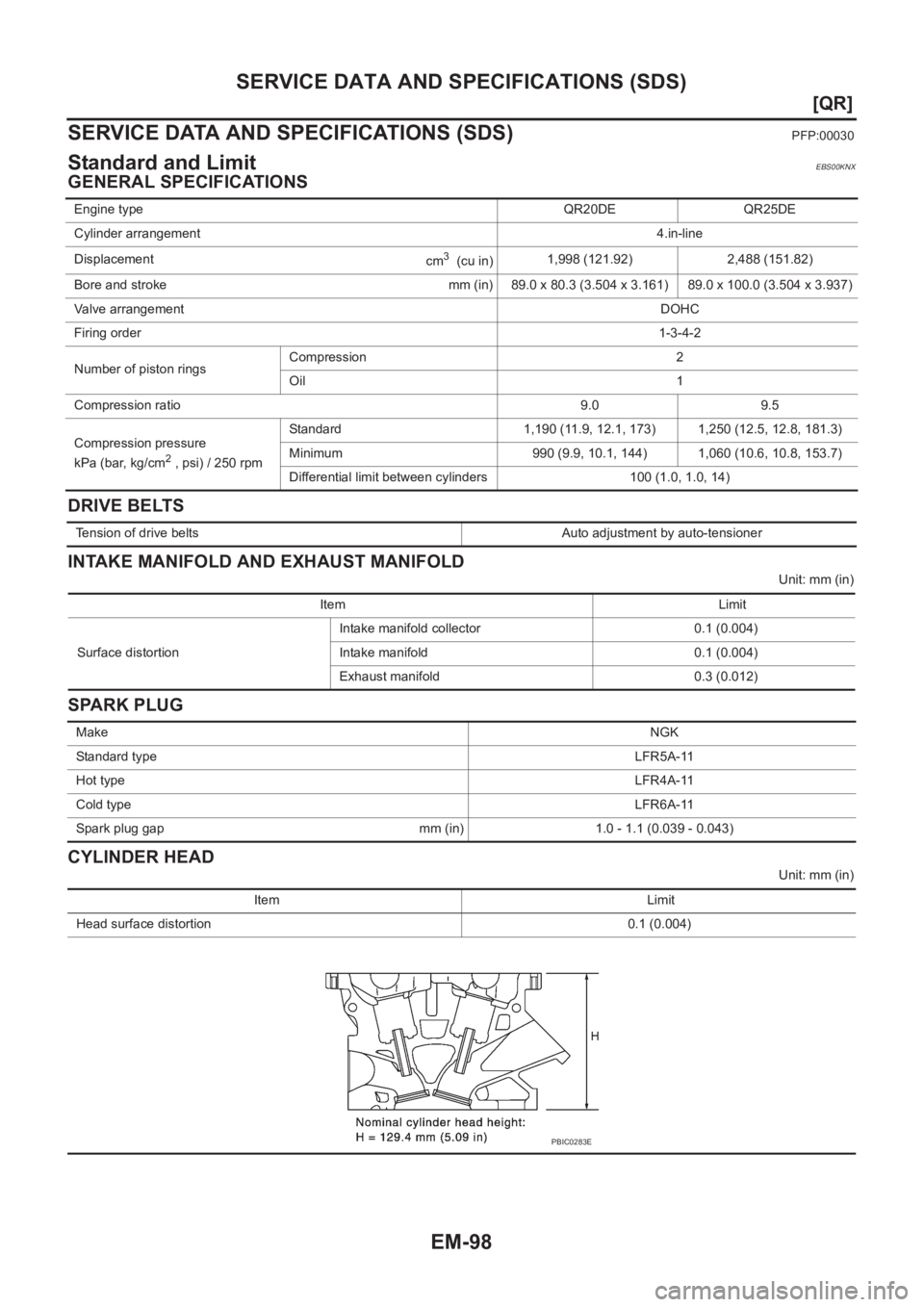

SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
PFP:00030
Standard and LimitEBS00KNX
GENERAL SPECIFICATIONS
DRIVE BELTS
INTAKE MANIFOLD AND EXHAUST MANIFOLD
Unit: mm (in)
SPARK PLUG
CYLINDER HEAD
Unit: mm (in) Engine typeQR20DE QR25DE
Cylinder arrangement4.in-line
Displacement
cm
3 (cu in)1,998 (121.92) 2,488 (151.82)
Bore and stroke mm (in) 89.0 x 80.3 (3.504 x 3.161) 89.0 x 100.0 (3.504 x 3.937)
Valve arrangementDOHC
Firing order1-3-4-2
Number of piston ringsCompression 2
Oil 1
Compression ratio 9.0 9.5
Compression pressure
kPa (bar, kg/cm
2 , psi) / 250 rpmStandard 1,190 (11.9, 12.1, 173) 1,250 (12.5, 12.8, 181.3)
Minimum 990 (9.9, 10.1, 144) 1,060 (10.6, 10.8, 153.7)
Differential limit between cylinders 100 (1.0, 1.0, 14)
Tension of drive belts Auto adjustment by auto-tensioner
Item Limit
Surface distortionIntake manifold collector 0.1 (0.004)
Intake manifold 0.1 (0.004)
Exhaust manifold 0.3 (0.012)
MakeNGK
Standard typeLFR5A-11
Hot typeLFR4A-11
Cold typeLFR6A-11
Spark plug gap mm (in) 1.0 - 1.1 (0.039 - 0.043)
Item Limit
Head surface distortion 0.1 (0.004)
PBIC0283E

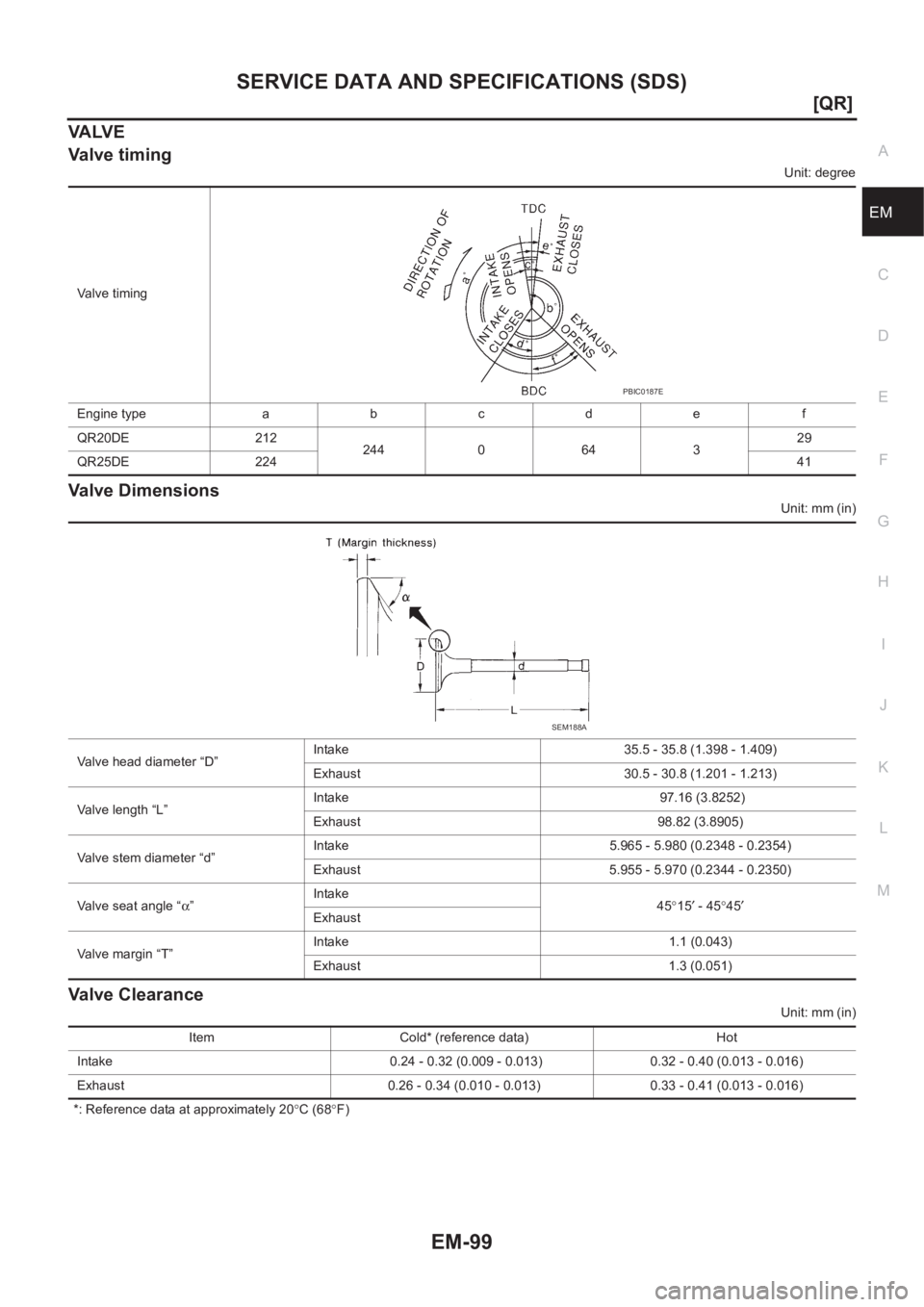

SERVICE DATA AND SPECIFICATIONS (SDS)
EM-99
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM
VA LV E
Valve timing
Unit: degree
Valve Dimensions
Unit: mm (in)
Valve Clearance
Unit: mm (in)
*: Reference data at approximately 20°C (68°F) Valve timing
Engine type a b c d e f
QR20DE 212
244 0 64 329
QR25DE 22441
PBIC0187E
Valve head diameter “D”Intake 35.5 - 35.8 (1.398 - 1.409)
Exhaust 30.5 - 30.8 (1.201 - 1.213)
Valve length “L”Intake 97.16 (3.8252)
Exhaust 98.82 (3.8905)
Valve stem diameter “d”Intake 5.965 - 5.980 (0.2348 - 0.2354)
Exhaust 5.955 - 5.970 (0.2344 - 0.2350)
Valve seat angle “α”Intake
45°15′ - 45°45′
Exhaust
Valve margin “T”Intake 1.1 (0.043)
Exhaust 1.3 (0.051)
SEM188A
Item Cold* (reference data) Hot
Intake 0.24 - 0.32 (0.009 - 0.013) 0.32 - 0.40 (0.013 - 0.016)
Exhaust 0.26 - 0.34 (0.010 - 0.013) 0.33 - 0.41 (0.013 - 0.016)

EM-100
[QR]

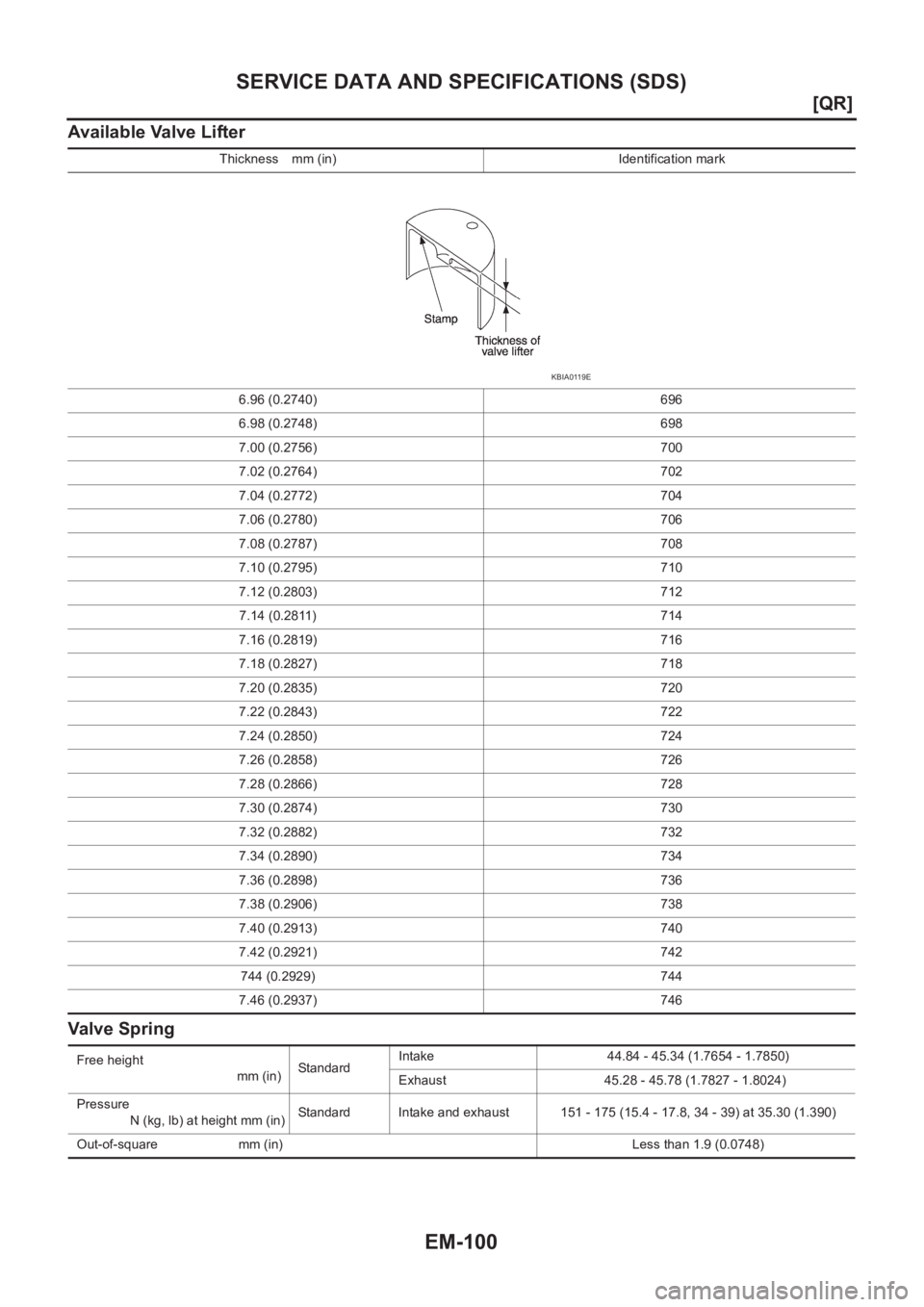

SERVICE DATA AND SPECIFICATIONS (SDS)
Available Valve Lifter
Valve Spring
Thickness mm (in) Identification mark
6.96 (0.2740) 696
6.98 (0.2748) 698
7.00 (0.2756) 700
7.02 (0.2764) 702
7.04 (0.2772) 704
7.06 (0.2780) 706
7.08 (0.2787) 708
7.10 (0.2795) 710
7.12 (0.2803) 712
7.14 (0.2811) 714
7.16 (0.2819) 716
7.18 (0.2827) 718
7.20 (0.2835) 720
7.22 (0.2843) 722
7.24 (0.2850) 724
7.26 (0.2858) 726
7.28 (0.2866) 728
7.30 (0.2874) 730
7.32 (0.2882) 732
7.34 (0.2890) 734
7.36 (0.2898) 736
7.38 (0.2906) 738
7.40 (0.2913) 740
7.42 (0.2921) 742
744 (0.2929) 744
7.46 (0.2937) 746
KBIA0119E
Free height
mm (in) StandardIntake 44.84 - 45.34 (1.7654 - 1.7850)
Exhaust 45.28 - 45.78 (1.7827 - 1.8024)
Pressure
N (kg, lb) at height mm (in)Standard Intake and exhaust 151 - 175 (15.4 - 17.8, 34 - 39) at 35.30 (1.390)
Out-of-square mm (in) Less than 1.9 (0.0748)
