Page 2101 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual OVERALL SYSTEM
AT-23
D
E
F
G
H
I
J
K
L
MA
B
AT

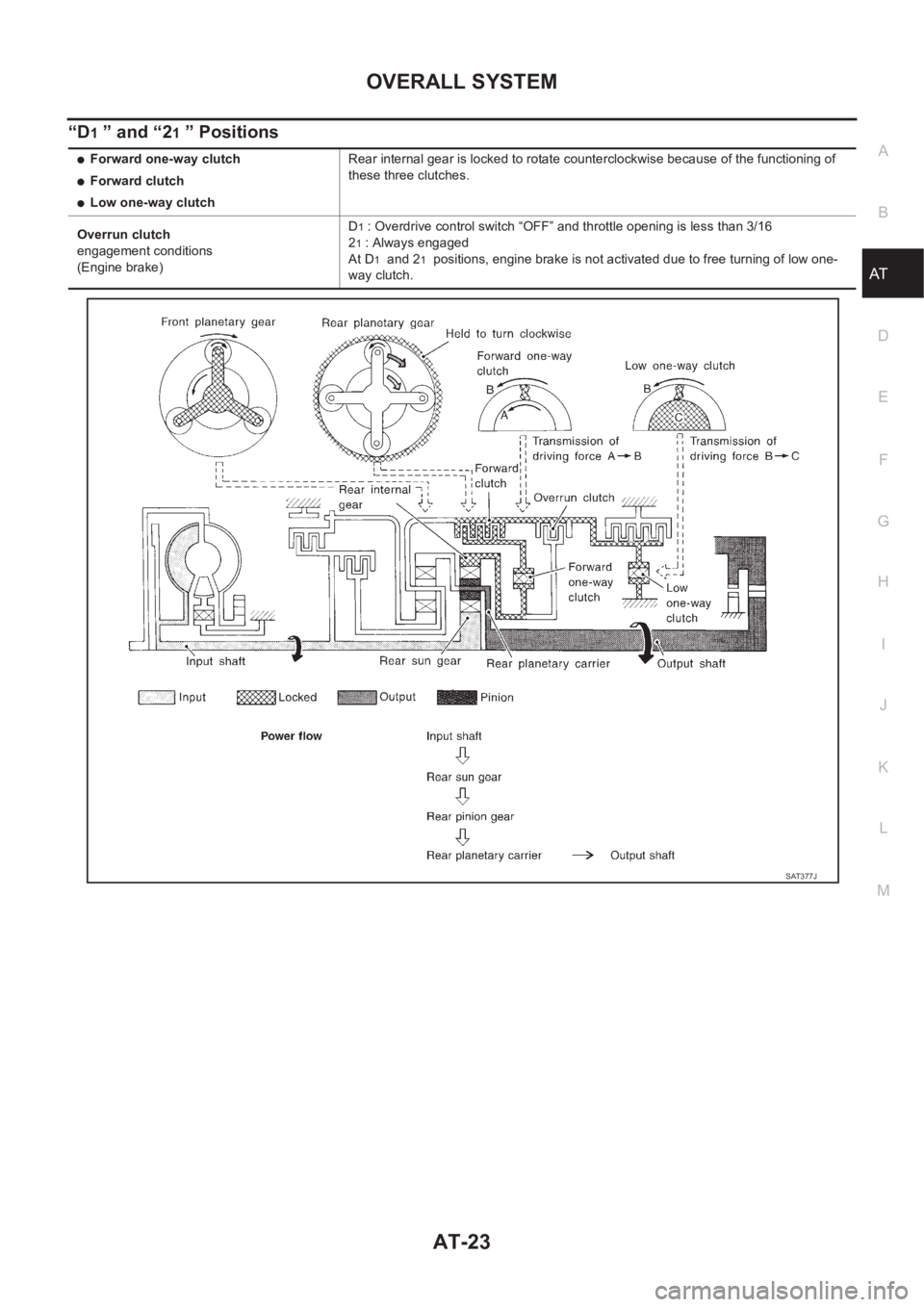

“D1 ” and “21 ” Positions
●Forward one-way clutch
●Forward clutch
●Low one-way clutchRear internal gear is locked to rotate counterclockwis

Page 2102 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual AT-24
OVERALL SYSTEM

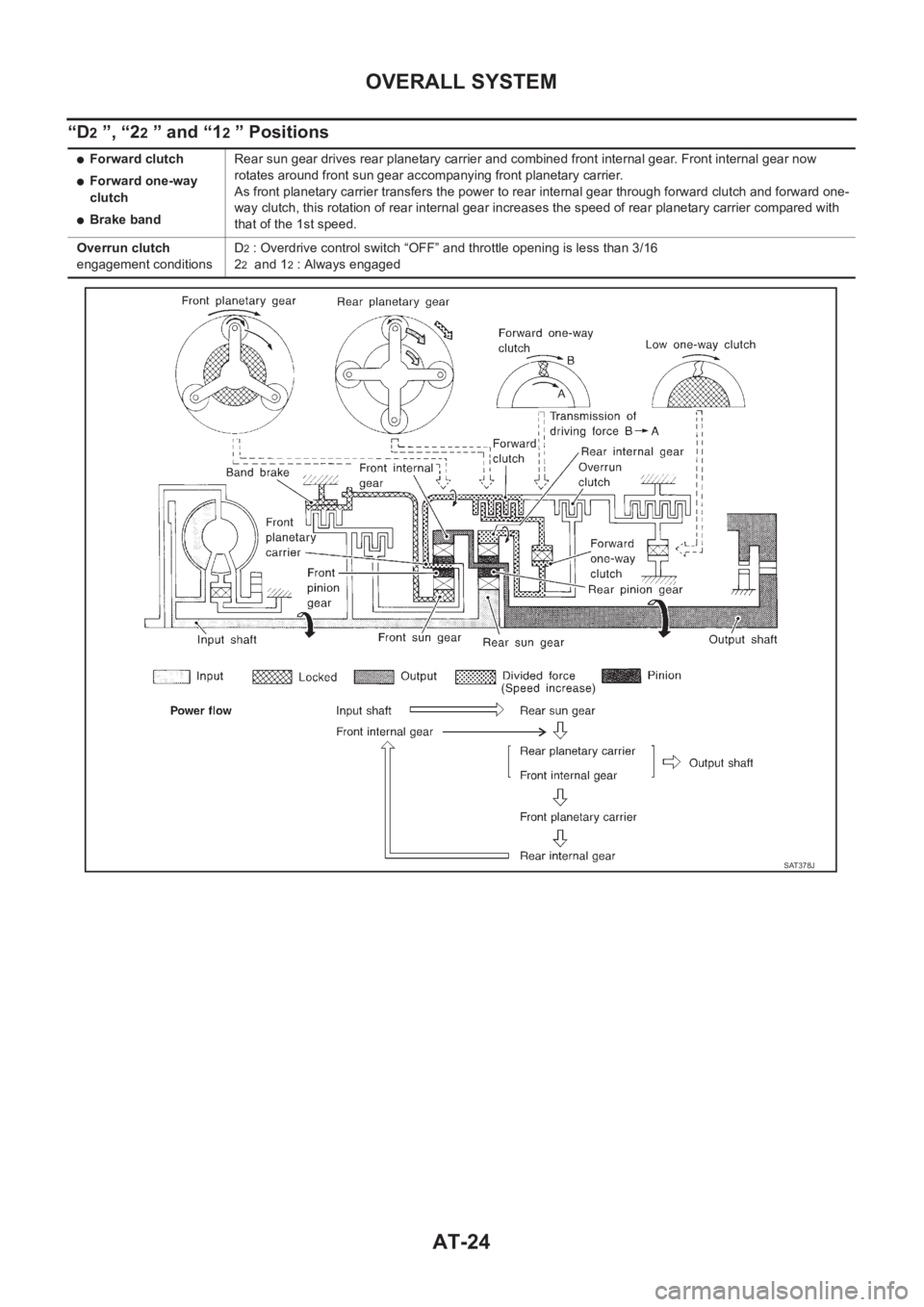

“D2 ”, “22 ” and “12 ” Positions
●Forward clutch
●Forward one-way
clutch
●Brake bandRear sun gear drives rear planetary carrier and combined front internal gear

Page 2103 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual OVERALL SYSTEM
AT-25
D
E
F
G
H
I
J
K
L
MA
B
AT

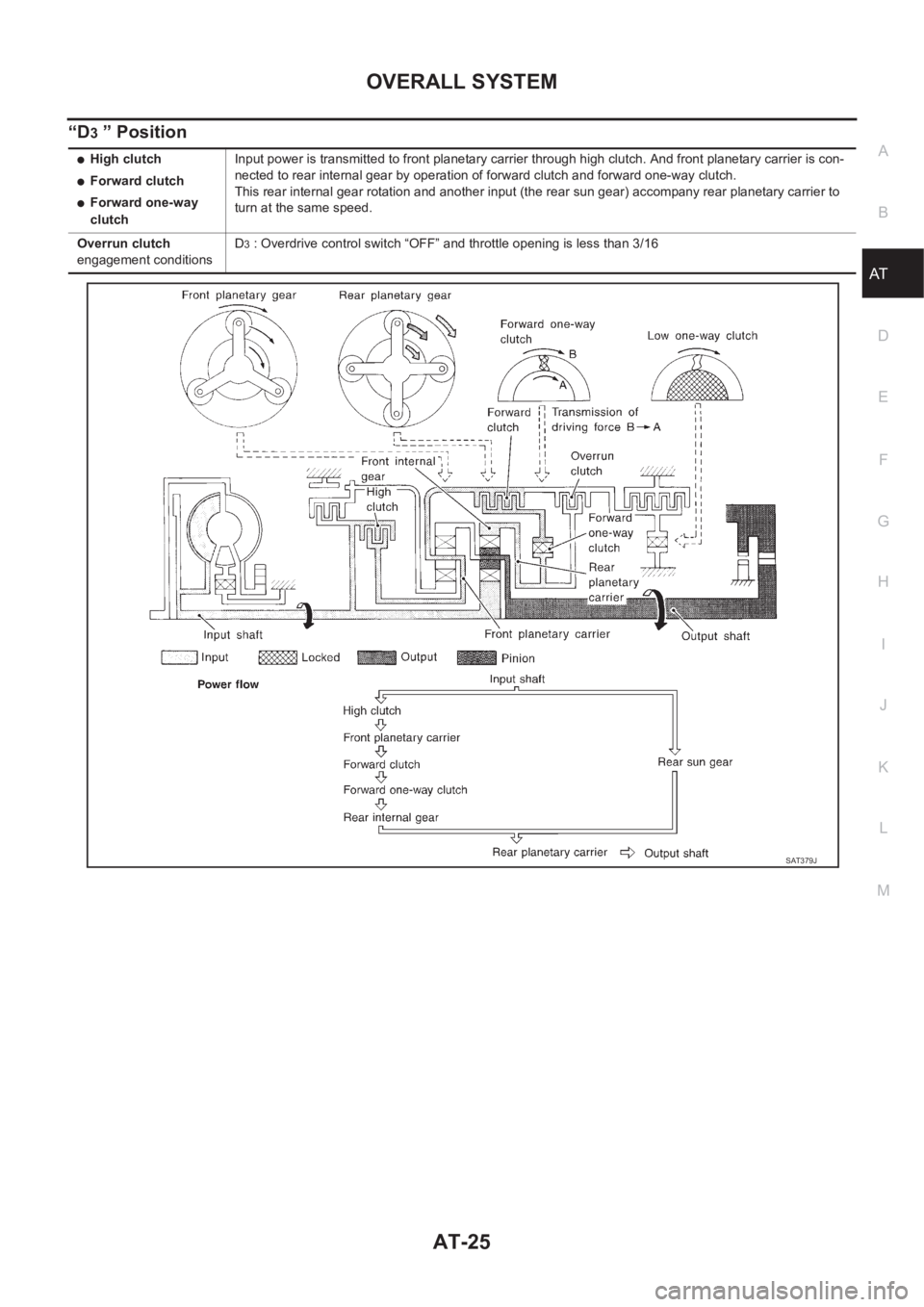

“D3 ” Position
●High clutch
●Forward clutch
●Forward one-way
clutchInput power is transmitted to front planetary carrier through high clutch.

Page 2104 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual AT-26
OVERALL SYSTEM

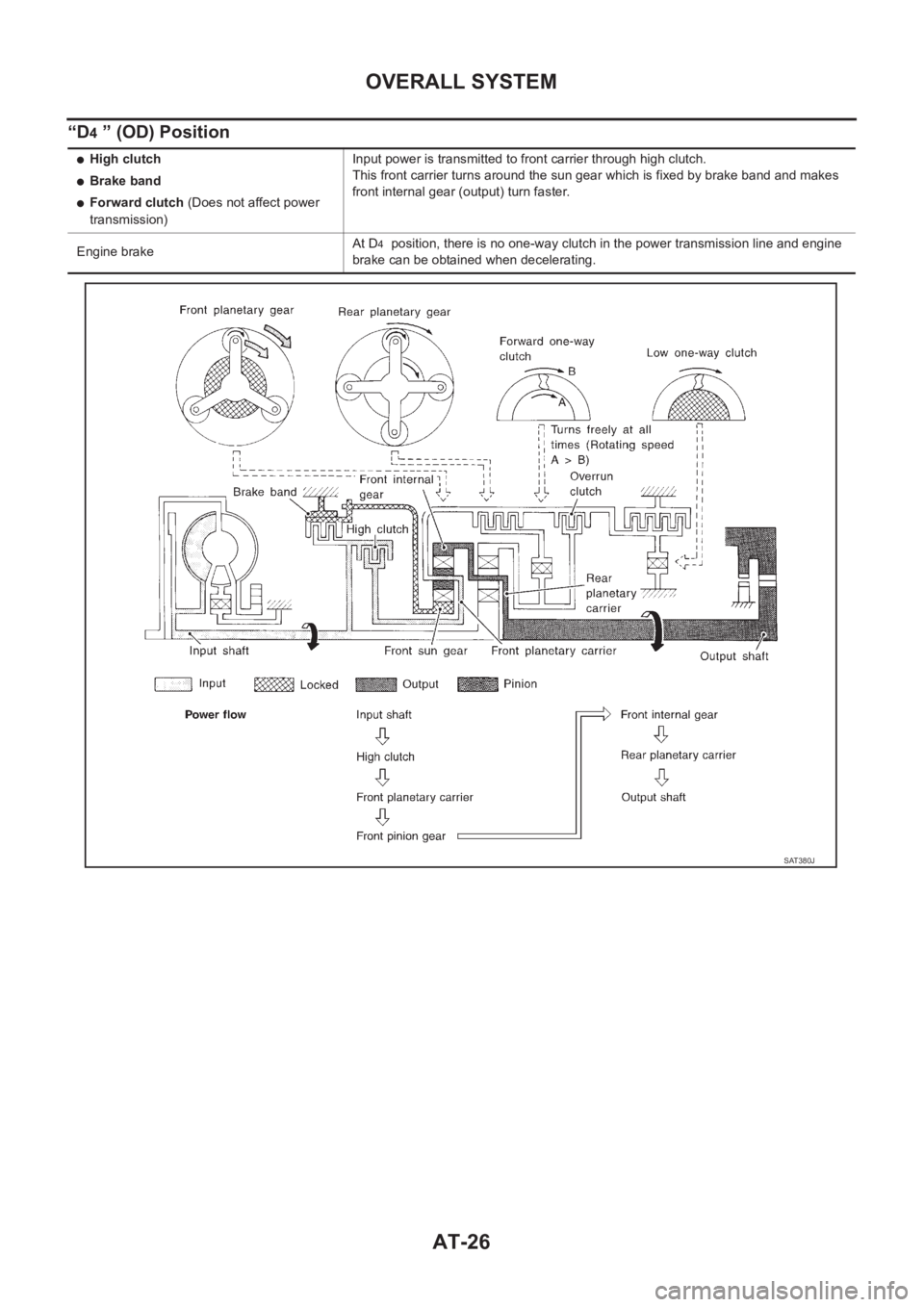

“D4 ” (OD) Position
●High clutch
●Brake band
●Forward clutch (Does not affect power
transmission)Input power is transmitted to front carrier through high clutch.
This f

Page 2105 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual OVERALL SYSTEM
AT-27
D
E
F
G
H
I
J
K
L
MA
B
AT

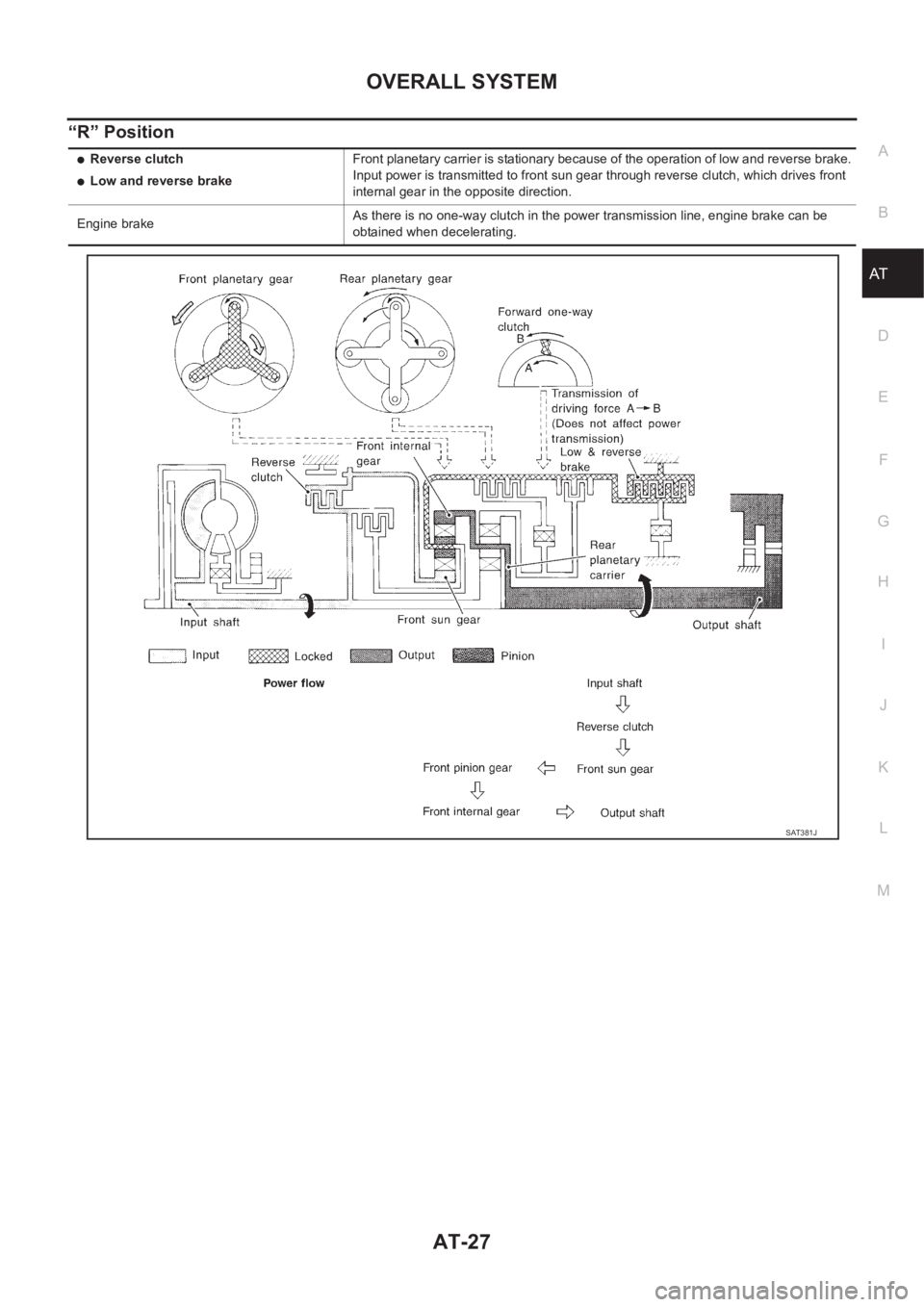

“R” Position
●Reverse clutch
●Low and reverse brakeFront planetary carrier is stationary because of the operation of low and reverse brake.
Input

Page 2106 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual AT-28
OVERALL SYSTEM

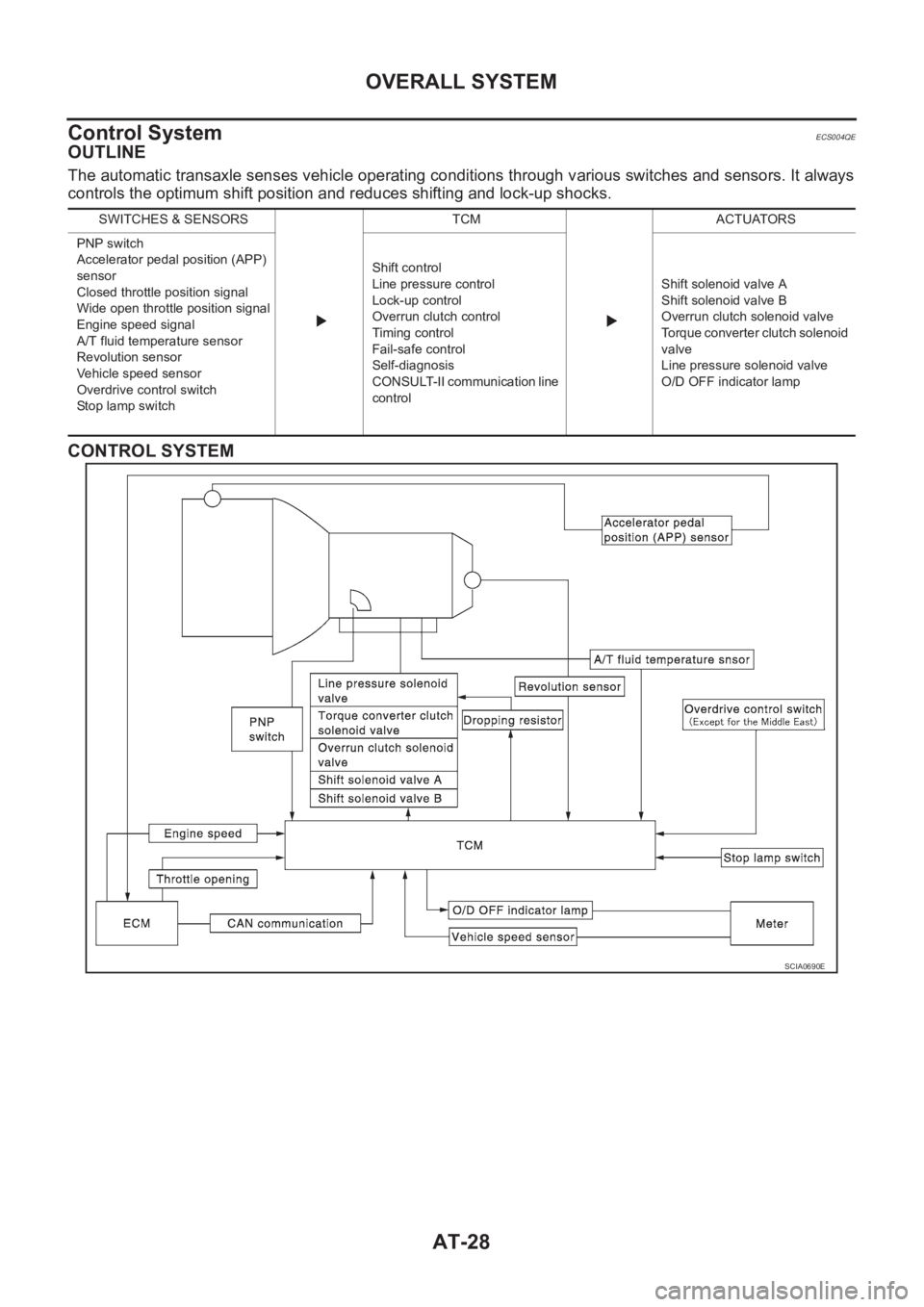

Control System
ECS004QE
OUTLINE
The automatic transaxle senses vehicle operating conditions through various switches and sensors. It always
controls the optimum shift position and

Page 2107 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual OVERALL SYSTEM
AT-29
D
E
F
G
H
I
J
K
L
MA
B
AT

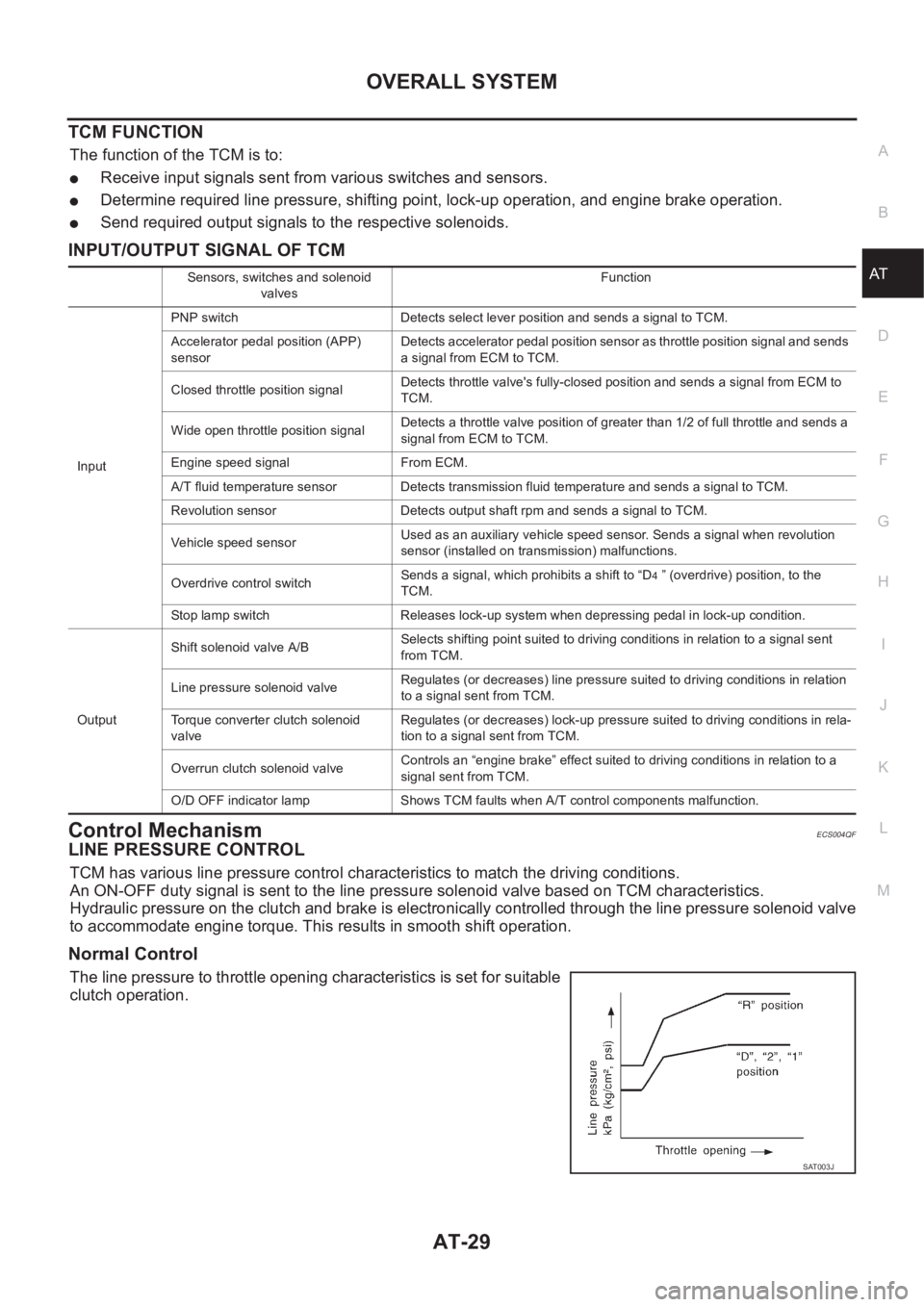

TCM FUNCTION
The function of the TCM is to:
●Receive input signals sent from various switches and sensors.
●Determine required line pressure, shiftin

Page 2108 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual AT-30
OVERALL SYSTEM

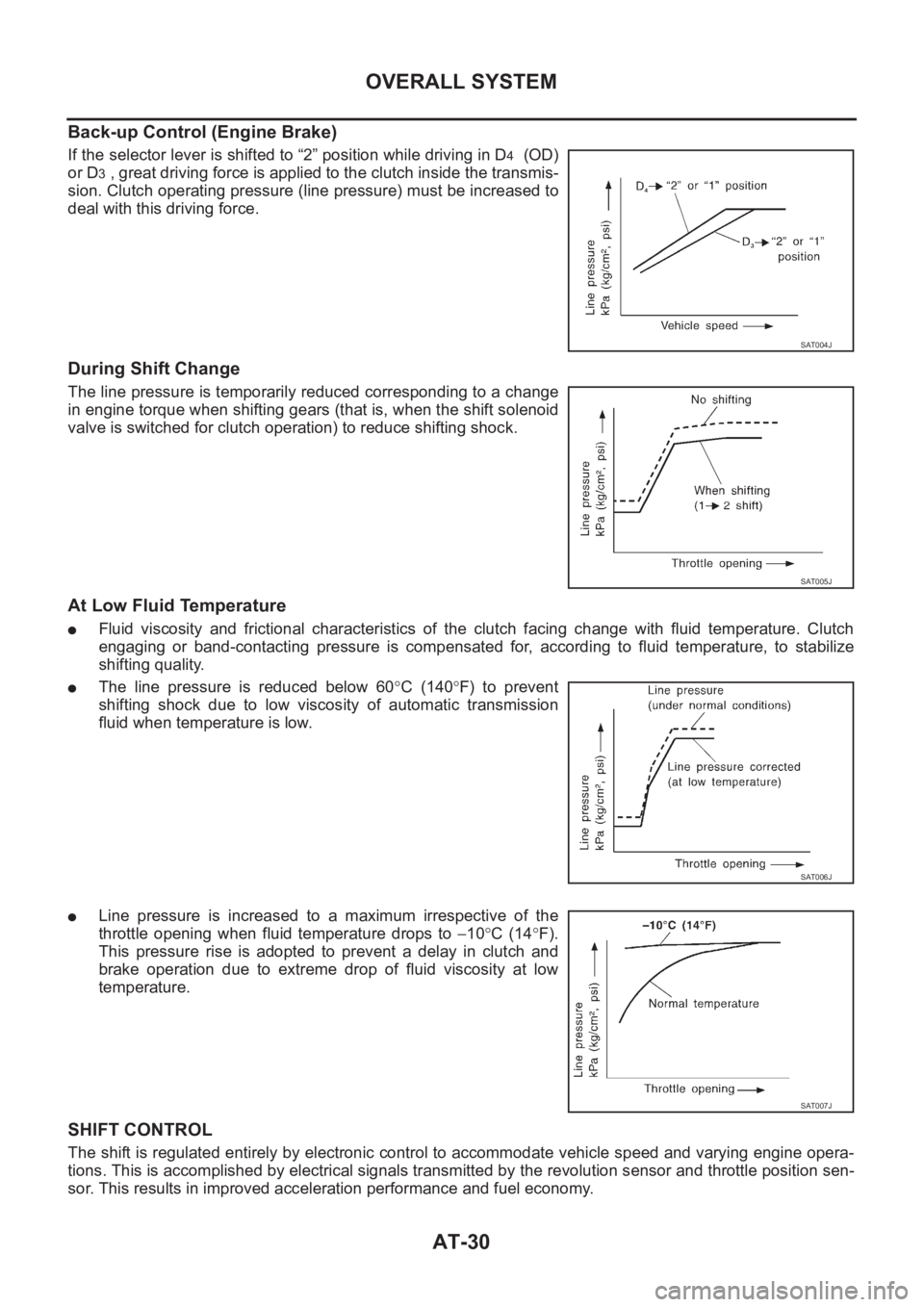

Back-up Control (Engine Brake)
If the selector lever is shifted to “2” position while driving in D4  (OD)
or D
3 , great driving force is applied to the clutch inside the tran

Page 2109 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual OVERALL SYSTEM
AT-31
D
E
F
G
H
I
J
K
L
MA
B
AT

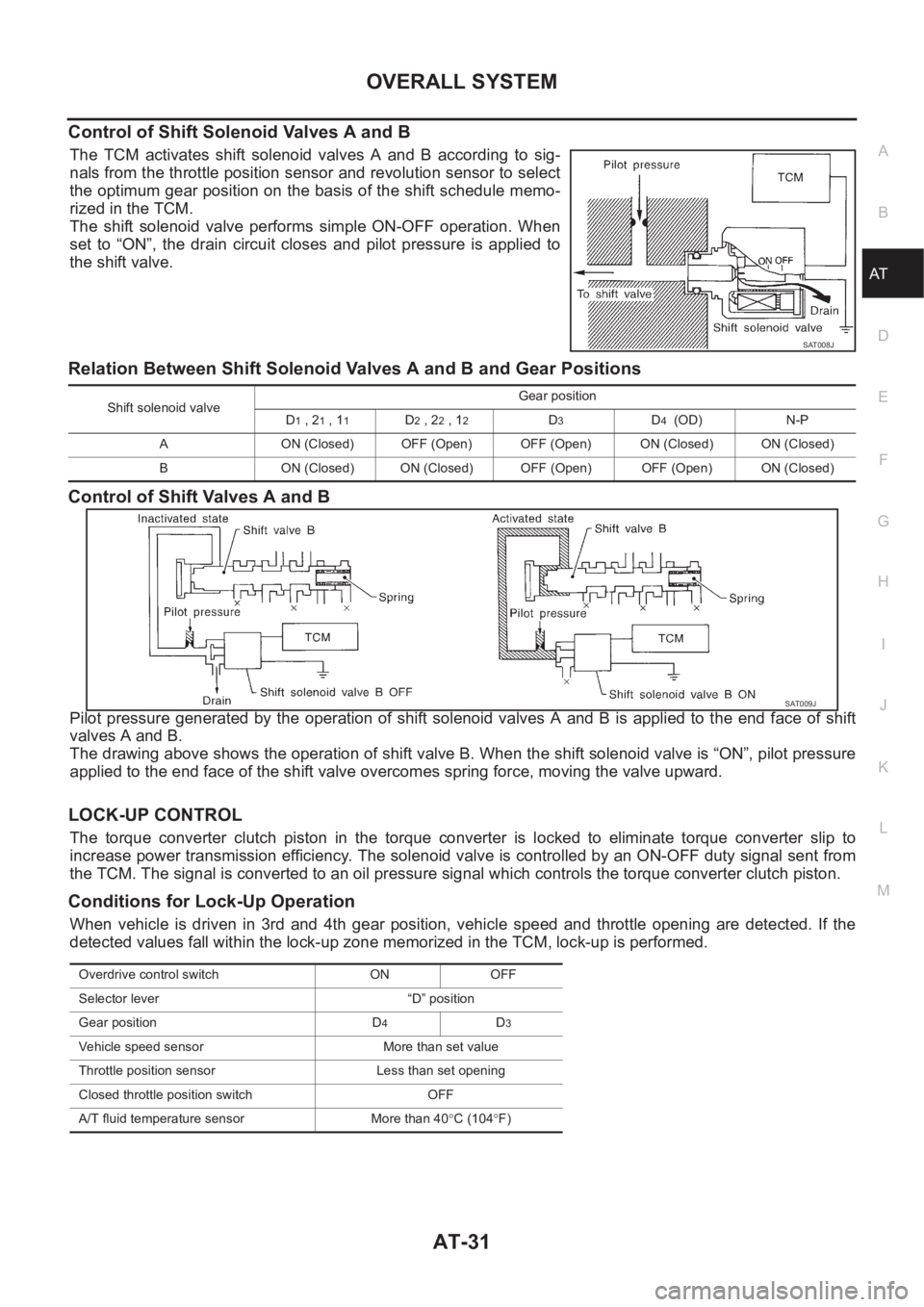

Control of Shift Solenoid Valves A and B
The  TCM  activates  shift  solenoid  valves  A  and  B  according  to  sig-
nals from the throttle position sen

Page 2110 of 3833

NISSAN X-TRAIL 2001  Service Repair Manual AT-32
OVERALL SYSTEM

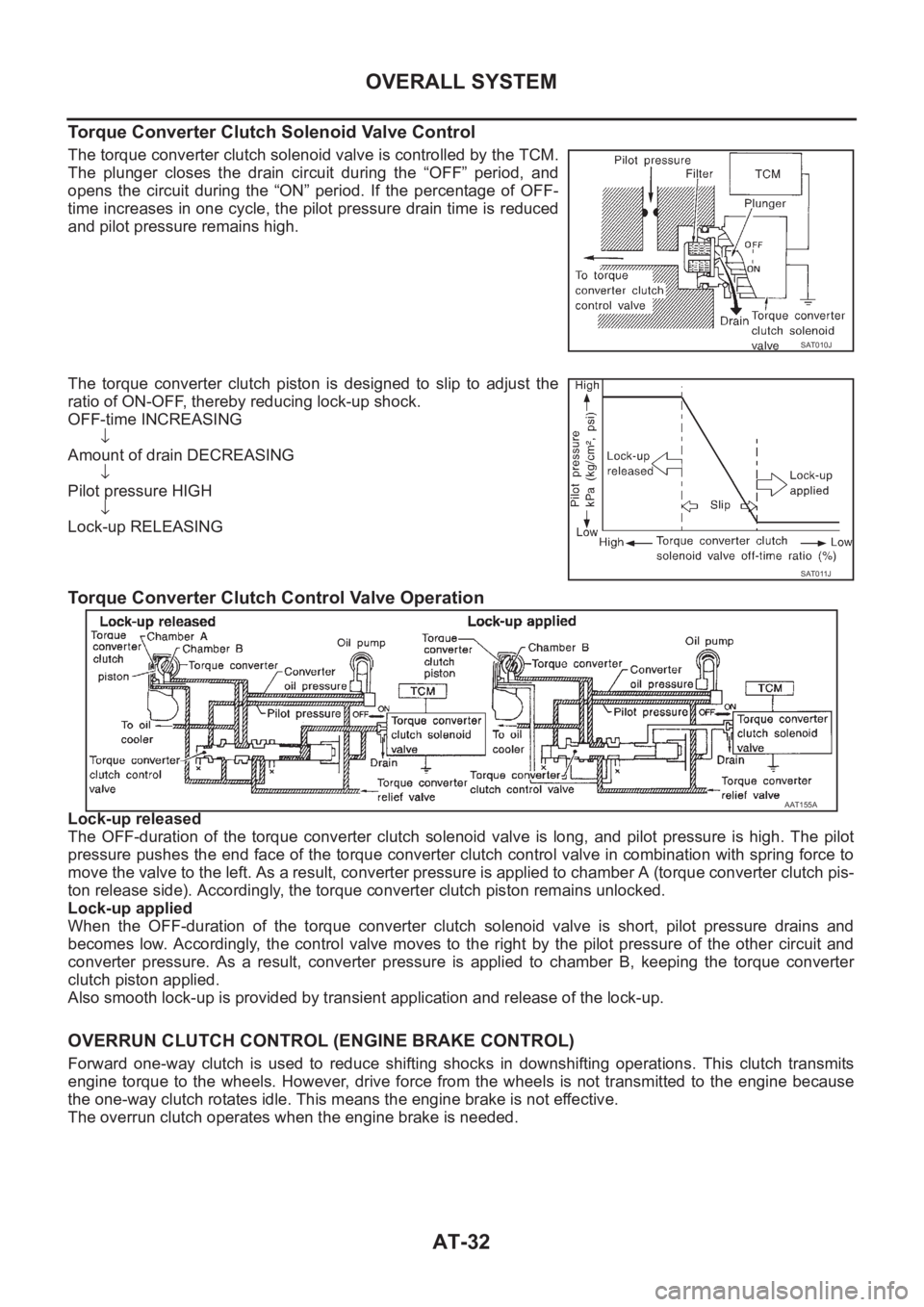

Torque Converter Clutch Solenoid Valve Control
The torque converter clutch solenoid valve is controlled by the TCM.
The  plunger  closes  the  drain  circuit  during  the  “OFF
