NISSAN X-TRAIL 2001 Service Repair Manual

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-313
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
3.CHECK LAMP CIRCUIT
1. Turn ignition switch to “OFF” position.
2. Check resistance between TCM terminals 13 and 10, 19.
3. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG >> Check the following items:
●O/D OFF indicator lamp.
Refer to DI-10, "
Meter/Gauge Operation and Odo/Trip
Meter Segment Check in Diagnosis Mode" .
●Harness and fuse for short or open between ignition
switch and O/D OFF indicator lamp
Refer to PG-2, "
POWER SUPPLY ROUTING" .
●Harness for short or open between O/D OFF indicator lamp and TCM.
4.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector. Resistance: 50 - 100Ω
SCIA0767E

AT-314
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

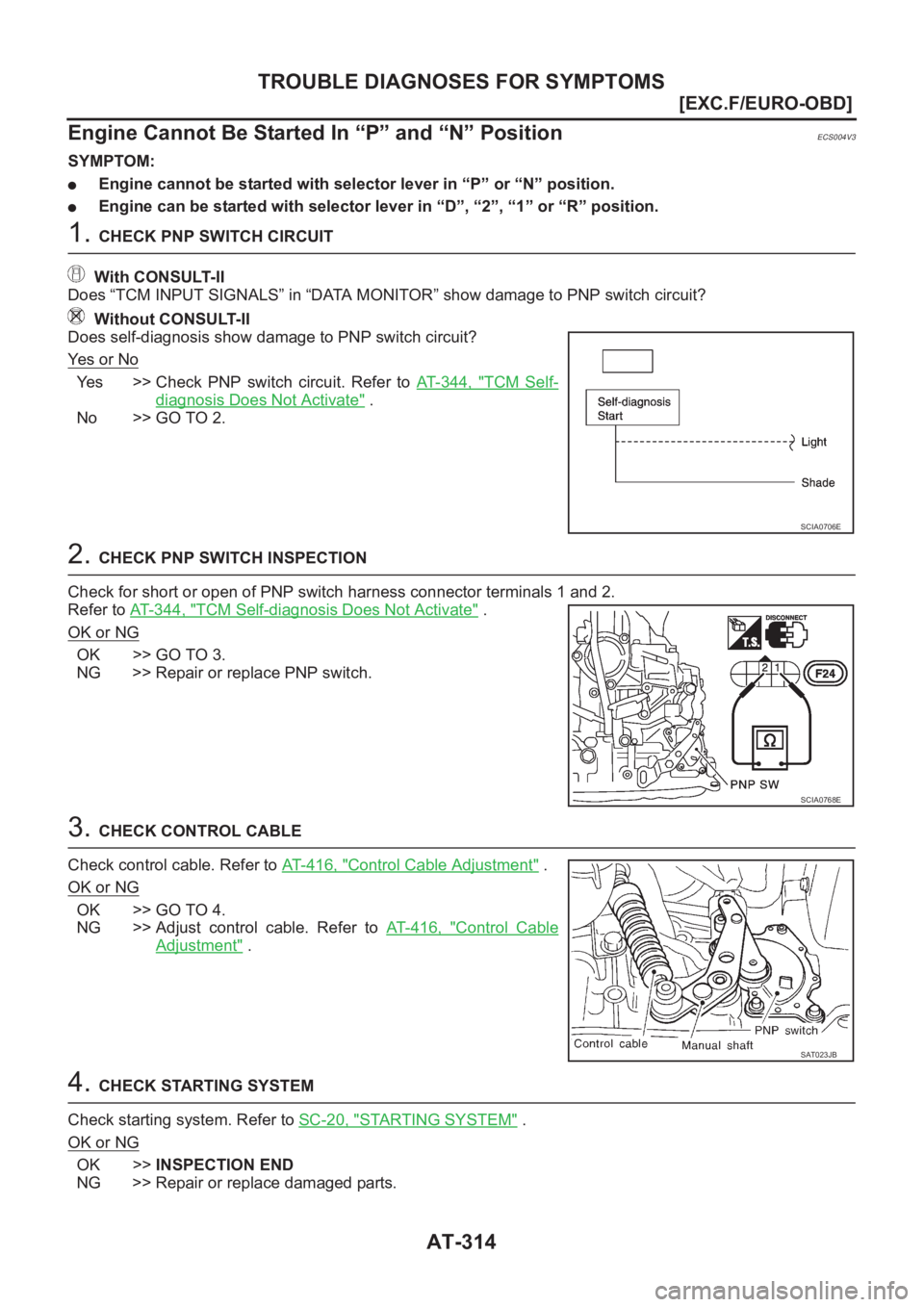

Engine Cannot Be Started In “P” and “N” Position
ECS004V3
SYMPTOM:
●Engine cannot be started with selector lever in “P” or “N” position.
●Engine can be started with selector lever in “D”, “2”, “1” or “R” position.
1. CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does “TCM INPUT SIGNALS” in “DATA MONITOR” show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
Ye s o r N o
Yes >> Check PNP switch circuit. Refer to AT- 3 4 4 , "TCM Self-
diagnosis Does Not Activate" .
No >> GO TO 2.
2. CHECK PNP SWITCH INSPECTION
Check for short or open of PNP switch harness connector terminals 1 and 2.
Refer to AT-344, "
TCM Self-diagnosis Does Not Activate" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace PNP switch.
3. CHECK CONTROL CABLE
Check control cable. Refer to AT- 4 1 6 , "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 4.
NG >> Adjust control cable. Refer to AT- 4 1 6 , "
Control Cable
Adjustment" .
4. CHECK STARTING SYSTEM
Check starting system. Refer to SC-20, "
STARTING SYSTEM" .
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
SCIA0706E
SCIA0768E
SAT023JB

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-315
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

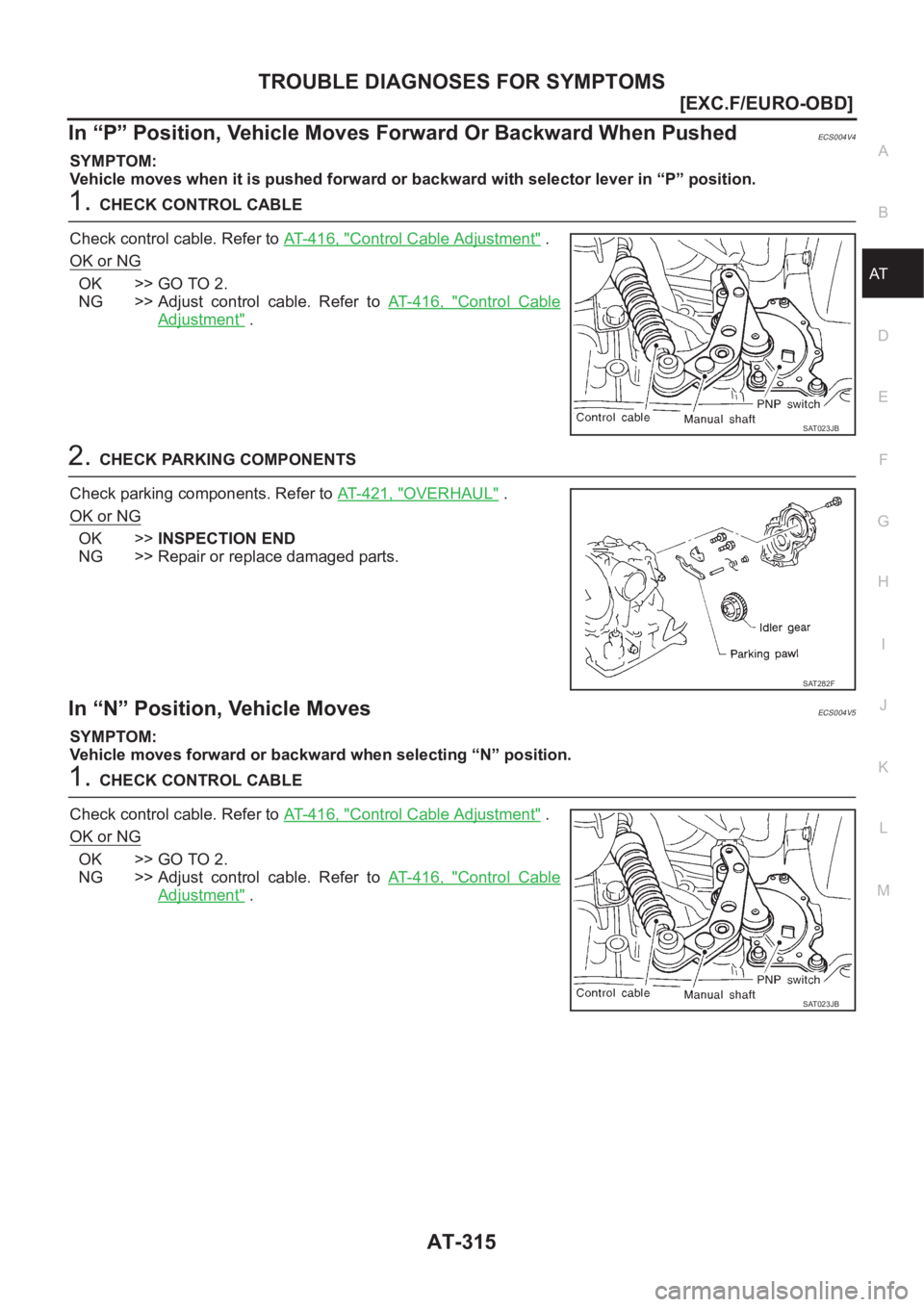

In “P” Position, Vehicle Moves Forward Or Backward When PushedECS004V4
SYMPTOM:
Vehicle moves when it is pushed forward or backward with selector lever in “P” position.
1.CHECK CONTROL CABLE
Check control cable. Refer to AT-416, "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 2.
NG >> Adjust control cable. Refer to AT- 4 1 6 , "
Control Cable
Adjustment" .
2.CHECK PARKING COMPONENTS
Check parking components. Refer to AT- 4 2 1 , "
OVERHAUL" .
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
In “N” Position, Vehicle MovesECS004V5
SYMPTOM:
Vehicle moves forward or backward when selecting “N” position.
1.CHECK CONTROL CABLE
Check control cable. Refer to AT-416, "
Control Cable Adjustment" .
OK or NG
OK >> GO TO 2.
NG >> Adjust control cable. Refer to AT- 4 1 6 , "
Control Cable
Adjustment" .
SAT023JB
SAT282F
SAT023JB

AT-316
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

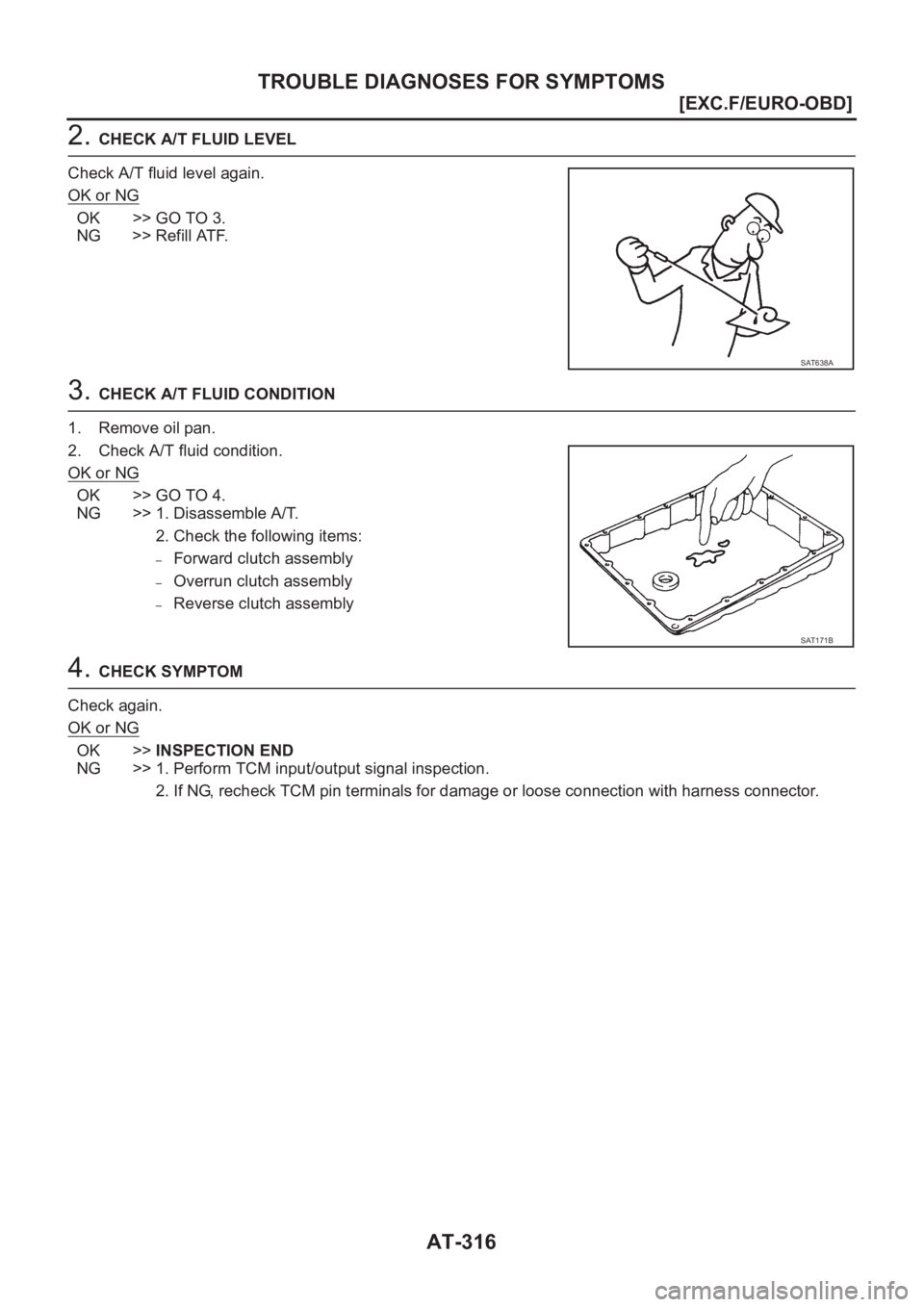

2. CHECK A/T FLUID LEVEL
Check A/T fluid level again.
OK or NG
OK >> GO TO 3.
NG >> Refill ATF.
3. CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 4.
NG >> 1. Disassemble A/T.
2. Check the following items:
–Forward clutch assembly
–Overrun clutch assembly
–Reverse clutch assembly
4. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SAT638A
SAT171B

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-317
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

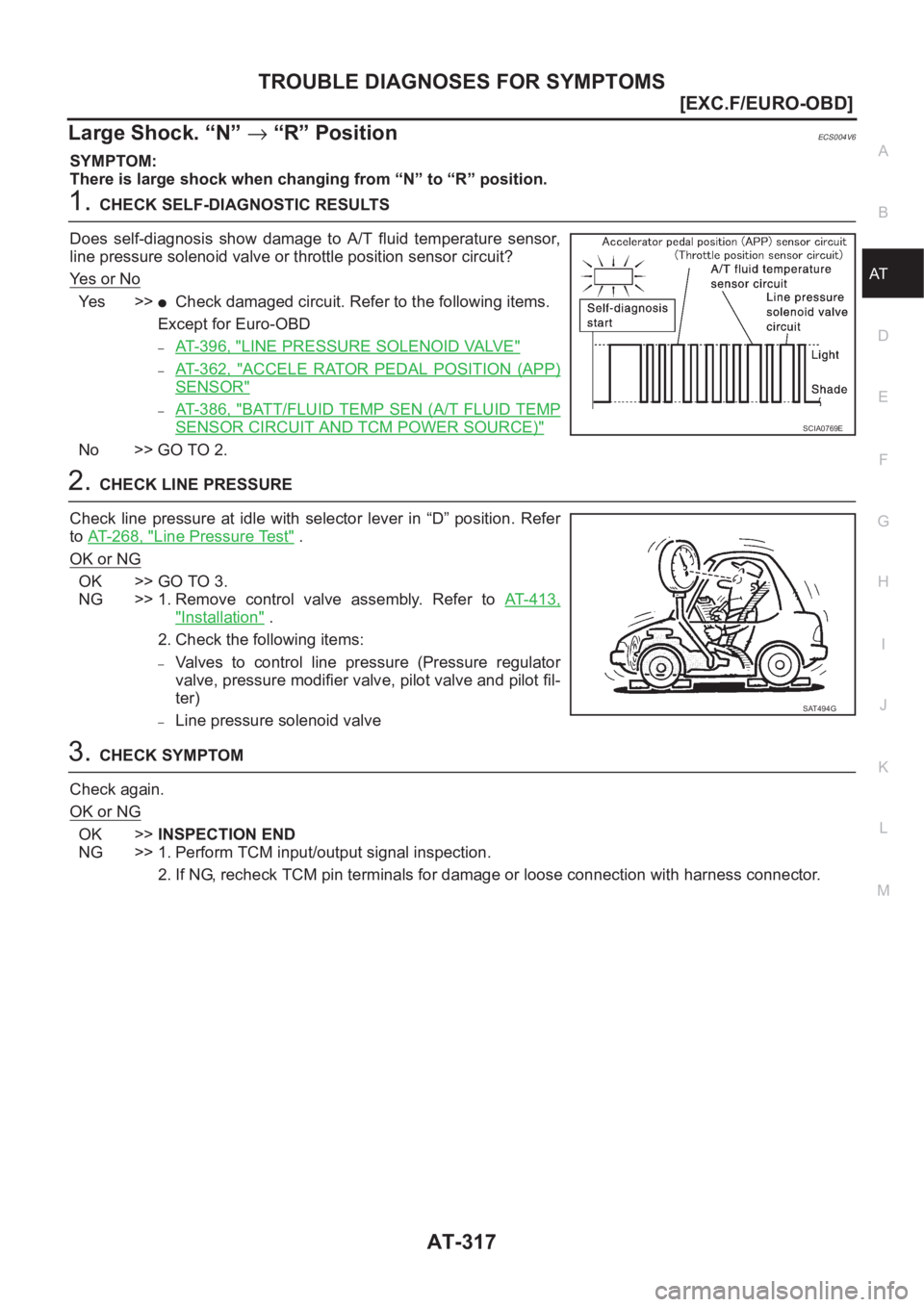

Large Shock. “N” → “R” PositionECS004V6
SYMPTOM:
There is large shock when changing from “N” to “R” position.
1.CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to A/T fluid temperature sensor,
line pressure solenoid valve or throttle position sensor circuit?
Ye s o r N o
Ye s > >●Check damaged circuit. Refer to the following items.
Except for Euro-OBD
–AT-396, "LINE PRESSURE SOLENOID VALVE"
–AT- 3 6 2 , "ACCELE RATOR PEDAL POSITION (APP)
SENSOR"
–AT- 3 8 6 , "BATT/FLUID TEMP SEN (A/T FLUID TEMP
SENSOR CIRCUIT AND TCM POWER SOURCE)"
No >> GO TO 2.
2.CHECK LINE PRESSURE
Check line pressure at idle with selector lever in “D” position. Refer
to AT-268, "
Line Pressure Test" .
OK or NG
OK >> GO TO 3.
NG >>1.Remove control valve assembly. Refer to AT- 4 1 3 ,
"Installation" .
2. Check the following items:
–Valves to control line pressure (Pressure regulator
valve, pressure modifier valve, pilot valve and pilot fil-
ter)
–Line pressure solenoid valve
3.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SCIA0769E
SAT494G

AT-318
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

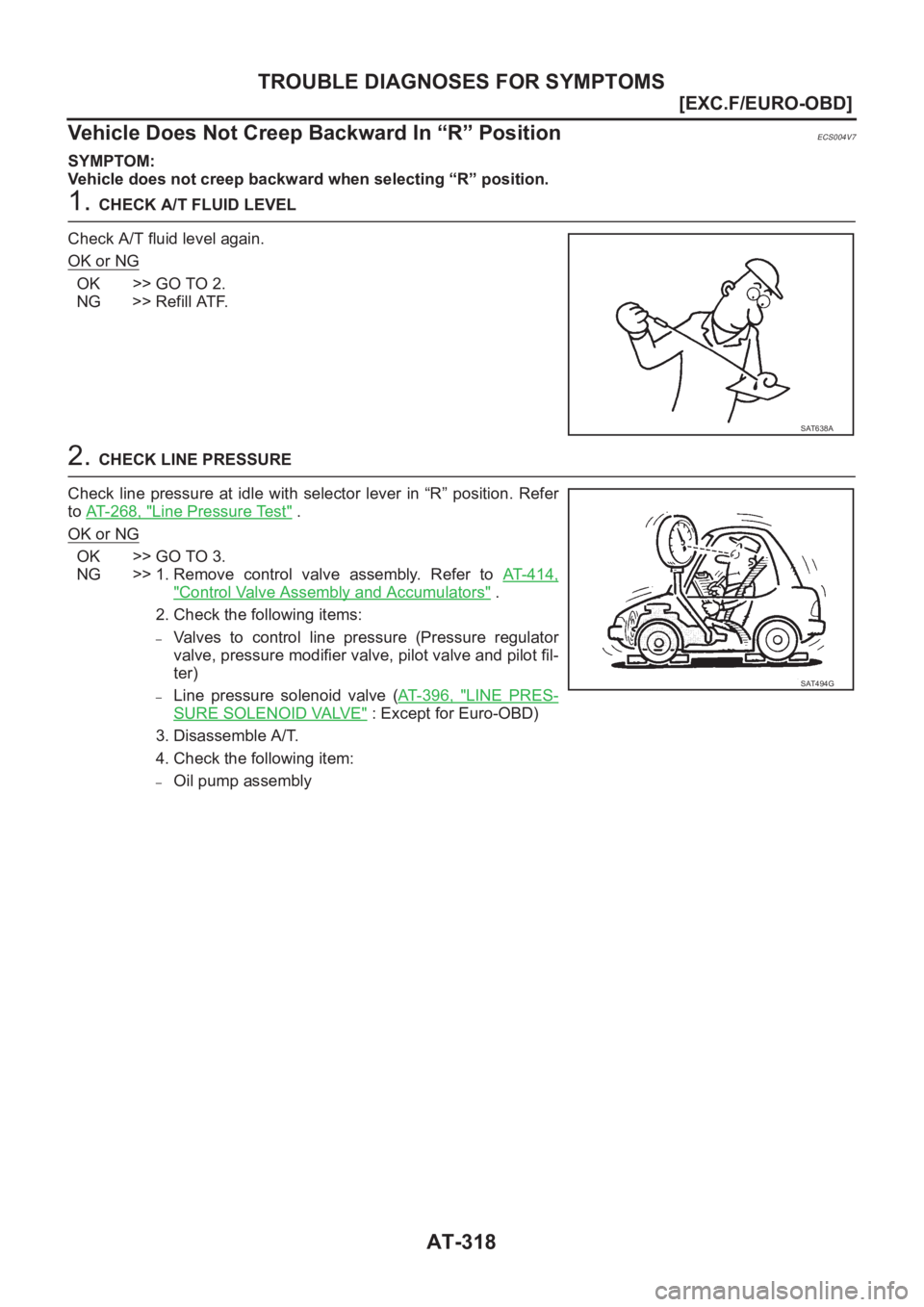

Vehicle Does Not Creep Backward In “R” Position
ECS004V7
SYMPTOM:
Vehicle does not creep backward when selecting “R” position.
1. CHECK A/T FLUID LEVEL
Check A/T fluid level again.
OK or NG
OK >> GO TO 2.
NG >> Refill ATF.
2. CHECK LINE PRESSURE
Check line pressure at idle with selector lever in “R” position. Refer
to AT- 2 6 8 , "
Line Pressure Test" .
OK or NG
OK >> GO TO 3.
NG >> 1. Remove control valve assembly. Refer to AT- 4 1 4 ,
"Control Valve Assembly and Accumulators" .
2. Check the following items:
–Valves to control line pressure (Pressure regulator
valve, pressure modifier valve, pilot valve and pilot fil-
ter)
–Line pressure solenoid valve (AT- 3 9 6 , "LINE PRES-
SURE SOLENOID VALVE" : Except for Euro-OBD)
3. Disassemble A/T.
4. Check the following item:
–Oil pump assembly
SAT638A
SAT494G

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-319
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

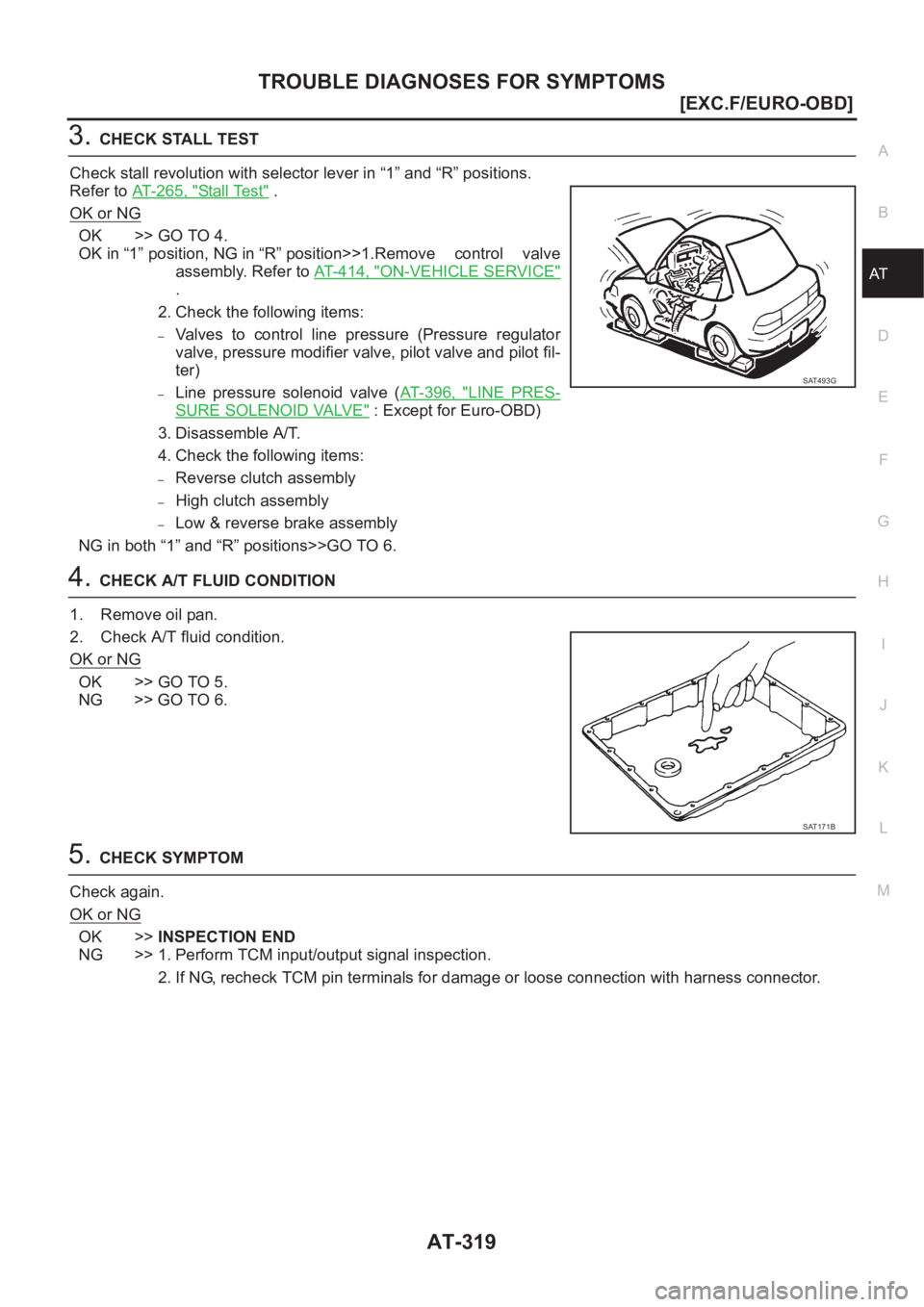

3.CHECK STALL TEST
Check stall revolution with selector lever in “1” and “R” positions.
Refer to AT- 2 6 5 , "
Stal l Te st" .
OK or NG
OK >> GO TO 4.
OK in “1” position, NG in “R” position>>1.Remove control valve
assembly. Refer to AT-414, "
ON-VEHICLE SERVICE"
.
2. Check the following items:
–Valves to control line pressure (Pressure regulator
valve, pressure modifier valve, pilot valve and pilot fil-
ter)
–Line pressure solenoid valve (AT- 3 9 6 , "LINE PRES-
SURE SOLENOID VALVE" : Except for Euro-OBD)
3. Disassemble A/T.
4. Check the following items:
–Reverse clutch assembly
–High clutch assembly
–Low & reverse brake assembly
NG in both “1” and “R” positions>>GO TO 6.
4.CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 5.
NG >> GO TO 6.
5.CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
SAT493G
SAT171B

AT-320
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

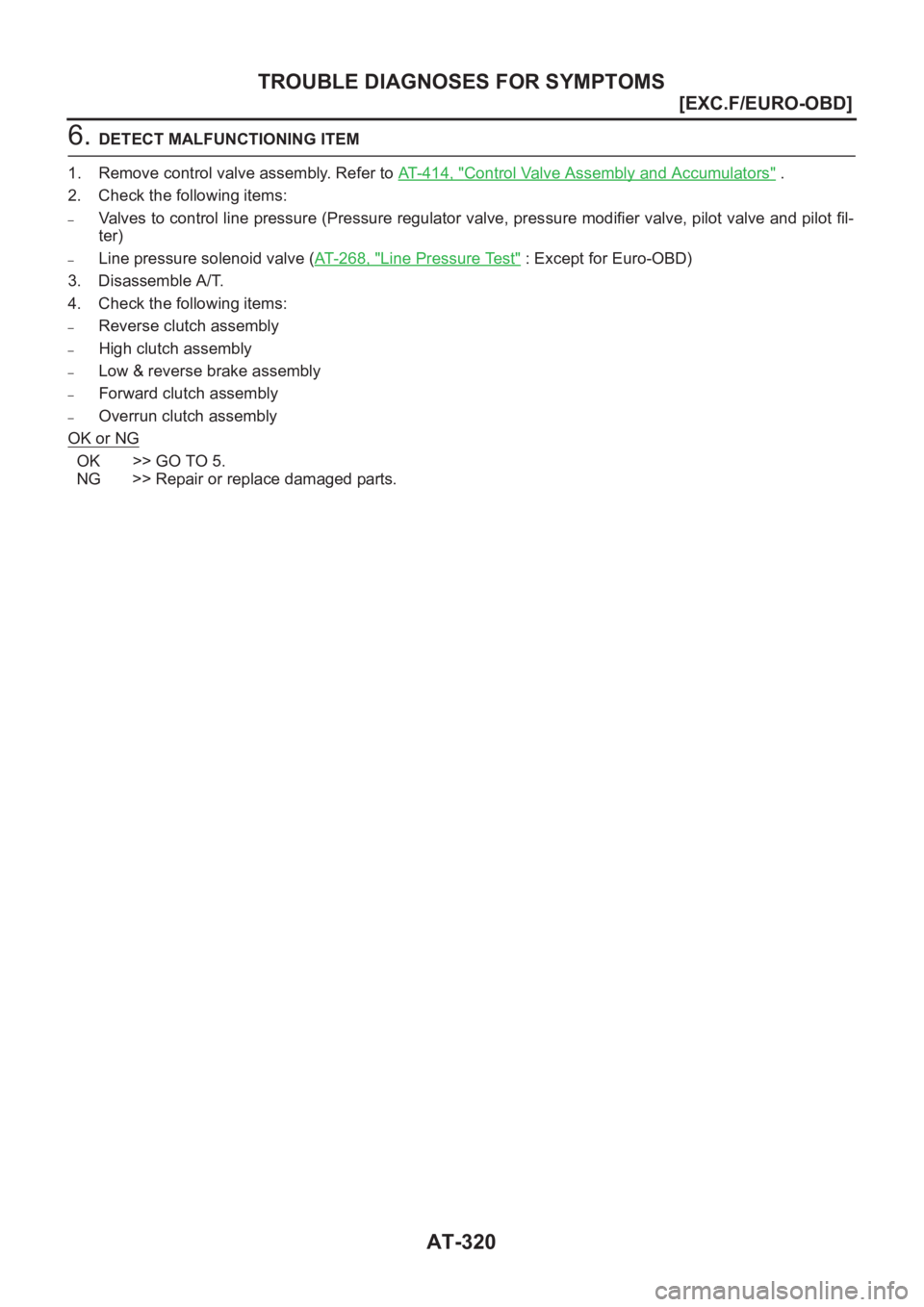

6. DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to AT- 4 1 4 , "
Control Valve Assembly and Accumulators" .
2. Check the following items:
–Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot valve and pilot fil-
ter)
–Line pressure solenoid valve (AT- 2 6 8 , "Line Pressure Test" : Except for Euro-OBD)
3. Disassemble A/T.
4. Check the following items:
–Reverse clutch assembly
–High clutch assembly
–Low & reverse brake assembly
–Forward clutch assembly
–Overrun clutch assembly
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.

TROUBLE DIAGNOSES FOR SYMPTOMS
AT-321
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

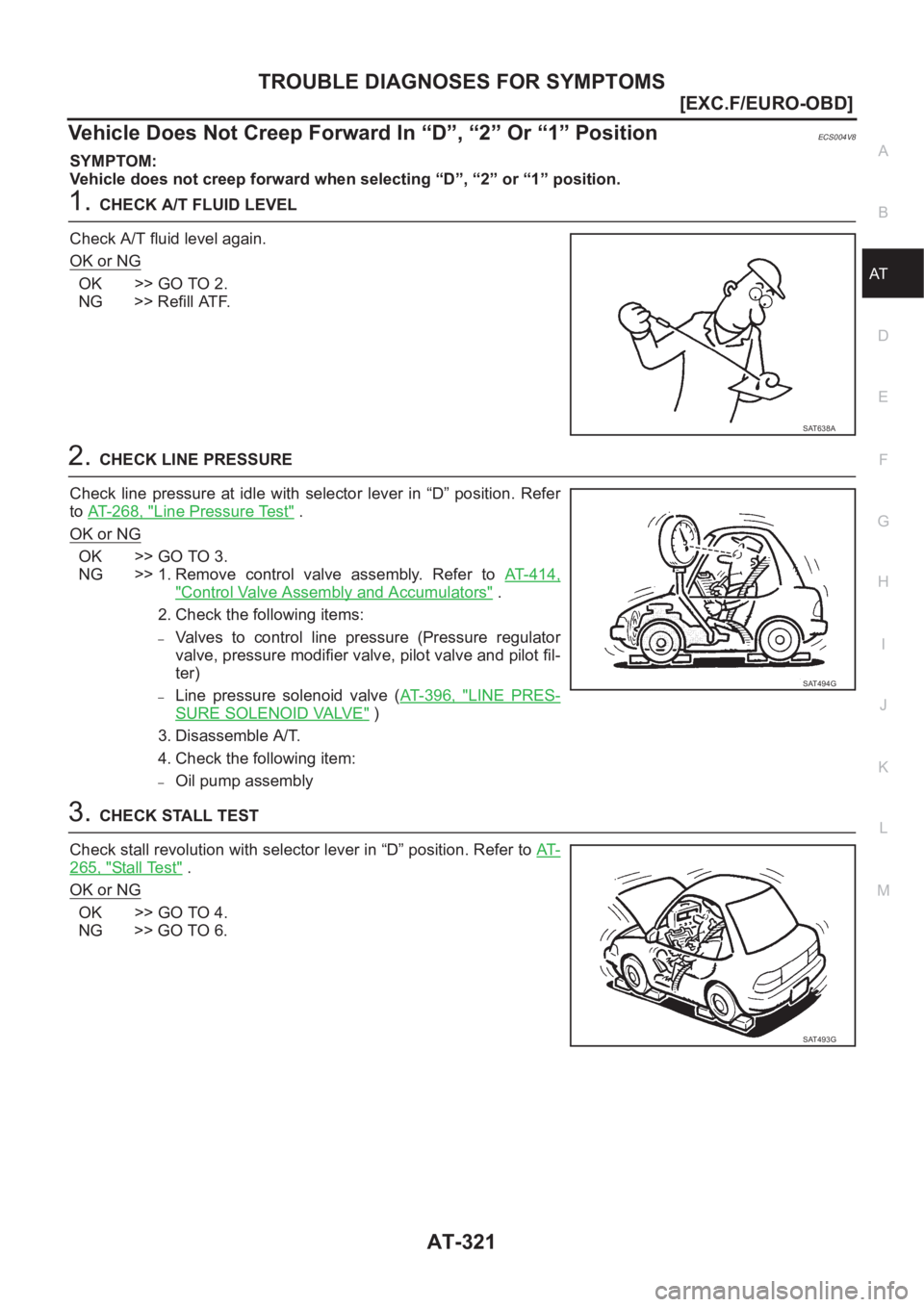

Vehicle Does Not Creep Forward In “D”, “2” Or “1” PositionECS004V8
SYMPTOM:
Vehicle does not creep forward when selecting “D”, “2” or “1” position.
1.CHECK A/T FLUID LEVEL
Check A/T fluid level again.
OK or NG
OK >> GO TO 2.
NG >> Refill ATF.
2.CHECK LINE PRESSURE
Check line pressure at idle with selector lever in “D” position. Refer
to AT-268, "
Line Pressure Test" .
OK or NG
OK >> GO TO 3.
NG >>1.Remove control valve assembly. Refer to AT- 4 1 4 ,
"Control Valve Assembly and Accumulators" .
2. Check the following items:
–Valves to control line pressure (Pressure regulator
valve, pressure modifier valve, pilot valve and pilot fil-
ter)
–Line pressure solenoid valve (AT- 3 9 6 , "LINE PRES-
SURE SOLENOID VALVE" )
3. Disassemble A/T.
4. Check the following item:
–Oil pump assembly
3.CHECK STALL TEST
Check stall revolution with selector lever in “D” position. Refer to AT-
265, "Stall Test" .
OK or NG
OK >> GO TO 4.
NG >> GO TO 6.
SAT638A
SAT494G
SAT493G

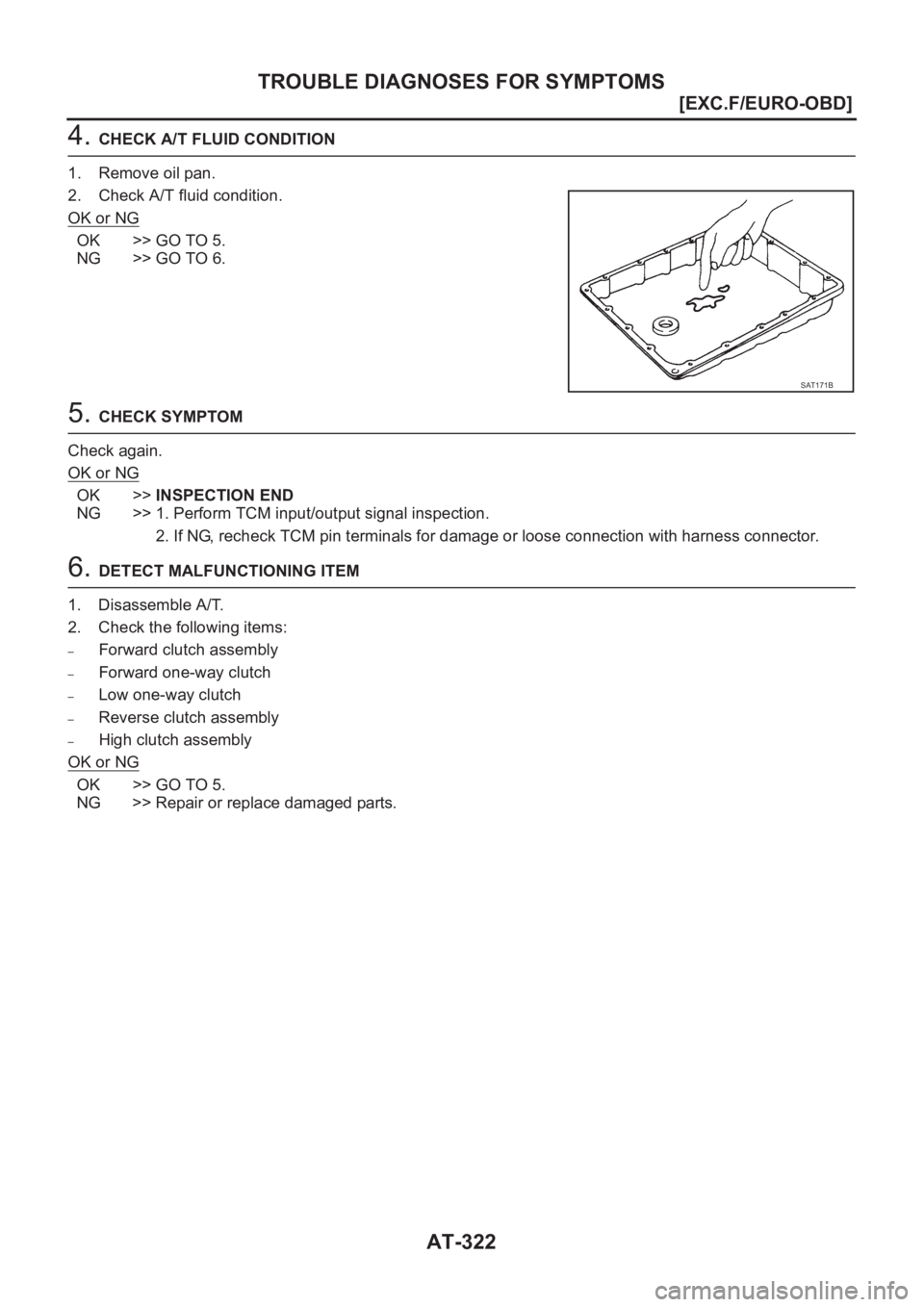

AT-322
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
4. CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
OK or NG
OK >> GO TO 5.
NG >> GO TO 6.
5. CHECK SYMPTOM
Check again.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
6. DETECT MALFUNCTIONING ITEM
1. Disassemble A/T.
2. Check the following items:
–Forward clutch assembly
–Forward one-way clutch
–Low one-way clutch
–Reverse clutch assembly
–High clutch assembly
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
SAT171B
