NISSAN X-TRAIL 2001 Service Repair Manual

DRIVER AIR BAG MODULE
SRS-29
C
D
E
F
G
I
J
K
L
MA
B
SRS

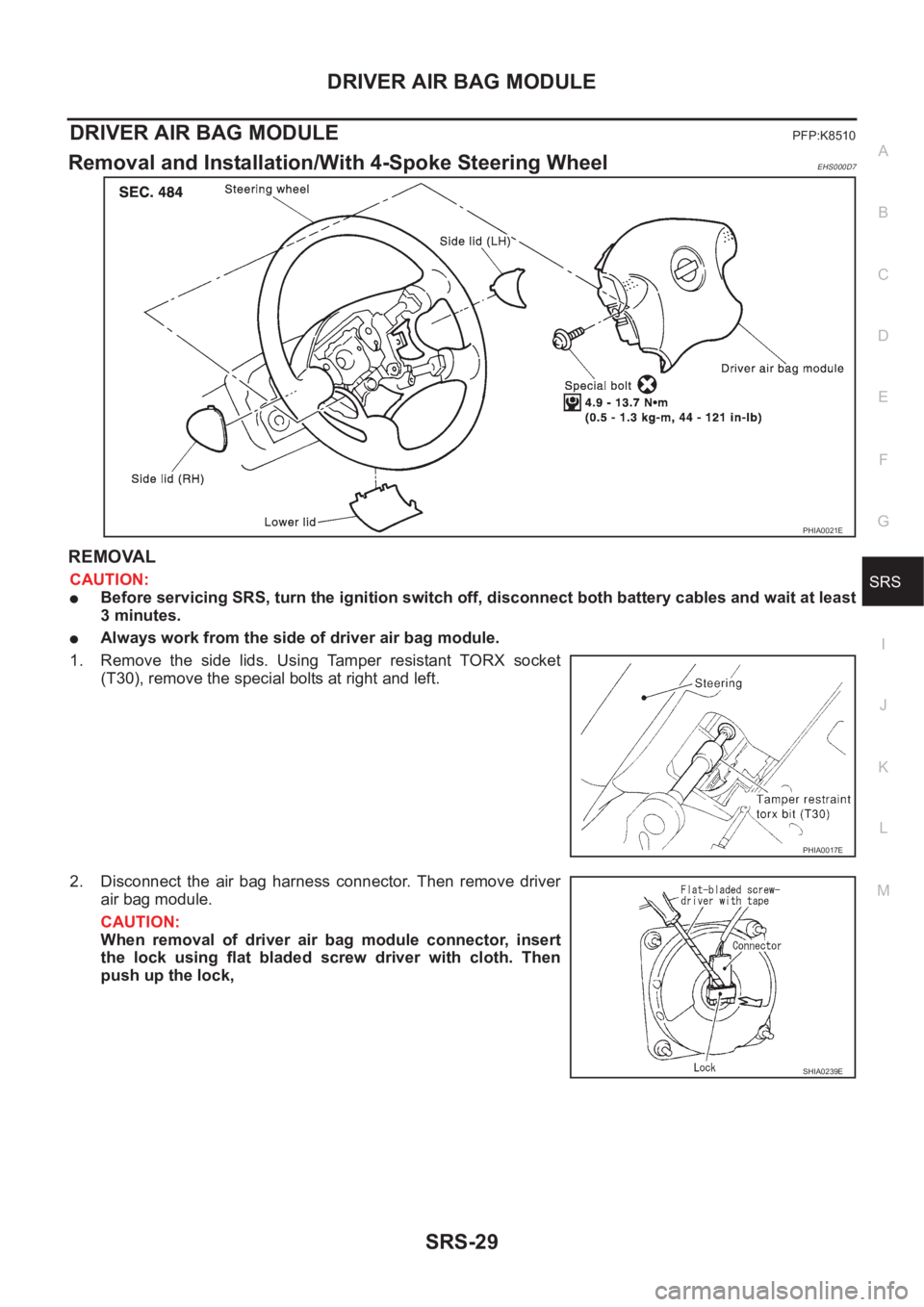

DRIVER AIR BAG MODULEPFP:K8510
Removal and Installation/With 4-Spoke Steering WheelEHS000D7
REMOVAL
CAUTION:
●Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least
3 minutes.
●Always work from the side of driver air bag module.
1. Remove the side lids. Using Tamper resistant TORX socket
(T30), remove the special bolts at right and left.
2. Disconnect the air bag harness connector. Then remove driver
air bag module.
CAUTION:
When removal of driver air bag module connector, insert
the lock using flat bladed screw driver with cloth. Then
push up the lock,
PHIA0021E
PHIA0017E
SHIA0239E

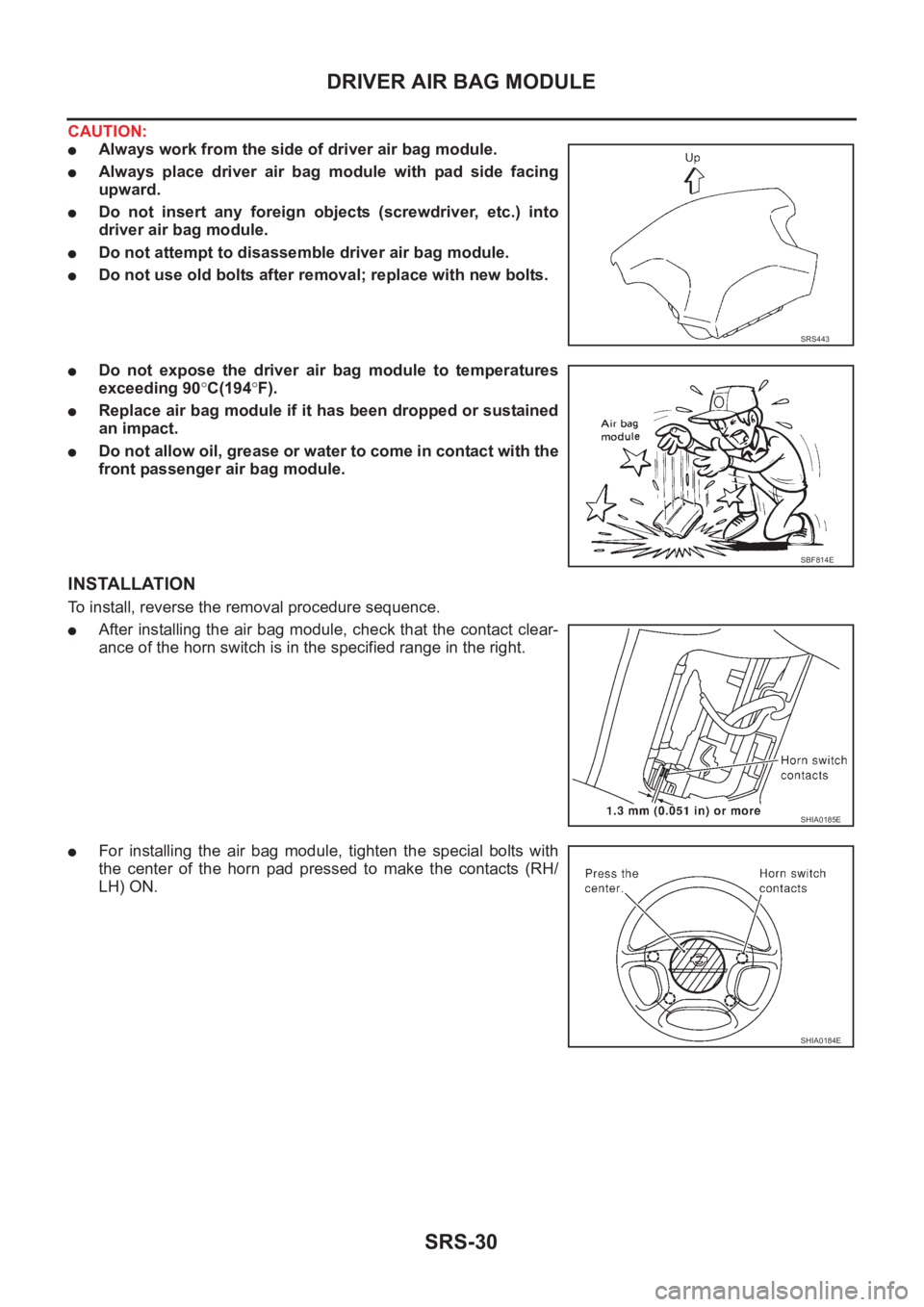

SRS-30
DRIVER AIR BAG MODULE
CAUTION:
●Always work from the side of driver air bag module.
●Always place driver air bag module with pad side facing
upward.
●Do not insert any foreign objects (screwdriver, etc.) into
driver air bag module.
●Do not attempt to disassemble driver air bag module.
●Do not use old bolts after removal; replace with new bolts.
●Do not expose the driver air bag module to temperatures
exceeding 90°C(194°F).
●Replace air bag module if it has been dropped or sustained
an impact.
●Do not allow oil, grease or water to come in contact with the
front passenger air bag module.
INSTALLATION
To install, reverse the removal procedure sequence.
●After installing the air bag module, check that the contact clear-
ance of the horn switch is in the specified range in the right.
●For installing the air bag module, tighten the special bolts with
the center of the horn pad pressed to make the contacts (RH/
LH) ON.
SRS443
SBF814E
SHIA0185E
SHIA0184E

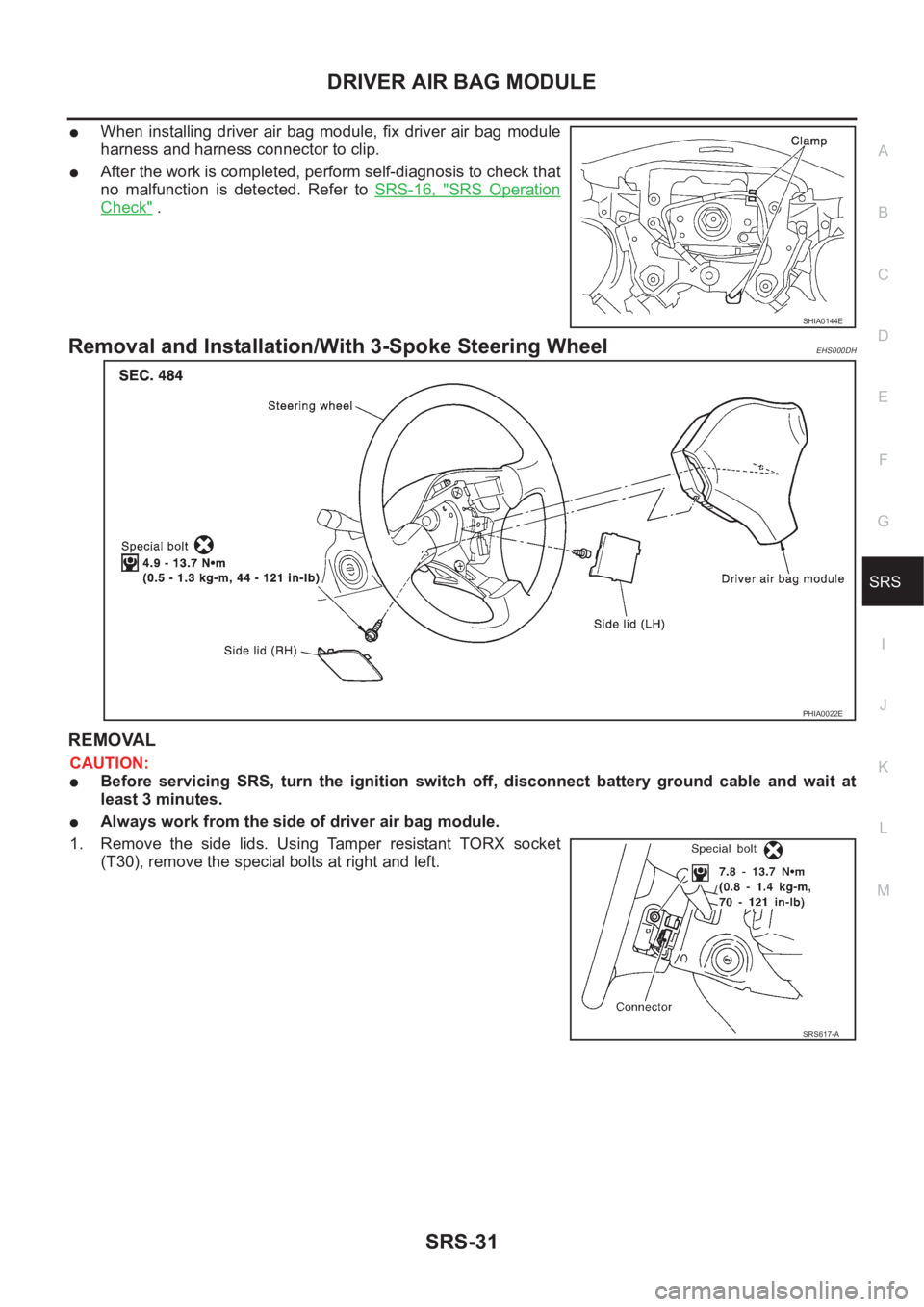

DRIVER AIR BAG MODULE
SRS-31
C
D
E
F
G
I
J
K
L
MA
B
SRS
●When installing driver air bag module, fix driver air bag module
harness and harness connector to clip.
●After the work is completed, perform self-diagnosis to check that
no malfunction is detected. Refer to SRS-16, "
SRS Operation
Check" .
Removal and Installation/With 3-Spoke Steering WheelEHS000DH
REMOVAL
CAUTION:
●Before servicing SRS, turn the ignition switch off, disconnect battery ground cable and wait at
least 3 minutes.
●Always work from the side of driver air bag module.
1. Remove the side lids. Using Tamper resistant TORX socket
(T30), remove the special bolts at right and left.
SHIA0144E
PHIA0022E
SRS617-A

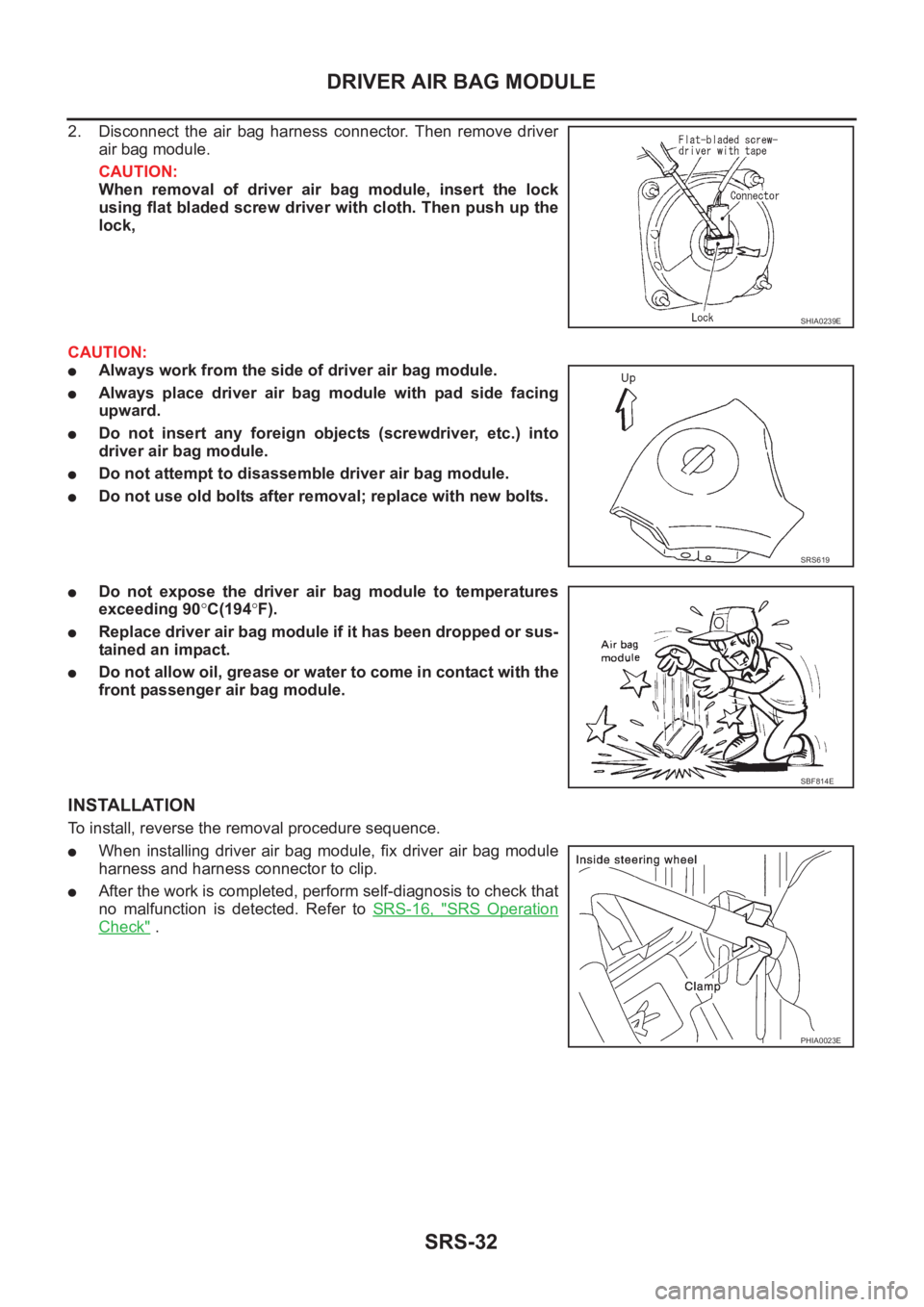

SRS-32
DRIVER AIR BAG MODULE
2. Disconnect the air bag harness connector. Then remove driver
air bag module.
CAUTION:
When removal of driver air bag module, insert the lock
using flat bladed screw driver with cloth. Then push up the
lock,
CAUTION:
●Always work from the side of driver air bag module.
●Always place driver air bag module with pad side facing
upward.
●Do not insert any foreign objects (screwdriver, etc.) into
driver air bag module.
●Do not attempt to disassemble driver air bag module.
●Do not use old bolts after removal; replace with new bolts.
●Do not expose the driver air bag module to temperatures
exceeding 90°C(194°F).
●Replace driver air bag module if it has been dropped or sus-
tained an impact.
●Do not allow oil, grease or water to come in contact with the
front passenger air bag module.
INSTALLATION
To install, reverse the removal procedure sequence.
●When installing driver air bag module, fix driver air bag module
harness and harness connector to clip.
●After the work is completed, perform self-diagnosis to check that
no malfunction is detected. Refer to SRS-16, "
SRS Operation
Check" .
SHIA0239E
SRS619
SBF814E
PHIA0023E

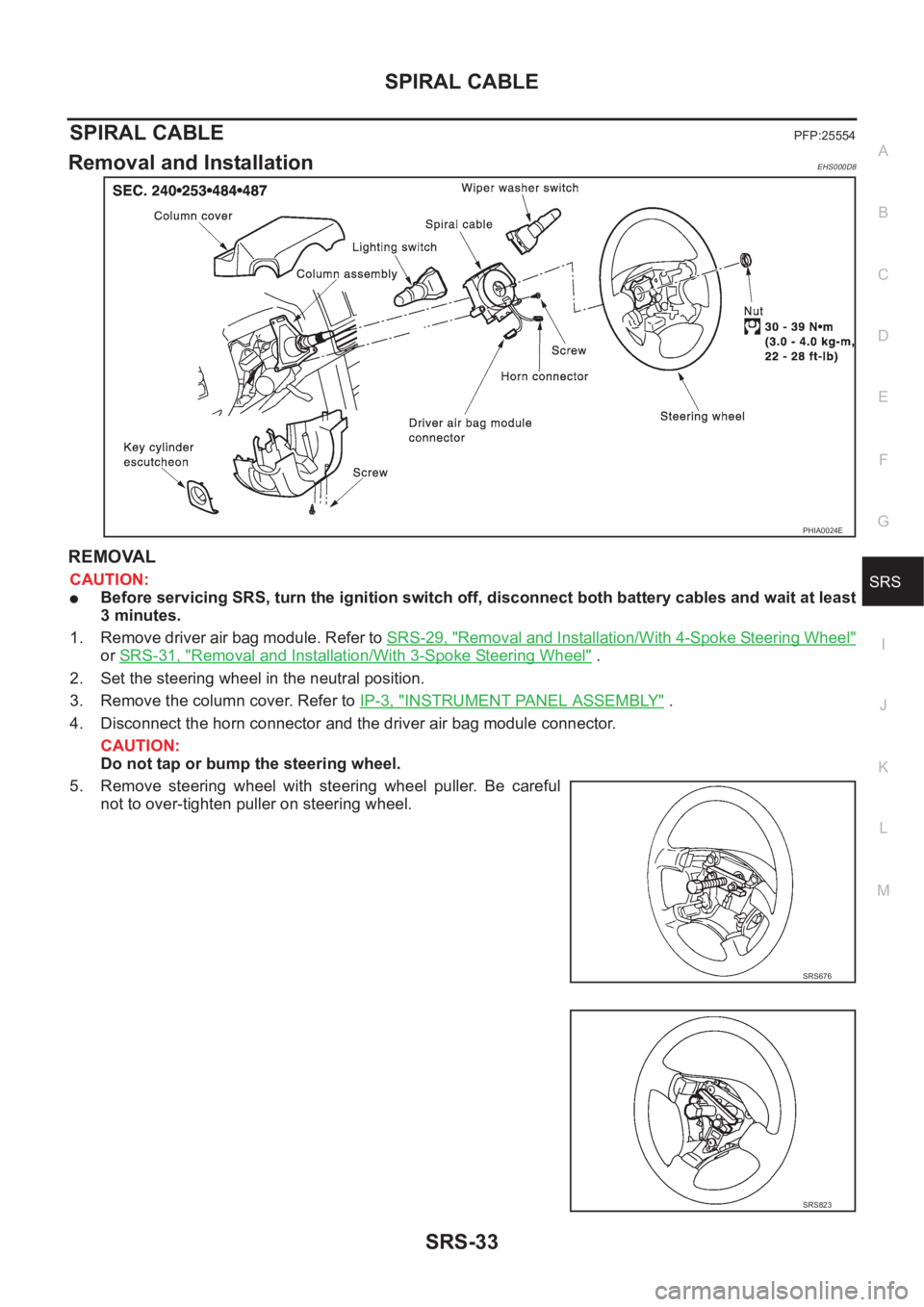

SPIRAL CABLE
SRS-33
C
D
E
F
G
I
J
K
L
MA
B
SRS
SPIRAL CABLEPFP:25554
Removal and InstallationEHS000D8
REMOVAL
CAUTION:
●Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least
3 minutes.
1. Remove driver air bag module. Refer to SRS-29, "
Removal and Installation/With 4-Spoke Steering Wheel"
or SRS-31, "Removal and Installation/With 3-Spoke Steering Wheel" .
2. Set the steering wheel in the neutral position.
3. Remove the column cover. Refer to IP-3, "
INSTRUMENT PANEL ASSEMBLY" .
4. Disconnect the horn connector and the driver air bag module connector.
CAUTION:
Do not tap or bump the steering wheel.
5. Remove steering wheel with steering wheel puller. Be careful
not to over-tighten puller on steering wheel.
PHIA0024E
SRS676
SRS823

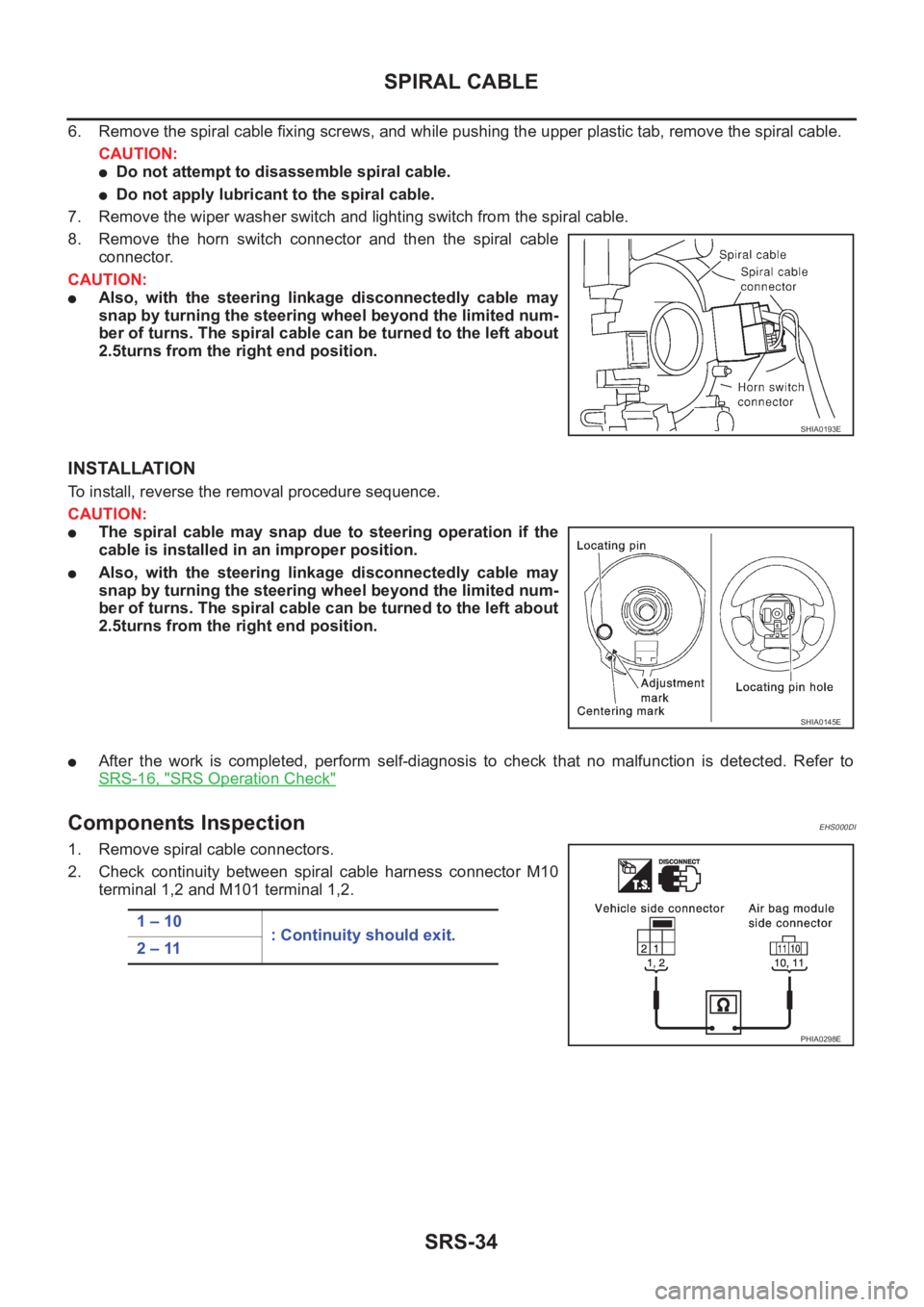

SRS-34
SPIRAL CABLE
6. Remove the spiral cable fixing screws, and while pushing the upper plastic tab, remove the spiral cable.
CAUTION:
●Do not attempt to disassemble spiral cable.
●Do not apply lubricant to the spiral cable.
7. Remove the wiper washer switch and lighting switch from the spiral cable.
8. Remove the horn switch connector and then the spiral cable
connector.
CAUTION:
●Also, with the steering linkage disconnectedly cable may
snap by turning the steering wheel beyond the limited num-
ber of turns. The spiral cable can be turned to the left about
2.5turns from the right end position.
INSTALLATION
To install, reverse the removal procedure sequence.
CAUTION:
●The spiral cable may snap due to steering operation if the
cable is installed in an improper position.
●Also, with the steering linkage disconnectedly cable may
snap by turning the steering wheel beyond the limited num-
ber of turns. The spiral cable can be turned to the left about
2.5turns from the right end position.
●After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to
SRS-16, "
SRS Operation Check"
Components InspectionEHS000DI
1. Remove spiral cable connectors.
2. Check continuity between spiral cable harness connector M10
terminal 1,2 and M101 terminal 1,2.
SHIA0193E
SHIA0145E
1 – 10
: Continuity should exit.
2 – 11
PHIA0298E

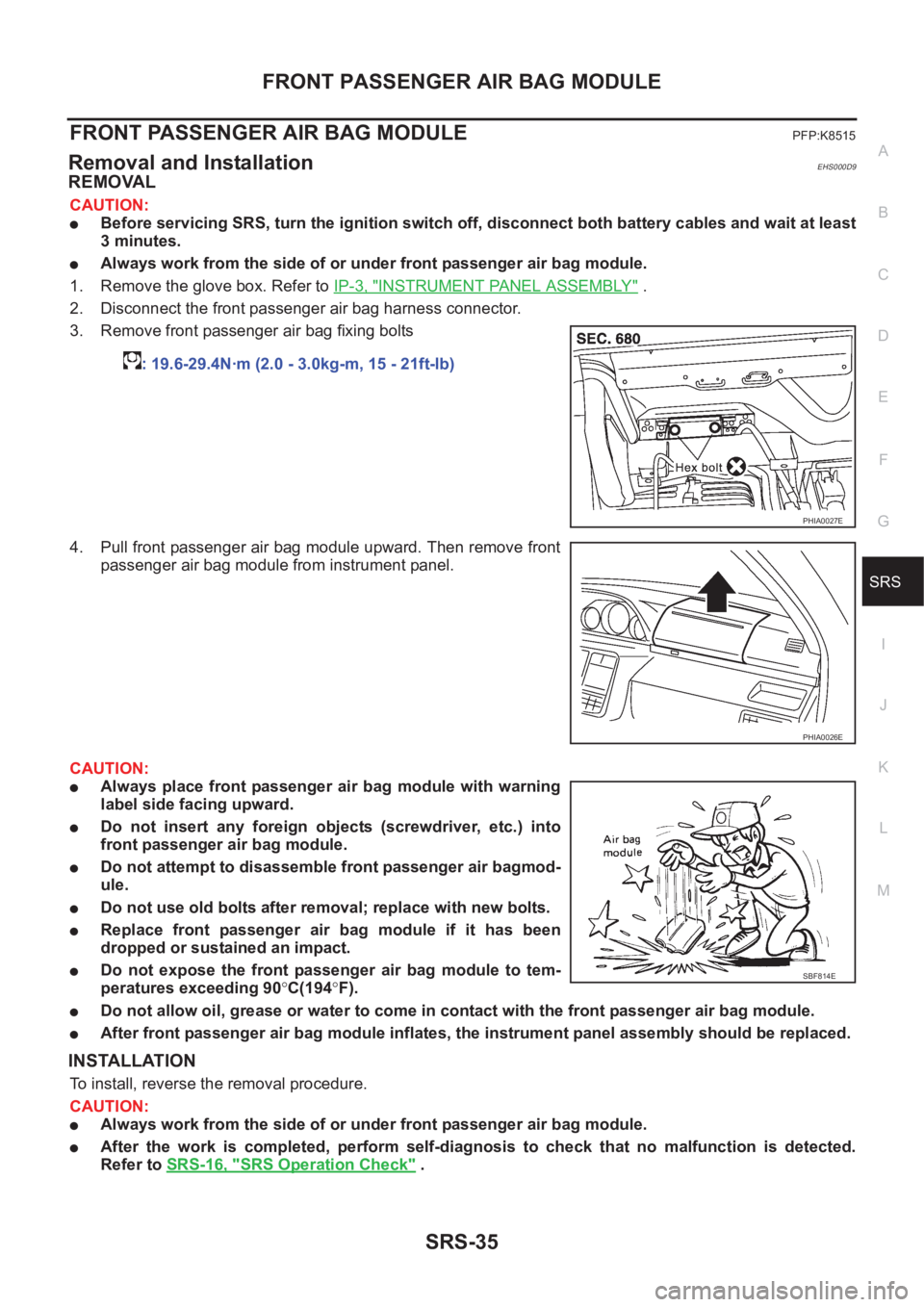

FRONT PASSENGER AIR BAG MODULE
SRS-35
C
D
E
F
G
I
J
K
L
MA
B
SRS
FRONT PASSENGER AIR BAG MODULEPFP:K8515
Removal and InstallationEHS000D9
REMOVAL
CAUTION:
●Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least
3 minutes.
●Always work from the side of or under front passenger air bag module.
1. Remove the glove box. Refer to IP-3, "
INSTRUMENT PANEL ASSEMBLY" .
2. Disconnect the front passenger air bag harness connector.
3. Remove front passenger air bag fixing bolts
4. Pull front passenger air bag module upward. Then remove front
passenger air bag module from instrument panel.
CAUTION:
●Always place front passenger air bag module with warning
label side facing upward.
●Do not insert any foreign objects (screwdriver, etc.) into
front passenger air bag module.
●Do not attempt to disassemble front passenger air bagmod-
ule.
●Do not use old bolts after removal; replace with new bolts.
●Replace front passenger air bag module if it has been
dropped or sustained an impact.
●Do not expose the front passenger air bag module to tem-
peratures exceeding 90°C(194°F).
●Do not allow oil, grease or water to come in contact with the front passenger air bag module.
●After front passenger air bag module inflates, the instrument panel assembly should be replaced.
INSTALLATION
To install, reverse the removal procedure.
CAUTION:
●Always work from the side of or under front passenger air bag module.
●After the work is completed, perform self-diagnosis to check that no malfunction is detected.
Refer to SRS-16, "
SRS Operation Check" . : 19.6-29.4N·m (2.0 - 3.0kg-m, 15 - 21ft-lb)
PHIA0027E
PHIA0026E
SBF814E

SRS-36

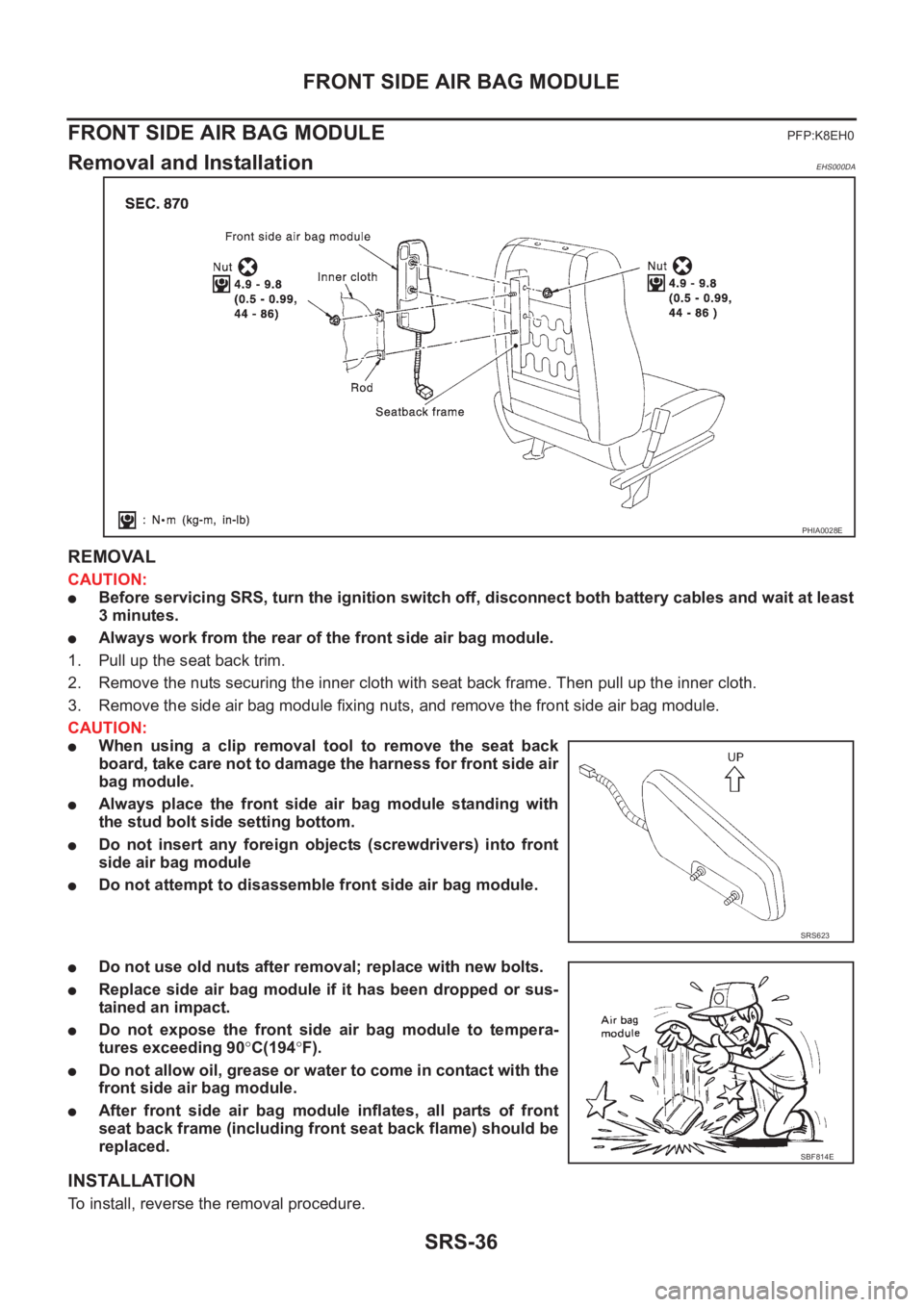

FRONT SIDE AIR BAG MODULE
FRONT SIDE AIR BAG MODULE
PFP:K8EH0
Removal and InstallationEHS000DA
REMOVAL
CAUTION:
●Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least
3 minutes.
●Always work from the rear of the front side air bag module.
1. Pull up the seat back trim.
2. Remove the nuts securing the inner cloth with seat back frame. Then pull up the inner cloth.
3. Remove the side air bag module fixing nuts, and remove the front side air bag module.
CAUTION:
●When using a clip removal tool to remove the seat back
board, take care not to damage the harness for front side air
bag module.
●Always place the front side air bag module standing with
the stud bolt side setting bottom.
●Do not insert any foreign objects (screwdrivers) into front
side air bag module
●Do not attempt to disassemble front side air bag module.
●Do not use old nuts after removal; replace with new bolts.
●Replace side air bag module if it has been dropped or sus-
tained an impact.
●Do not expose the front side air bag module to tempera-
tures exceeding 90°C(194°F).
●Do not allow oil, grease or water to come in contact with the
front side air bag module.
●After front side air bag module inflates, all parts of front
seat back frame (including front seat back flame) should be
replaced.
INSTALLATION
To install, reverse the removal procedure.
PHIA0028E
SRS623
SBF814E

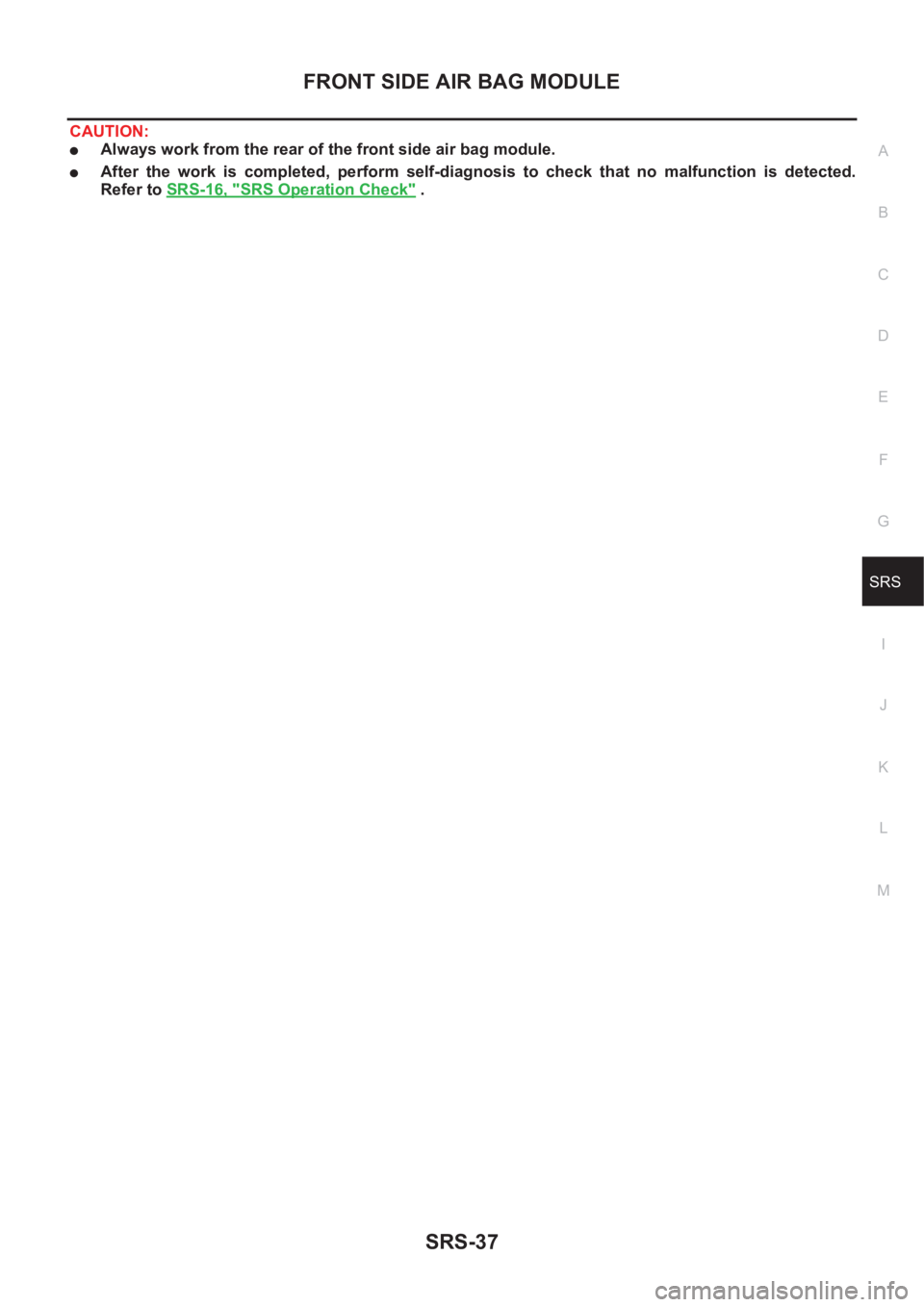

FRONT SIDE AIR BAG MODULE
SRS-37
C
D
E
F
G
I
J
K
L
MA
B
SRS
CAUTION:
●Always work from the rear of the front side air bag module.
●After the work is completed, perform self-diagnosis to check that no malfunction is detected.
Refer to SRS-16, "
SRS Operation Check" .

SRS-38
SIDE AIR BAG (SATELLITE) SENSOR
SIDE AIR BAG (SATELLITE) SENSOR
PFP:98830
Removal and InstallationEHS000DB
REMOVAL
CAUTION:
●Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least
3 minutes.
1. Remove seat belt pre-tensioner seat belt. Refer to SB-3,
"Removal and Installation of Front Seat Belt" .
2. Remove side air bag (Satellite) sensor fixing nuts.
3. Remove the side air bag (Satellite) sensor connector.
CAUTION:
●Do not use old nuts, replace with new ones.
●Check side air bag (Satellite) sensor to ensure they are free
of deformities, dents, cracks or rust. If it shows any visible
signs of damage, replace it with new one.
●Do not attempt to disassemble side air bag (Satellite) sen-
sor.
●Replace side air bag (Satellite) sensor if it has been dropped or sustained an impact.
●When the front side air bag deploys, always replace it with a new one.
INSTALLATION
To install, reverse the removal procedure sequence.
CAUTION:
●Check side air bag (Satellite) sensor for proper installation.
●After replacement of side air bag (Satellite) sensor, perform self-diagnosis to check that no mal-
function is detected. Refer to SRS-16, "
SRS Operation Check" .
PHIA0029E
