NISSAN X-TRAIL 2001 Service Repair Manual

HIGH-MOUNTED STOP LAMP
LT-41
C
D
E
F
G
H
I
J
L
MA
B
LT

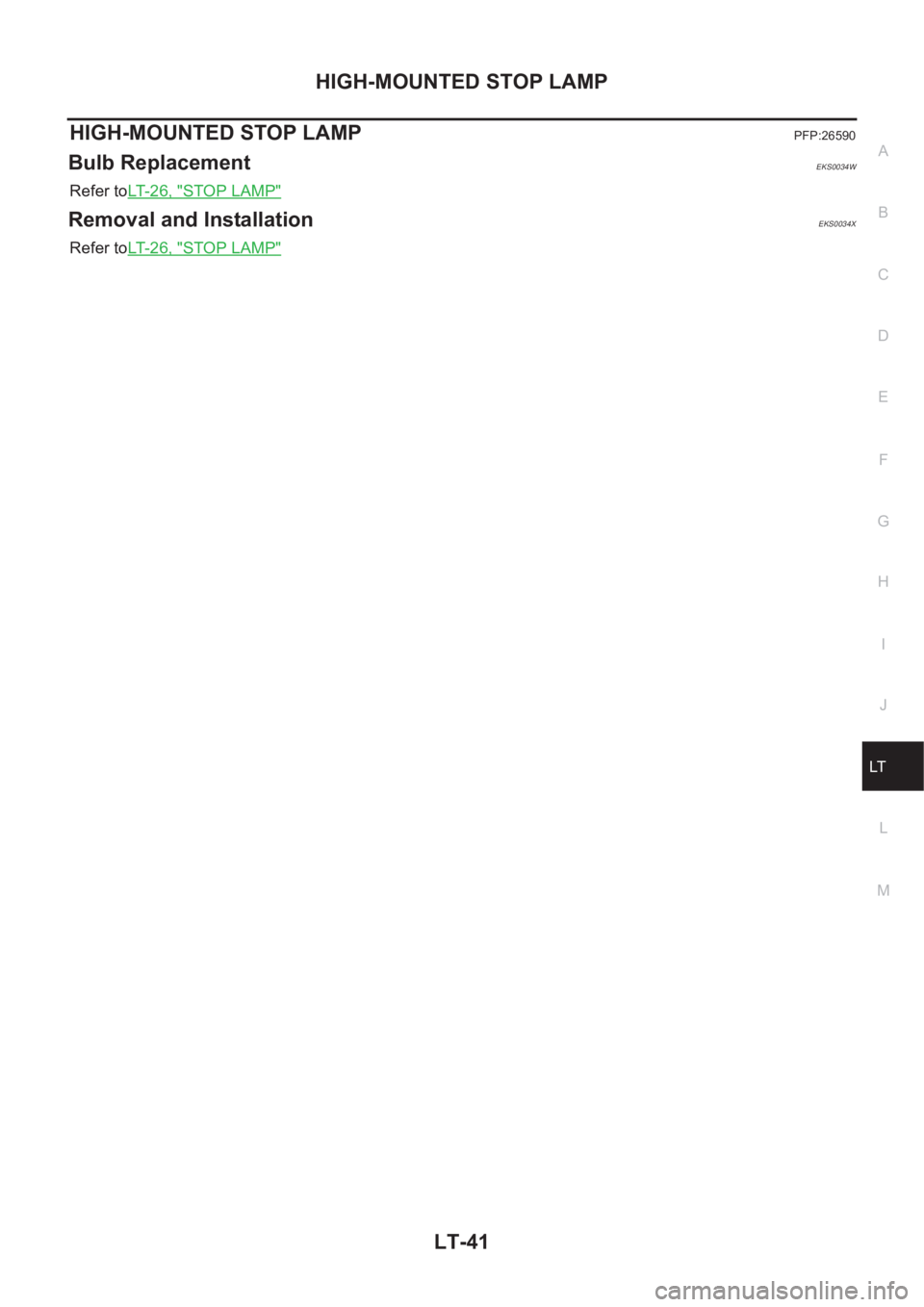

HIGH-MOUNTED STOP LAMPPFP:26590
Bulb ReplacementEKS0034W
Refer toLT-26, "STOP LAMP"
Removal and InstallationEKS0034X
Refer toLT-26, "STOP LAMP"

LT-42
REAR COMBINATION LAMP
REAR COMBINATION LAMP
PFP:26554

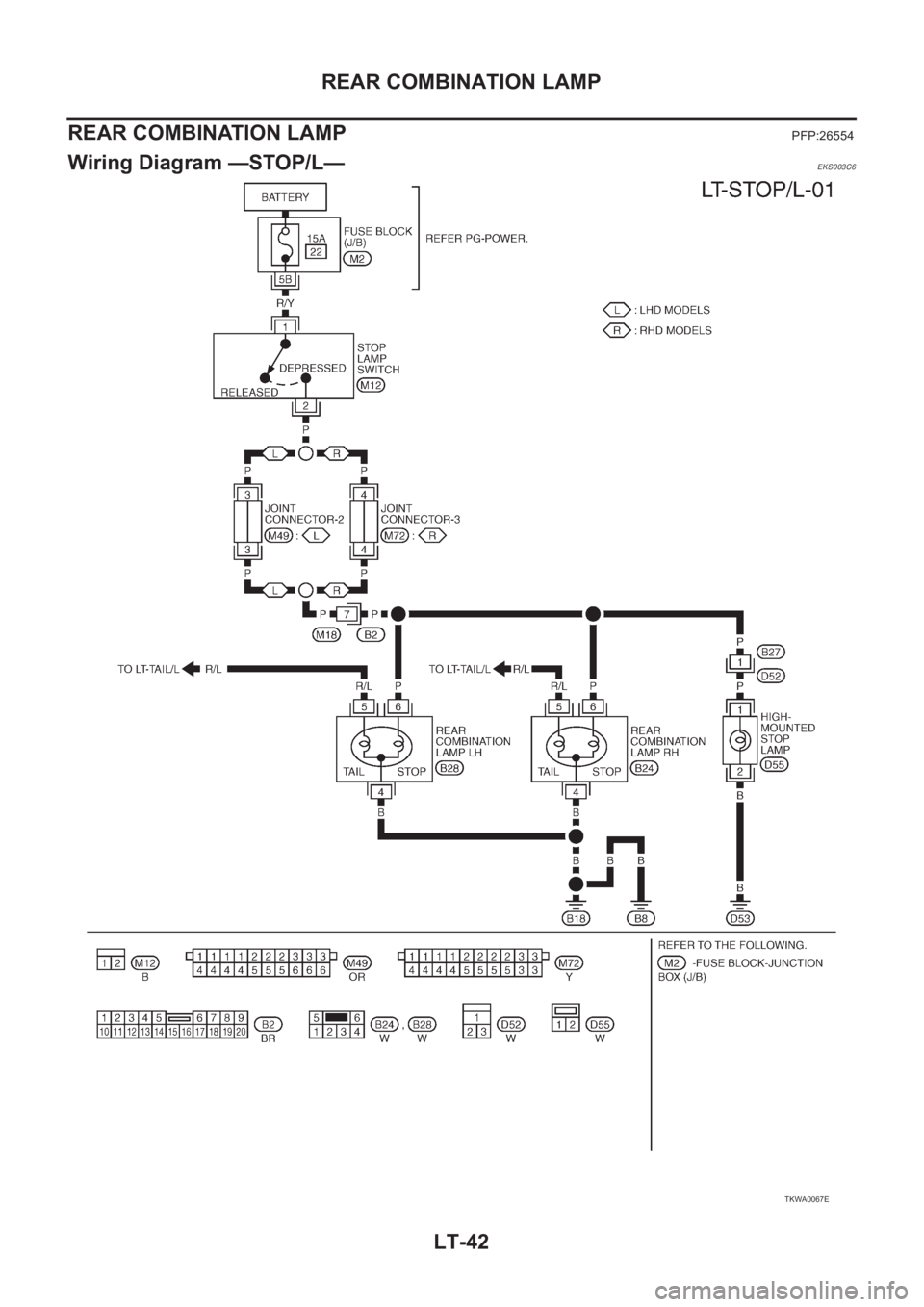

Wiring Diagram —STOP/L— EKS003C6
TKWA0067E

REAR COMBINATION LAMP
LT-43
C
D
E
F
G
H
I
J
L
MA
B
LT

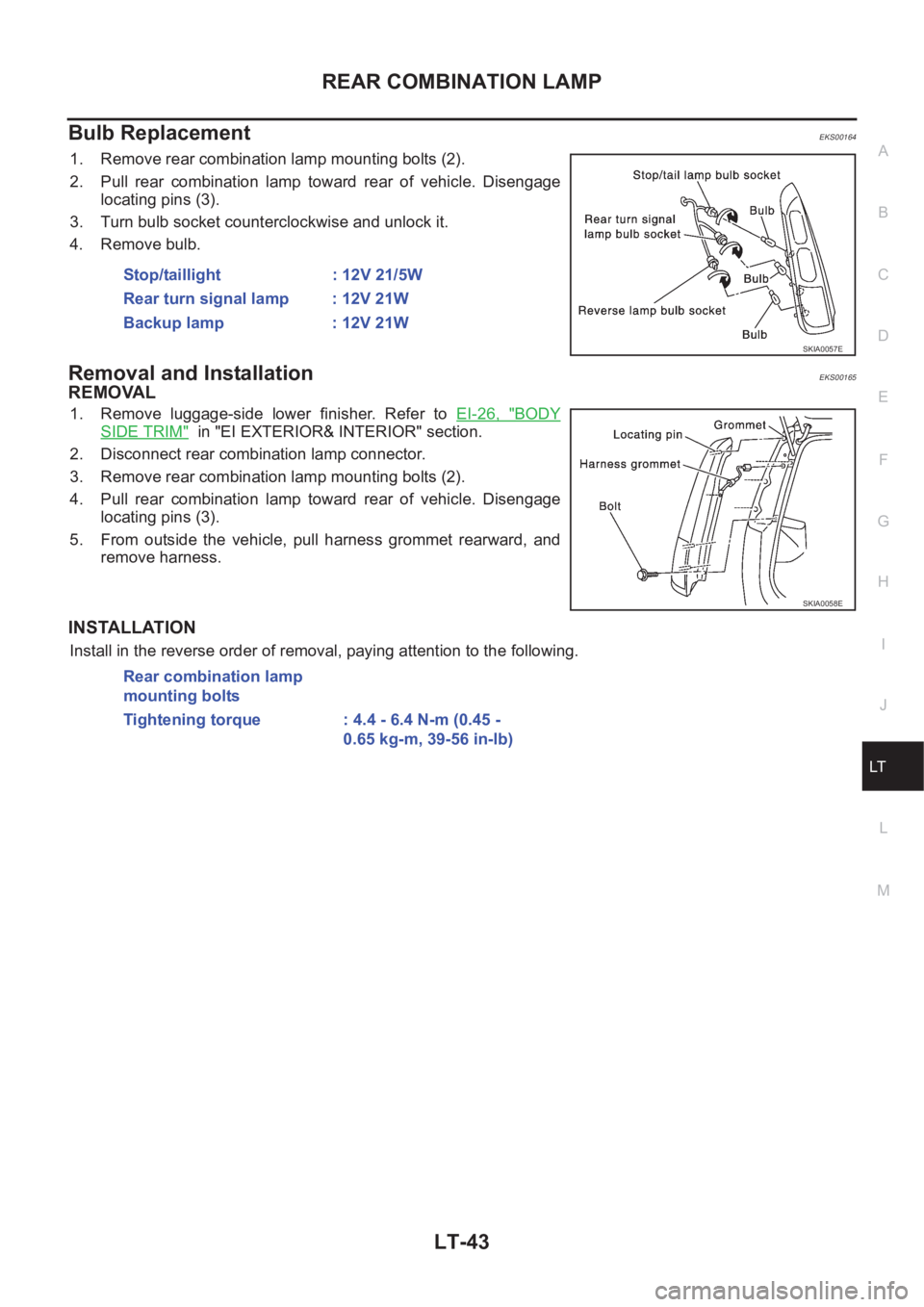

Bulb ReplacementEKS00164
1. Remove rear combination lamp mounting bolts (2).
2. Pull rear combination lamp toward rear of vehicle. Disengage
locating pins (3).
3. Turn bulb socket counterclockwise and unlock it.
4. Remove bulb.
Removal and InstallationEKS00165
REMOVAL
1. Remove luggage-side lower finisher. Refer to EI-26, "BODY
SIDE TRIM" in "EI EXTERIOR& INTERIOR" section.
2. Disconnect rear combination lamp connector.
3. Remove rear combination lamp mounting bolts (2).
4. Pull rear combination lamp toward rear of vehicle. Disengage
locating pins (3).
5. From outside the vehicle, pull harness grommet rearward, and
remove harness.
INSTALLATION
Install in the reverse order of removal, paying attention to the following. Stop/taillight : 12V 21/5W
Rear turn signal lamp : 12V 21W
Backup lamp : 12V 21W
SKIA0057E
SKIA0058E
Rear combination lamp
mounting bolts
Tightening torque : 4.4 - 6.4 N-m (0.45 -
0.65 kg-m, 39-56 in-lb)

LT-44

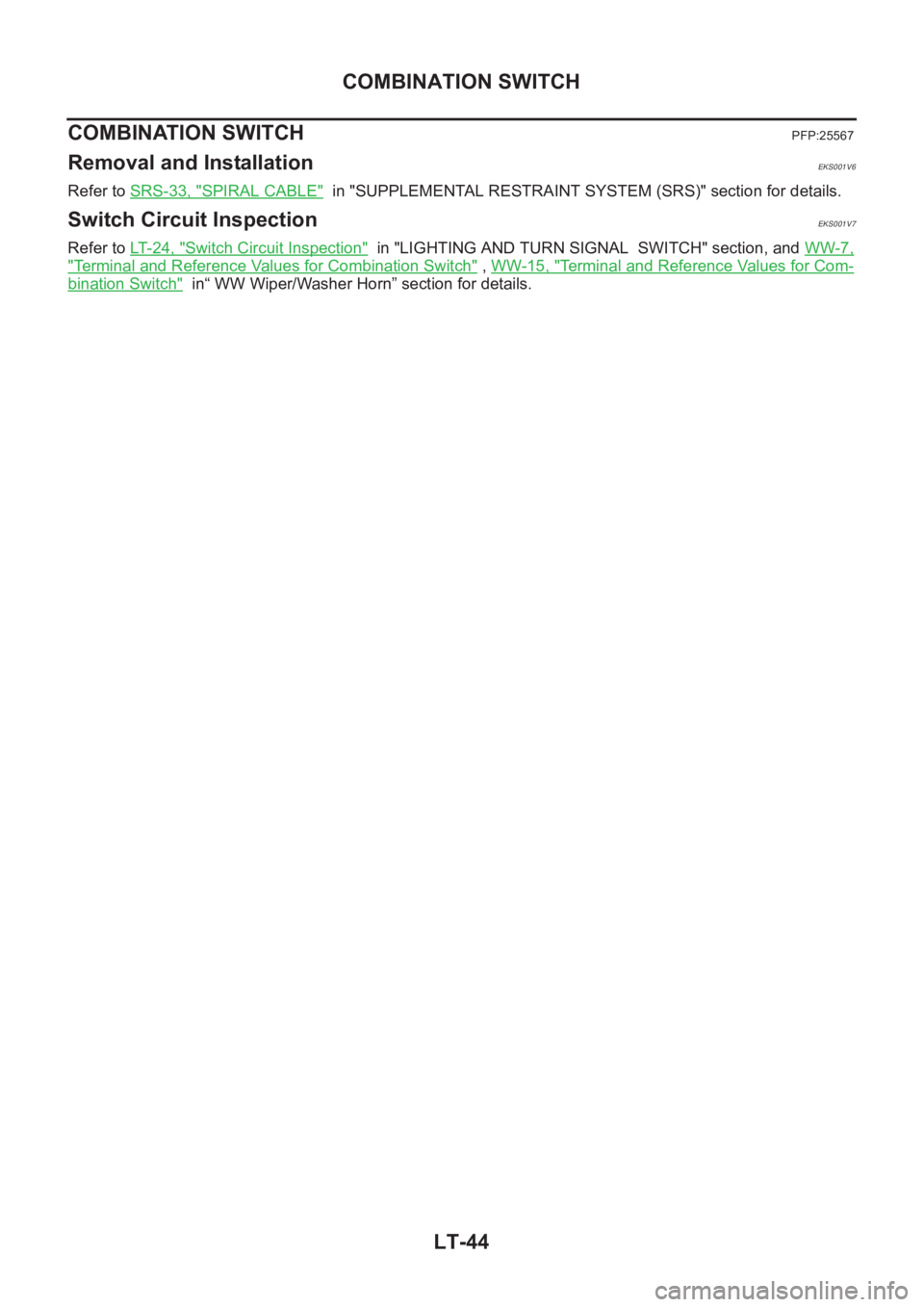

COMBINATION SWITCH
COMBINATION SWITCH
PFP:25567
Removal and InstallationEKS001V6
Refer to SRS-33, "SPIRAL CABLE" in "SUPPLEMENTAL RESTRAINT SYSTEM (SRS)" section for details.
Switch Circuit InspectionEKS001V7
Refer to LT- 2 4 , "Switch Circuit Inspection" in "LIGHTING AND TURN SIGNAL SWITCH" section, and WW-7,
"Terminal and Reference Values for Combination Switch" , WW-15, "Terminal and Reference Values for Com-
bination Switch" in“ WW Wiper/Washer Horn” section for details.

ILLUMINATION
LT-45
C
D
E
F
G
H
I
J
L
MA
B
LT

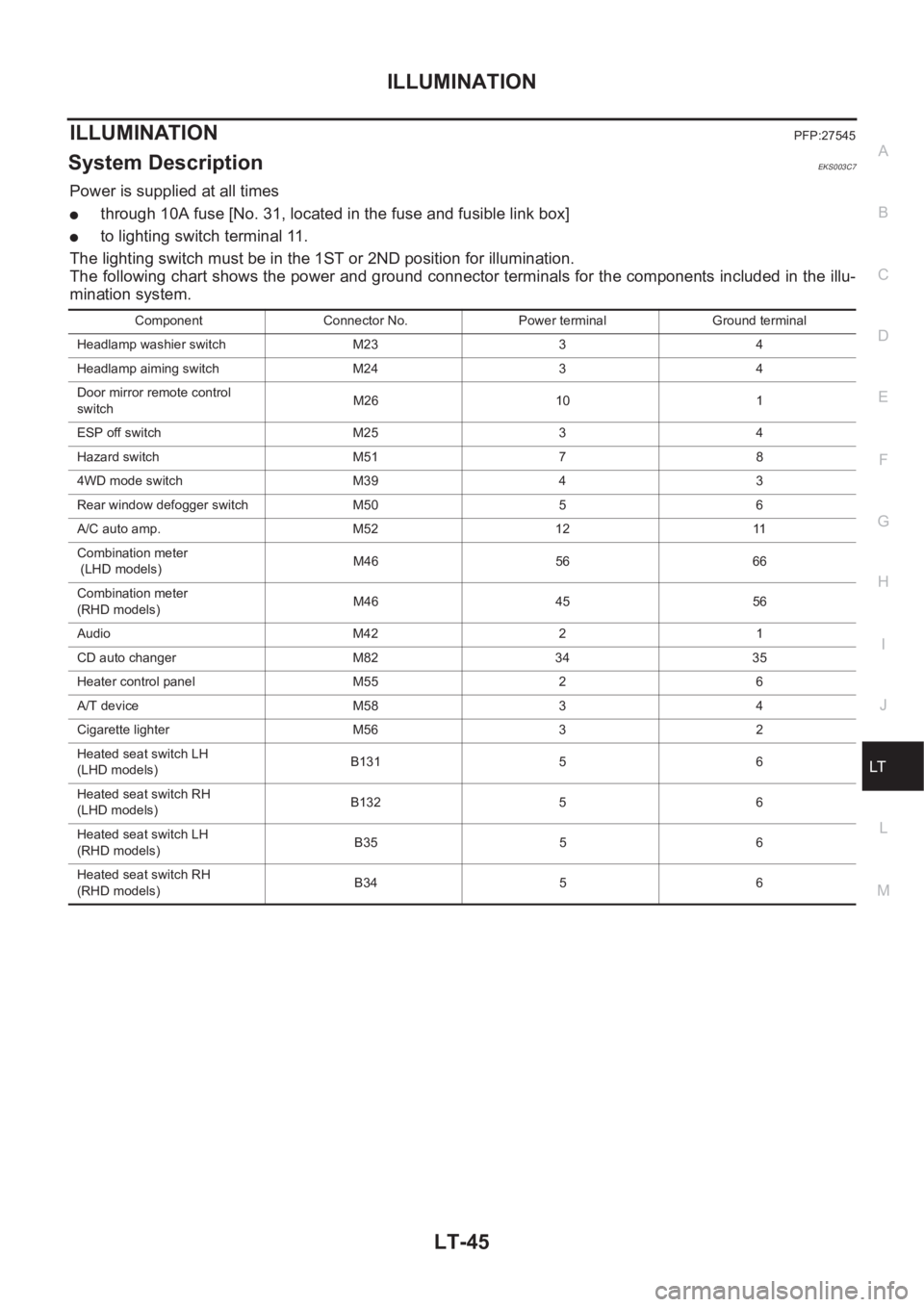

ILLUMINATIONPFP:27545
System Description EKS003C7
Power is supplied at all times
●through 10A fuse [No. 31, located in the fuse and fusible link box]
●to lighting switch terminal 11.
The lighting switch must be in the 1ST or 2ND position for illumination.
The following chart shows the power and ground connector terminals for the components included in the illu-
mination system.
Component Connector No. Power terminal Ground terminal
Headlamp washier switch M23 3 4
Headlamp aiming switch M24 3 4
Door mirror remote control
switchM26 10 1
ESP off switch M25 3 4
Hazard switch M51 7 8
4WD mode switch M39 4 3
Rear window defogger switch M50 5 6
A/C auto amp. M52 12 11
Combination meter
(LHD models)M46 56 66
Combination meter
(RHD models)M46 45 56
Audio M42 2 1
CD auto changer M82 34 35
Heater control panel M55 2 6
A/T device M58 3 4
Cigarette lighter M56 3 2
Heated seat switch LH
(LHD models)B131 5 6
Heated seat switch RH
(LHD models)B132 5 6
Heated seat switch LH
(RHD models)B35 5 6
Heated seat switch RH
(RHD models)B34 5 6

LT-46
ILLUMINATION

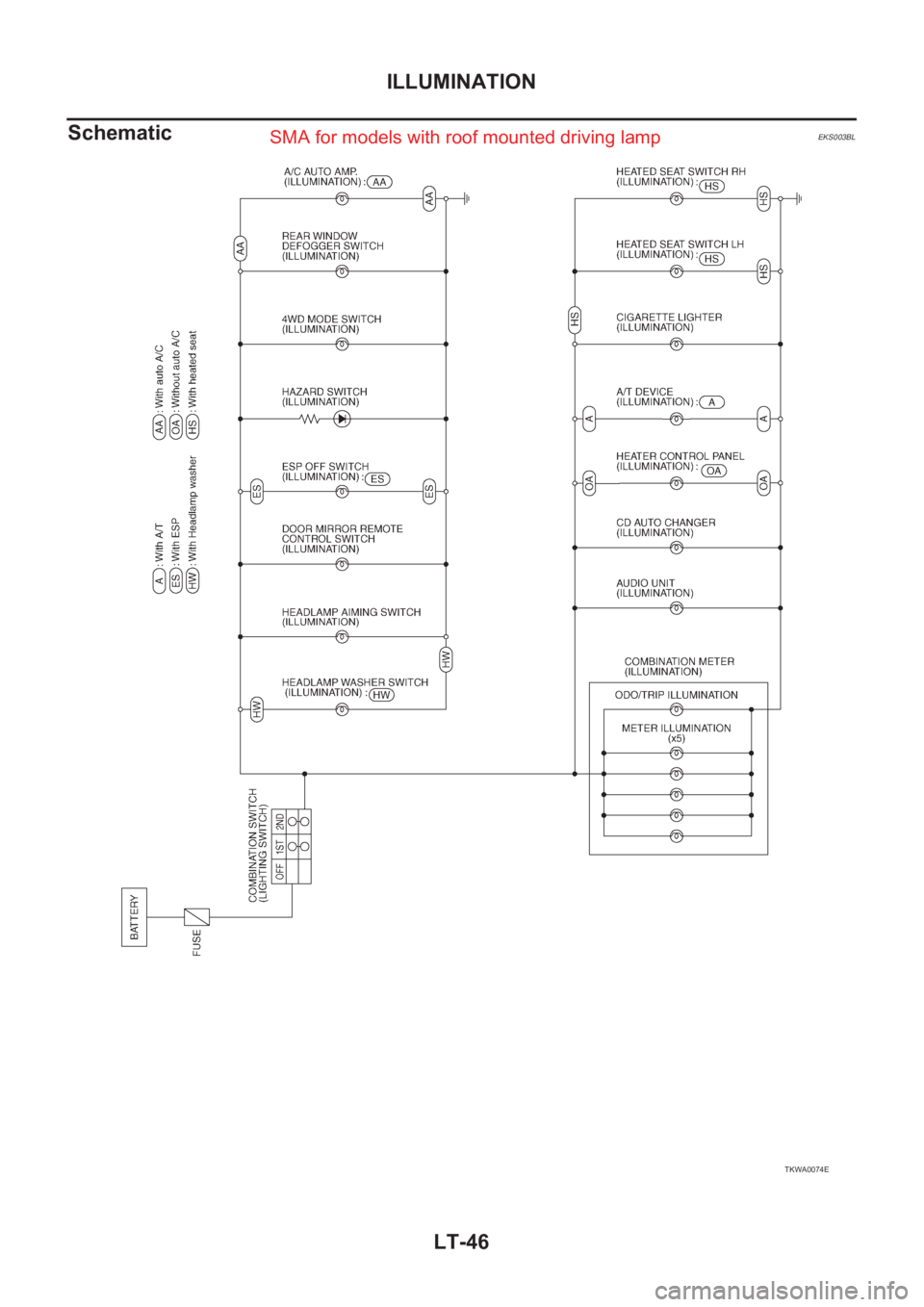

Schematic
EKS003BL
TKWA0074E
SMA for models with roof mounted driving lamp

ILLUMINATION
LT-47
C
D
E
F
G
H
I
J
L
MA
B
LT
Wiring Diagram -ILL-/LHD MODELSEKS003BM
TKWA0075E

LT-48
ILLUMINATION

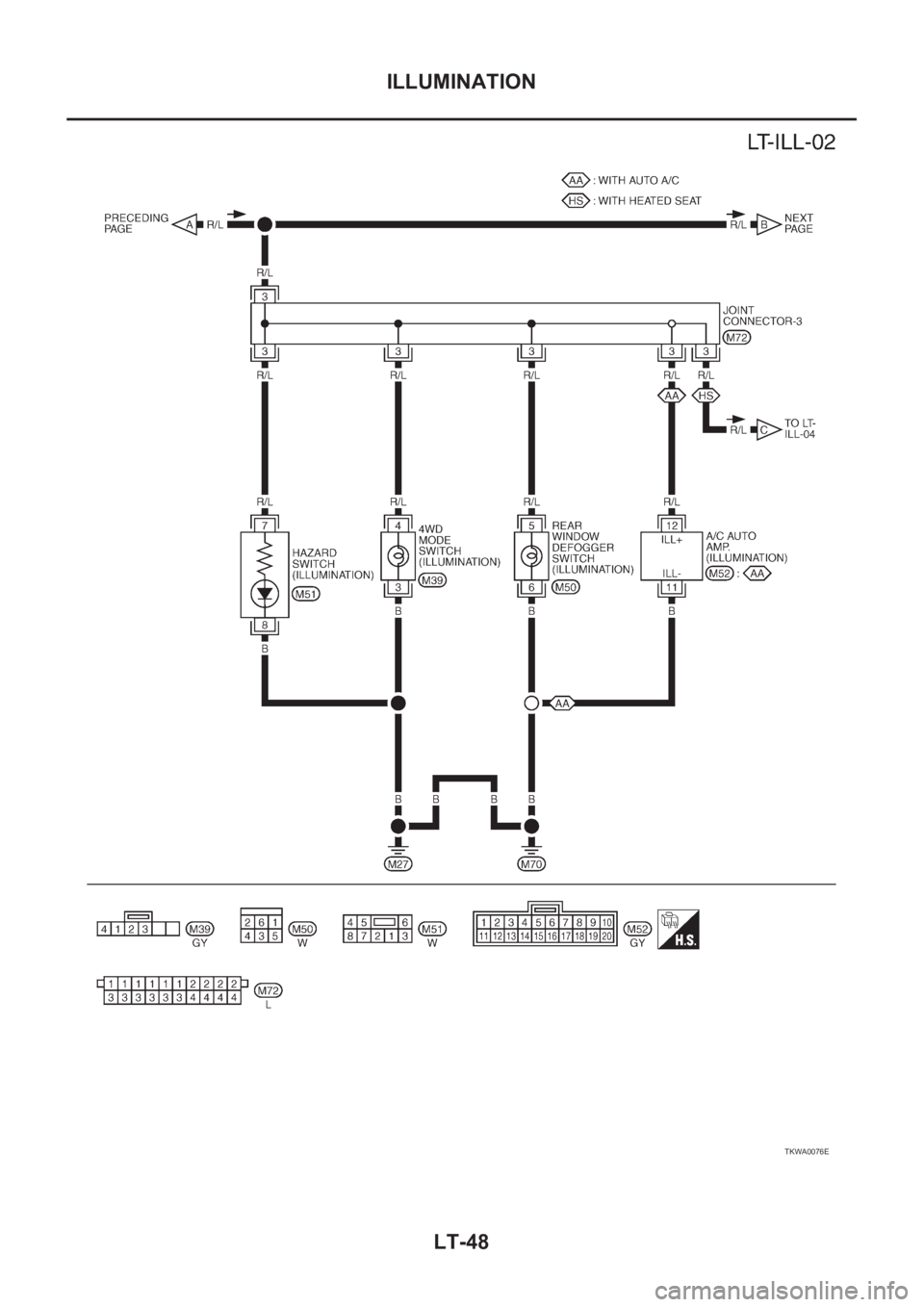

TKWA0076E

ILLUMINATION
LT-49
C
D
E
F
G
H
I
J
L
MA
B
LT

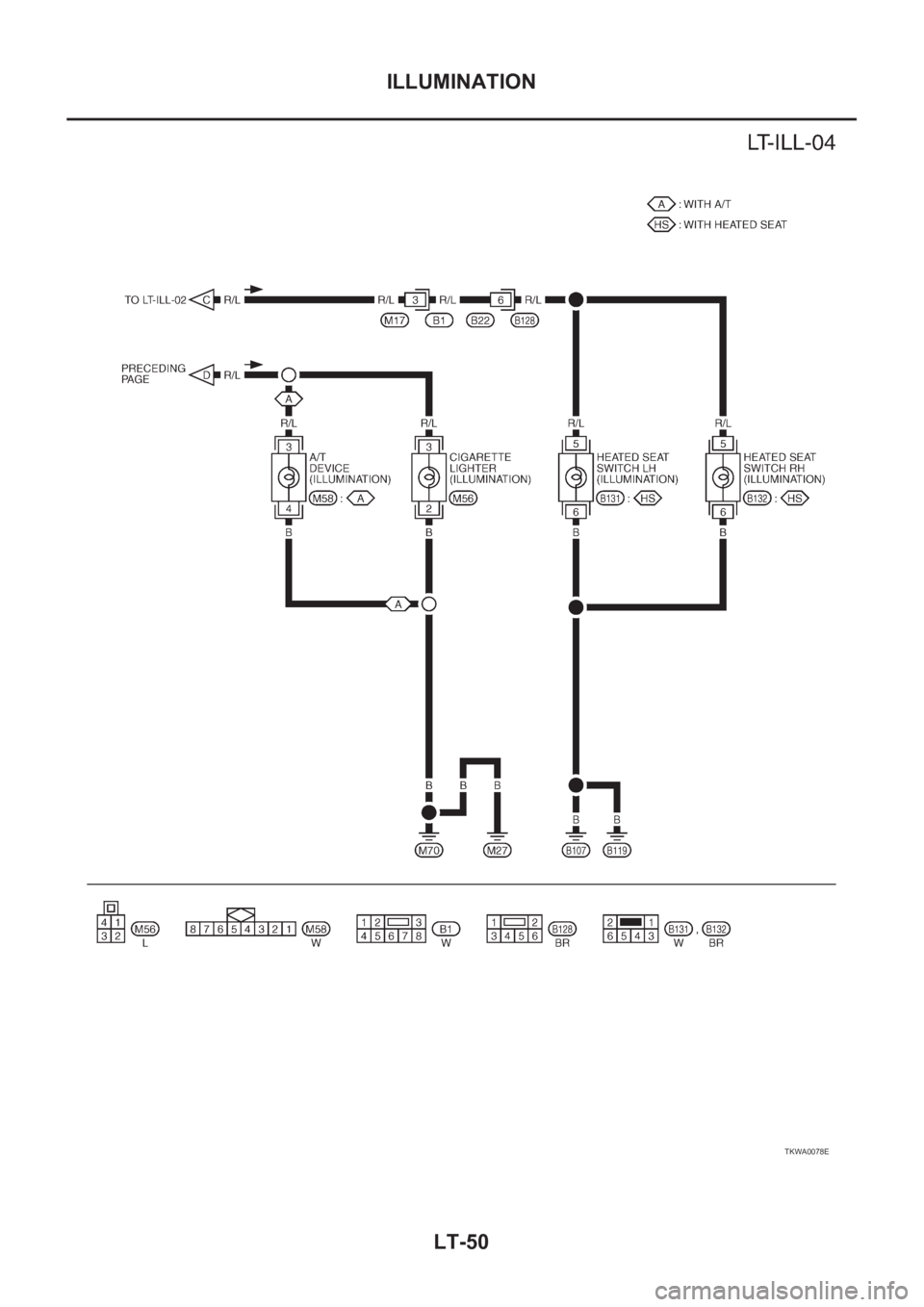

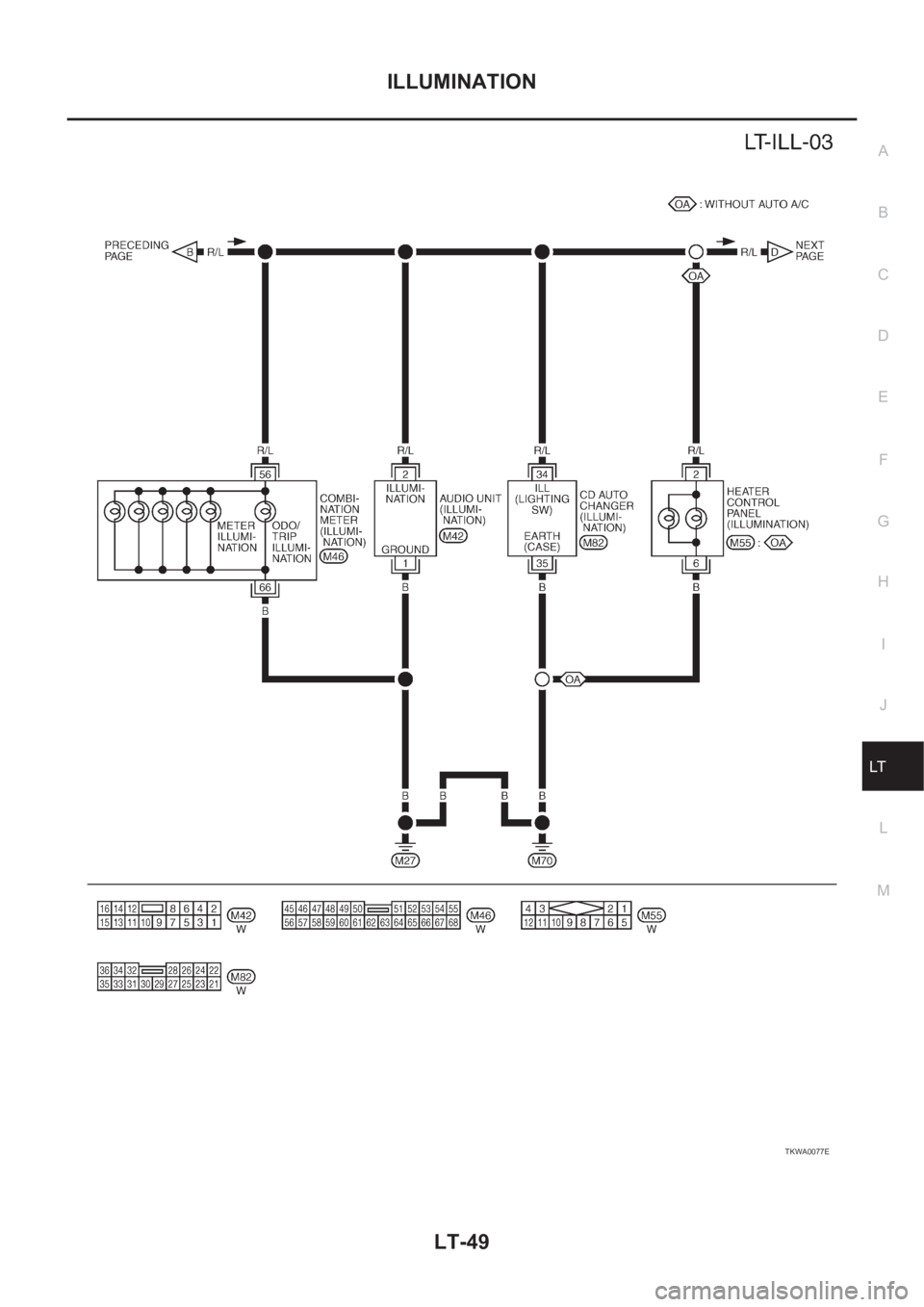

TKWA0077E

LT-50
ILLUMINATION
TKWA0078E
