HEADLAMP - DAYTIME LIGHT SYSTEM -
LT-11
C
D
E
F
G
H
I
J
L
MA
B
LT

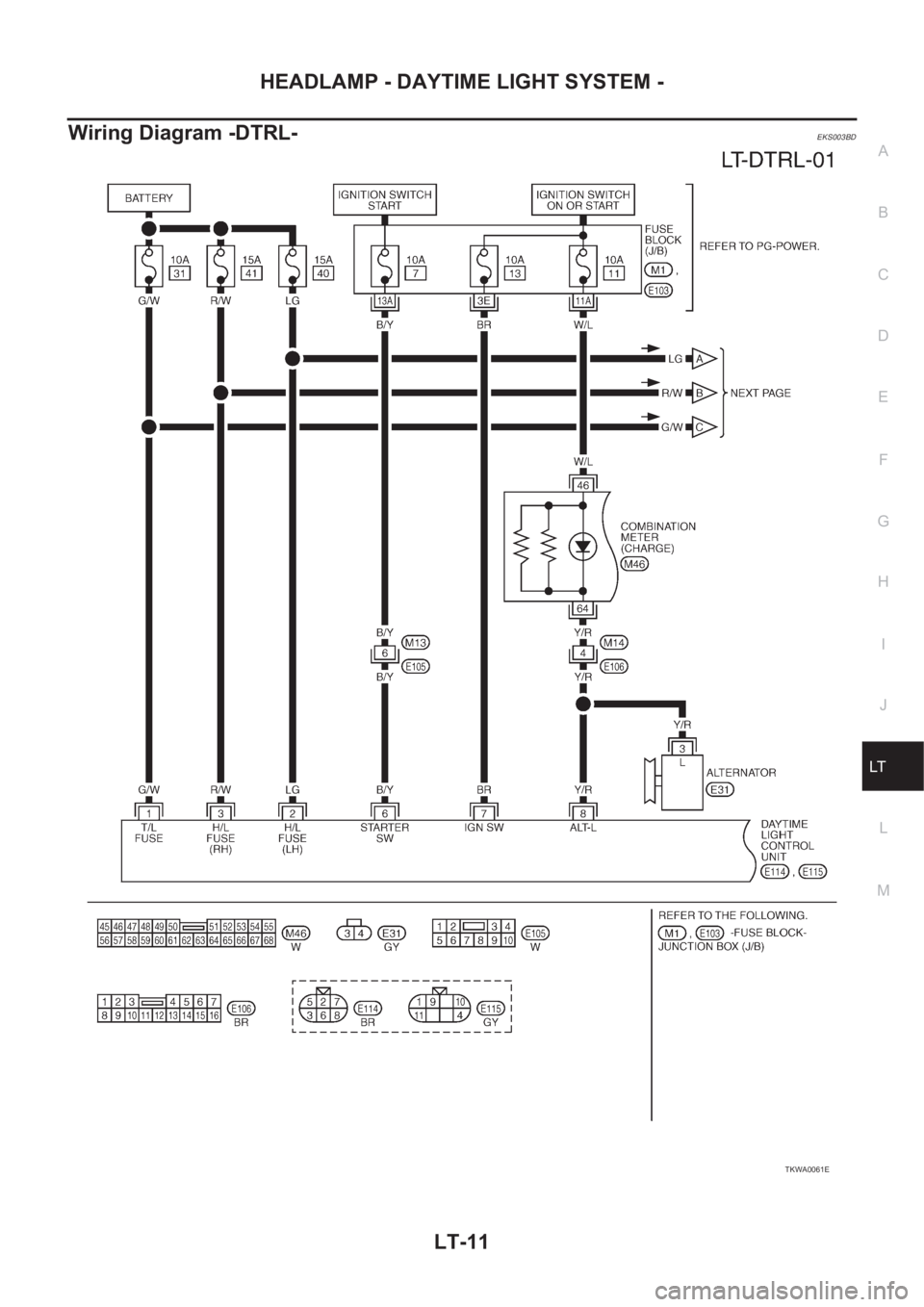

Wiring Diagram -DTRL-EKS003BD
TKWA0061E

LT-12

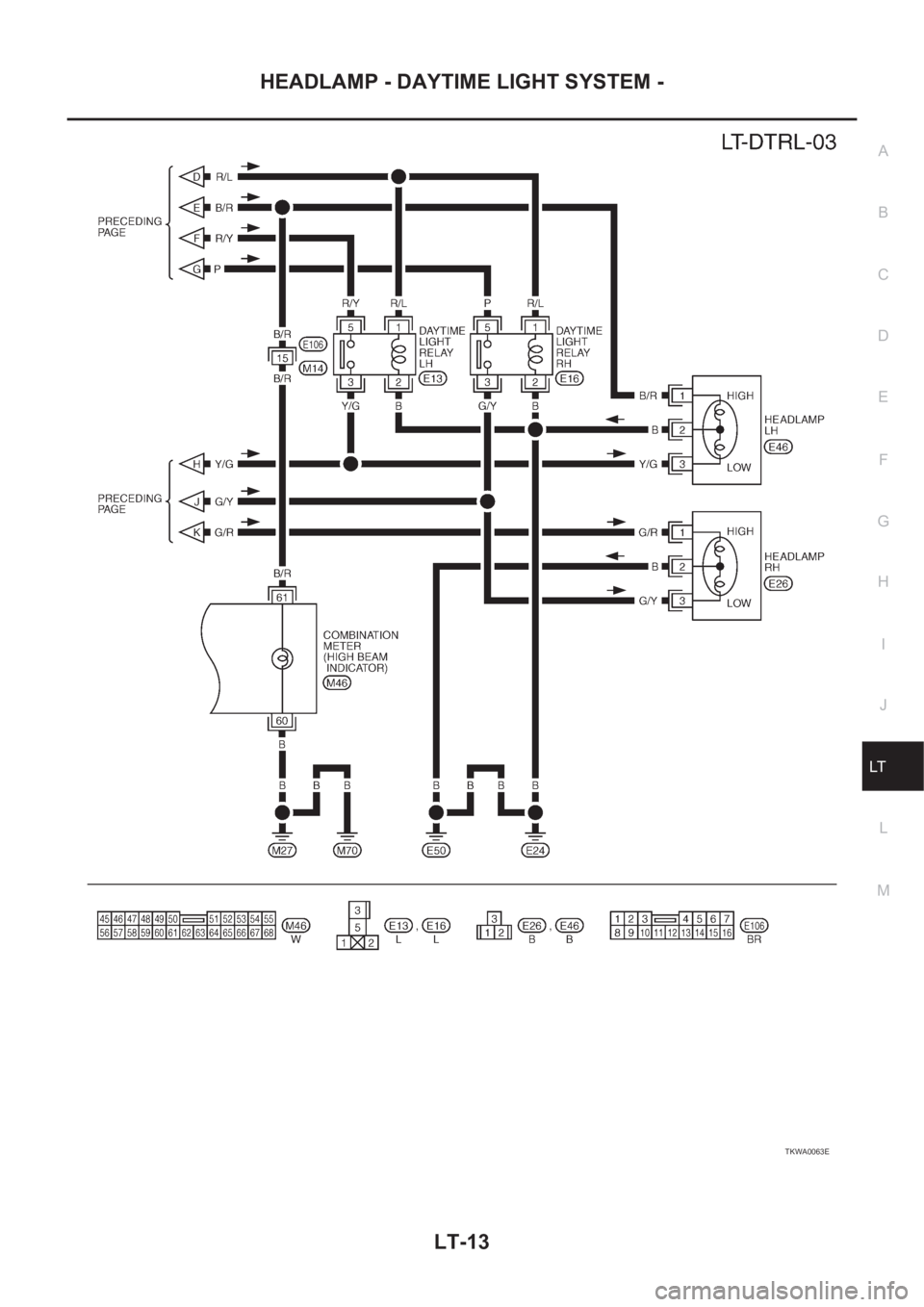

HEADLAMP - DAYTIME LIGHT SYSTEM -

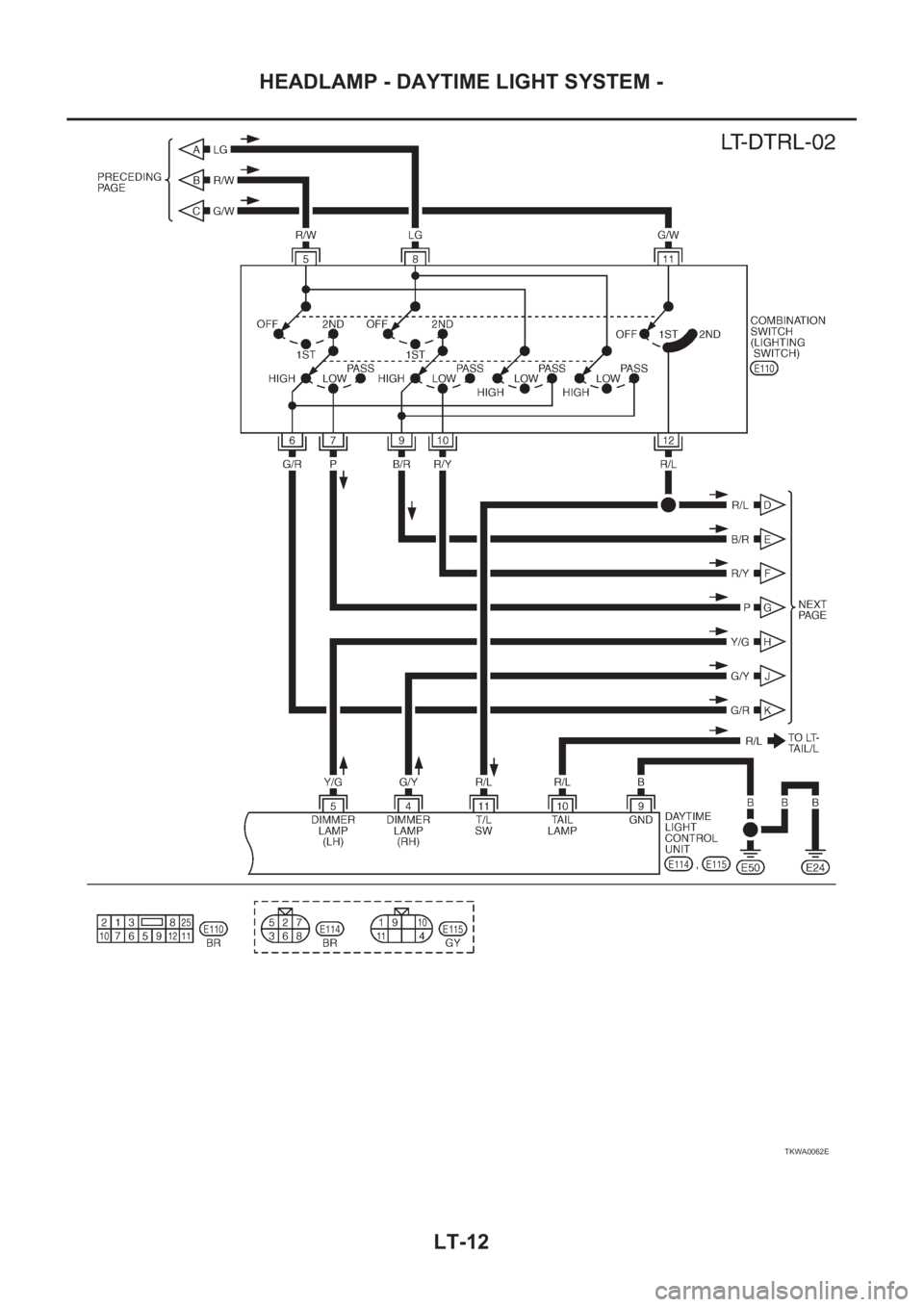

TKWA0062E

HEADLAMP - DAYTIME LIGHT SYSTEM -
LT-13
C
D
E
F
G
H
I
J
L
MA
B
LT
TKWA0063E

LT-14
HEADLAMP - DAYTIME LIGHT SYSTEM -

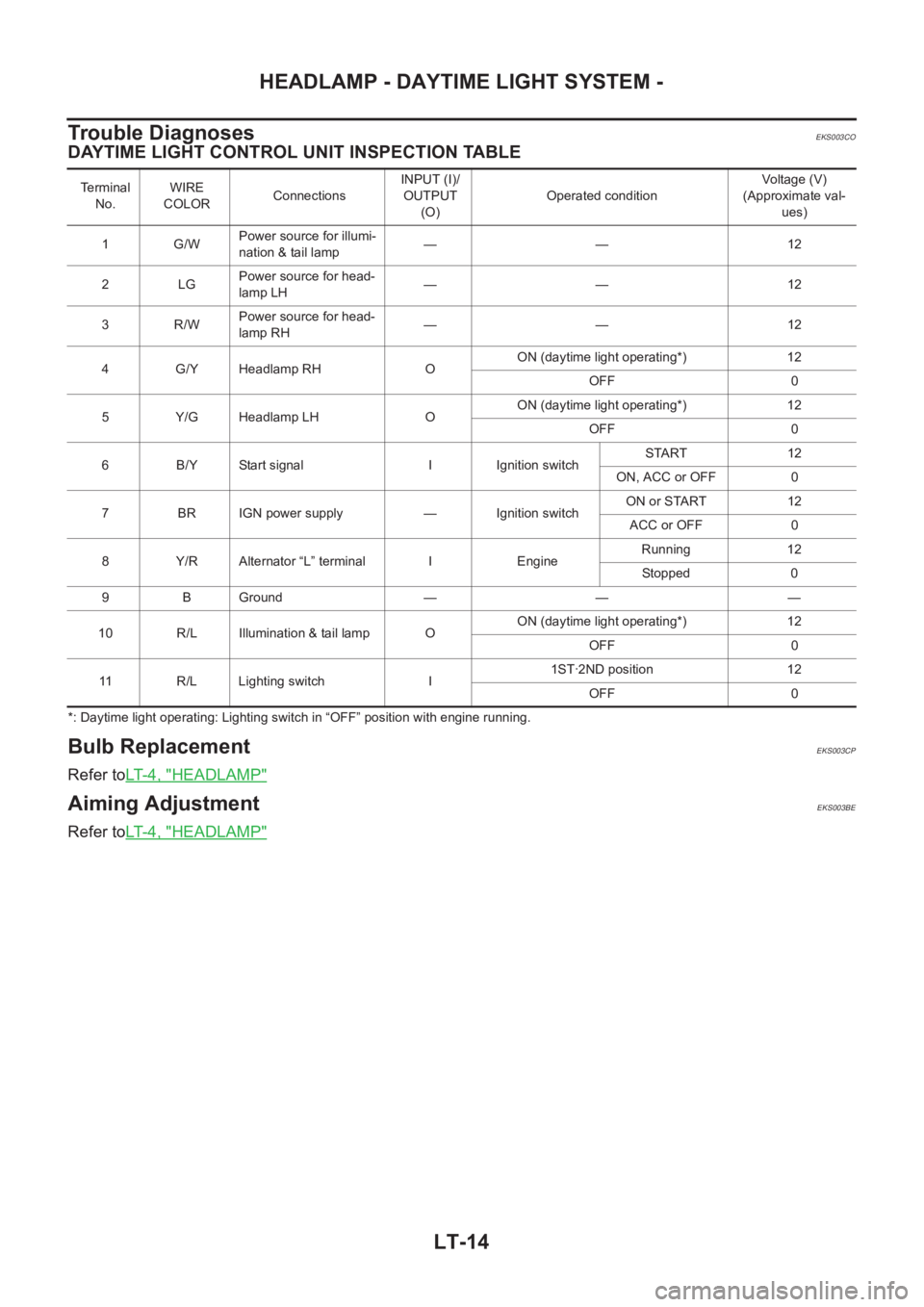

Trouble Diagnoses
EKS003CO
DAYTIME LIGHT CONTROL UNIT INSPECTION TABLE
*: Daytime light operating: Lighting switch in “OFF” position with engine running.
Bulb ReplacementEKS003CP
Refer toLT-4, "HEADLAMP"
Aiming AdjustmentEKS003BE
Refer toLT-4, "HEADLAMP"
Terminal
No.WIRE
COLORConnectionsINPUT (I)/
OUTPUT
(O)Operated conditionVoltage (V)
(Approximate val-
ues)
1 G/WPower source for illumi-
nation & tail lamp—— 12
2LGPower source for head-
lamp LH—— 12
3R/WPower source for head-
lamp RH—— 12
4 G/Y Headlamp RH OON (daytime light operating*) 12
OFF 0
5 Y/G Headlamp LH OON (daytime light operating*) 12
OFF 0
6 B/Y Start signal I Ignition switchSTART 12
ON, ACC or OFF 0
7 BR IGN power supply — Ignition switchON or START 12
ACC or OFF 0
8 Y/R Alternator “L” terminal I EngineRunning 12
Stopped 0
9 B Ground — — —
10 R/L Illumination & tail lamp OON (daytime light operating*) 12
OFF 0
11 R/L Lighting switch I1ST·2ND position 12
OFF 0

HEADLAMP AIMING CONTROL
LT-15
C
D
E
F
G
H
I
J
L
MA
B
LT
HEADLAMP AIMING CONTROLPFP:26010

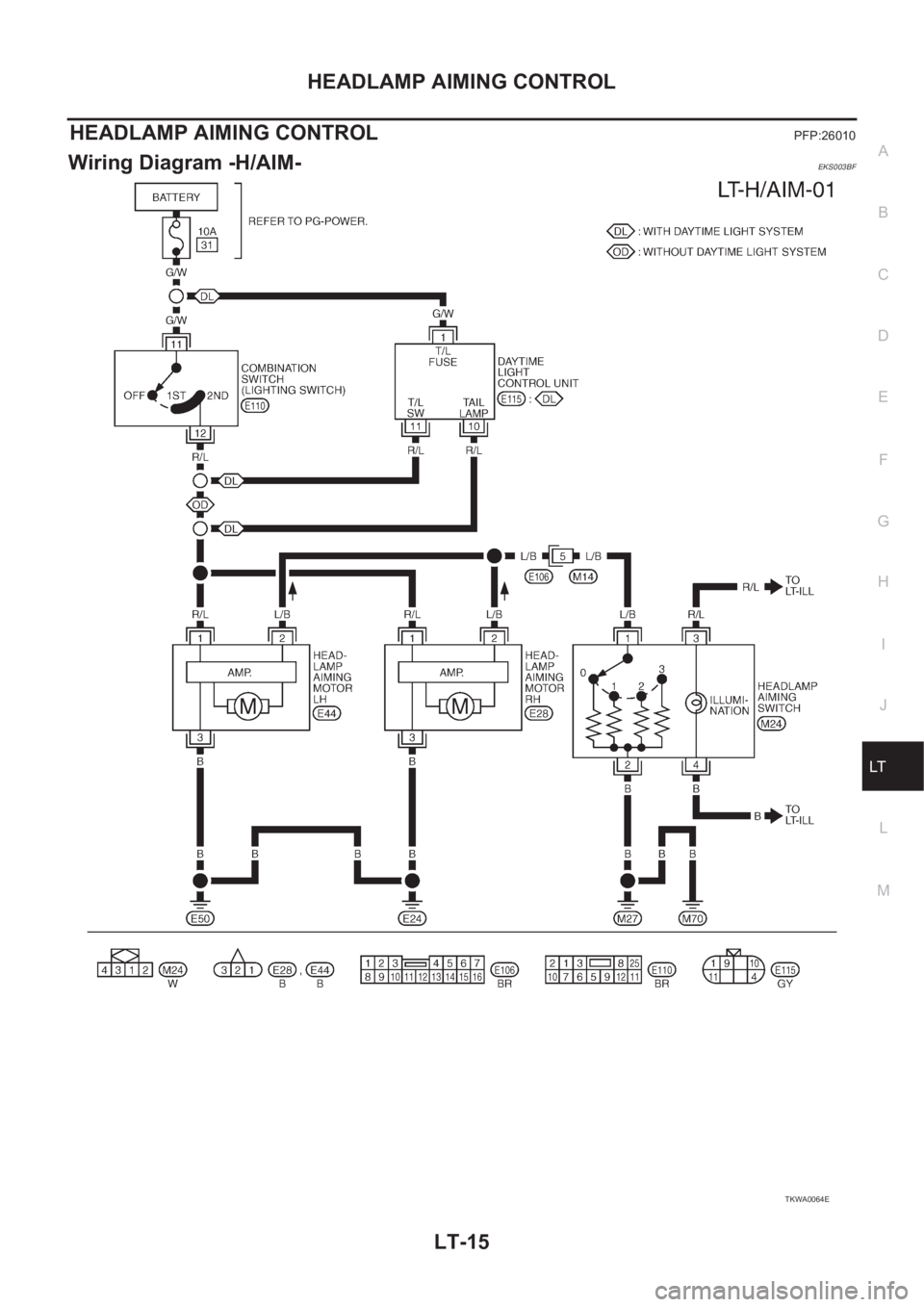

Wiring Diagram -H/AIM-EKS003BF
TKWA0064E

LT-16
HEADLAMP AIMING CONTROL

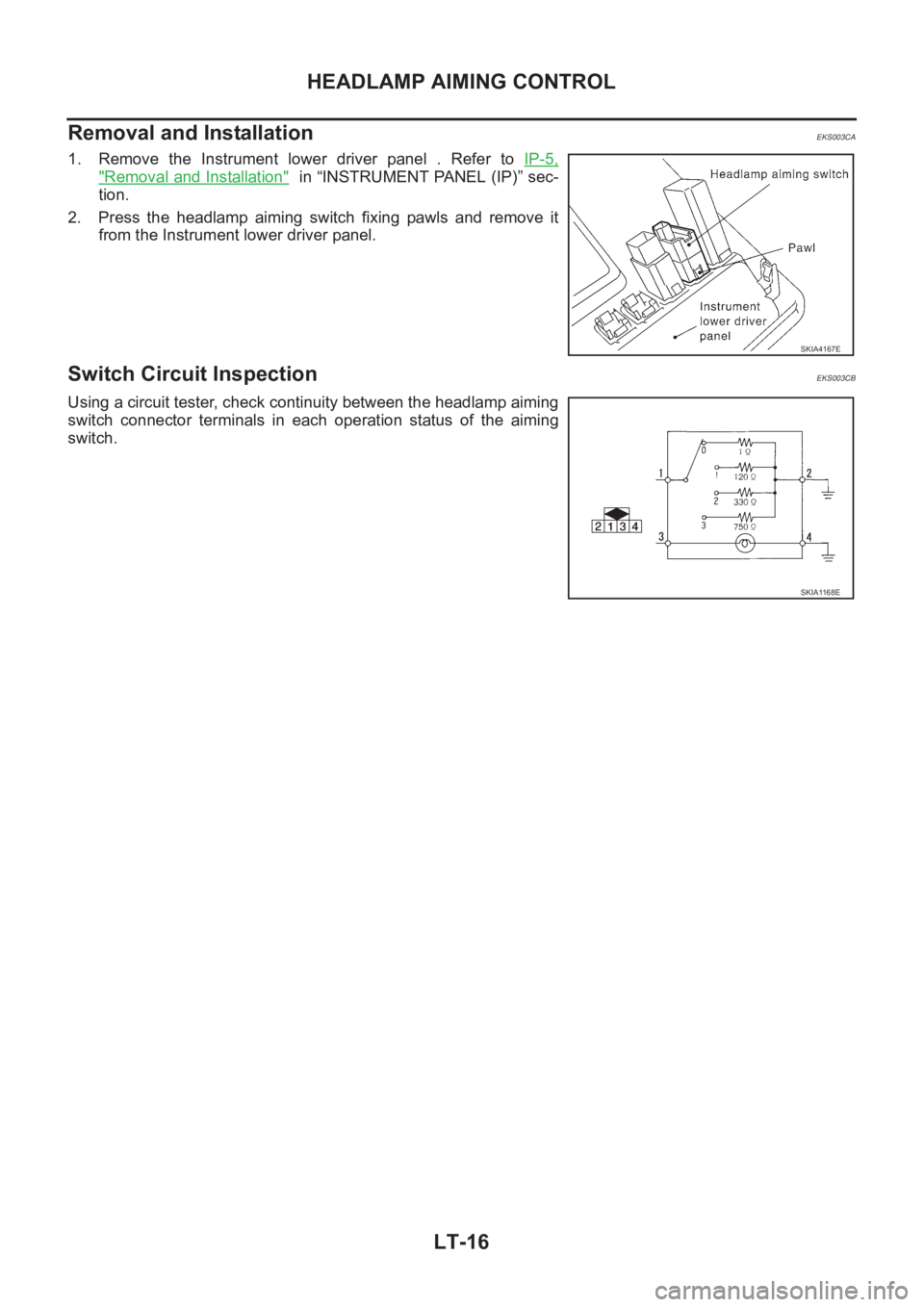

Removal and Installation
EKS003CA
1. Remove the Instrument lower driver panel . Refer to IP-5,
"Removal and Installation" in “INSTRUMENT PANEL (IP)” sec-
tion.
2. Press the headlamp aiming switch fixing pawls and remove it
from the Instrument lower driver panel.
Switch Circuit InspectionEKS003CB
Using a circuit tester, check continuity between the headlamp aiming
switch connector terminals in each operation status of the aiming
switch.
SKIA4167E
SKIA1168E

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-17
C
D
E
F
G
H
I
J
L
MA
B
LT
TURN SIGNAL AND HAZARD WARNING LAMPSPFP:26120
System Description EKS003BX
TURN SIGNAL OPERATION
With the hazard switch in the OFF position and the ignition switch in the ON or START position, power is sup-
plied
●through 10A fuse [No. 2, located in the fuse block (J/B)]
●to hazard switch terminal 2
●through terminal 1 of the hazard switch
●to combination flasher unit terminal 1
●through terminal 3 of the combination flasher unit
●to turn signal switch terminal 1.
Ground is supplied to combination flasher unit terminal 2 through body grounds M27 and M70.
LH Turn
When the turn signal switch is moved to the LH position, power is supplied from turn signal switch terminal 3 to
●front turn signal lamp LH terminal 1
●side turn signal lamp LH terminal 1
●combination meter terminal 57 (LHD models) or 12 (RHD models)
●rear combination lamp LH terminal 2.
Ground is supplied to the front turn signal lamp LH terminal 2 through body grounds E24 and E50.
Ground is supplied to the side turn signal lamp LH terminal 2 through body grounds E24 and E50.
Ground is supplied to the rear combination lamp LH terminal 4 through body grounds B8 and B18.
Ground is supplied to combination meter terminal 48 (LHD models) or 61 (RHD models) through body
grounds M27 and M70.
With power and ground supplied, the combination flasher unit controls the flashing of the LH turn signal lamps.
RH Turn
When the turn signal switch is moved to the RH position, power is supplied from turn signal switch terminal 2
to
●front turn signal lamp RH terminal 1
●side turn signal lamp RH terminal 1
●combination meter terminal 12 (LHD models) or 46 (RHD models)
●rear combination lamp RH terminal 2.
Ground is supplied to the front turn signal lamp RH terminal 2 through body grounds E24 and E50.
Ground is supplied to the side turn signal lamp RH terminal 2 through body grounds E24 and E50.
Ground is supplied to the rear combination lamp RH terminal 4 through body grounds B8 and B18.
Ground is supplied to combination meter terminal 48 (LHD models) or 61 (RHD models) through body grounds
M27 and M70.
With power and ground supplied, the combination flasher unit controls the flashing of the RH turn signal
lamps.
HAZARD LAMP OPERATION
Power is supplied at all times to hazard switch terminal 3 through:
●through 10A fuse (No. 35, located in the fuse and fusible link box).
With the hazard switch in the ON position, power is supplied
●through terminal 1 of the hazard switch
●to combination flasher unit terminal 1
●through terminal 3 of the combination flasher unit
●to hazard switch terminal 4.
Ground is supplied to combination flasher unit terminal 2 through body grounds M27 and M70.
Power is supplied through terminal 5 of the hazard switch to
●front turn signal lamp LH terminal 1
●combination meter terminal 57 (LHD models) or 12 (RHD models)
●rear combination lamp LH terminal 2.

LT-18
TURN SIGNAL AND HAZARD WARNING LAMPS

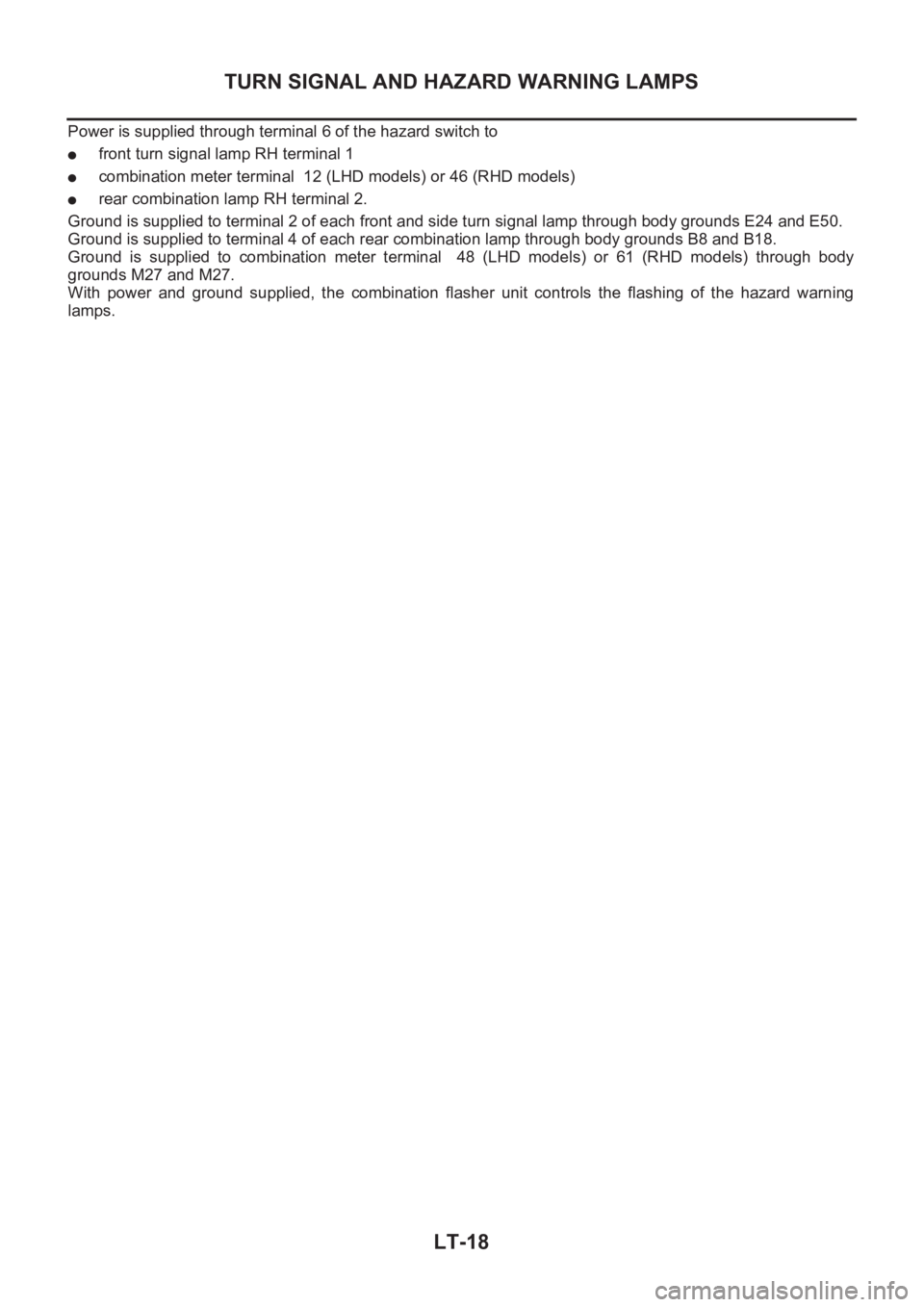

Power is supplied through terminal 6 of the hazard switch to
●front turn signal lamp RH terminal 1
●combination meter terminal 12 (LHD models) or 46 (RHD models)
●rear combination lamp RH terminal 2.
Ground is supplied to terminal 2 of each front and side turn signal lamp through body grounds E24 and E50.
Ground is supplied to terminal 4 of each rear combination lamp through body grounds B8 and B18.
Ground is supplied to combination meter terminal 48 (LHD models) or 61 (RHD models) through body
grounds M27 and M27.
With power and ground supplied, the combination flasher unit controls the flashing of the hazard warning
lamps.

TURN SIGNAL AND HAZARD WARNING LAMPS
LT-19
C
D
E
F
G
H
I
J
L
MA
B
LT

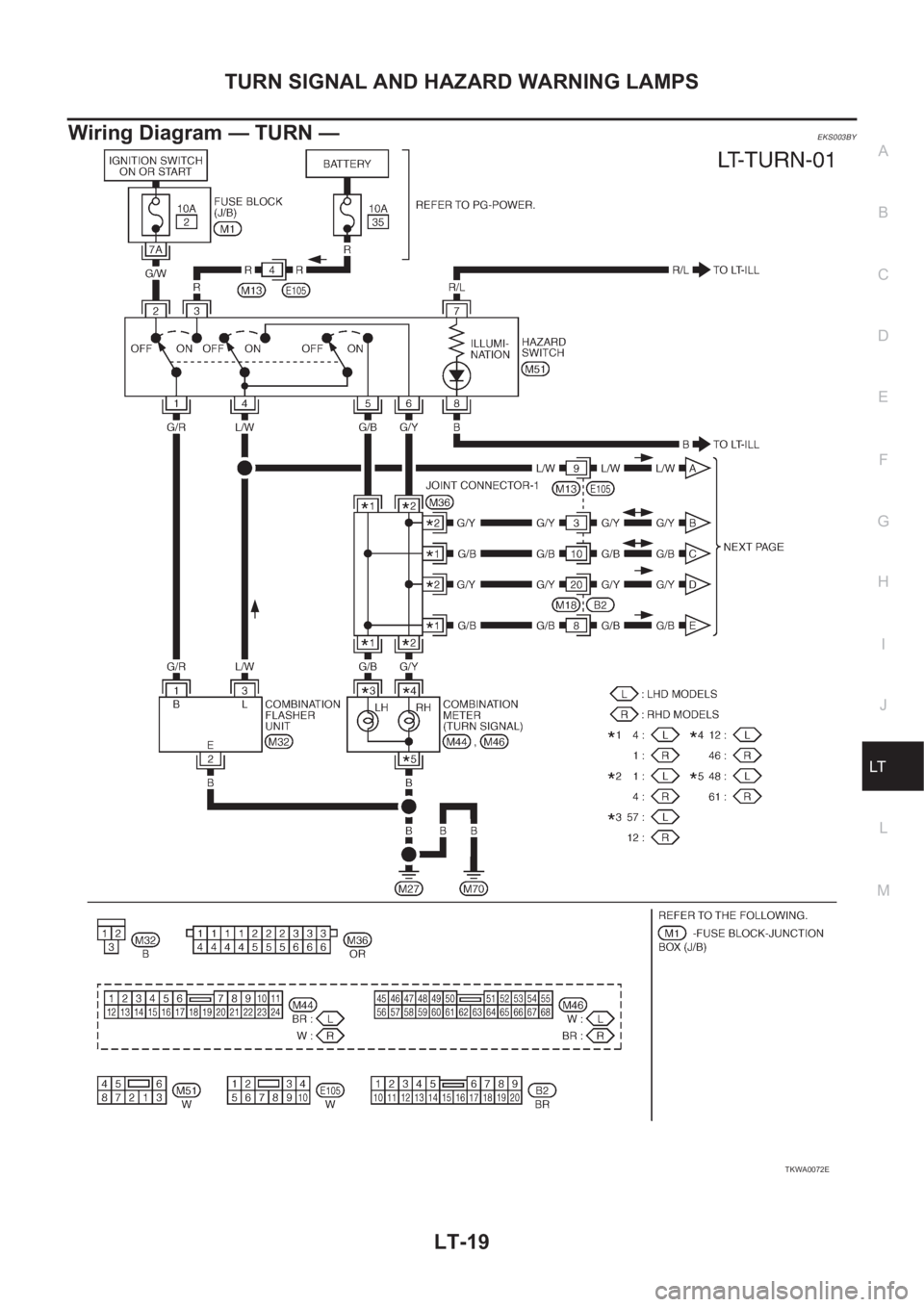

Wiring Diagram — TURN — EKS003BY
TKWA0072E

LT-20

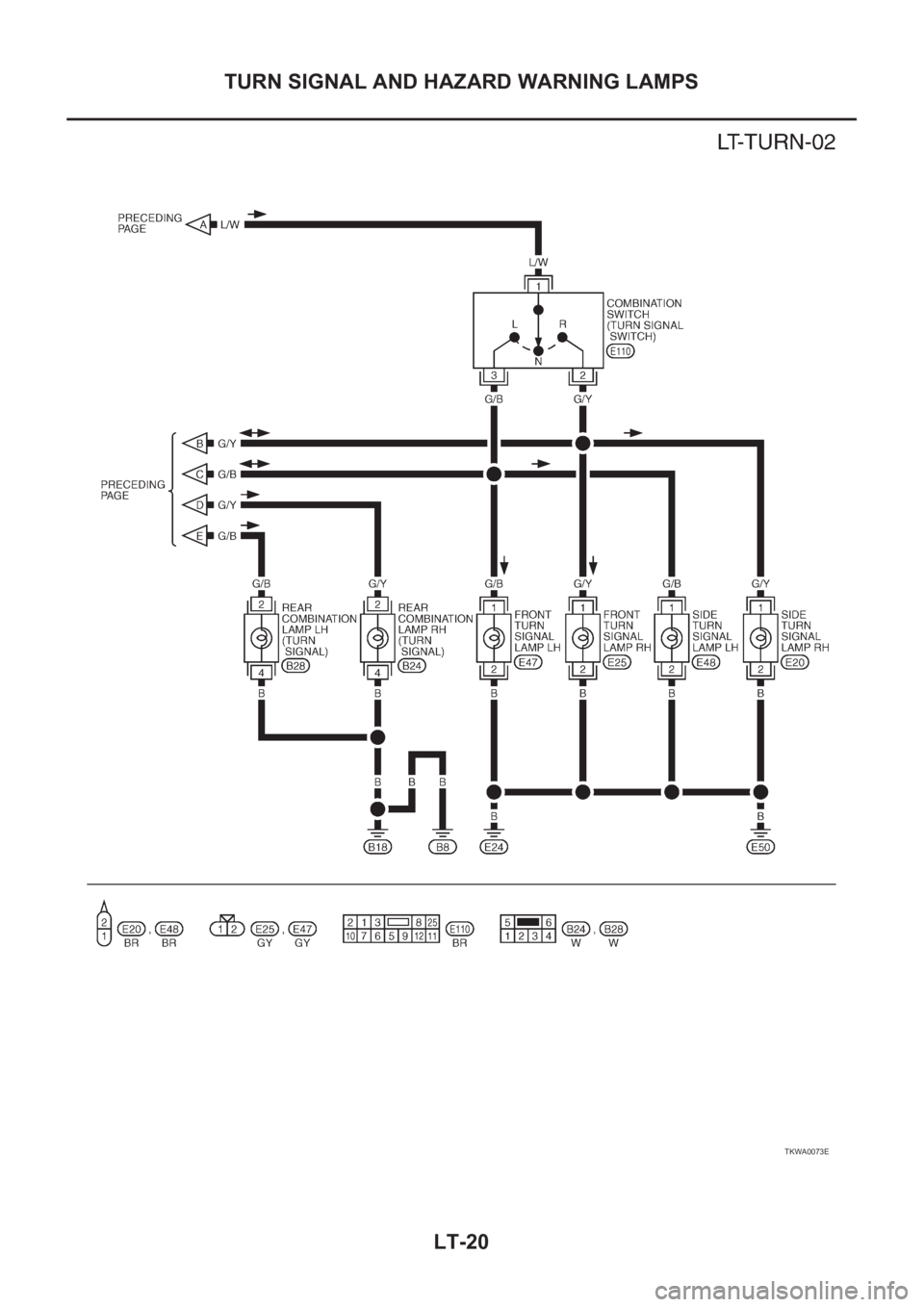

TURN SIGNAL AND HAZARD WARNING LAMPS
TKWA0073E
