CATALYSTPFP:20905
Removal and InstallationEBS00LRG
REMOVAL
1. Remove engine undercover.
2. Drain engine coolant. Refer to CO-31, "
Changing Engine Coolant" .
3. Remove radiator upper and lower hoses. Refer to CO-34, "
RADIATOR" .
4. Remove cooling fan. Refer to CO-36, "
DISASSEMBLY AND ASSEMBLY" .
5. Remove radiator mounting bracket and radiator. Refer to CO-34, "
Removal and Installation" .
6. Remove water inlet pipe. Refer to CO-44, "
THERMOSTAT AND WATER PIPING" .
7. Remove catalyst insulators.
8. Remove exhaust front tube. Refer to EX-2, "
EXHAUST SYSTEM" .
9. Remove catalyst.
CAUTION:
Do not disassemble.
NOTE:
Install two locking pins into both sides of the catalyst. Be careful not to confuse locking pins with insulator
mounting bolts.

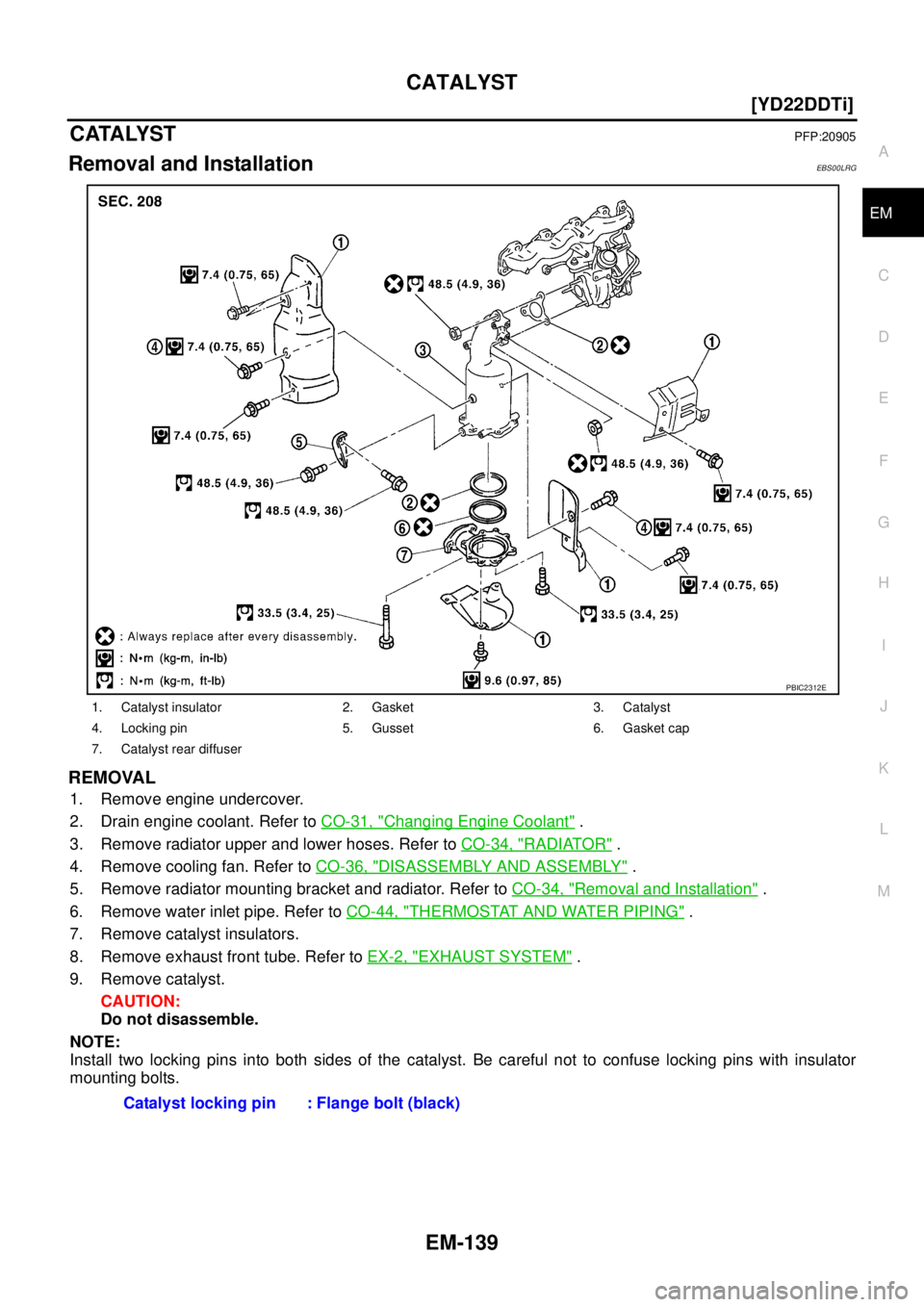

1. Catalyst insulator 2. Gasket 3. Catalyst
4. Locking pin 5. Gusset 6. Gasket cap
7. Catalyst rear diffuser
PBIC2312E
Catalyst locking pin : Flange bolt (black)

EM-140
[YD22DDTi]
CATALYST

INSTALLATION
Install in the reverse order of removal.

Pushing gussets against the oil pan and the catalyst, temporarily tighten the mounting bolt. And then
tighten it to the specified torque.

EXHAUST MANIFOLD AND TURBOCHARGER
EM-141
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

EXHAUST MANIFOLD AND TURBOCHARGERPFP:14004
Removal and InstallationEBS00LRH
REMOVAL
1. Drain engine coolant. Refer to CO-31, "Changing Engine Coolant" .
2. Remove charge air cooler. Refer to EM-135, "
Removal and Installation" .
3. Remove air duct. Refer to EM-133, "
Removal and Installation" .
4. Remove air inlet pipe.
5. Remove engine undercover.
6. Remove radiator upper and lower hoses. Refer to CO-34, "
RADIATOR" .
7. Remove cooling fan. Refer to CO-36, "
DISASSEMBLY AND ASSEMBLY" .
8. Remove radiator mounting bracket and radiator. Refer to CO-34, "
Removal and Installation" .
9. Remove water inlet pipe. Refer to CO-44, "
THERMOSTAT AND WATER PIPING" .
10. Remove catalyst. Refer to EM-139, "
Removal and Installation" .
11. Remove exhaust manifold insulator.
12. Remove turbocharger insulator.
13. Remove oil feed tube and oil return tube.

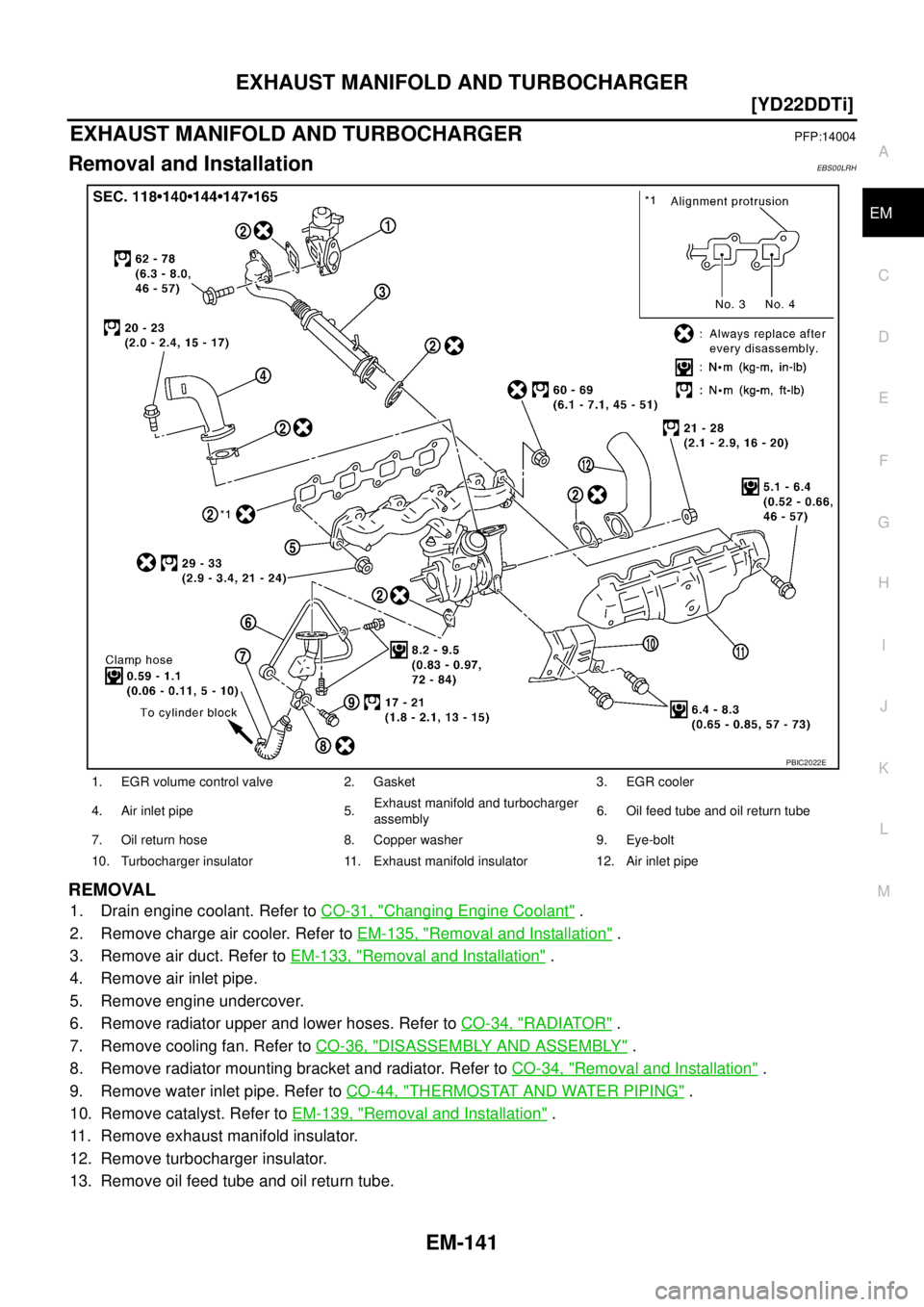

1. EGR volume control valve 2. Gasket 3. EGR cooler
4. Air inlet pipe 5.Exhaust manifold and turbocharger
assembly6. Oil feed tube and oil return tube
7. Oil return hose 8. Copper washer 9. Eye-bolt
10. Turbocharger insulator 11. Exhaust manifold insulator 12. Air inlet pipe
PBIC2022E

EM-142
[YD22DDTi]
EXHAUST MANIFOLD AND TURBOCHARGER

14. Loosen exhaust manifold mounting nuts in reverse order in the
figure.
15. Rotate exhaust manifold and turbocharger assembly so that the rear side (EGR cooler mounting side)
faces upward. And then pull out the assembly from between the engine and the A/C piping.
CAUTION:
Be careful not to deform each turbocharger piping when pulling out the assembly.
INSTALLATION

When a stud bolt is pulled out, tighten it to the following torque:

Tighten the exhaust manifold mounting nuts in the following procedure:
1. Install gasket so that the alignment protrusion faces the No. 4 port. Refer to EM-141, "
Removal and Instal-
lation" .
2. Tighten the nuts in order specified in the figure.
3. Re-tighten the nuts 1 to 4.
4. Install in the reverse order of removal.
INSPECTION AFTER INSTALLATION
Start engine and raise engine speed to check no exhaust gas and engine oil leaks.
JEM266G
: 12.7 - 16.7 N·m (1.3 - 1.7 kg-m, 9 - 12 ft-lb)
JEM266G

EXHAUST MANIFOLD AND TURBOCHARGER
EM-143
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

Disassembly and AssemblyEBS00LRI
DISASSEMBLY

After applying penetrative lubricant to the mounting nuts, check for the penetration of the lubricant, and
then loosen the nuts to remove.
CAUTION:
Do not disassemble or adjust the turbocharger body.
ASSEMBLY

When a stud bolt is pulled out, tighten it to the following torque:
INSPECTION AFTER DISASSEMBLY
Surface Distortion

Check the distortion on the mounting surface in the six directions
using a straightedge and a feeler gauge.

If it exceeds the limit, replace exhaust manifold.

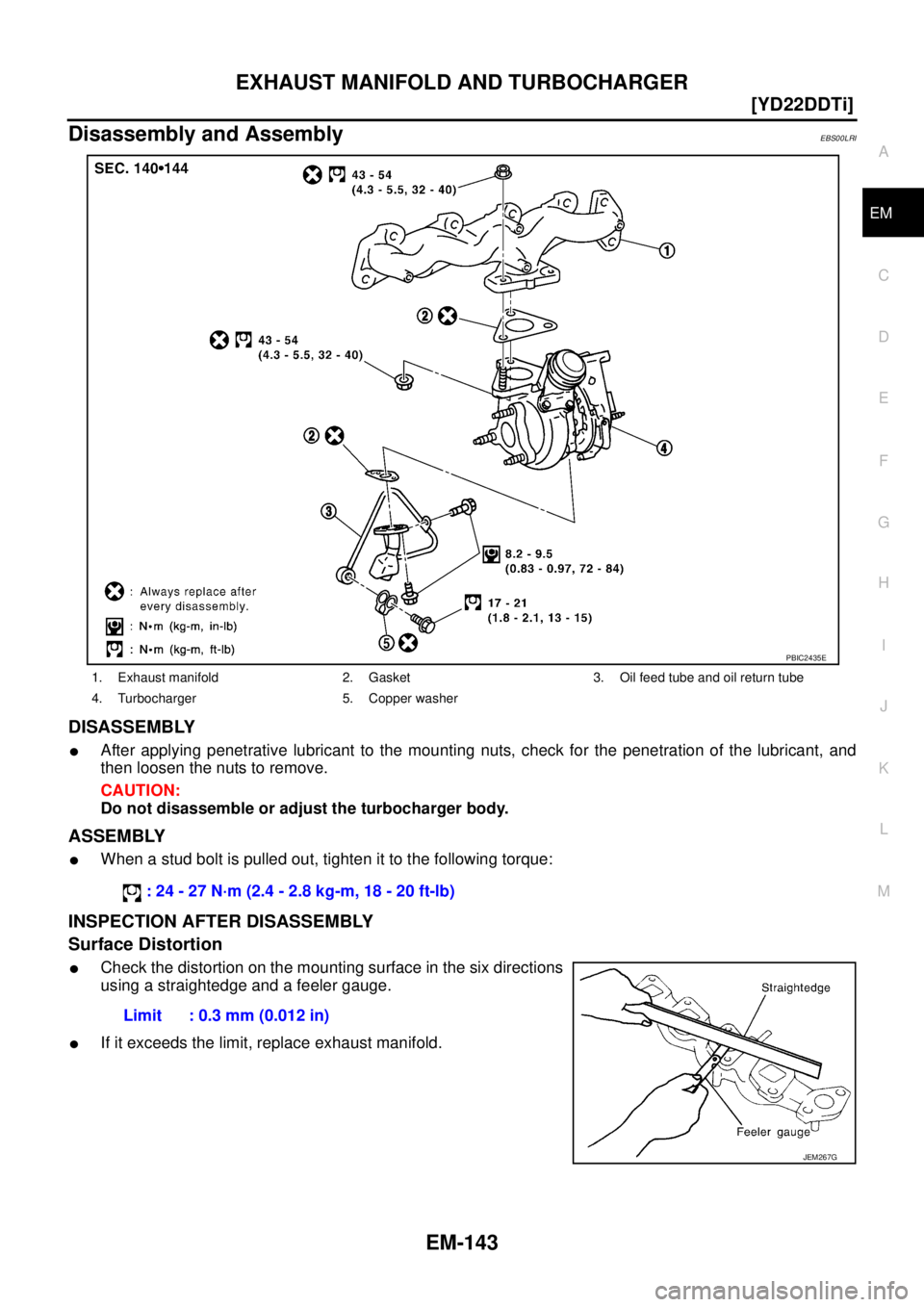

1. Exhaust manifold 2. Gasket 3. Oil feed tube and oil return tube
4. Turbocharger 5. Copper washer
PBIC2435E
: 24 - 27 N·m (2.4 - 2.8 kg-m, 18 - 20 ft-lb)
Limit : 0.3 mm (0.012 in)
JEM267G

EM-144
[YD22DDTi]
EXHAUST MANIFOLD AND TURBOCHARGER

TurbochargerEBS00LRJ

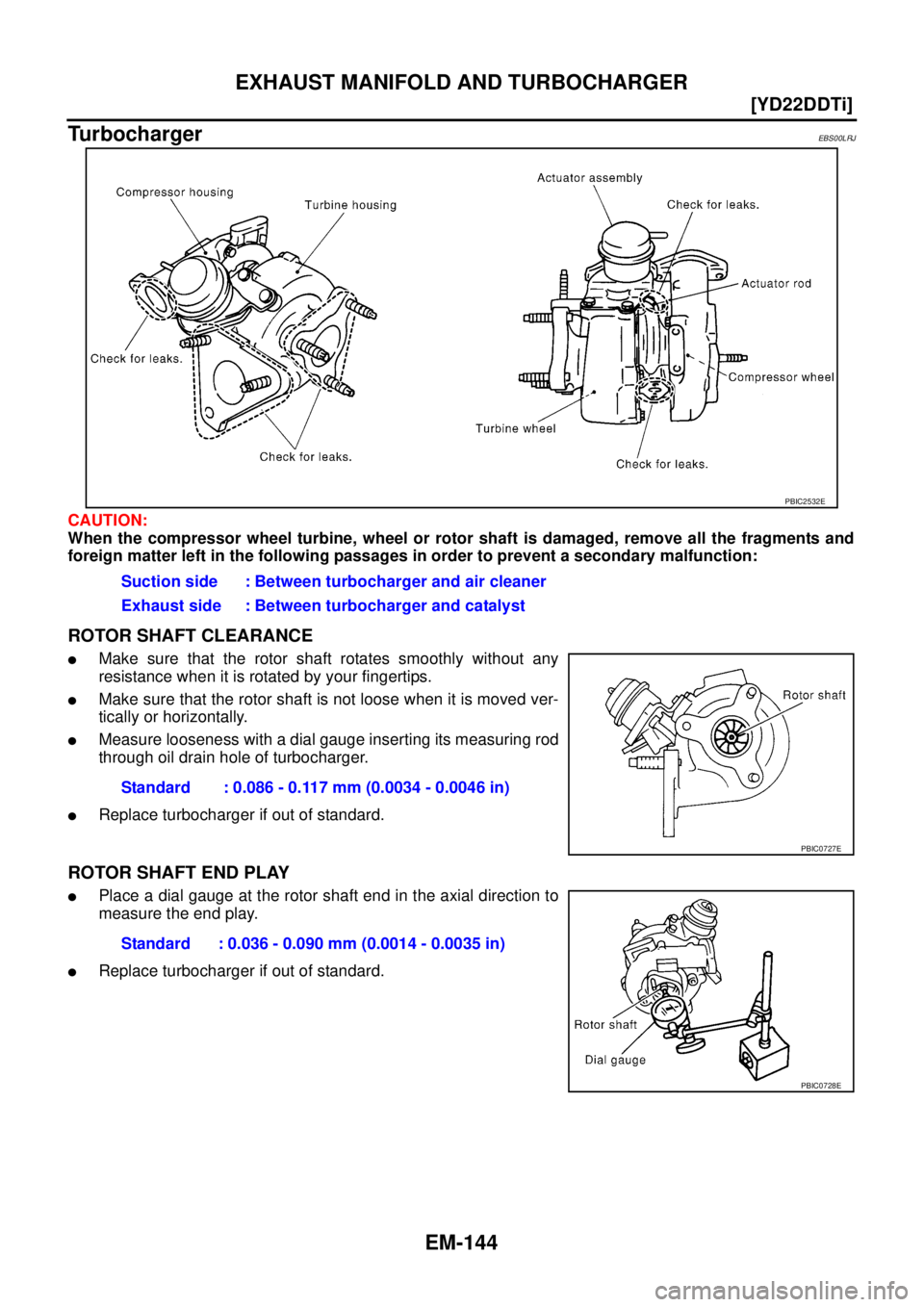

CAUTION:
When the compressor wheel turbine, wheel or rotor shaft is damaged, remove all the fragments and
foreign matter left in the following passages in order to prevent a secondary malfunction:
ROTOR SHAFT CLEARANCE

Make sure that the rotor shaft rotates smoothly without any
resistance when it is rotated by your fingertips.

Make sure that the rotor shaft is not loose when it is moved ver-
tically or horizontally.

Measure looseness with a dial gauge inserting its measuring rod
through oil drain hole of turbocharger.

Replace turbocharger if out of standard.
ROTOR SHAFT END PLAY

Place a dial gauge at the rotor shaft end in the axial direction to
measure the end play.

Replace turbocharger if out of standard.
PBIC2532E
Suction side : Between turbocharger and air cleaner
Exhaust side : Between turbocharger and catalyst
Standard : 0.086 - 0.117 mm (0.0034 - 0.0046 in)
PBIC0727E
Standard : 0.036 - 0.090 mm (0.0014 - 0.0035 in)
PBIC0728E

EXHAUST MANIFOLD AND TURBOCHARGER
EM-145
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

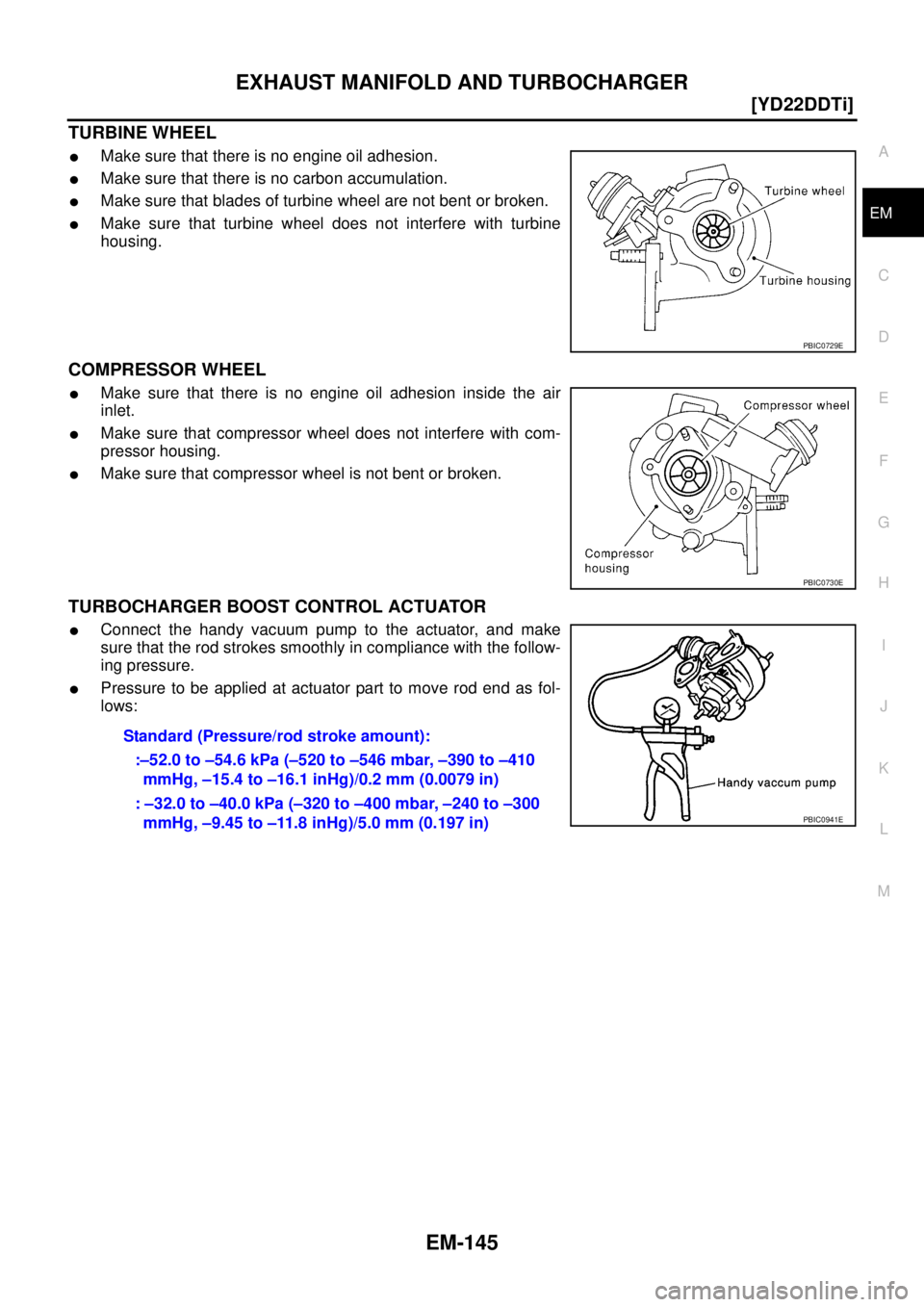

TURBINE WHEEL

Make sure that there is no engine oil adhesion.

Make sure that there is no carbon accumulation.

Make sure that blades of turbine wheel are not bent or broken.

Make sure that turbine wheel does not interfere with turbine
housing.
COMPRESSOR WHEEL

Make sure that there is no engine oil adhesion inside the air
inlet.

Make sure that compressor wheel does not interfere with com-
pressor housing.

Make sure that compressor wheel is not bent or broken.
TURBOCHARGER BOOST CONTROL ACTUATOR

Connect the handy vacuum pump to the actuator, and make
sure that the rod strokes smoothly in compliance with the follow-
ing pressure.

Pressure to be applied at actuator part to move rod end as fol-
lows:
PBIC0729E
PBIC0730E
Standard (Pressure/rod stroke amount):
:–52.0 to –54.6 kPa (–520 to –546 mbar, –390 to –410
mmHg, –15.4 to –16.1 inHg)/0.2 mm (0.0079 in)
: –32.0 to –40.0 kPa (–320 to –400 mbar, –240 to –300
mmHg, –9.45 to –11.8 inHg)/5.0 mm (0.197 in)
PBIC0941E

EM-146
[YD22DDTi]
EXHAUST MANIFOLD AND TURBOCHARGER

TROUBLE DIAGNOSIS OF TURBOCHARGER
Preliminary check:

Make sure that the engine oil level is between MIN and MAX of the oil level gauge. (When engine oil
amount is more than MAX, engine oil flows into the inlet duct through blow-by gas passage, and turbo-
charger is misjudged malfunction.)

Ask the customer if he/she always runs the vehicle in idle engine speed to cool the engine oil down after
driving.

Replace the turbocharger assembly when any malfunction is found after unit inspections specified in the
table below.

If no malfunction is found after the unit inspections, judge that the turbocharger body has no malfunction.
Check the other parts again.
A: Large possibility
B: Medium possibility
C: Small possibilityInspection item Inspection resultSymptom
(when each inspection item meets each inspection result)
Engine oil
leakageSmoke NoiseInsufficient power/accel-
eration malfunction
Turbine wheelEngine oil leaks C A C C
Carbon is accumulated C A B B
Friction with housing C B A B
Blades are bent or broken — — A A
Compressor wheelInside the air inlet is seriously con-
taminated by engine oil.BB— —
Friction with housing C B A B
Blades are bent or broken — — A A
After checking both turbine and
compressor, inspect rotor shaft
end play.There is resistance when the rotor
shaft is rotated by your fingertips.—CC B
The rotor shaft sometimes does not
rotate by your fingertips.——— A
There is too much play in the bear-
ing.CCB C
Oil return portCarbon or sludge is accumulated in
the waste oil hole.CAC C

OIL PAN AND OIL STRAINER
EM-147
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

OIL PAN AND OIL STRAINERP F P : 1111 0
Removal and InstallationEBS00LRK
REMOVAL
WARNING:
To avoid the danger of being scalded, do not drain engine oil when engine is hot.
1. Remove engine undercover.
2. Drain engine oil. Refer to LU-21, "
Changing Engine Oil" .
3. Remove oil pan lower bolts, Loosen bolts in reverse order of that
shown in the figure.
4. Remove oil pan lower.

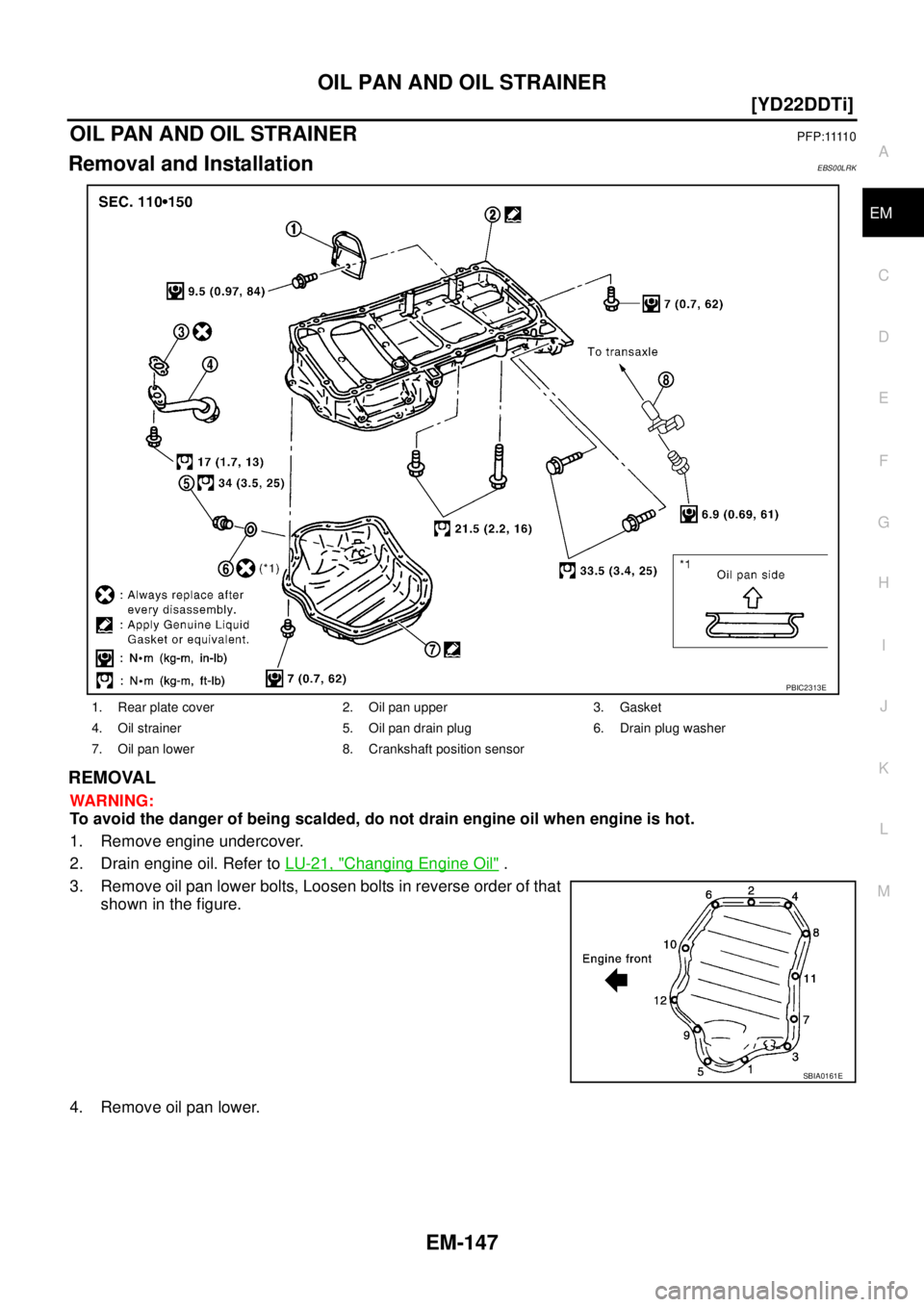

1. Rear plate cover 2. Oil pan upper 3. Gasket
4. Oil strainer 5. Oil pan drain plug 6. Drain plug washer
7. Oil pan lower 8. Crankshaft position sensor
PBIC2313E
SBIA0161E

EM-148
[YD22DDTi]
OIL PAN AND OIL STRAINER

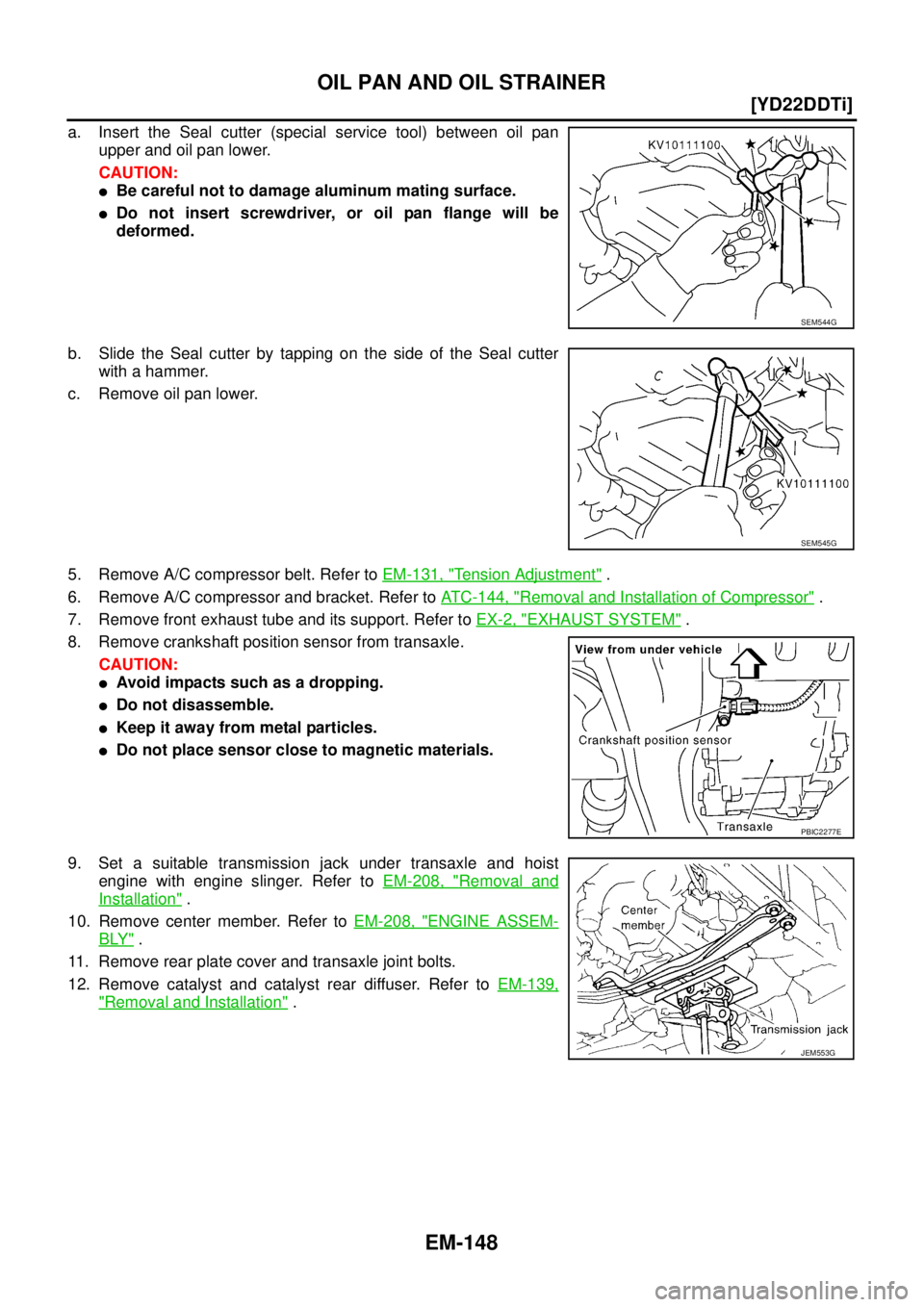

a. Insert the Seal cutter (special service tool) between oil pan
upper and oil pan lower.
CAUTION:

Be careful not to damage aluminum mating surface.

Do not insert screwdriver, or oil pan flange will be
deformed.
b. Slide the Seal cutter by tapping on the side of the Seal cutter
with a hammer.
c. Remove oil pan lower.
5. Remove A/C compressor belt. Refer to EM-131, "
Tension Adjustment" .
6. Remove A/C compressor and bracket. Refer to ATC-144, "
Removal and Installation of Compressor" .
7. Remove front exhaust tube and its support. Refer to EX-2, "
EXHAUST SYSTEM" .
8. Remove crankshaft position sensor from transaxle.
CAUTION:

Avoid impacts such as a dropping.

Do not disassemble.

Keep it away from metal particles.

Do not place sensor close to magnetic materials.
9. Set a suitable transmission jack under transaxle and hoist
engine with engine slinger. Refer to EM-208, "
Removal and
Installation" .
10. Remove center member. Refer to EM-208, "
ENGINE ASSEM-
BLY" .
11. Remove rear plate cover and transaxle joint bolts.
12. Remove catalyst and catalyst rear diffuser. Refer to EM-139,
"Removal and Installation" .
SEM544G
SEM545G
PBIC2277E
JEM553G
