SERVICE DATA AND SPECIFICATIONS (SDS)
EM-119
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

CONNECTING ROD BEARING
Undersize
Unit: mm (in)
Bearing Oil Clearance
Unit: mm (in)
Tightening TorqueEBS00KNY
Unit: N·m (kg-m, ft-lb)
Unit: N·m (kg-m, in-lb)*2
Grade number Thickness mm (in) Identification color
0 1.495 - 1.499 (0.0589 - 0.0590) Black
1 1.499 - 1.503 (0.0590 - 0.0592) Brown
2 1.503 - 1.507 (0.0592 - 0.0593) Green
3 1.507 - 1.511(0.0593 - 0.0595) Yellow
Item Thickness Crank pin journal diameter
US 0.25 (0.0098) 1.624 - 1.632 (0.0639 - 0.0643) Grind so that bearing clearance is the specified value.
Connecting rod bearing oil clearanceStandard 0.028 - 0.045 (0.0011 - 0.0018)
Limit 0.10 (0.0039)
*1: Parts to be tightened in particular orders.
1)-: Order of tightening when tightening two or more times separately.
Auto-tensioner 21.6 (2.2, 16)
Mass air flow sensor
3.8 (0.39, 34) *
2
Resonator
3.8 (0.39, 34)*2
Air cleaner case lower
3.8 (0.39, 34)*2
*1 Intake manifold19.6 (2.0, 14)
Intake manifold collector (QR25DE) 19.6 (2.0, 14)
Intake manifold support (QR20DE) 19.6 (2.0, 14)
Intake manifold support (QR25DE) M6 bolt
8.83 (0.90, 78) *
2
M10 bolt 46.6 (4.8, 34)
Intake manifold rear support (QR25DE) 19.6 (2.0, 14)
Electric throttle control actuator
8.43 (0.86, 75) *
2
EVAP canister purge volume control solenoid valve
5.1 (0.52, 45) *2
*1 Exhaust manifold and three way catalyst assembly 41.7 (4.3, 31)
Exhaust manifold covers (upper and lower)
5.8 (0.59, 51) *
2
Three way catalyst cover
5.8 (0.59, 51) *2
Heated oxygen sensor 1 45 (4.6, 33)
Heated oxygen sensor 2 45 (4.6, 33)
*1 Oil pan upper M6 bolt
8.8 (0.90, 78) *
2
M8 bolt 21.6 (2.2, 16)
Oil pan upper to transaxle joint bolts 42.7 (4.4, 31)
*1 Oil pan lower
6.9 (0.70, 61) *
2
Oil pan drain plug34.3 (3.5, 25)
Rear plate cover
6.9 (0.70, 61) *
2
Oil level gauge guide 21.6 (2.2, 16)

EM-120
[QR]
SERVICE DATA AND SPECIFICATIONS (SDS)

Oil strainer M6 bolt
8.8 (0.90, 78) *2
M8 bolt 21.6 (2.2, 16)
Ignition coil
6.4 (0.65, 57) *
2
Spark plug24.5 (2.5, 18)
*1 Fuel tube1) 10.1 (1.0, 7)
2) 23.6 (2.4, 17)
*1 Rocker cover 1)
2.0 (0.20, 18) *
2
2)
8.3 (0.85, 73) *2
PCV valve
2.5 (0.26, 22) *2
Intake valve timing control solenoid valve
6.4 (0.65, 57) *2
*1 Intake valve timing control cover 12.8 (1.3, 9)
Camshaft position sensor (PHASE)
6.4 (0.65, 57) *
2
Camshaft sprockets (Intake and Exhaust) 142 (14, 105)
Chain tensioner
7.0 (0.71, 62) *
2
*1 Camshaft bracket 1) 2.0 (0.2, 1)
2) 5.9 (0.6, 4)
3) 10.4 (1.1, 8)
Crankshaft pulley 1) 42.1 (4.3, 31)
2) 60° (Angle tightening)
*1 Front cover 12.8 (1.3, 9)
Timing chain slack guide 16.7 (1.7, 12)
Timing chain tension guide 16.7 (1.7, 12)
Balancer unit timing chain tensioner
7.0 (0.71, 62) *
2
*1 Balancer unit 1) 48.1 (4.9, 35)
2) 90° (Angle tightening)
3) 0 (0, 0)
4) 48.1 (4.9, 35)
5) 90° (Angle tightening)
*1 Cylinder head 1) 5.0 (0.51, 4)
2) 60° (Angle tightening)
3) 0 (0.0, 0)
3) 39.2 (4.0, 29)
4) 75° (Angle tightening)
5) 75° (Angle tightening)
Flywheel (M/T)108 (11, 80)
Drive plate (A/T)108 (11, 80)
Connecting rod bearing cap 1) 19.6 (2.0, 14)
2) 90° (Angle tightening)
*1 Lower cylinder block M8 bolt 1) 25.1 (2.6, 19)
M10 bolt 2) 39.2 (4.0, 29)
M10 bolt 3) 60° (Angle tightening)
Signal plate13.0 (1.3, 10)
Water drain plug
9.8 (1.0, 87) *
2

SERVICE DATA AND SPECIFICATIONS (SDS)
EM-121
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

Knock sensor 21.1 (2.2, 16)
Crankshaft position sensor (POS)
6.4 (0.65, 57) *
2

EM-122
[YD22DDTi]
PRECAUTIONS

[YD22DDTi]PRECAUTIONSPFP:00001
Precautions for Draining Engine CoolantEBS00LQZ
Drain engine coolant when engine is cooled.
Precautions for Disconnecting Fuel PipingEBS00LR0

Before starting work, make sure no fire or spark producing items are in the work area.

After disconnecting pipes, plug openings to stop fuel leakage.
Precautions for Removal and DisassemblyEBS00LR1

When instructed to use special service tools, use the specified tools. Always be careful to work safely,
avoid forceful or uninstructed operations.

Exercise maximum care to avoid damage to mating or sliding surfaces.

Cover openings of engine system with tape or the equivalent, if necessary, to seal out foreign materials.

Mark and arrange disassembly parts in an organized way for easy troubleshooting and re-assembly.

When loosening nuts and bolts, as a basic rule, start with the one furthest outside, then the one diagonally
opposite, and so on. If the order of loosening is specified, do exactly as specified.
Precautions for Inspection, Repair and ReplacementEBS00LR2
Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and
replace if necessary.
Precautions for Assembly and InstallationEBS00LR3

Use torque wrench to tighten bolts or nuts to specification.

When tightening nuts and bolts, as a basic rule, equally tighten in several different steps starting with the
ones in center, then ones on inside and outside diagonally in this order. If the order of tightening is speci-
fied, do exactly as specified.

Replace with new liquid gasket, packing, oil seal or O-ring.

Thoroughly wash, clean, and air-blow each part. Carefully check engine oil or engine coolant passages for
any restriction and blockage.

Avoid damaging sliding or mating surfaces. Completely remove foreign materials such as cloth lint or dust.
Before assembly, engine oil sliding surfaces well.

Release air within route when refilling after draining coolant.

After repairing, start engine and increase engine speed to check engine coolant, fuel, engine oil, and
exhaust systems for leakage.
Parts Requiring Angle TighteningEBS00LR4

Use an angle wrench (special service tool: KV10112100) for the final tightening of the following engine
parts:
–Cylinder head bolts
–Main bearing cap bolts
–Connecting rod cap nuts
–Crankshaft pulley bolt (No angle wrench is required as the bolt flange is provided with notches for angular
tightening)

Do not use a torque value for final tightening.

The torque value for these parts are for a preliminary step.

Ensure thread and seat surfaces are clean and coated with engine oil.

PRECAUTIONS
EM-123
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

Precautions For Liquid GasketEBS00ODW

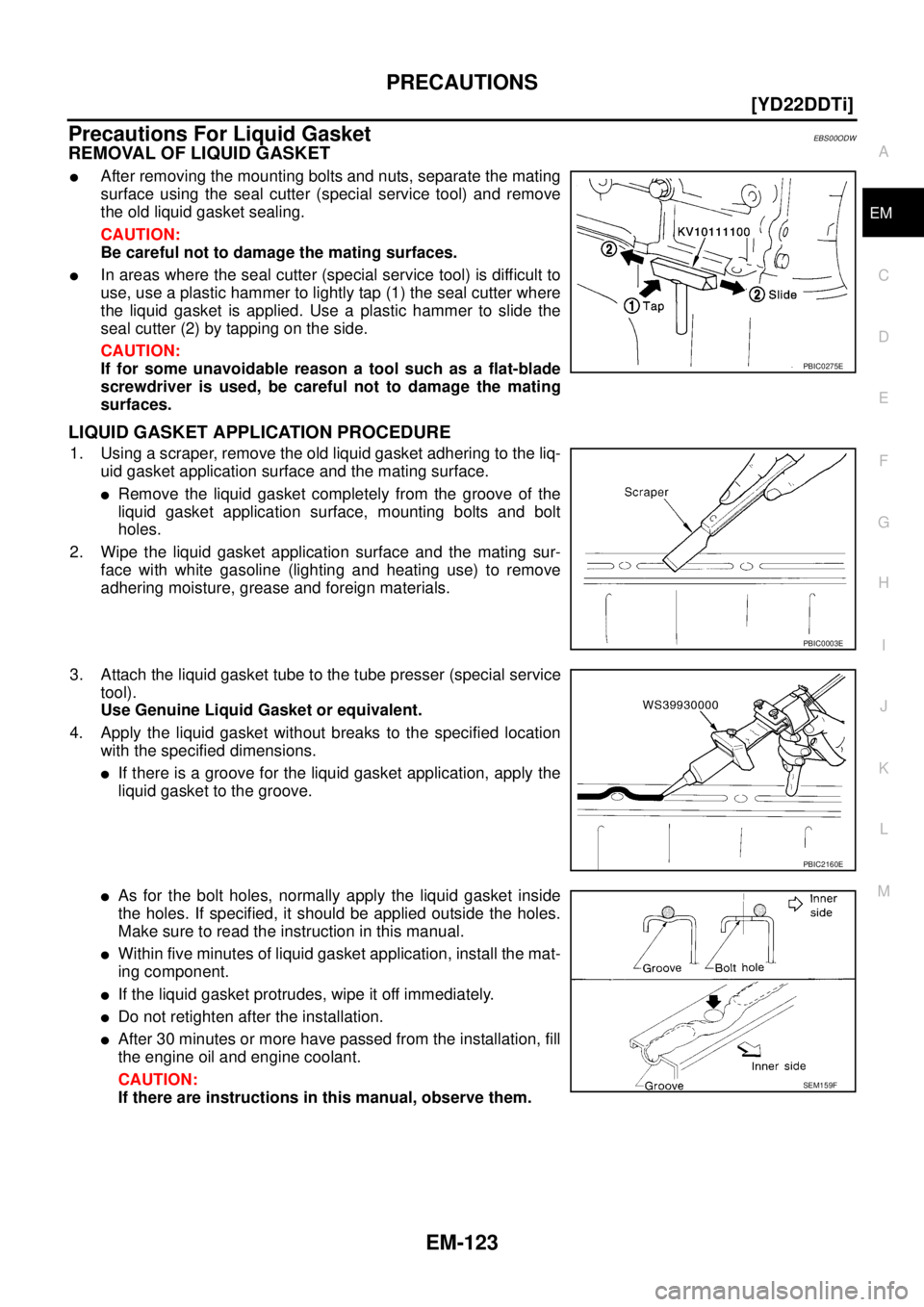

REMOVAL OF LIQUID GASKET

After removing the mounting bolts and nuts, separate the mating
surface using the seal cutter (special service tool) and remove
the old liquid gasket sealing.
CAUTION:
Be careful not to damage the mating surfaces.

In areas where the seal cutter (special service tool) is difficult to
use, use a plastic hammer to lightly tap (1) the seal cutter where
the liquid gasket is applied. Use a plastic hammer to slide the
seal cutter (2) by tapping on the side.
CAUTION:
If for some unavoidable reason a tool such as a flat-blade
screwdriver is used, be careful not to damage the mating
surfaces.
LIQUID GASKET APPLICATION PROCEDURE
1. Using a scraper, remove the old liquid gasket adhering to the liq-
uid gasket application surface and the mating surface.

Remove the liquid gasket completely from the groove of the
liquid gasket application surface, mounting bolts and bolt
holes.
2. Wipe the liquid gasket application surface and the mating sur-
face with white gasoline (lighting and heating use) to remove
adhering moisture, grease and foreign materials.
3. Attach the liquid gasket tube to the tube presser (special service
tool).
Use Genuine Liquid Gasket or equivalent.
4. Apply the liquid gasket without breaks to the specified location
with the specified dimensions.

If there is a groove for the liquid gasket application, apply the
liquid gasket to the groove.

As for the bolt holes, normally apply the liquid gasket inside
the holes. If specified, it should be applied outside the holes.
Make sure to read the instruction in this manual.

Within five minutes of liquid gasket application, install the mat-
ing component.

If the liquid gasket protrudes, wipe it off immediately.

Do not retighten after the installation.

After 30 minutes or more have passed from the installation, fill
the engine oil and engine coolant.
CAUTION:
If there are instructions in this manual, observe them.
PBIC0275E
PBIC0003E
PBIC2160E
SEM159F

EM-124
[YD22DDTi]
PREPARATION

PREPARATIONPFP:00002
Special Service ToolsEBS00LR6
Tool number
Tool nameDescription
ST0501S000
Engine stand assembly
1. ST05011000
Engine stand
2. ST05012000
BaseDisassembling and assembling
KV10106500
Engine stand shaft
KV11105900
Engine sub-attachmentUsed with KV10106500
KV10115600
Valve oil seal driftInstalling valve oil seal
Use side A.
Side A
a: 20 (0.79) dia.
b: 13 (0.51) dia.
c: 10.3 (0.406) dia.
d: 8 (0.31) dia.
e: 10.7 (0.421)
f: 5 (0.20)
Unit: mm (in)
KV10107902
Valve oil seal puller
1. KV10116100
Valve oil seal puller adapterRemoving valve oil seal
KV11103000
Pulley pullerRemoving crankshaft pulley
ED19600610
Compression gauge adapterChecking compression pressure
NT042
NT028
NT799
NT603
S-NT605
NT676
ZZA1188D

PREPARATION
EM-125
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

KV101056S0
Ring gear stopper
1. KV10105630
Adapter
2. KV10105610
PlatePreventing crankshaft from rotating
a: 3 (0.12)
b: 6.4 (0.252)
c: 2.8 (0.110)
d: 6.6 (0.260)
e: 107 (4.21)
f: 14 (0.55)
g: 20 (0.79)
h: 14 (0.55) dia.
Unit: mm (in)
KV101151S0
Lifter stopper set
1. KV10115110
Camshaft pliers
2. KV10115120
Lifter stopperChanging adjusting shim
KV10116200
Valve spring compressor
1. KV10115900
Attachment
2. KV10109220
AdapterDisassembling and assembling valve
mechanism
Part (1) is a component of KV10116200, but
Part (2) is not so.

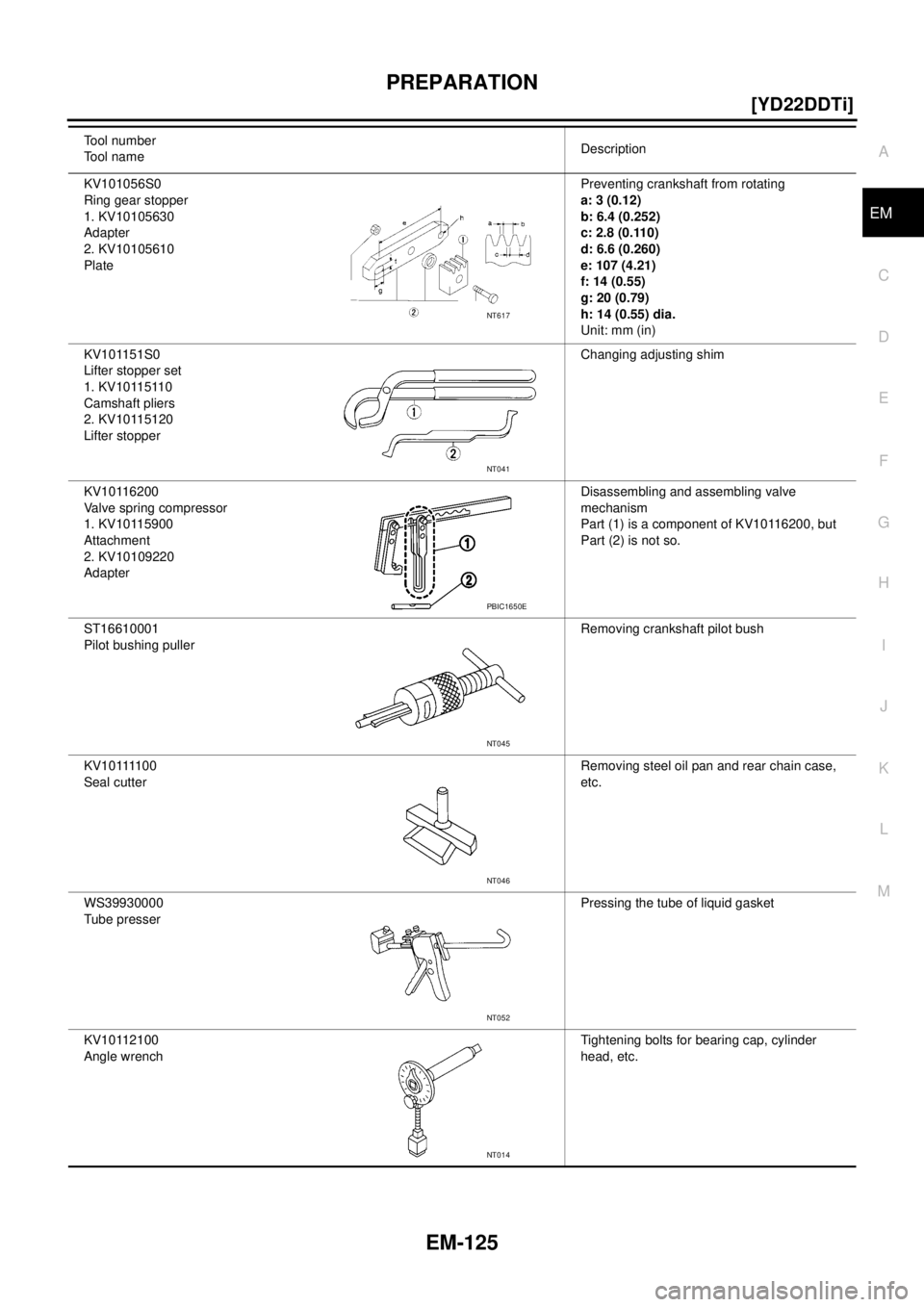

ST16610001
Pilot bushing pullerRemoving crankshaft pilot bush
KV10111100
Seal cutterRemoving steel oil pan and rear chain case,
etc.
WS39930000
Tube presserPressing the tube of liquid gasket
KV10112100
Angle wrenchTightening bolts for bearing cap, cylinder
head, etc. Tool number
Tool nameDescription
NT617
NT041
PBIC1650E
NT045
NT046
NT052
NT014

EM-126
[YD22DDTi]
PREPARATION

EM03470000

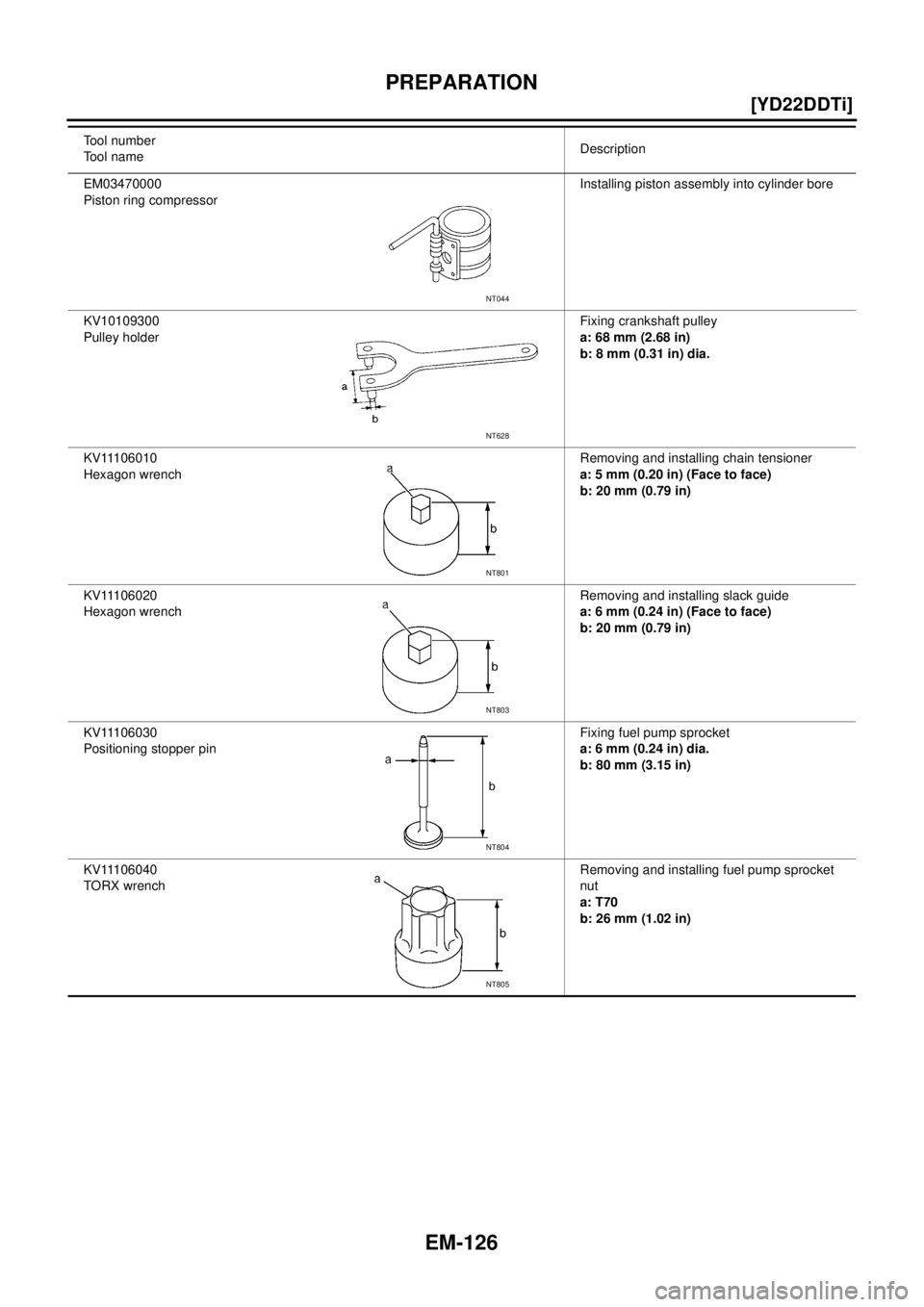

Piston ring compressorInstalling piston assembly into cylinder bore
KV10109300
Pulley holderFixing crankshaft pulley
a: 68 mm (2.68 in)
b: 8 mm (0.31 in) dia.
KV11106010
Hexagon wrenchRemoving and installing chain tensioner
a: 5 mm (0.20 in) (Face to face)
b: 20 mm (0.79 in)
KV11106020
Hexagon wrenchRemoving and installing slack guide
a: 6 mm (0.24 in) (Face to face)
b: 20 mm (0.79 in)
KV11106030
Positioning stopper pinFixing fuel pump sprocket
a: 6 mm (0.24 in) dia.
b: 80 mm (3.15 in)
KV11106040

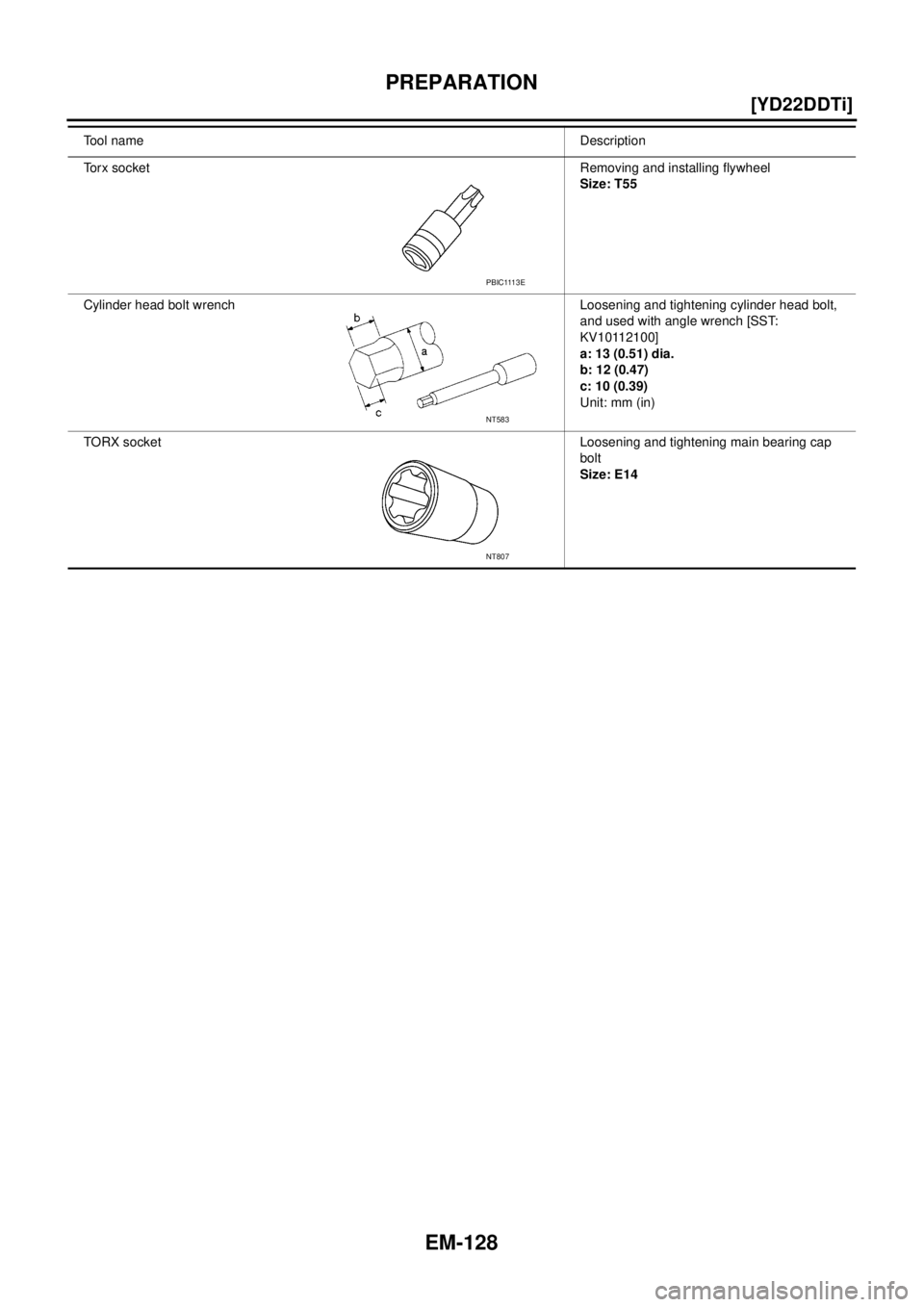

TORX wrenchRemoving and installing fuel pump sprocket
nut
a: T70
b: 26 mm (1.02 in) Tool number
Tool nameDescription
NT044
NT628
NT801
NT803
NT804
NT805

PREPARATION
EM-127
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

Commercial Service ToolsEBS00LR7

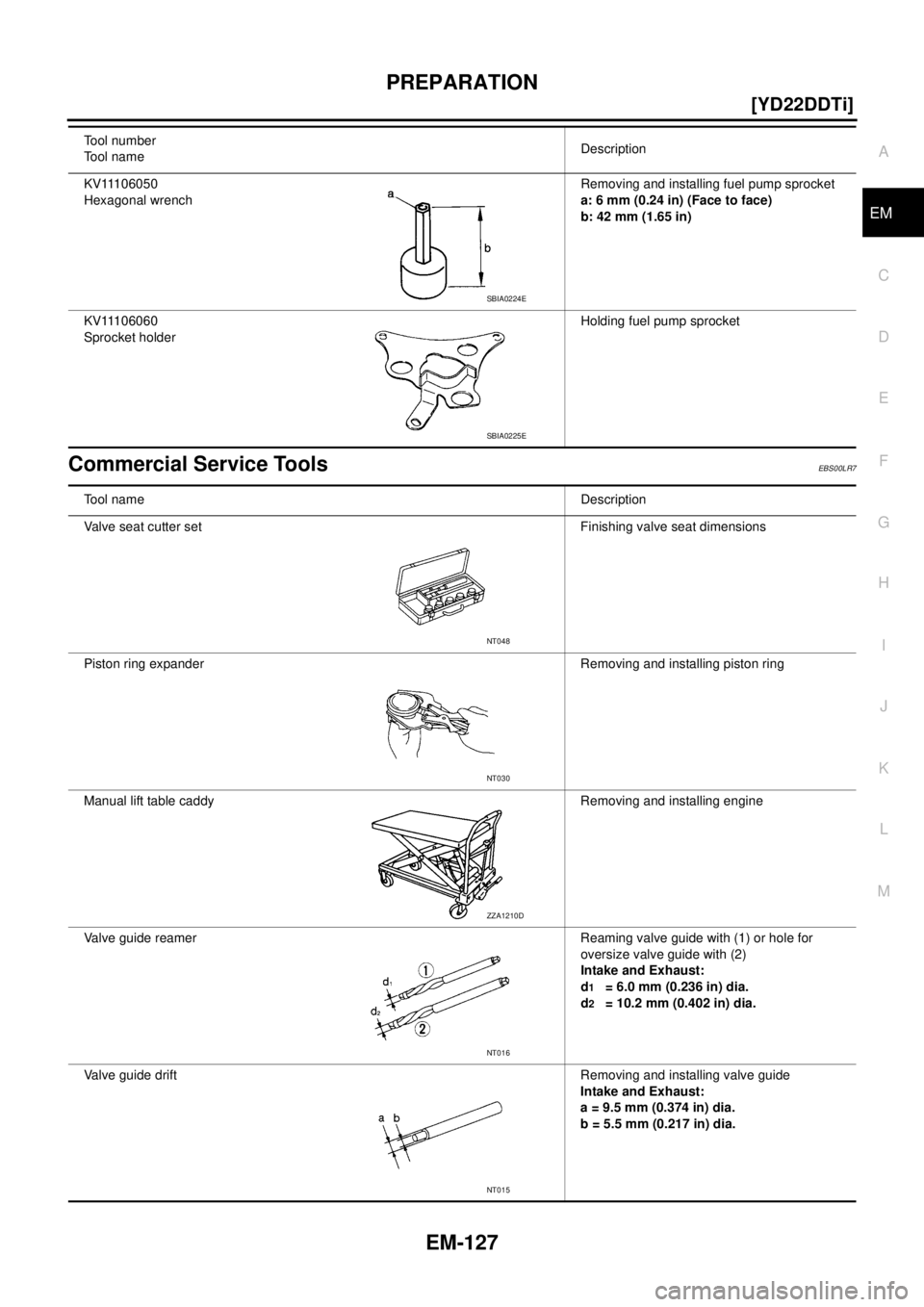

KV11106050
Hexagonal wrenchRemoving and installing fuel pump sprocket
a: 6 mm (0.24 in) (Face to face)
b: 42 mm (1.65 in)
KV11106060
Sprocket holderHolding fuel pump sprocket Tool number
Tool nameDescription
SBIA0224E
SBIA0225E
Tool nameDescription
Valve seat cutter set Finishing valve seat dimensions
Piston ring expander Removing and installing piston ring
Manual lift table caddy Removing and installing engine
Valve guide reamer Reaming valve guide with (1) or hole for
oversize valve guide with (2)
Intake and Exhaust:
d
1 = 6.0 mm (0.236 in) dia.
d
2 = 10.2 mm (0.402 in) dia.
Valve guide drift Removing and installing valve guide
Intake and Exhaust:
a = 9.5 mm (0.374 in) dia.
b = 5.5 mm (0.217 in) dia.
NT048
NT030
ZZA1210D
NT016
NT015

EM-128
[YD22DDTi]
PREPARATION

To r x s o c k e tRemoving and installing flywheel
Size: T55
Cylinder head bolt wrench Loosening and tightening cylinder head bolt,
and used with angle wrench [SST:
KV10112100]
a: 13 (0.51) dia.
b: 12 (0.47)
c: 10 (0.39)
Unit: mm (in)
TORX socketLoosening and tightening main bearing cap
bolt
Size: E14 Tool nameDescription
PBIC1113E
NT583
NT807
