NISSAN X-TRAIL 2003 Service Repair Manual

OIL FILTER
LU-23
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
LU

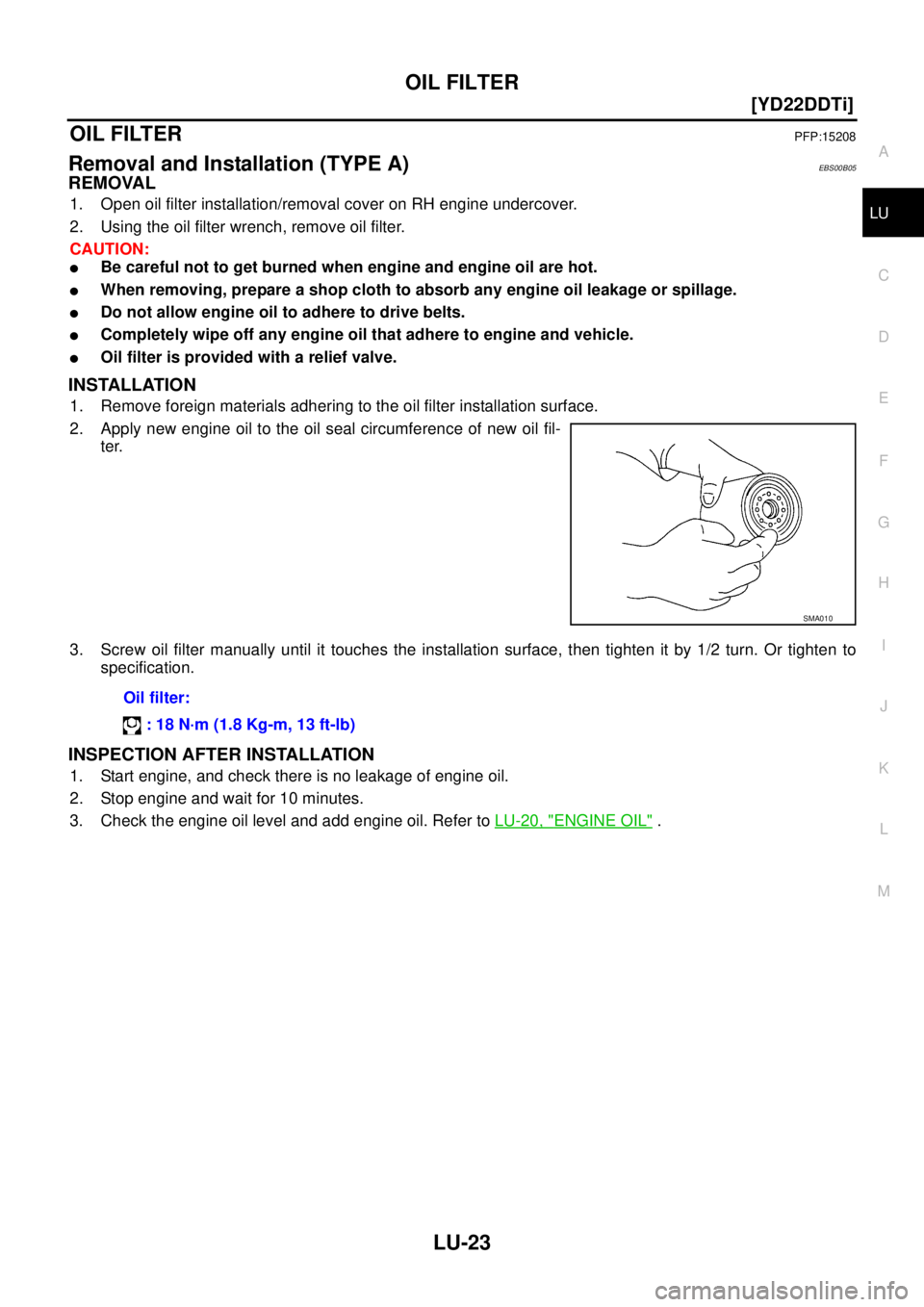

OIL FILTER PFP:15208
Removal and Installation (TYPE A)EBS00B05
REMOVAL
1. Open oil filter installation/removal cover on RH engine undercover.
2. Using the oil filter wrench, remove oil filter.
CAUTION:

Be careful not to get burned when engine and engine oil are hot.

When removing, prepare a shop cloth to absorb any engine oil leakage or spillage.

Do not allow engine oil to adhere to drive belts.

Completely wipe off any engine oil that adhere to engine and vehicle.

Oil filter is provided with a relief valve.
INSTALLATION
1. Remove foreign materials adhering to the oil filter installation surface.
2. Apply new engine oil to the oil seal circumference of new oil fil-
ter.
3. Screw oil filter manually until it touches the installation surface, then tighten it by 1/2 turn. Or tighten to
specification.
INSPECTION AFTER INSTALLATION
1. Start engine, and check there is no leakage of engine oil.
2. Stop engine and wait for 10 minutes.
3. Check the engine oil level and add engine oil. Refer to LU-20, "
ENGINE OIL" .
SMA010
Oil filter:
: 18 N·m (1.8 Kg-m, 13 ft-lb)

LU-24
[YD22DDTi]
OIL FILTER

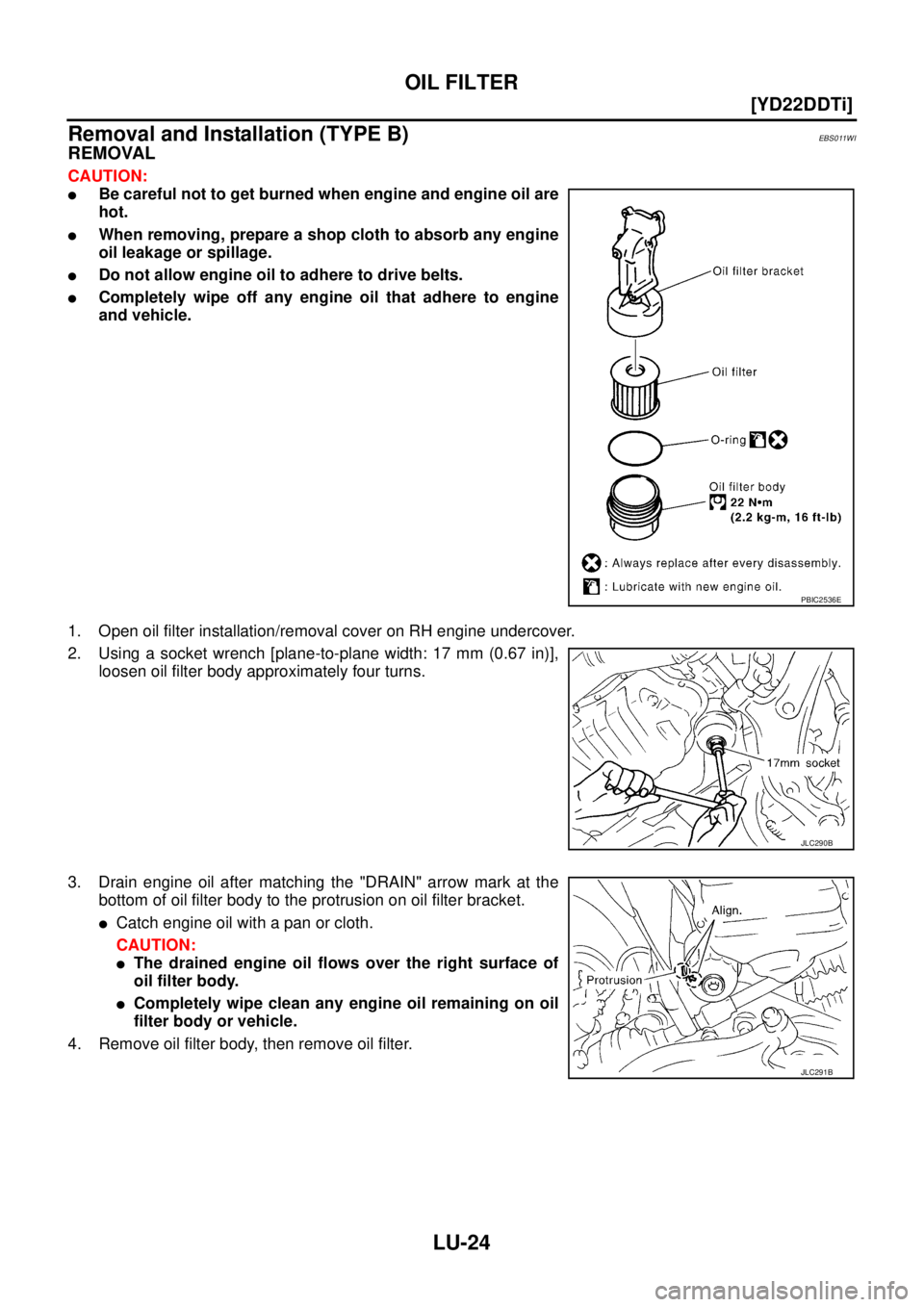

Removal and Installation (TYPE B)EBS011WI
REMOVAL
CAUTION:

Be careful not to get burned when engine and engine oil are
hot.

When removing, prepare a shop cloth to absorb any engine
oil leakage or spillage.

Do not allow engine oil to adhere to drive belts.

Completely wipe off any engine oil that adhere to engine
and vehicle.
1. Open oil filter installation/removal cover on RH engine undercover.
2. Using a socket wrench [plane-to-plane width: 17 mm (0.67 in)],
loosen oil filter body approximately four turns.
3. Drain engine oil after matching the "DRAIN" arrow mark at the
bottom of oil filter body to the protrusion on oil filter bracket.

Catch engine oil with a pan or cloth.
CAUTION:

The drained engine oil flows over the right surface of
oil filter body.

Completely wipe clean any engine oil remaining on oil
filter body or vehicle.
4. Remove oil filter body, then remove oil filter.
PBIC2536E
JLC290B
JLC291B

OIL FILTER
LU-25
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
LU

5. Remove O-ring from oil filter body.

Push O-ring in one direction, lift the slack part using fingers,
and remove O-ring from oil filter body.
CAUTION:
Do not use a screwdrivers etc. as they may cause dam-
age to oil filter body.
INSTALLATION
1. Completely remove all foreign objects adhering to the inside of oil filter body or O-ring mounting area
(body side and bracket side).
2. Install oil filter and O-ring to oil filter body.

Push oil filter into filter body completely.
3. Install oil filter body to oil filter bracket.
INSPECTION AFTER INSTALLATION
1. After warming up engine, check there is no leaks of engine oil.
2. Stop engine and wait for 10 minutes.
3. Check the engine oil level and add engine oil. Refer to LU-20, "
ENGINE OIL" .
JLC292B
Oil filter body:
: 22 N·m (2.2 Kg-m, 16 ft-lb)

LU-26
[YD22DDTi]

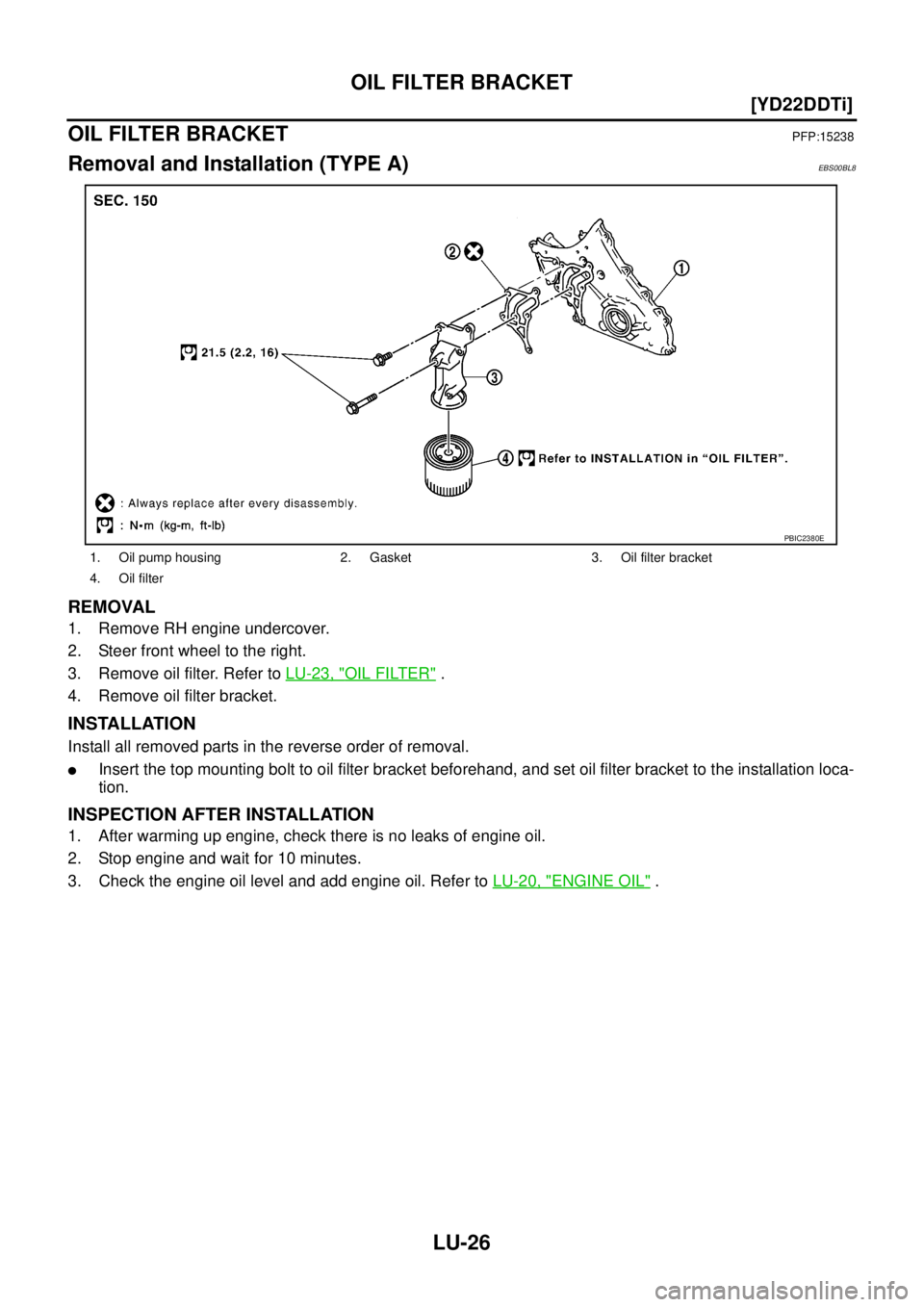

OIL FILTER BRACKET

OIL FILTER BRACKETPFP:15238
Removal and Installation (TYPE A)EBS00BL8
REMOVAL
1. Remove RH engine undercover.
2. Steer front wheel to the right.
3. Remove oil filter. Refer to LU-23, "
OIL FILTER" .
4. Remove oil filter bracket.
INSTALLATION
Install all removed parts in the reverse order of removal.

Insert the top mounting bolt to oil filter bracket beforehand, and set oil filter bracket to the installation loca-
tion.
INSPECTION AFTER INSTALLATION
1. After warming up engine, check there is no leaks of engine oil.
2. Stop engine and wait for 10 minutes.
3. Check the engine oil level and add engine oil. Refer to LU-20, "
ENGINE OIL" .
1. Oil pump housing 2. Gasket 3. Oil filter bracket
4. Oil filter
PBIC2380E

OIL FILTER BRACKET
LU-27
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
LU

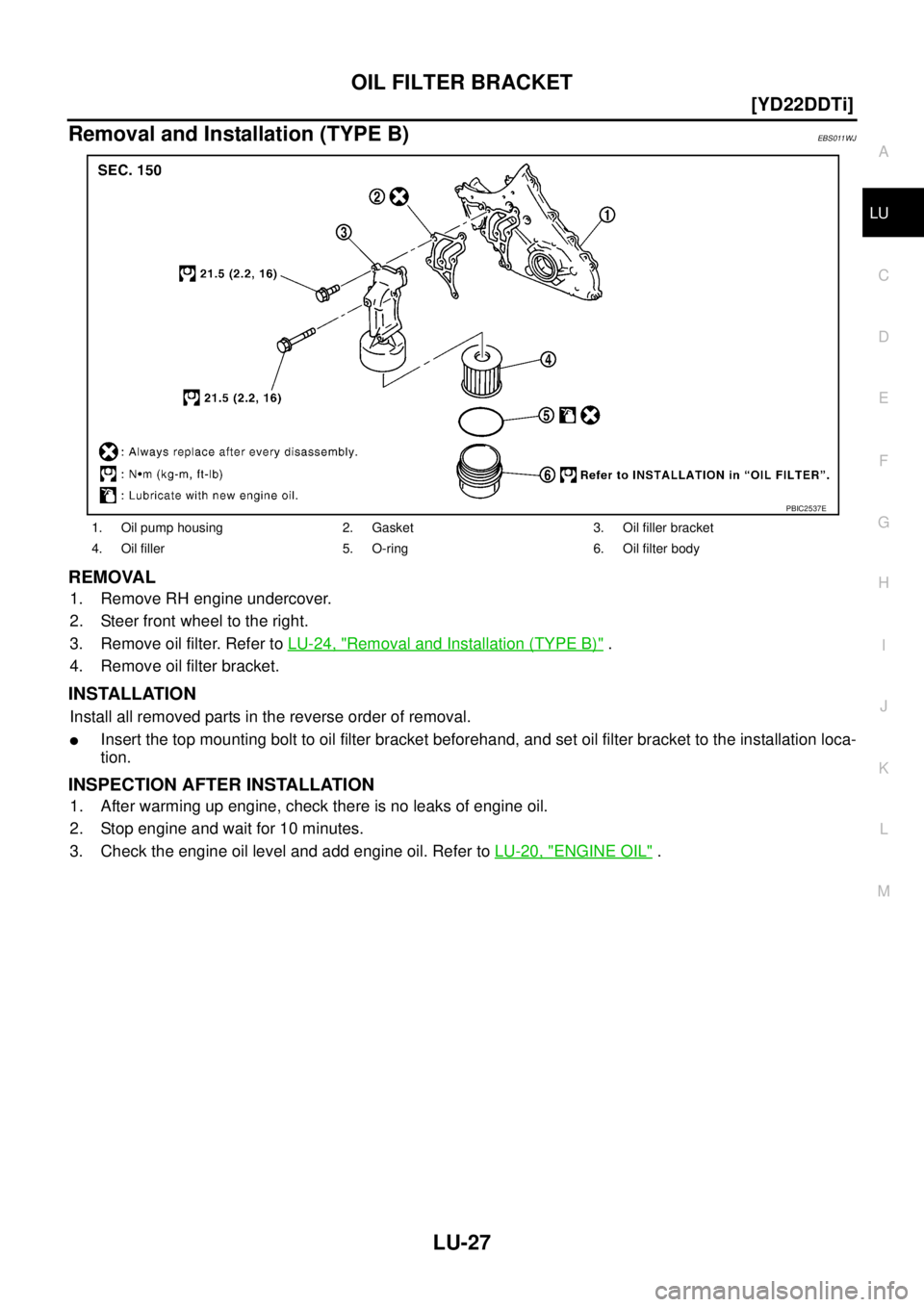

Removal and Installation (TYPE B)EBS011WJ
REMOVAL
1. Remove RH engine undercover.
2. Steer front wheel to the right.
3. Remove oil filter. Refer to LU-24, "
Removal and Installation (TYPE B)" .
4. Remove oil filter bracket.
INSTALLATION
Install all removed parts in the reverse order of removal.

Insert the top mounting bolt to oil filter bracket beforehand, and set oil filter bracket to the installation loca-
tion.
INSPECTION AFTER INSTALLATION
1. After warming up engine, check there is no leaks of engine oil.
2. Stop engine and wait for 10 minutes.
3. Check the engine oil level and add engine oil. Refer to LU-20, "
ENGINE OIL" .
1. Oil pump housing 2. Gasket 3. Oil filler bracket
4. Oil filler 5. O-ring 6. Oil filter body
PBIC2537E

LU-28
[YD22DDTi]

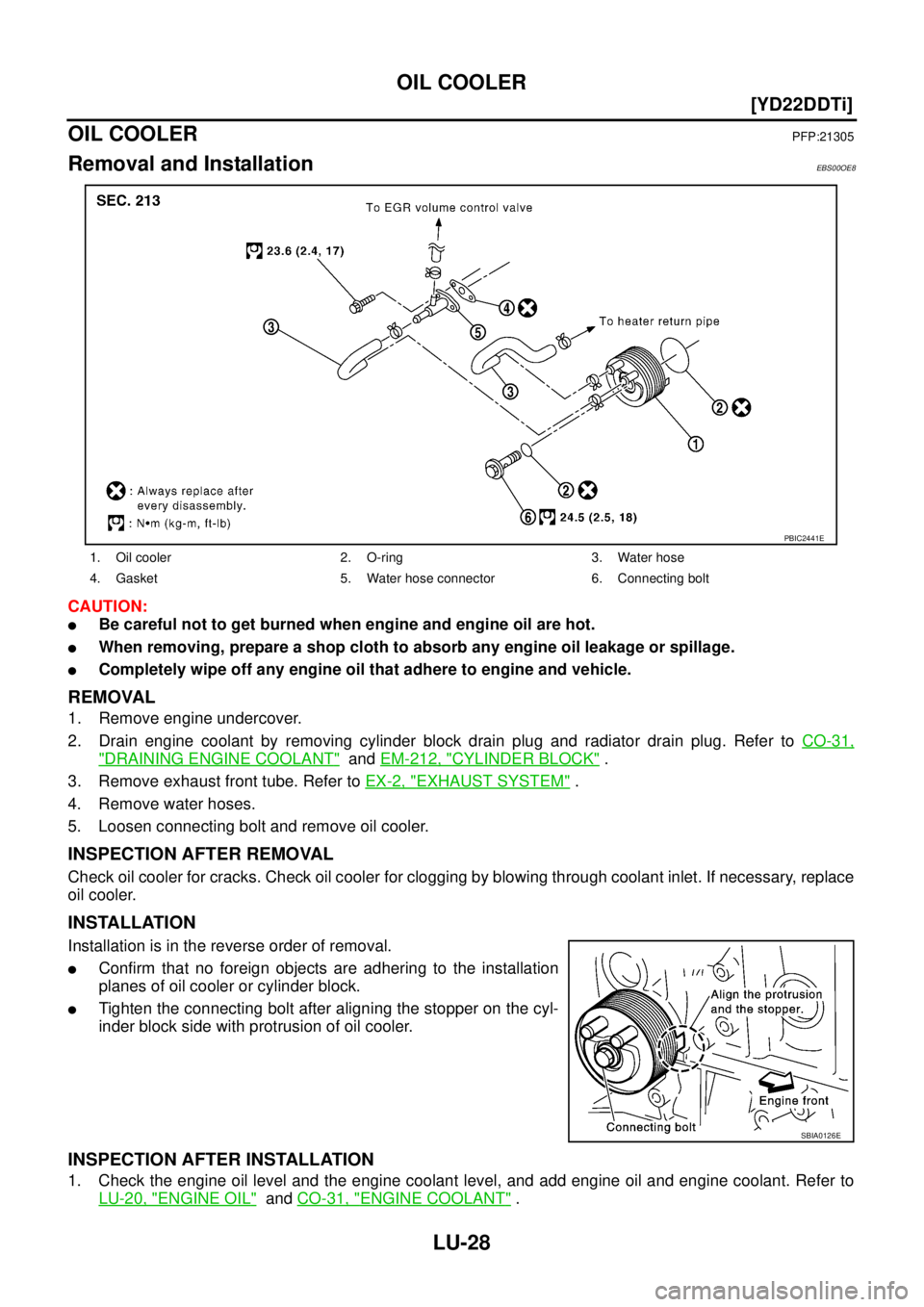

OIL COOLER

OIL COOLERPFP:21305
Removal and InstallationEBS00OE8
CAUTION:

Be careful not to get burned when engine and engine oil are hot.

When removing, prepare a shop cloth to absorb any engine oil leakage or spillage.

Completely wipe off any engine oil that adhere to engine and vehicle.
REMOVAL
1. Remove engine undercover.
2. Drain engine coolant by removing cylinder block drain plug and radiator drain plug. Refer to CO-31,
"DRAINING ENGINE COOLANT" and EM-212, "CYLINDER BLOCK" .
3. Remove exhaust front tube. Refer to EX-2, "
EXHAUST SYSTEM" .
4. Remove water hoses.
5. Loosen connecting bolt and remove oil cooler.
INSPECTION AFTER REMOVAL
Check oil cooler for cracks. Check oil cooler for clogging by blowing through coolant inlet. If necessary, replace
oil cooler.
INSTALLATION
Installation is in the reverse order of removal.

Confirm that no foreign objects are adhering to the installation
planes of oil cooler or cylinder block.

Tighten the connecting bolt after aligning the stopper on the cyl-
inder block side with protrusion of oil cooler.
INSPECTION AFTER INSTALLATION
1. Check the engine oil level and the engine coolant level, and add engine oil and engine coolant. Refer to
LU-20, "
ENGINE OIL" and CO-31, "ENGINE COOLANT" .
1. Oil cooler 2. O-ring 3. Water hose
4. Gasket 5. Water hose connector 6. Connecting bolt
PBIC2441E
SBIA0126E

OIL COOLER
LU-29
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
LU

2. Start engine, and make sure that there is no leaks of engine oil or engine coolant.
3. Stop engine and wait for 10 minutes.
4. Check the engine oil level and the engine coolant level again. Refer to LU-20, "
ENGINE OIL" and CO-31,
"ENGINE COOLANT" .

LU-30
[YD22DDTi]

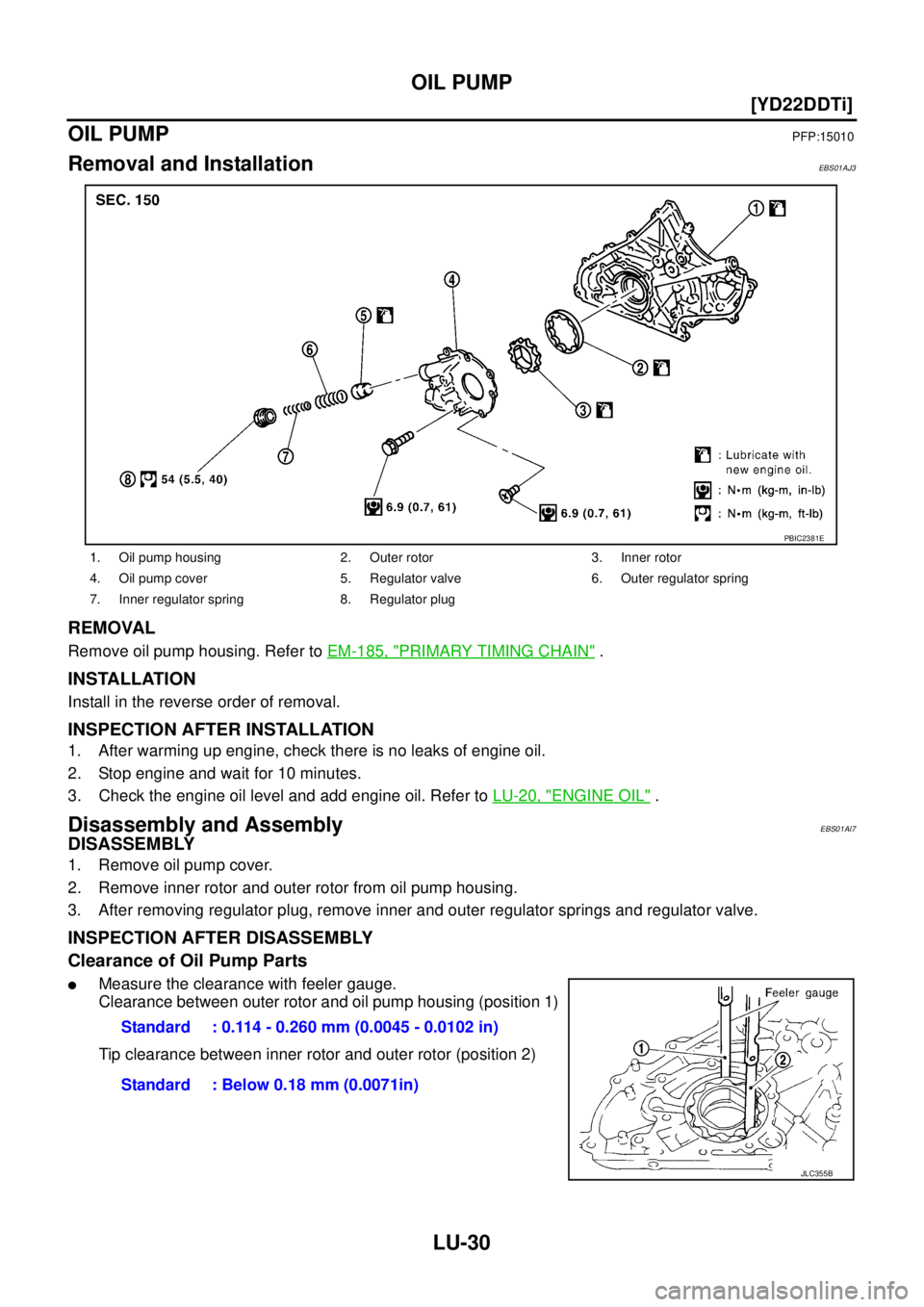

OIL PUMP

OIL PUMPPFP:15010
Removal and InstallationEBS01AJ3
REMOVAL
Remove oil pump housing. Refer to EM-185, "PRIMARY TIMING CHAIN" .
INSTALLATION
Install in the reverse order of removal.
INSPECTION AFTER INSTALLATION
1. After warming up engine, check there is no leaks of engine oil.
2. Stop engine and wait for 10 minutes.
3. Check the engine oil level and add engine oil. Refer to LU-20, "
ENGINE OIL" .
Disassembly and AssemblyEBS01AI7
DISASSEMBLY
1. Remove oil pump cover.
2. Remove inner rotor and outer rotor from oil pump housing.
3. After removing regulator plug, remove inner and outer regulator springs and regulator valve.
INSPECTION AFTER DISASSEMBLY
Clearance of Oil Pump Parts

Measure the clearance with feeler gauge.
Clearance between outer rotor and oil pump housing (position 1)
Tip clearance between inner rotor and outer rotor (position 2)
1. Oil pump housing 2. Outer rotor 3. Inner rotor
4. Oil pump cover 5. Regulator valve 6. Outer regulator spring
7. Inner regulator spring 8. Regulator plug
PBIC2381E
Standard : 0.114 - 0.260 mm (0.0045 - 0.0102 in)
Standard : Below 0.18 mm (0.0071in)
JLC355B

OIL PUMP
LU-31
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
LU


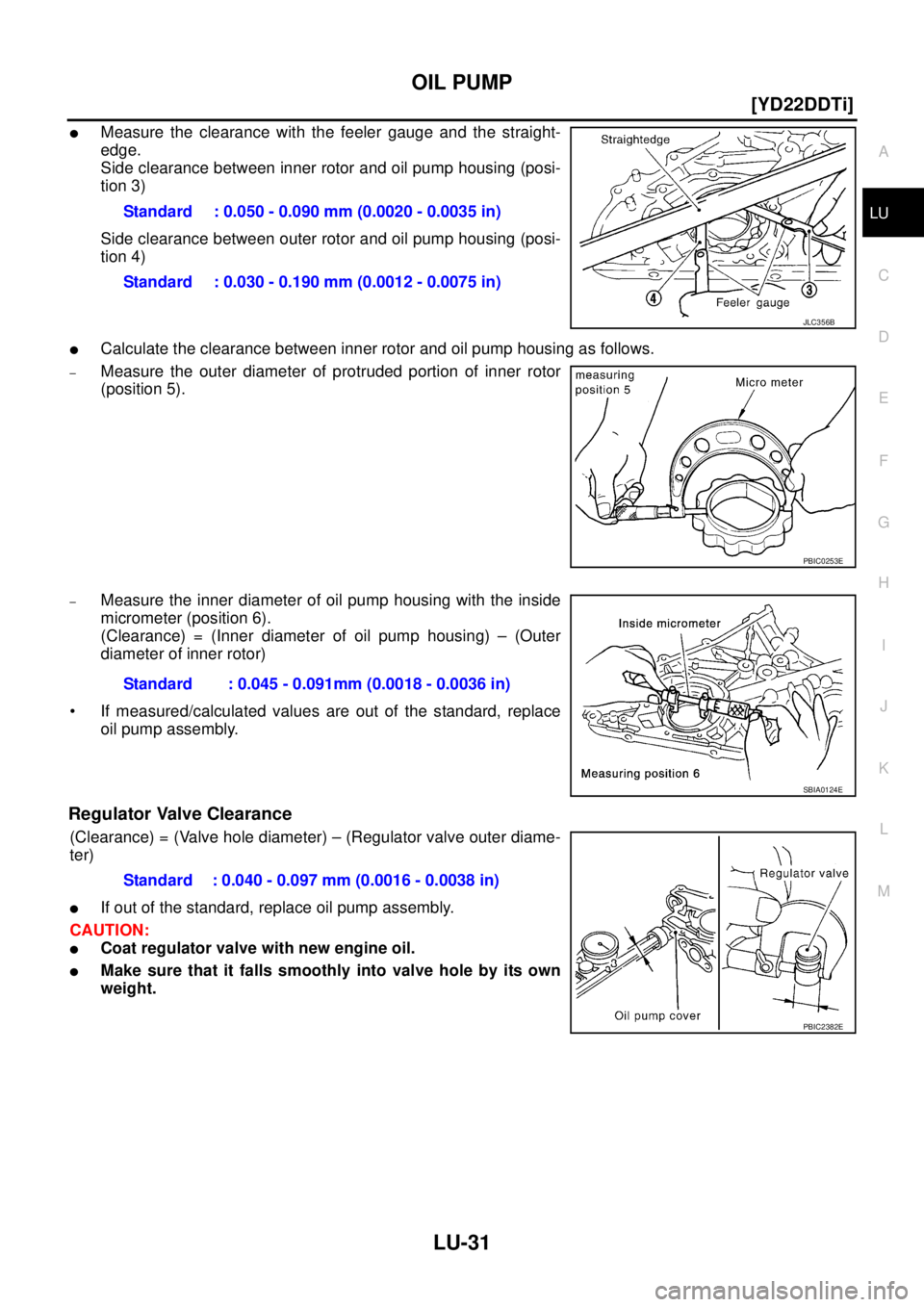

Measure the clearance with the feeler gauge and the straight-
edge.
Side clearance between inner rotor and oil pump housing (posi-
tion 3)
Side clearance between outer rotor and oil pump housing (posi-
tion 4)

Calculate the clearance between inner rotor and oil pump housing as follows.
–Measure the outer diameter of protruded portion of inner rotor
(position 5).
–Measure the inner diameter of oil pump housing with the inside
micrometer (position 6).
(Clearance) = (Inner diameter of oil pump housing) – (Outer
diameter of inner rotor)
 If measured/calculated values are out of the standard, replace
oil pump assembly.
Regulator Valve Clearance
(Clearance) = (Valve hole diameter) – (Regulator valve outer diame-
ter)

If out of the standard, replace oil pump assembly.
CAUTION:

Coat regulator valve with new engine oil.

Make sure that it falls smoothly into valve hole by its own
weight.Standard : 0.050 - 0.090 mm (0.0020 - 0.0035 in)
Standard : 0.030 - 0.190 mm (0.0012 - 0.0075 in)
JLC356B
PBIC0253E
Standard : 0.045 - 0.091mm (0.0018 - 0.0036 in)
SBIA0124E
Standard : 0.040 - 0.097 mm (0.0016 - 0.0038 in)
PBIC2382E

LU-32
[YD22DDTi]
OIL PUMP

ASSEMBLY

Assemble in the reverse order of disassembly.

Install inner rotor and outer rotor with the punched marks on the
oil pump cover side.
JLC286B
