SERVICE DATA AND SPECIFICATIONS (SDS)
EM-239
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

Valve Spring
Valve Lifter
Unit: mm (in)
Valve Guide
Unit: mm (in) Valve spring square mm (in) 1.9 (0.075)
Free height mm (in) 43.7 (1.720)
Pressure N (kg, lb) at height mm (in) 184 - 208 (18.77 - 21.22, 41.4 - 46.8) at 32.82 (1.2921)
Height during valve open mm (in) 24.82 (0.9772)
Load with valve open N (kg, lb) 320 - 360 (32.65 - 36.73, 71.9 - 80.9)
Item Standard
Valve lifter outer diameter 29.960 - 29.975 (1.1795 - 1.1801)
Valve lifter bore diameter 30.000 - 30.021 (1.1811 - 1.1819)
Valve lifter clearance 0.025 - 0.061 (0.0010 - 0.0024)
Item Standard Service
Valve guide Outer diameter 10.023 - 10.034 (0.3946 - 0.3950) 10.223 - 10.234 (0.4025 - 0.4029)
Valve guide Inner diameter (Finished size) 6.000 - 6.018 (0.2362 - 0.2369)
Cylinder head valve guide hole diameter 9.975 - 9.996 (0.3927 - 0.3935) 10.175 - 10.196 (0.4006 - 0.4014)
Interference fit of valve guide 0.027 - 0.059 (0.0011 - 0.0023)
Item Standard Limit
Valve guide clearanceIntake 0.020 - 0.053 (0.0008 - 0.0021) 0.08 (0.0031)
Exhaust 0.040 - 0.073 (0.0016 - 0.0029) 0.10 (0.0039)
Projection length 10.4 - 10.6 (0.409 - 0.417)
JEM156G

EM-240
[YD22DDTi]
SERVICE DATA AND SPECIFICATIONS (SDS)

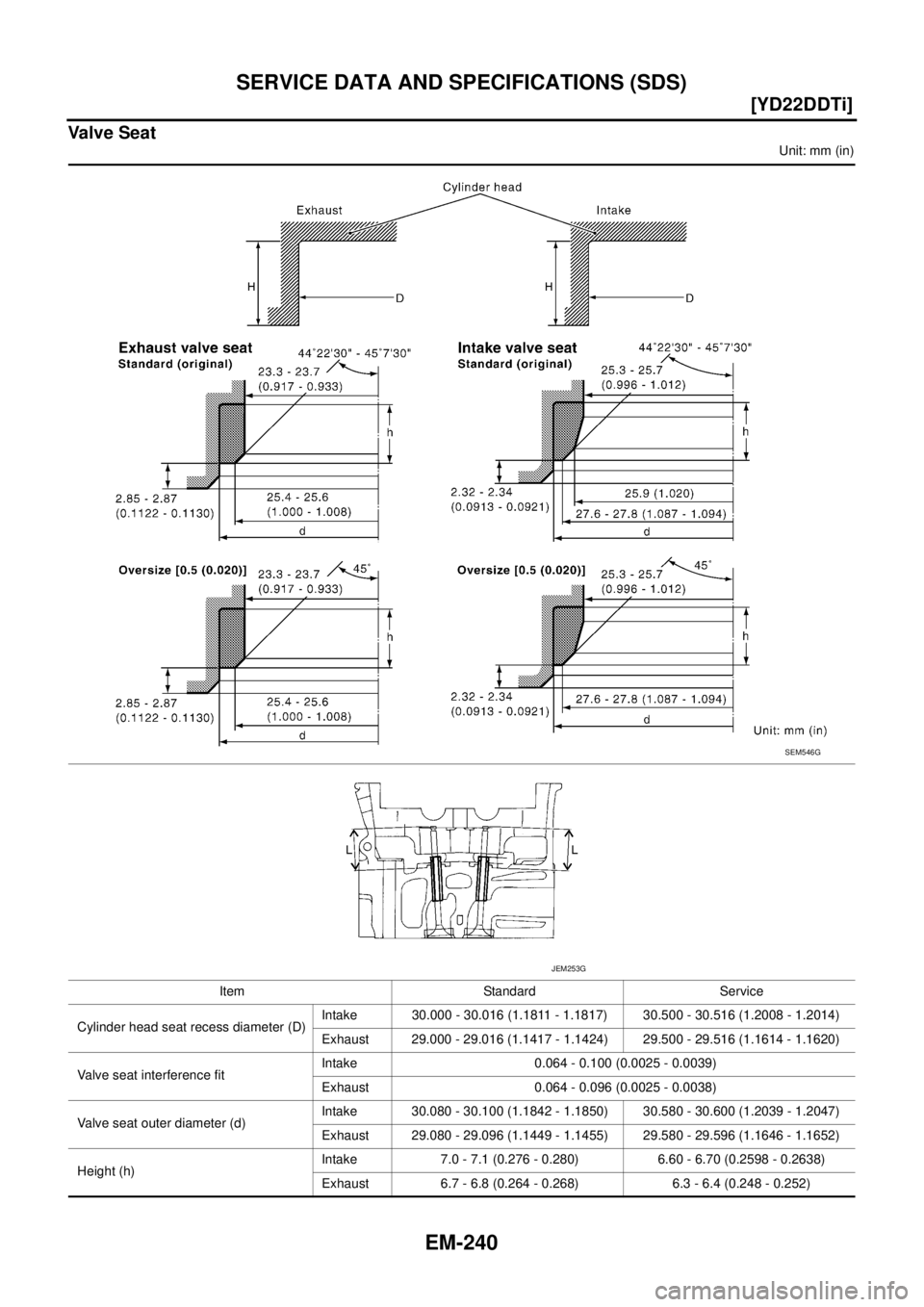

Valve Seat
Unit: mm (in)
Item Standard Service
Cylinder head seat recess diameter (D)Intake 30.000 - 30.016 (1.1811 - 1.1817) 30.500 - 30.516 (1.2008 - 1.2014)
Exhaust 29.000 - 29.016 (1.1417 - 1.1424) 29.500 - 29.516 (1.1614 - 1.1620)
Valve seat interference fitIntake 0.064 - 0.100 (0.0025 - 0.0039)
Exhaust 0.064 - 0.096 (0.0025 - 0.0038)
Valve seat outer diameter (d)Intake 30.080 - 30.100 (1.1842 - 1.1850) 30.580 - 30.600 (1.2039 - 1.2047)
Exhaust 29.080 - 29.096 (1.1449 - 1.1455) 29.580 - 29.596 (1.1646 - 1.1652)
Height (h)Intake 7.0 - 7.1 (0.276 - 0.280) 6.60 - 6.70 (0.2598 - 0.2638)
Exhaust 6.7 - 6.8 (0.264 - 0.268) 6.3 - 6.4 (0.248 - 0.252)
SEM546G
JEM253G

SERVICE DATA AND SPECIFICATIONS (SDS)
EM-241
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

CAMSHAFT
Unit: mm (in)
*: Total indicator reading
CYLINDER BLOCK
Unit: mm (in) Depth (H)Intake 8.83 - 9.13 (0.3476 - 0.3594)
Exhaust 9.06 - 9.36 (0.3567 - 0.3685)
Projection (L)Intake 36.53 - 36.98 (1.4382 - 1.4559)
Exhaust 36.53 - 37.01 (1.4382 - 1.4571)
Item Standard Limit
Camshaft journal oil clearance 0.045 - 0.086 (0.0018 - 0.0034)
Camshaft bracket inner diameterNo.1 30.500 - 30.521 (1.2008 - 1.2016)
— No. 2, 3, 4, 5 24.000 - 24.021 (0.9449 - 0.9457)
Camshaft journal outer diameterNo. 1 30.435 - 30.455 (1.1982 - 1.1990)
No. 2, 3, 4, 5 23.935 - 23.955 (0.9423 - 0.9431)
Camshaft runout [TIR*] — 0.02 (0.0008)
Camshaft sprocket runout [TIR*] — 0.15 (0.0059)
Camshaft end play 0.070 - 0.148 (0.0028 - 0.0058) 0.24 (0.0094)
Cam height “A”Intake 39.505 - 39.695 (1.5553 - 1.5628)
Exhaust 39.905 - 40.095 (1.5711 - 1.5785)
SEM671
Top surface distortionStandard Less than 0.03 (0.0012)
Limit 0.1 (0.004)
Cylinder bore Inner diameterStandardGrade No. 1 86.000 - 86.010 (3.3858 - 3.3862)
Grade No. 2 86.010 - 86.020 (3.3862 - 3.3866)
Grade No. 3 86.020 - 86.030 (3.3866 - 3.3870)
Wear limit 0.20 (0.008)
JEM207G

EM-242
[YD22DDTi]
SERVICE DATA AND SPECIFICATIONS (SDS)

PISTON, PISTON RING AND PISTON PIN
Available Piston
Unit: mm (in)
Piston Ring
Unit: mm (in)
Piston Pin
Unit: mm (in) Out-of-round (X − Y)
LimitLess than 0.015 (0.0006)
Taper (A − B − C)Less than 0.010 (0.0004)
Main bearing housing inner diameter (Without bearing) 66.654 - 66.681 (2.6242 - 2.6252)
Difference in inner diameter
between cylindersLimit Less than 0.05 (0.0020)
Piston outer diameter “A” StandardGrade No. 1 85.928 - 85.942 (3.3830 - 3.3835)
Grade No. 2 85.938 - 85.952 (3.3834 - 3.3839)
Grade No. 3 85.948 - 85.962 (3.3838 - 3.3843)
0.25 (0.0098) O/S (Service) 86.188 - 86.202 (3.3932 - 3.3938)
0.50 (0.0197) O/S (Service) 86.438 - 86.452 (3.4031 - 3.4036)
“a” dimension11.0 (0.43)
Piston pin bore diameter 28.003 - 28.009 (1.1025 - 1.1027)
Piston to cylinder bore clearance 0.058 - 0.082 (0.0023 - 0.0032)
MBIA0026E
Item Standard Limit
Side clearanceTop 0.050 - 0.090 (0.0020 - 0.0035) 0.2 (0.008)
2nd 0.050 - 0.090 (0.0020 - 0.0035) 0.1 (0.004)
Oil ring 0.030 - 0.070 (0.0012 - 0.0028) —
End gapTop 0.20 - 0.30 (0.0079 - 0.0118) 1.0 (0.039)
2nd 0.31 - 0.51 (0.0122 - 0.0201) 1.0 (0.039)
Oil ring 0.30 - 0.55 (0.0118 - 0.0217) 1.0 (0.039)
Piston pin outer diameter 27.995 - 28.000 (1.1022 - 1.1024)
Piston to piston pin clearance 0.003 - 0.014 (0.0001 - 0.0006)
Connecting rod bushing clearanceStandard 0.026 - 0.044 (0.0010 - 0.0017)
Limit 0.057 (0.0022)

SERVICE DATA AND SPECIFICATIONS (SDS)
EM-243
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

CONNECTING ROD
Unit: mm (in)
*: After installing in connecting rod
CRANKSHAFT
Unit: mm (in)
*: Total indicator readingCenter distance157.5 (6.201)
Bend [per 100 (3.94)] Limit 0.12 (0.0047)
Torsion [per 100 (3.94)] Limit 0.12 (0.0047)
Connecting rod bushing inner diameter* 28.026 - 28.038 (1.1034 - 1.1039)
Connecting rod big end inner diameter* 55.000 - 55.013 (2.1654 - 2.1659)
Side clearanceStandard 0.20 - 0.35 (0.0079 - 0.0138)
Limit 0.40 (0.0157)
Main journal dia. “Dm” 62.951 - 62.975 (2.4784 - 2.4793)
Pin journal dia. “Dp” 51.954 - 51.974 (2.0454 - 2.0462)
Center distance “r” 46.97 - 47.03 (1.8492 - 1.8516)
Out-of-round (Difference between X
and Y)Standard 0.003 (0.0001)
Limit 0.005 (0.0002)
Taper (Difference between A and B)Standard 0.003 (0.0001)
Limit 0.005 (0.0002)
Runout [TIR*]Standard 0.05 (0.0020)
Limit 0.10 (0.0039)
End playStandard 0.10 - 0.25 (0.0039 - 0.0098)
Limit 0.30 (0.0118)
SEM645SBIA0535E

EM-244
[YD22DDTi]
SERVICE DATA AND SPECIFICATIONS (SDS)

AVAILABLE MAIN BEARING
Main bearing
Unit: mm (in)
Under size
Unit: mm (in)
AVAILABLE CONNECTING ROD BEARING
Connecting Rod Bearing
Unit: mm (in)
Under size
Unit: mm (in)
MISCELLANEOUS COMPONENTS
Flywheel
Unit: mm (in)
*: Total indicator reading Grade number Thickness “T” Width “W” Identification color
STD 0 1.816 - 1.820 (0.0715 - 0.0717)
19.9 - 20.1 (0.783 - 0.791)Black
STD 1 1.820 - 1.824 (0.0717 - 0.0718) Brown
STD 2 1.824 - 1.828 (0.0718 - 0.0720) Green
STD 3 1.828 - 1.832 (0.0720 - 0.0721) Yellow
STD 4 1.832 - 1.836 (0.0721 - 0.0723) Blue
SEM255G
Size Thickness Main journal diameter “Dm”
0.25 (0.0098) 1.949 - 1.953 (0.0767 - 0.0769)Grind so that bearing clearance is the
specified value.
Grade number Thickness “T” Width “W” Identification color (mark)
STD 0 1.492 - 1.496 (0.0587 - 0.0589)
22.9 - 23.1
(0.902 - 0.909)Black
STD 1 1.496 - 1.500 (0.0589 - 0.0591) Brown
STD 2 1.500 - 1.504 (0.0591 - 0.0592) Green
Size Thickness Crank pin journal diameter “Dp”
0.08 (0.0031) 1.536 - 1.540 (0.0605 - 0.0606)
Grind so that bearing clearance is the
specified value. 0.12 (0.0047) 1.556 - 1.560 (0.0613 - 0.0614)
0.25 (0.0098) 1.621 - 1.625 (0.0638 - 0.0640)
Flywheel deflection [TIR]* Standard 0.45 (0.0177) or less

SERVICE DATA AND SPECIFICATIONS (SDS)
EM-245
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

Bearing Clearance
Unit: mm (in)
Tightening TorqueEBS00OE0
*1: Parts to be tightened in particular orders.
1)-: Order of tightening when tightening two or more times separately.
Unit: N·m (kg-m, ft-lb)
Unit: N·m (kg-m, in-lb)*2
Main bearing oil clearance Standard 0.039 - 0.066 (0.0015 - 0.0026)
Connecting rod bearing oil
clearanceStandard 0.031 - 0.061 (0.0012 - 0.0024)
Alternator Nut C 19 - 24 (1.9 - 2.5, 14 - 18)
Nut D 44 - 57 (4.4 - 5.9, 32 - 42)
Idler pulley Nut A 31 - 39 (3.1 - 4.0, 23 - 28)
Catalyst48.5 (4.9, 36)
Catalyst rear diffuser33.5 (3.4, 25)
Catalyst insulator Catalyst side
7.4 (0.75, 65)*
2
Catalyst rear diffuser
side9.6 (0.97, 85)*
2
Turbocharger43 - 54 (4.3 - 5.5, 32 - 40)
Charge air cooler Bracket 22 (2.2, 16)
Charge air cooler cover
7.0 (0.71, 62)*
2
EGR volume control valve 62 - 78 (6.3 - 8.0, 46 - 57)
EGR cooler Exhaust manifold side 60 - 69 (6.1 - 7.1, 45 - 51)
EGR volume control
valve side62 - 78 (6.3 - 8.0, 46 - 57)
BracketEGR volume control
valve side21 - 26 (2.1 - 2.7, 16 - 19)
Intake manifold side 5.0 - 8.4 (0.51 - 0.86, 45 - 74)
Exhaust manifold insulator
5.1 - 6.4 (0.52 - 0.66, 46 - 57)*
2
*1 Exhaust manifold29 - 33 (2.9 - 3.4, 21 - 24)
*1 Rocker cover1)
7.8 (0.8, 69)*
2
2)
7.8 (0.8, 69) *2
Oil pan lower
7 (0.7, 62)*2
Oil pan drain plug34 (3.5, 25)
Oil strainer17 (1.7, 13)
*1 Oil pan upper M6 bolt
7 (0.7, 62)*
2
M8 bolt 21.5 (2.2, 16)
M10 bolt 33.5 (3.4, 25)
Va c u u m p u m p23.5 (2.4, 17)
Cylinder head rear cover M6 bolt
9.7 (0.98, 86) *
2
M8 bolt 17 (1.7, 13)
Injection tube Nozzle side 23.0 (2.3, 17)
Fuel rail side 23.0 (2.3, 17)
Injection tube center23.0 (2.3, 17)
Nozzle support26.2 (2.7, 19)

EM-246
[YD22DDTi]
SERVICE DATA AND SPECIFICATIONS (SDS)

Spill tube Nozzle side 18.7 (1.9, 14)
Cylinder head side 18.7 (1.9, 14)
Fuel rail57.5 (5.9, 42)
Fuel pump31.4 (3.2, 23)
Fuel pump sprocket39 (4.0, 29)
*1 Camshaft bracket 1) 2 (0.2, 1)
2) 6 (0.6, 4)
3) 12 - 13 (1.2 - 1.4, 9 - 10)
Front chain case
7.9 (0.8, 70)*
2
Chain tensioner
9.6 (0.98, 85)*2
Tension guide23.5 (2.4, 18)
Slack guide23.5 (2.4, 18)
Camshaft sprocket 143 (15, 105)
Oil pump housing12.5 (1.3, 9)
Power steering oil pump 53.5 (5.5, 39)
Rear chain case12.5 (1.3, 9)
Engine coolant temperature sensor 13.5 (1.4, 10)
*1 Cylinder head 1) 35 - 44 (3.5 - 4.5, 26 - 32)
2) 180 degrees to 185 degrees
3) 0 (0, 0)
4) 35 - 44 (3.5 - 4.5, 26 - 32)
5) 90 degrees to 95 degrees (angle
tightening)
6) 90 degrees to 95 degrees (angle
tightening)
Glow plug20.5 (2.1, 15)
*1 Flywheel103 - 112 (10.5 - 11.5, 76 - 83)
Oil pressure switch13 - 17 (1.25 - 1.75, 9 - 12)
Oil jet6.0 - 10.8 (0.62 - 1.1, 54 - 95)
Oil jet relief valve40 - 58 (4.0 - 6.0, 29 - 43)
Rear oil seal retainer12 - 13 (1.2 - 1.4, 9 - 10)

LU-1
ENGINE LUBRICATION SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION
A
LU

ENGINE LUBRICATION SYSTEM
QR
PRECAUTIONS .......................................................... 3
Precautions for Liquid Gasket .................................. 3
LIQUID GASKET APPLICATION PROCEDURE ..... 3
PREPARATION ........................................................... 4
Special Service Tools ............................................... 4
Commercial Service Tools ........................................ 4
LUBRICATION SYSTEM ............................................ 5
Lubrication Circuit .................................................... 5
System Chart ........................................................... 6
ENGINE OIL ............................................................... 7
Inspection ................................................................. 7
ENGINE OIL LEVEL ............................................. 7
ENGINE OIL APPEARANCE ................................ 7
ENGINE OIL LEAKAGE ........................................ 7
OIL PRESSURE CHECK ...................................... 7
Changing Engine Oil ................................................ 8
OIL FILTER ............................................................... 10
Removal and Installation ........................................ 10
REMOVAL ........................................................... 10
INSTALLATION ................................................... 10
INSPECTION AFTER INSTALLATION ............... 10
OIL COOLER .............................................................11
Removal and Installation ......................................... 11
REMOVAL ............................................................ 11
INSPECTION AFTER REMOVAL ........................ 11
INSTALLATION .................................................... 11
INSPECTION AFTER INSTALLATION ................ 11
OIL PUMP ................................................................. 13
Removal and Installation ........................................ 13
REMOVAL ........................................................... 13
INSTALLATION ................................................... 13
INSPECTION AFTER INSTALLATION ............... 13
Disassembly and Assembly ................................... 13
DISASSEMBLY ................................................... 13
INSPECTION AFTER DISASSEMBLY ............... 14
ASSEMBLY ......................................................... 15
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 16
Standard and Limit ................................................. 16
OIL PRESSURE .................................................. 16ENGINE OIL CAPACITY (APPROXIMATE) ........ 16
OIL PUMP ........................................................... 16
REGULATOR VALVE .......................................... 16
Tightening Torque ................................................... 16
YD22DDTi
PRECAUTIONS ........................................................ 17
Precautions for Liquid Gasket ................................ 17
LIQUID GASKET APPLICATION PROCEDURE ... 17
PREPARATION ......................................................... 18
Special Service Tools ............................................. 18
Commercial Service Tools ...................................... 18
LUBRICATION SYSTEM .......................................... 19
Lubrication Circuit ................................................... 19
ENGINE OIL .............................................................. 20
Inspection ............................................................... 20
ENGINE OIL LEVEL ............................................ 20
ENGINE OIL APPEARANCE .............................. 20
ENGINE OIL LEAKAGE ...................................... 20
ENGINE OIL PRESSURE CHECK ..................... 20
Changing Engine Oil ............................................... 21
OIL FILTER ............................................................... 23
Removal and Installation (TYPE A) ........................ 23
REMOVAL ........................................................... 23
INSTALLATION ................................................... 23
INSPECTION AFTER INSTALLATION ................ 23
Removal and Installation (TYPE B) ........................ 24
REMOVAL ........................................................... 24
INSTALLATION ................................................... 25
INSPECTION AFTER INSTALLATION ................ 25
OIL FILTER BRACKET ............................................. 26
Removal and Installation (TYPE A) ........................ 26
REMOVAL ........................................................... 26
INSTALLATION ................................................... 26
INSPECTION AFTER INSTALLATION ................ 26
Removal and Installation (TYPE B) ........................ 27
REMOVAL ........................................................... 27
INSTALLATION ................................................... 27
INSPECTION AFTER INSTALLATION ................ 27

LU-2 OIL COOLER ............................................................ 28
Removal and Installation ........................................ 28
REMOVAL ........................................................... 28
INSPECTION AFTER REMOVAL ........................ 28
INSTALLATION .................................................... 28
INSPECTION AFTER INSTALLATION ................ 28
OIL PUMP ................................................................. 30
Removal and Installation ........................................ 30
REMOVAL ........................................................... 30
INSTALLATION .................................................... 30INSPECTION AFTER INSTALLATION ................ 30
Disassembly and Assembly .................................... 30
DISASSEMBLY .................................................... 30
INSPECTION AFTER DISASSEMBLY ................ 30
ASSEMBLY .......................................................... 32
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 33
Standard and Limit .................................................. 33
OIL PRESSURE .................................................. 33
OIL PUMP ............................................................ 33
REGULATOR VALVE ........................................... 33
OIL CAPACITY (APPROXIMATE) ....................... 33
Tightening Torque ................................................... 33
