NISSAN X-TRAIL 2003 Service Repair Manual

WARNING LAMPS
DI-43
C
D
E
F
G
H
I
J
L
MA
B
DI

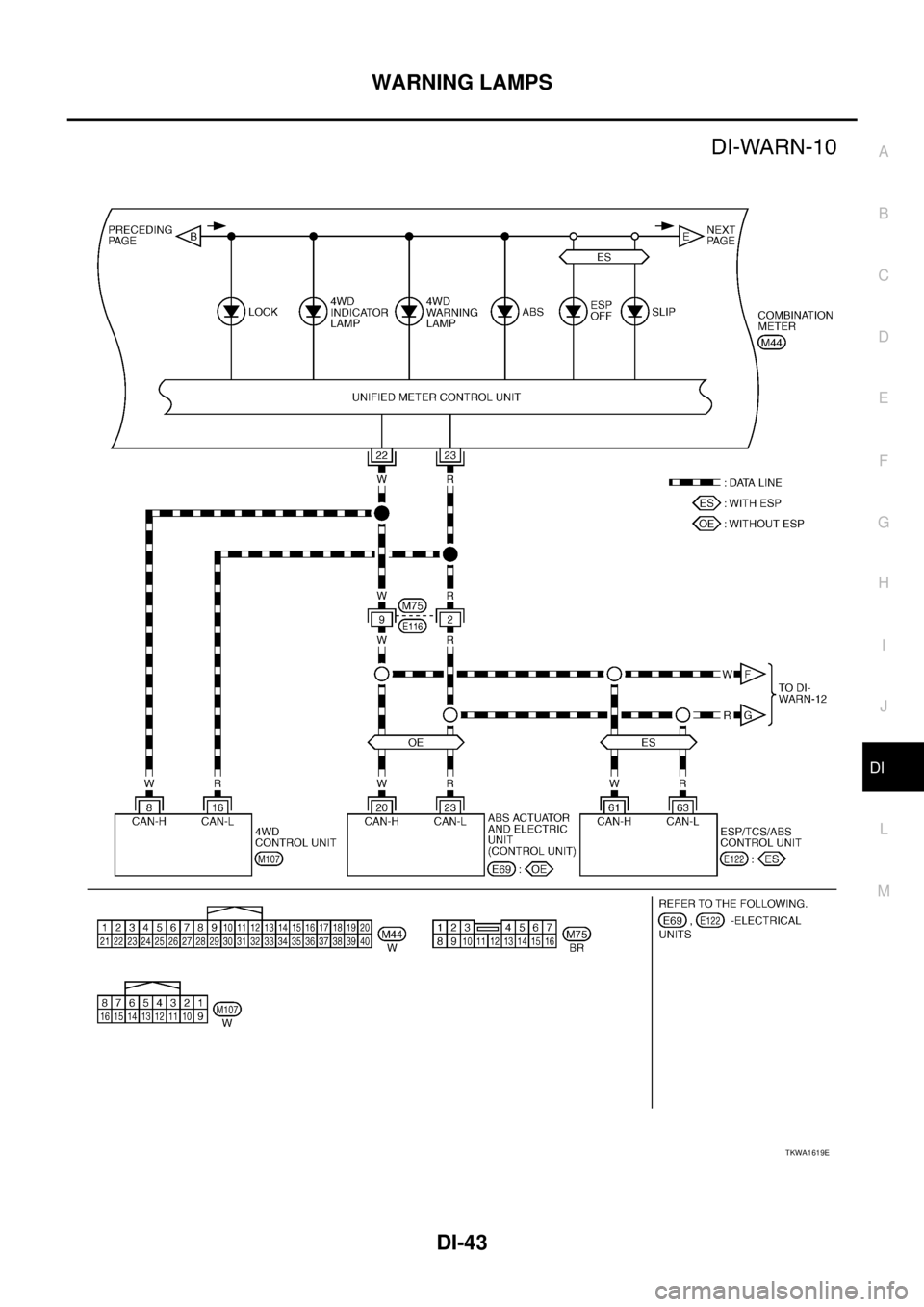

TKWA1619E

DI-44
WARNING LAMPS

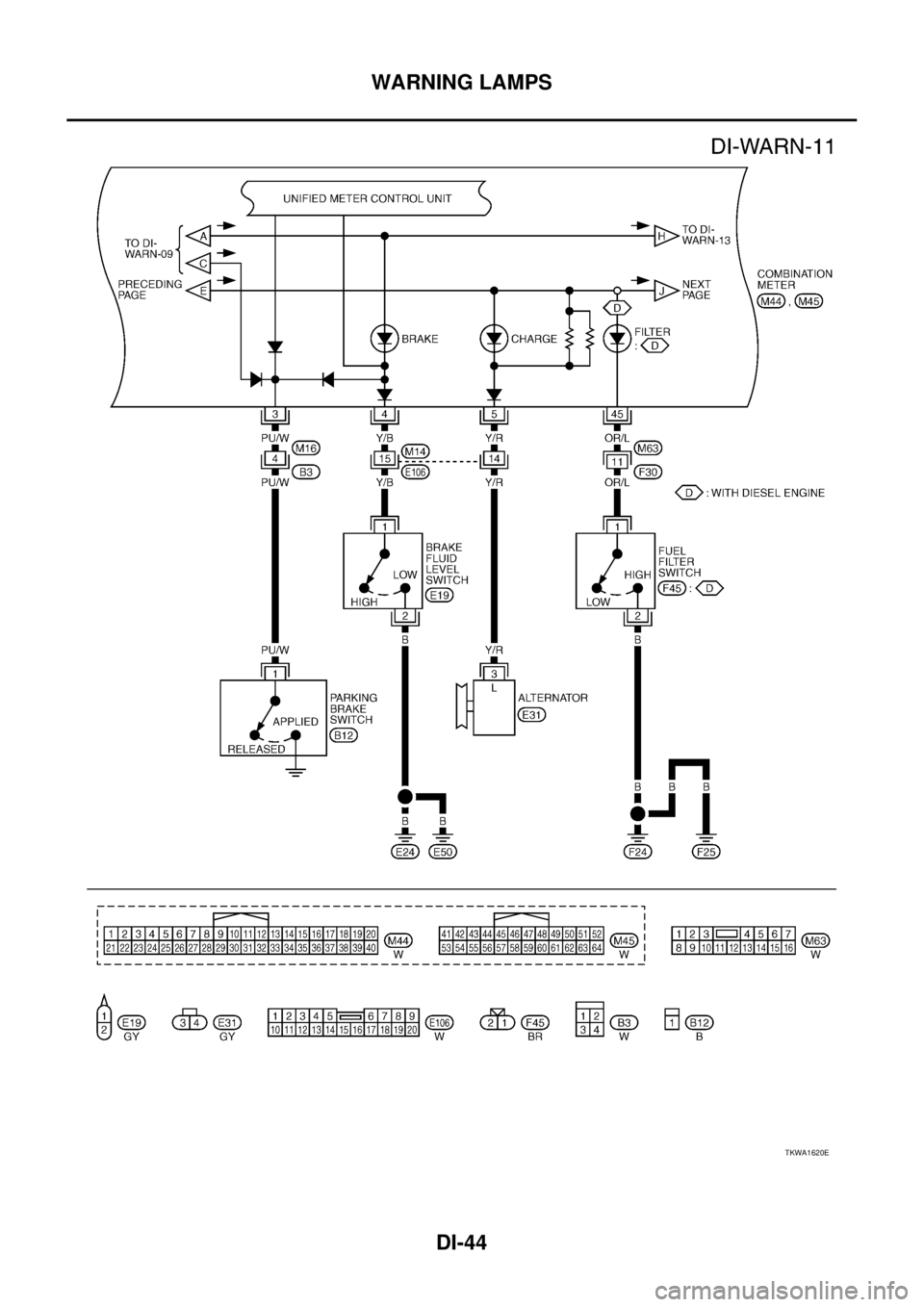

TKWA1620E

WARNING LAMPS
DI-45
C
D
E
F
G
H
I
J
L
MA
B
DI

TKWA1621E

DI-46
WARNING LAMPS

TKWA1622E

WARNING LAMPS
DI-47
C
D
E
F
G
H
I
J
L
MA
B
DI

TKWA1623E

DI-48
WARNING LAMPS

TKWB0072E

WARNING LAMPS
DI-49
C
D
E
F
G
H
I
J
L
MA
B
DI

TKWB0073E

DI-50
WARNING LAMPS

Electrical Components InspectionEKS002HK
OIL PRESSURE SWITCH CHECK
Check the continuity between the terminals of oil pressure switch
and ground.
DIODE CHECK

Check continuity using an ohmmeter.

Diode is functioning properly if test results are as shown in the
figure at left.

Check diodes at the combination meter harness connector
instead of on the combination meter assembly. Refer toDI-34,
"Wiring Diagram — WARN —/LHD Models" or DI-42, "Wiring
Diagram — WARN —/RHD Models" .
NOTE:
Specification may vary depending on the type of tester. Before
performing this inspection, be sure to refer to the instruction
manual for the tester to be used.
Oil pressure kPa (bar, kg/cm2 , psi)Continuity
Engine running More than 29 (0.30, 0.3, 4) No
Engine stopped Less than 29 (0.30, 0.3, 4) Yes
MEL425F
SEL901F

A/T INDICATOR
DI-51
C
D
E
F
G
H
I
J
L
MA
B
DI

A/T INDICATORPFP:24814

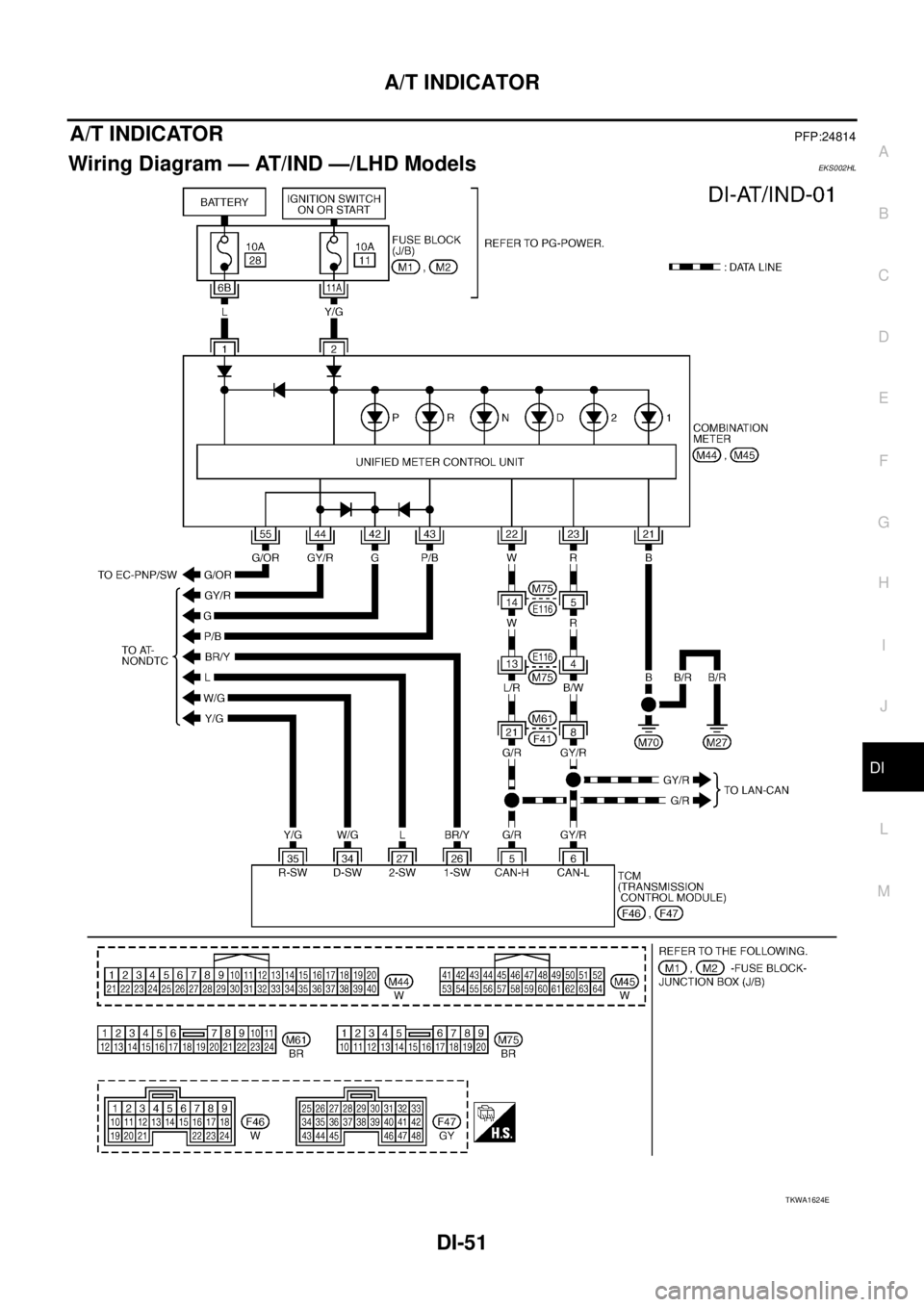

Wiring Diagram — AT/IND —/LHD ModelsEKS002HL
TKWA1624E

DI-52
A/T INDICATOR

Wiring Diagram — AT/IND —/RHD ModelsEKS00EKF
TKWA1625E
