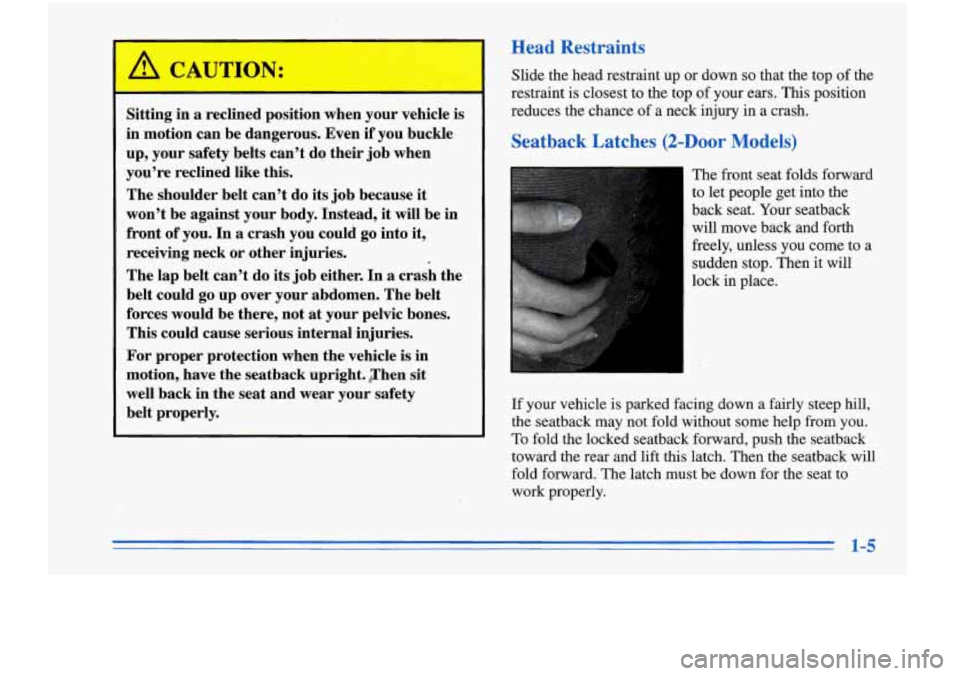

Head Restraints

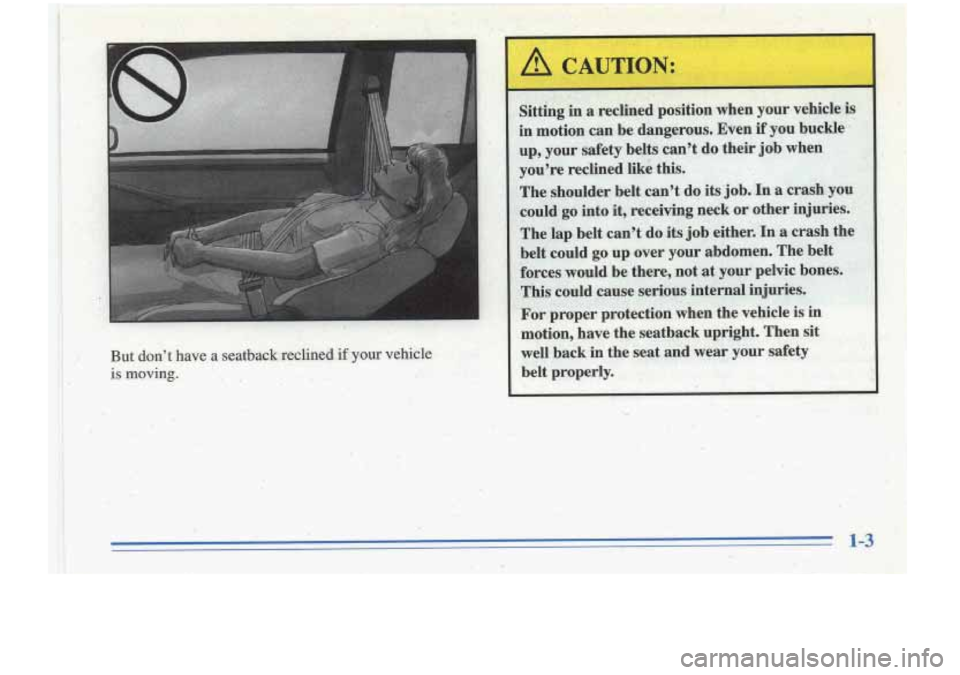

Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even
if you buckle
up, your safety belts can’t do their job when
you’re reclined like this.
The shoulder belt can’t do its job because it
won’t be against your body. Instead, it will be in
front of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt can’t do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. phen sit
well back
in the seat and wear your safety
belt properly.
Slide the head restraint up or down so that the top of the
restraint is closest to the top of your ears.
This position
reduces the chance
of a neck injury in a crash.
Seatback Latches (2-Door Models)
The front seat folds forward
to let people get into the
back seat. Your seatback
will move back and forth
freely, unless you come to a
sudden stop. Then it will‘
lock in place.
If your vehicle is parked facing down a fairly steep hill,
the seatback may not fold without some help from you.
To fold the locked seatback forward, push the seatback
toward the rear and lift this latch. Then the seatback will
fold forward. The latch must be down for the seat to
work properly.
1-5
Page 14 of 356

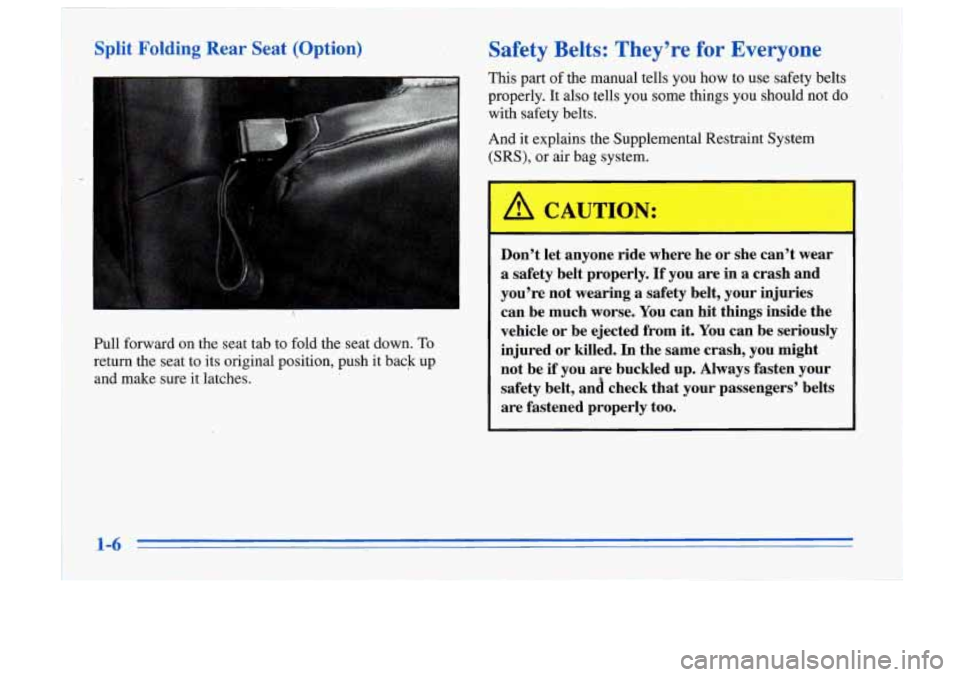

Split Folding Rear Seat (Option) Safety Belts: They’re for Everyone
Pull forward on the seat tab to fold the seat down. To
return the seat to its original position, push it back up
and make sure it latches. This
part
of the manual tells you how to use safety belts
properly. It also tells you some things you should not do
. -
with safety belts.
And it explains the Supplemental Restraint System
(SRS), or air bag system.
1-6
Don’t let anyone ride where he or she can’t wear
a safety belt properly. If you are in a crash and
you’re not wearing
a safety belt, your injuries
can be much worse. You can hit things inside the
vehicle or be ejected from
it. You can be seriously
injured or killed. In the same crash, you might
not be
if you are buckled up. Always fasten your
safety belt, and check that your passengers’ belts
are fastened properly too.
Page 15 of 356

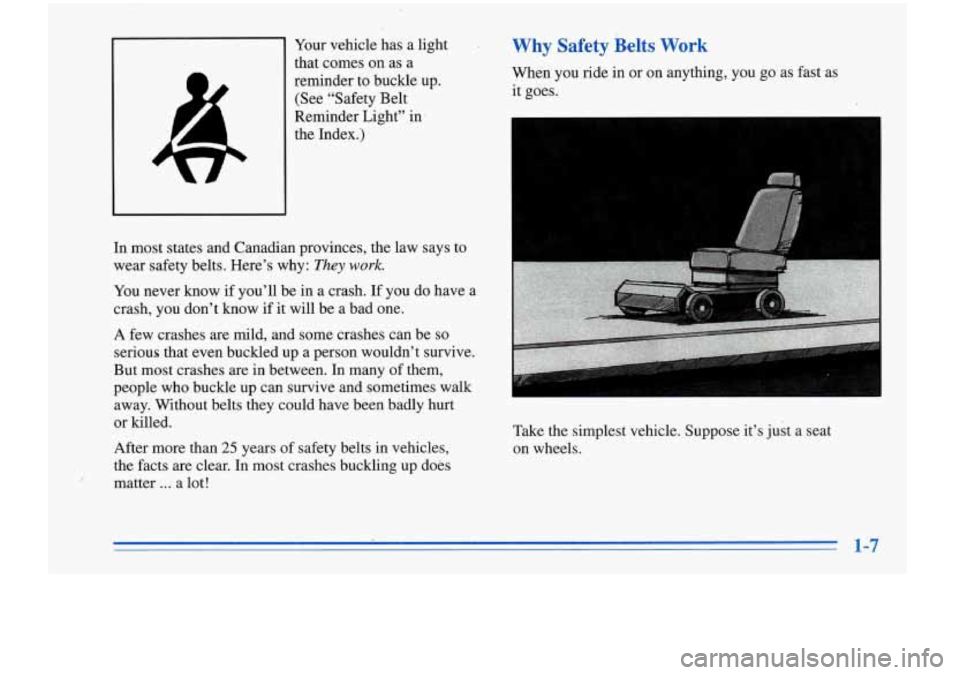

Your vehicle has a light
that comes on as a
reminder to buckle up. (See “Safety Belt
Reminder Light” in
the Index.)
In most states and Canadian provinces, the law says to
wear safety belts. Here’s why:
They work.
You never know if you’ll be in a crash. If you do have a
crash, you don’t know if it will be a bad one.
A few crashes are mild, and some crashes can be
so
serious that even buckled up a person wouldn’t survive.
But most crashes are in between. In many of them,
people who buckle up can survive and sometimes walk
away. Without belts they could have been badly hurt
or killed.
After more than
25 years of safety belts in vehicles,
the facts
are clear. In most crashes buckling up does
matter
... a lot!
Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
Take the simplest vehicle. Suppose it’s just a seat
on wheels.
1-7
Page 16 of 356

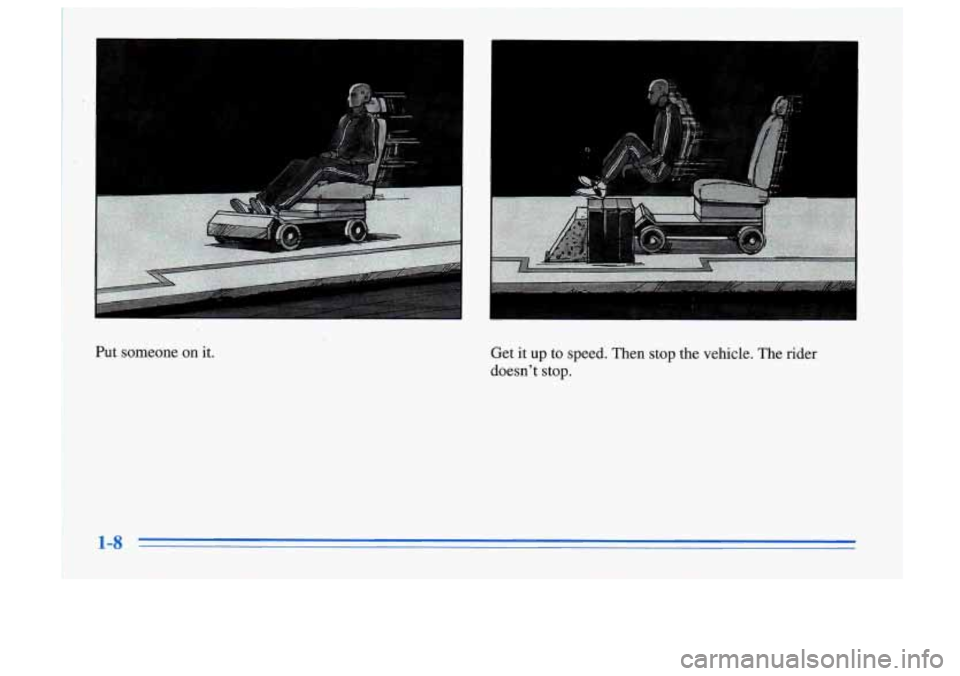

Put someone on it.
I
Get it up to speed. Then stop the vehicle. The rider
doesn’t stop.
1-8
Page 17 of 356
The person keeps going until stopped by something.
In a real vehicle, it could be the windshield
...
or the instrument panel . . .
1-9
Page 18 of 356

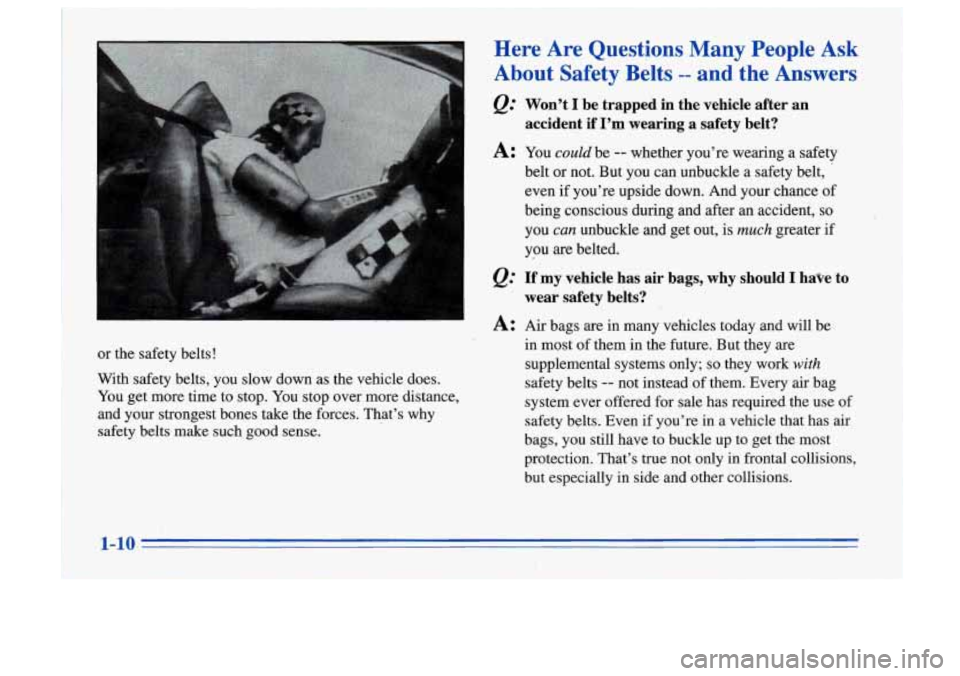

or the safety belts!
With safety belts, you
slow down as the vehicle does.
You get more time to stop. You stop over more distance,
and your strongest bones take the forces. That’s why
safety belts make
such good sense.
Here ‘Are Questions Many People Ask
About Safety Belts
-- and the Answers
12.. Won’t I be trapped in the vehicle after an
accident if
I’m wearing a safety belt?
A: You could be -- whether you’re wearing a safety
belt or not. But you can unbuckle a safety belt,
even if you’re upside down. And your chance of
being conscious during
and after an accident, so
you can unbuckle and get out, is much greater if
ypu are belted.
@ If my vehicle has air bags, why should I have to
A: Air bags are in many vehicles today and will be
in most of them in the future. But they are
supplemental systems only;
so they work with
safety belts -- not instead of them. Every air bag
system ever offered for sale has required the use of
wear safety belts?
safety belts. Even if you’re in a vehicle that has air
bags, you still have to buckle up to get the most
protection. That’s true not only in frontal collisions,
but especially in side and other collisions.
Page 19 of 356

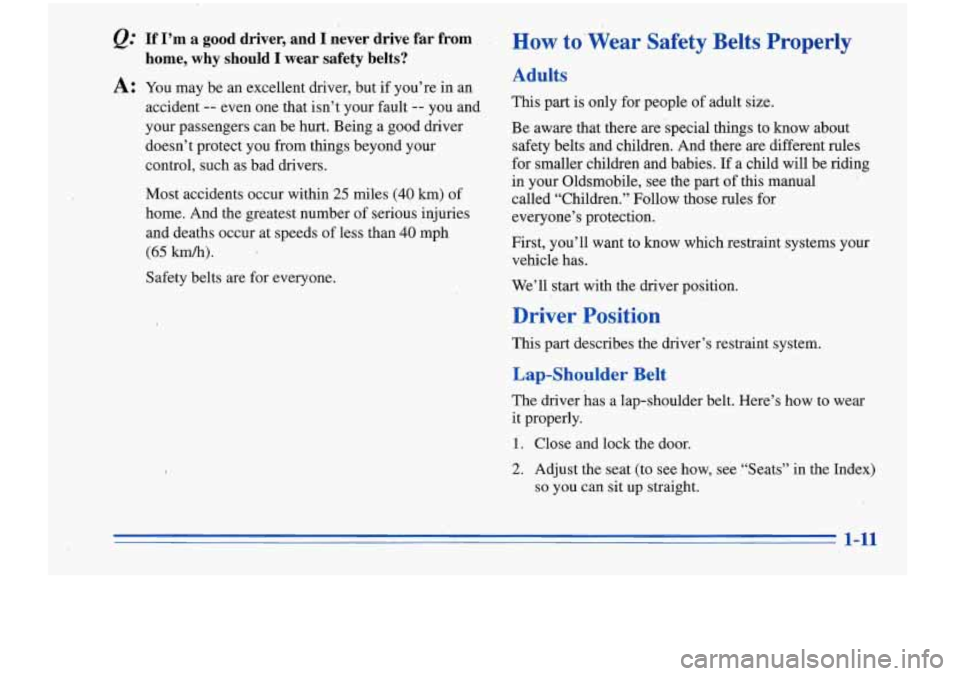

If I’m a good driver, and I never drive far from
home, why should I wear safety belts?
A: You may be an excellent driver, but if you’re in an
accident
-- even one that isn’t your fault -- you and
your passengers can be hurt. Being a good driver
doesn’t protect you from things beyond your
control, such as bad drivers.
Most accidents occur within
25 miles (40 km) of
home. And the greatest number of serious injuries
and deaths occur at speeds of less than
40 mph
(65 km/h).
How to‘ Wear Safety Belts Properly
Adults
This part is only for people of adult size.
Be aware that there are’special things to know about
safety belts and children. And there are different rules
for smaller children and babies.
If a child will be riding
in your Oldsmobile, see the part of this manual
called “Children.” Follow those rules for
everyone’s protection.
First, you’ll want to know which restraint systems your
vehicle has.
We’ll start with the driver position.
Safety
belts are for everyone.
Driver Position
This part describes the driver’s restraint system.
Lap-Shoulder Belt
The driver has a lap-shoulder belt. Here’s how to wear
it properly.
i. Close and lock the door.
2. Adjust the seat (to see how, see “Seats”
in the Index)
so you can sit up straight.
1-11
Page 20 of 356

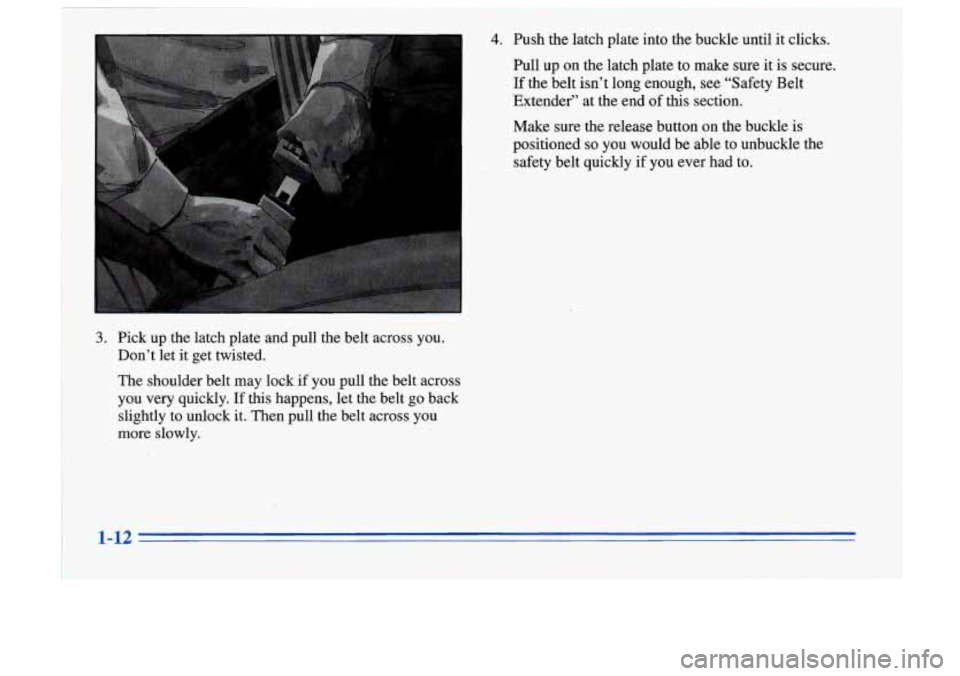

3. Pick up the latch plate and pull the belt across you.
Don’t let it get twisted.
The shoulder belt may lock if you pull the belt across
you very quickly.
If this happens, let the belt go back
slightly to unlock it. Then pull the belt across you
more slowly.
4. Push the latch plate into the buckle until it clicks.
Pull up on the latch plate
to make sure it is secure.
If the belt isn’t long enough, see “Safety Belt
Extender’’ at the end of this section.
Make sure the release button on the buckle is
positioned
so you would be able to unbuckle the
safety belt quickly if you ever had to.
